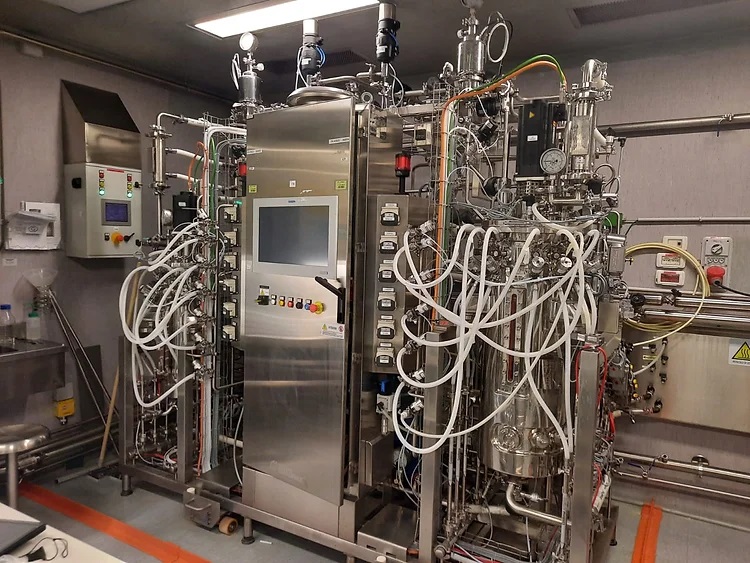

TECNinox Fermenter/Bioreactor suitable for R&D, small batch production, pilot plant

New & Unused

This unit has the ability to run multiple types of organisms singularly from a minimum fermentation volume of 7.5l to a maximum of 75l. However the unit can run, district volumes in between with the break point at 20l 30l giving the operator great flexibility.



General Description

Fermenter geometry 3:1

Fermenter head without sharp edges to improve cleaning, GMP gasket

Fermenter head with TC connections of various sizes (3/4, ½, 1), use them for additions, feeding, inoculation, etc.

Working volume for 36L bioreactor: 20L, Minimum working volume 7.5L (positioning holder for probes)

Working volume for 74L bioreactor: 50L, dependent on position of last impeller

Operational pressure range: -0.01 to 3. 00 bar g

Double mechanical seal

Motor position: overhead motor shaft, as close as possible to sparger and bottom

Impellers 3 Rushton / 3 Pitched Blade

Configurable motor speed 50-1500 rpm

Toroidal sparger with possibility of coupling and uncoupling

Exhaust gas condenser

Integrated CIP system

Exhaust gas management: double exhaust gas line after the outlet filter (the gas line must divide into two branches: one direct to the spent gas analysis system (airnova) and the other to the drain/waste)

Aeration 0 to 2. 5 VVM

Inlet air from above and from the sparger, with flowmeter

O2 inlet: 0 to 2.5 VVM, O2 inlet from above and from the sparger, with flowmeter

N2 inlet: 0 to 1 VVM, N2 inlet from above and from the sparger, with flowmeter

CO2 inlet 0 to 1 VVM, CO2 inlet from above and from the sparger, with flowmeter

Head pressure adjustment: automatic

Fixed speed pump with remote control

Variable speed pumps, two bottom valves

Bottom valve filter

Integrity test:  integrated housing to perform in situ integrity test

Loading soil hole for manual loading

Fixed speed Peristaltic pumping, position adjacent to bioreactor pH, for control of acid/ base, CO2
