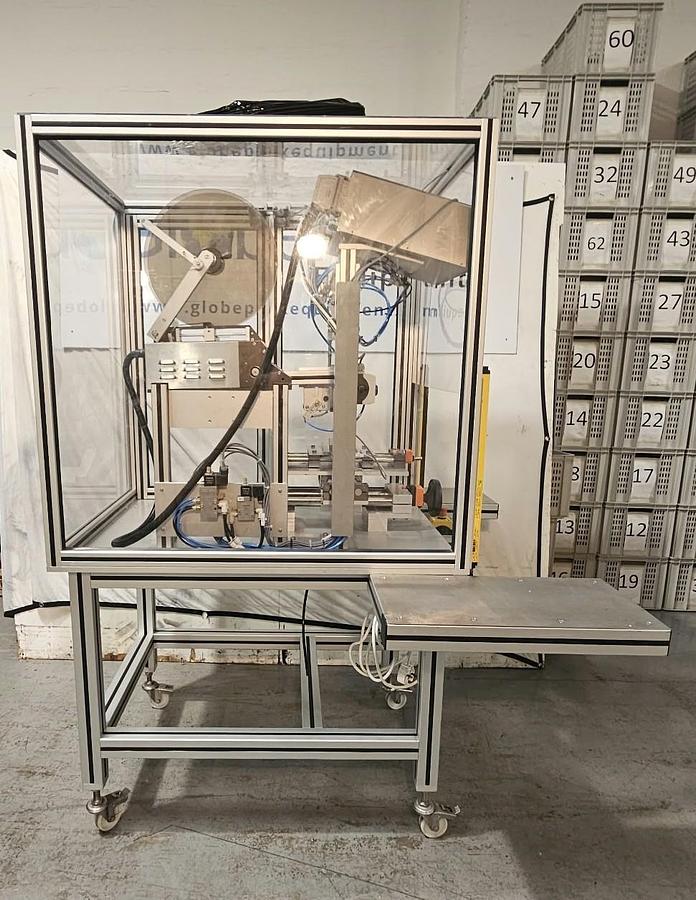

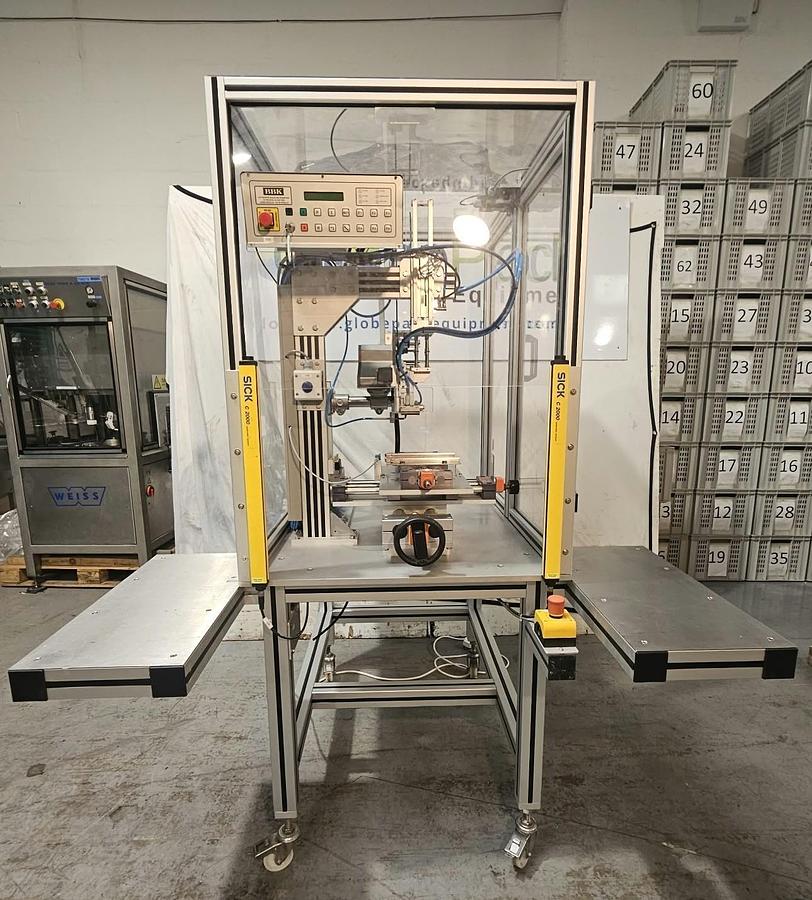

BBK Rapid S Pick & Apply Labeller

BBK model Rapid S Pick and Place Labeller

Key Information:

Beak size 70mm

Maximum label width 70mm

Platen range adjustable in width from 40mm to 200mm

No passwords required

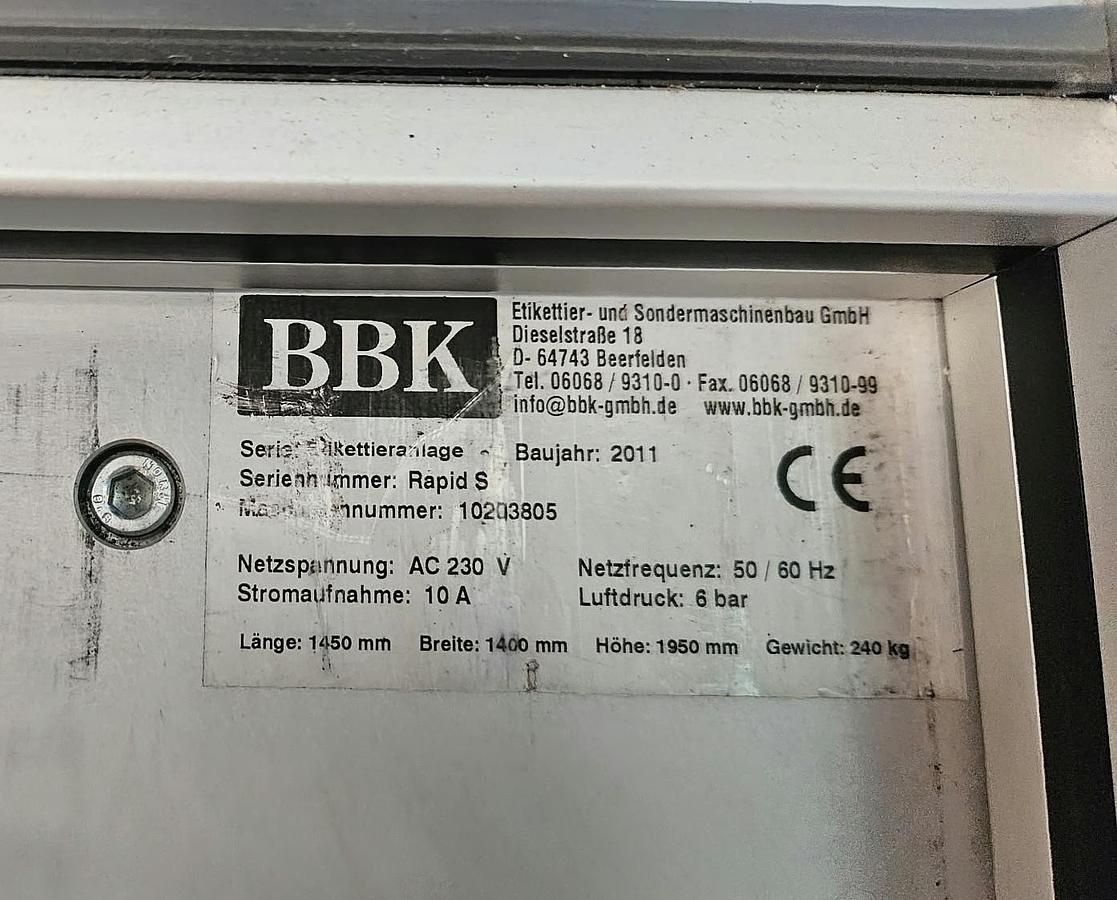

Electrical supply 24V 1Ph 13A

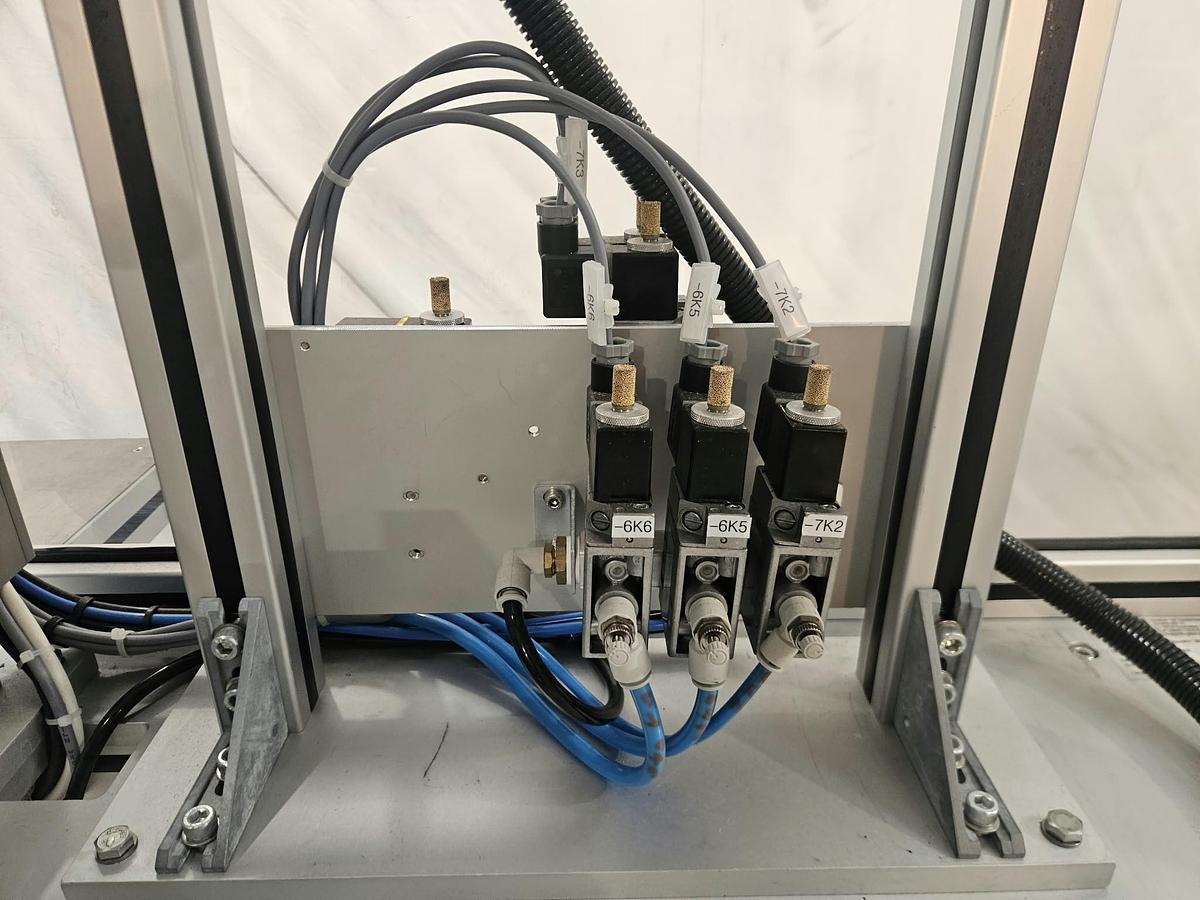

5bar air supply

CE marked

Operation:

An operator manually places an item to be labelled within the platen

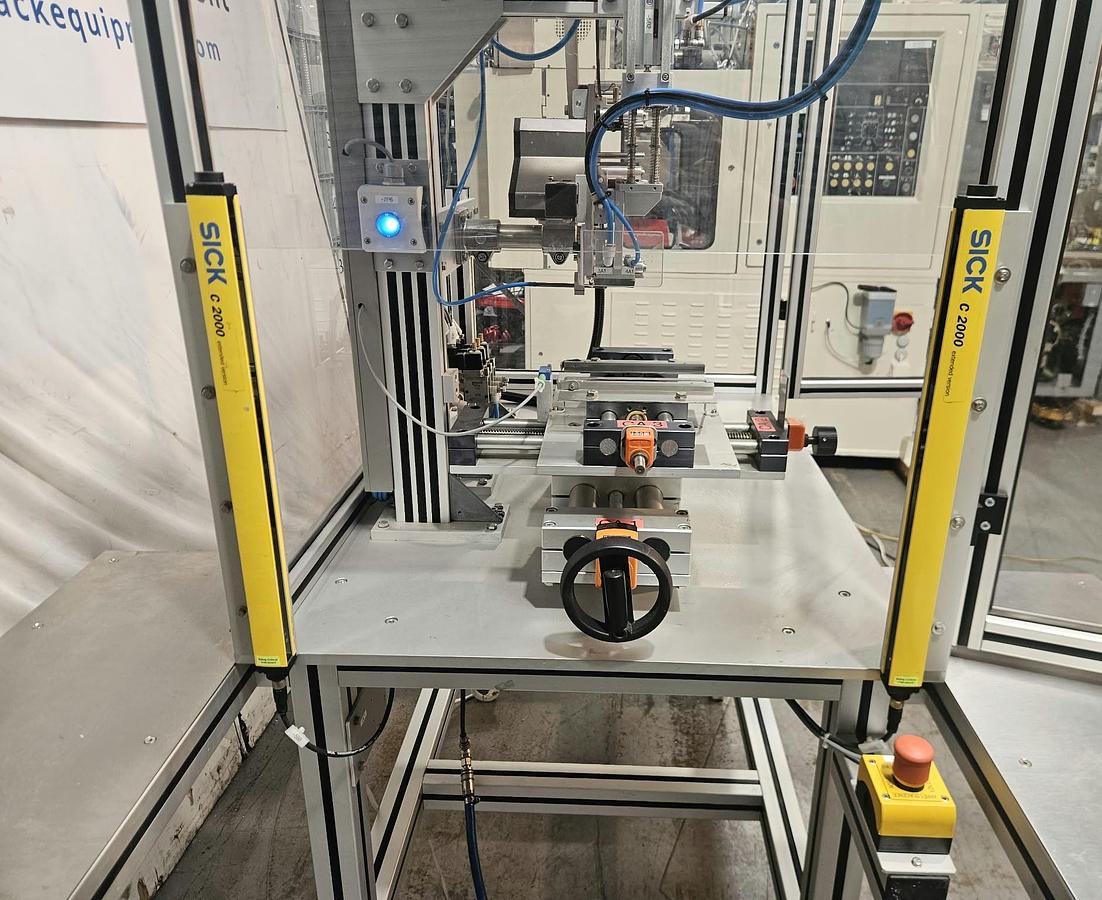

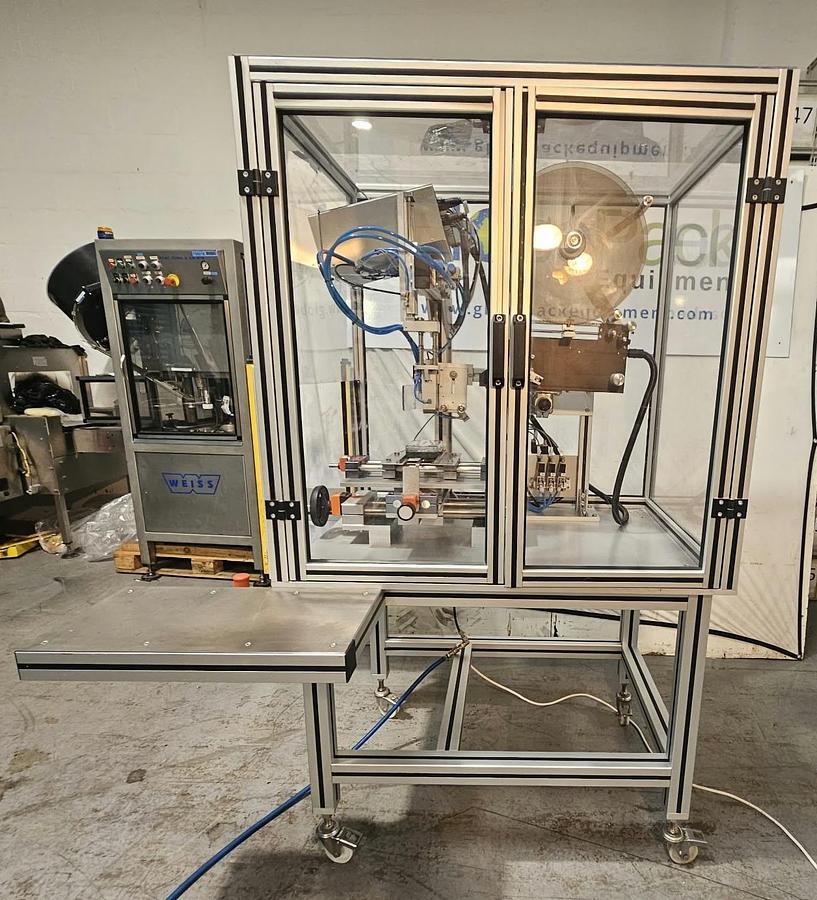

There is light curtain at the entrance to disable the moving parts while the operator is within the fully guarded machine

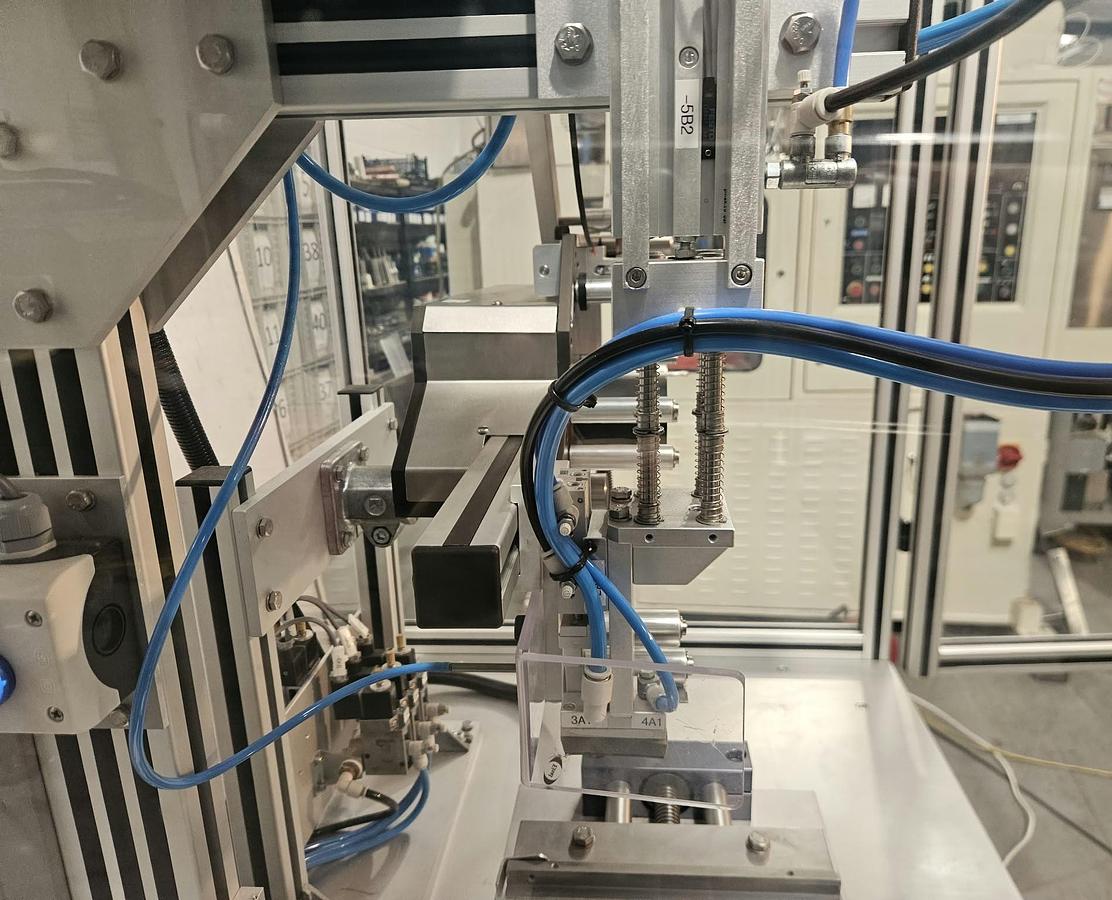

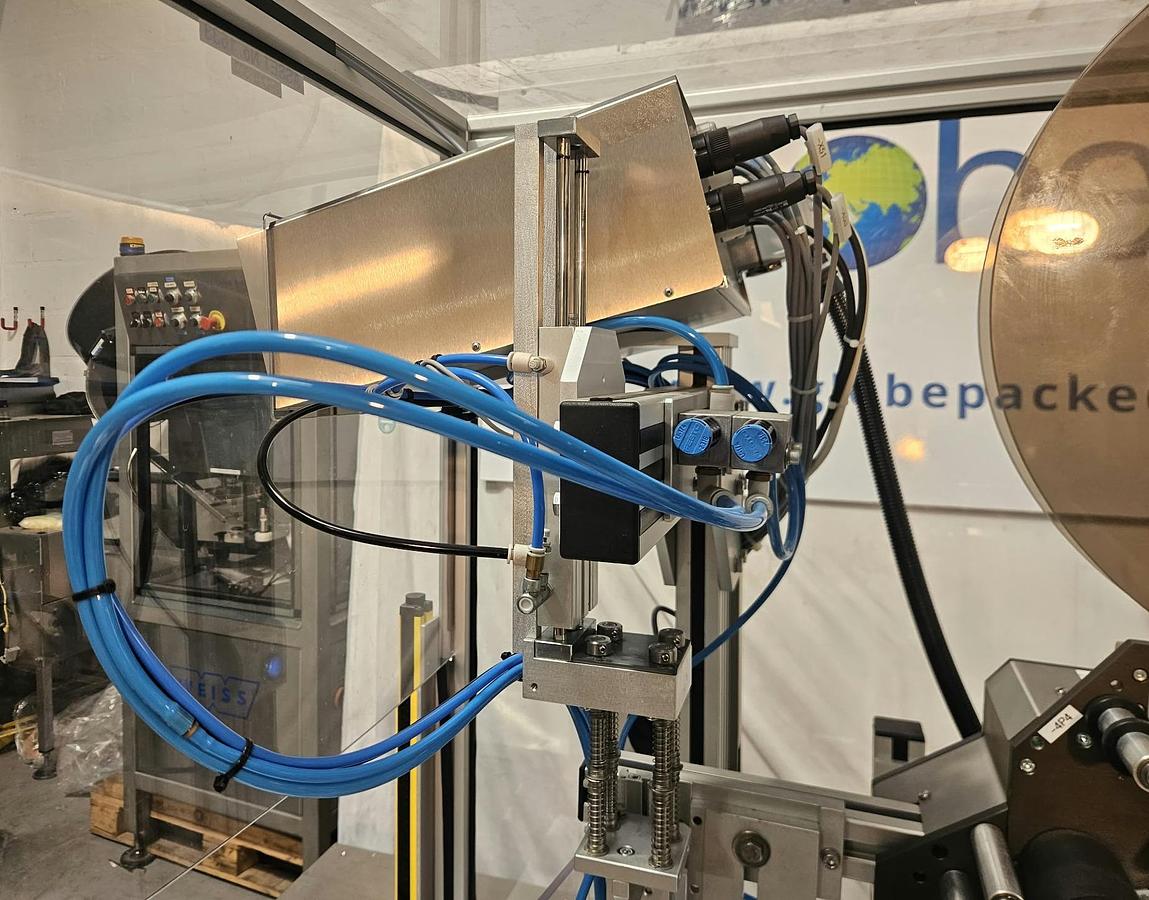

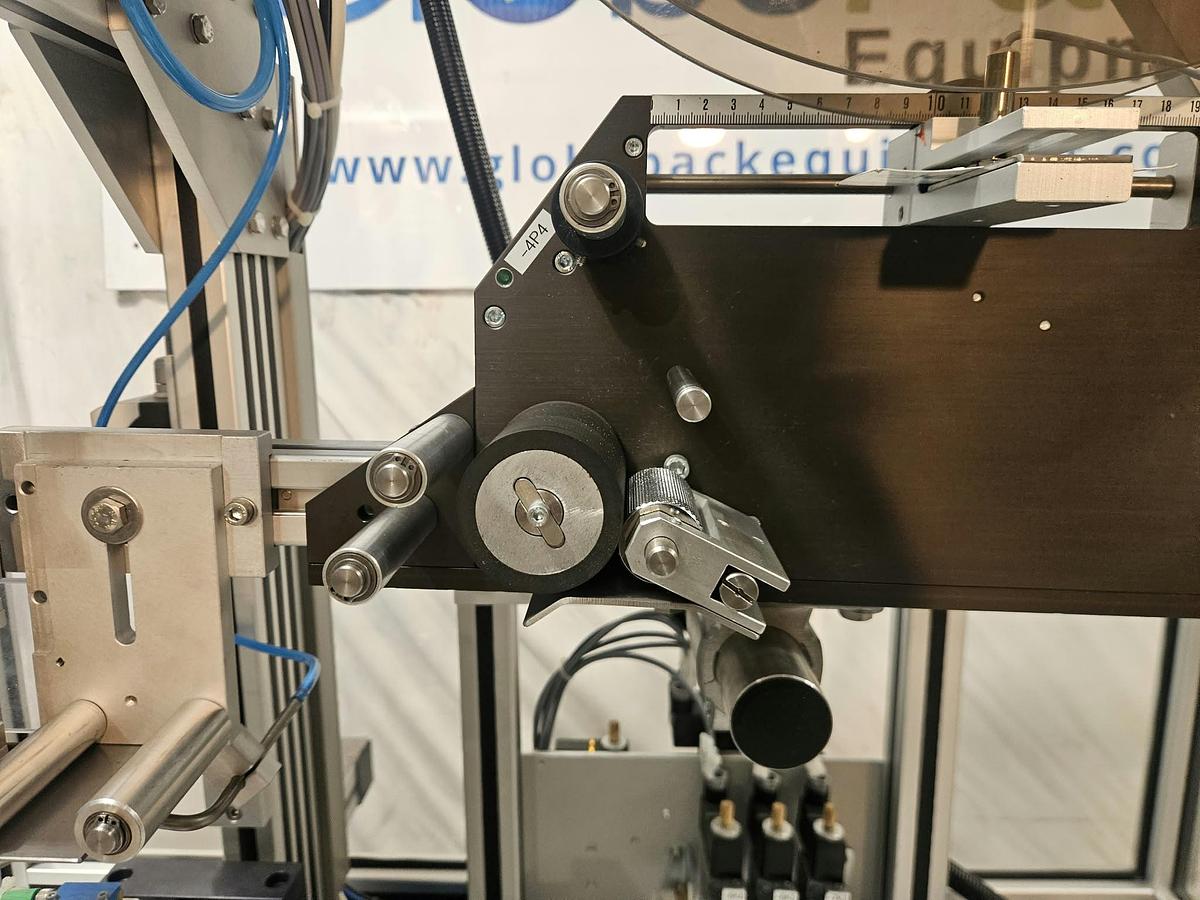

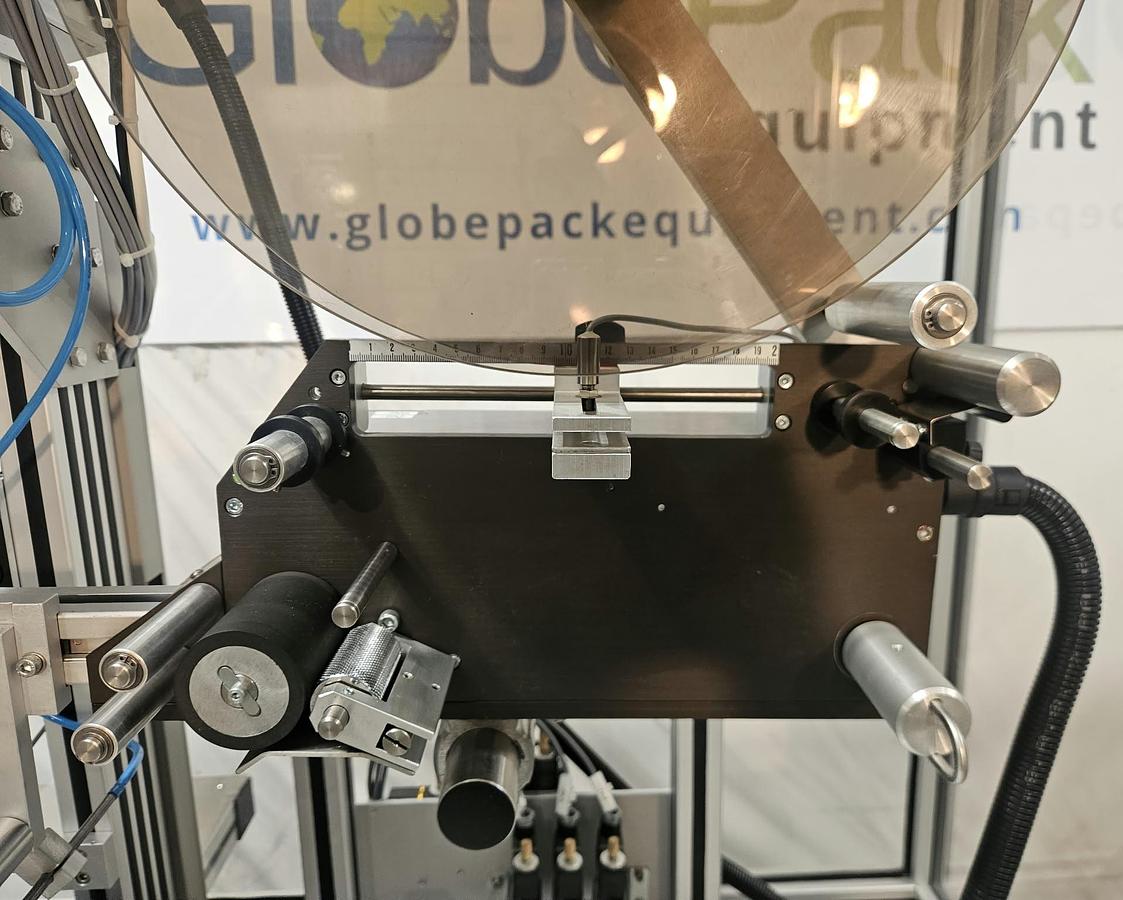

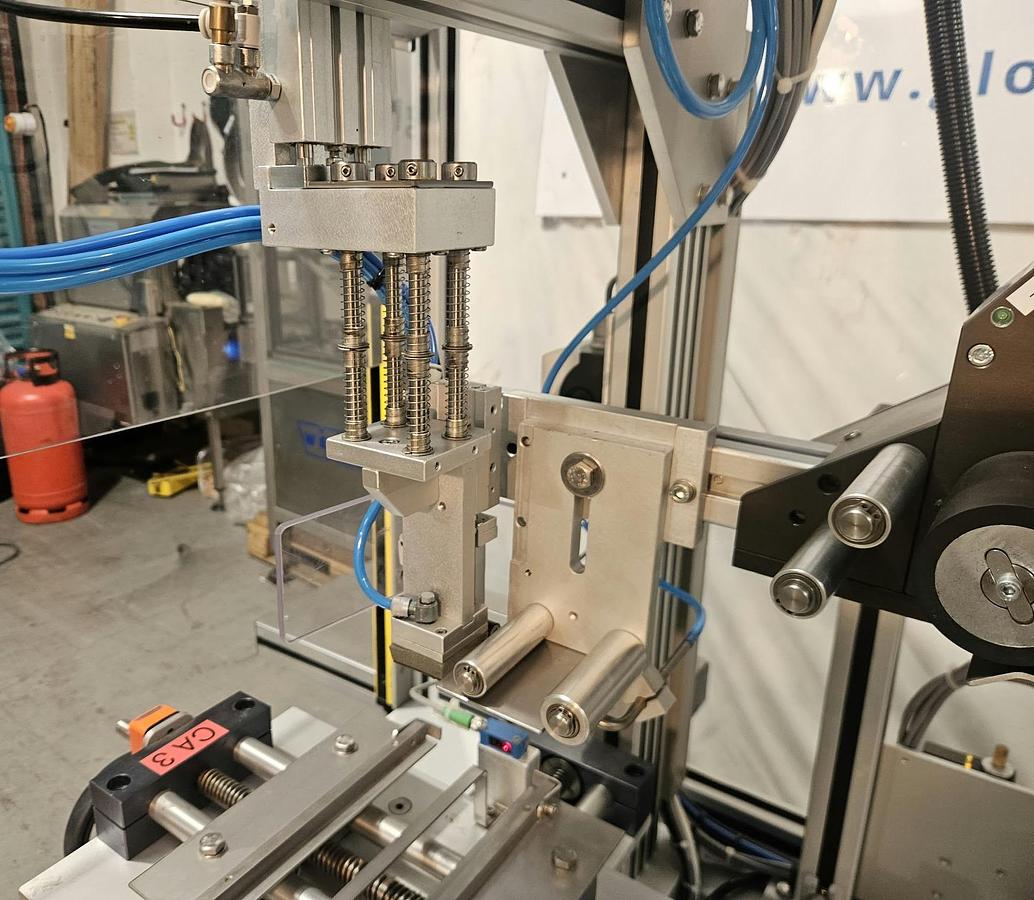

The label advances to a vacuum pick pad and travels to the item in the platen to be placed on to it

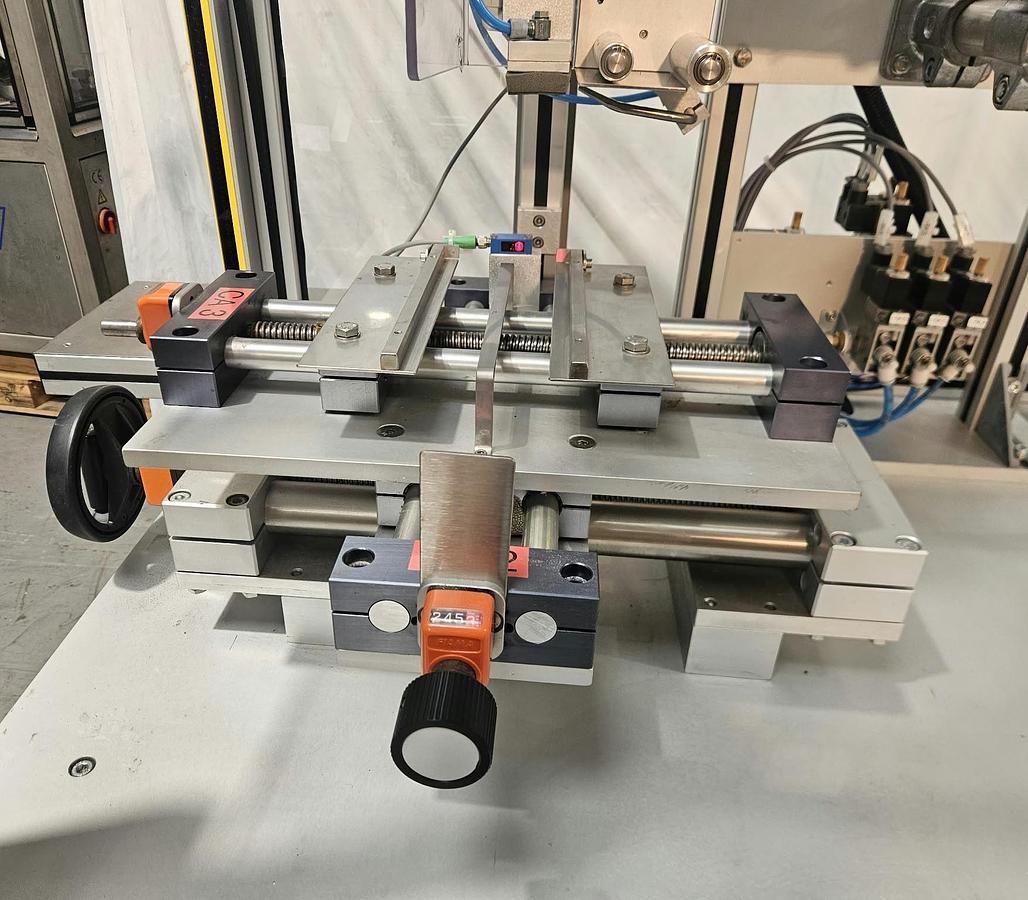

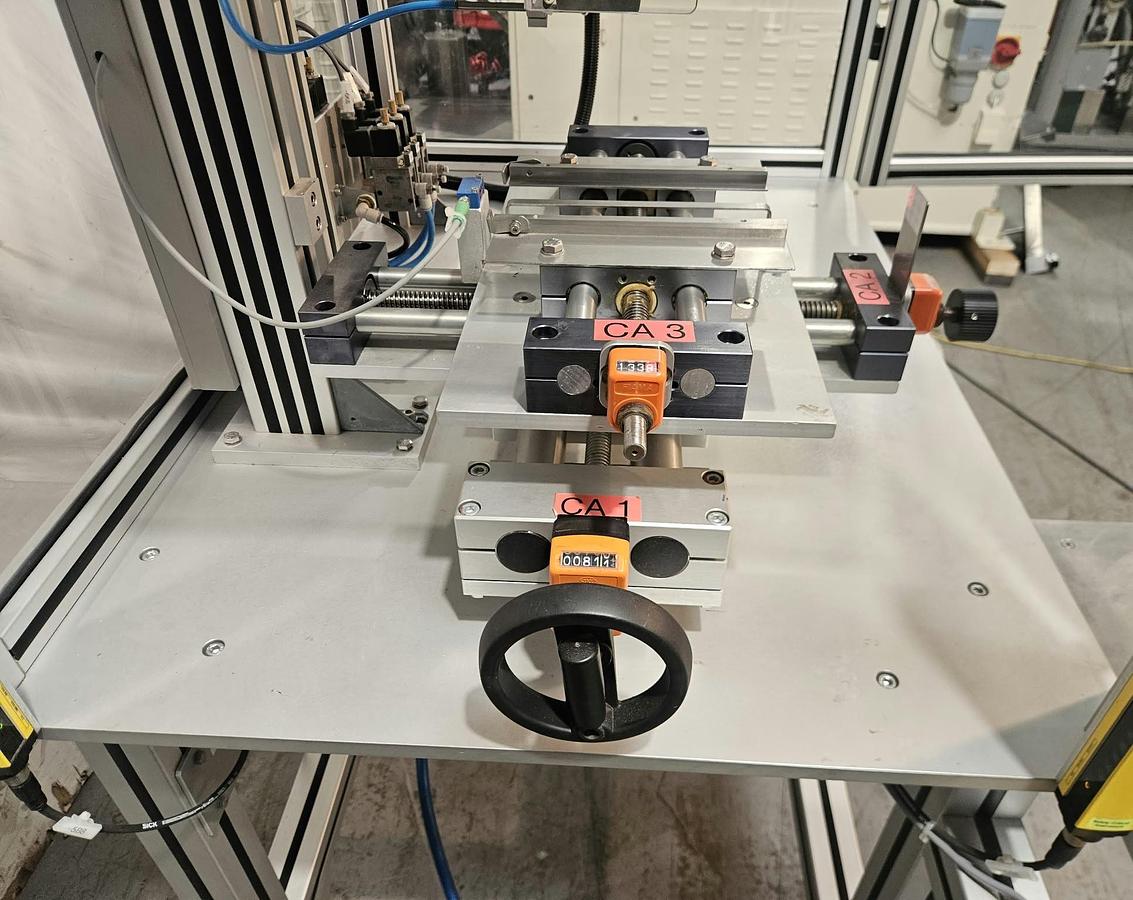

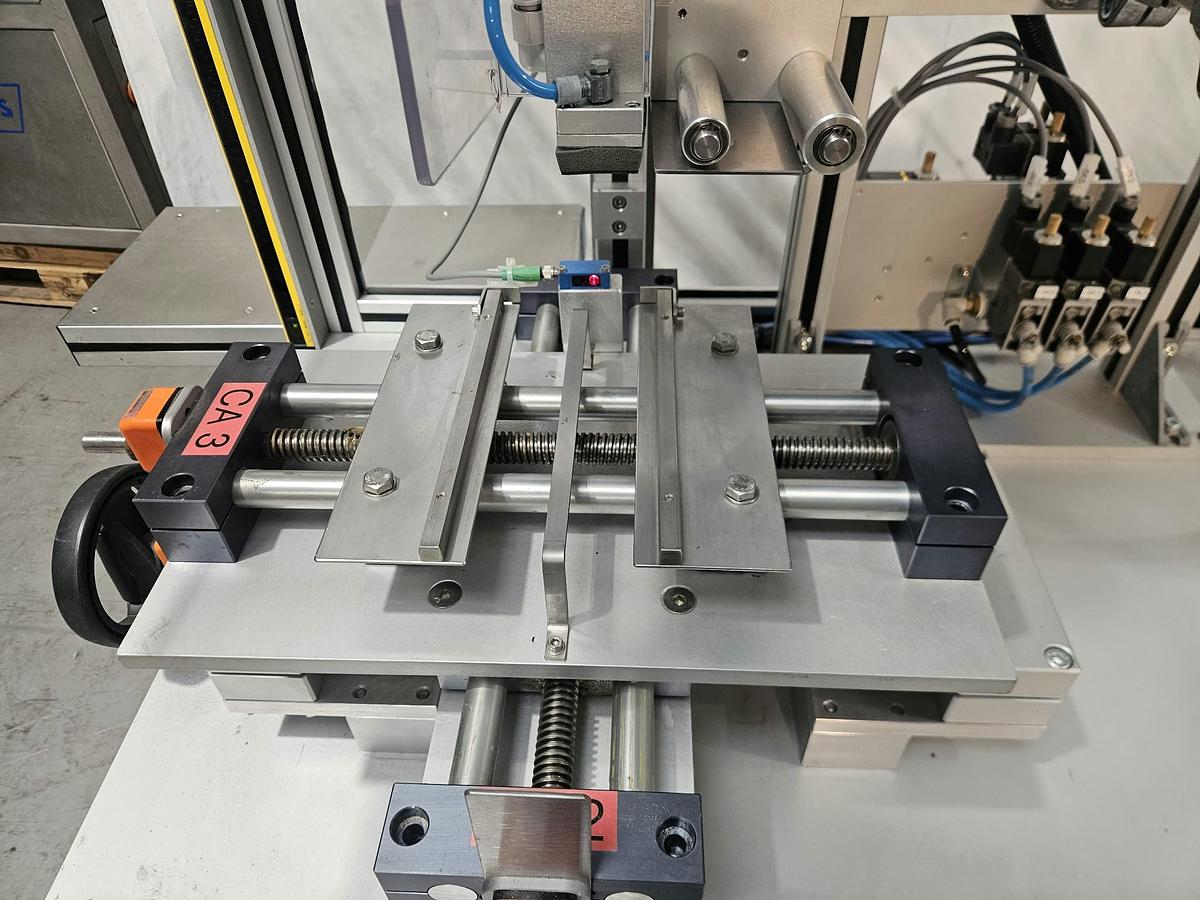

The platen is adjustable in X and Y directions to precisely place the label where needed

An operator manually removes the labelled item

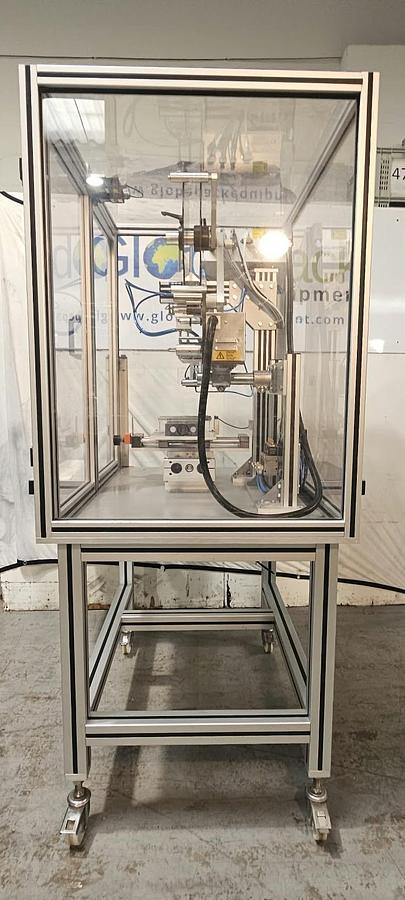

Machine size: 1450mm x 1400mm x 1935mm high

Supplied cleaned, checked and tested dry cycling
