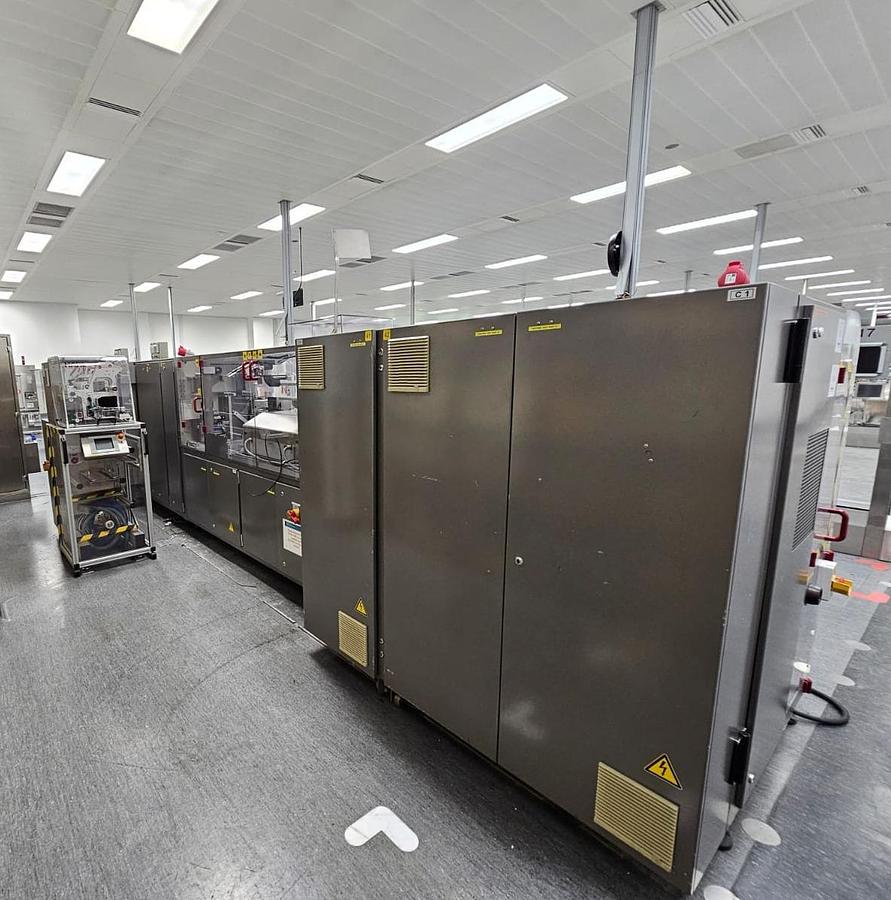

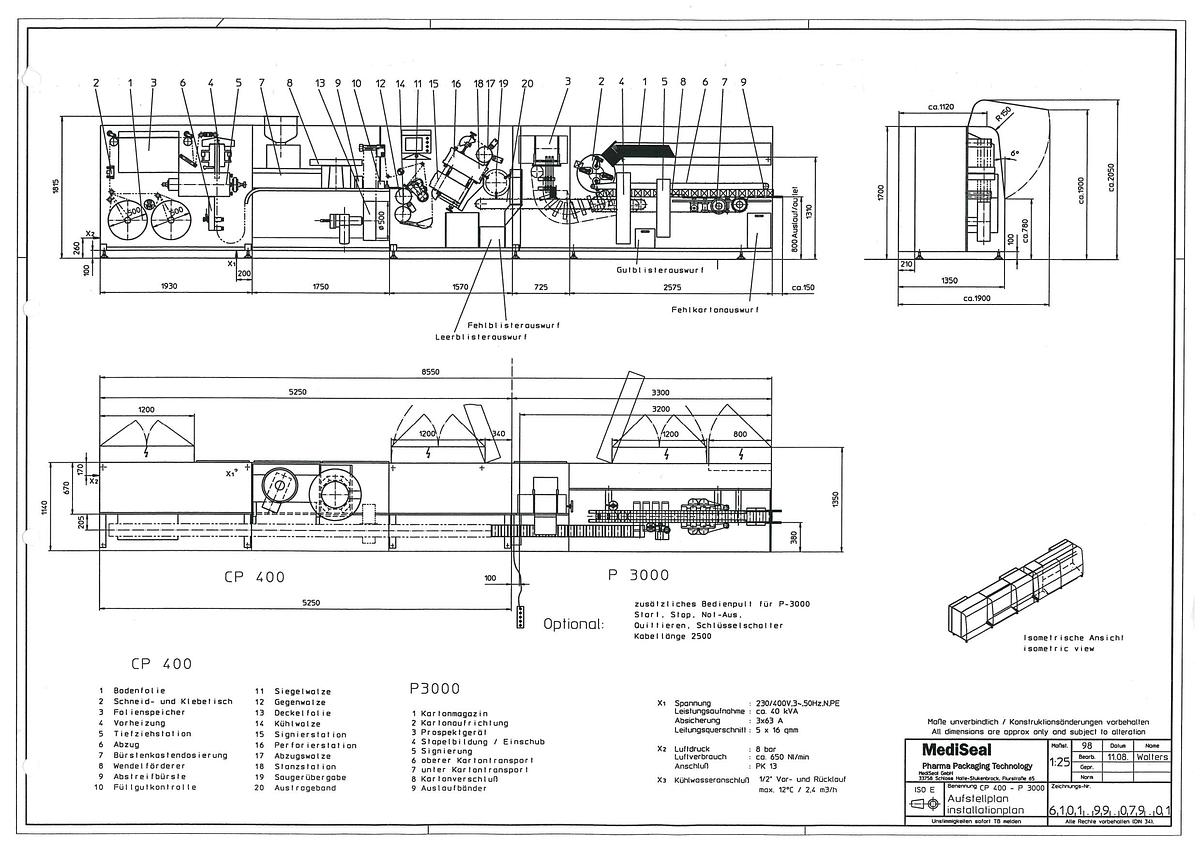

Mediseal Klöckner Medipak CP-400/P-3000 Blister Packing Line
Specifications
| Manufacturer | Mediseal Klöckner Medipak |
| Model | CP-400/P-3000 |
| Year | 2001 |
| Condition | Used |
| Serial Number | 774058 and 765055 |
| Stock Number | GP10315 |
| Blister Packer Speed | Up to 400 per minute |
| Cartoner Speed | Up to 300 per minute |
| Maximum Film Width | 160mm |
| Maximum Roll Diameter | 500mm |
| Current Set Up | PVC/ALU film |
Description
Mediseal Klöckner Medipak CP-400 and P-3000 Blister Packing Line

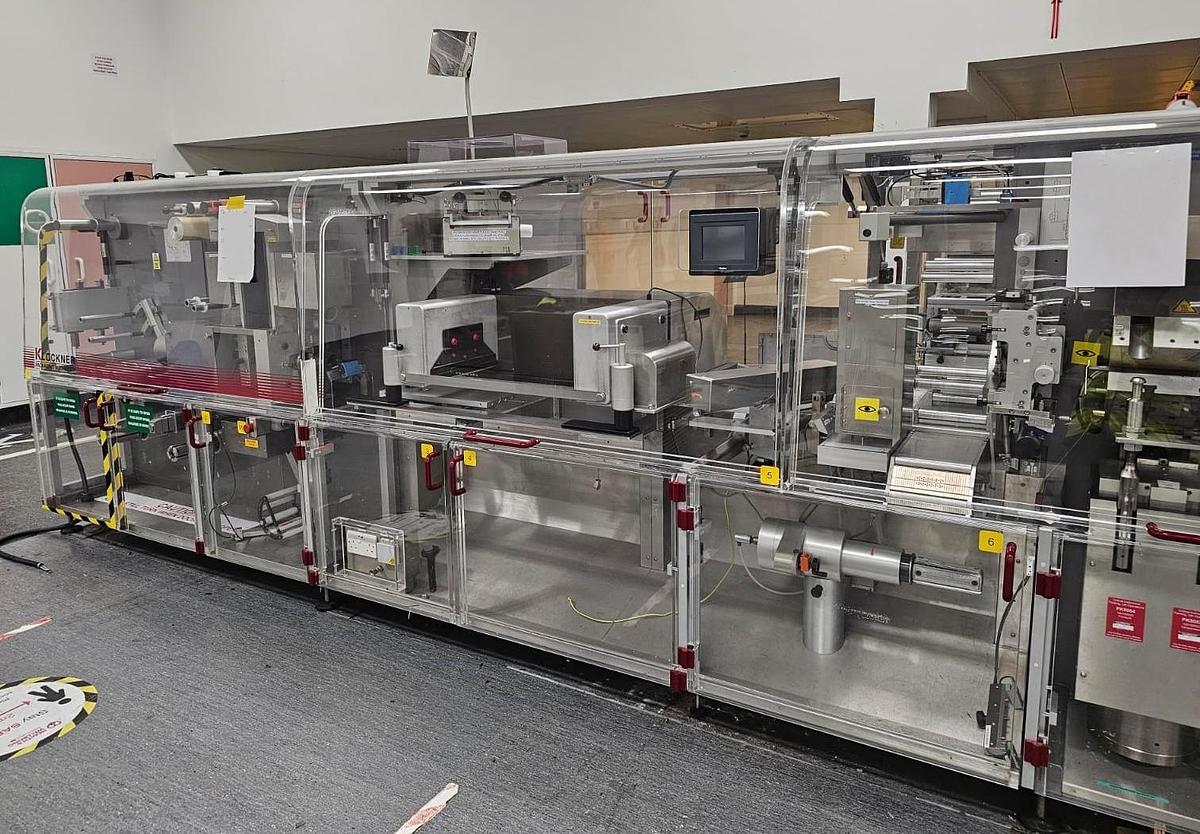

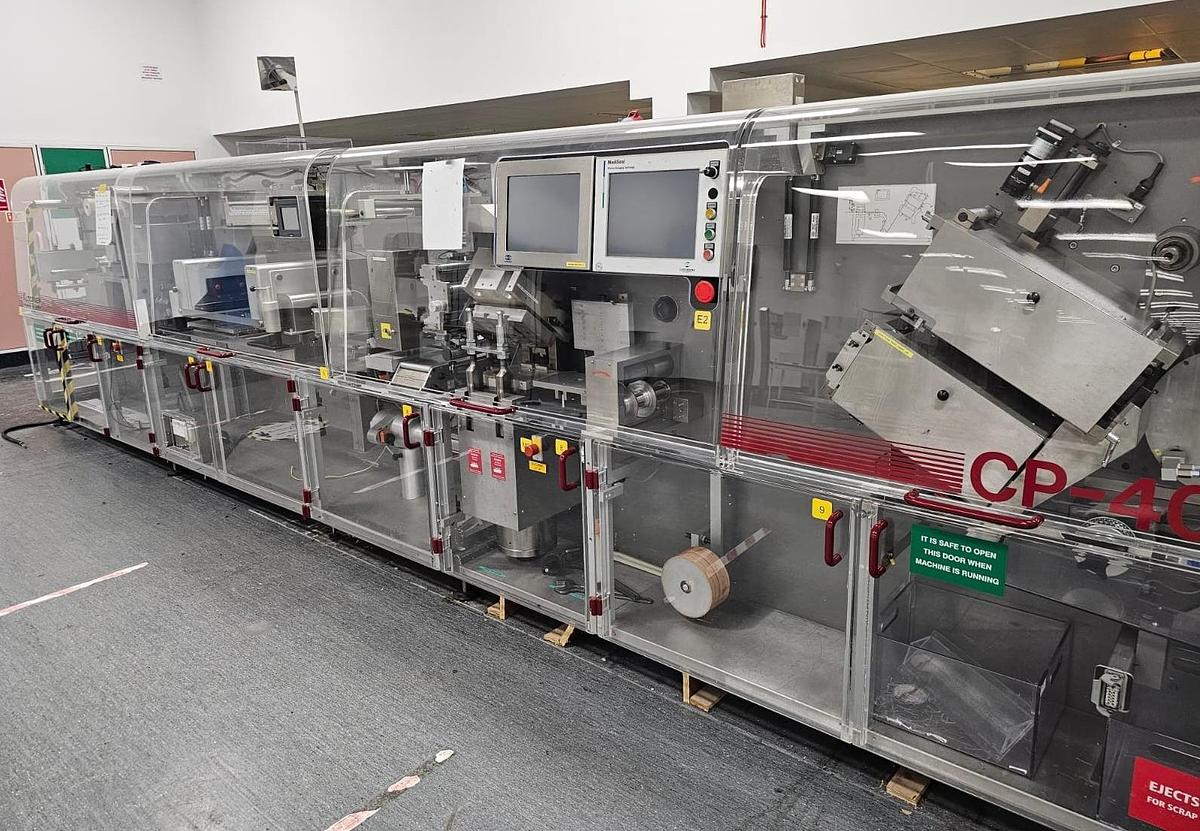

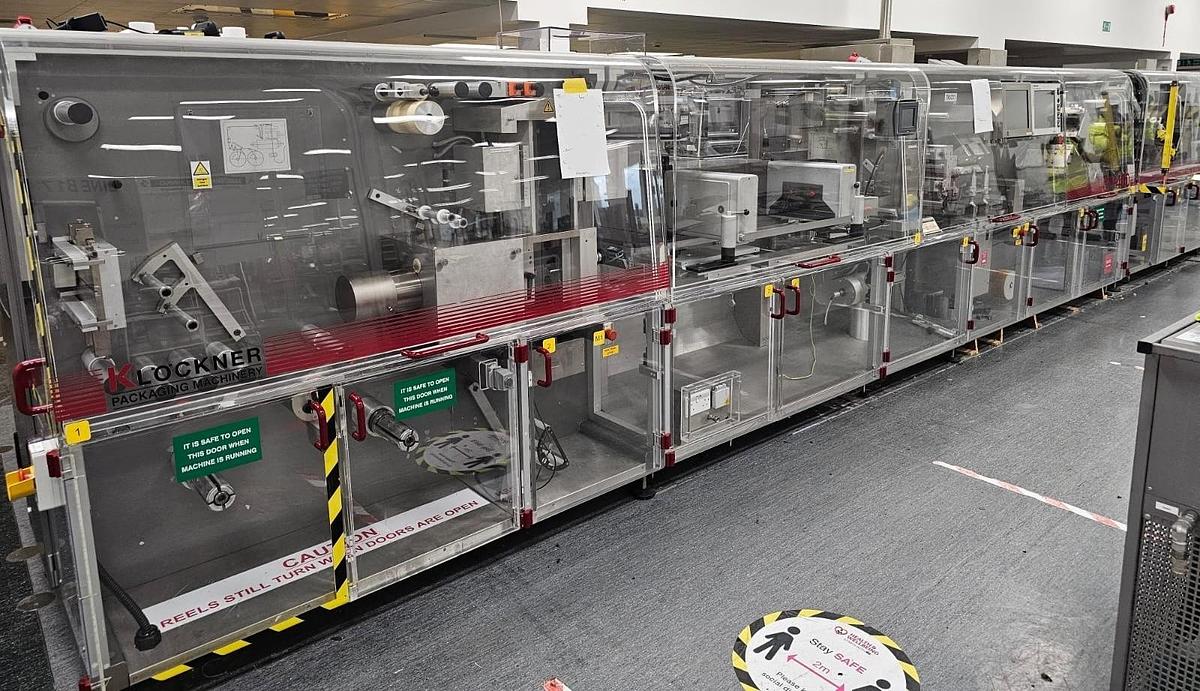

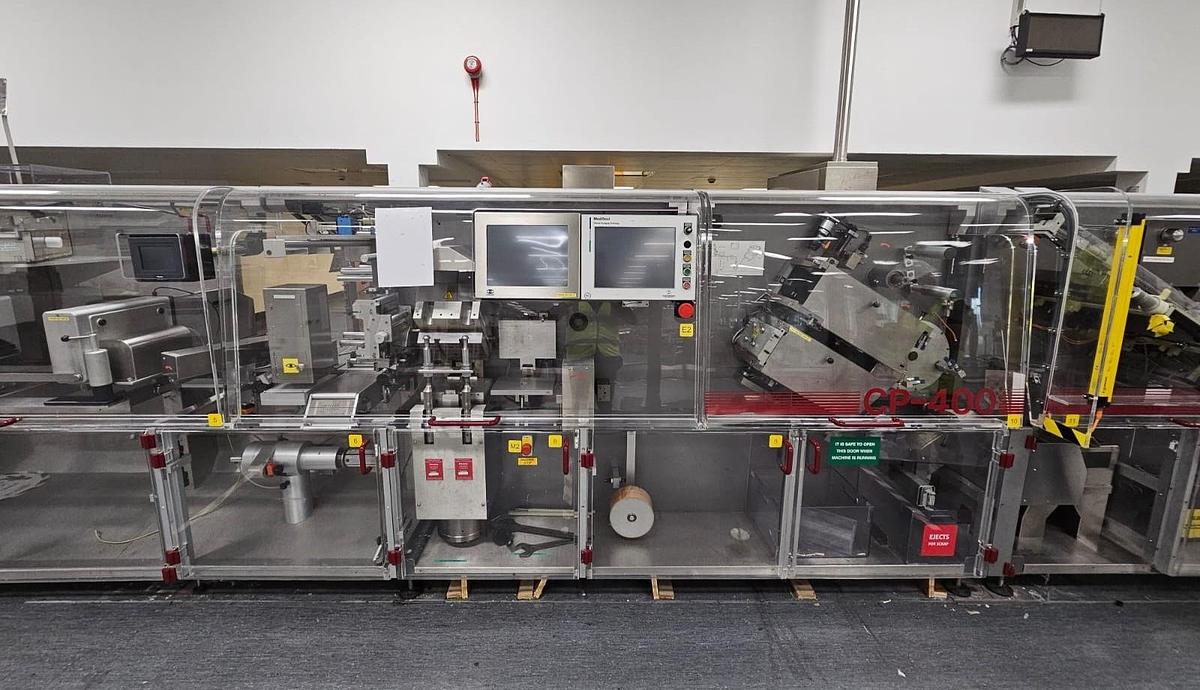

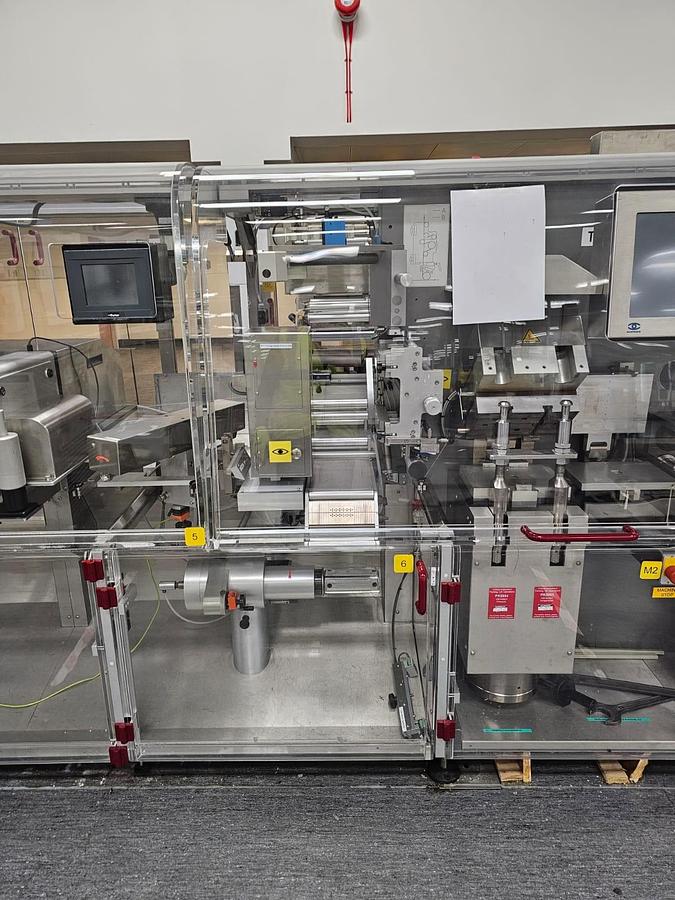

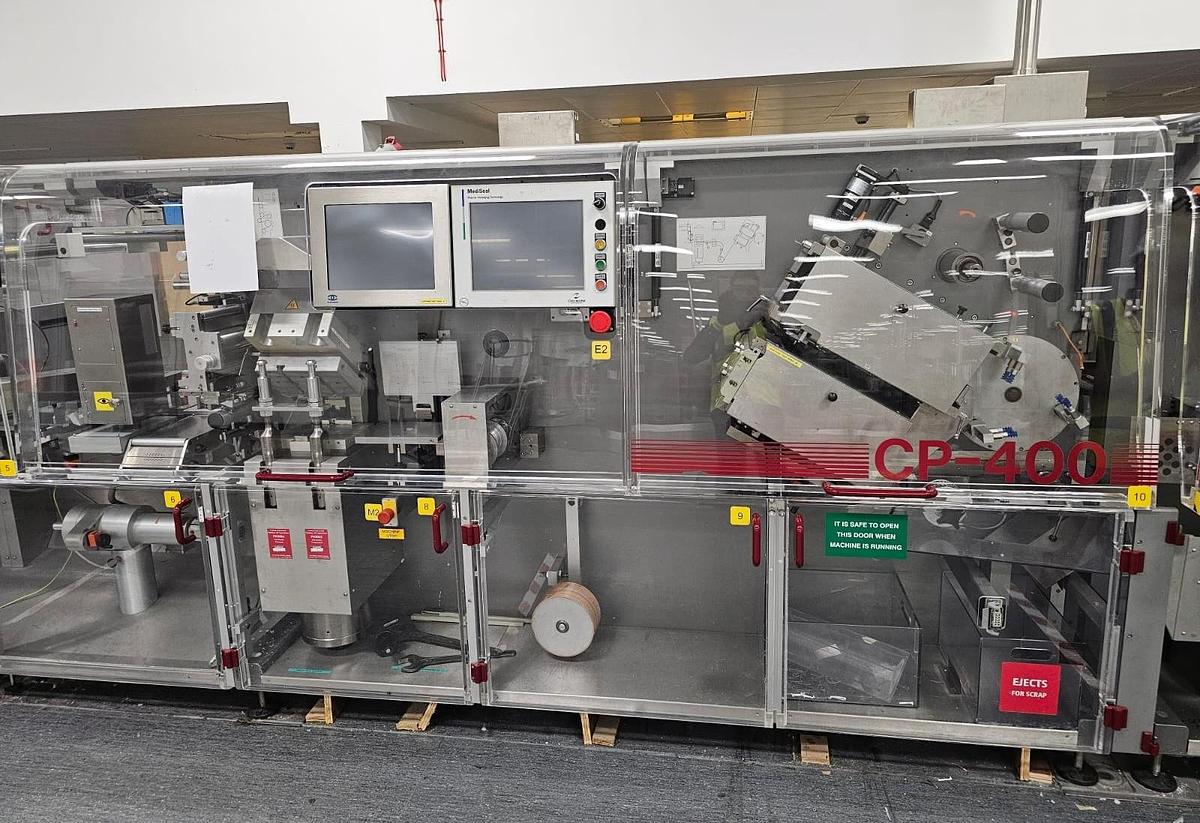

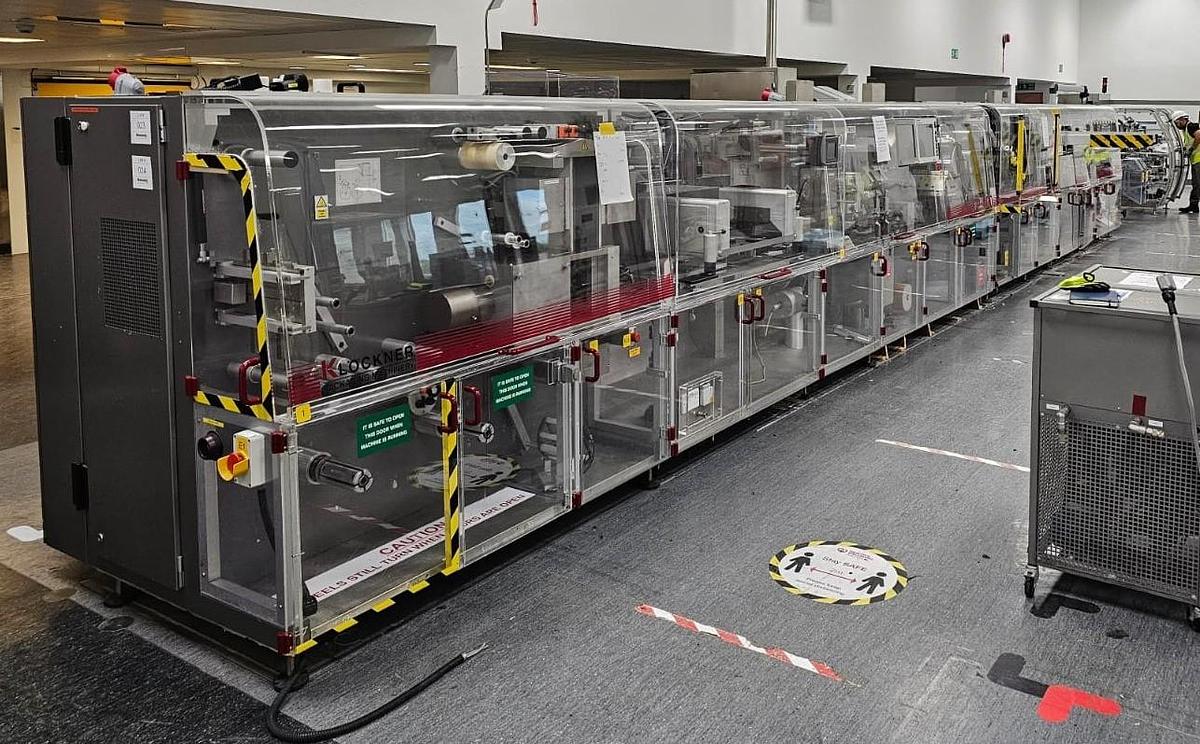

Klöckner Medipak CP-400 Blister Former
A high performance blister packaging machine designed for the pharmaceutical industry

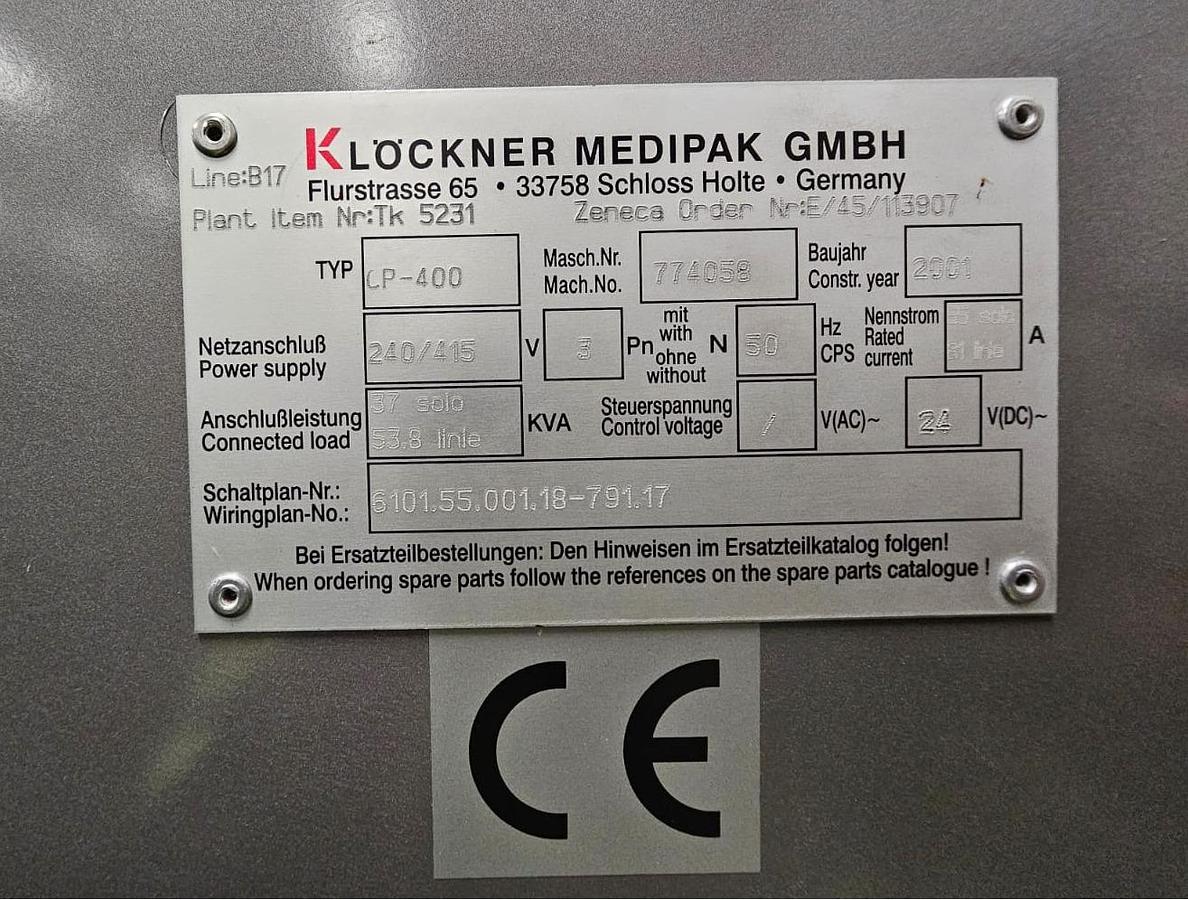

Serial number 774058, year of manufacture 2001
Currently set up for PVC/ALU film
Speeds of up to 400 blisters per minute depending on blister format
Key Information:
Maximum film width: 160mm
Maximum roll diameter: 500mm
Core diameter: 70-76mm
Two roll holders for thermoforming film with film spreader and gluing device for roll change during operation
Pull-off length: 140-220 mm in thermoforming range
Drawing depth: PVC maximum 12 mm, ALU maximum 9.5 mm
Feeding system: directional tablet feed and brush box (without format parts)
Film heating: for PVC, includes shrinkage compensation
Film tear control: for ALU
Aylward single width feeder frame (no feeder tooling supplied)
Touchscreen control panel
Additional features: signing station, perforating station, fill control with color camera Scanware
Format tools: without any format tools in the film run (forming, sealing, signing, perforating, punching)
Drive: 220/400V/50Hz

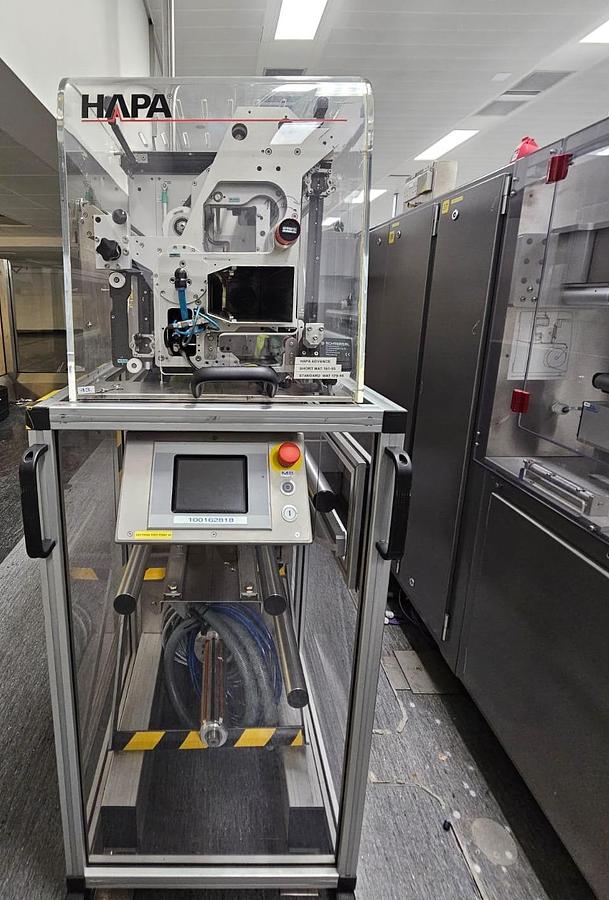

HAPA 230 lidding foil printer
CE Marked

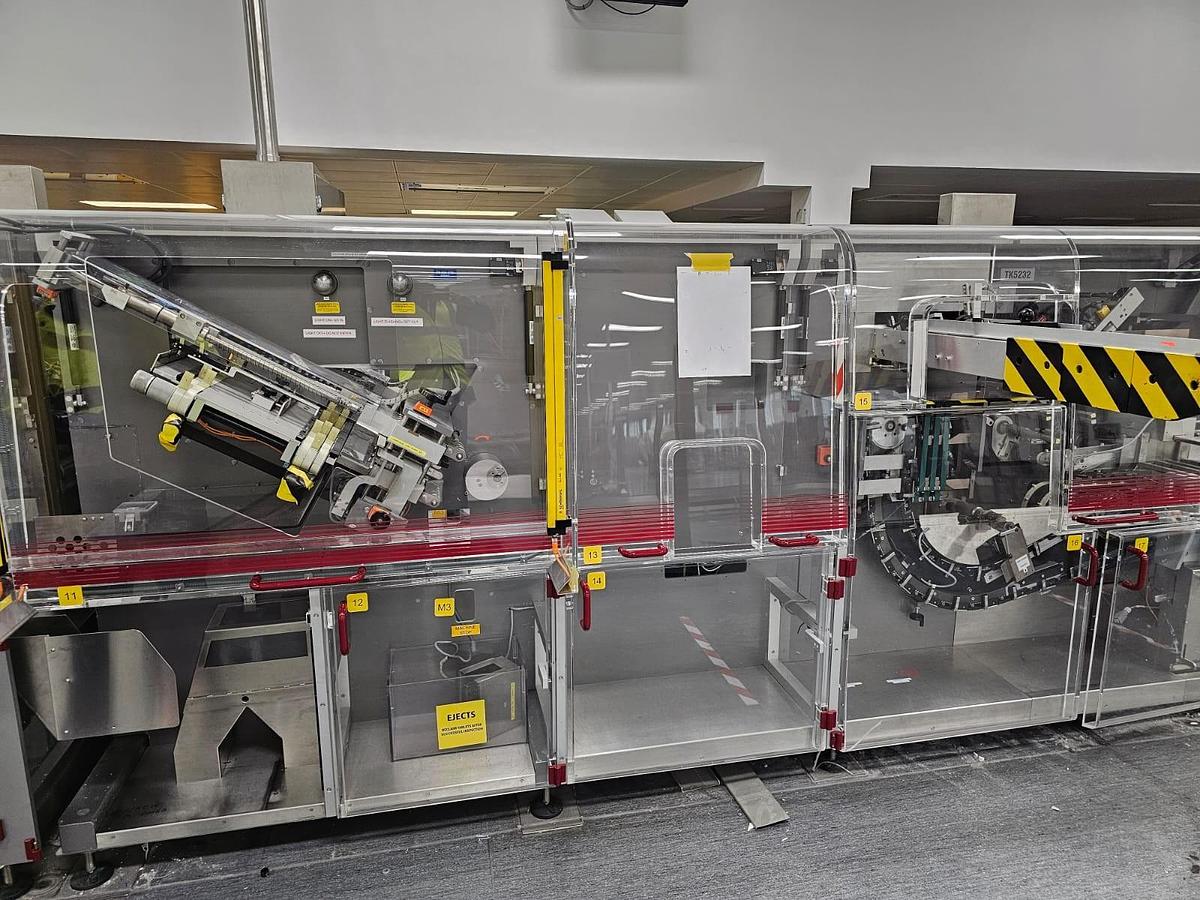

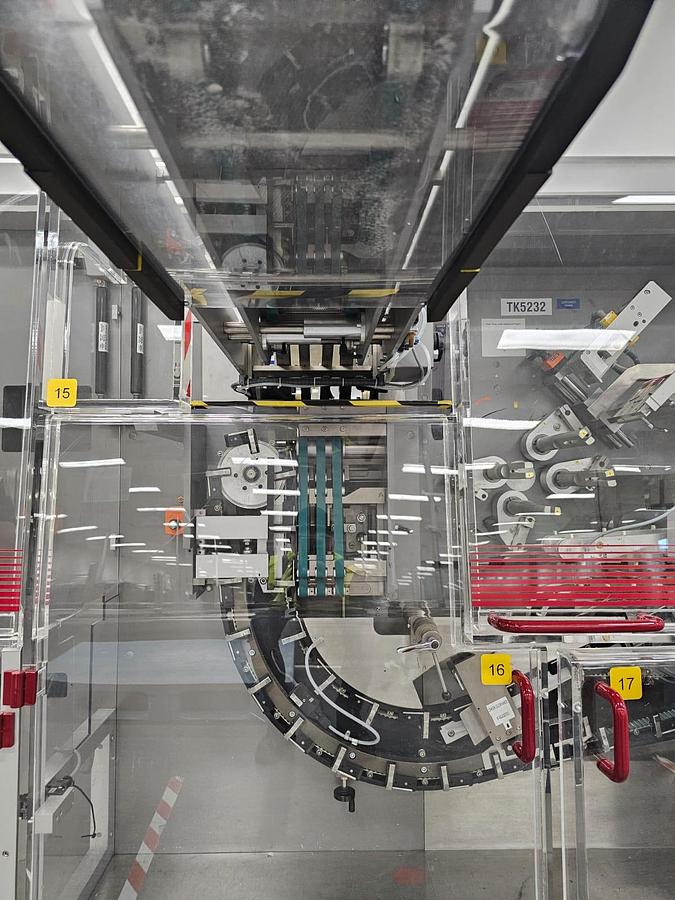

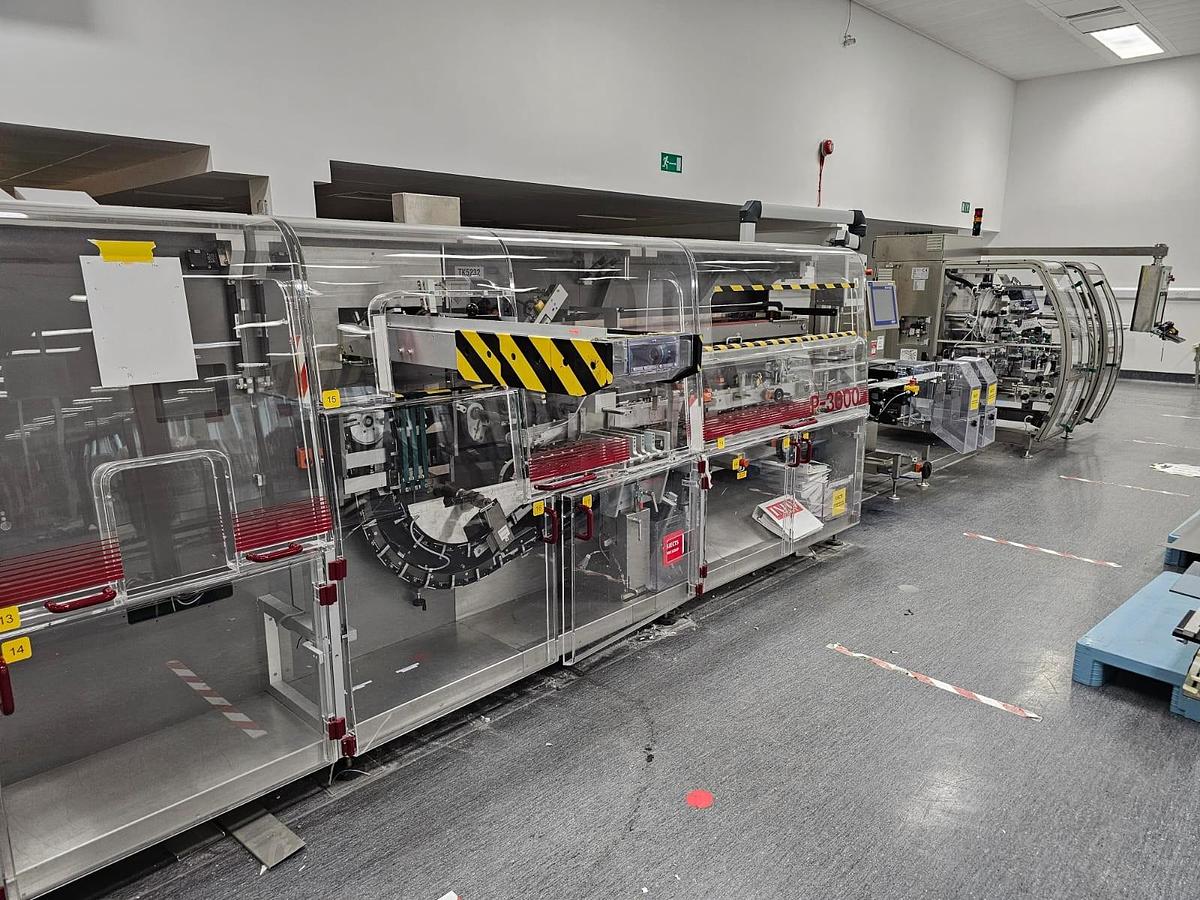

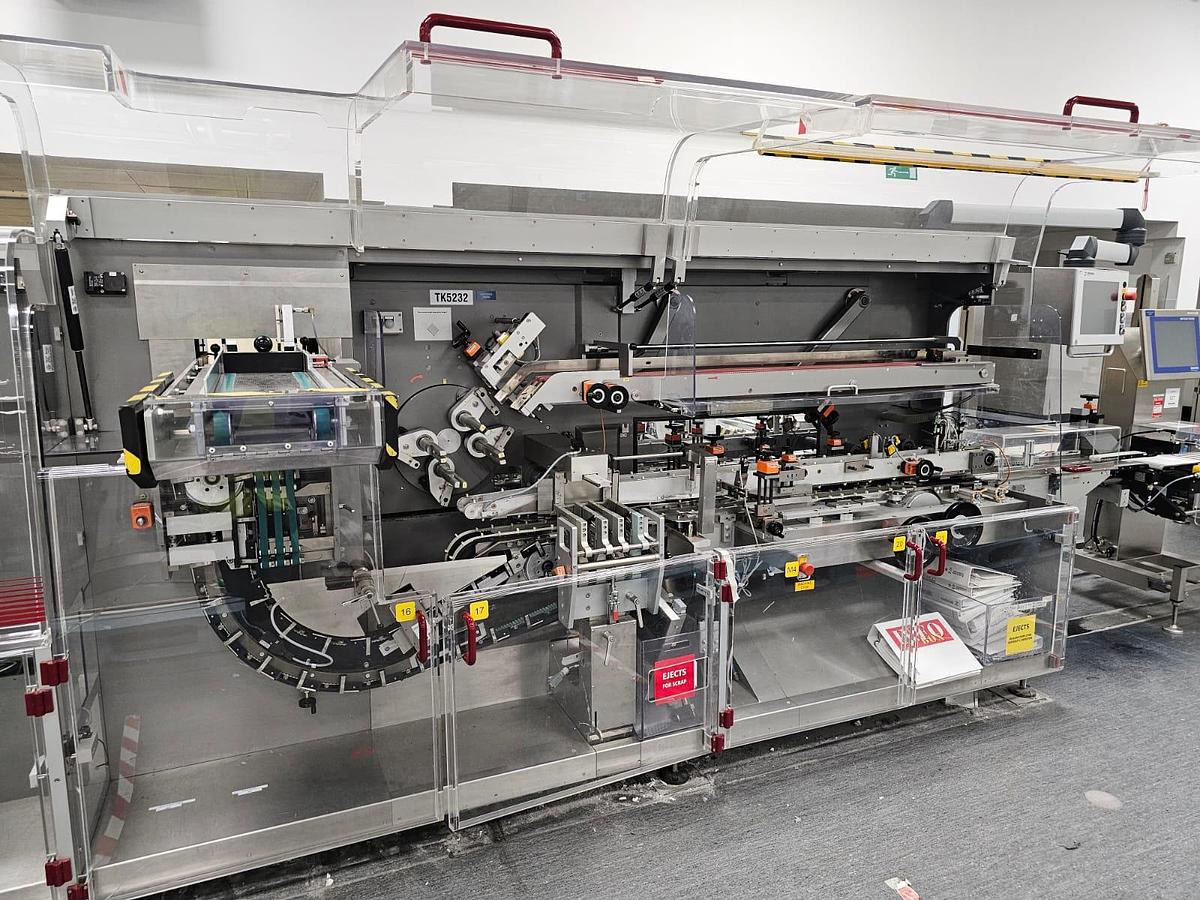

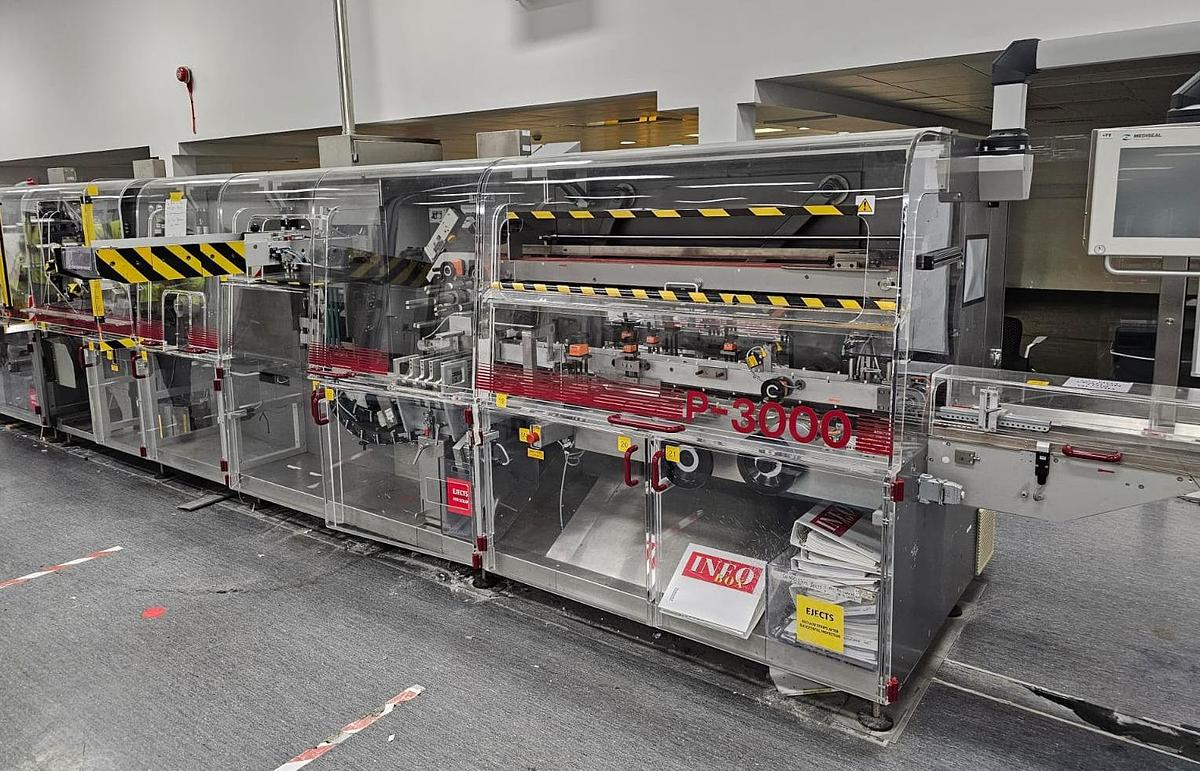

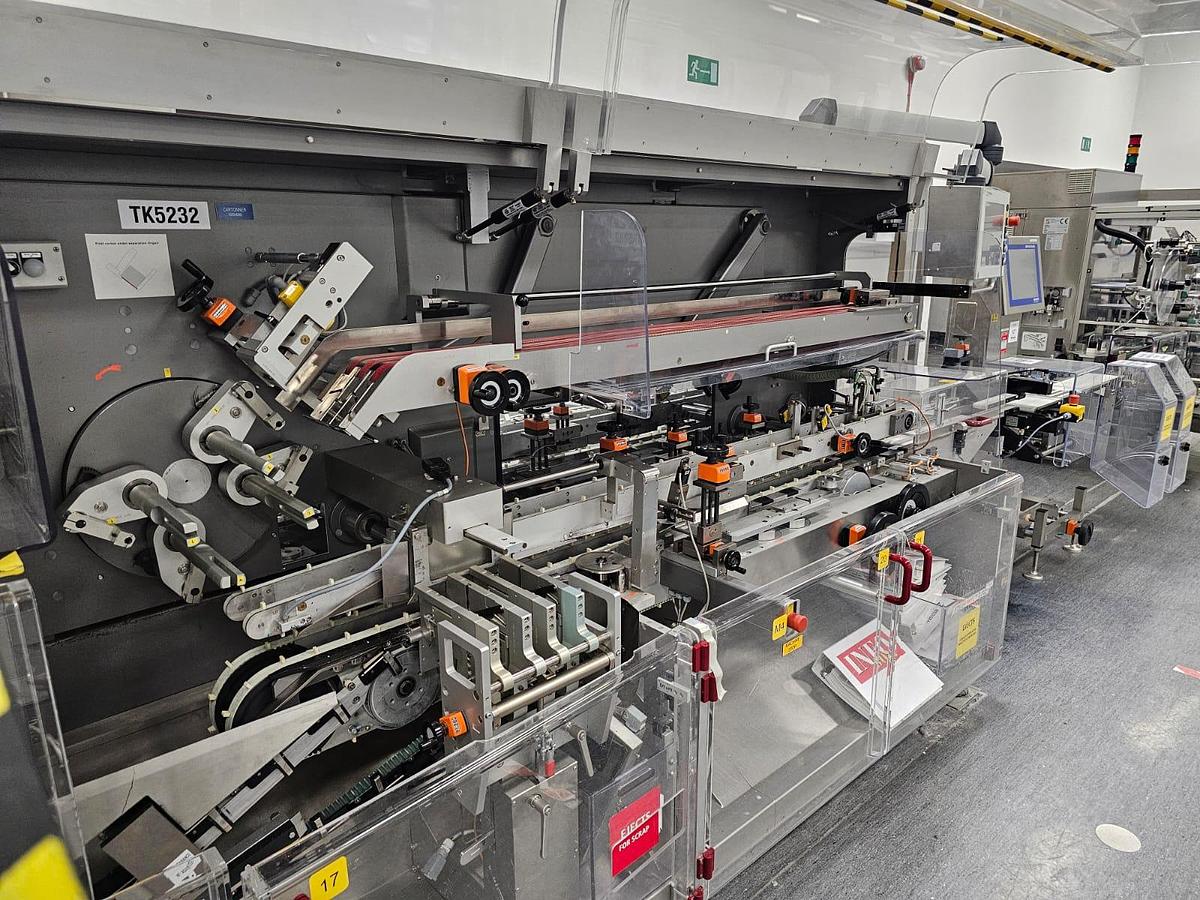

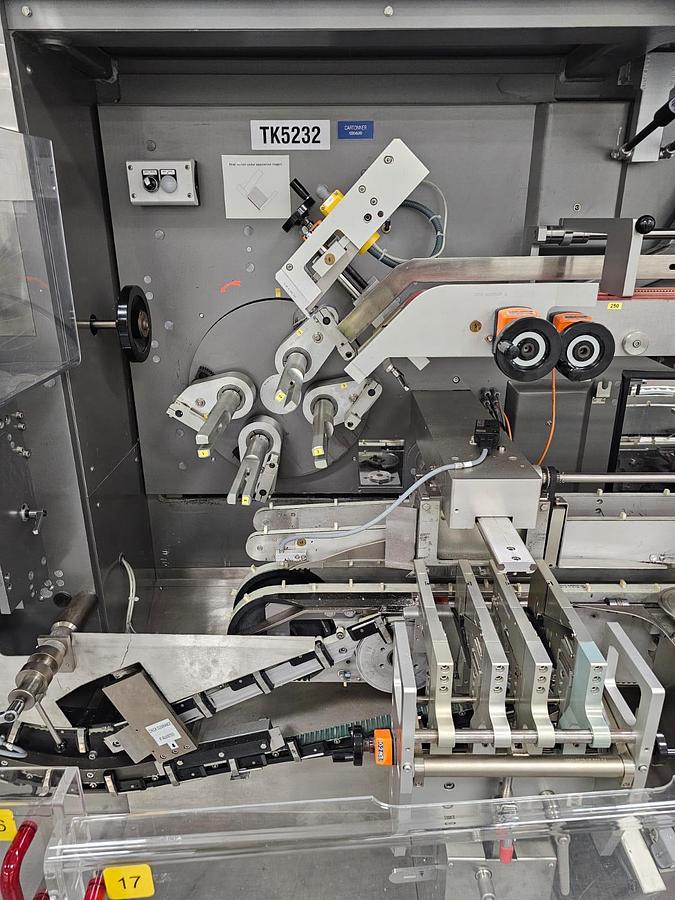

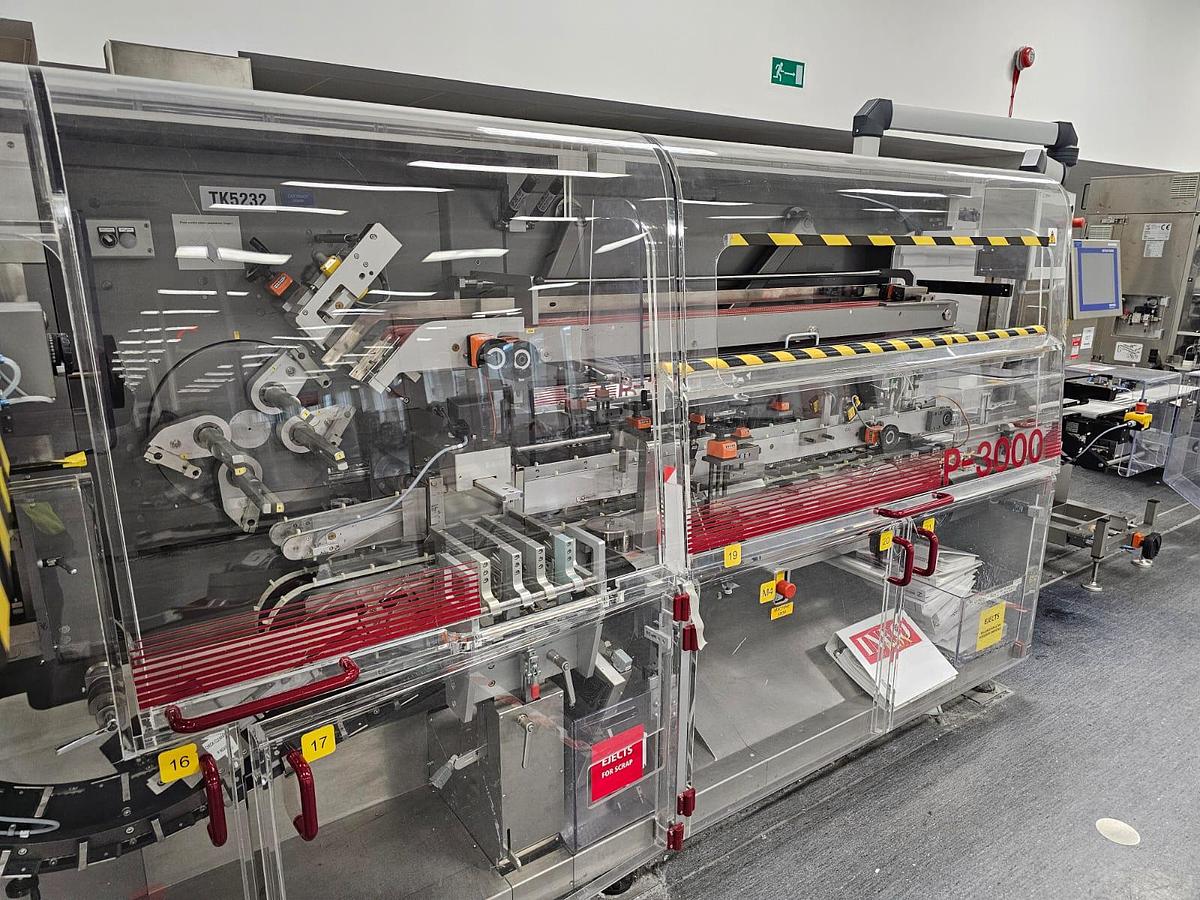

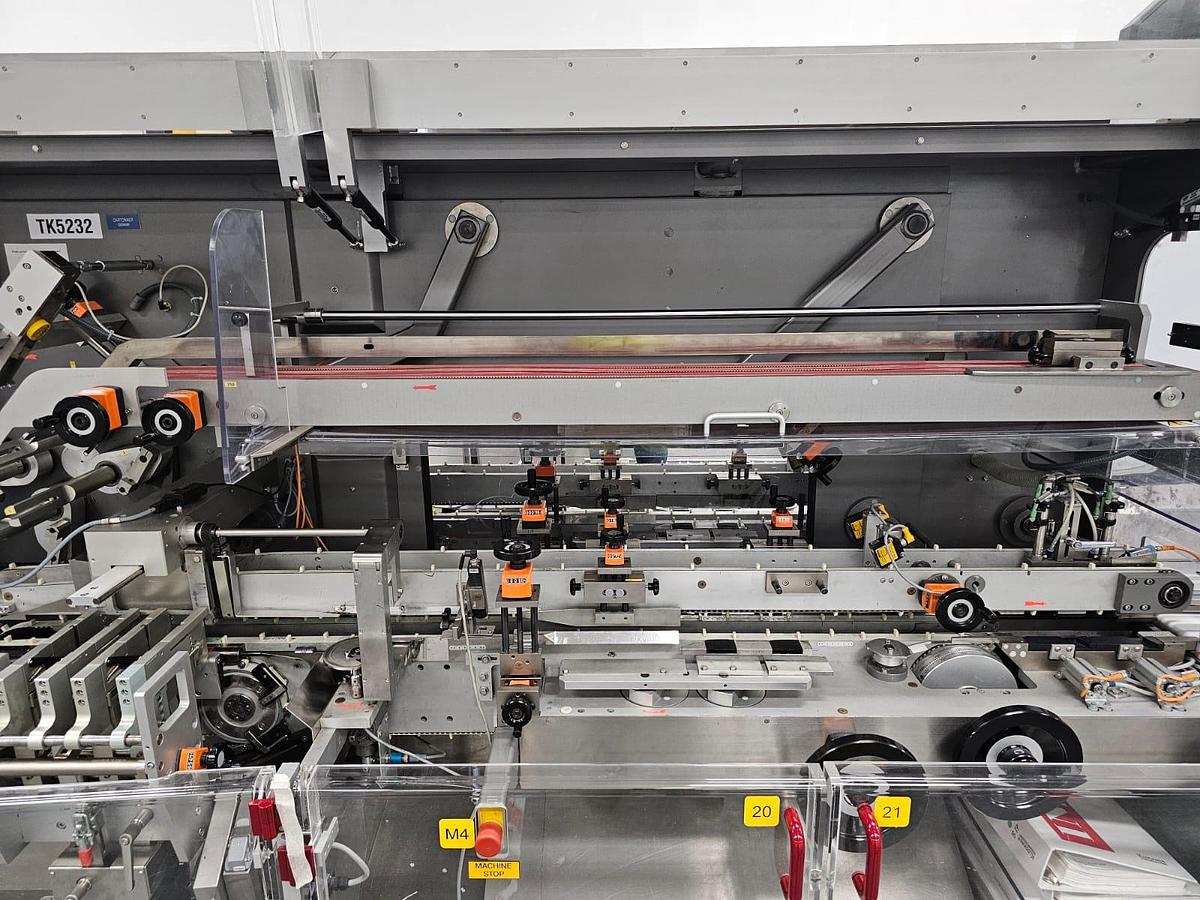

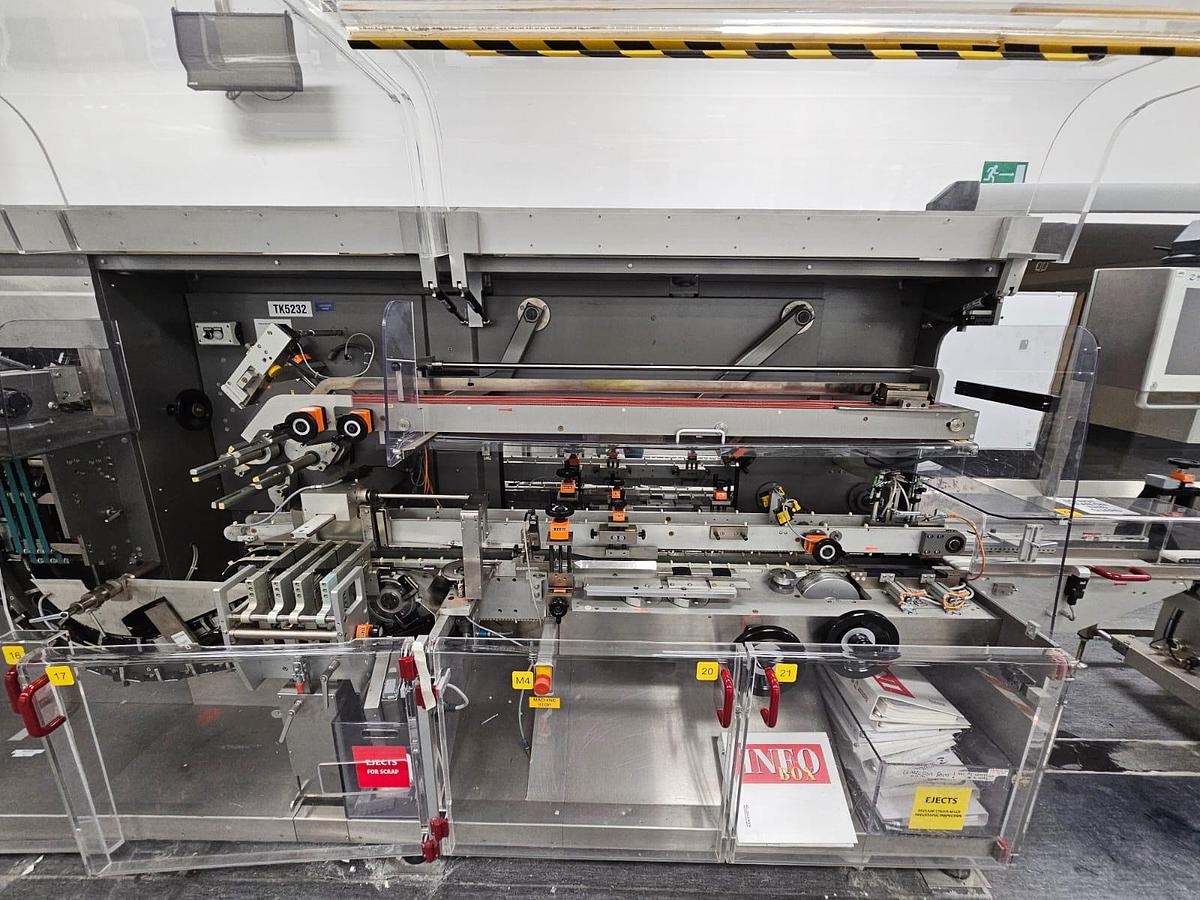

Klöckner Medipak P-3000 Cartoner
Sideloading cartoning machine
Serial number 765055, year of manufacture 2001
Key Information:
Maximum output: 300 cartons/min, adjustable speed
GUK PA 21/3 leaflet folder, new 2001
No carton suction arms
Power 240,415V/3Pn/50Hz/23A, connected load 58kVA

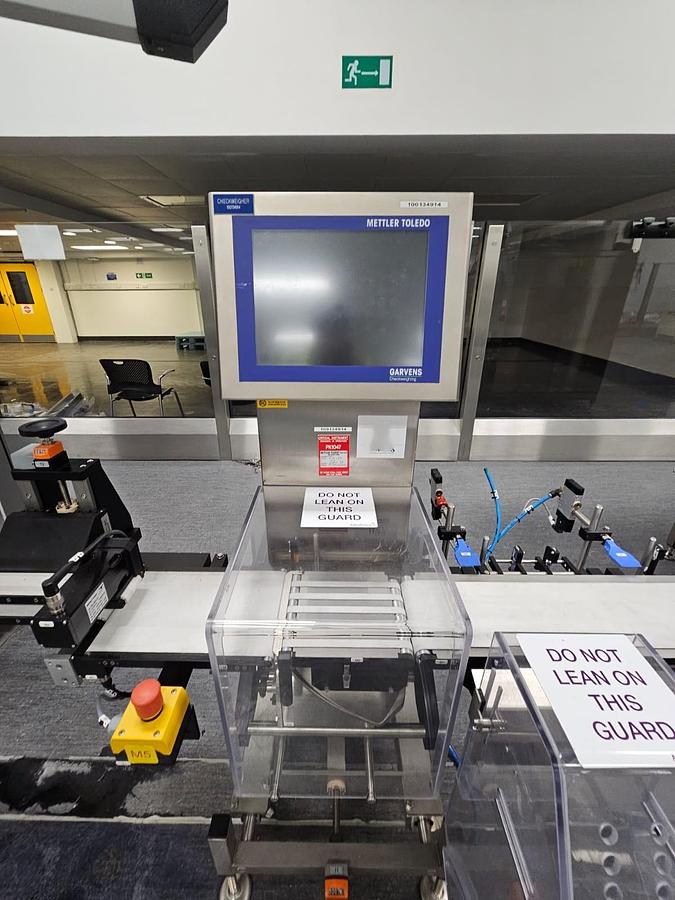

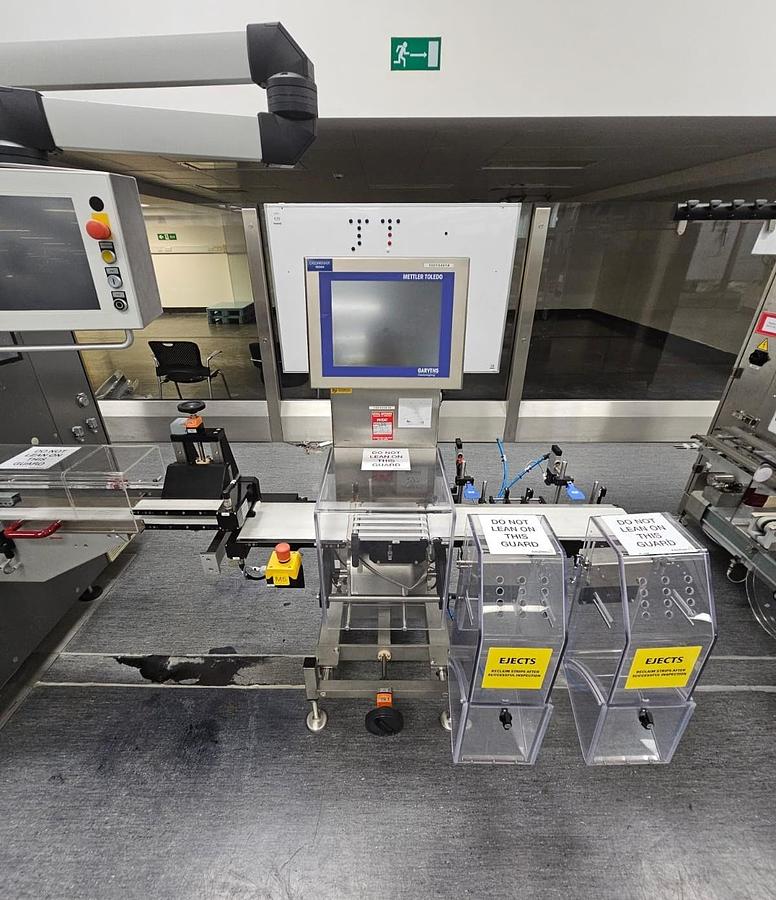

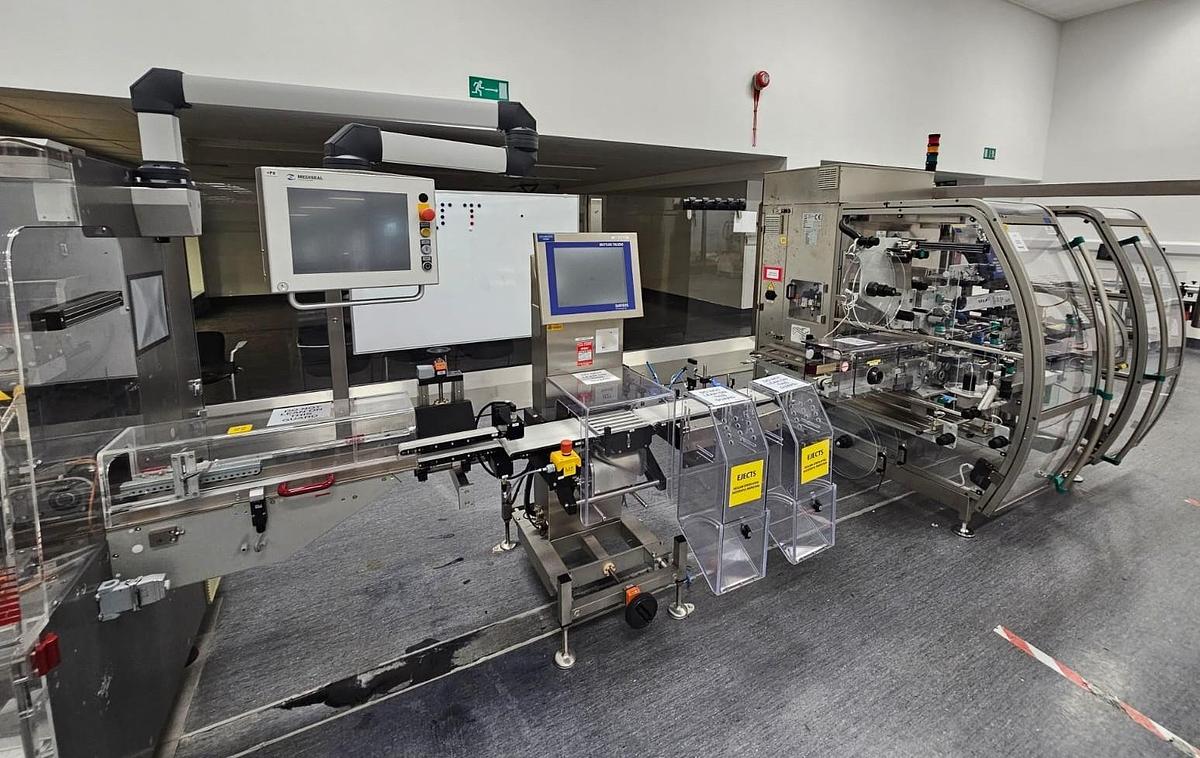

Garvens XS2 Checkweigher

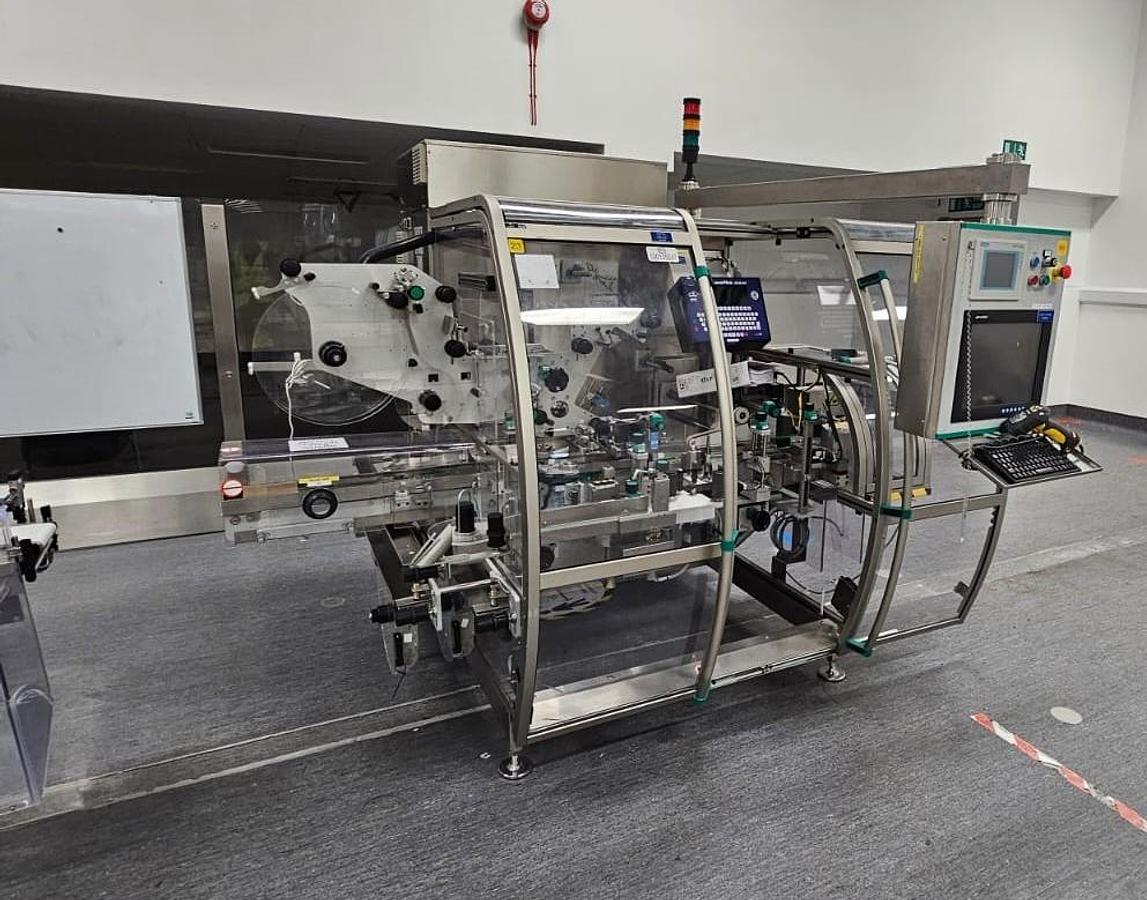

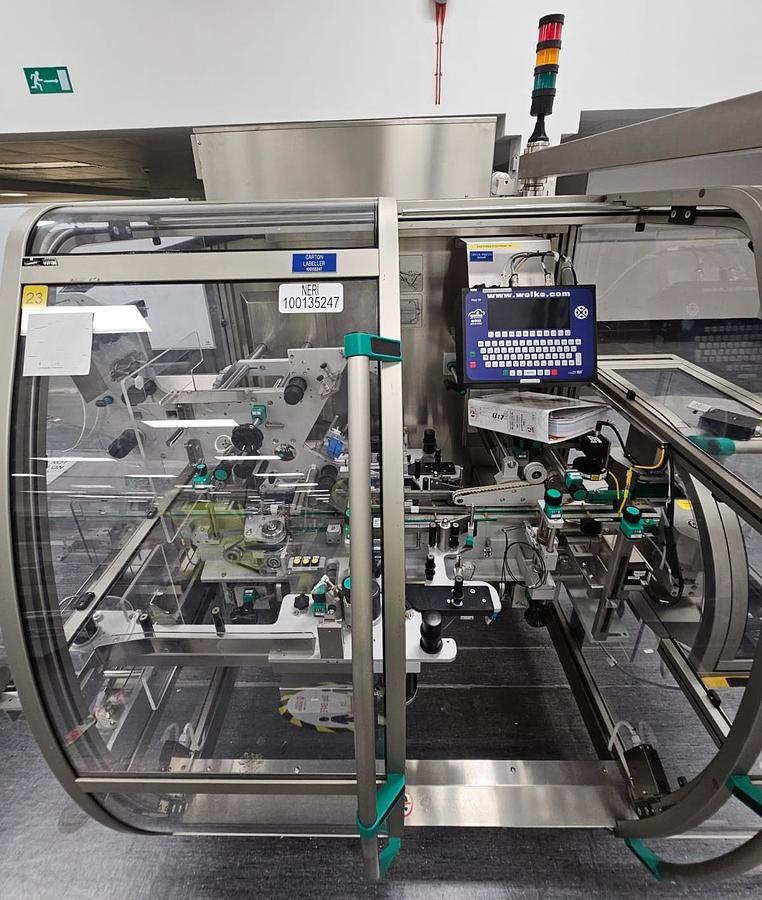

Neri BL400XL Carton Labeller - vtexl
