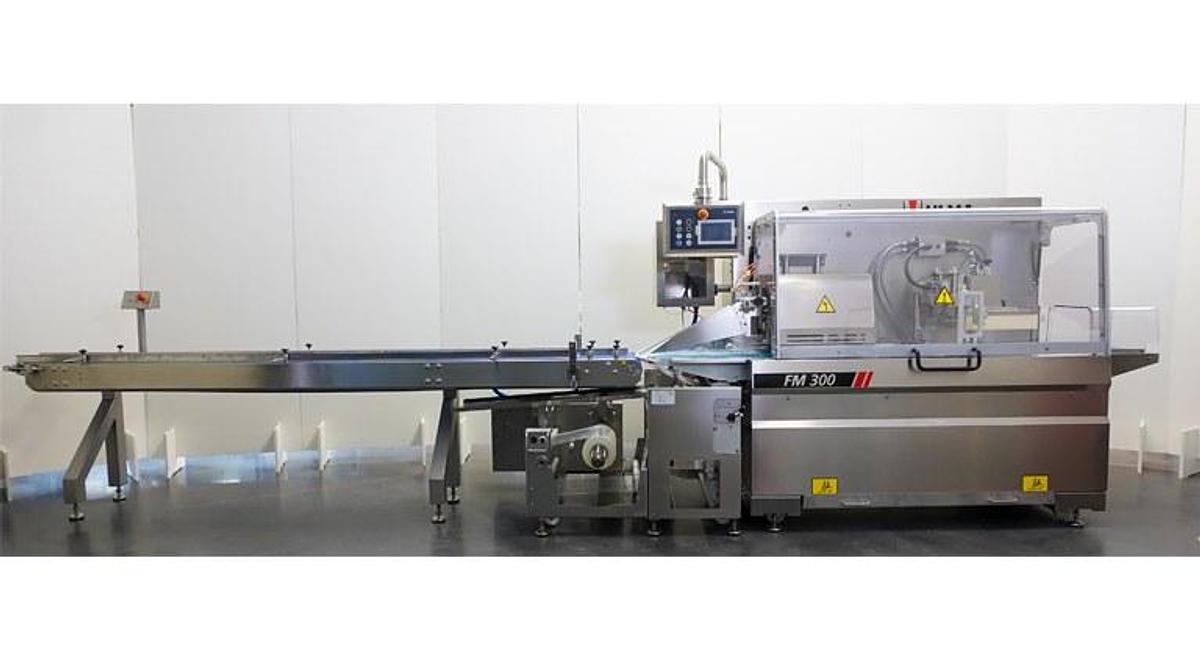

Ulma FM 305 Flow Wrapper

Ulma Model FM 305 Flow Wrapper

THIS MACHINE IS BRAND NEW AND HAS NEVER BEEN USED

The FM 305 automatic flow wrapping machine is designed to wrap fresh food products with barrier film in a Modified Atmosphere Package (MAP). It produces a hermetically sealed pillow pack style bag from a reel of film located on the under side of the machine

Operating Principle

The flow pack style pack consists of a bag with three seals created from a flat roll of film. The machine unwinds the film from a reel located on the under side of the machine, while the infeed conveyor feeds the products equally spaced onto the film. Once the products are placed onto the film, the machine forms a tube that is longitudinally sealed on top of the product, followed by two cross seals that close the bag at both ends

This machine is currently set up for product size 97mm x 22mm x 12mm high at a maximum speed of 80 per minute (cassettes and desicants)

Key Features

Right hand version, product flow from left to right

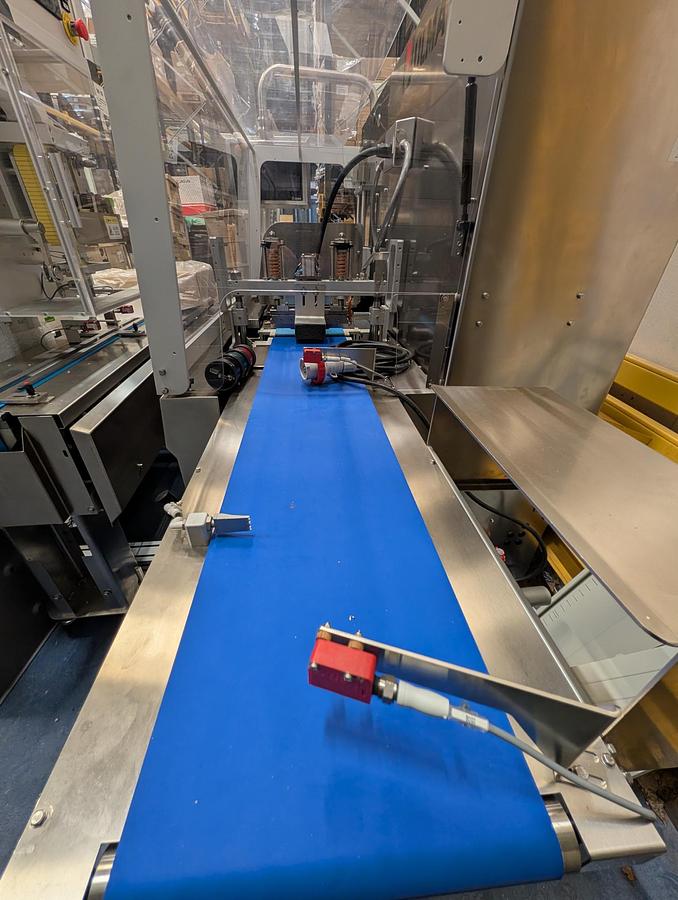

192" pusher infeed conveyor with no product no bag function

Single reel holder 500mm wide with pneumatic fastening system

Signal for date printer

Photocell to detect correct distance between cassettes onto the film

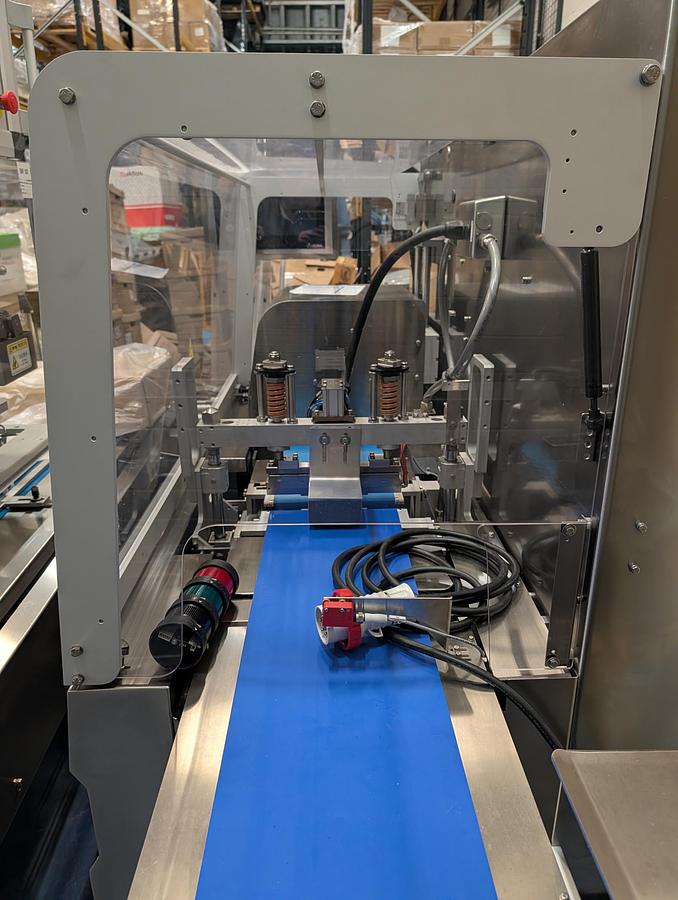

300mm width sealing jaws

Crosswise pattern on sealing jaws - 10mm sealing width

Reject system for empty bags, double packs and packs including film splicing

Industrial PC with colour touch screen

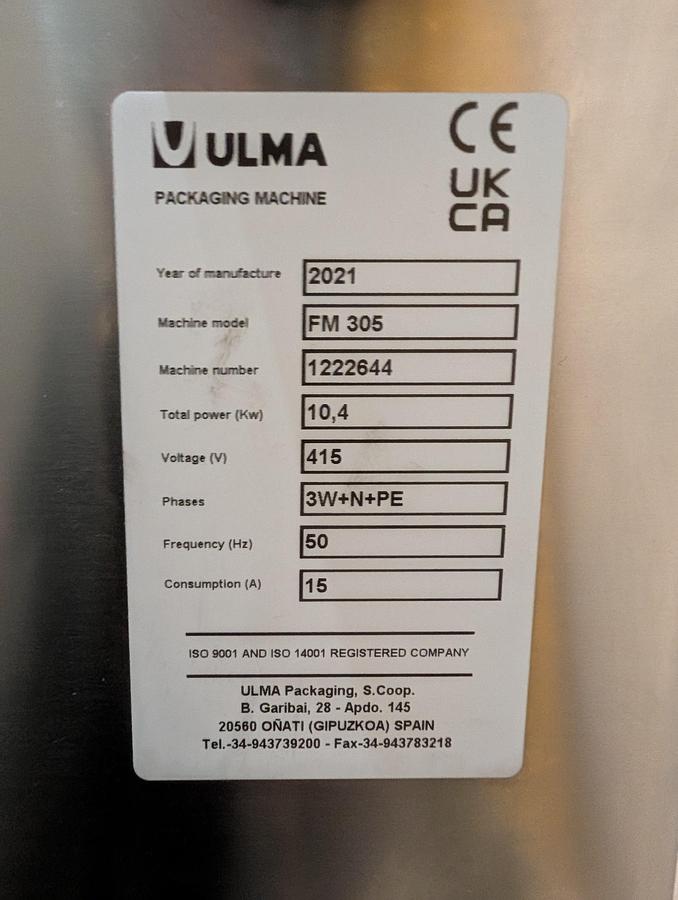

Electrical requirements 415V 50Hz 3Ph
