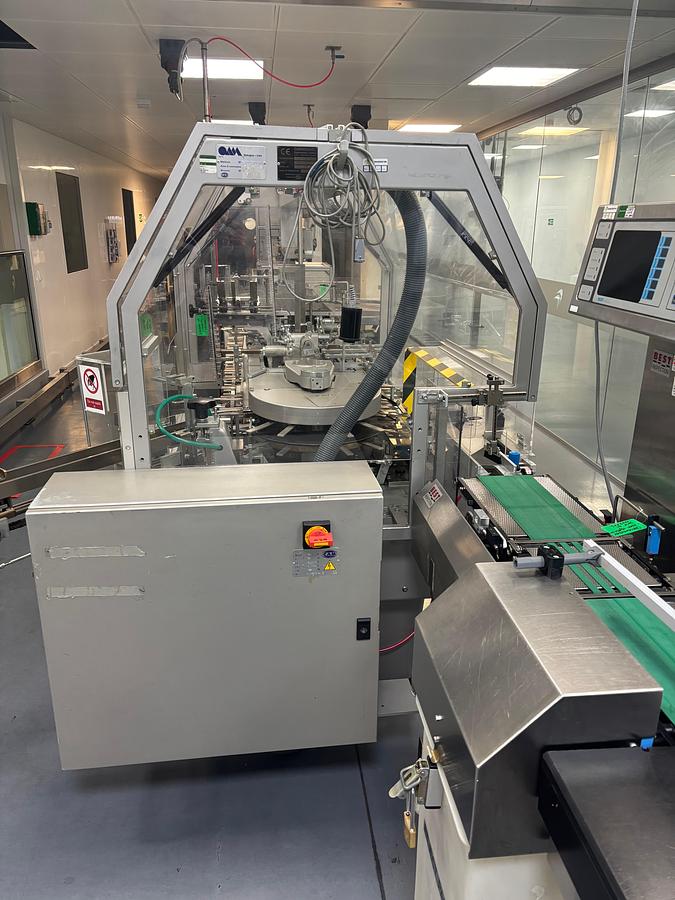

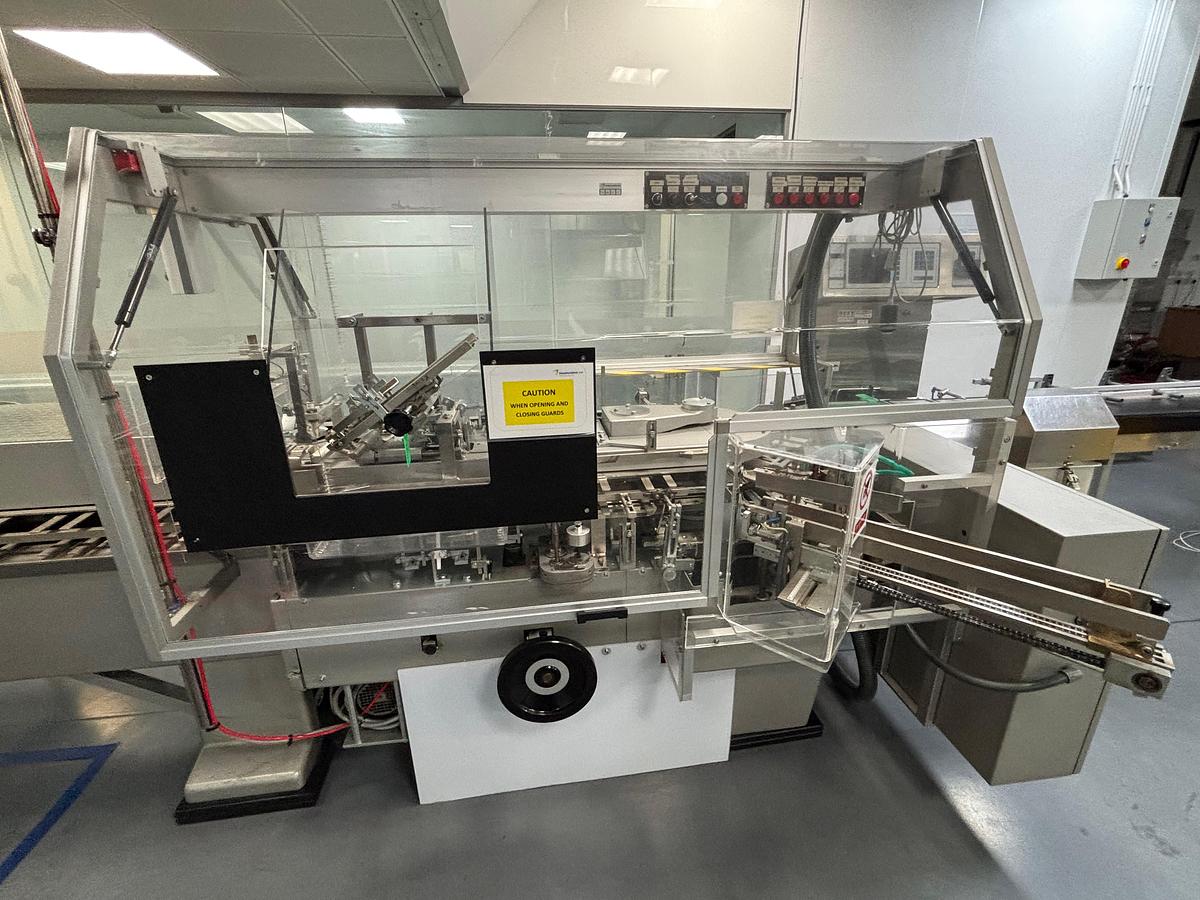

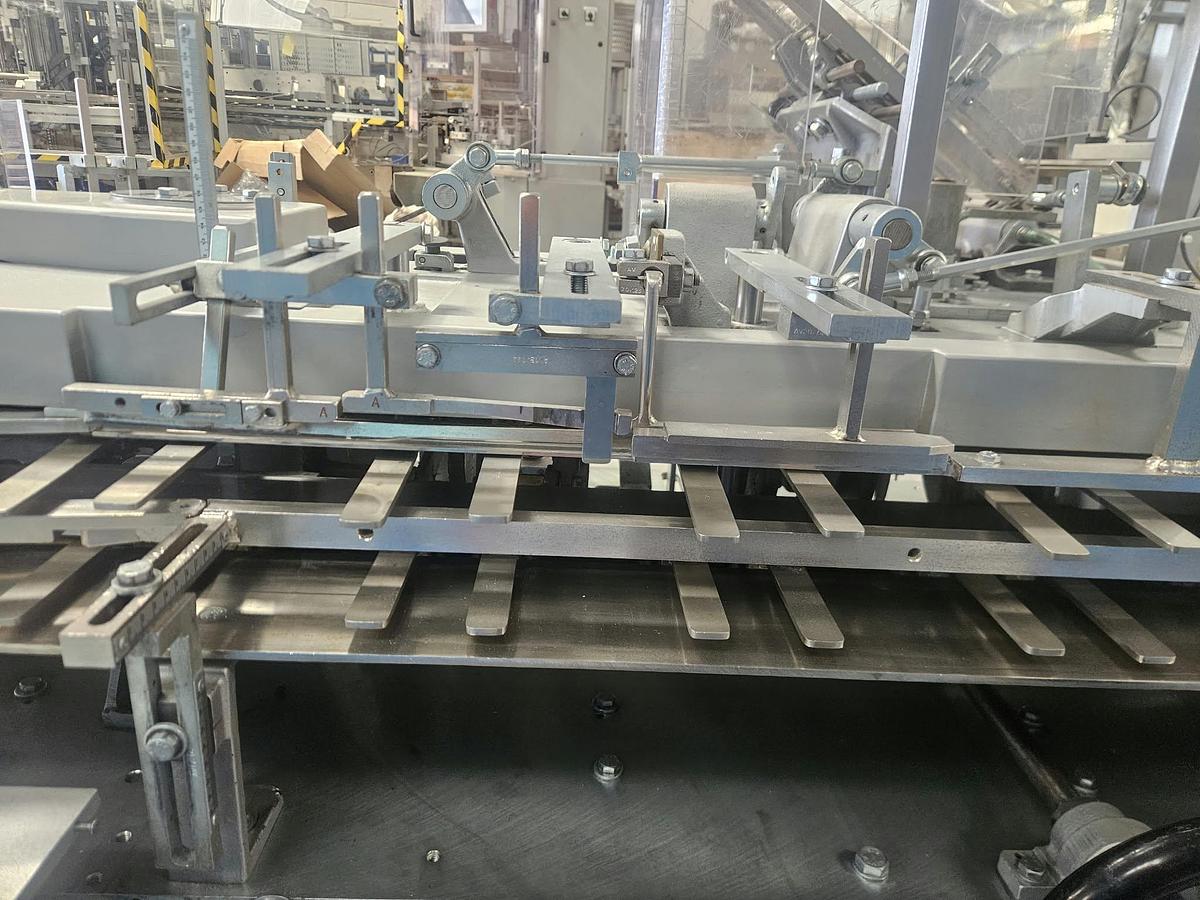

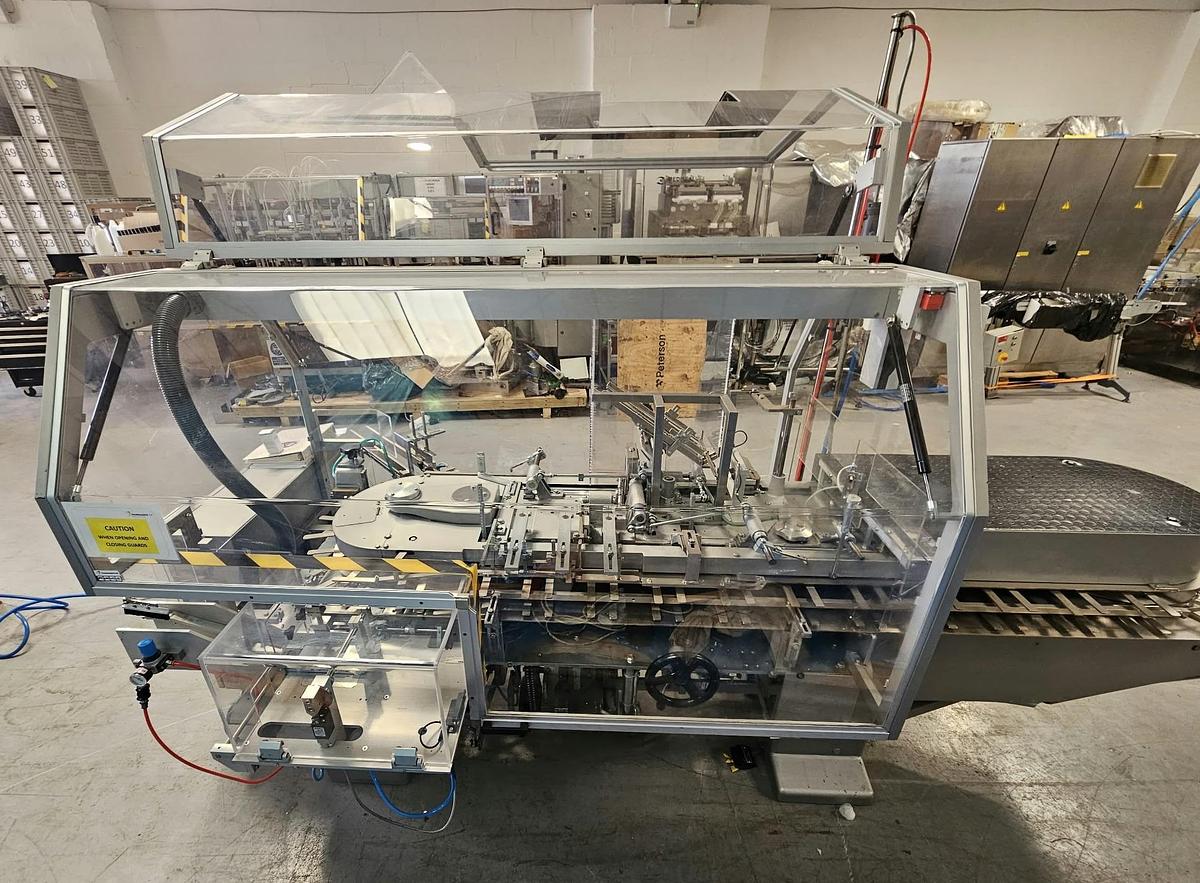

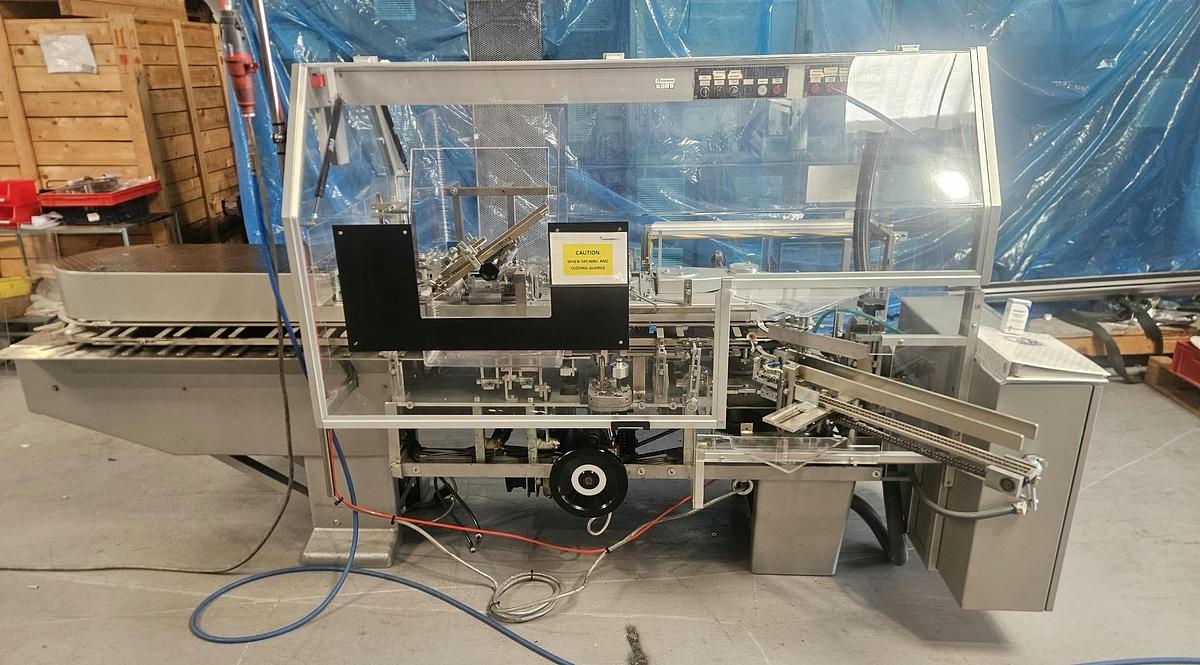

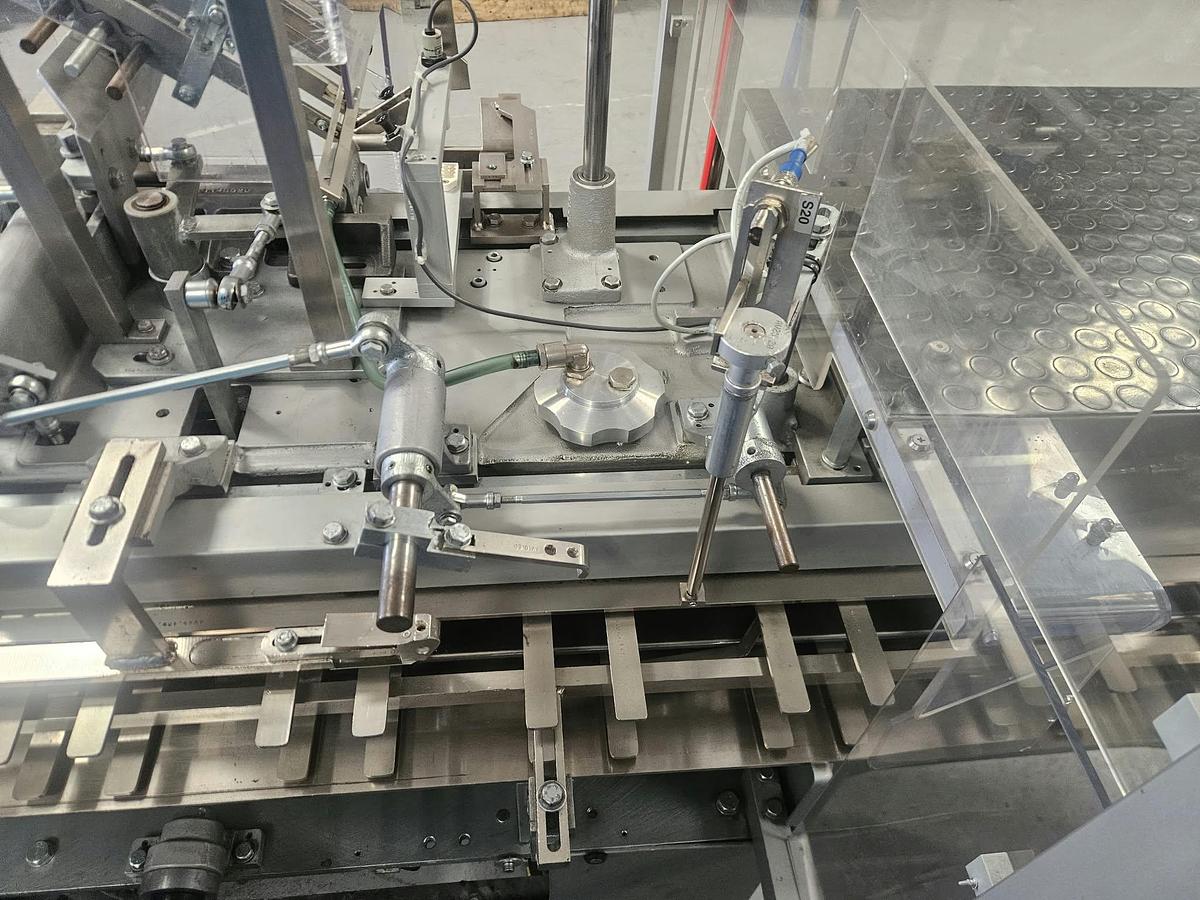

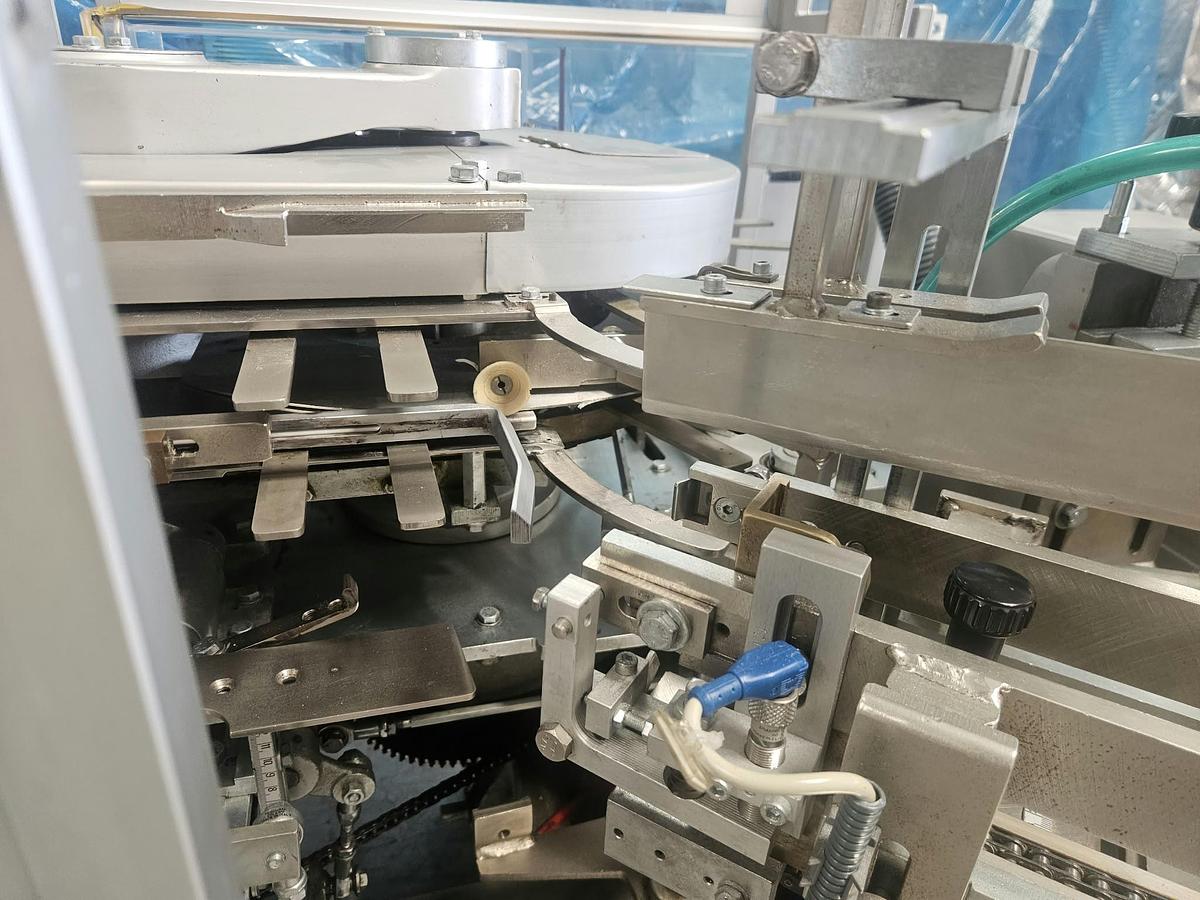

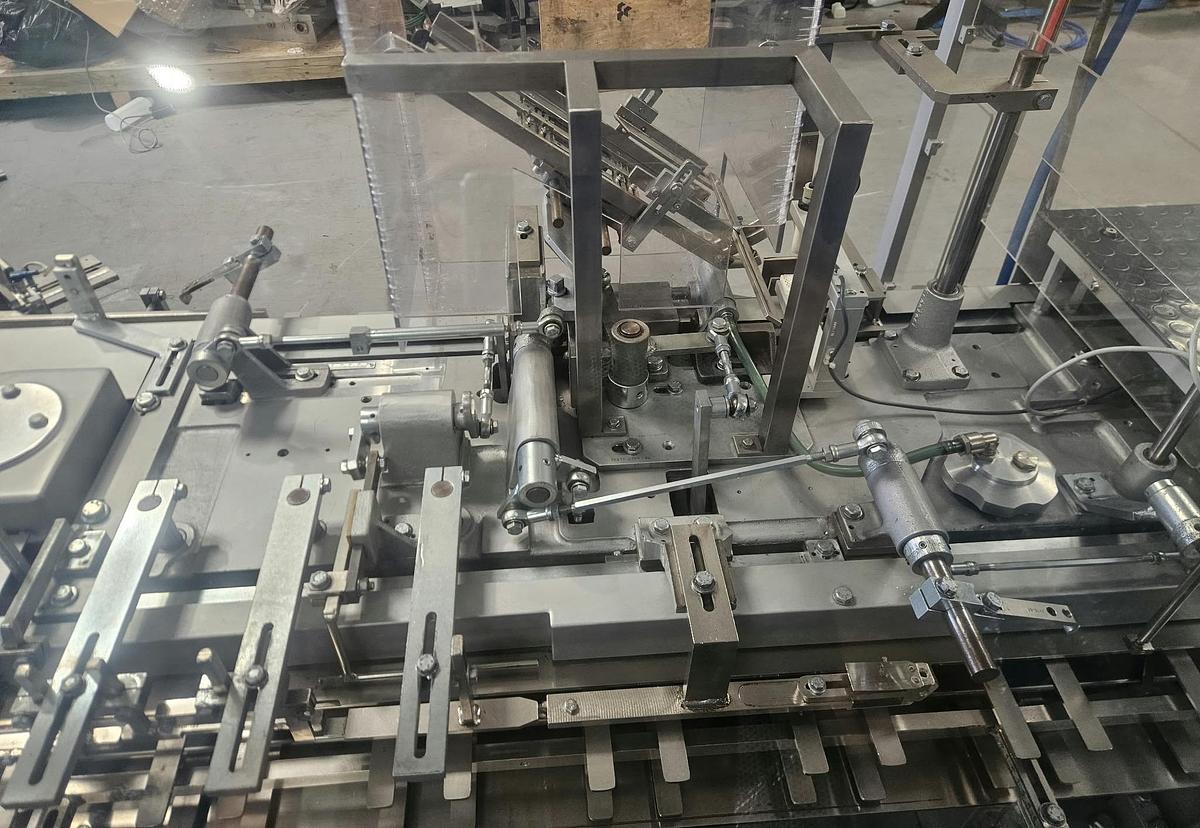

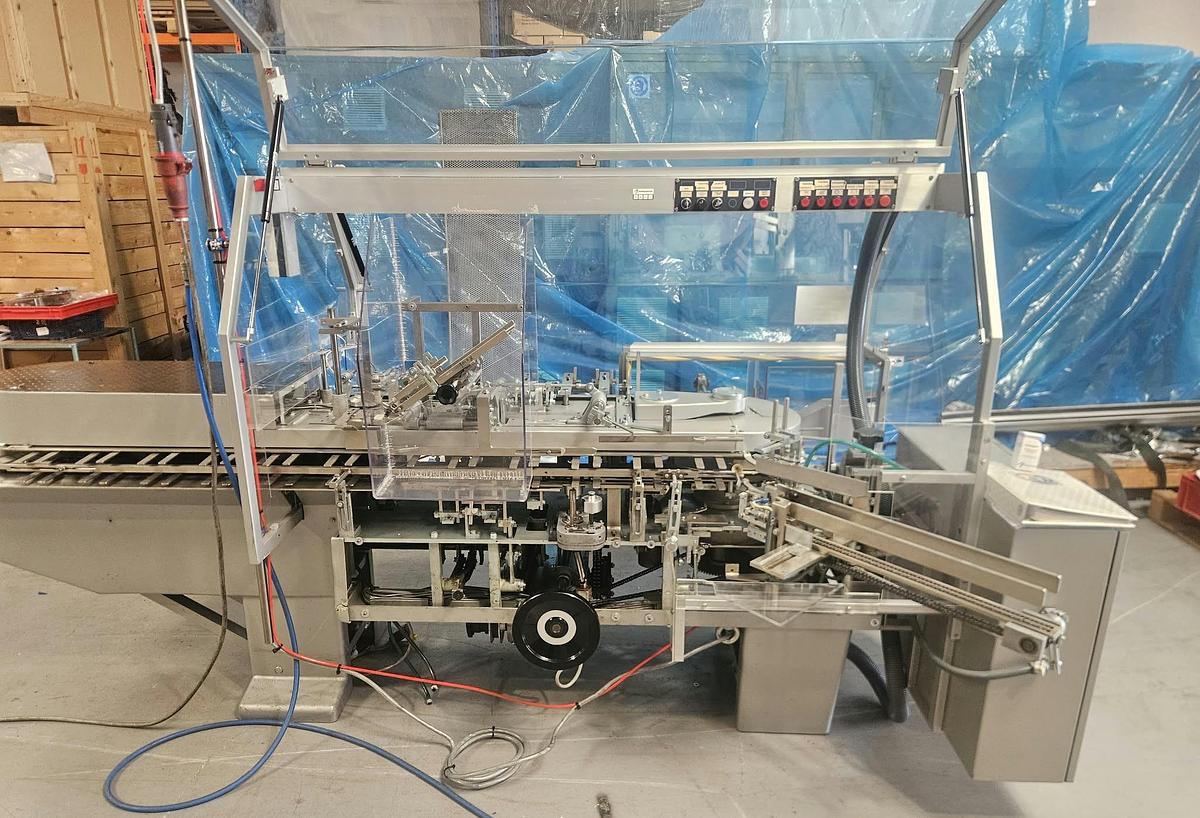

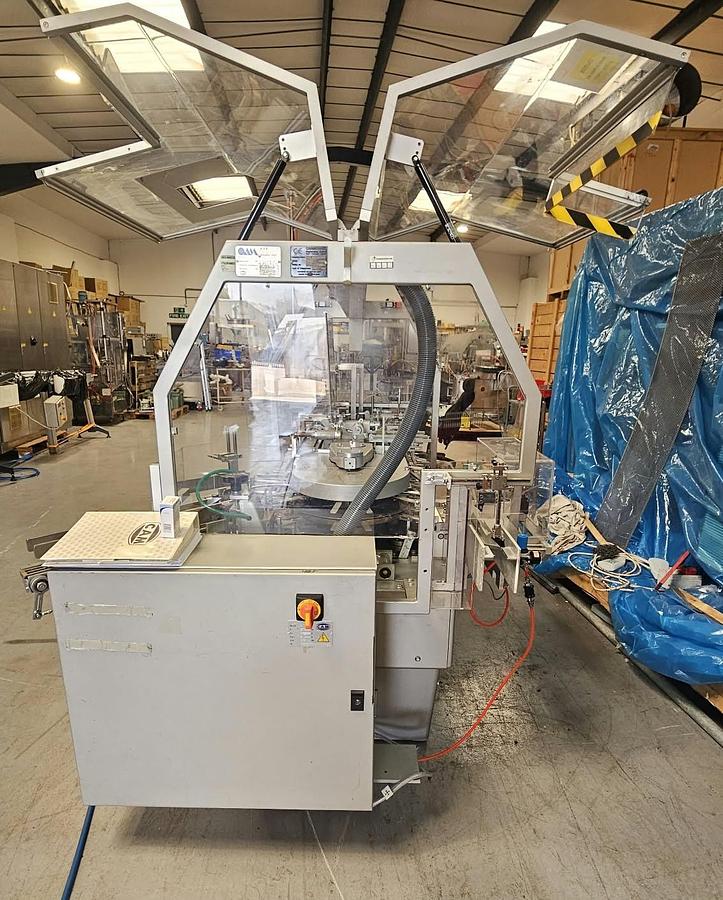

CAM AV Vertical Cartoner

CAM Model AV Automatic Intermittent Motion Vertical Cartoner

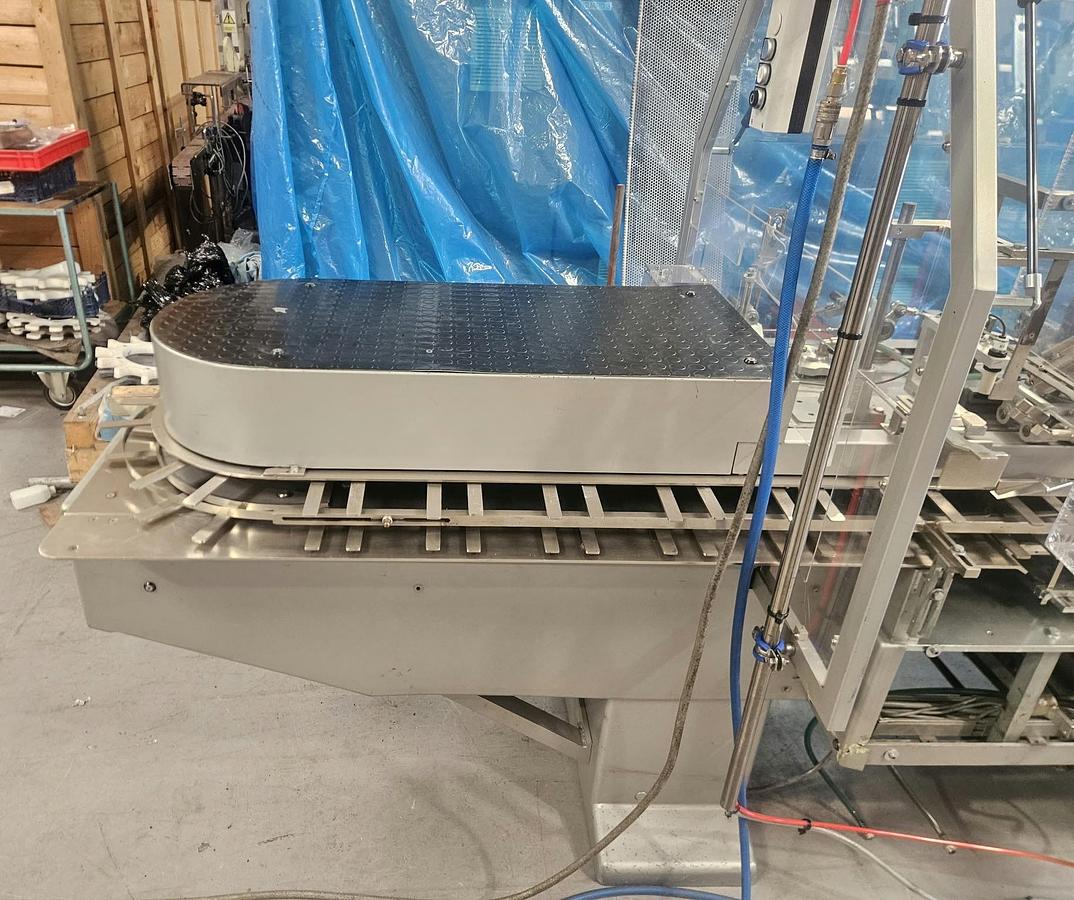

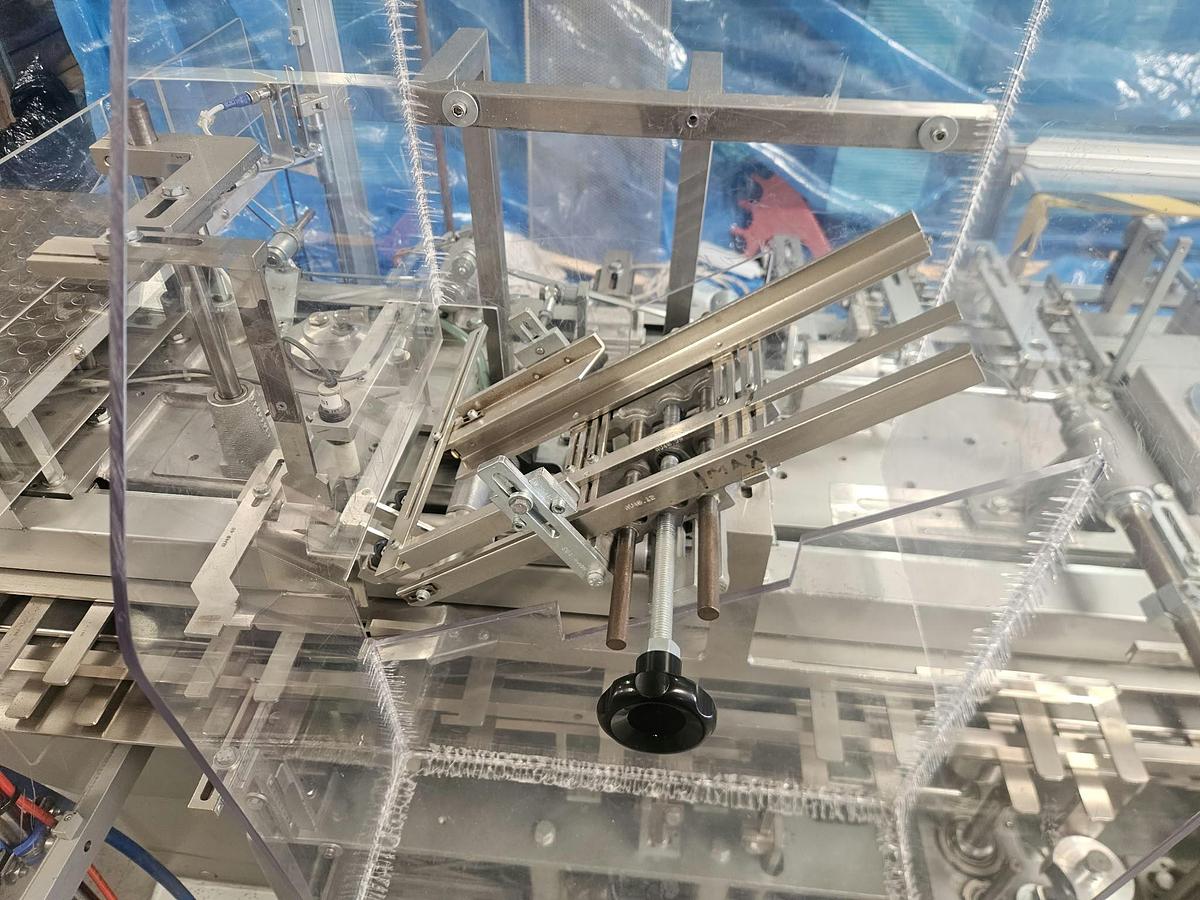

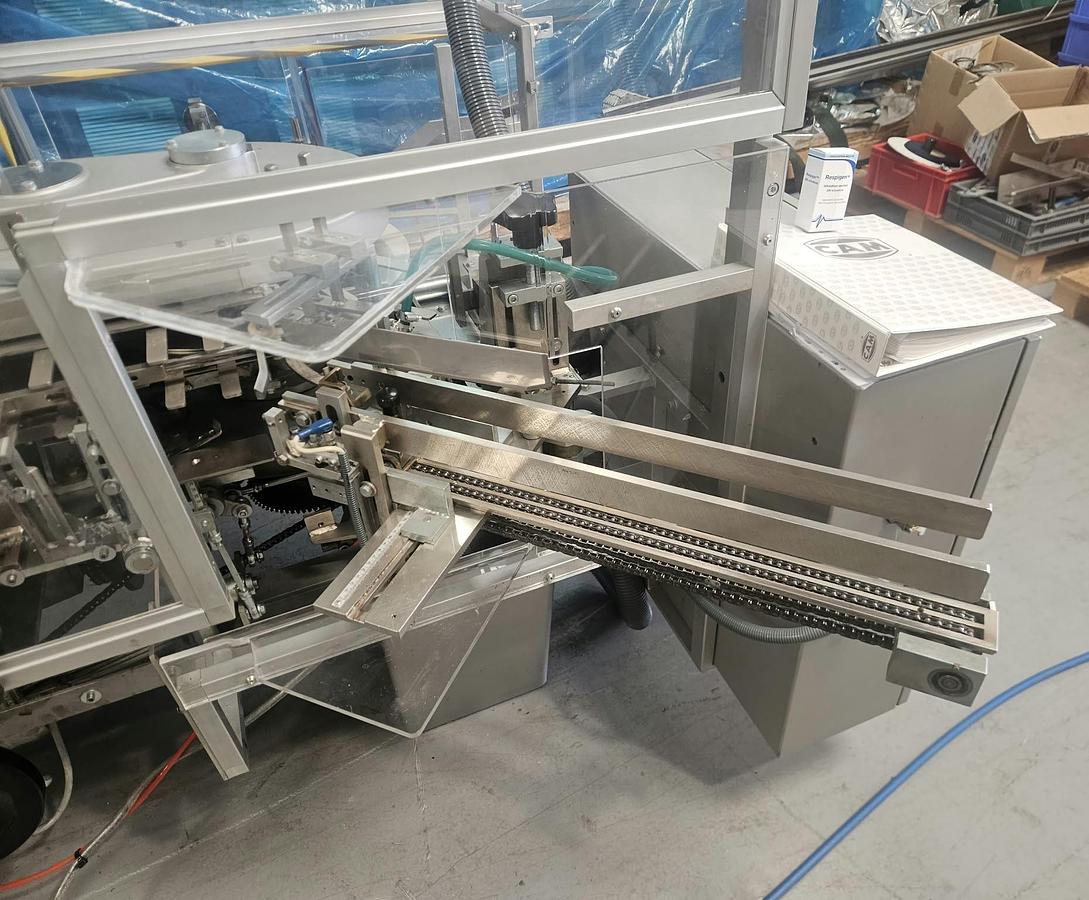

The CAM AV cartoner is designed for the vertical cartoning of various products such as bottles, tubes, blisters, and sachets. This machine operates with manual loading, where cartons are picked from a bulk magazine and erected automatically. The lower closure of the carton is completed before a pre-folded leaflet can be inserted automatically if required. After manual product loading, a product detection system ensures the presence of the product before the upper closure is finalised and the filled carton exits the machine. The cartons are turned from vertical to horizontal during exit

Currently set up for reverse tuck closure cartons, size L 30mm x W 38mm x H 88mm

Key Information

Speeds of up to 70 cartons per minute depending on size and product

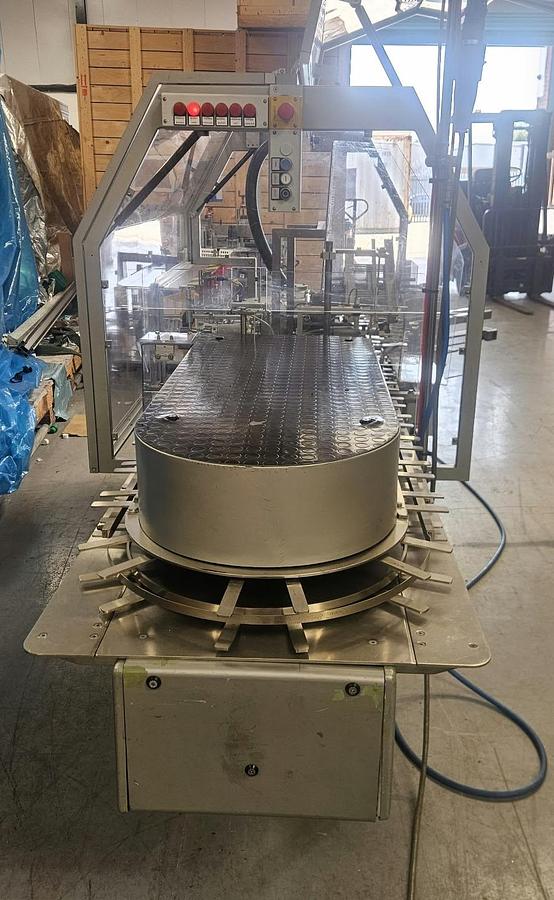

Space available in the product feeding area allows for more than one operator to manually place the product into the carton

Suitable for use in the pharmaceutical, cosmetics, food and consumer goods industries

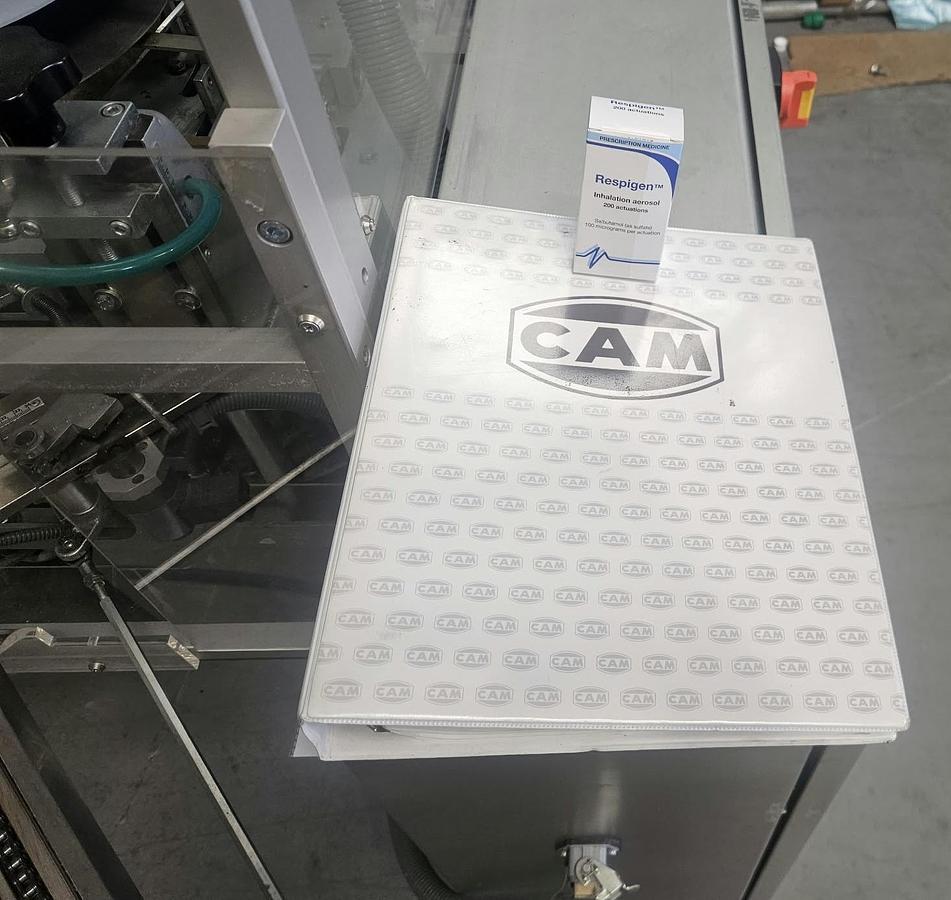

Manuals and electrical drawings available in both paper and electronic forms

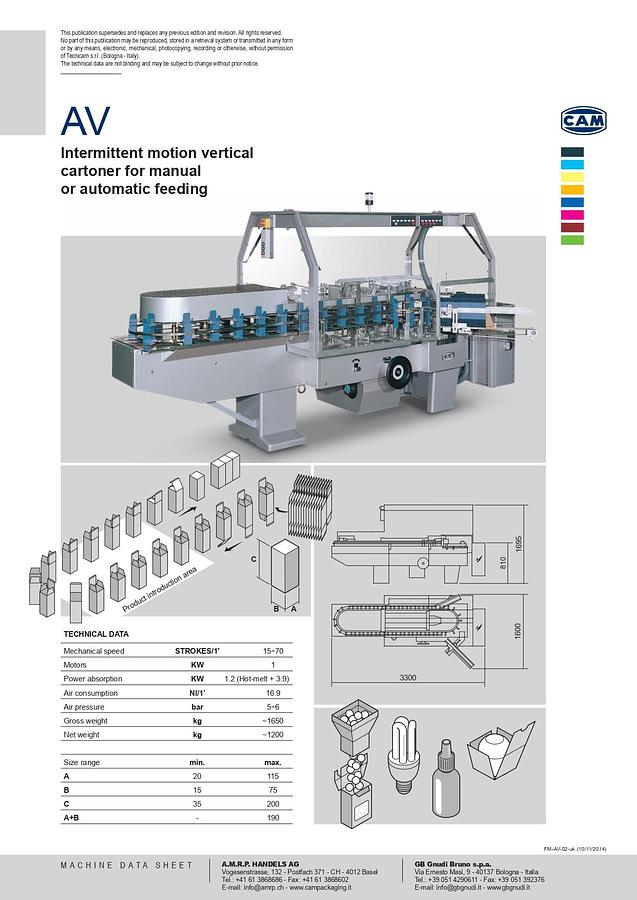

Carton Size Range

Length - 20mm to 115mm

Width - 15mm to 75mm

Height - 35mm to 200mm

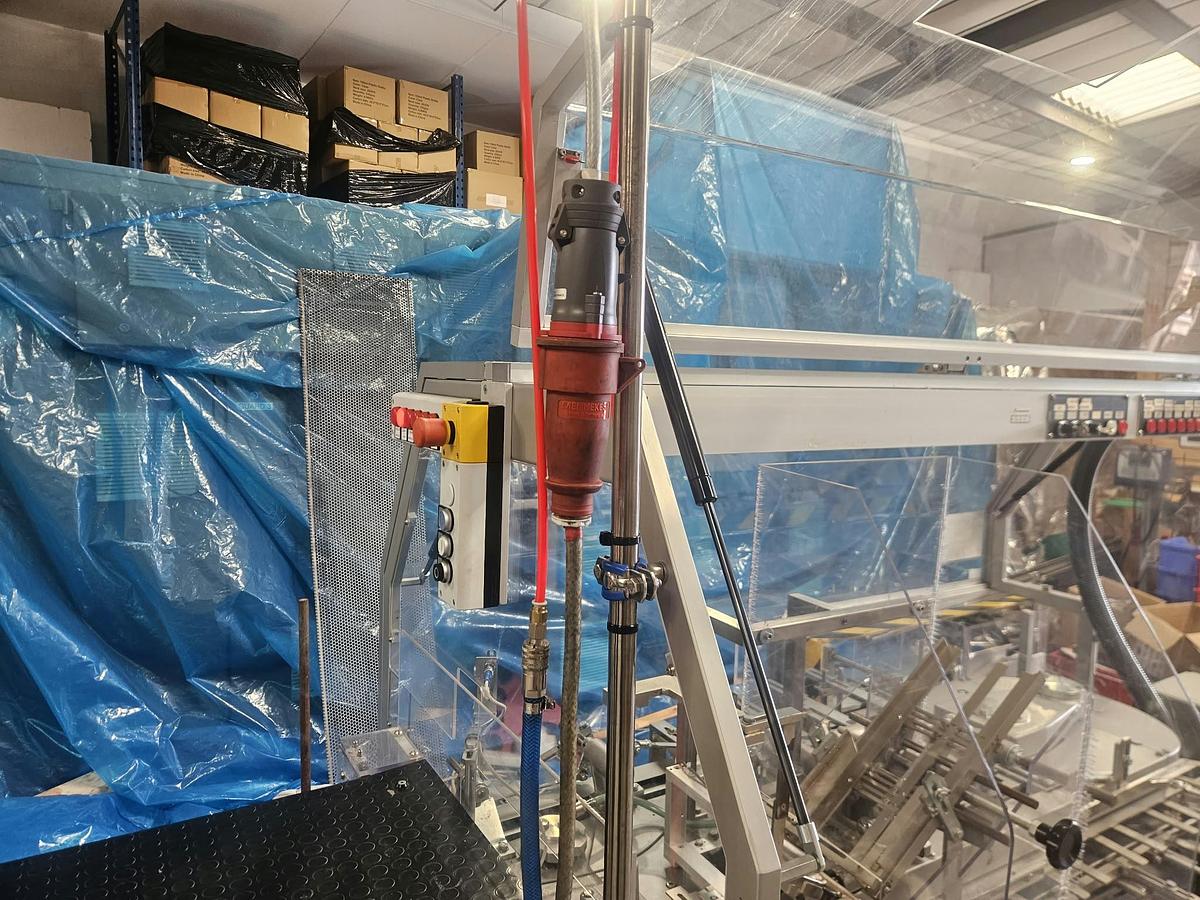

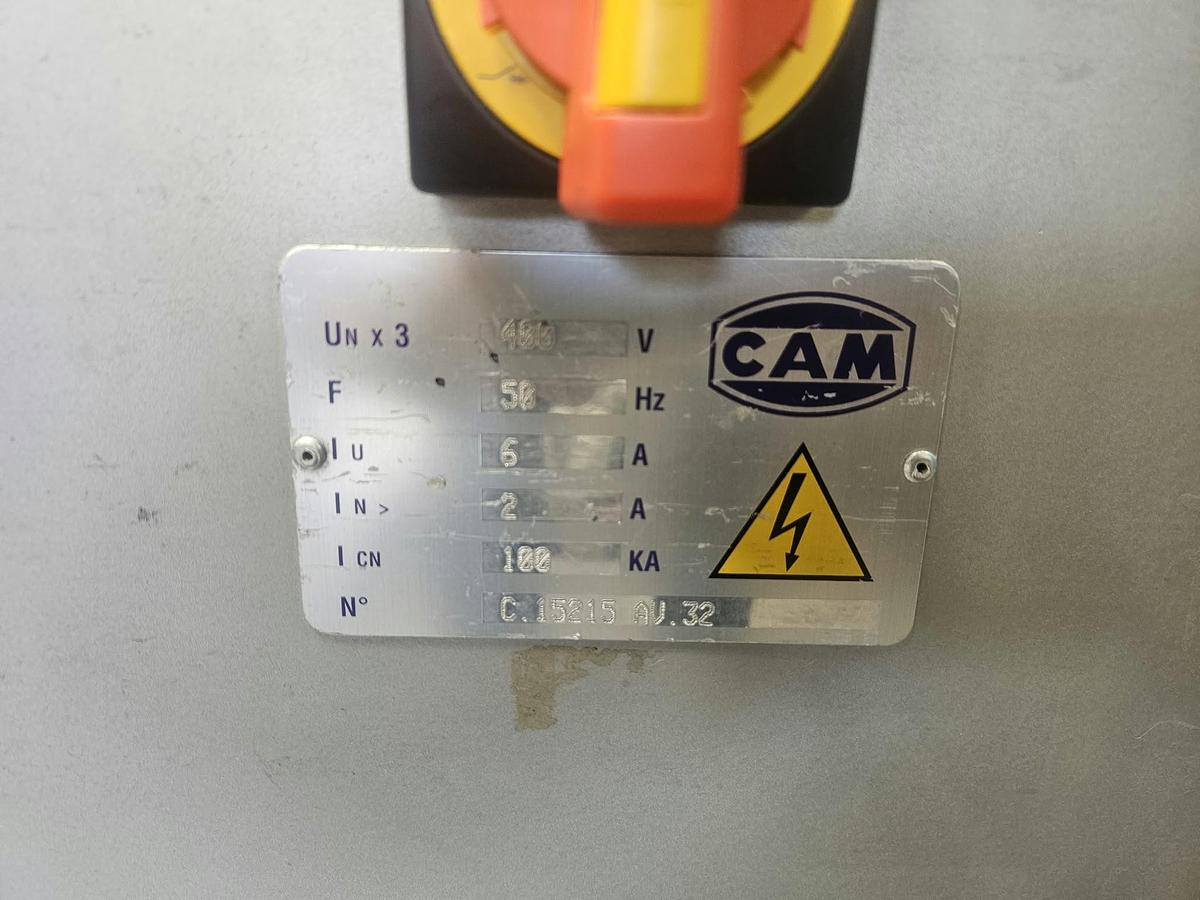

Electrical requirements: 400V, 3Ph, 50Hz

Machine size: 3400mm x 1800mm x 1700mm high, weight 1200kg

Supplied: cleaned, checked and tested dry cycling

If you would like this machine set up to your carton size and product please enquire about our engineering services
