Romaco Promatic BIPAK Vertical Cartoner

Romaco Promatic BIPAK Vertical Cartoner

THIS MACHINE IS BRAND NEW AND HAS BEEN RUN FOR A SITE ACCEPTANCE TEST ONLY

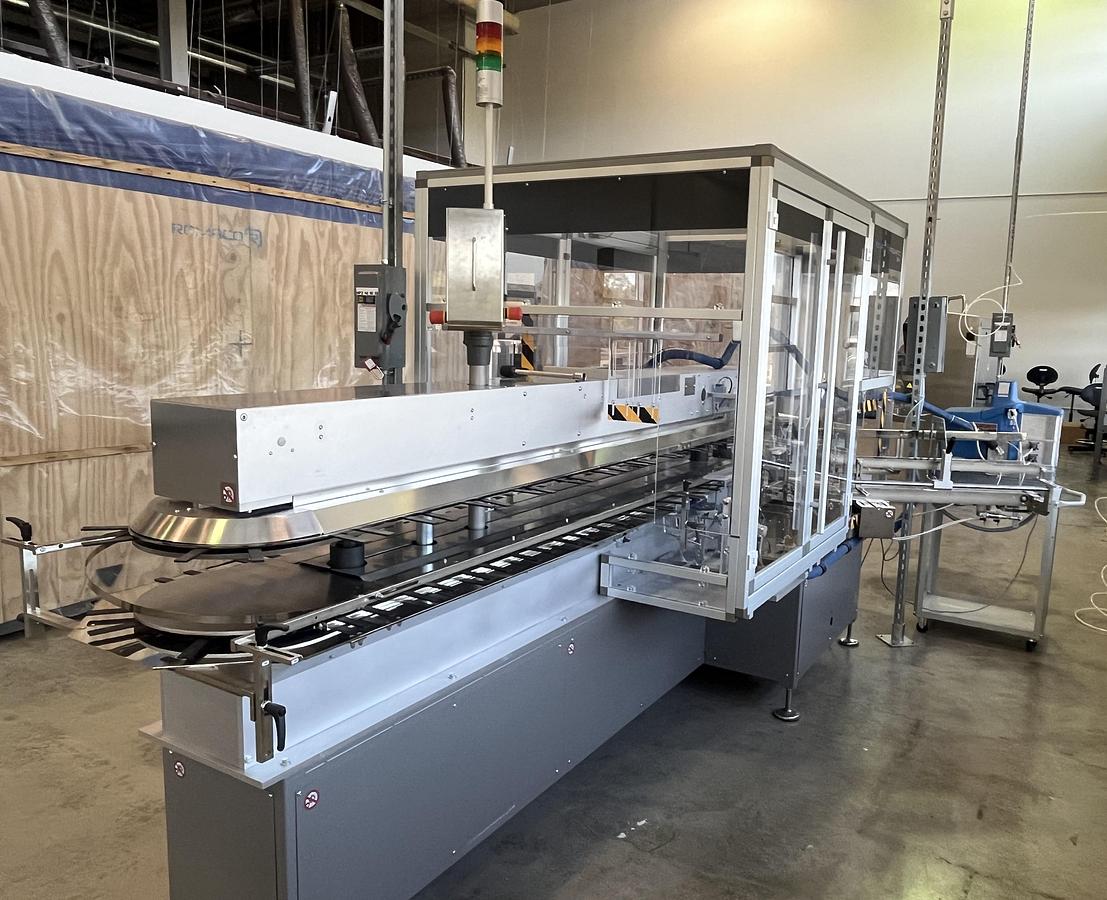

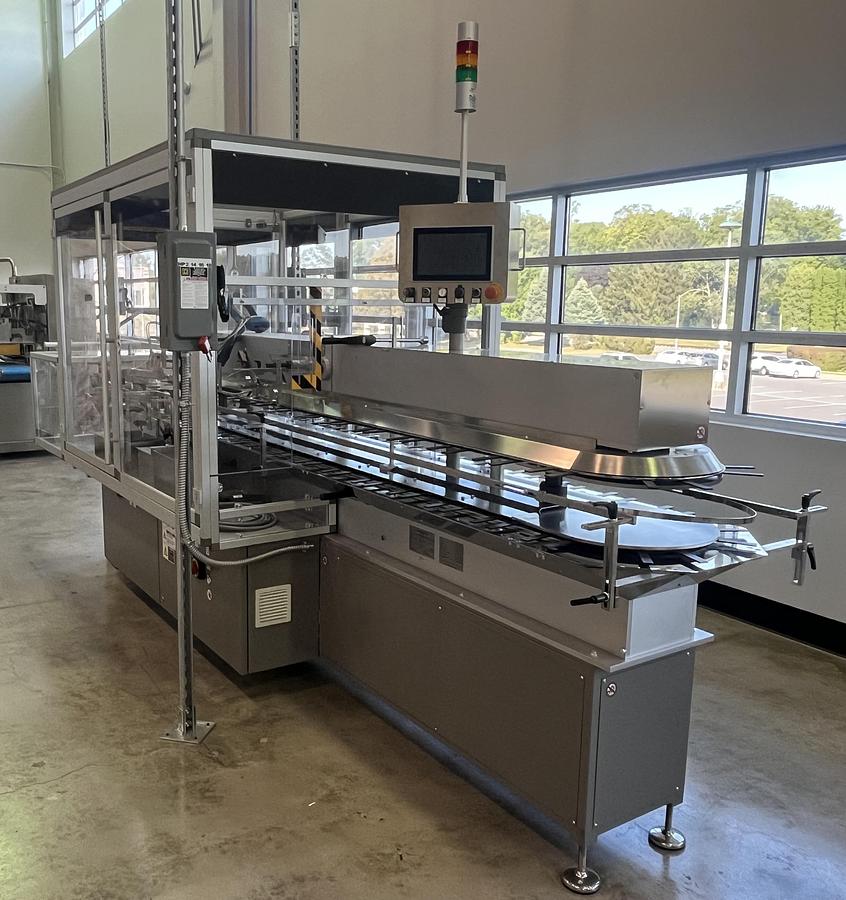

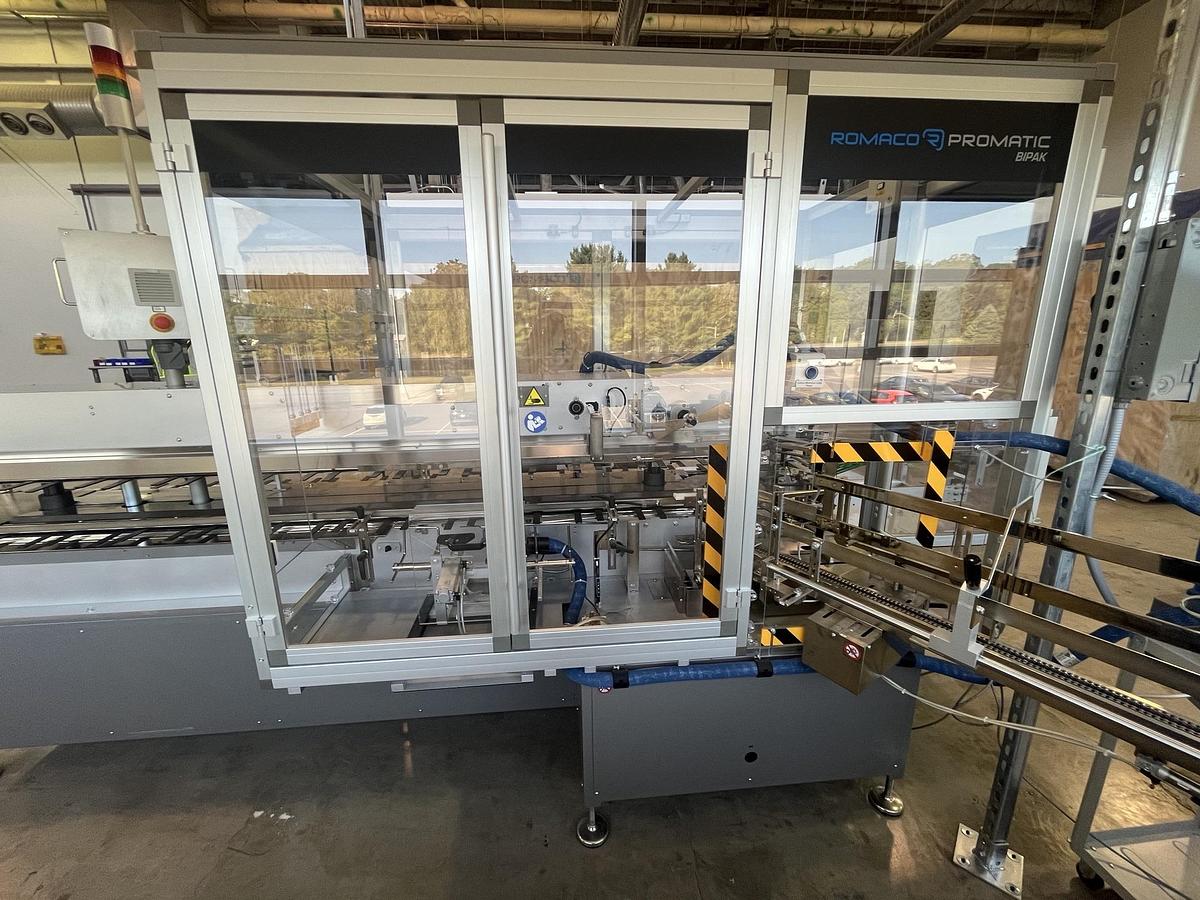

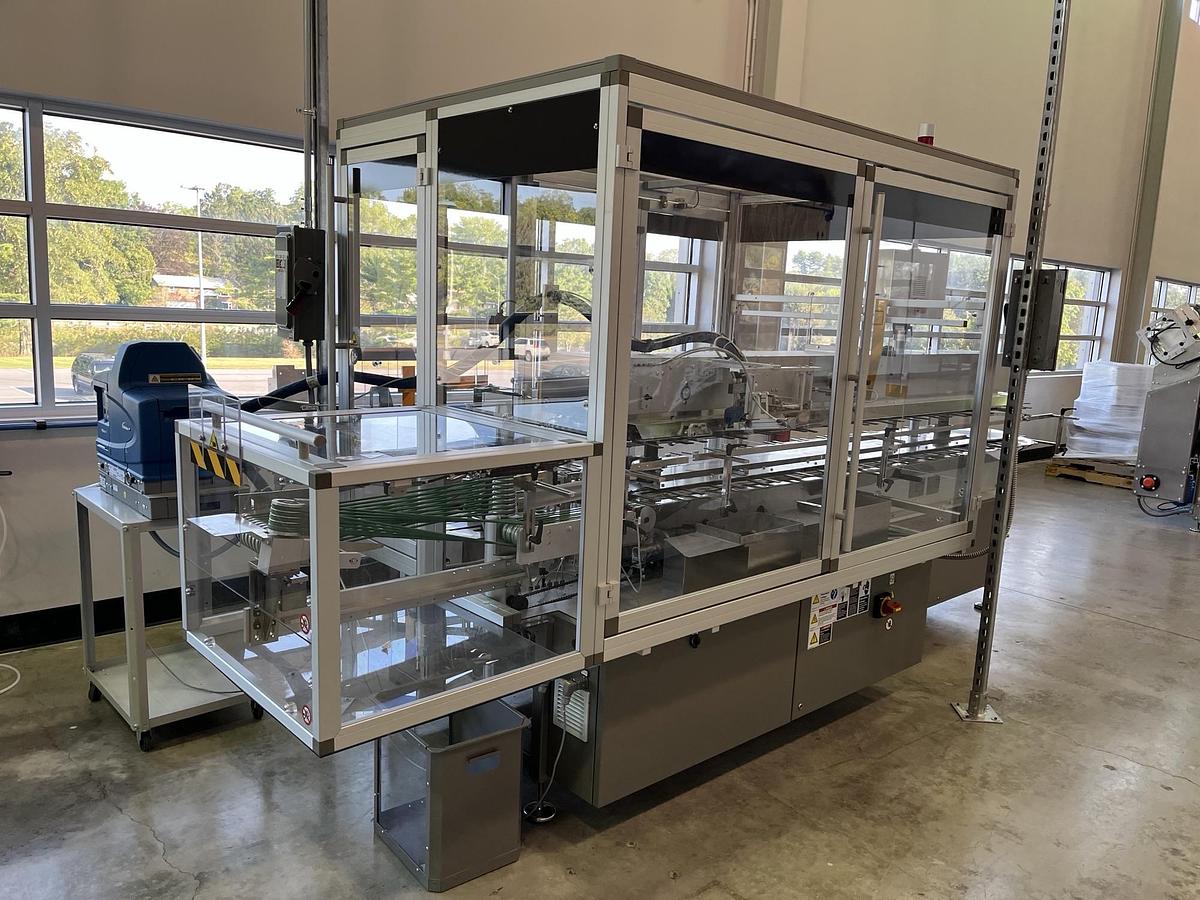

The BIPAK machine is a semi-automatic vertical cartoner running in continuous or intermittent motion

This machine is suitable to pack any type of product loaded by the operator into pre-glued cartons with reverse flaps tuck-in closure

The format parts on this machine are adjustable for the entire size range of this carton closure type

The machine is pre-arranged for the installation of automatic product feeding systems

Key Features

• Intermittent and continuous motion selectable from the operator panel
• Base machine includes all format parts necessary to handle the whole carton size range
• Large area to load the product into the carton enables access for up to 4 operators
• Carton opening by means of vacuum suction cup system
• Pre-arrangement for remote assistance

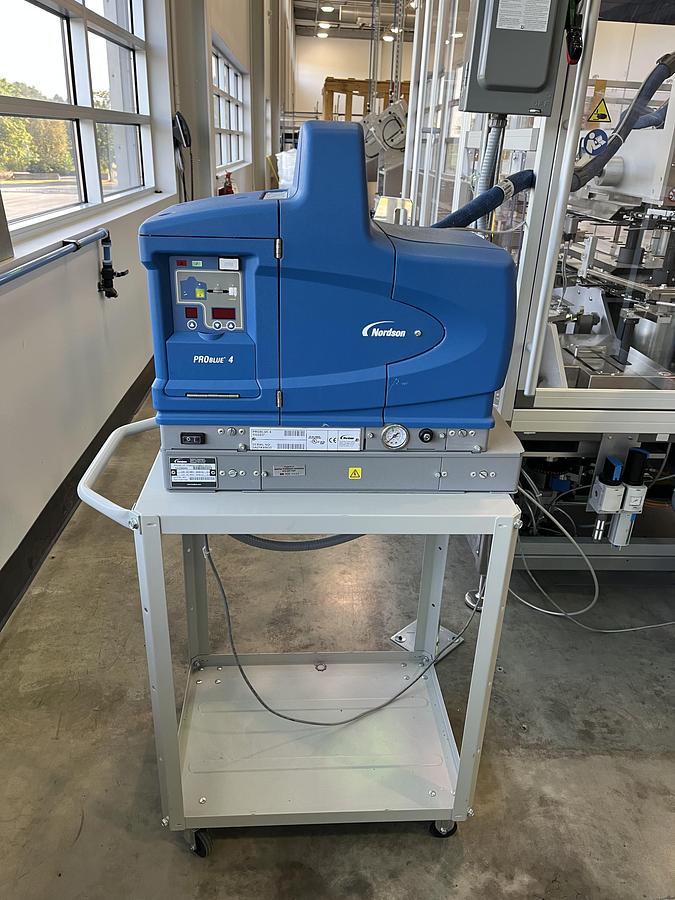

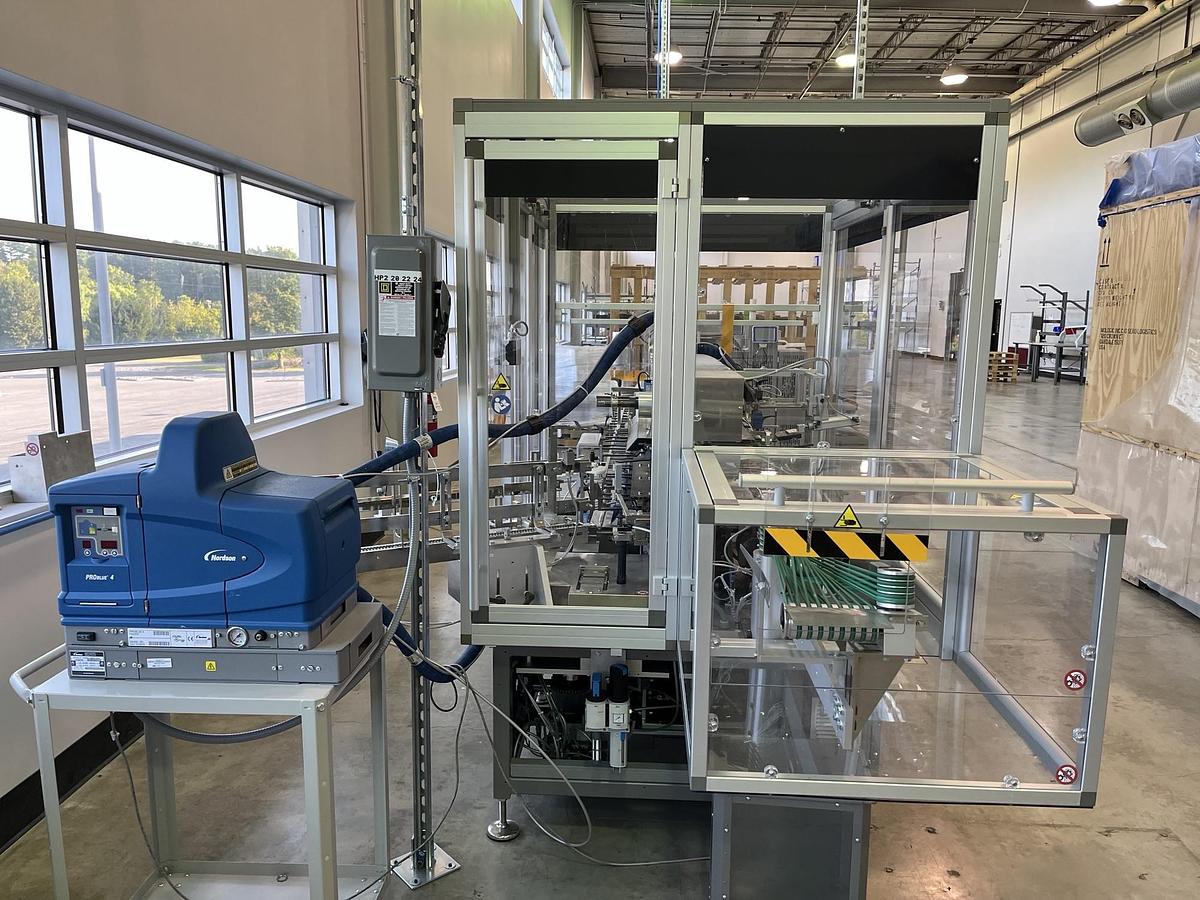

• Nordson ProBlue 4 adhesive dispensing system

Technical Data

Speed in intermittent motion of up to 60 cartons per minute

Speed in continuous motion of up to 100 cartons per minute

Both the above depending on product and machine configuration

Carton size range:

A minimum 20mm to maximum 120mm

B minimum 18mm to maximum 80mm

C minimum 50mm to maximum 250mm

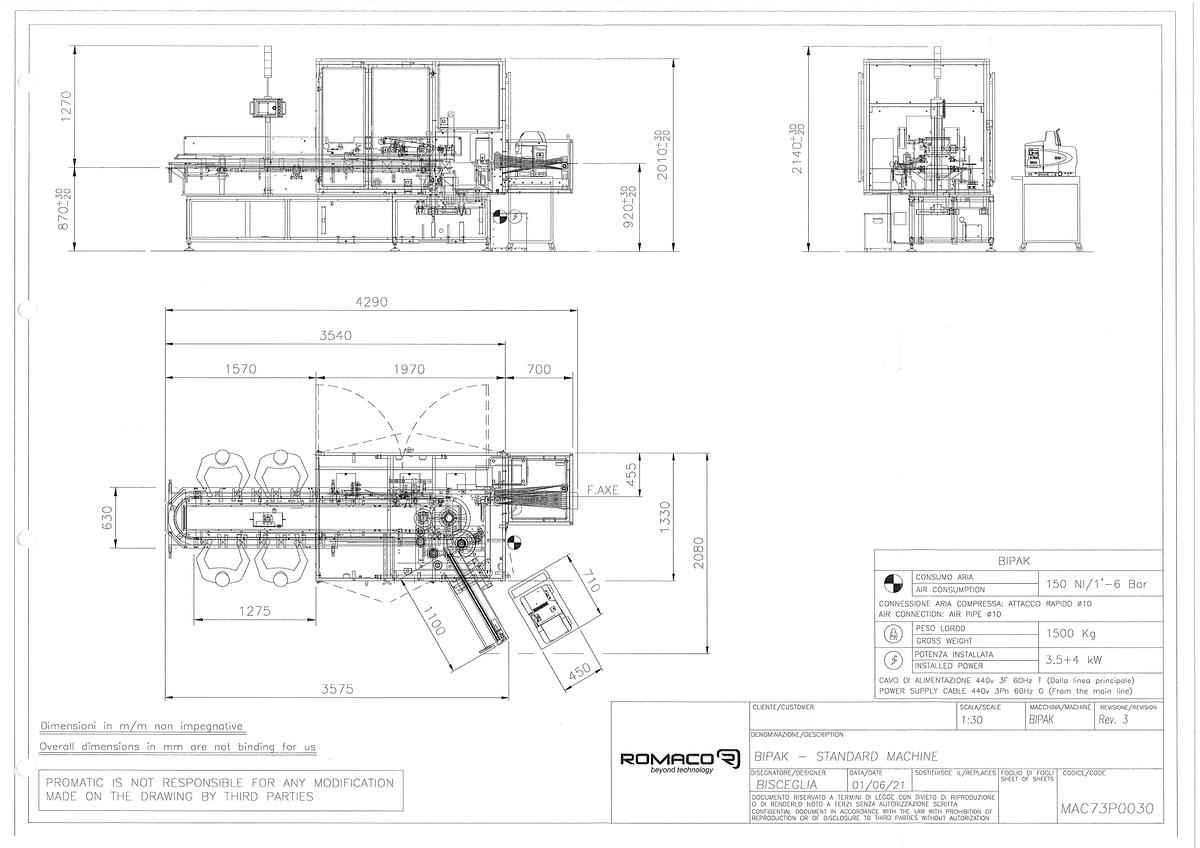

Machine dimensions 3600mm x 1845mm x 1840mm high, weight 1450kg

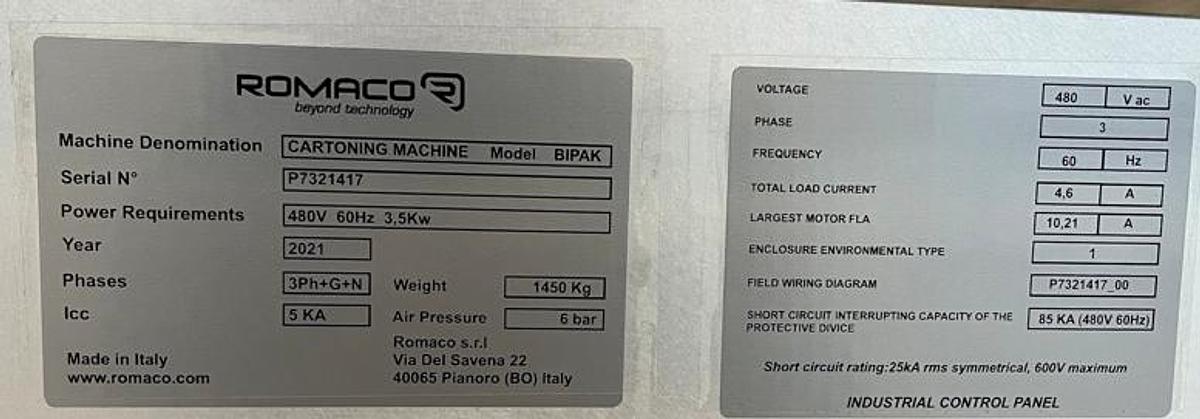

Power Requirements

480V, 60Hz, 3.5Kw

3Ph+G+N

6 bar air pressure

Qualification documents, Operation and Maintenance Manuals available in both hard copy and electronic form

The video is from the OEM's website and for example purposes only as our machine is manual loading of the product
