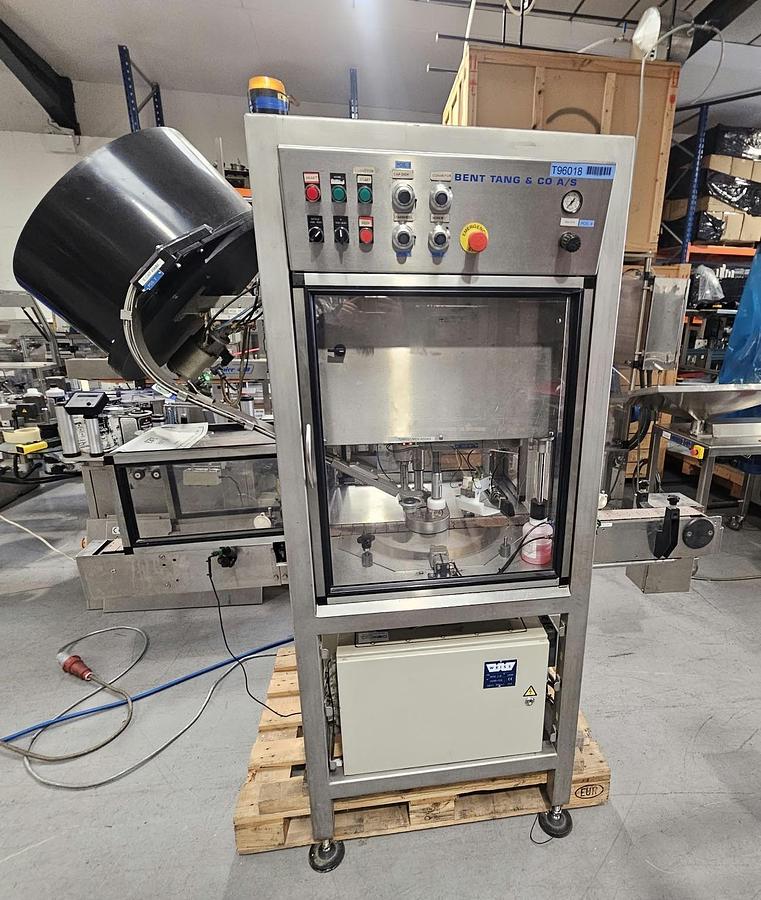

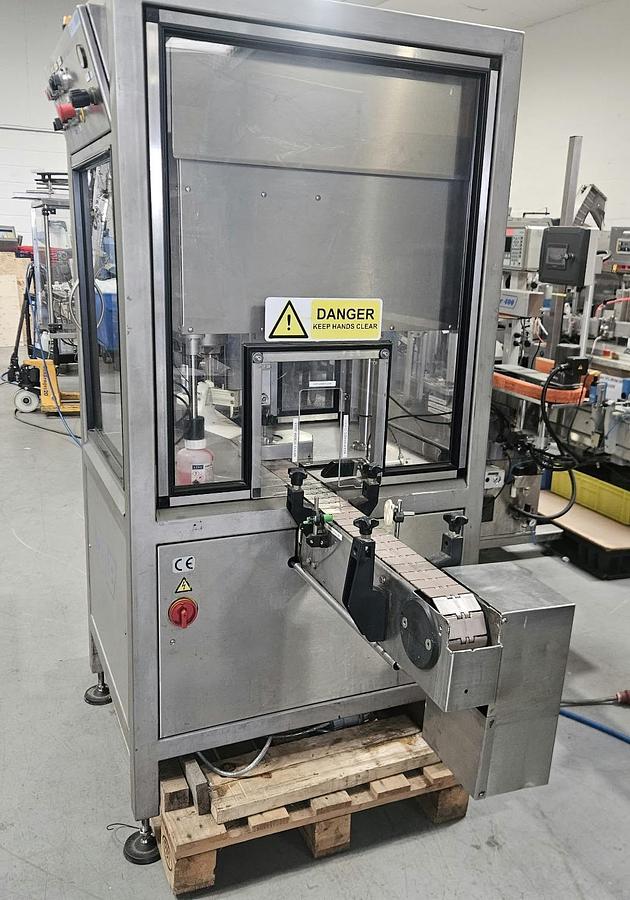

Weiss Single Head Screw or Push on Capper

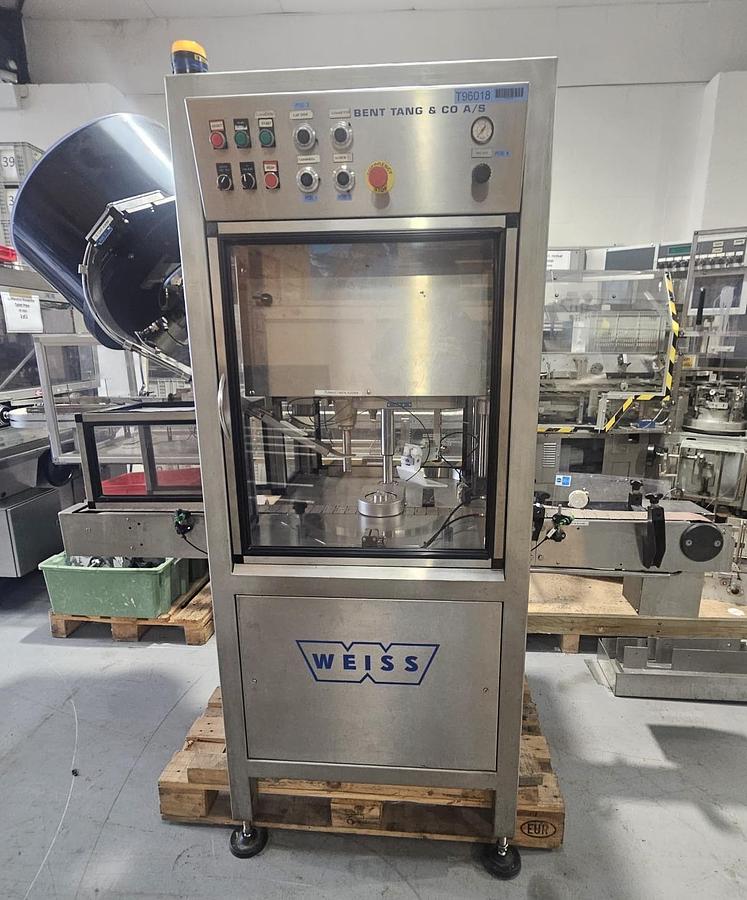

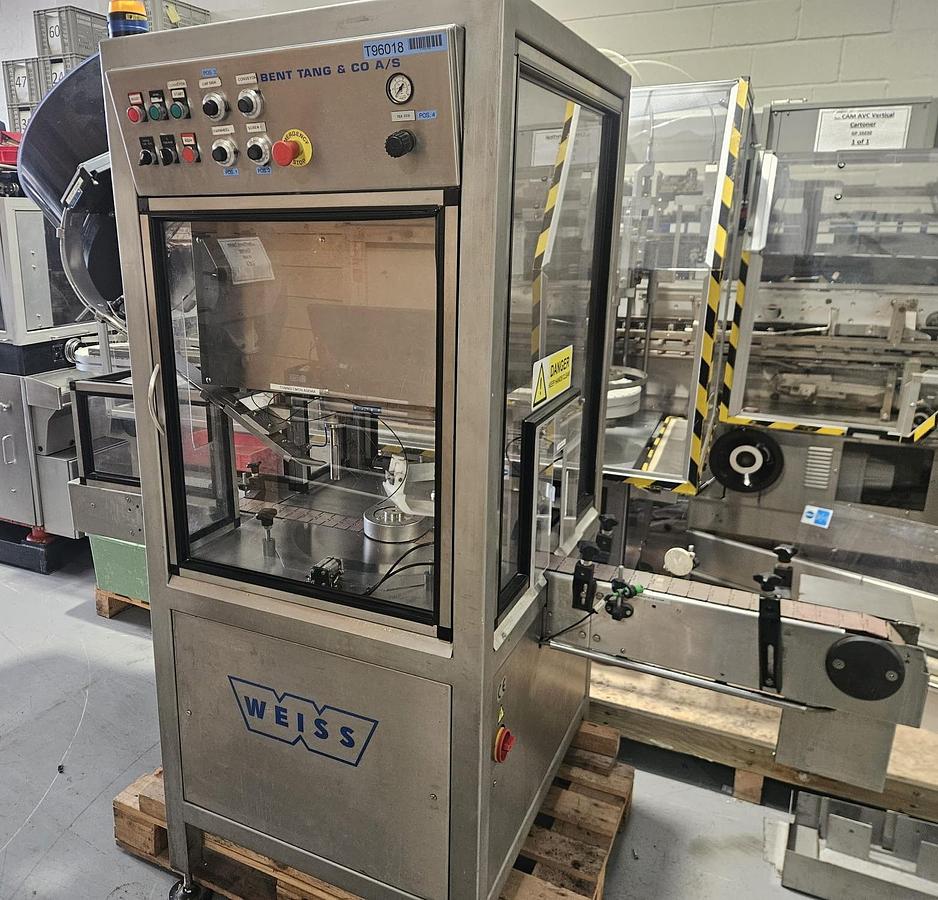

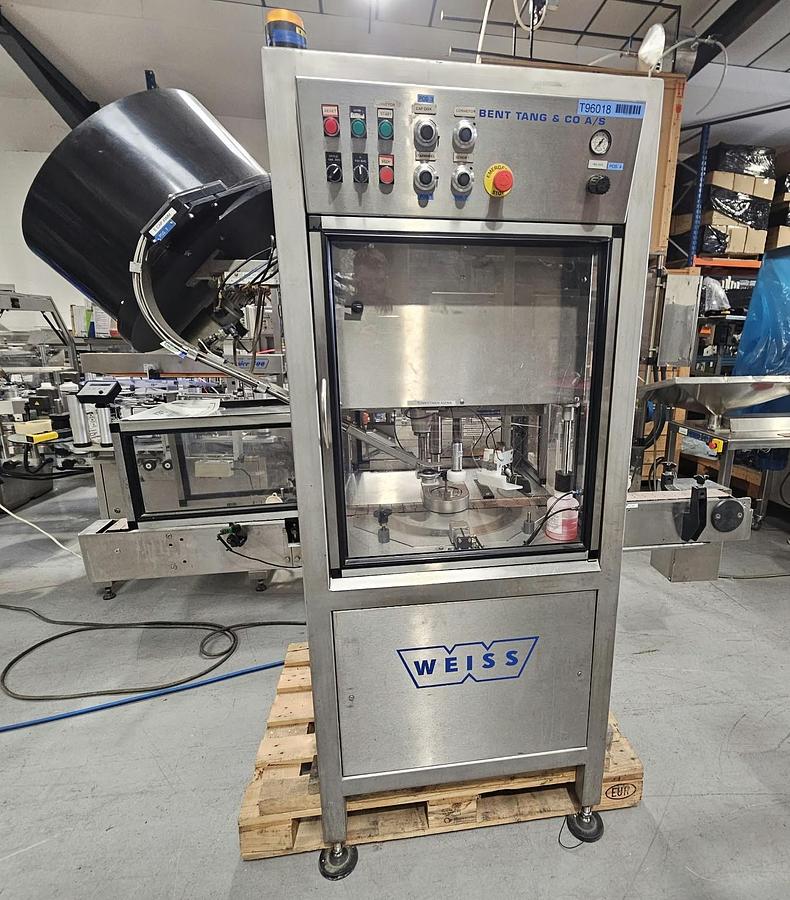

Weiss model WKS 1-8 Single Head Screw or Push on Capper

Currently set up for a 48mm diameter x 18mm high push on cap and a 145mm tall bottle

Key Information

Speeds of up to 50 per minute depending cap and bottle sizes

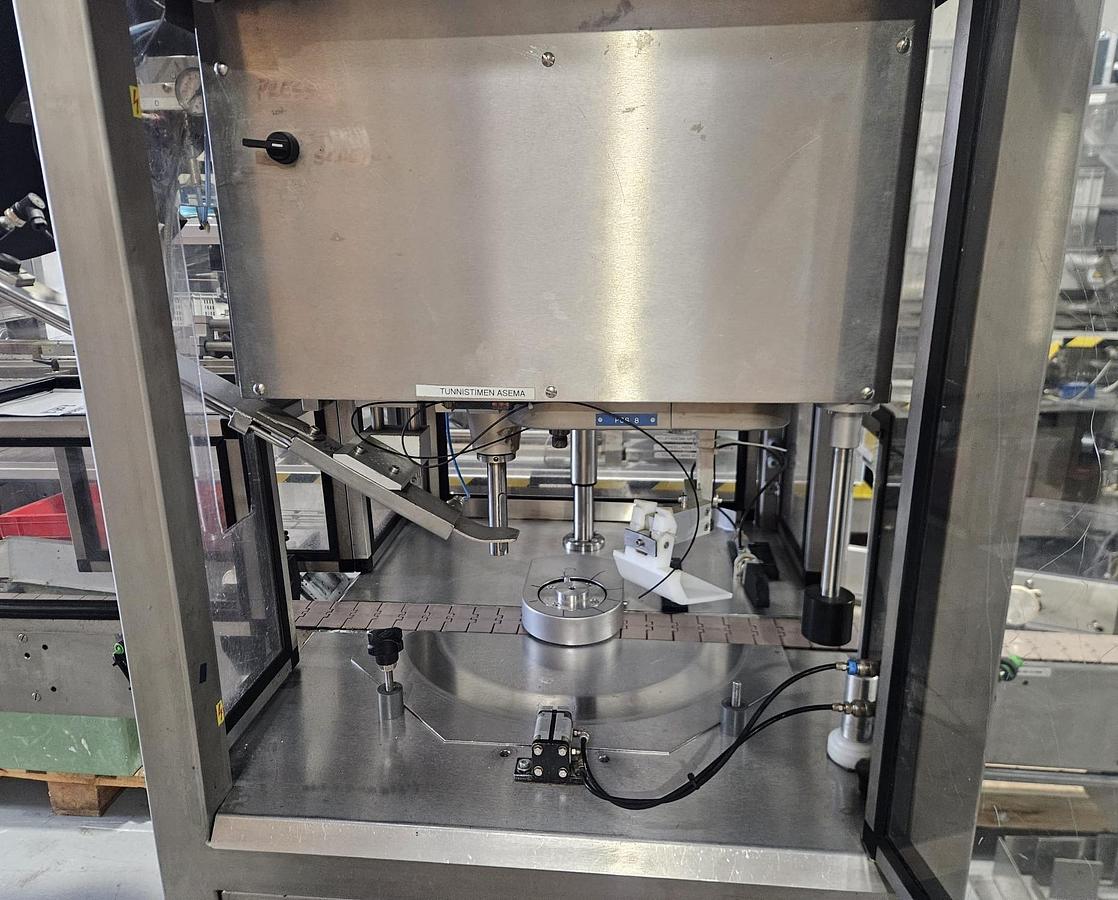

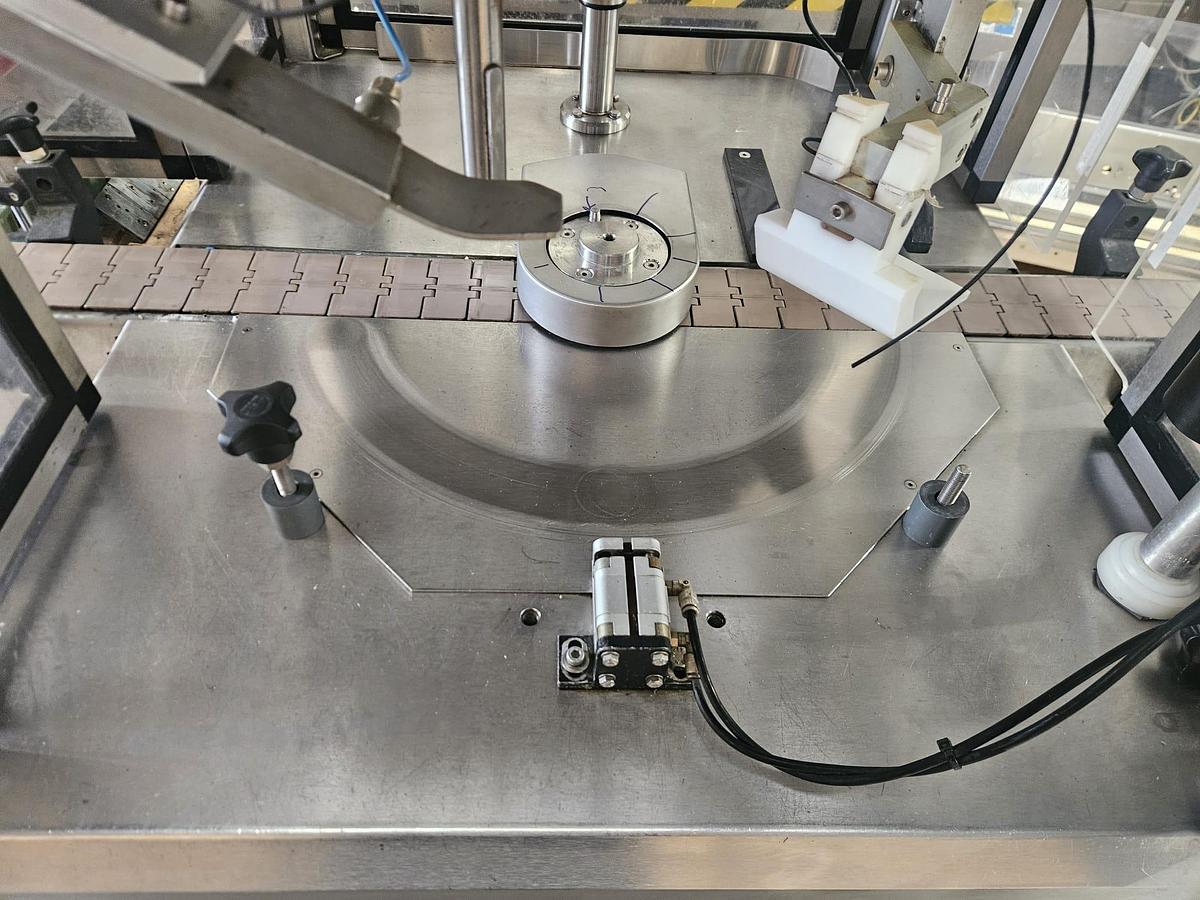

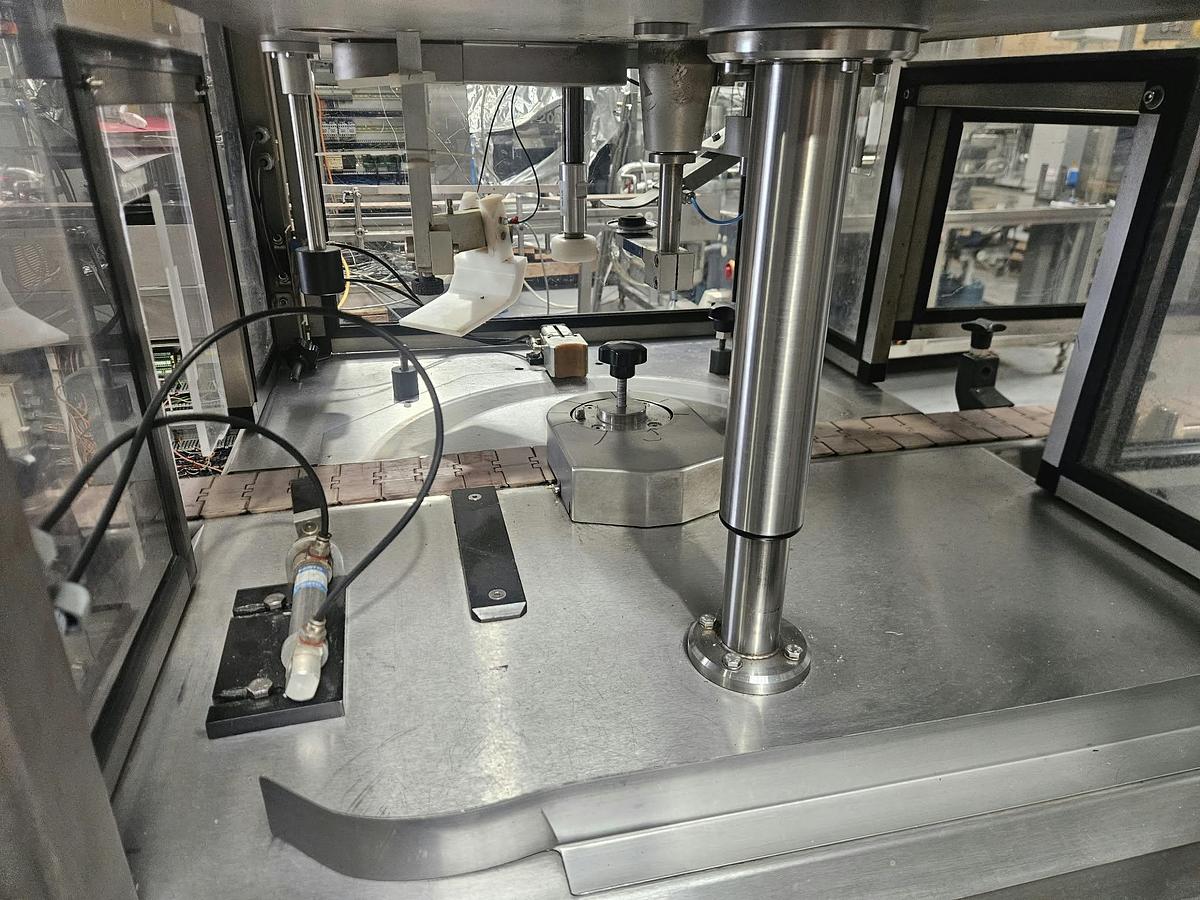

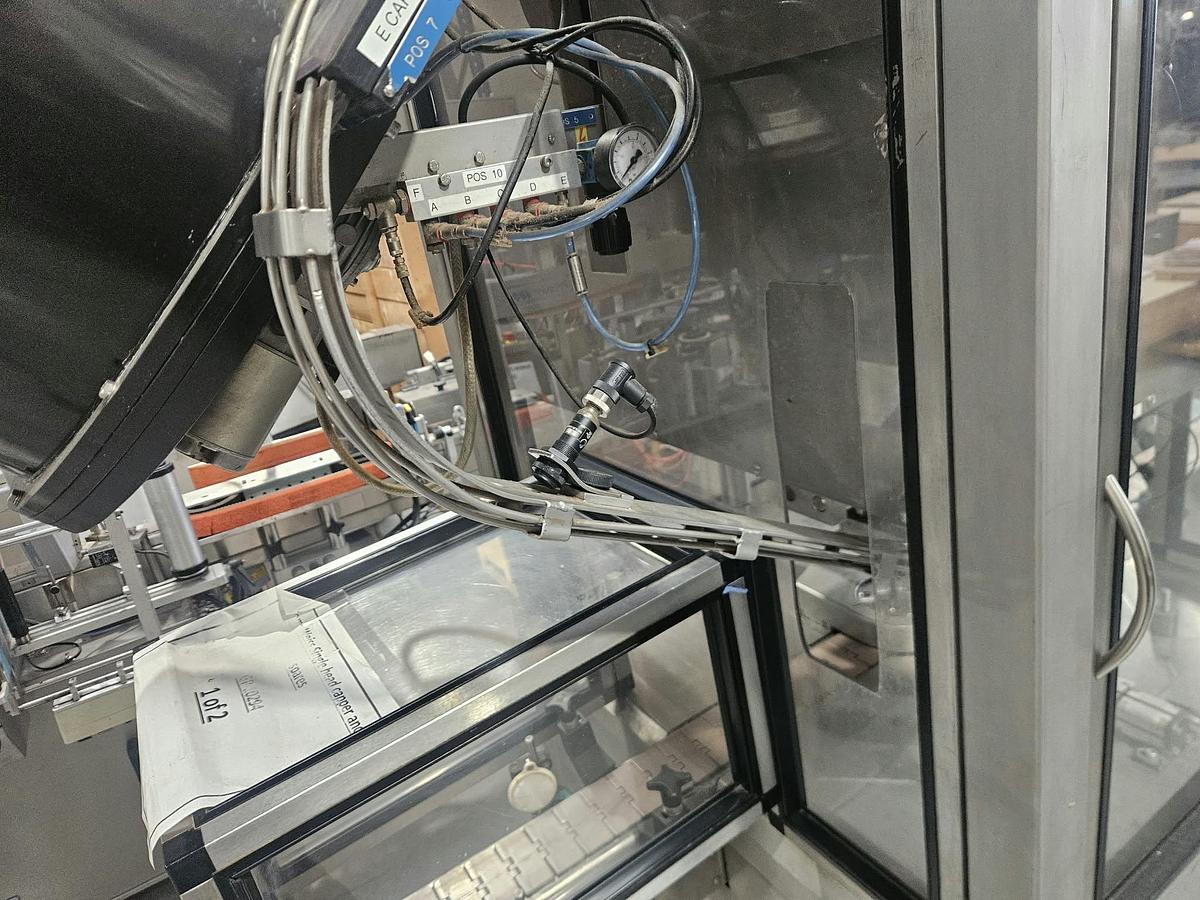

Pneumatic gating system to hold bottles directly under the capping head

Pneumatic and laser gating systems to count bottles through

Through conveyor 80mm wide

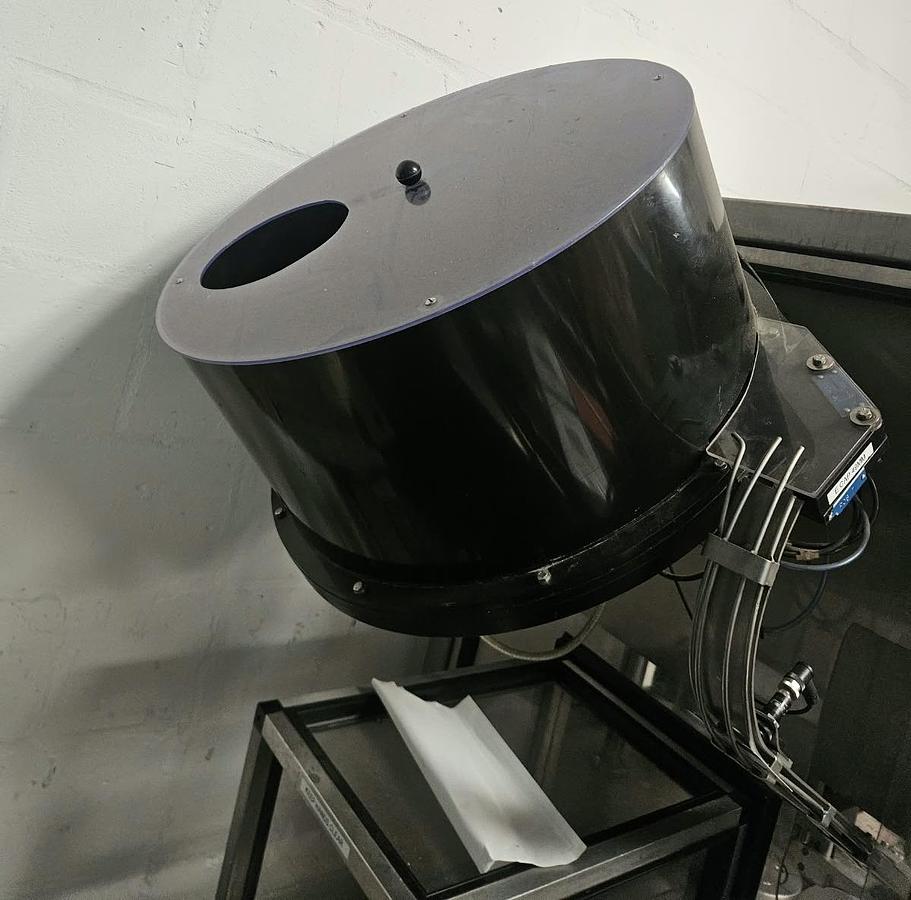

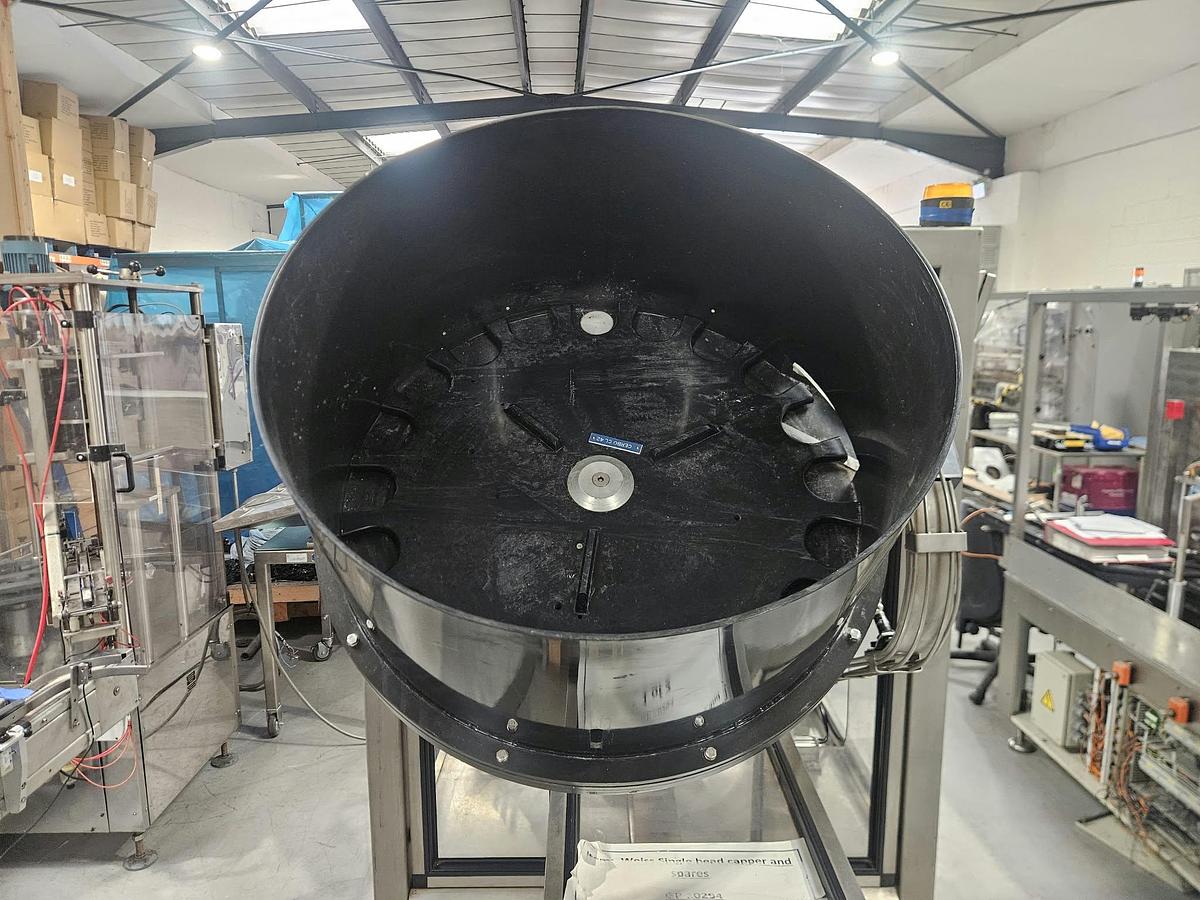

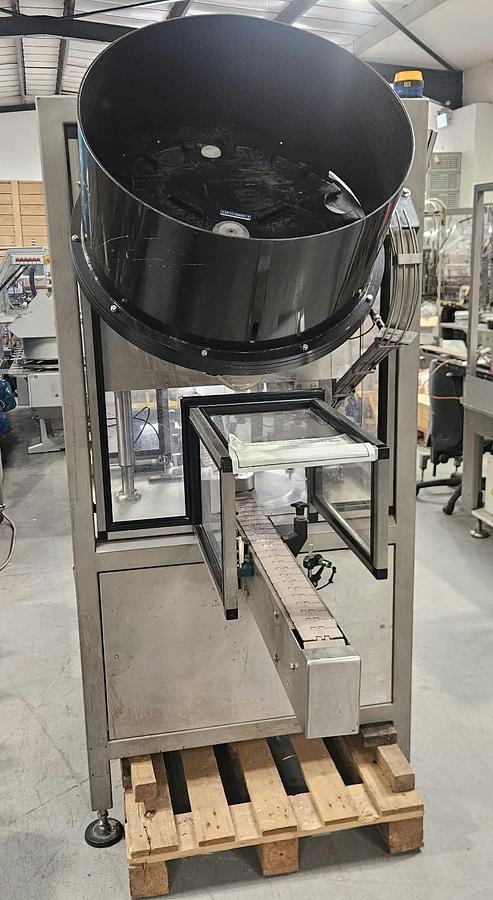

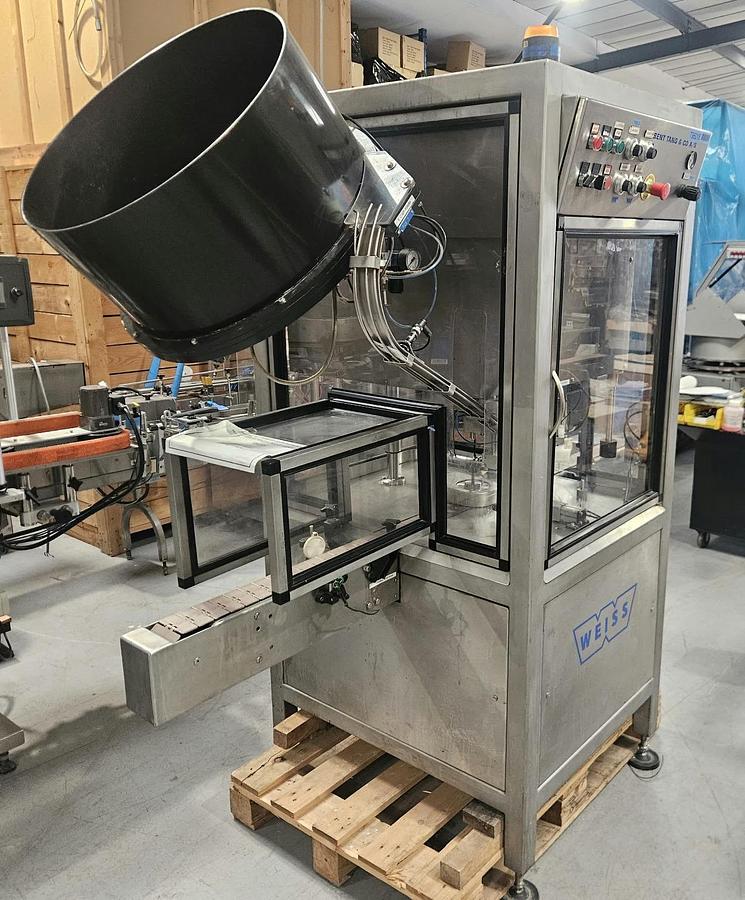

Inbuilt cap sorter bowl

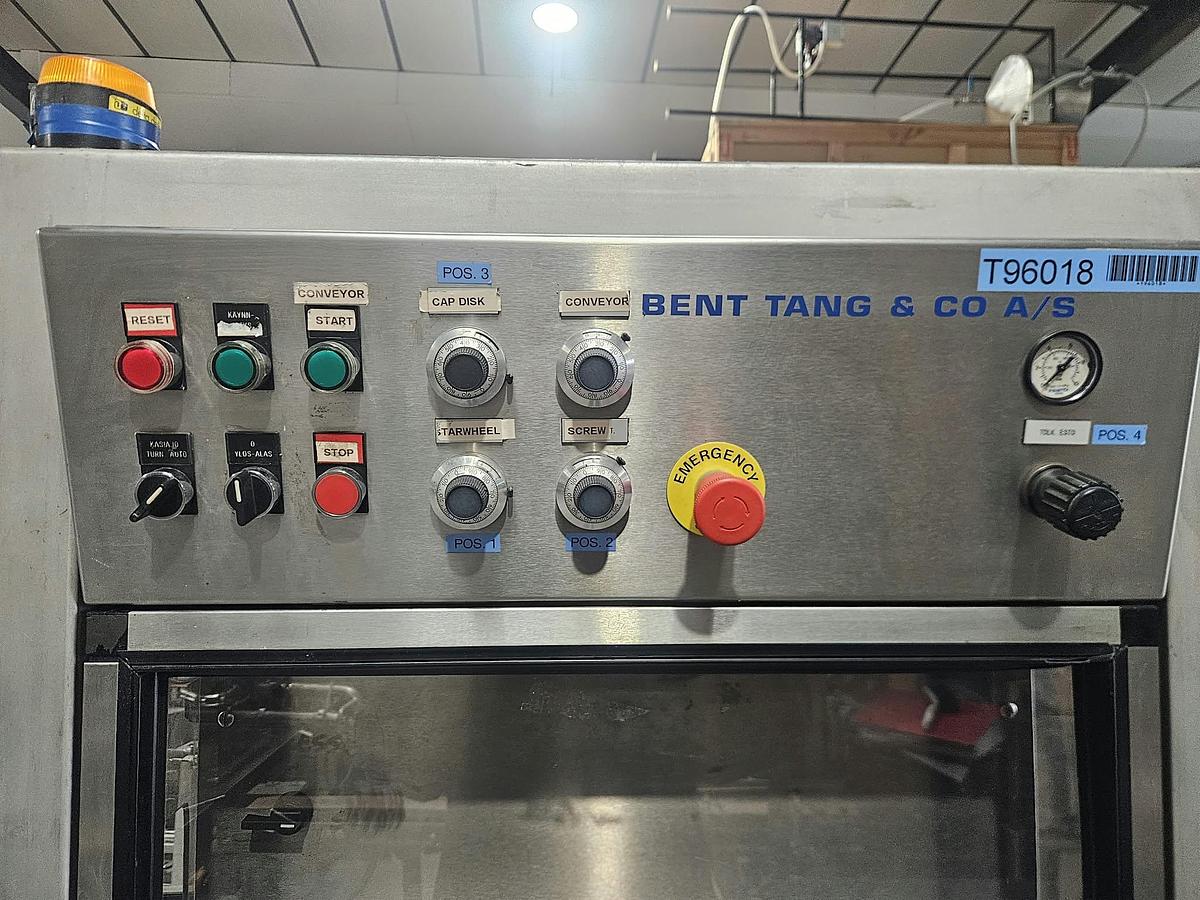

Moeller PLC

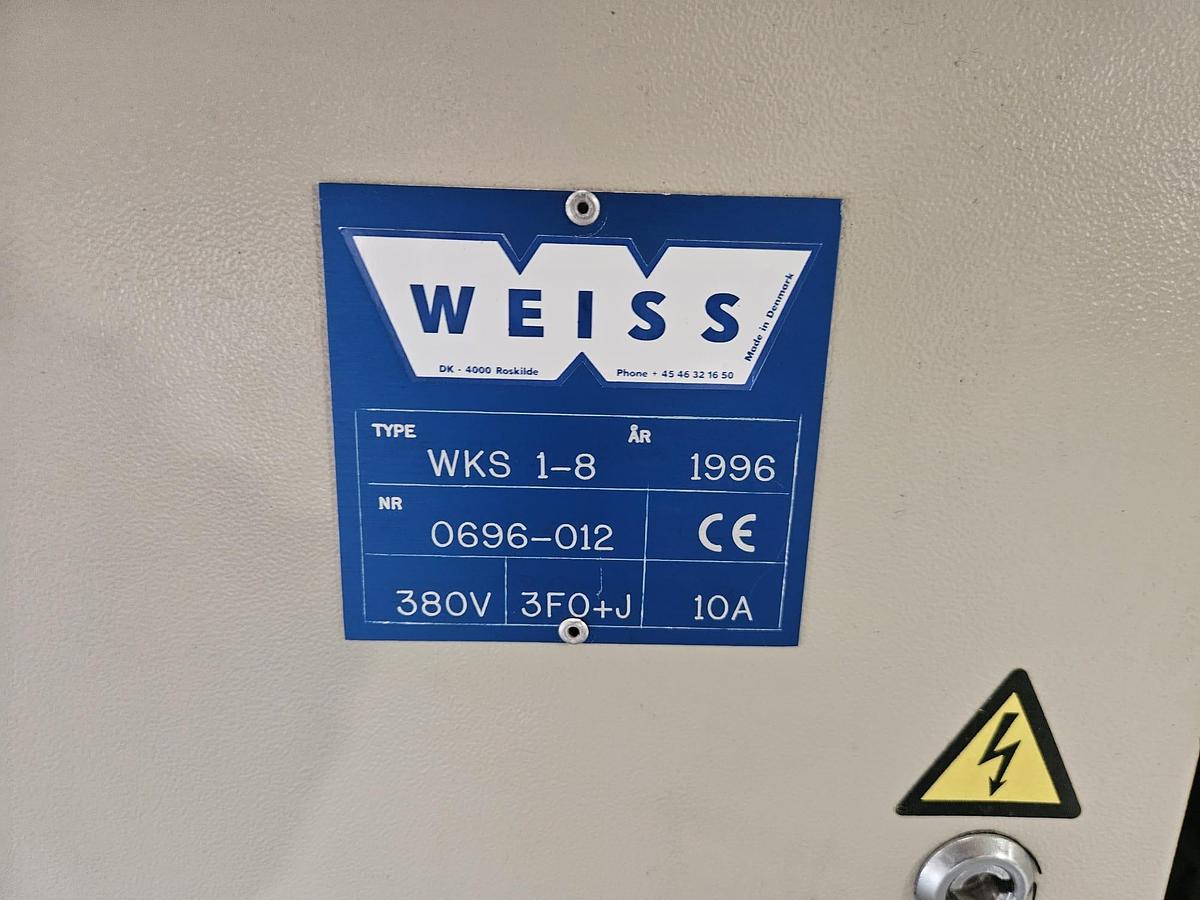

Electrical supply 415V 3ph 16A

5 bar air supply

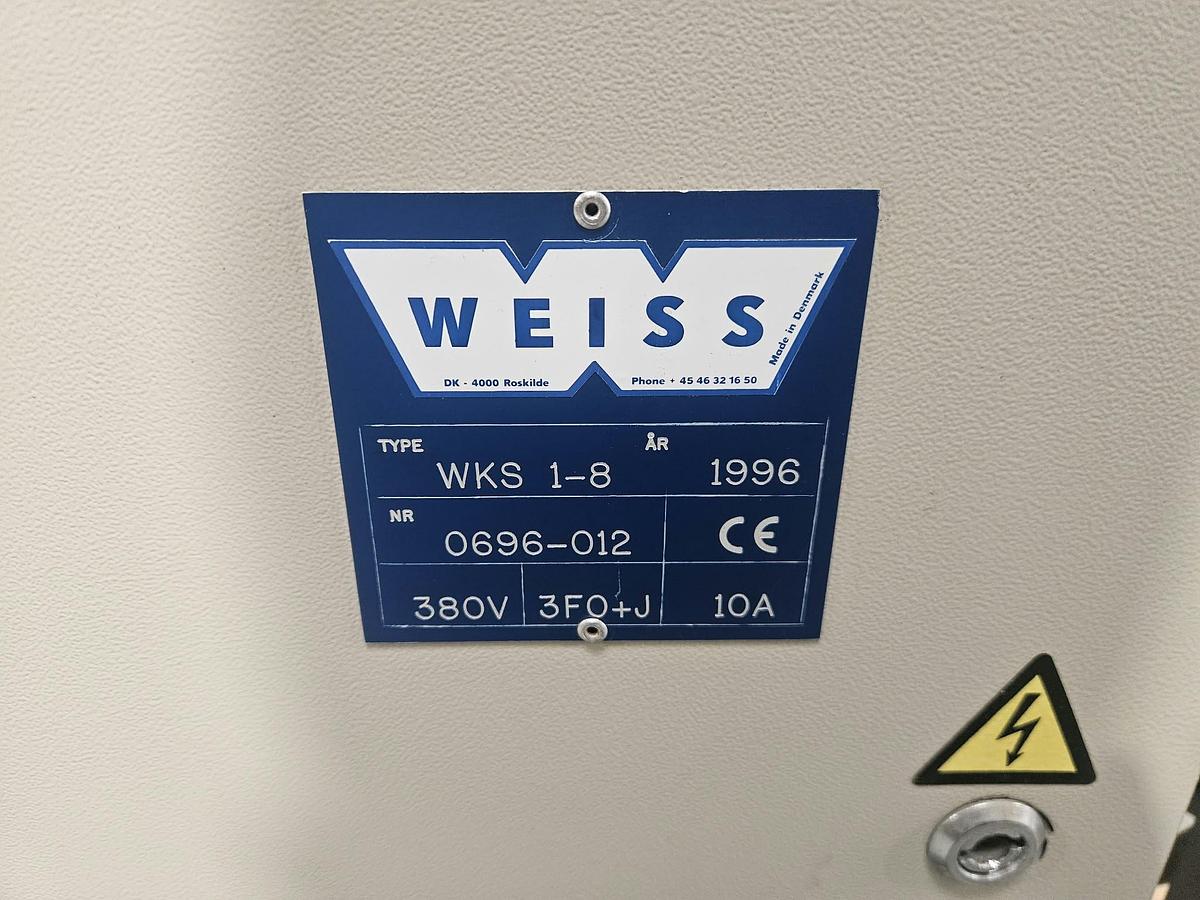

CE marked

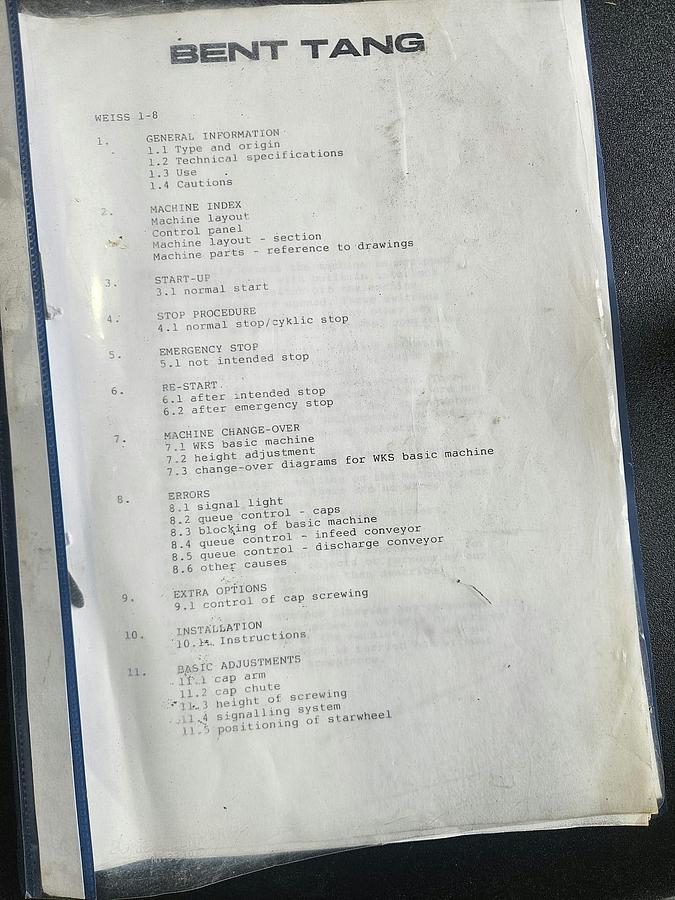

Operation manual included

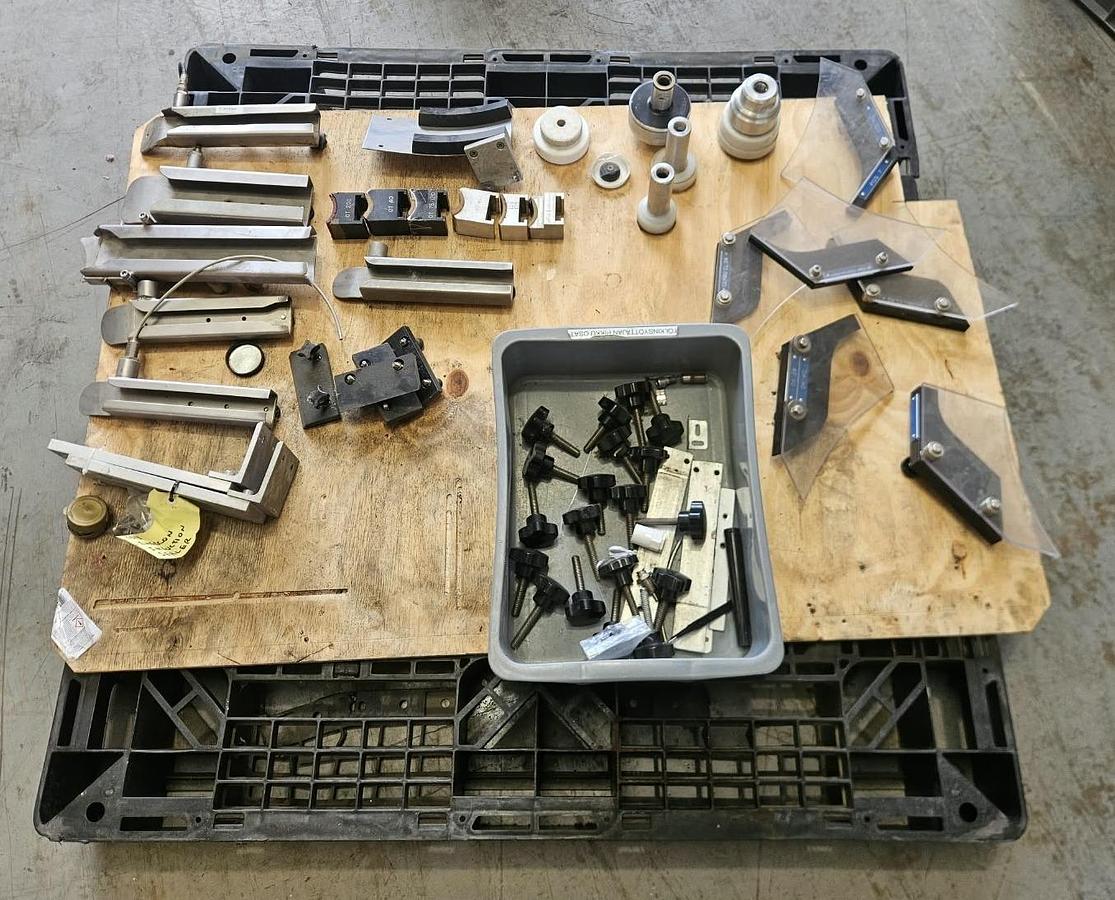

Parts Available

Full set of change parts for a 40mm diameter x 10mm cap (not bottle)

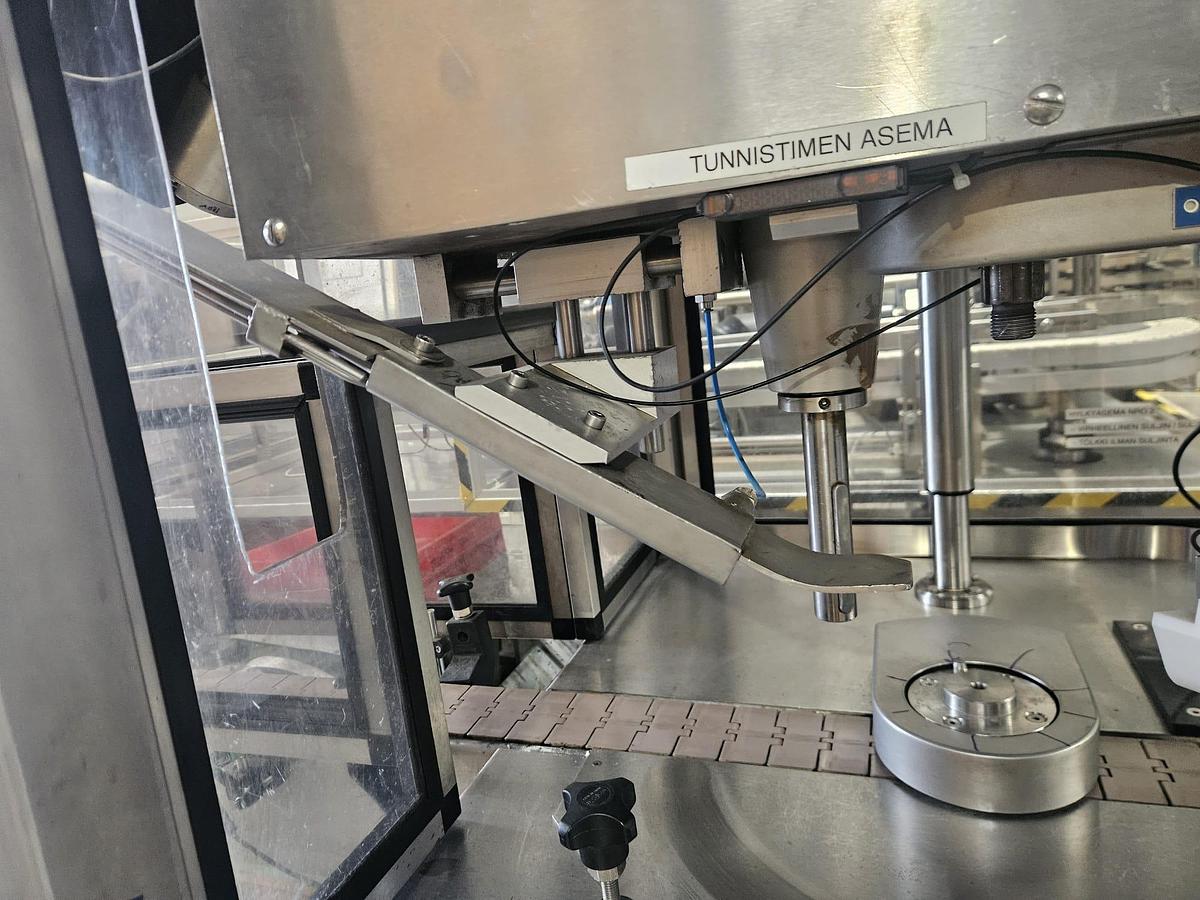

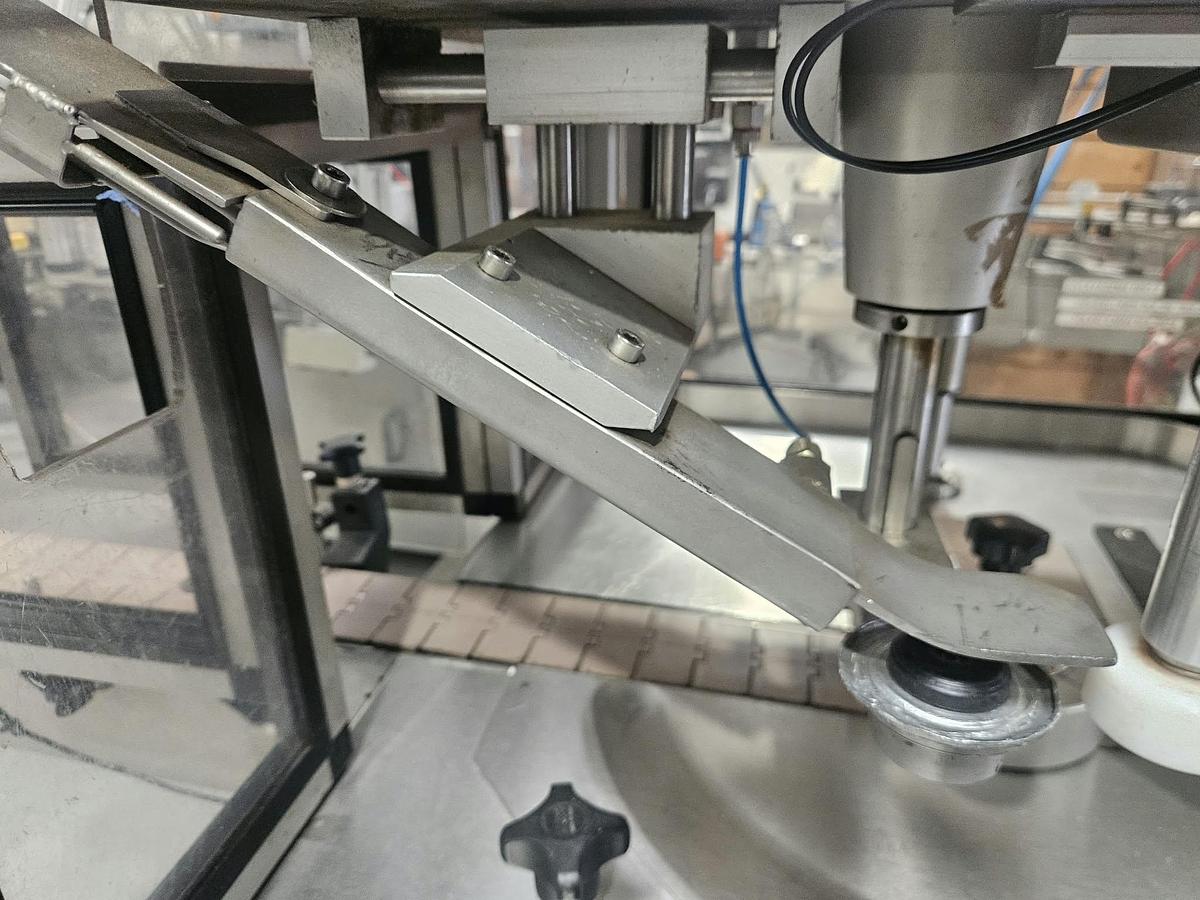

Including: centrifugal start wheel, bowl escapement, chute, cap escapement and push on chuck with suction cup

6 rear bottle holders: 2x 40mm, 2x 200mm, 1x 75/120mm, 1x 125/175mm

6 bowl escapements: 49mm (fitted), 63mm, 63mm, 53mm, 58mm, 48mm

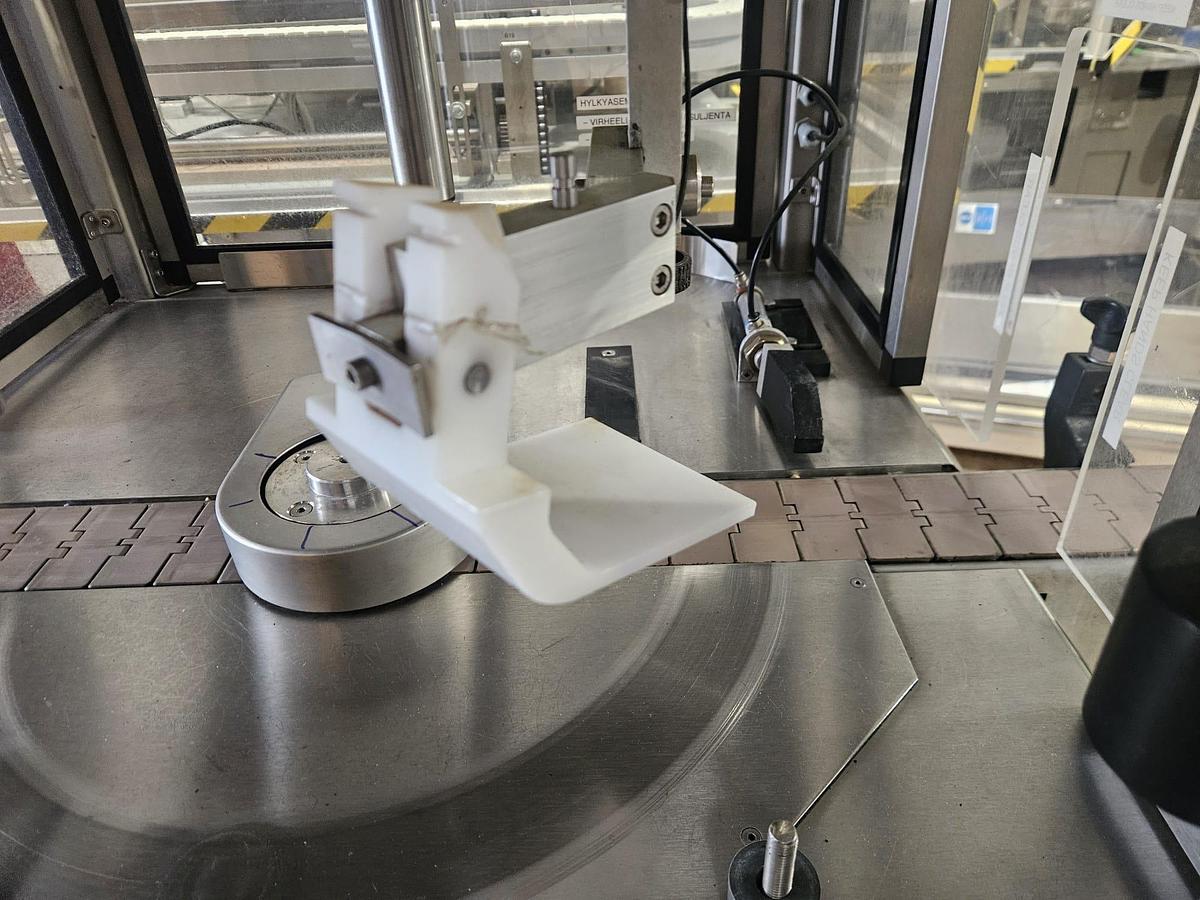

7 cap escapements: 49x 18mm (fitted), 49x 18mm, 72x 23mm, 72x 23mm, 51x 14mm, 39x 25mm, 46x 25mm

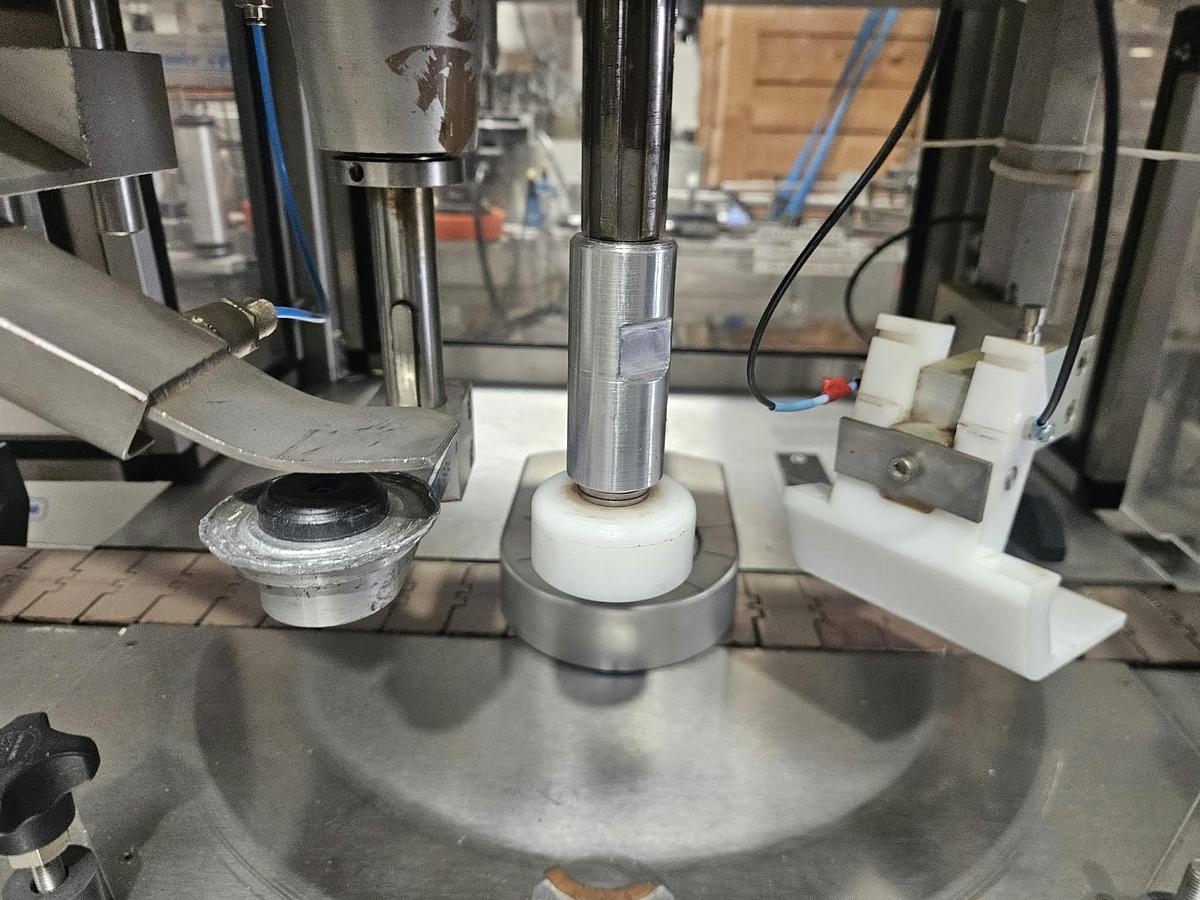

6 chucks: 1x 50mm diameter click lock, 1x 40mm diameter click lock, 1x 65mm diameter push on with suction cup (no shaft), 1x 40mm diameter push on with suction cup (fitted), 1x 65mm diameter push on no suction cup, 1x 55mm diameter push on no suction cup

2x mounting brackets

Various identical threaded bars

4x clamps

60mm cap slide

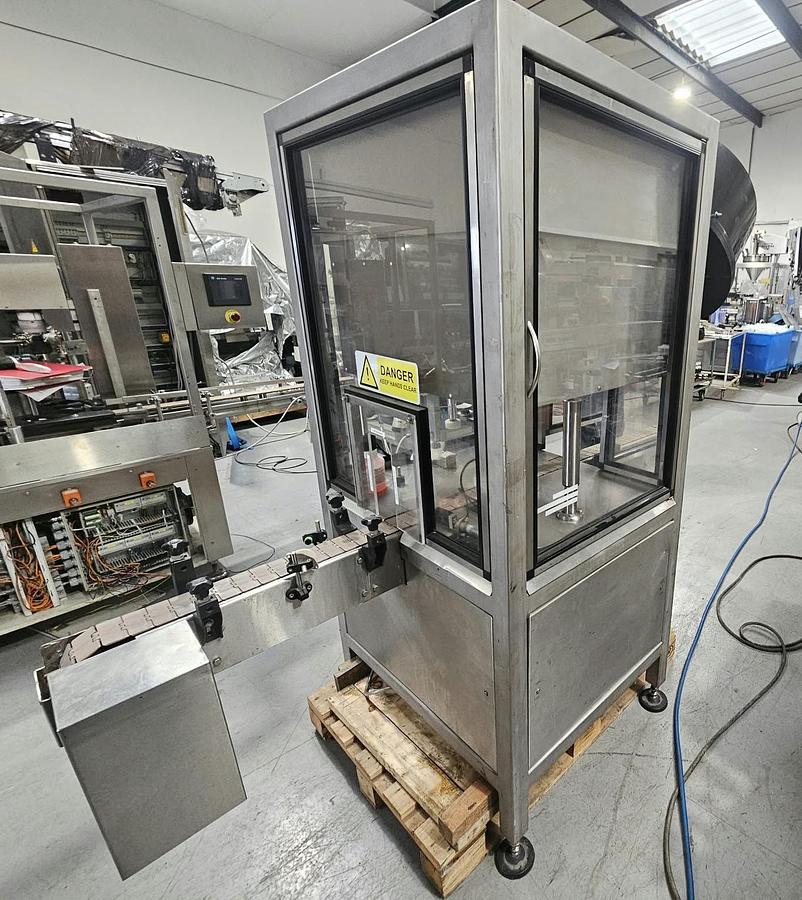

Machine size: 2250mm x 1000mm x 2200mm high, weight 400kg

Supplied cleaned, checked and tested dry cycling

We offer engineering services and can set this machine up to your cap and container size, please ask us for a quote!
