TSA RO Water Storage and Distribution System

TSA RO WATER STORAGE AND DISTRIBUTION SYSTEM

*This system is BRAND NEW and has never been used due to cancelled order*

Pre-Treatment System

Sodium hypochlorite dosing system 0-6 LPH

Raw water tank HDPE 4 KL

MGF cum backwash pump - feed 3.7 M3/HR @30 MWC BW 5.5 @ 20 MWC

Multi-grade filtration system with auto individual ball valves 3.7 M3/HR

To other utility (for potable water) 0.5 M3/HR

Softener system with auto individual ball valves 3.2 M3/HR

Soft water storage tank HDPE 4 KL

Soft water transfer pump 3.2 M3/HR

To other utility (for soft water) 0.5 M3/HR

Pre-UF System

UF feed pump with all accessories 2.7 M3/HR @ 30 KG/CM2

Bag filter at UF inlet

Pre UF system with all accessories 2.7 M3/HR

Pre UF backwash pump

Bag filter at UF backwash line

3 Dosing System

Antiscalant dosing system

PH correction dosing system

Dechlorination dosing system

0-6 LPH

HSRO - I System

RO water storage tank SS 316L - 0.3 KL

Jacketed with accessories and electrical heater

RO feed pump with all accessories 2.4 M3/HR @ 3.5 KG/CM2

Micron cartridge filter 2.4 M3/HR

HPP for HSRO-1 with all accessories

HSRO-1 system with all accessories 1.8 M3/HR

HSRO - II System

HPP for HSRO-2 with all accessories

HSRO-2 system with all accessories 1.55 M3/HR

HSEDI 1.5 M3/HR

CIP system for RO + EDI 3.0 M3/HR

Common PLC based control panel SS 304 HMI 10" for pre-treatment, PW generation & distribution system

Interconnecting piping for the system within battery limit

Cabling for the system within battery limit

Skid MOC SS 304 for pre-treatment and RO EDI system

3.5 KL PW Storage Tank With Accessories

3500 ltr plain storage tank with Rockwool insulation and SS 304 cladding for PW

Contact parts SS 316L non contact parts SS 304

Internally electropolished up to 240 grit

Externally buff 180 grit

Vertical type, MOC, welding

10" vent filter with heat tracer housing with temperature element and hydrophobic type cartridge 0.2 micron rating

Vent filter isolation valve, 1.5" two way cast body auto operated diaphragm valve with EPDM backed PTFE gasket

Integrity ports with valve for vent filter

View and light glass assembly with lamp and accessories for tank

Capacitance type level transmitter

Spray ball with attachment

Compound pressure guage (-1 TO + 5 KG/CM2) with syphon

Sanitary safety valve

Temperature controller for tank

Tank drain valve (diaphragm valve) 1.5" two way cast body with EPDM backed PTFE gasket

Ladder for PW dist tank SS 304

PW Distribution Skid

PW Distribution pump capacity 6.6 M3/HR @ 5.9 KG/CM2 60HZ

Peak load considered 2500 LPH

VFD for above pump suitable for pump

Manual diaphragm valve at pump suction 2.5" SS 316L invest cast body with EPDM diaphragm

Manual diaphragm valve at pump discharge 1.5" SS 316L invest cast body with EPDM diaphragm

Pump suction 2.5" and discharge 1.5" and PW supply and return line piping

Pressure gauge in supply line and return line 0-10 KG/CM2 4" dial TC end

UV system with intensity meters API series

Flow transmitter on return line 1.5"

Temperature controller for return line

Conductivity indicator cum controller

TOC meter with analyser for PW loop with accessories with single channel PAT700

Auto sampling valve for TOC analyser 1/2" with EPDM gasket

Actuated 3 way flow diverter valve interconnected with conductivity transmitter 1.5"

Back pressure regulating valve 1.5"

SS 304 skid frame to house the system with all supports

Cabling and pneumatic tubing for PW distribution system

Sanitary double tube sheet type shell and tube heat exchanger heating and cooling type for PW loop supply line to maintain cooling temp

From ambt to ±18-20°C during working conditions and heating

To ±80-85°C with accessories

PW Piping Variable 1.5"

Tube make SS 316L 1.5" x 16 SWG EP bead removed tube

Insulation for PW pipe in service floor area with nitrile rubber and aluminium cladding 1.5"

Bend 316L 1.5" x 90 PL EP 16 SWG

1.5" TC liner SS 316

TC clamp 1.5" (investment casting) SS 304

Silicon gaskets 1.5"

Sanitary sampling valve 8mm

Pipe support assembly 304 1.5" BSP at service floor area

Manual operated GMP loop with point of use 1.5" U type with TC end with invest cast body EPDM gasket

Pipe support assembly in clean room at user point

Orifice place at user point PTFE

Hose nipple at user point SS 316L TC end

Ceiling covering plate at user point SS 304 circular type

Link to OEMs website: TSA: High Purity Water & Process Solutions for Pharma & Biotech

DQ, IQ and FAT Protocols are available on request

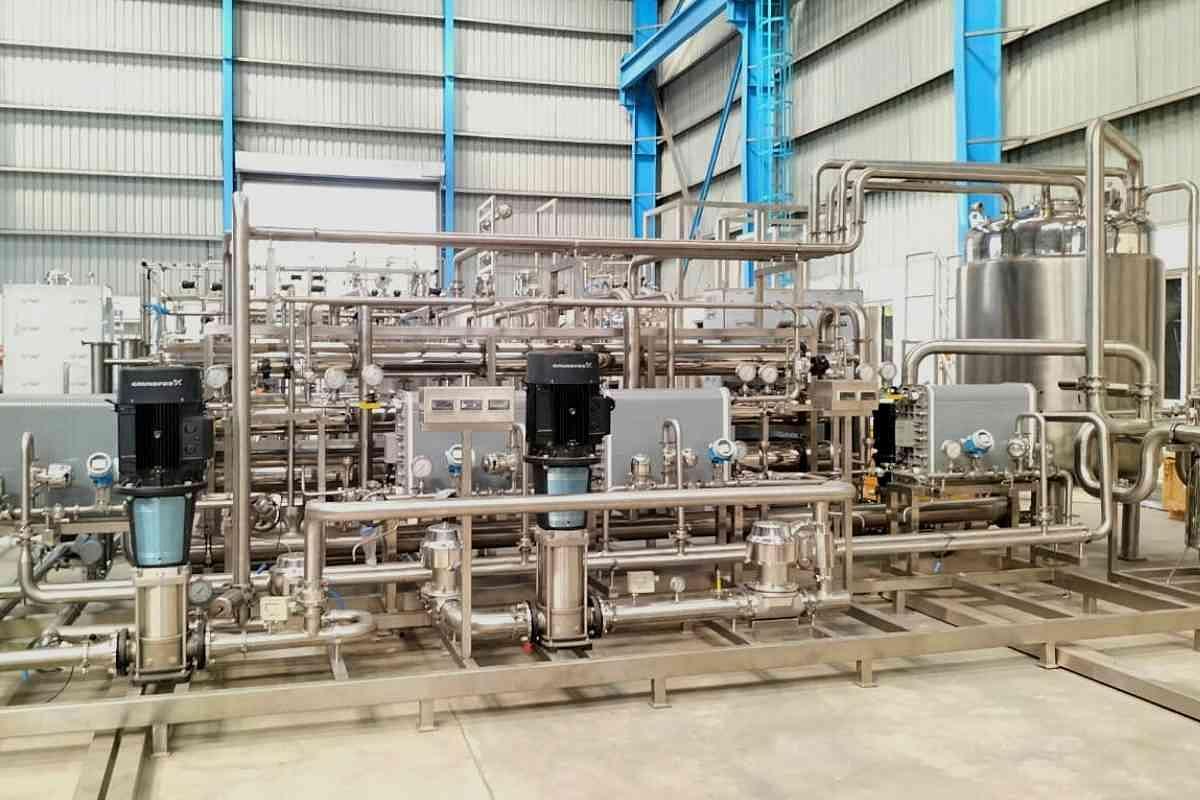

Note: Library photo only - not actual plant
