Parle Tablet/Capsule Counting & Filling Line

PARLE TABLET/CAPSULE COUNTING & FILLING LINE

*The machines in this line are BRAND NEW and have never been used due to cancelled order*

Parle Global’s advanced Counting & Filling Line delivers high-speed precision and seamless integration for pharmaceutical and nutraceutical bottle packaging

Size Range for the MC60 Counter

Minimum tablet size 3mm diameter x 1.8mm depth

Maximum caplets size 22mm long x 10mm wide x 8mm depth

Capsule sizes 00 to 5

Container diameter 35mm to 85mm diameter

Container height 50mm to 175mm

Container mouth opening 28mm minimum

The machines in this line are a rotary infeed table, air jet cleaner, counting and filling machine, silica gel pouch inserter, single head screw capper, induction sealer, labeller for round containers with inkjet printer, and rotary outfeed table

This line is currently set up for 100 counts of 8mm diameter standard concave coated tablets into a bottle mouth diameter of 28mm with a maximum speed of 30-60 bottles per minute

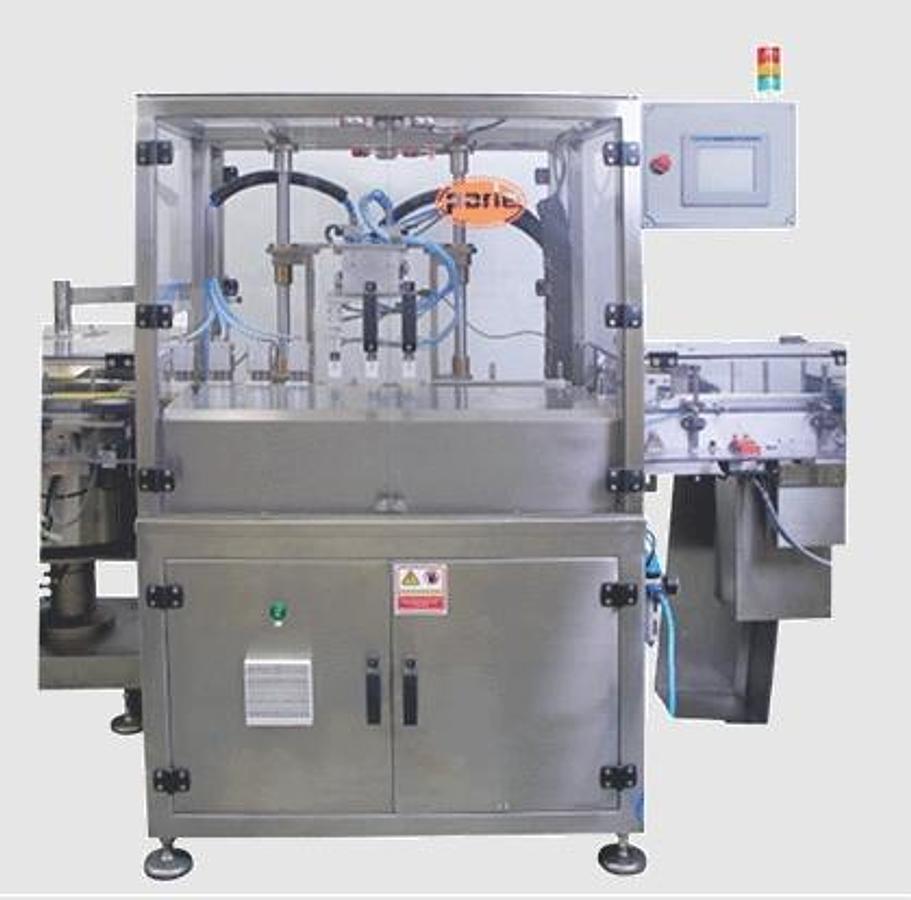

Counting & Filling Machine

Model MC 60

12 channel

Conveyor with motor drive for container transfer

Reject system

Tower lamp for machine status indicator

2 sets of change parts

Rotary Infeed & Outfeed Tables

36" diameter

Lockable wheels

Tray loading/unloading of containers

Air Jet Cleaner System

Vertical with air ioniser unit

Single track

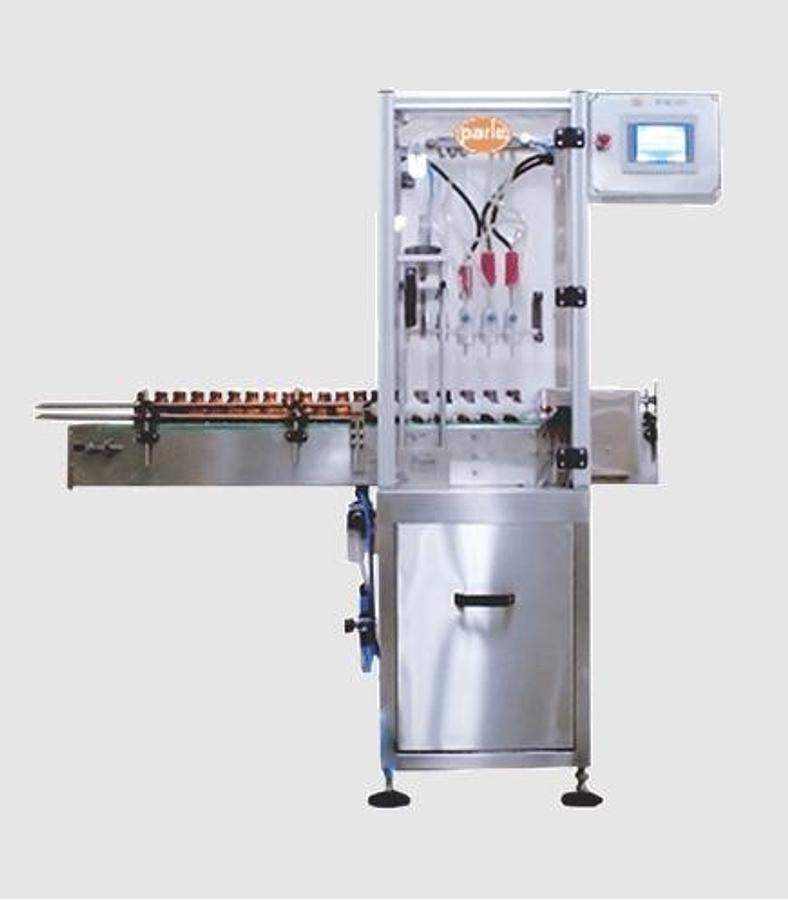

Silica Gel Pouch Inserter

Reject system for containers without gel pouch

Pouches need to be in roll form and have a carry slot/laser cut to facilitate positioning for cutting

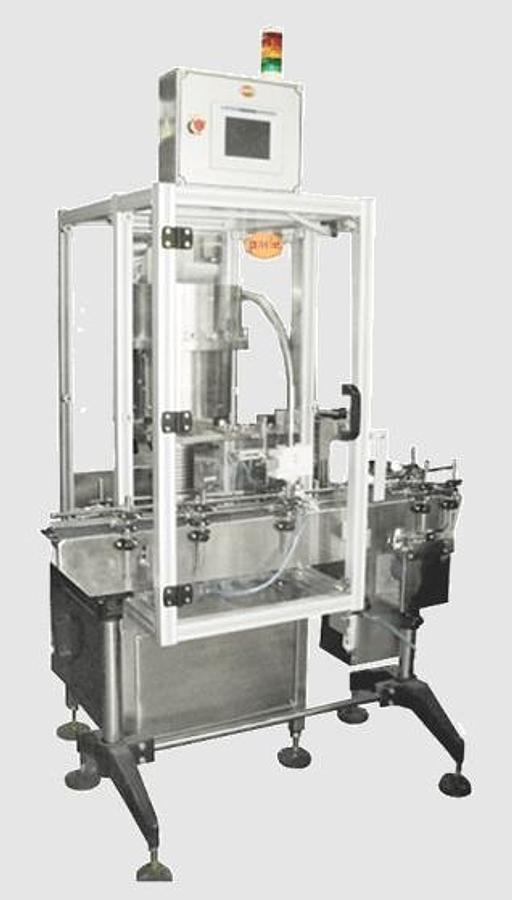

Single Head Screw Capper

Screw on capper

Reject system for cross caps, no cap and no aluminium wad

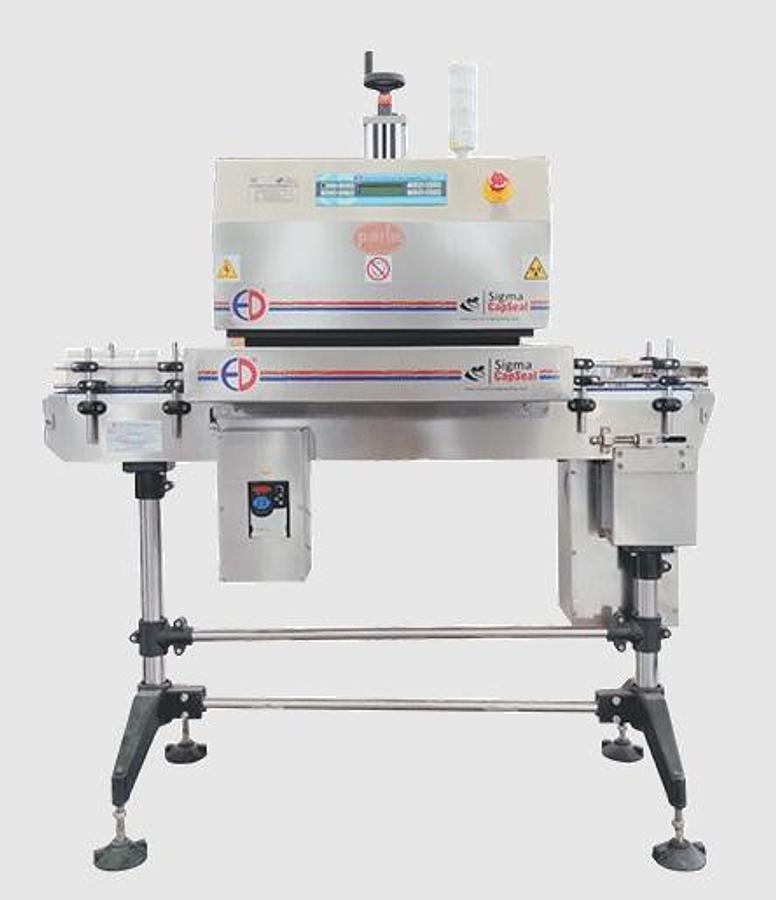

Induction Sealing Machine

Seals aluminium foil on filled cap bottles

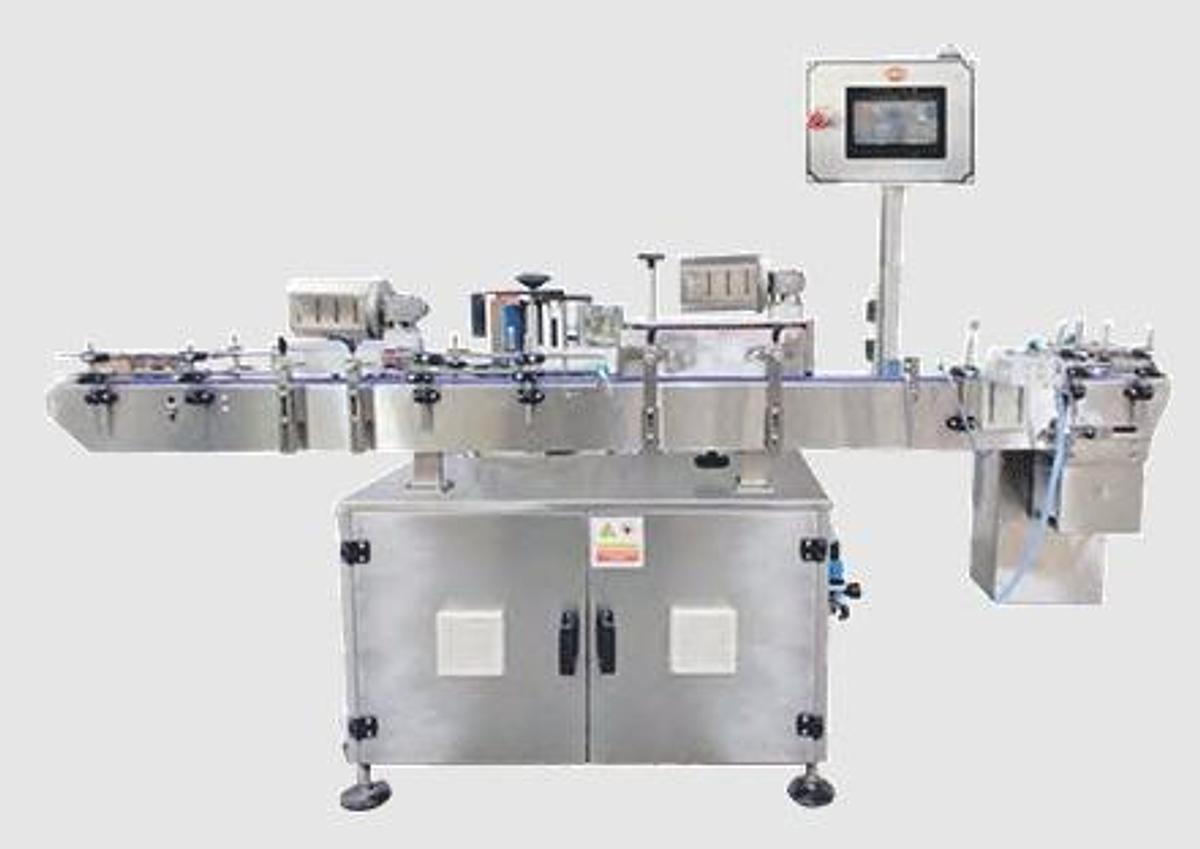

Labeller with Inkjet Printer

Vertical labeller for round containers

Thermal inkjet printer (3 line, black ink only)

Manuals included

Link to OEMs website: https://www.parleglobal.com/products/pharmaceutical/packaging/counting-filling-line/

DQ, IQ and FAT Protocols are available on request

Note: Library photos only
