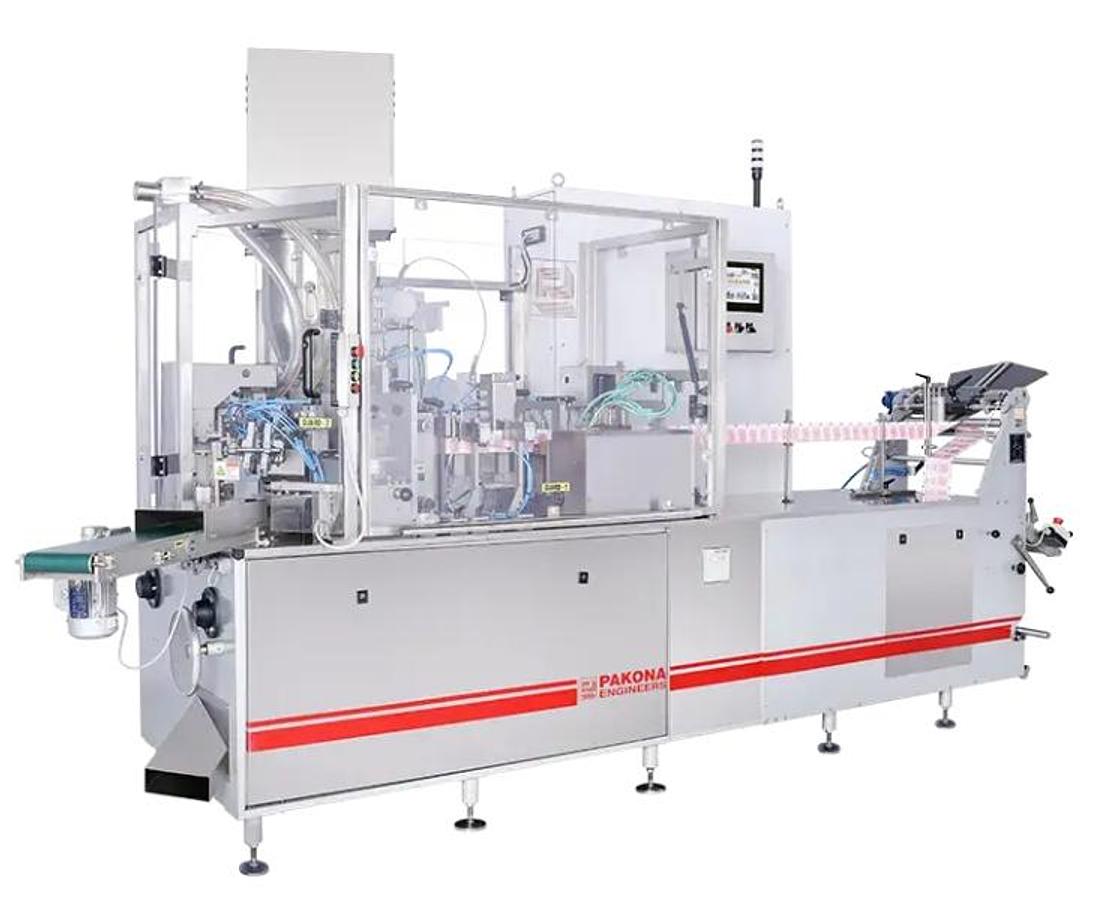

Pakona FBM D2 Duplex Sachet Filler

PAKONA Model FBM DUPLEX SACHET FILLING MACHINE

*This machine is BRAND NEW and has never been used due to a cancelled order*

Horizontal form, fill and seal machine equipped with servo auger filler, suitable for effervescent products

OEM Suggested Speeds

160-180 pouches per minute for up to 10gm filling weight

140-160 pouches per minute for up to 25gm filling weight

120-140 pouches per minute for 50gm filling weight

Note: speed depends on sachet size, flowability, moisture content, bulk density of the product and the type of film

Pouch Information

Filling weight: 2gm to 50gm (bulk density to be clarified)

Pouch type: three/four side sealed pouch

Pouch size: minimum 40mm width x 50mm high, maximum 90mm width x 270mm high

Packaging material: all heat sealable laminated film, 1. Aluminium with paper outside, 2. Aluminium only, 3. Plastic only (thickness should be 50 microns or more)

This machine is currently set up for a 4 sided seal pouch with v notch for tearing to fill 2gms to 50gms of Pharma powder in pouch sizes 60mm x 75mm for 2gms and 5 gms, and 90mm x 150mm for 30gms and 50gms

Standard Accessories

a) Photo registration system

b) Lubrication system

c) No pouch no fill system to prevent product waste

d) A.C. variable drive

e) Servo motor for film pulling

f) Motorized web aligning system

g) V notch system

Other Information

Mitsubishi model FX5U-64MT/ESS PLC

Mitsubishi model GT-2510 HMI

Common auger arrangement for 2gm to 5gm fill volume is included with this machine

One set of change parts for any one sachet dimensions are included with this machine

Inclined screw feeder with base hopper and level sensor

Nitrogen purging system

TTO printer with suitable bracket for mounting

IBC bin 120 litres (50kg)

Lifter for IBC bin for material charging

Change parts for dosing mechanism for 30gm fill volume - auger arrangement

Change parts for dosing mechanism for 50gm fill volume - auger arrangement

316 Stainless Steel contact parts

GMP compliant

Manuals and drawings included

Link to OEM's website: Horizontal Form Fill Seal Machines | HFFS Machine | Horizontal FFS

DQ, IQ and FAT Protocols are available on request
