Mark Maker EFF PACK 8T Effervescent Tablet Tube Filler

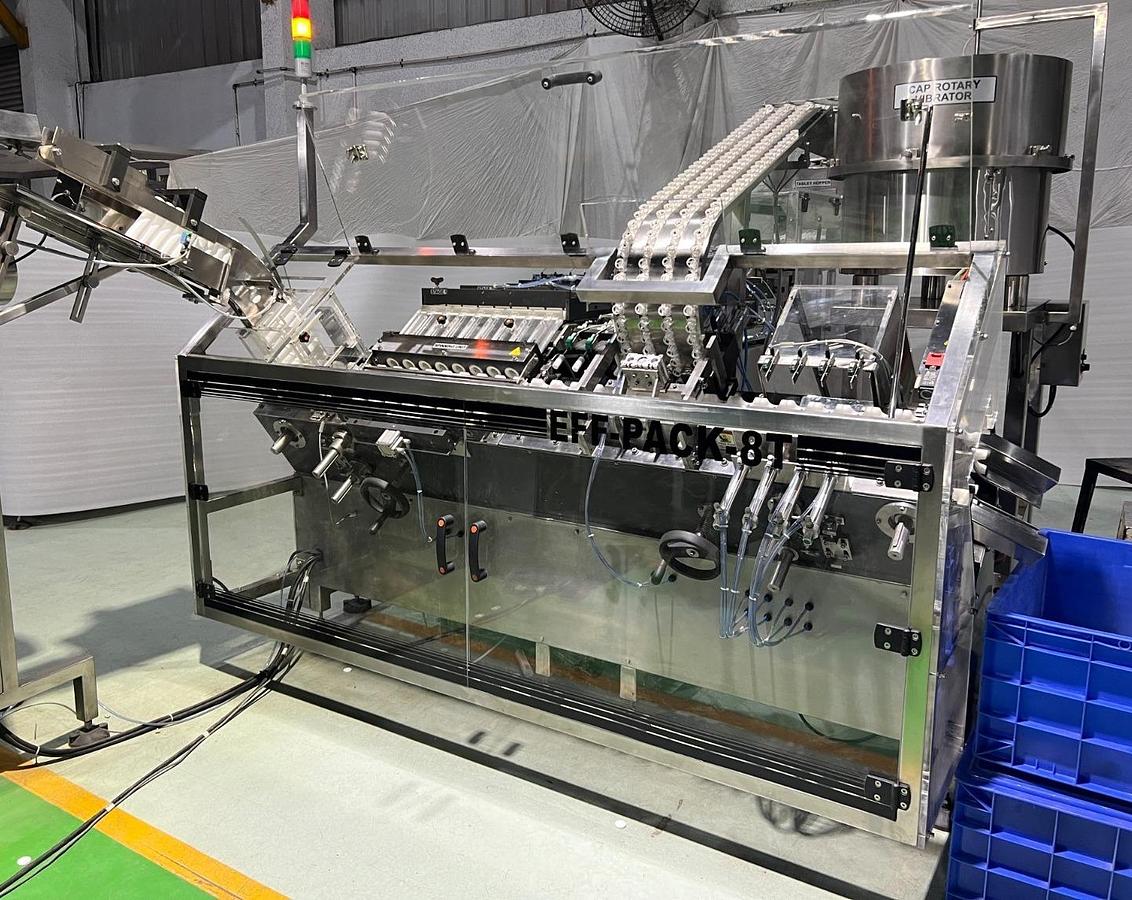

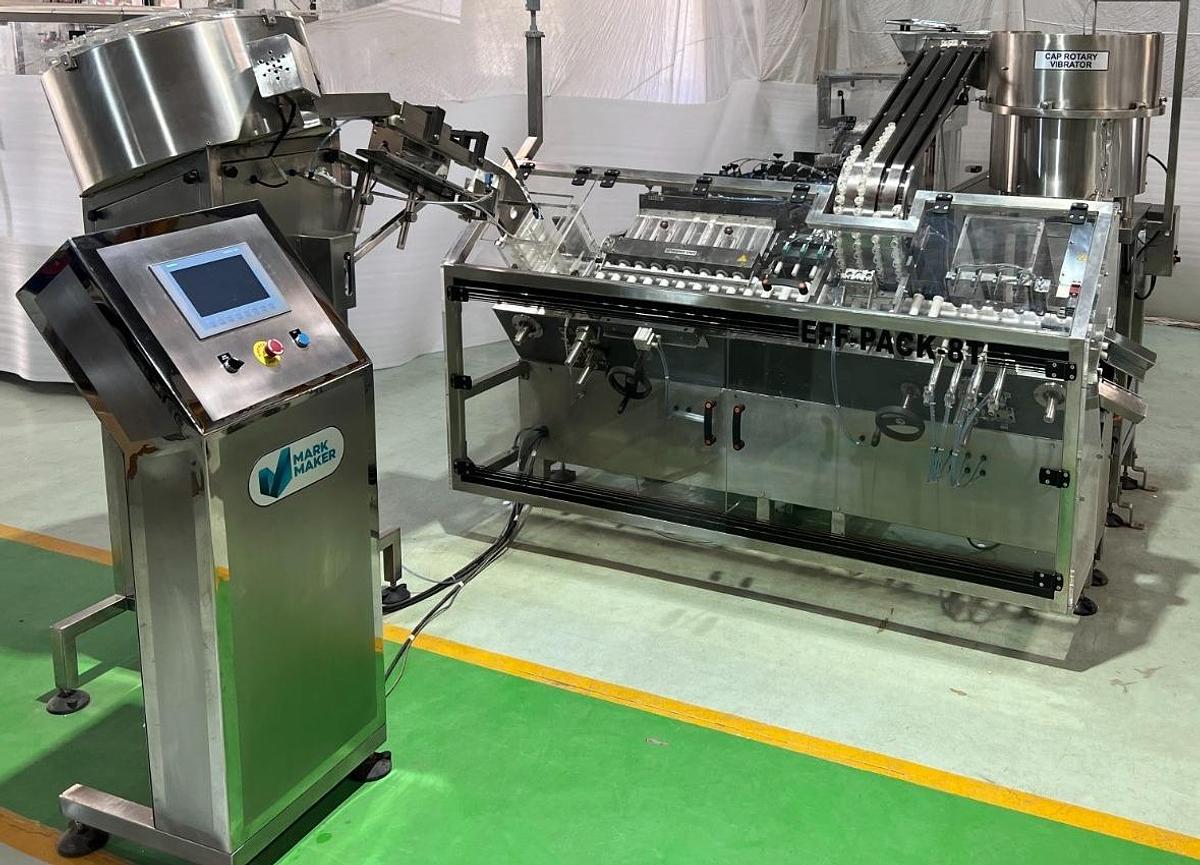

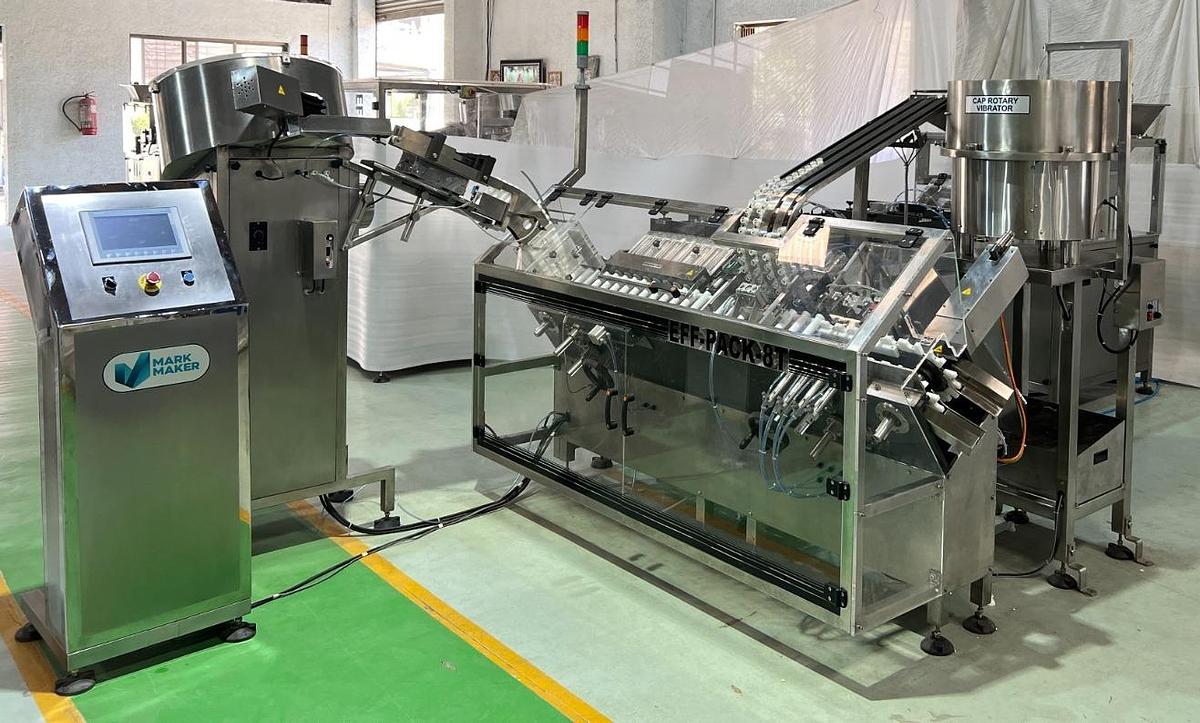

MARK MAKER Model EFF-PACK 8T EFFERVESCENT TABLET TUBE FILLING MACHINE

*This machine is BRAND NEW and has never been used due to a cancelled order*

OEM suggested output of 44 to 50 tubes per minute (depending on tablet diameter, thickness and tube dimensions)

Current Set Up

Tablet diameter 25mm

Tablet thickness 4mm-6mm

Maximum tablets per tube 22

Tube length 86mm to 144mm

Tablet Range Details

Diameter from 18mm to 30mm

Thickness from 4mm to 8mm

Tube length range from 70mm to 200mm

Note: tablet thickness below 4mm for the diameter range of 20mm to 24mm cannot be handled on this machine

Features

Siemens Simatic S7 PLC & HMI

Compact, flexible and cGMP compliant

Servo driven chain

Tool-less and quick changeover

Safety door interlocks

Various sensors for detecting tube positions, tablet counts, tablet presence and capping

Complete stainless steel heavy structure for better stability of machine

Less noise and dust proof operation

Electrical supply: 3 phase, 380V ±10%, 60 Hz ± 5%

Air supply: 6 kg/cm2, moisture free air

Manuals and drawings included

Machine Process

Empty tubes are loaded via a conveyor belt in the tube hopper (which can hold 100 to 150 tubes depending on size) and automatically forwarded to the filling station through a servo driven chain belt.

Tablets are loaded into 8 vibrating trays via the tablet hopper which can hold 25kg, from there they enter the tablet conveyor and are channelled through guide tracks and counted between a preset distance.

Broken tablets are eliminated through the perforated vibratory tray.

The number of tablets to be filled can be easily adjusted as per odd-even counts of tablets through setting slots provided in the tracks.

Once the tablet count is accurate they will be pushed through a specially designed feeder where tubes are rotating and the tablets will be released under centrifugal force.

The tablet filled tubes will be inspected and moved along to be capped automatically.

Uncapped tubes will be sensed and rejected by rejection mechanism.

Link to this machine on OEMs website: EFF-PACK 4T & 8T | Precision Effervescent Tablet Packaging Machines

DQ, IQ and FAT Protocols are available on request
