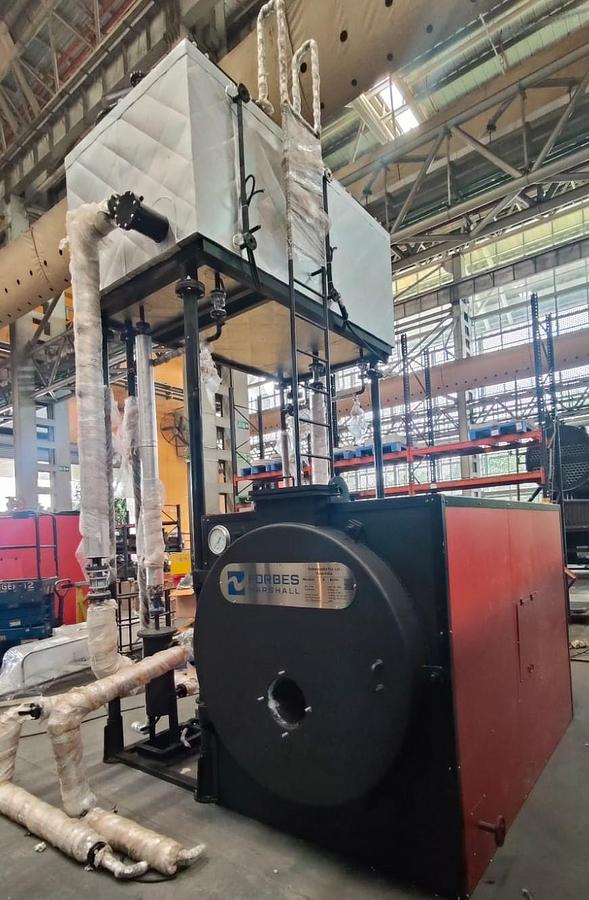

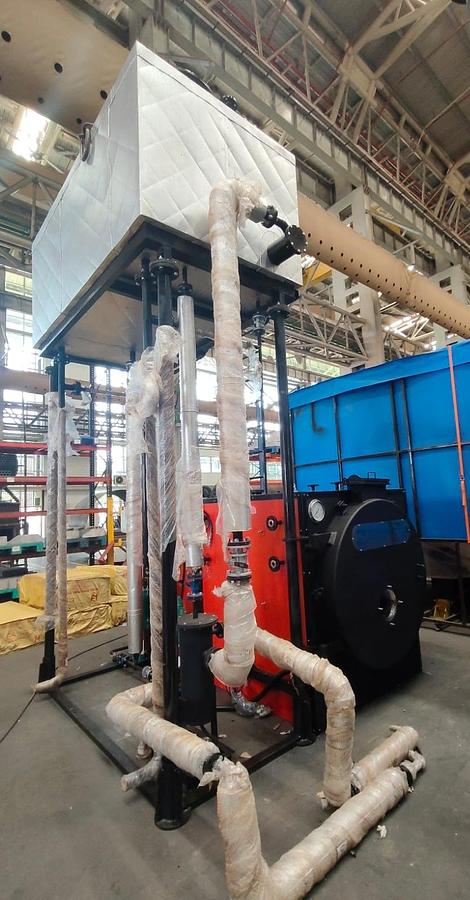

Forbes Marshall Steam Boiler

FORBES MARSHALL STEAM BOILER

*This machine is BRAND NEW and has never been used due to cancelled order*

Steam Boiler

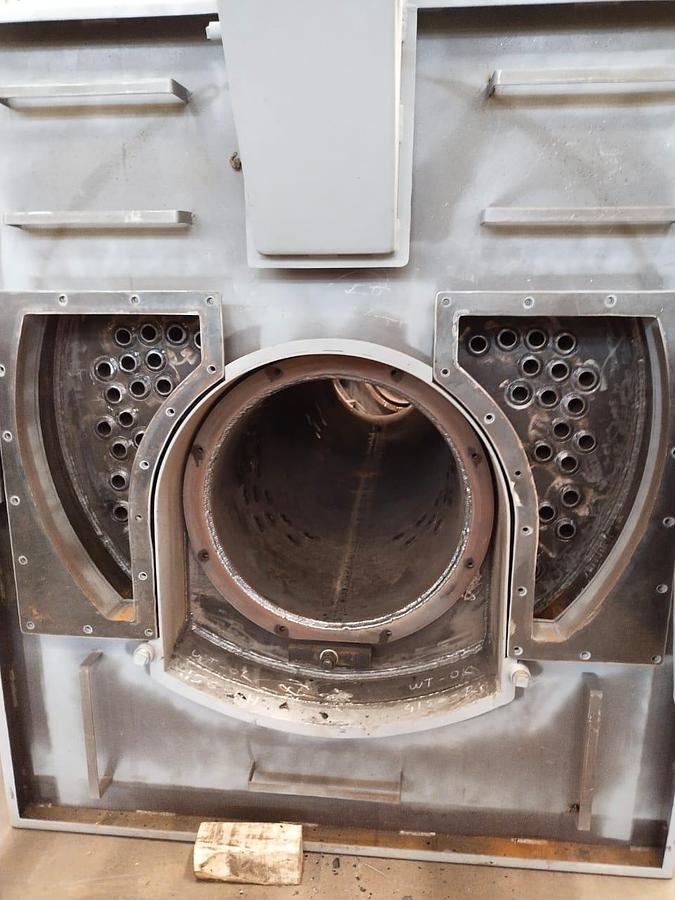

Dual fired shell and tube boiler

HSD/NG fired modular type

1000 kg/hr

Capacity 1.0 TPH

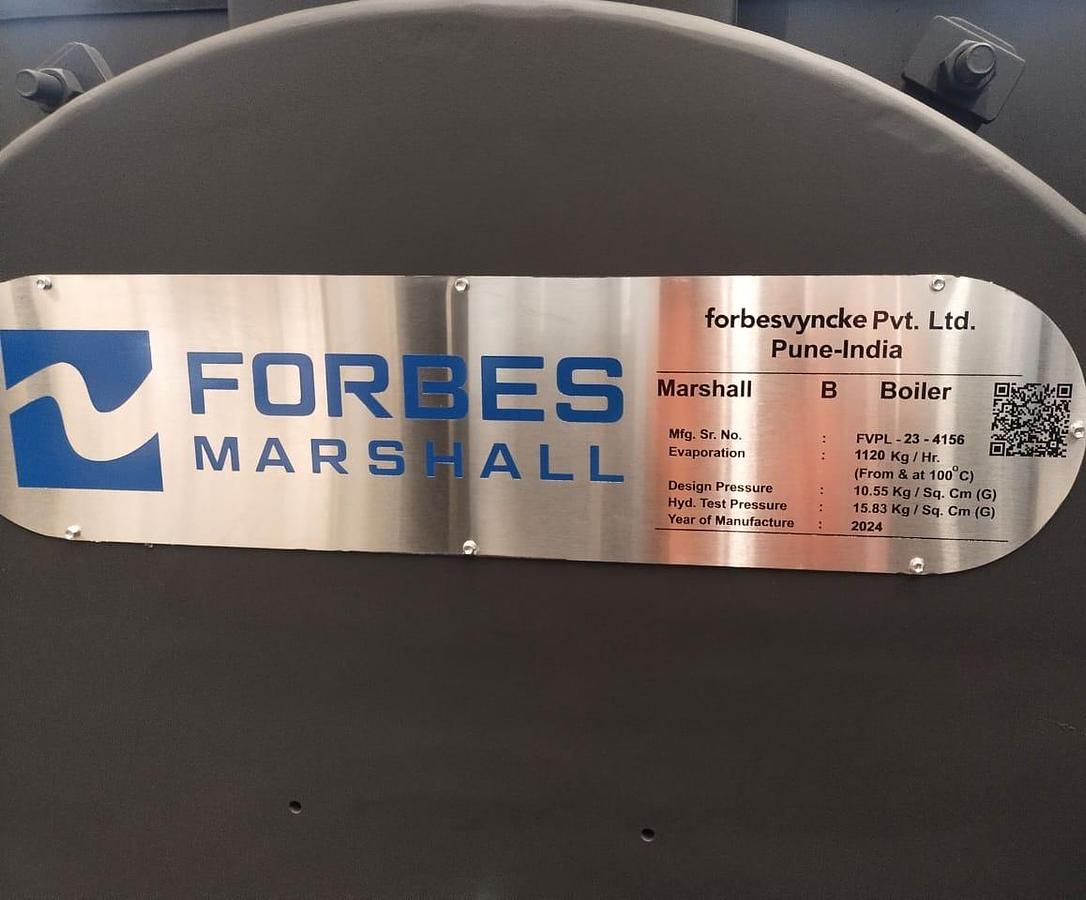

Design pressure 10.54 kg/cm2 with F&A 100 degree C

Standard voltage of 415V, 3 phase, 50 Hz and altitude of less than 1000mtr

Dual fired burner

Interconnecting Piping, Fitting & Valve Accessories for Boiler System

End connection: flange type

Piston valve - 50 NB

Moisture separator - 50 NB

Y type strainer - 50 NB

Flow meter with flow totalizer - 50 NB

Flow meter with flow totalizer - 50 NB

Non return valve - 50 NB

Main header piping fitting accessories - pipe size 80 NB (i.e. 2 mtrs pipe/fitting, 2 nos bliend flg, air vent with dial thermometer, pressure gauge with valve, pressure safety valve and compact thermodynamic stream trap

Softner System with all Accessories for Boiler

Capacity : 1000 LPH (i.e. HDPE tank, 2.0 KL and pump along with piing fitting accessories

Diesel Oil Transfer System

3.0 KL HSD tank

Diesel oil transfer pump with suction discharge manifold

Diesel oil piping, fittings

Condensate Recovery System

Model PPPPU (Pressure Powered Pump Packaged Unit)

Dearator head model FMDH

Flash vessel model FMFV

Flash vessel model FMFV

Motive steam pressure require: 3.5 barg

Self Support Chimney

12 metres high

550mm diameter

260mm diameter flue duct not exceeding 5 metres in length

Thk for bottom side 8mm, top side 6mm, round plate thk 25mm

Manuals available
