ACG PAM AF 90T Capsule Filling Line

ACG PAM CAPSULE FILLING LINE

*The machines in this line are all BRAND NEW and have never been used due to a cancelled order*

ACG's AF (automatic filling) series is a versatile high-speed option with a reputation for robustness over longer production runs

Features

High capsule filling accuracy thanks to a precise slug-dosing principle

Partial filling capability (up to 25mg) for capsule sizes 000 to 5

Quick and easy mechanical changeover

Capable of filling powders, pellets, tablets, micro-tablets, capsules, soft gels, and combinations thereof

OEMs suggested maximum speed of 90,000 capsules per hour depending on capsule size, fill weight and powder/granule characteristics, and maximum output of 80,000 capsules per hour for pellets again depending on capsule size, fill weight and characteristics

This line is currently set up for size 0 capsules and powder with change parts for sizes 1 and 2

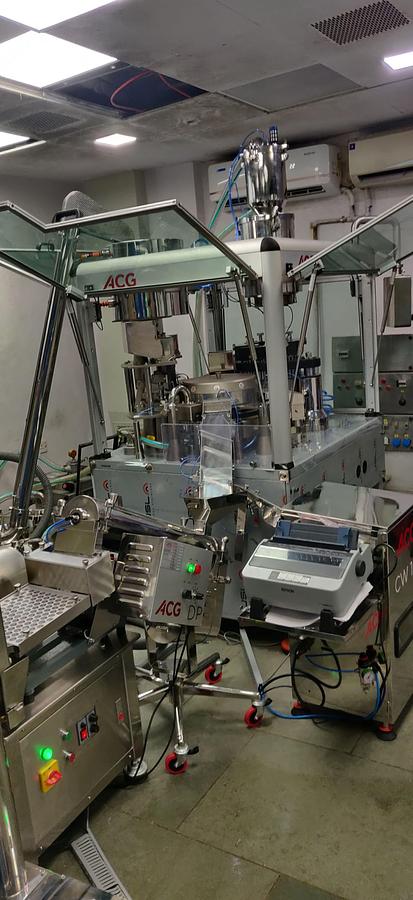

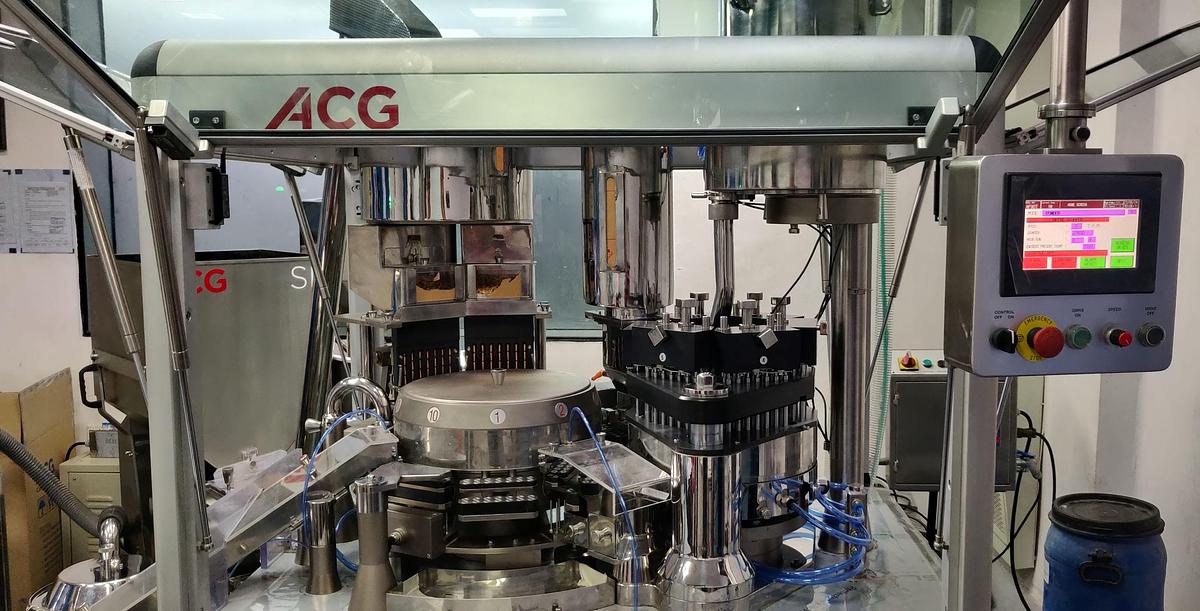

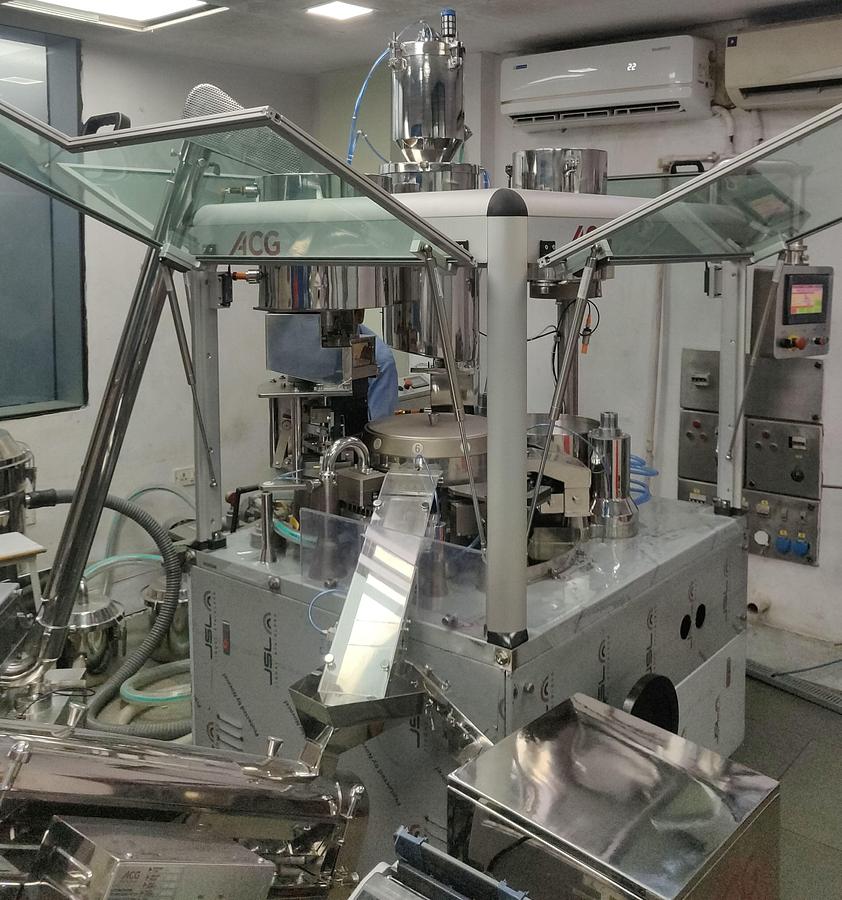

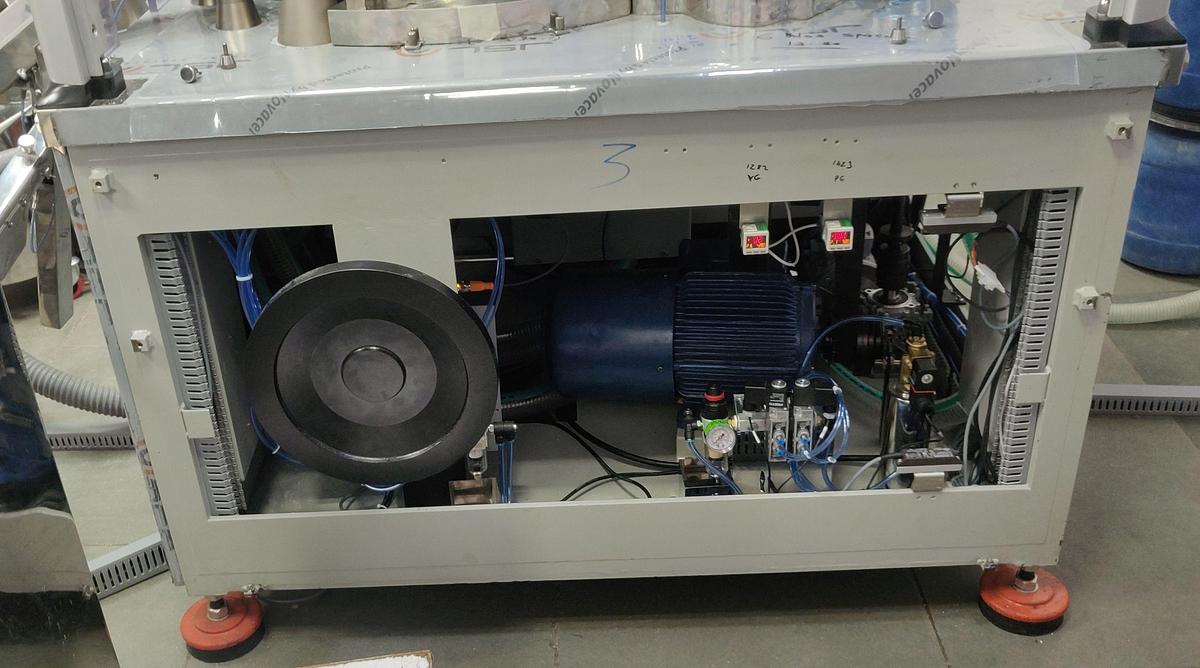

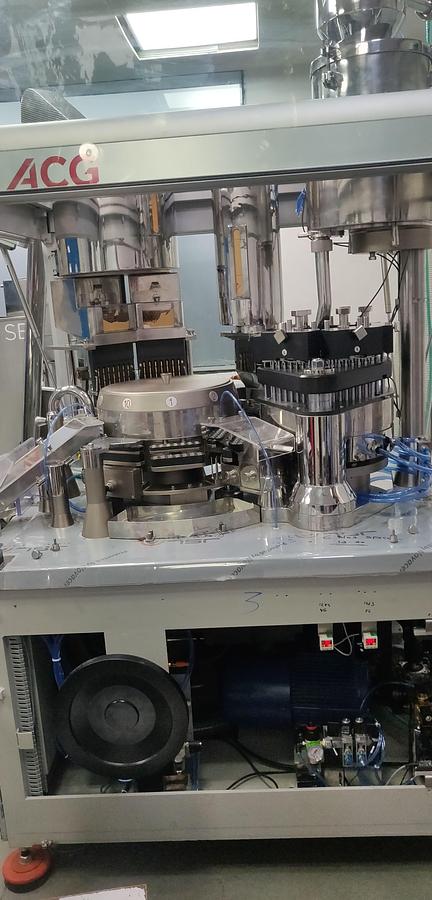

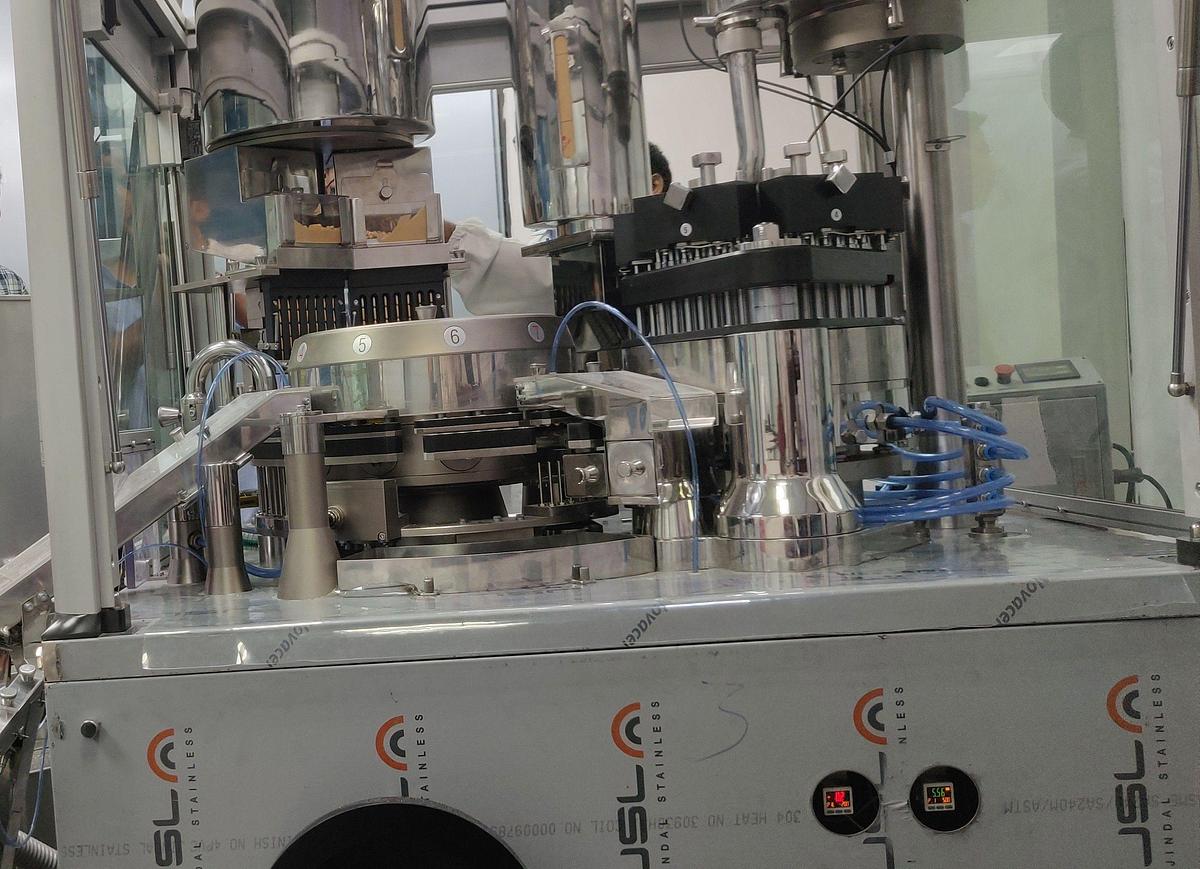

Capsule Filling Machine

Model AF 90T

Mitsubishi PLC & HMI

Comes with size 0, 1 and 2 change parts for capsule and powder

Pellet filling attachment

Tools and setting gauge

CDU 100 blower with 2 HP motor

Dry vacuum pump

Toughened glass doors

Group sampling

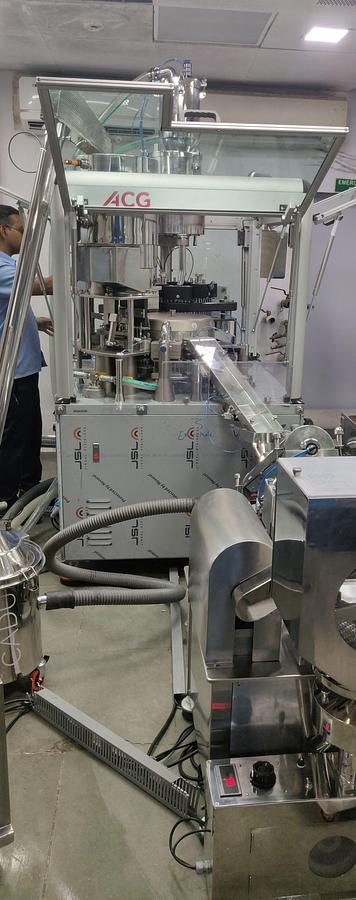

Other Machines in the Line

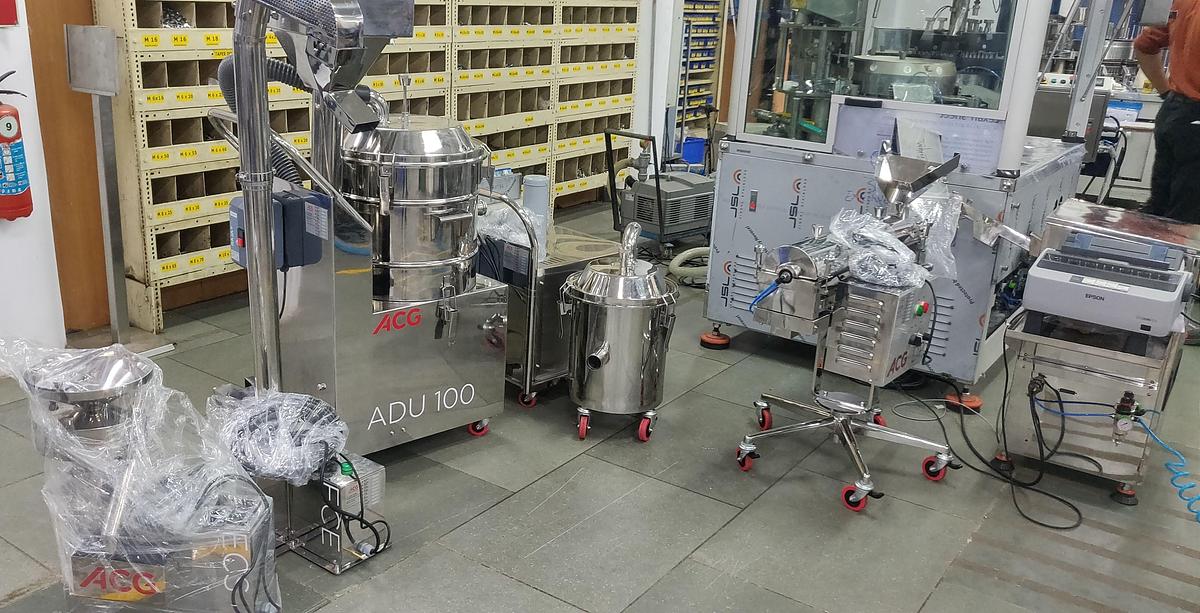

Air Displacement Unit - ACG model ADU 100

Capsule De-dusting and Polishing Machine - ACG model DP 100

Empty Capsule Sorter - ACG model ECS 100

Filled Capsule Elevator - ACG model FCE 200

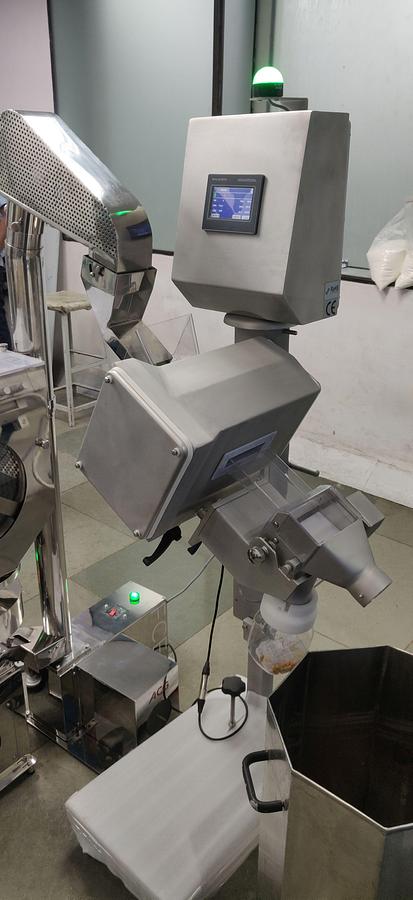

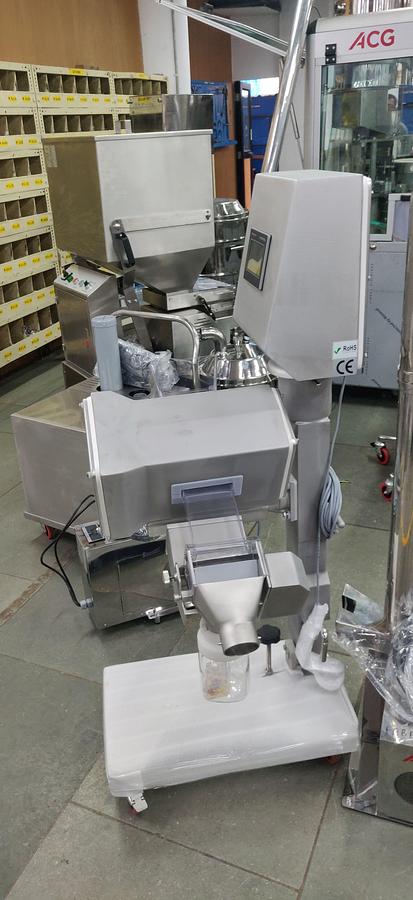

Metal Detector - Technofour model SS30 Dual

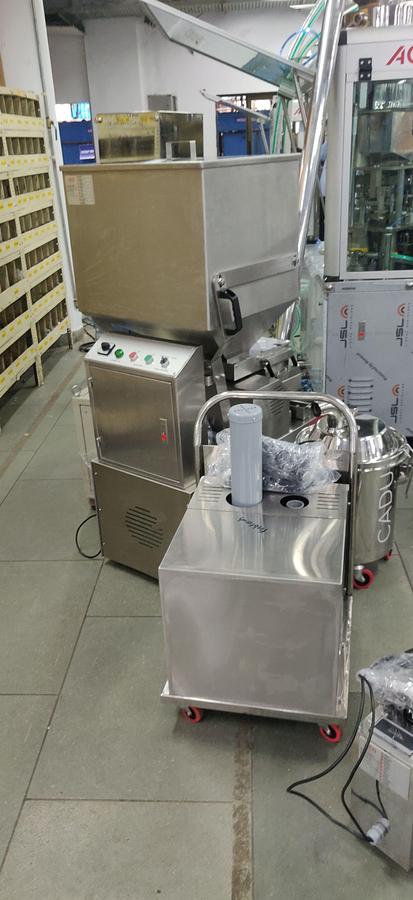

Compact Air Displacement Unit - ACG model CADU 100

Mini Capsule Sorter - ACG model MCS 100

Sorter Elevator - ACG model SE 100

Checkweigher - ACG model CW 10, Sartorious balance with printer

Product Conveying System - model PCS 100 (one for powder and one for pellets)

Manuals and drawings included

All machines GMP compliant and CE marked

Electrical supply: 3 phase, 380V, 60HZ

Link to the capsule filler on ACG's website AF 90T | ACG

DQ, IQ and FAT Protocols are available on request
