IMA Zanasi 6F Capsule Filler
Specifications
| Manufacturer | IMA |
| Model | Zanasi 6F |
| Year | 2002 |
| Condition | Used |

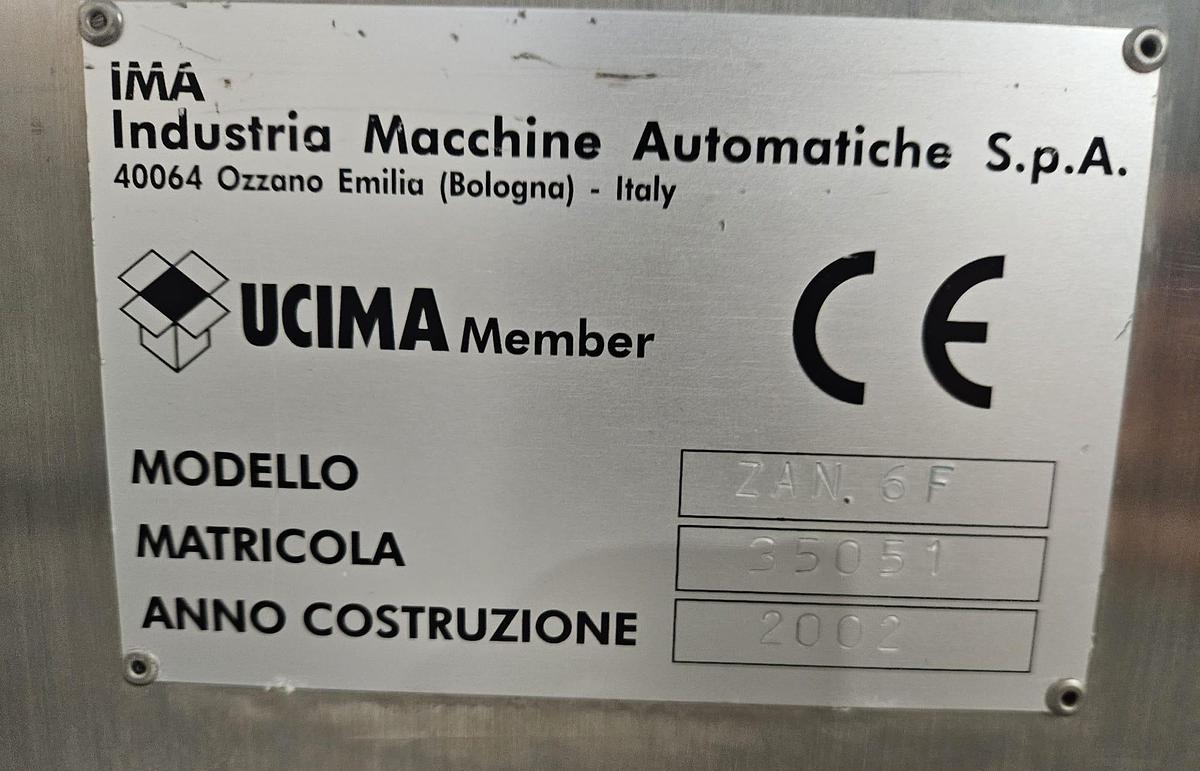

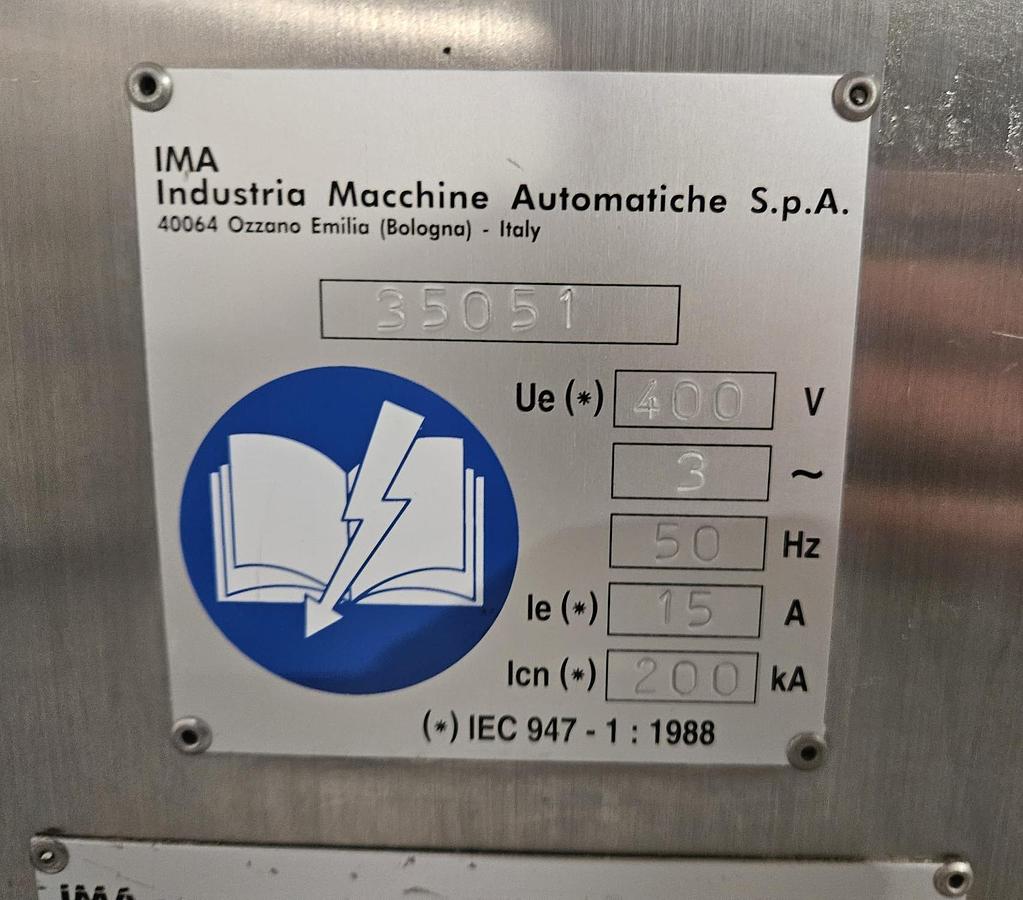

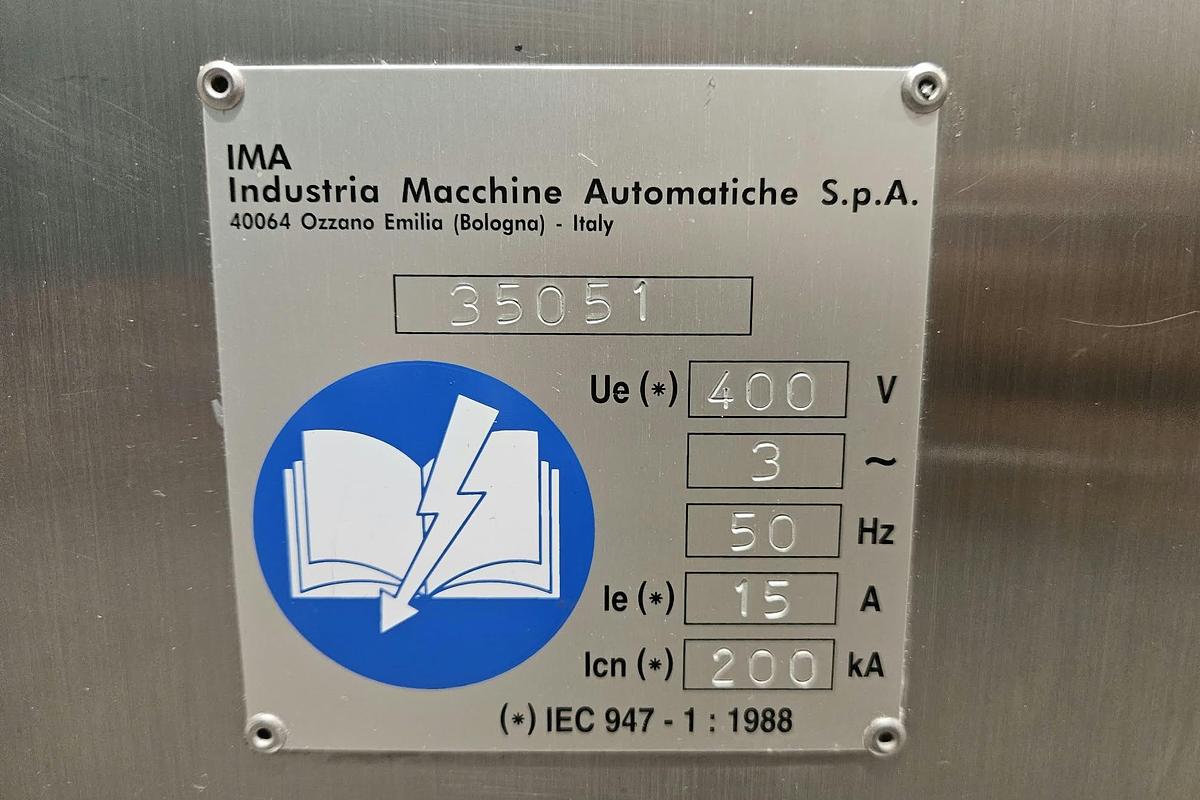

| Serial Number | 35051 |
| Stock Number | GP10287 |
| Capsule size range | 000 to 5 |
| Speed | Up to 6,000 capsules per hour |
| Power Supply | 415V 3ph 16A, 6 bar air |
| Manuals Available | Yes |
| CE Marked | Yes |
Description

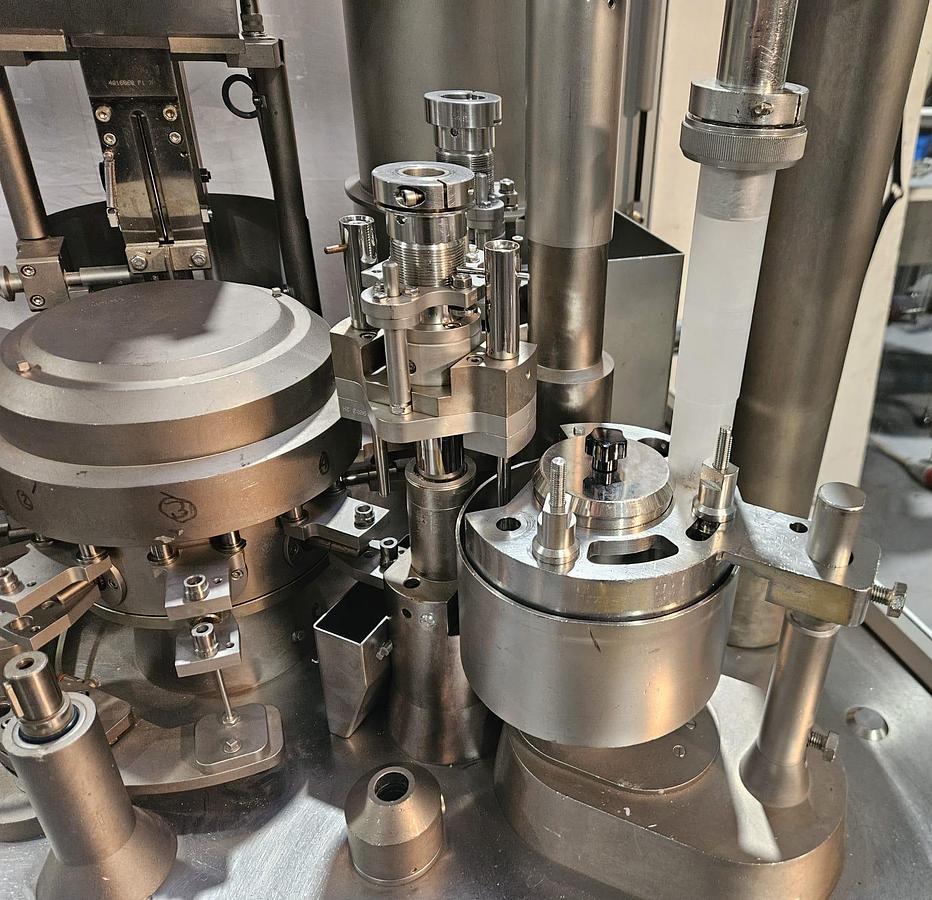

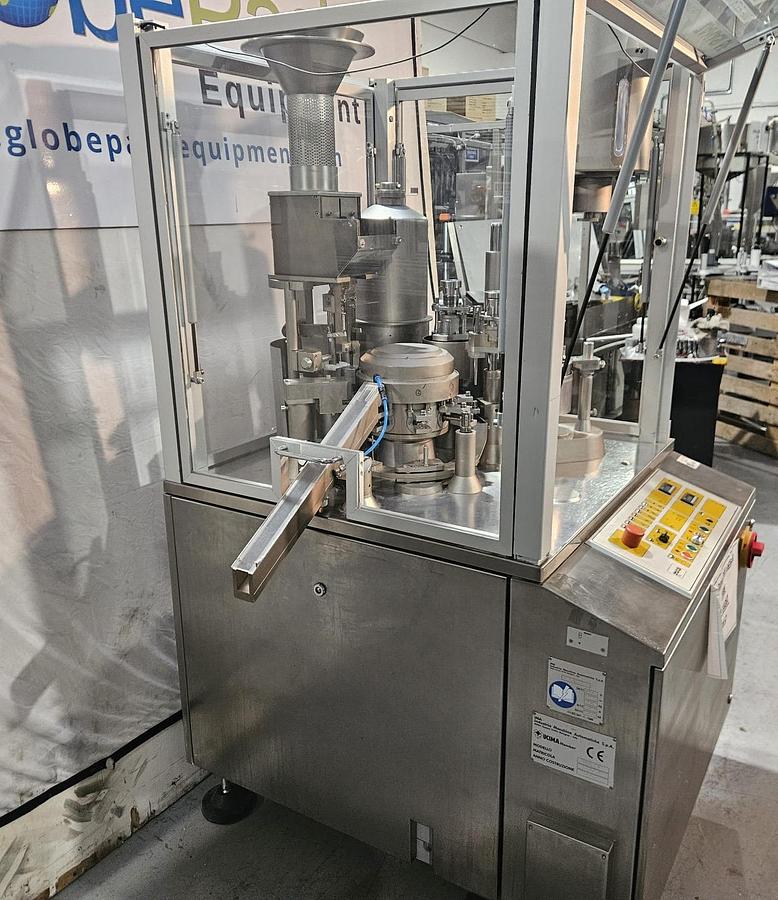

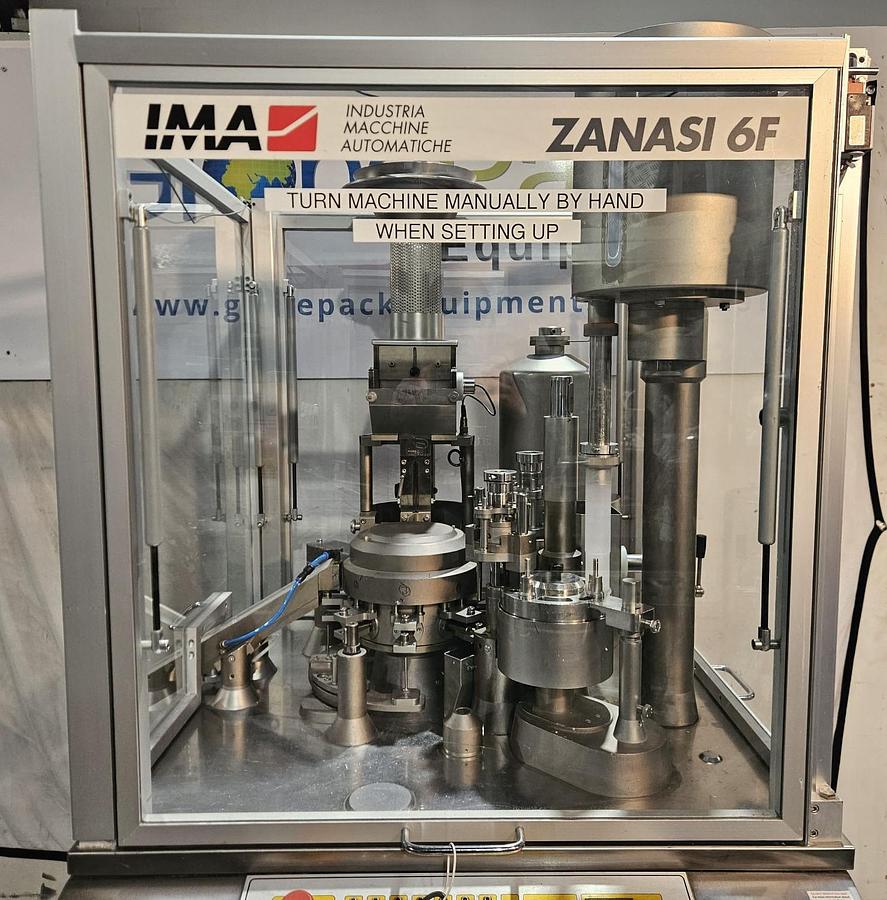

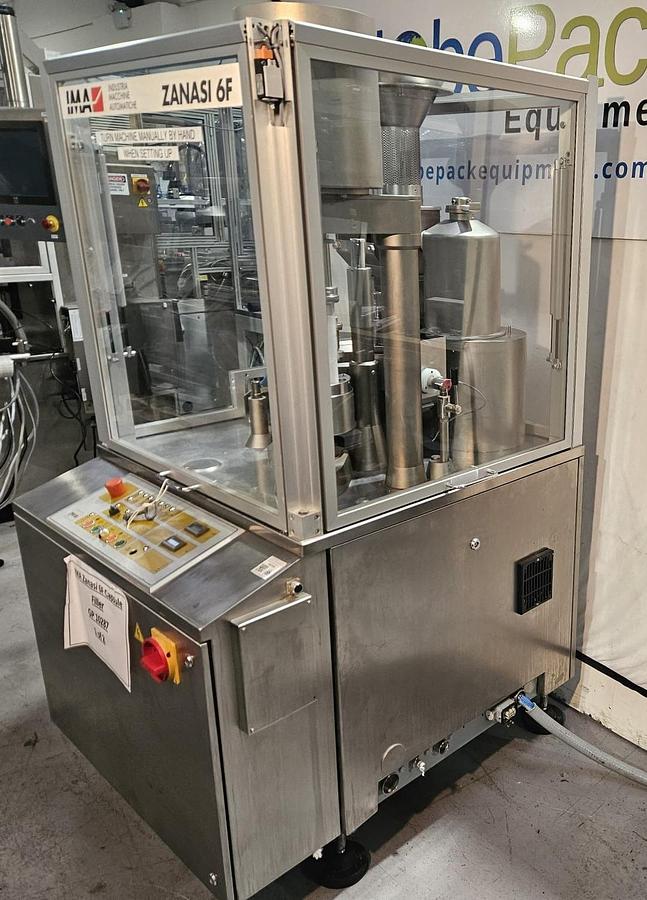

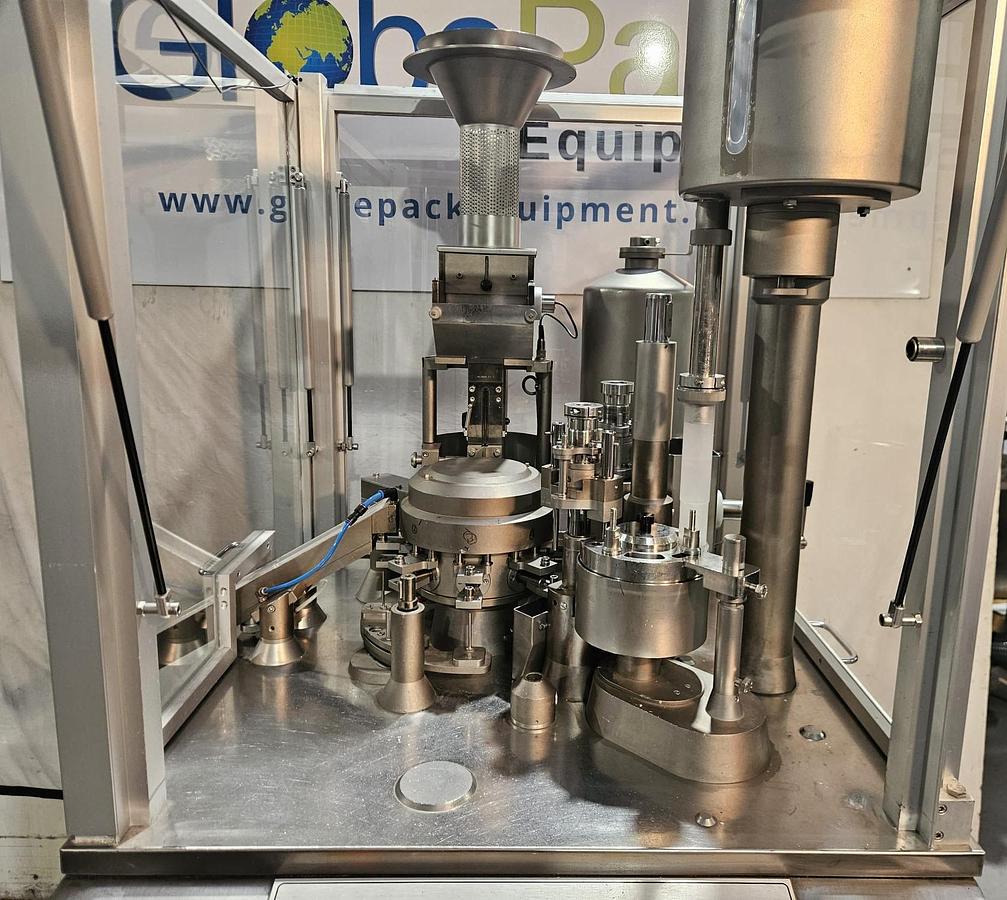

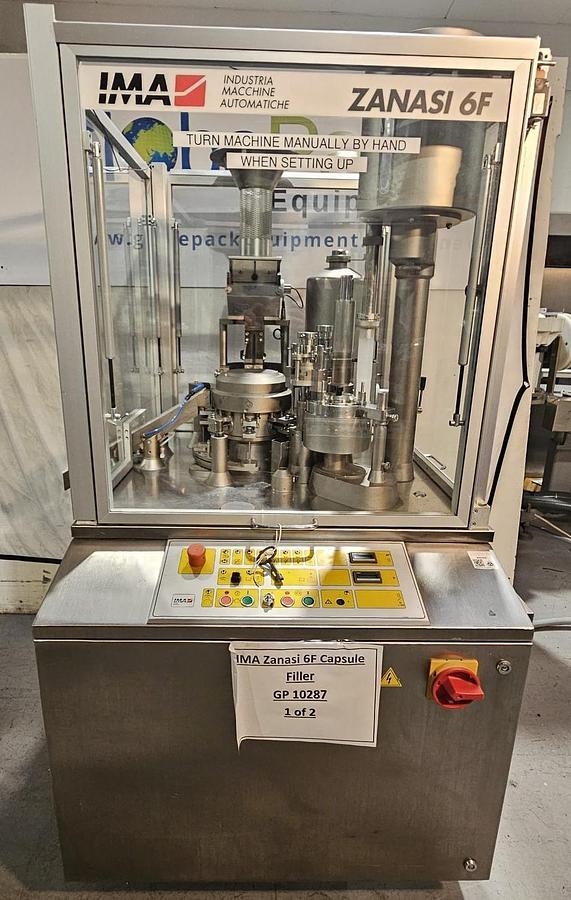

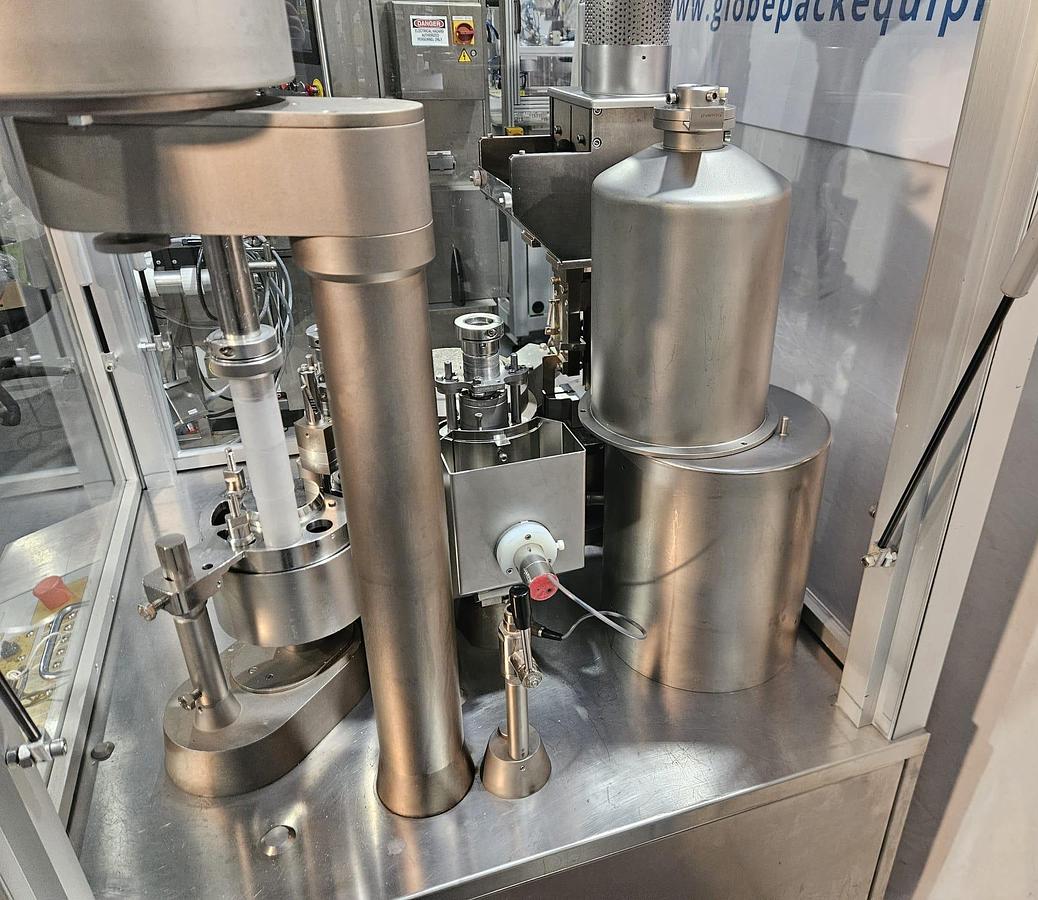

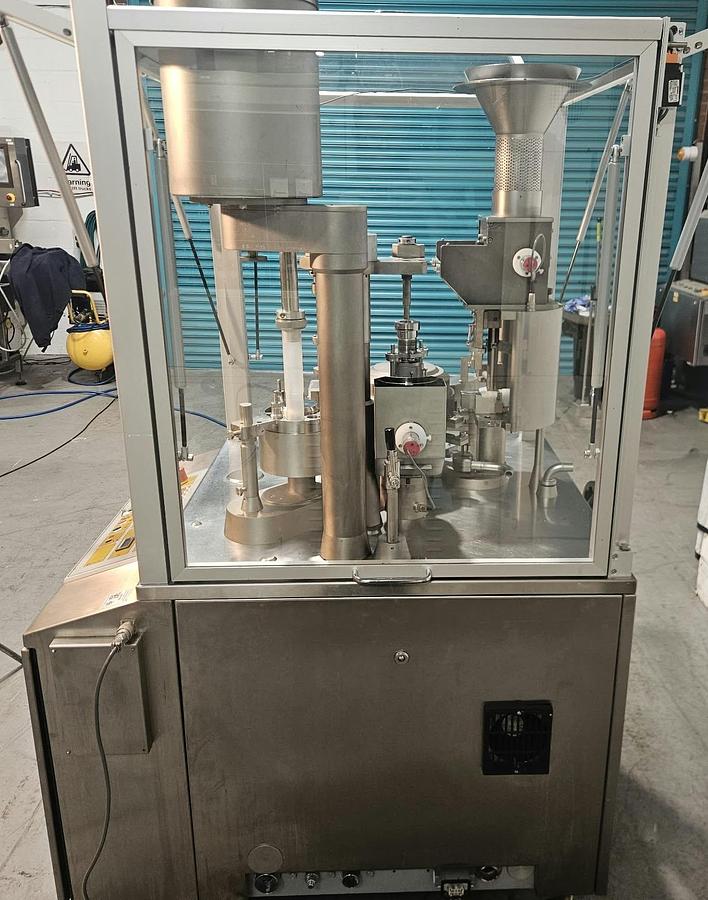

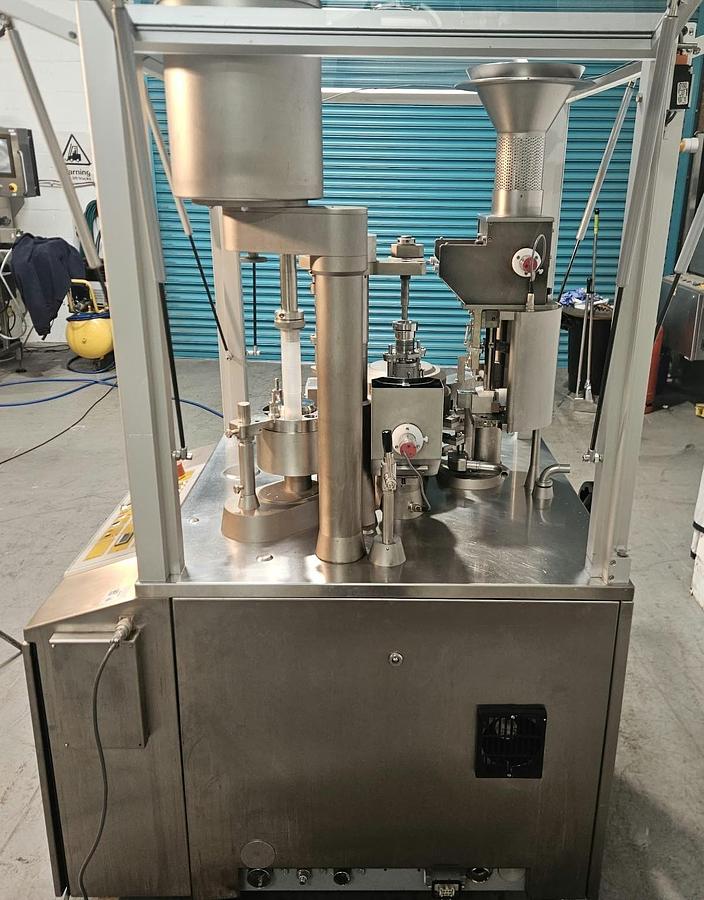

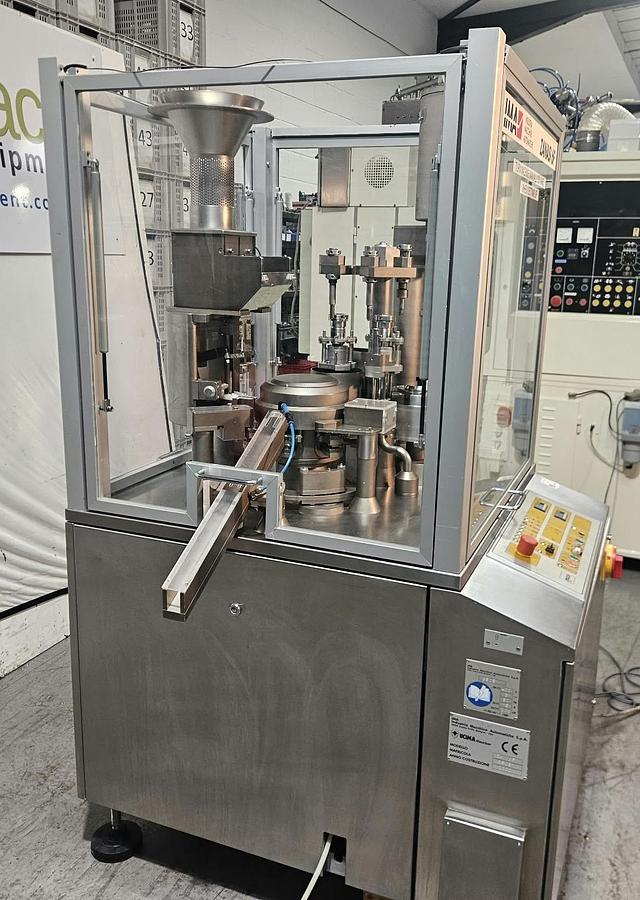

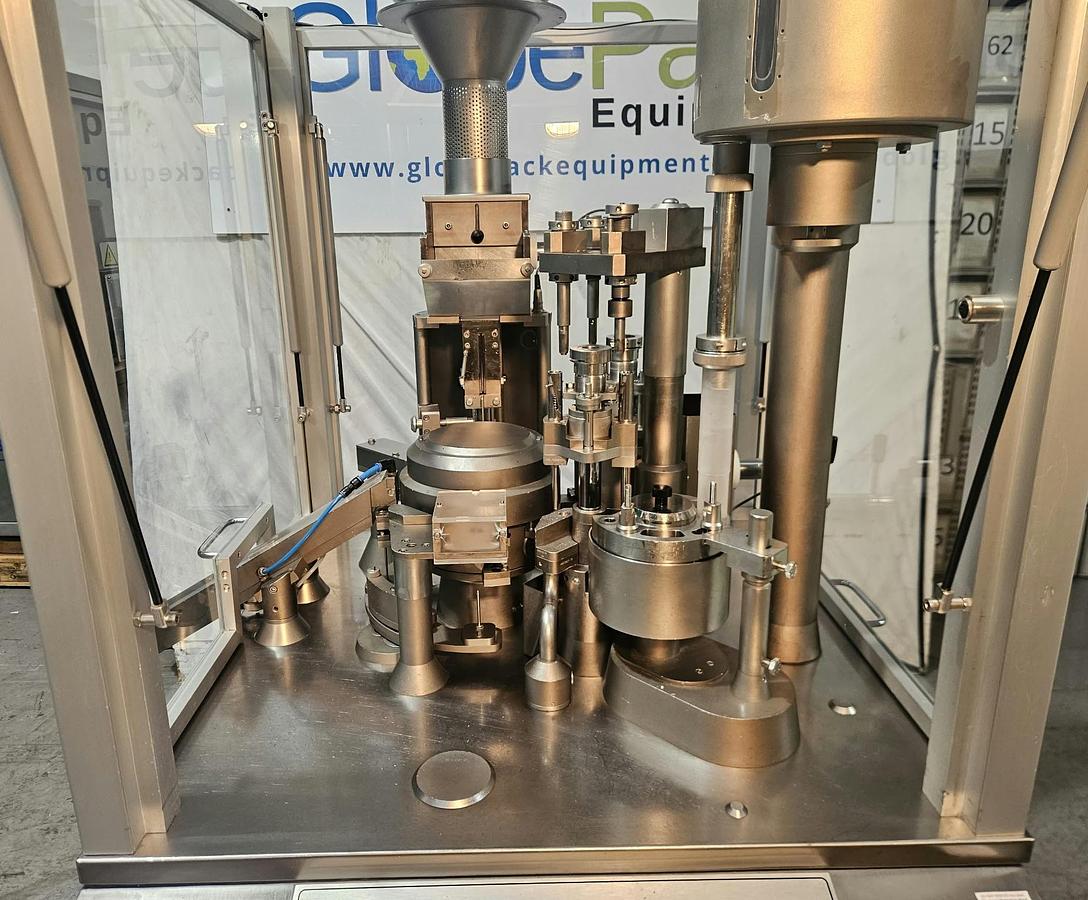

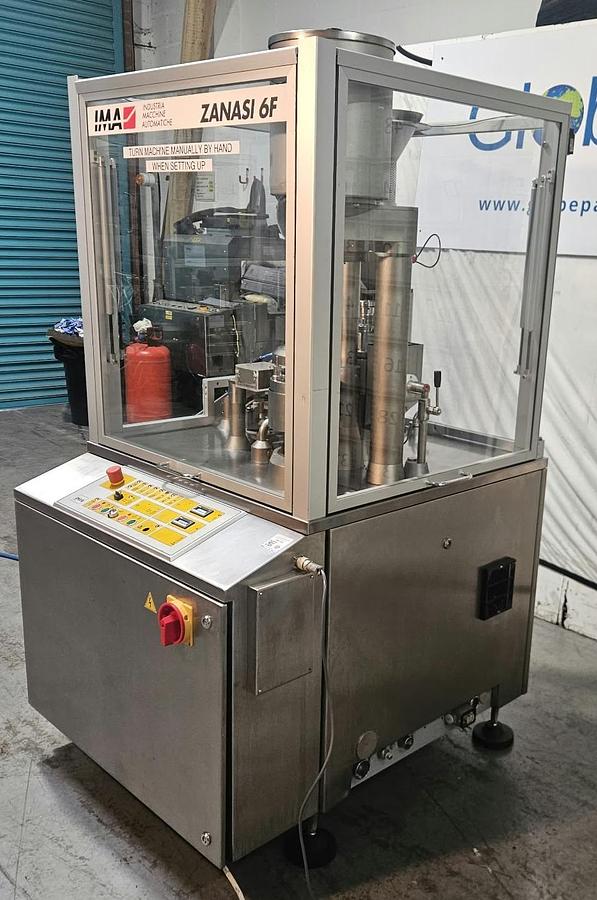

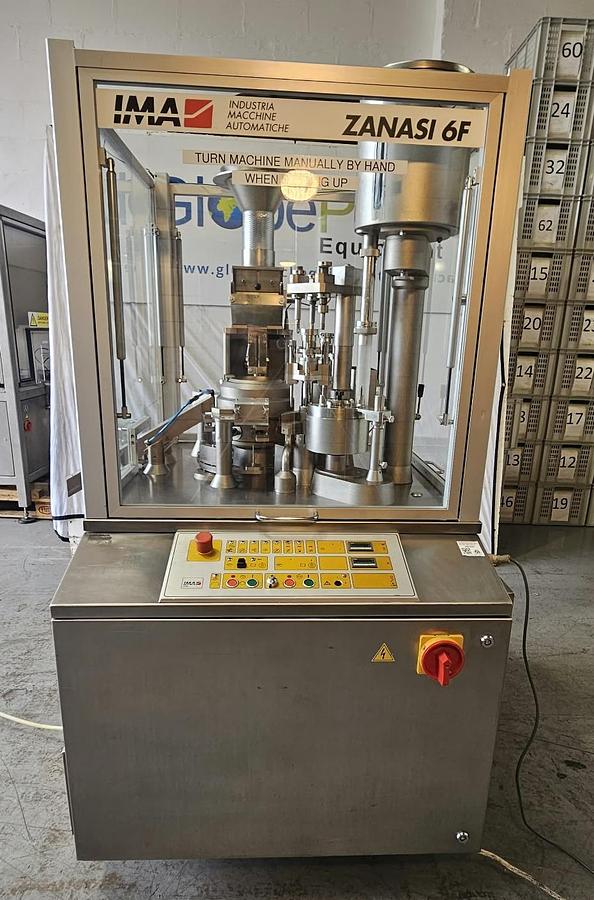

IMA Zanasi model 6F automatic capsule filling and closing machine
This machine is designed to dose powder and pellets into hard gelatine capsules and is suitable for use in pharmaceutical and nutraceutical production environments
OEM suggested maximum speed of up to 6,000 capsules per hour
The capsule size range is: 000 to 5
Key Information
Combined dosing of various products within the same capsule
Easy access to the working area

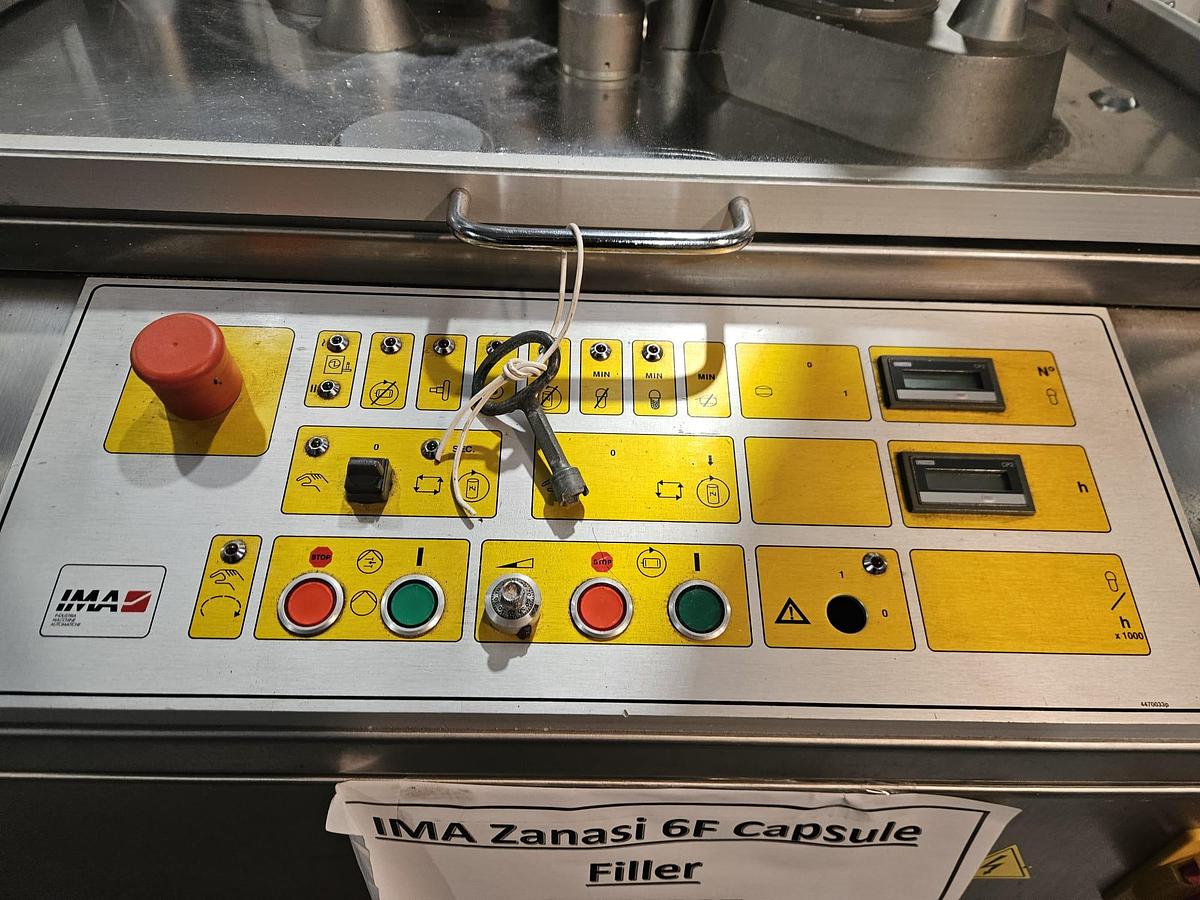

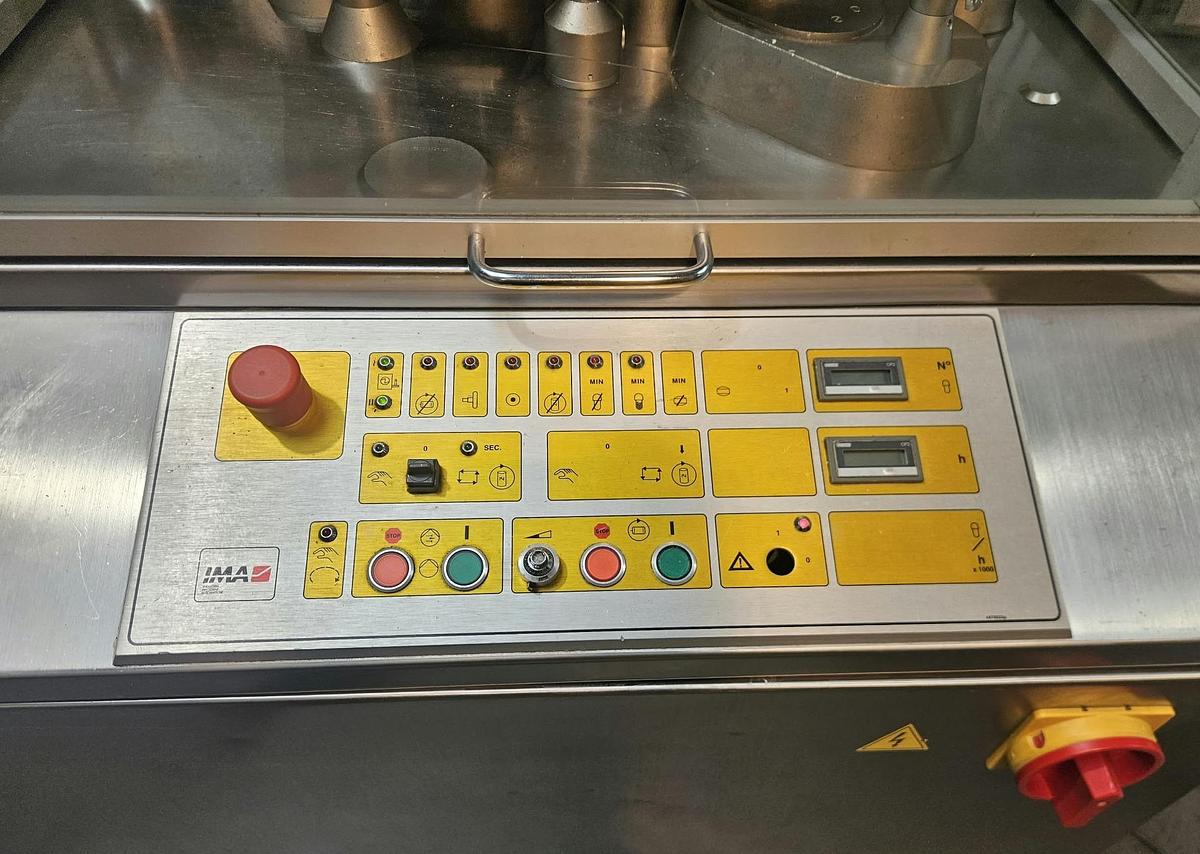

Ergonomic interface which doesn't required skilled operators to run the machine
Low size changeover and cleaning times
Omron PLC
Instruction manual; Spare Parts manual; Electrical diagram; Qualification Documentation available in paper form
Maintenance log also available
Supply: 415V 3ph 16A, 6 bar air
CE marked and certificate

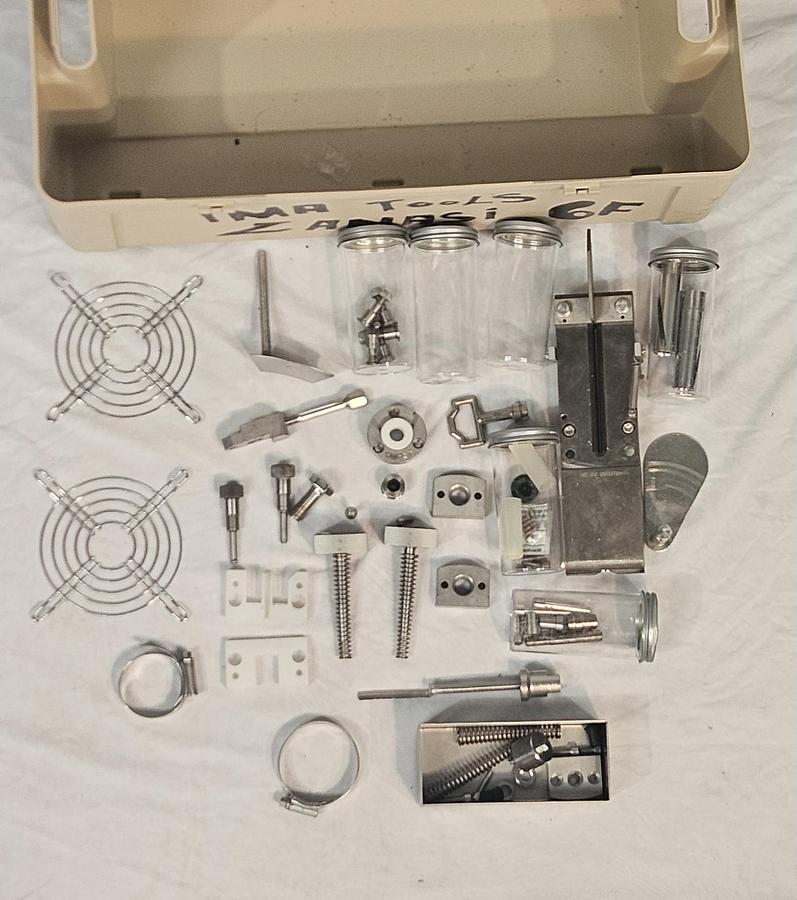

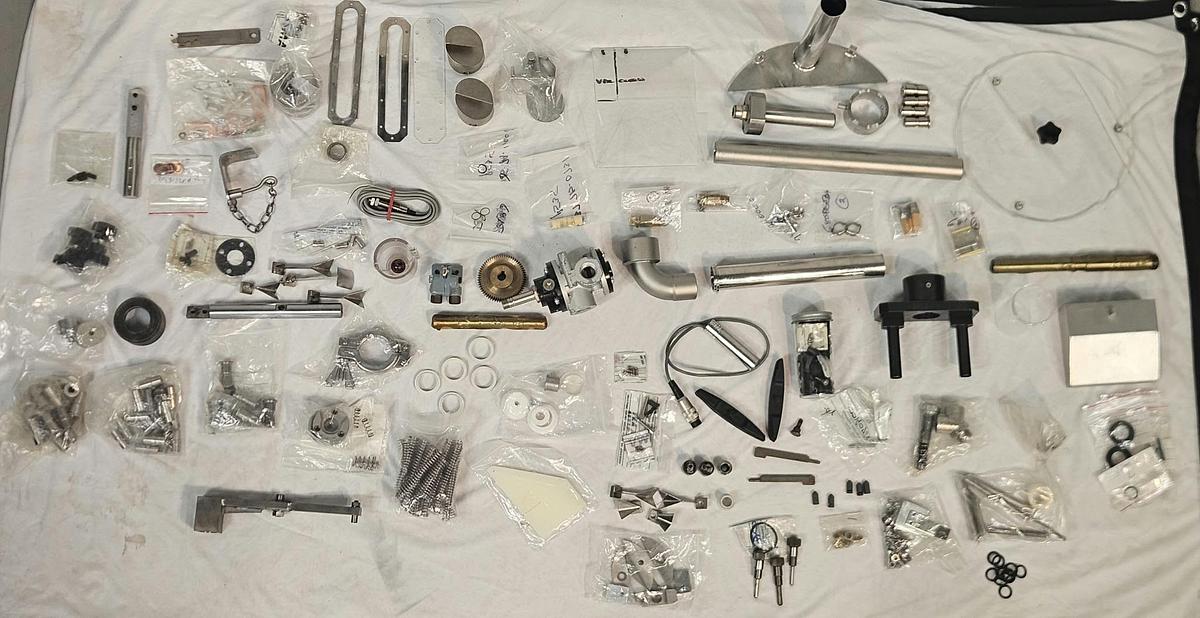

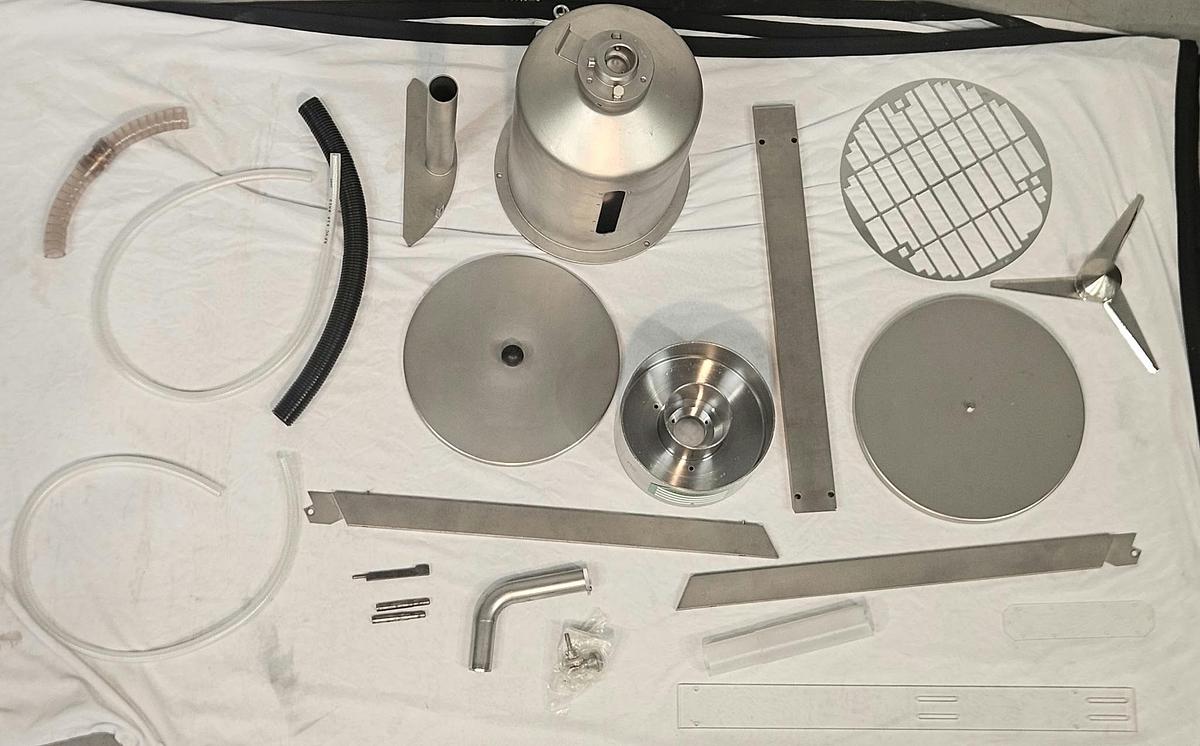

Comes with change parts as follows:

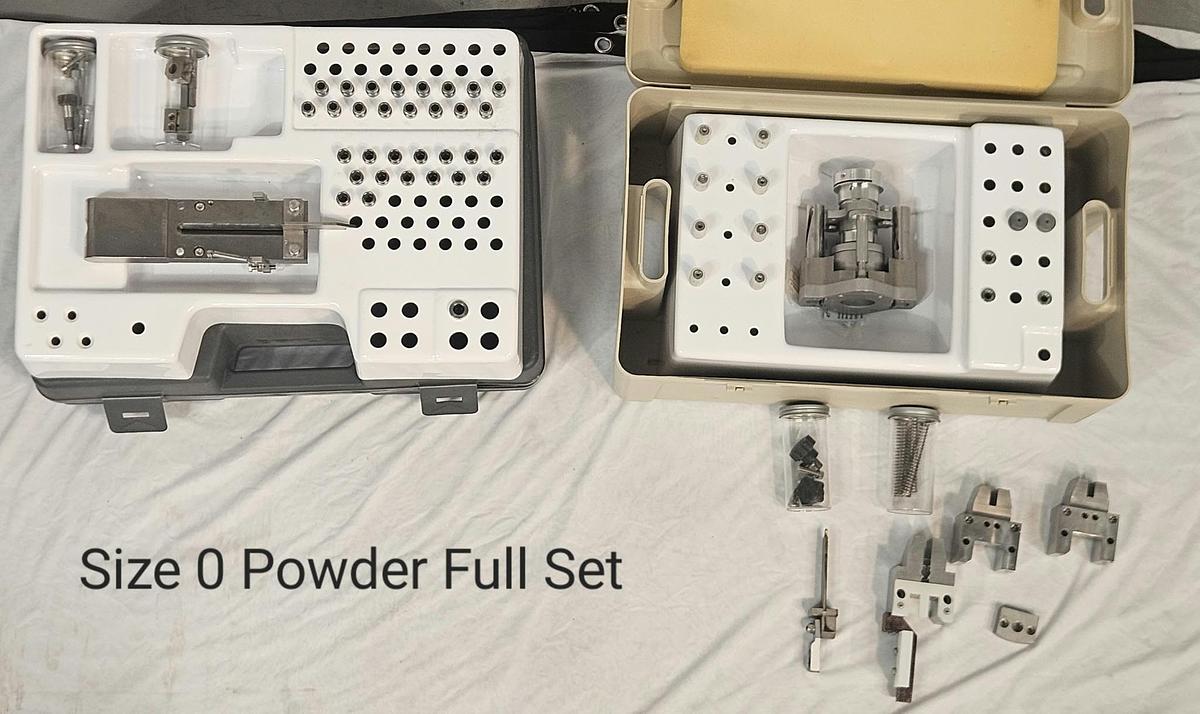

Size 0 powder (on the machine)
Size 1 powder

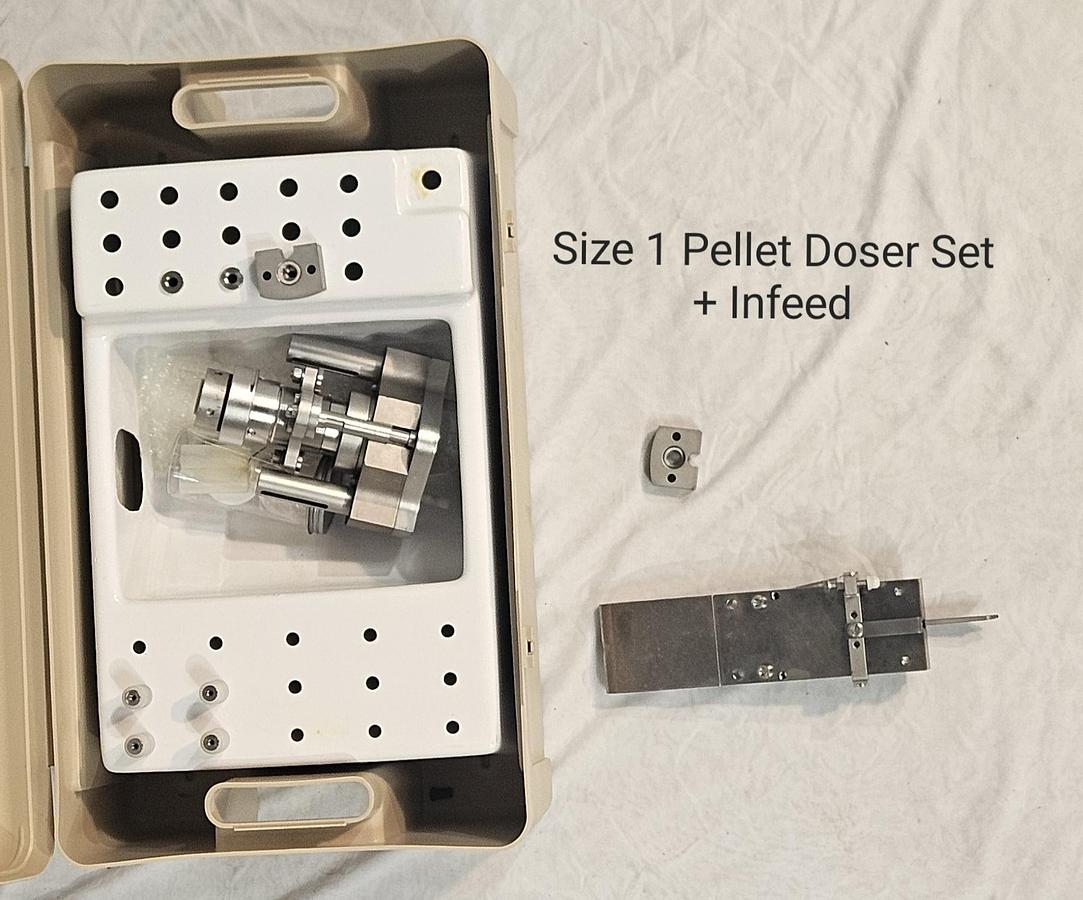

Size 1 pellets

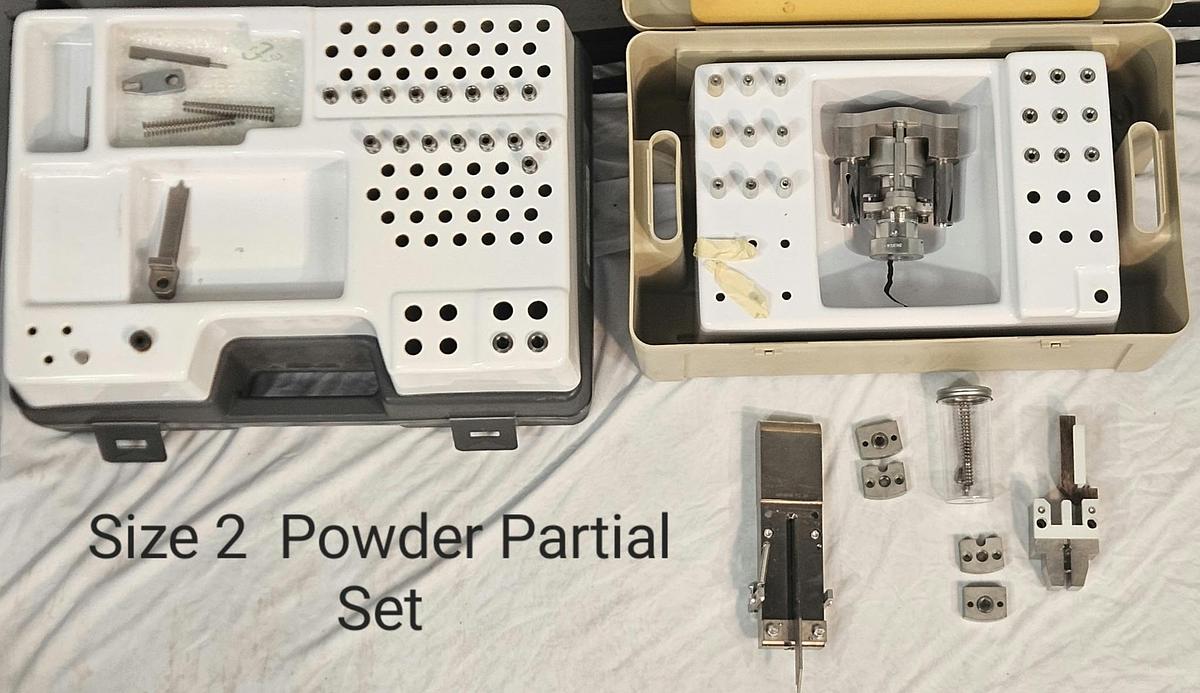

Size 2 powder

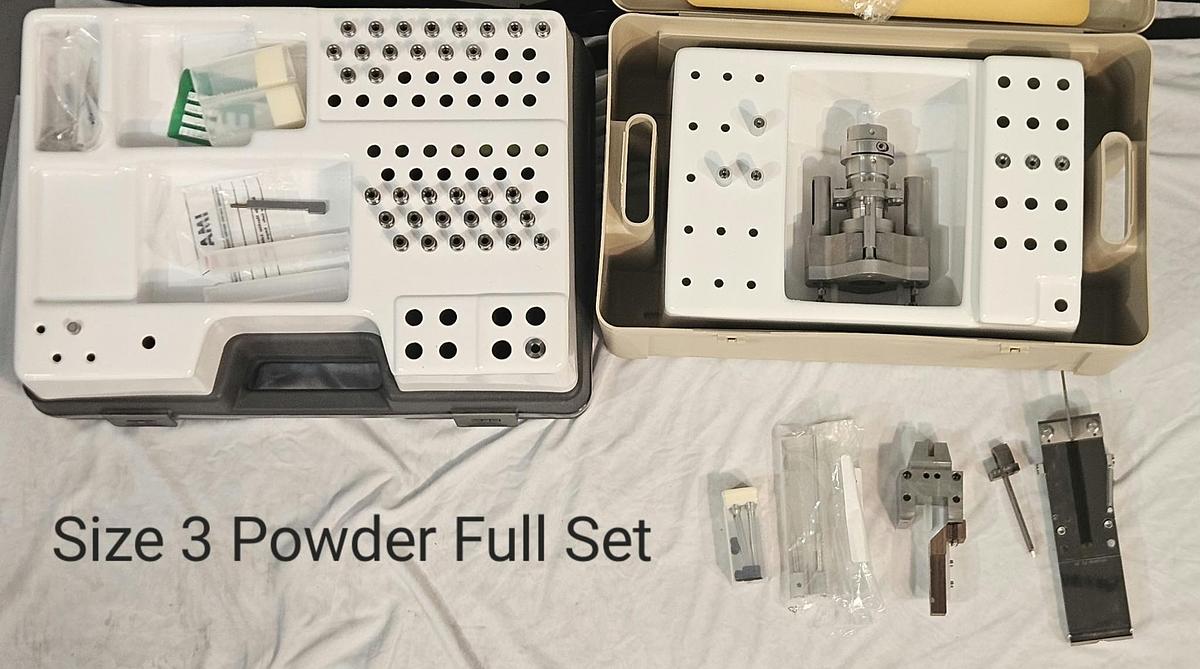

Size 3 powder

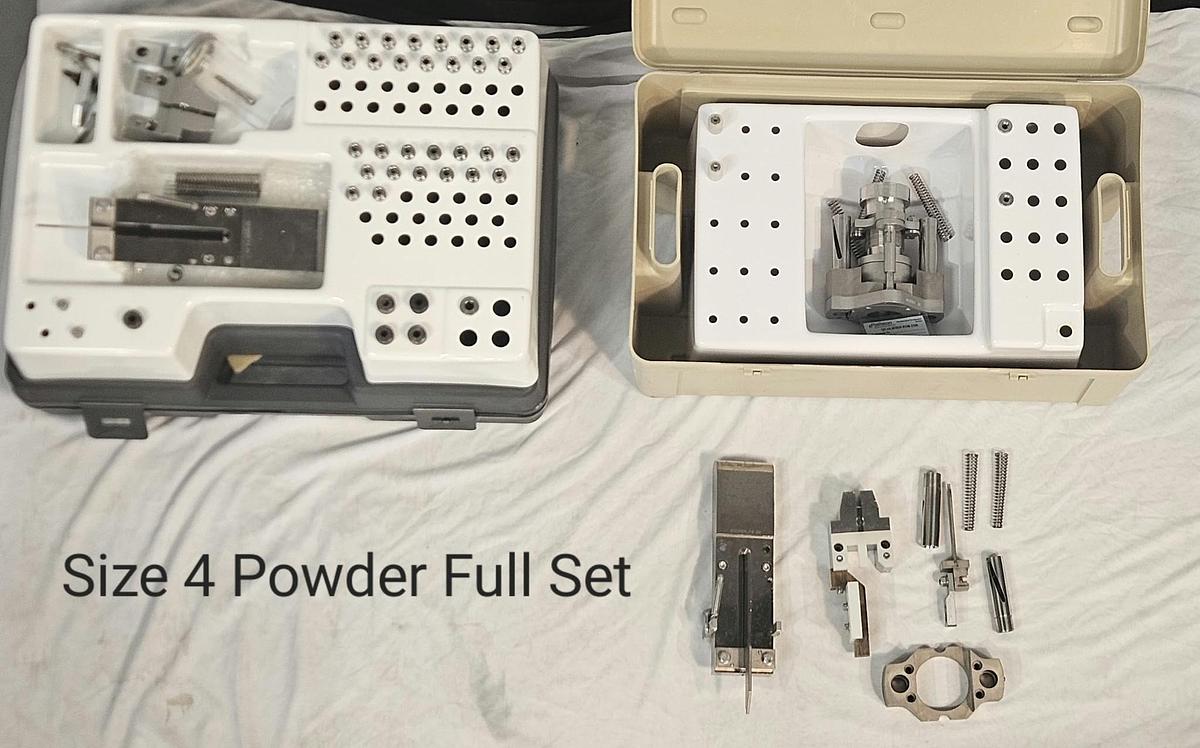

Size 4 powder

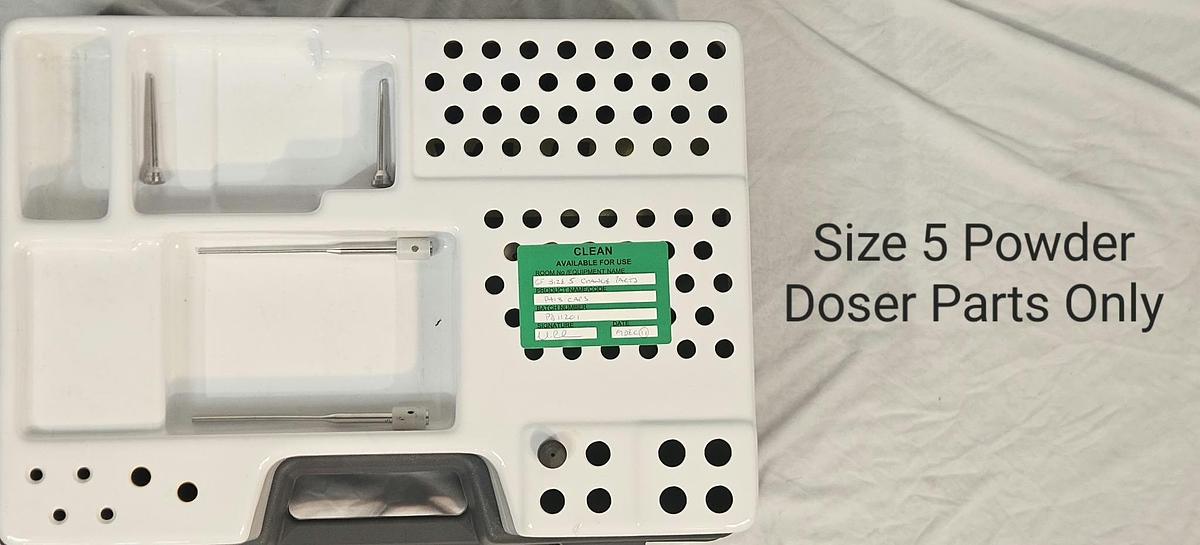

Size 5 powder dose parts only
Machine size 920mm x 1140mm x 1860mm high, weight 1007kg
Supplied: cleaned, checked and tested dry cycling
