Bench Top Monoblock Filler/Capper with Peristaltic Pump

Bench Top Monoblock Filler/Capper with Peristaltic Pump

Current Set Up

18mm diameter bottle

15mm diameter pipette cap

5ml fill volume

Bottle size range: 18mm minimum to 50mm maximum diameter and up to 140mm high

Cap size range: 15mm minimum to 25mm maximum diameter

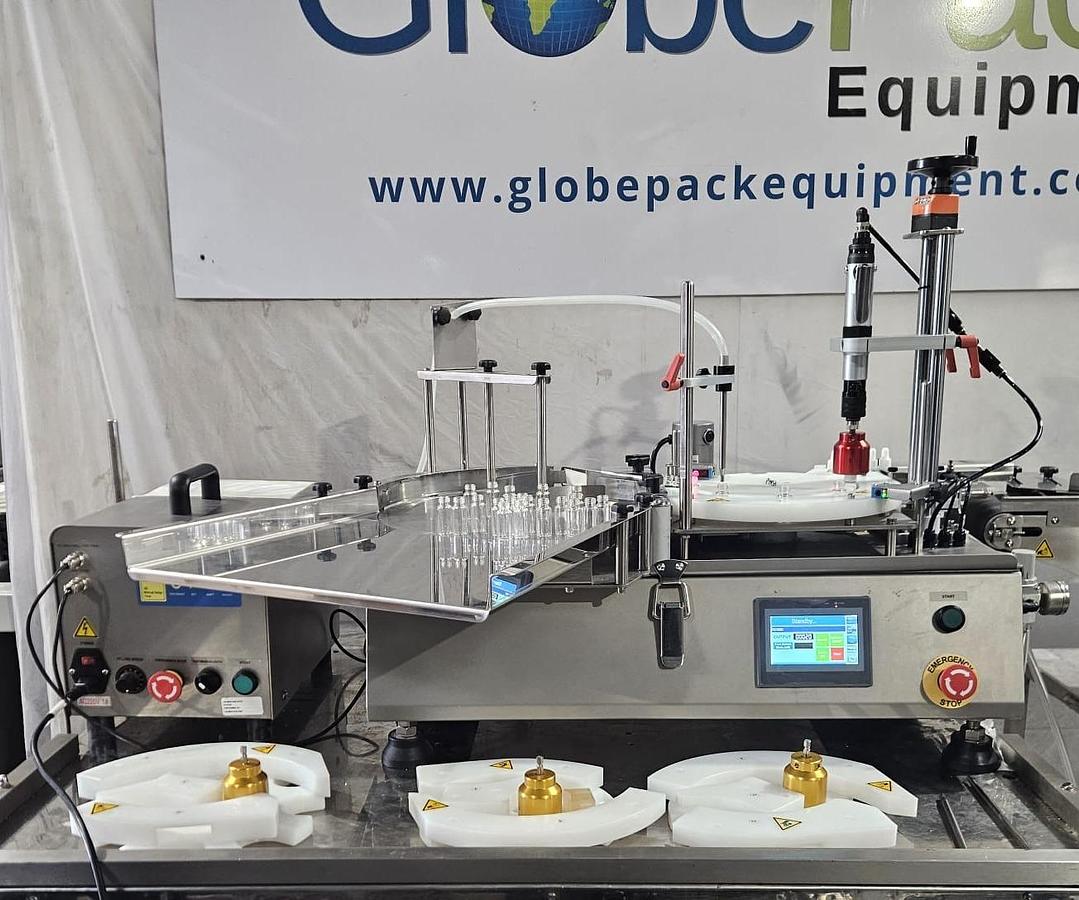

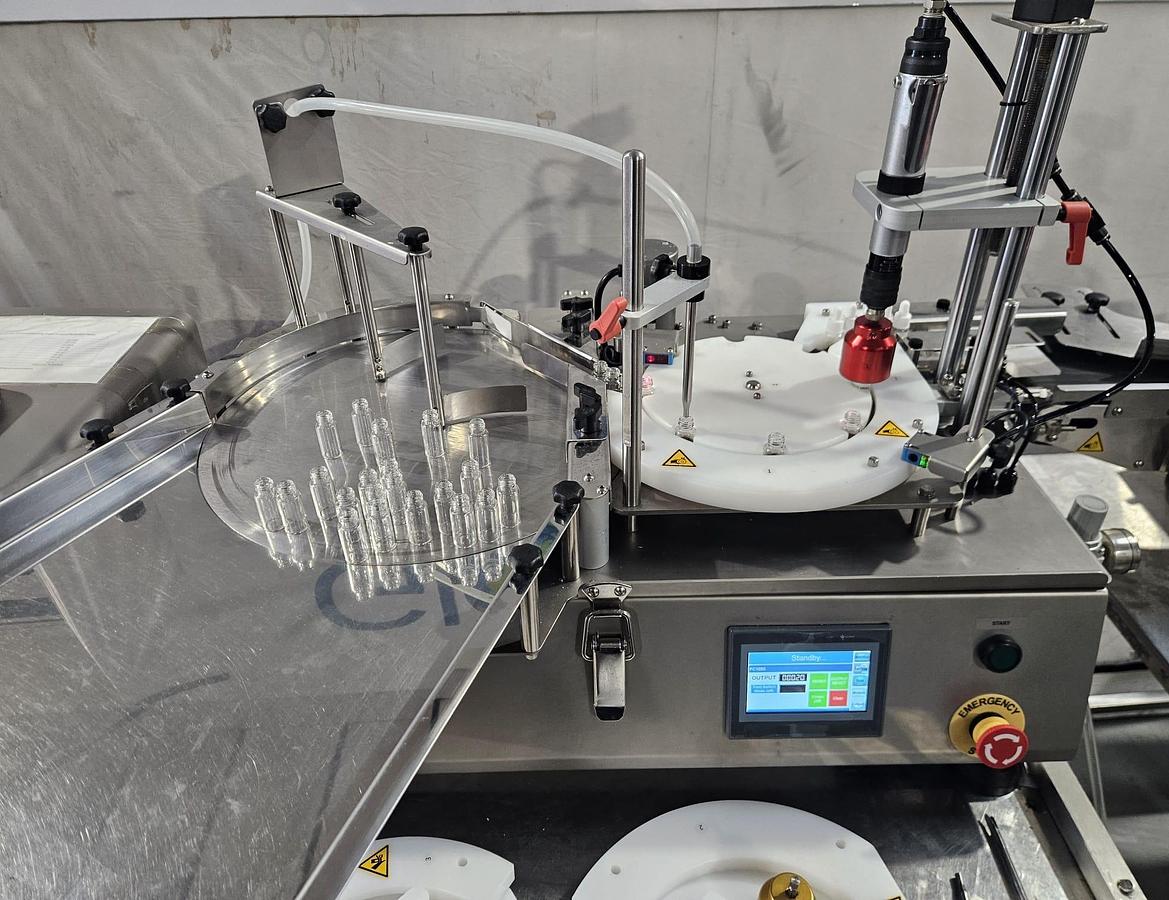

Monoblock Liquid Filling and Capping Machine

Make: Mecatech Services

Serial number: 12789F03-1

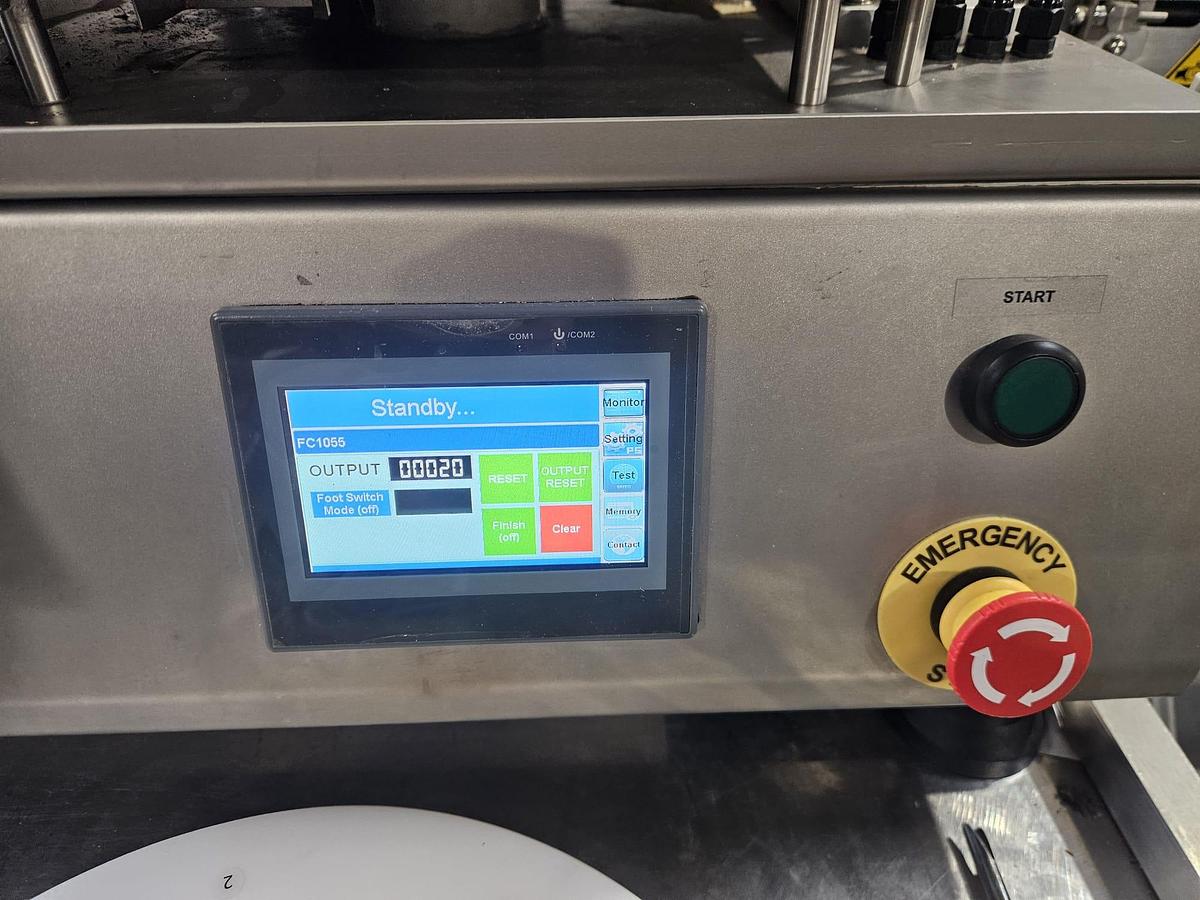

Delta PLC and Conch HMI

Supply: 240V 1ph 13A, 4bar pneumatic

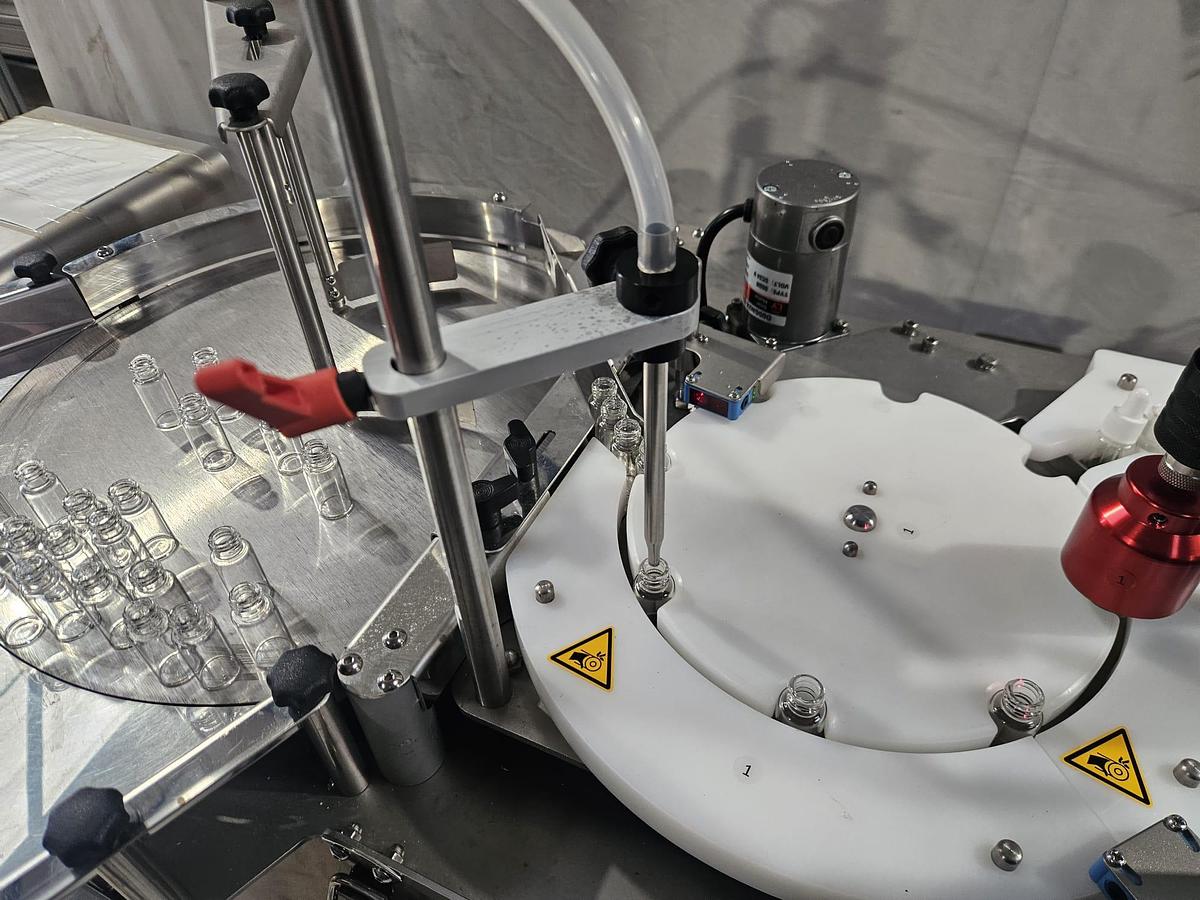

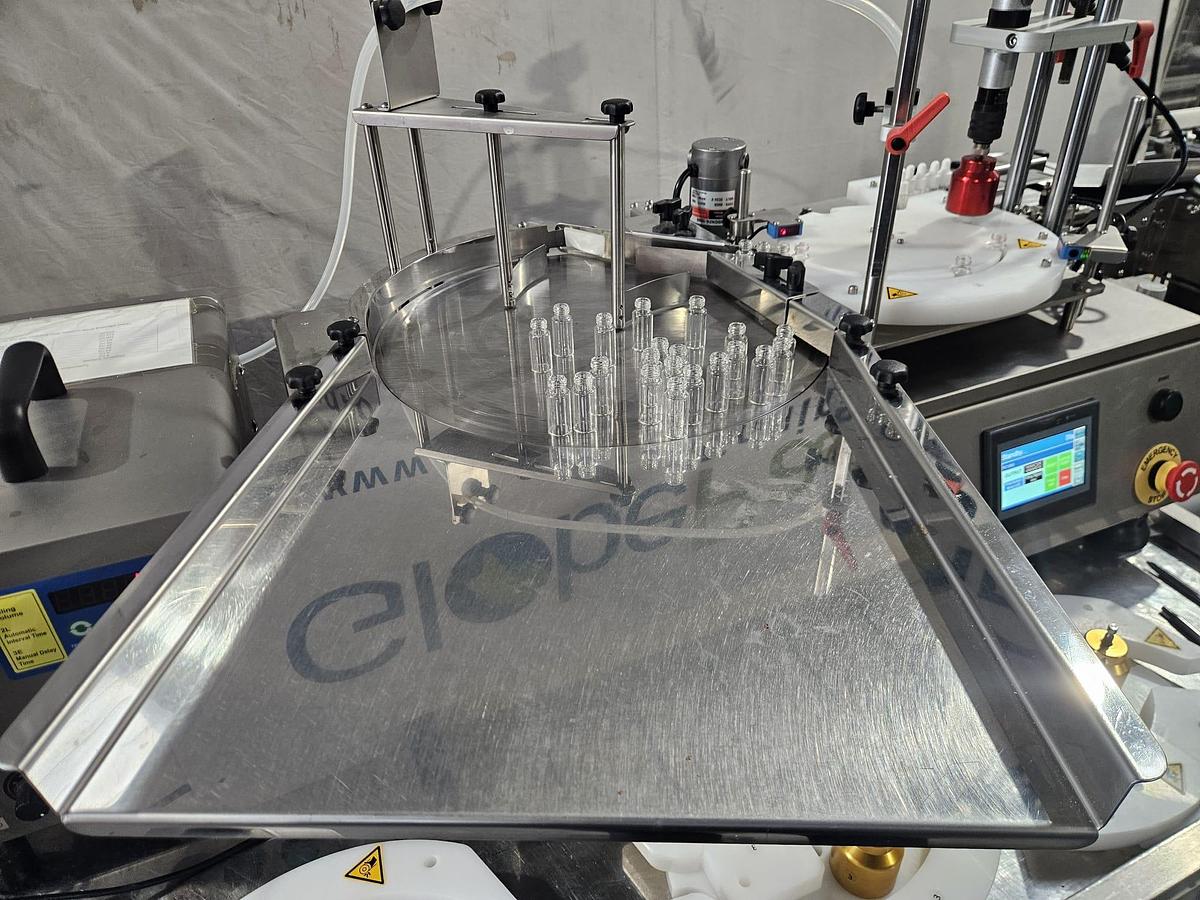

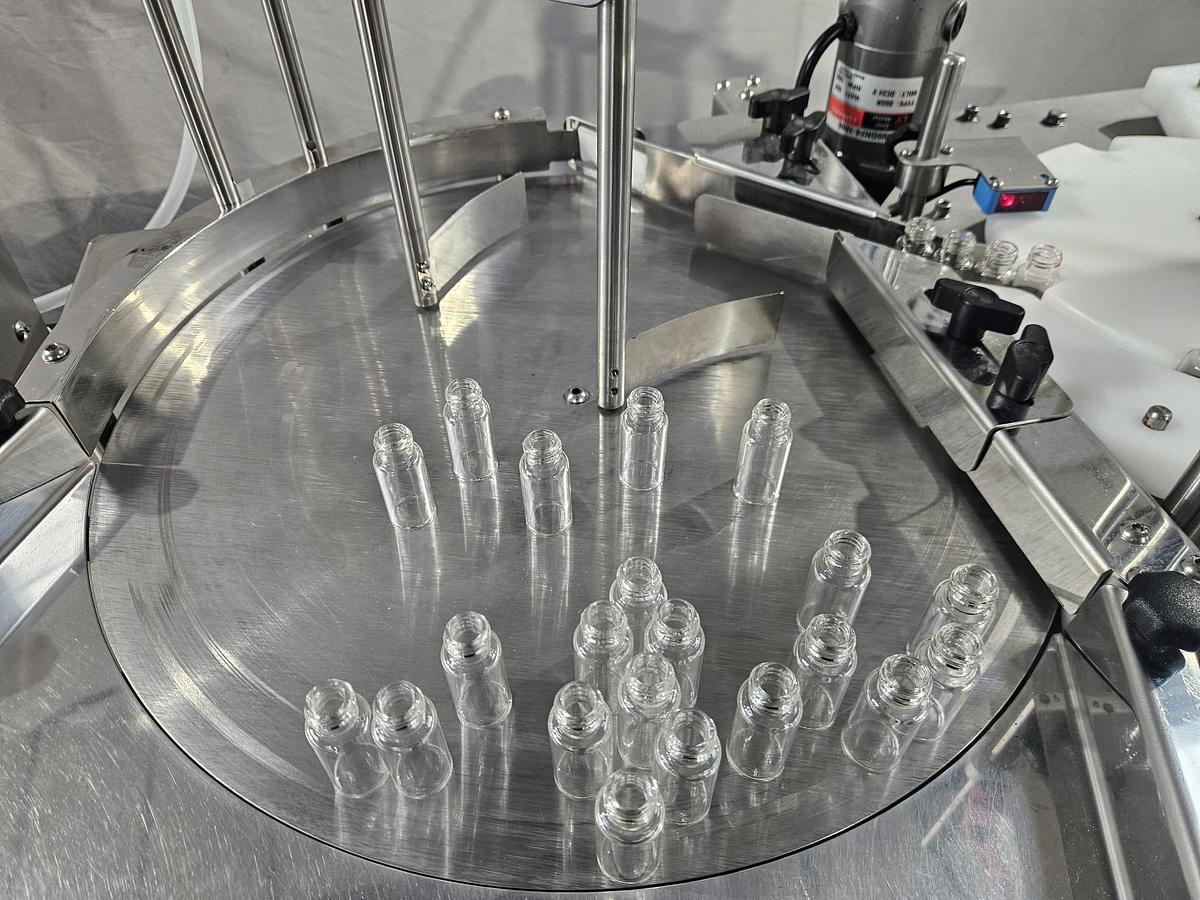

Built in infeed rotary table

Caps are placed by hand after the fill

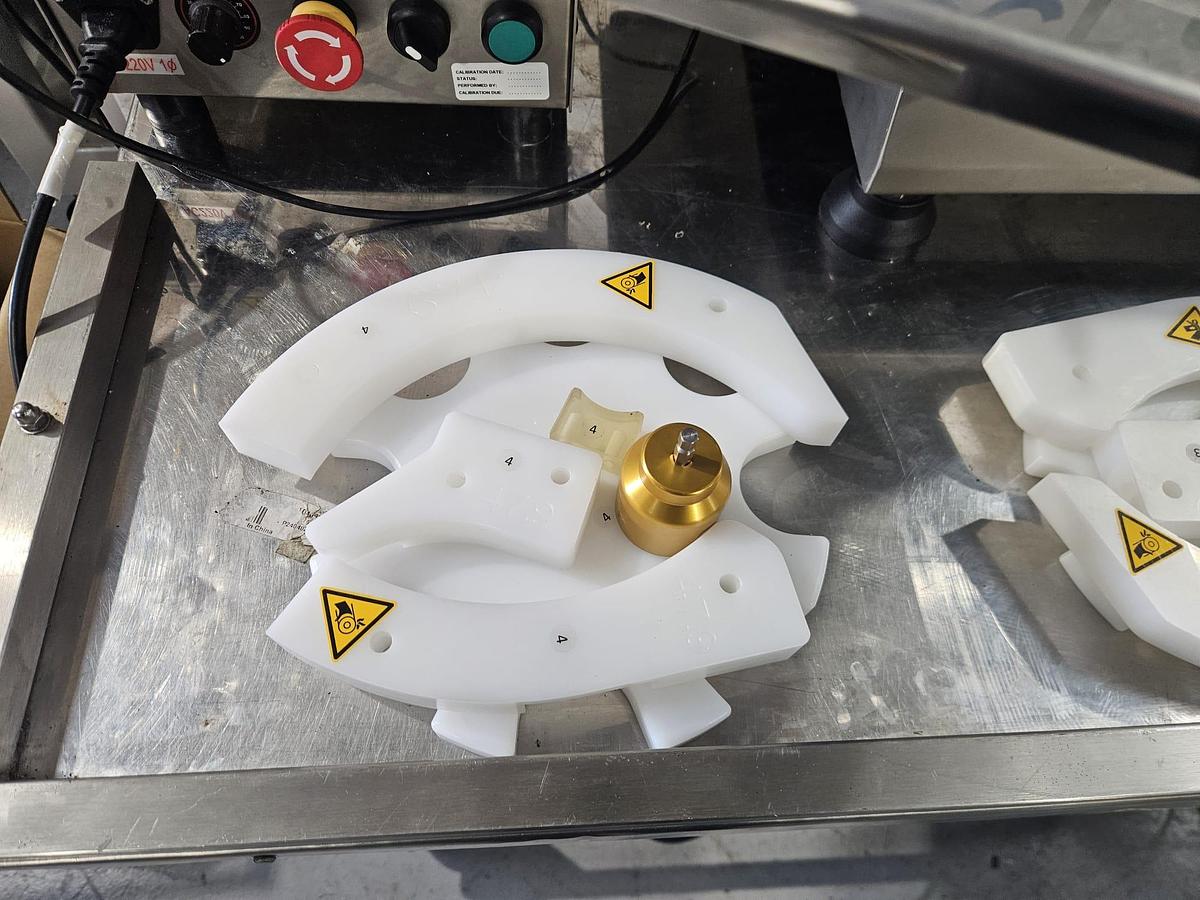

Change parts included as follows:

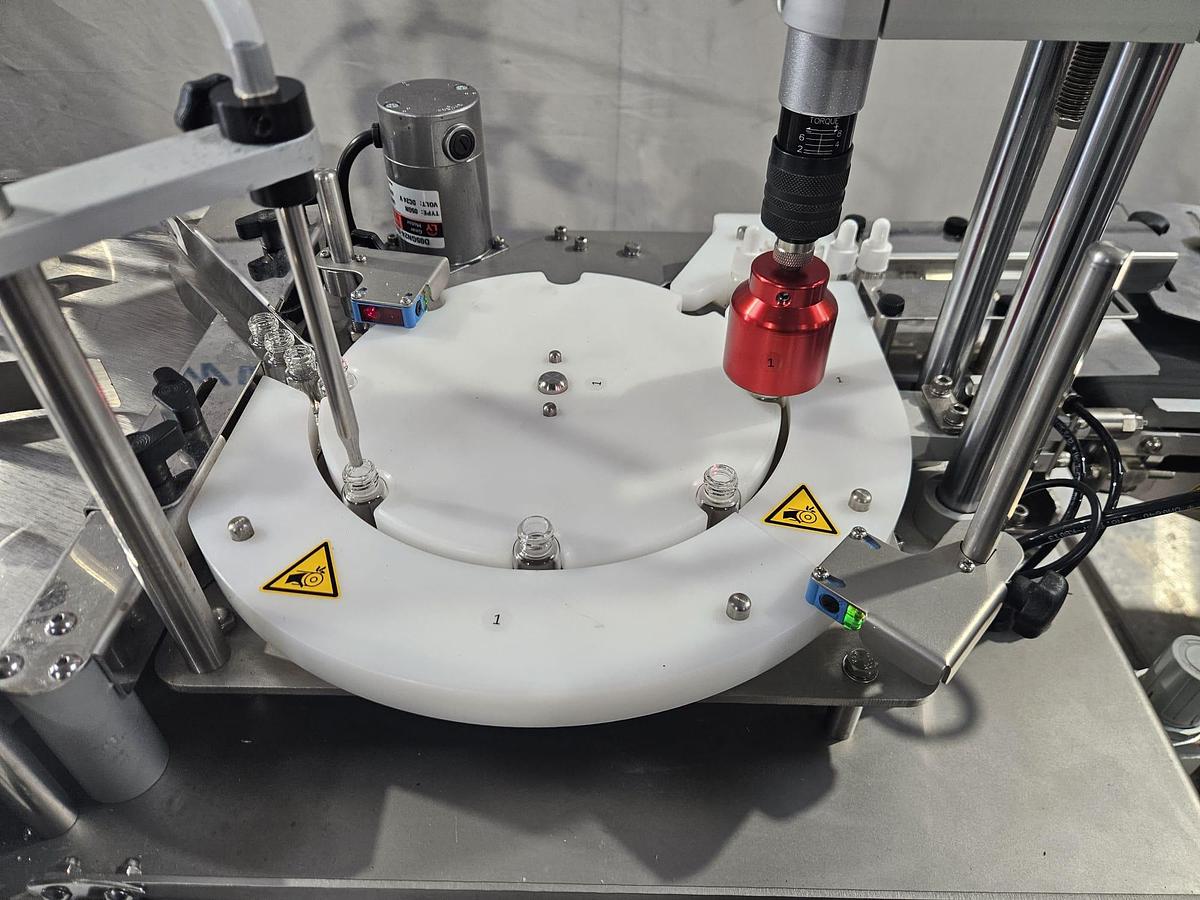

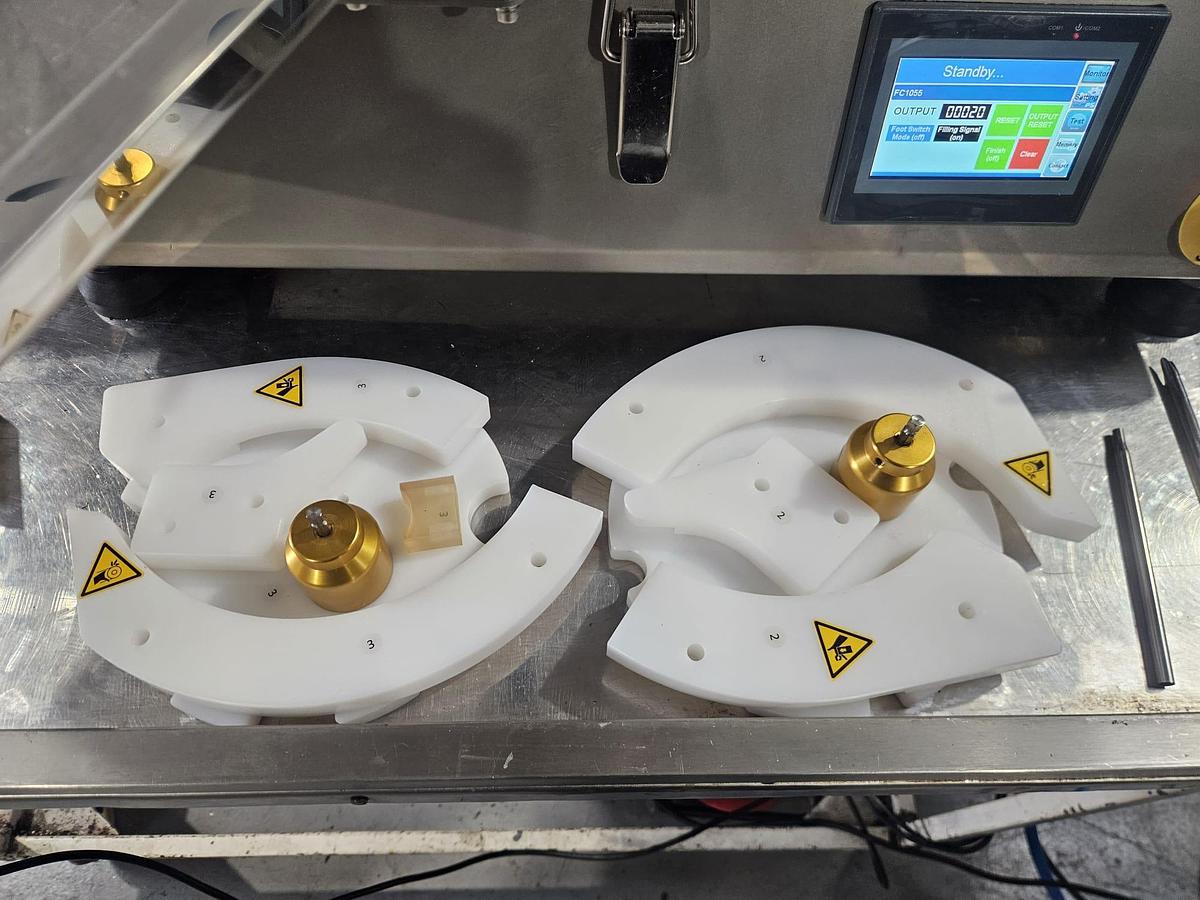

- star wheels 18mm, 20mm, 40mm & 50mm

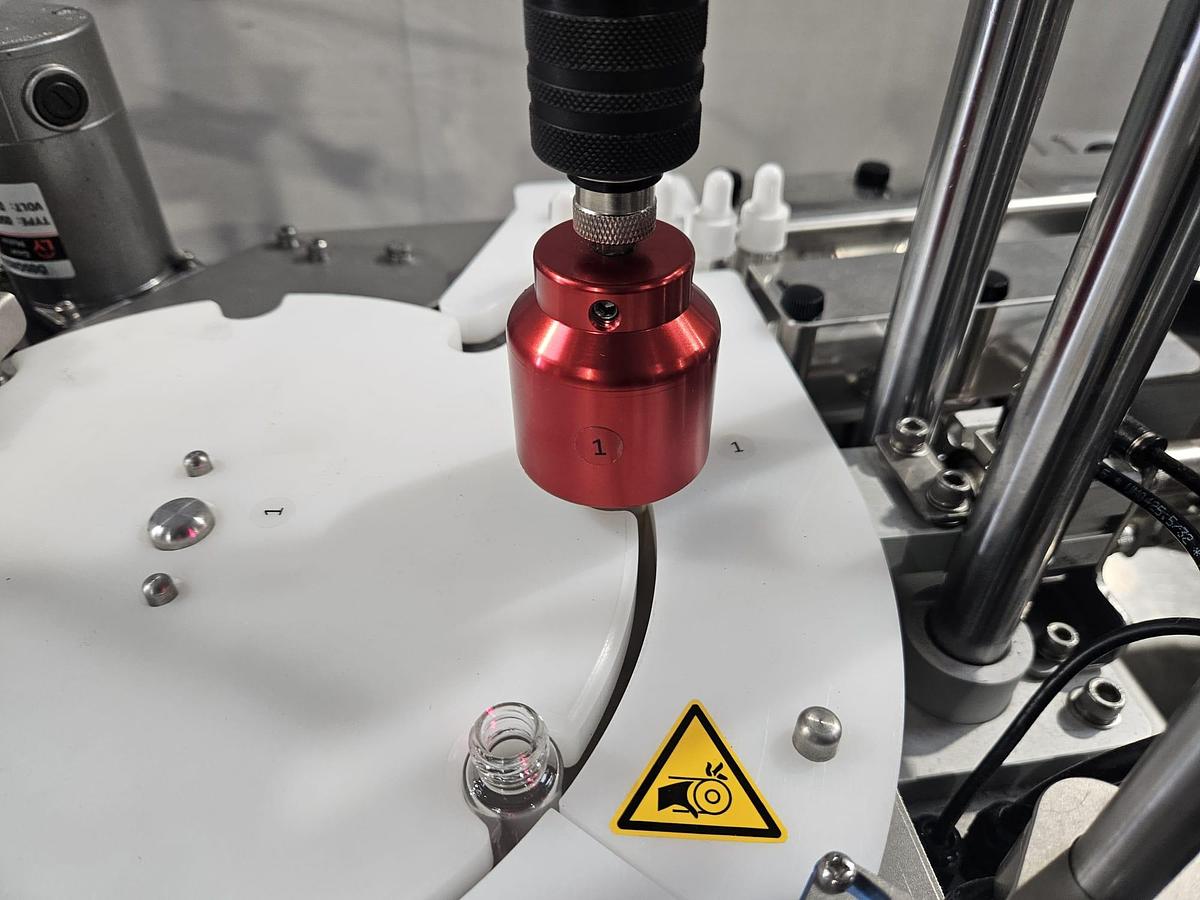

- cap chucks 15mm, 19mm, 24mm & 25mm

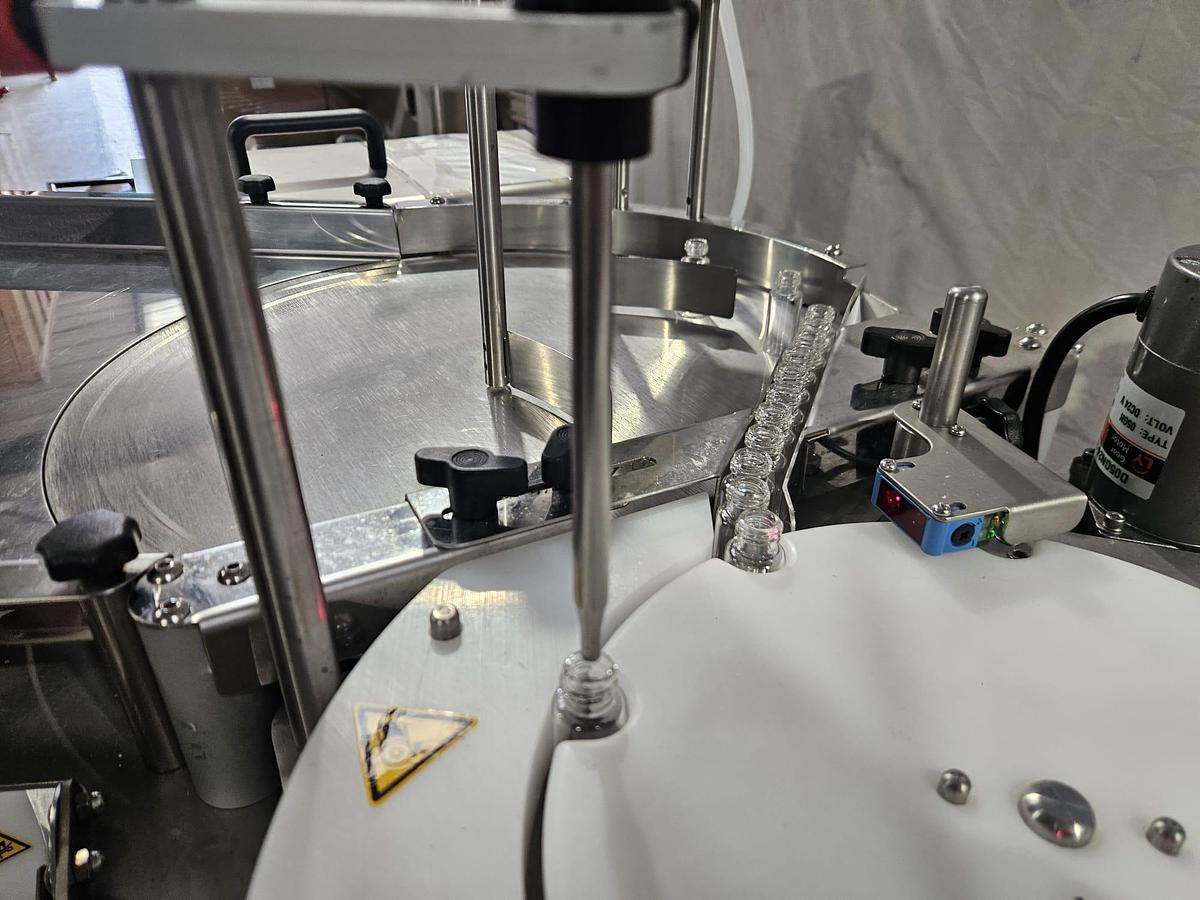

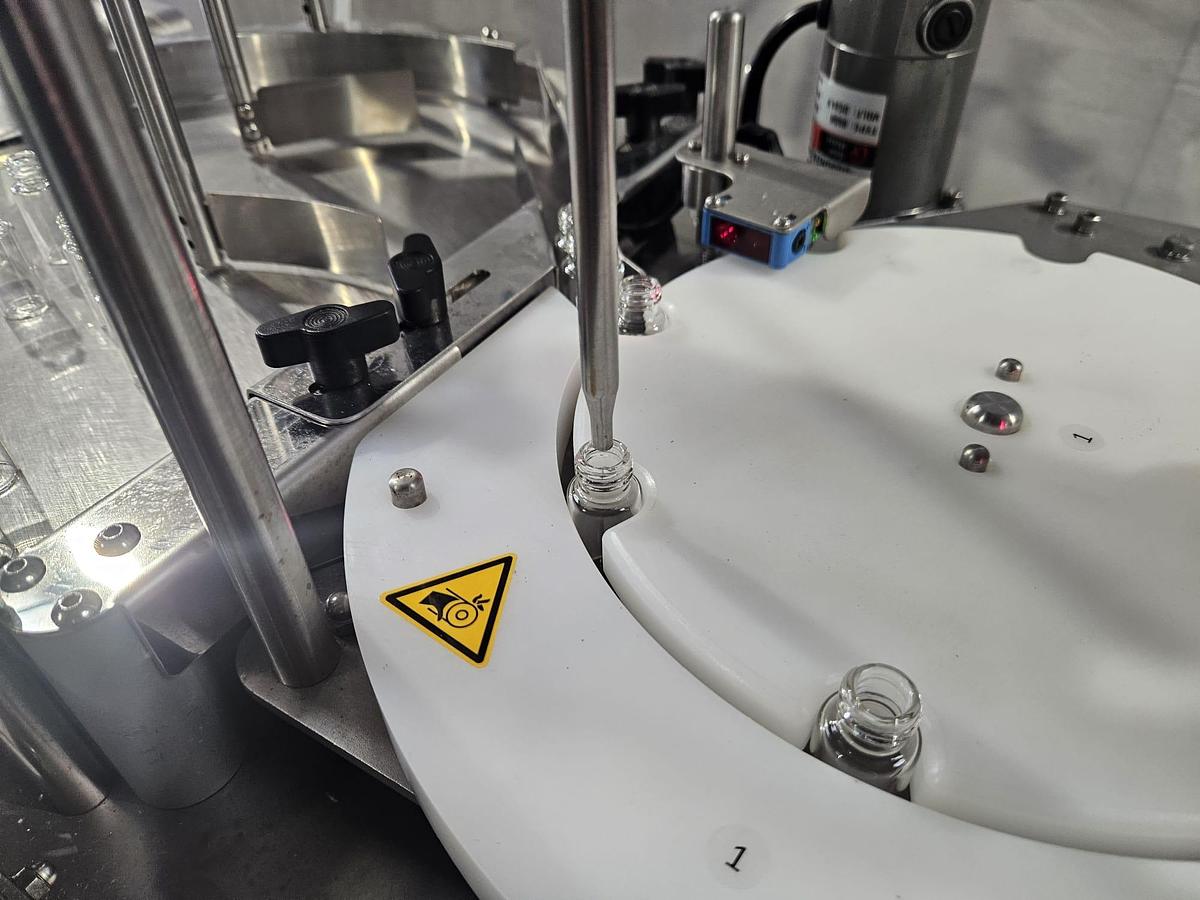

- nozzles 5mm, 6mm and 8mm

Machine size: 1100mm x 650mm x 750mm high

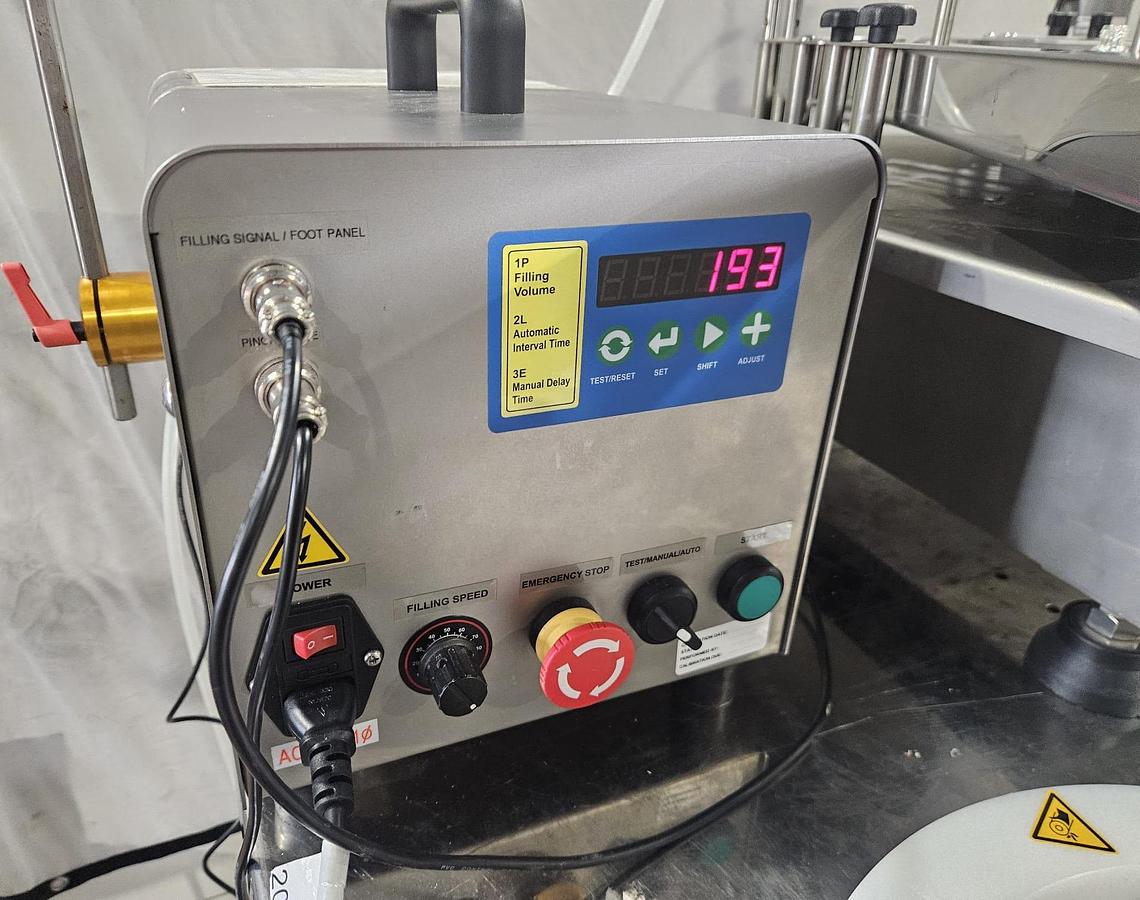

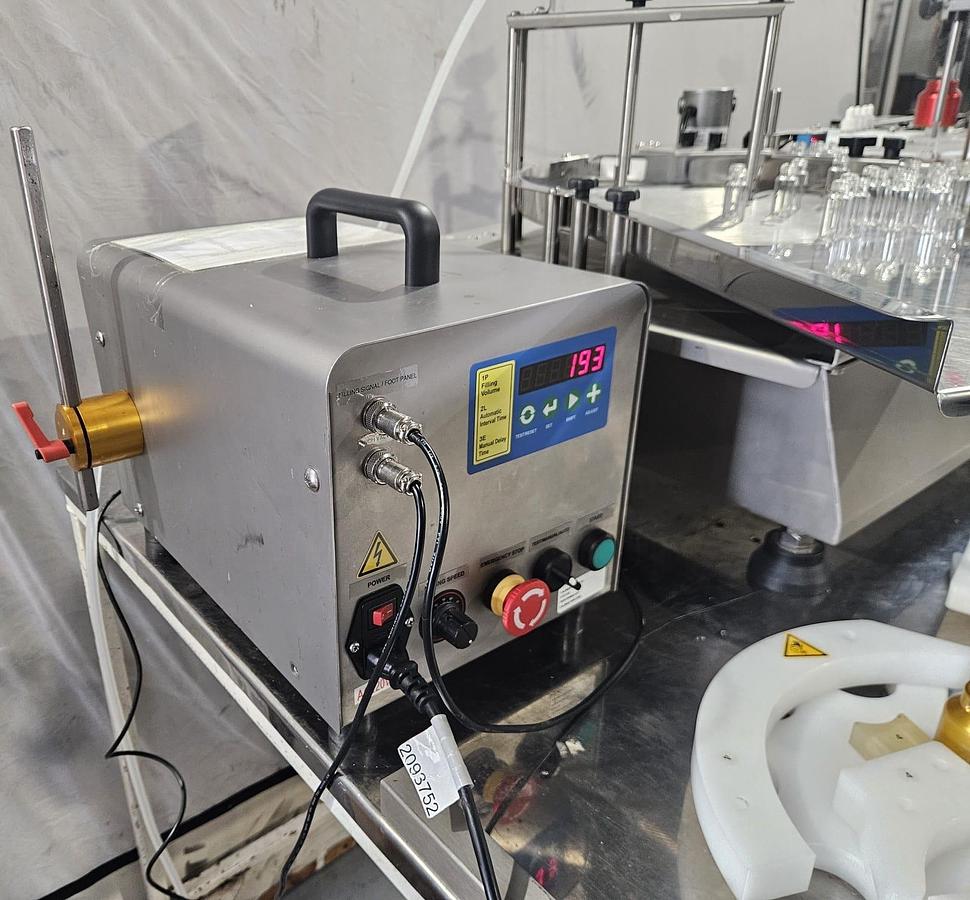

Peristaltic pump

Model: FT1052

Serial number: 128789F05

Supply: 240V 1ph 6A

Peristaltic filling pump using 10mm OD silicon tubing 8mm ID

Supplied: cleaned, checked and tested
