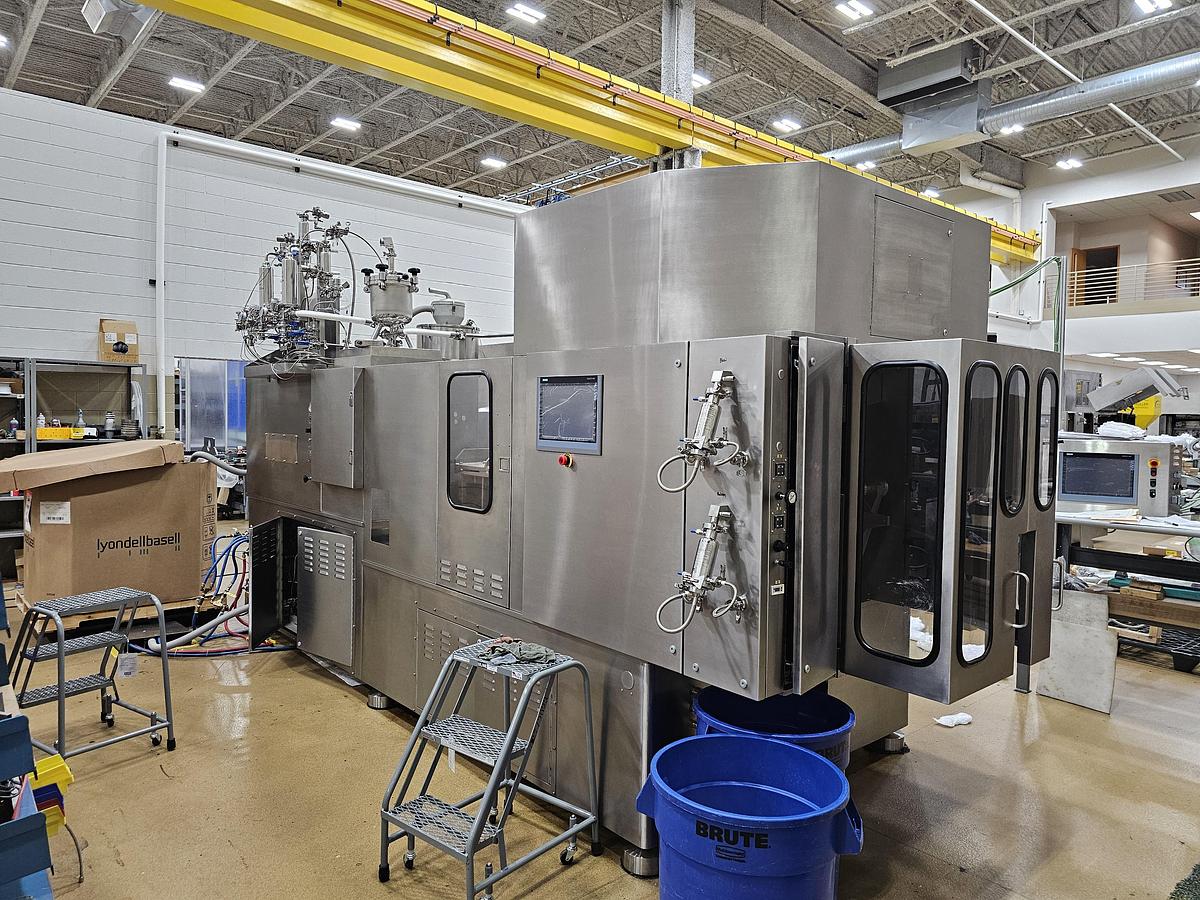

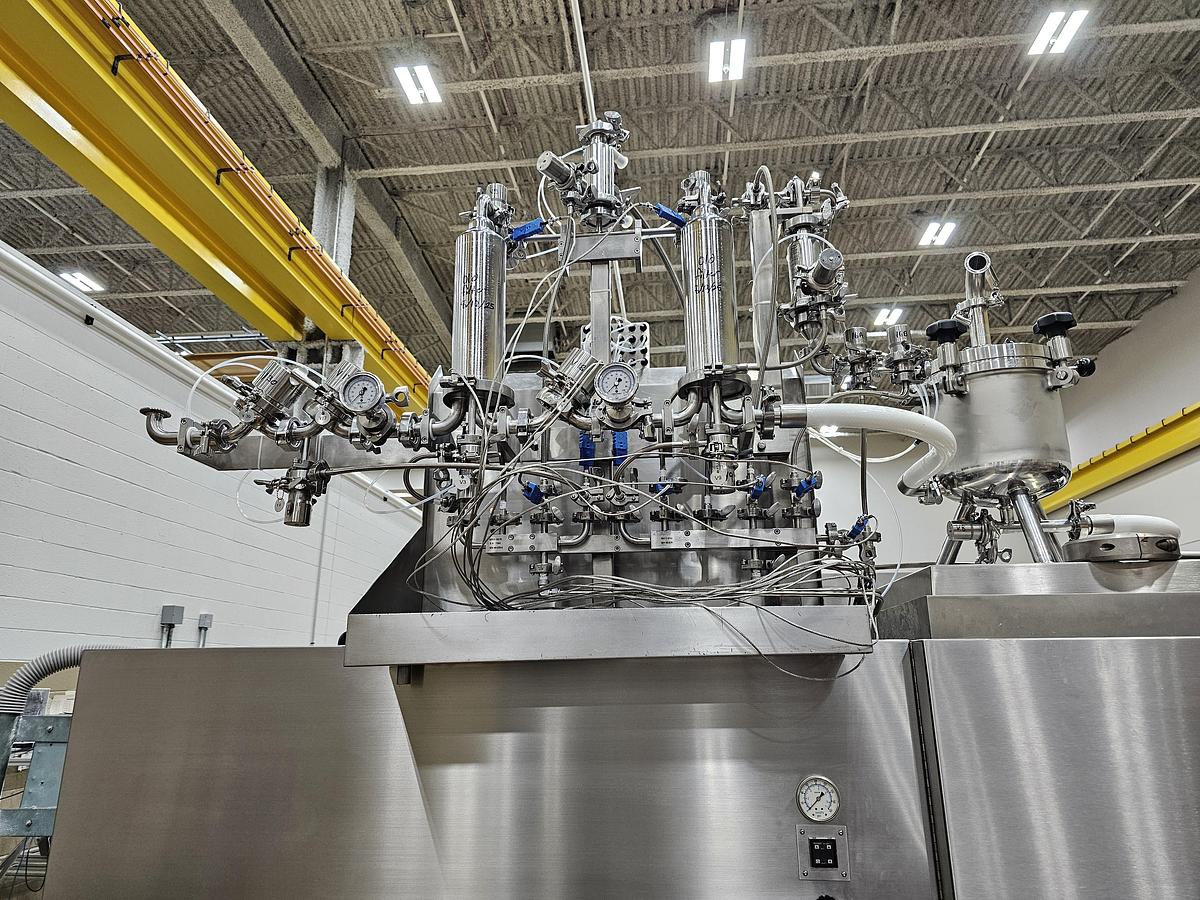

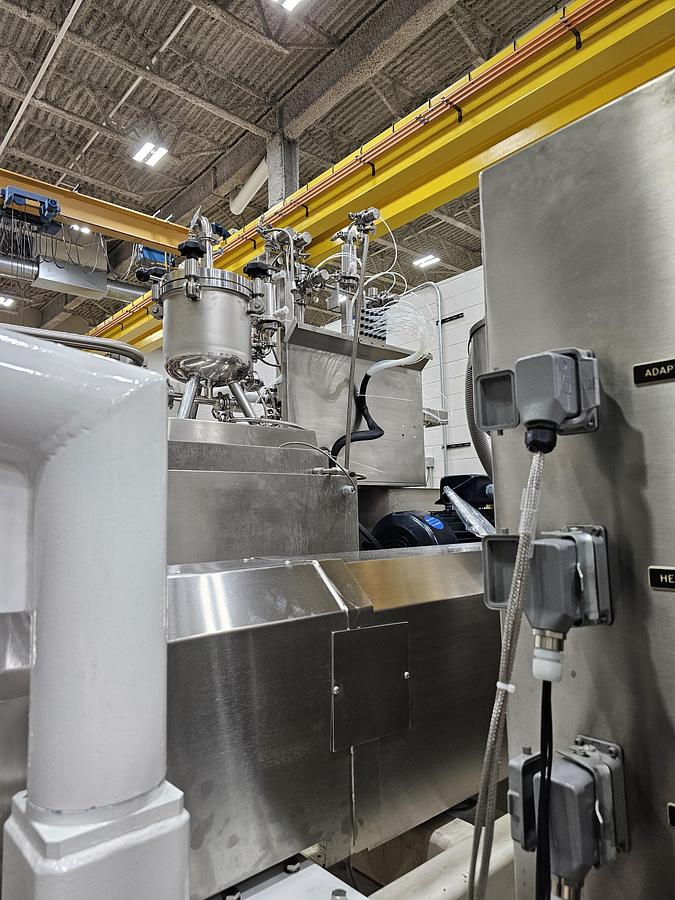

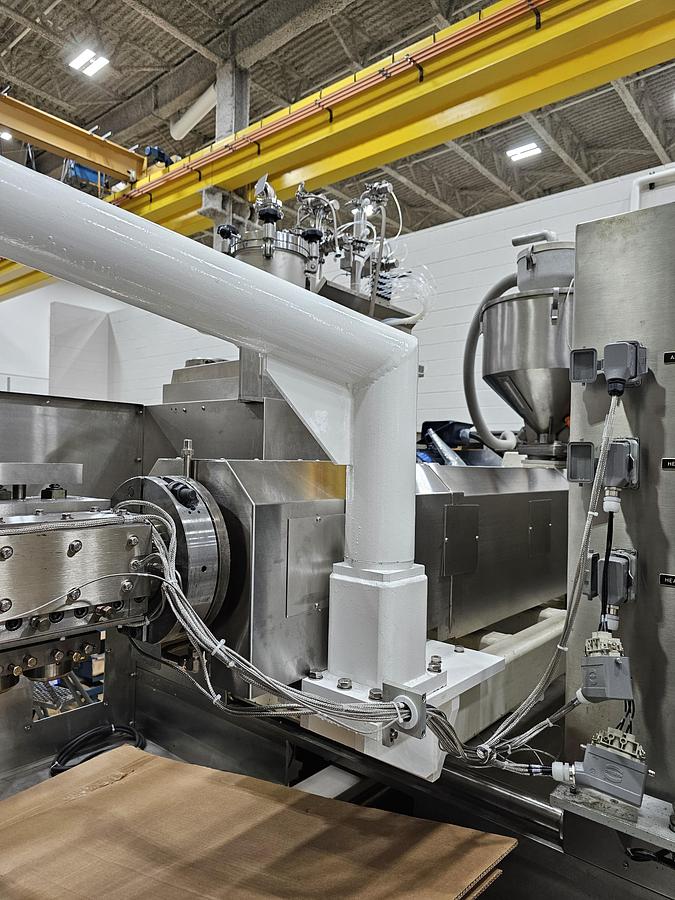

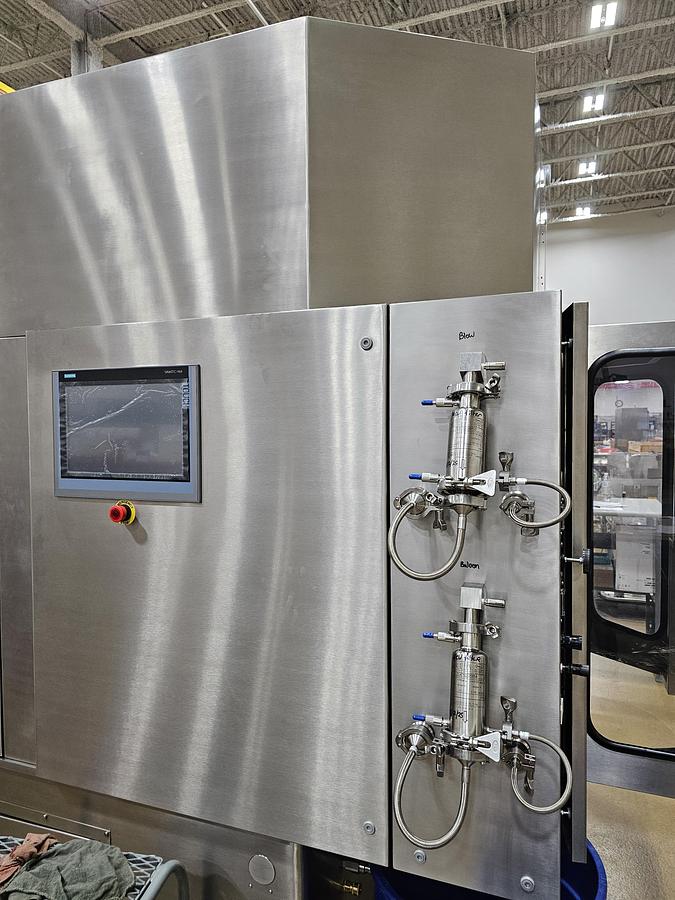

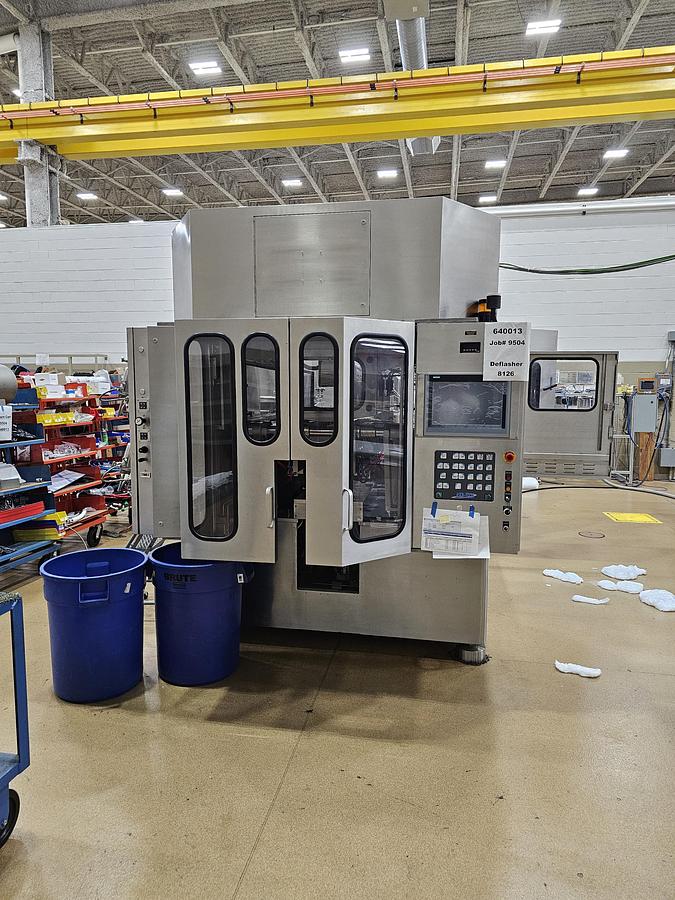

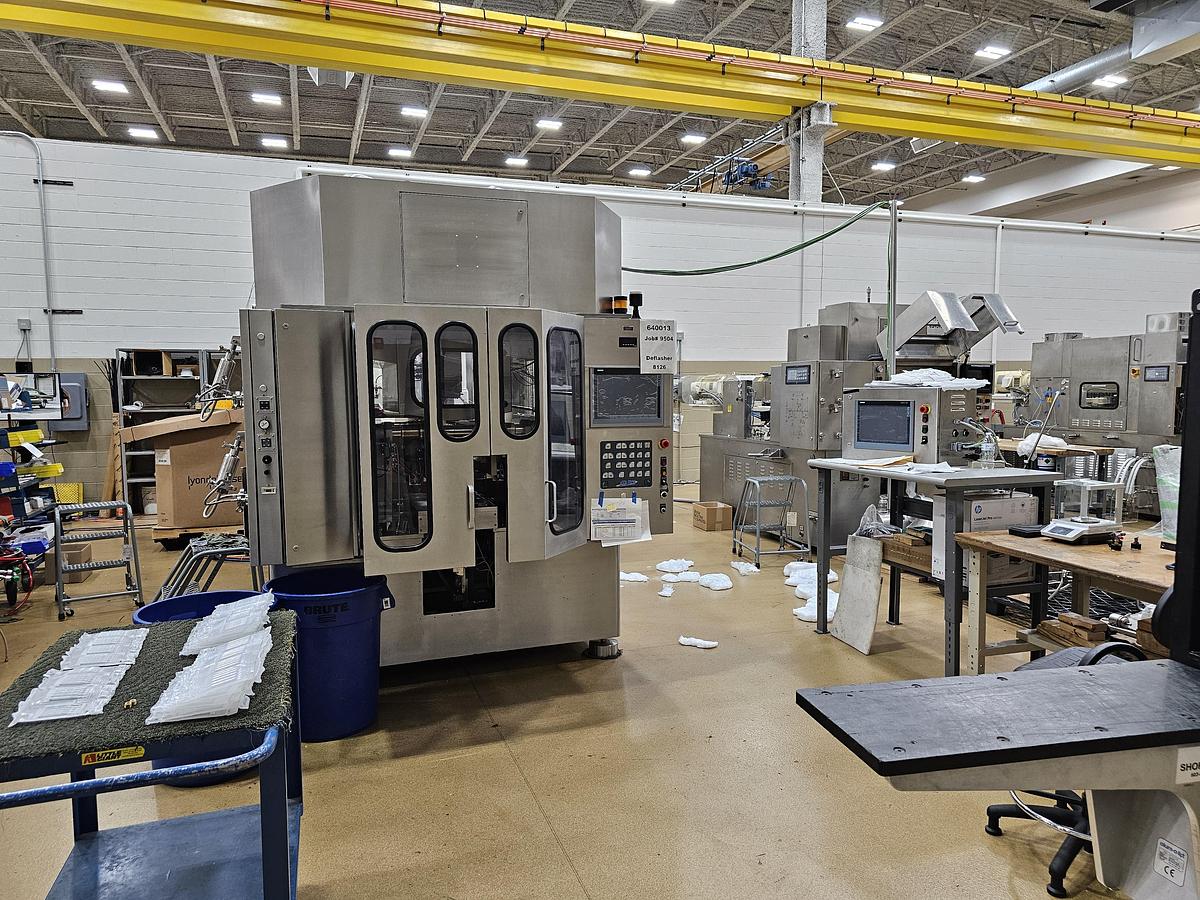

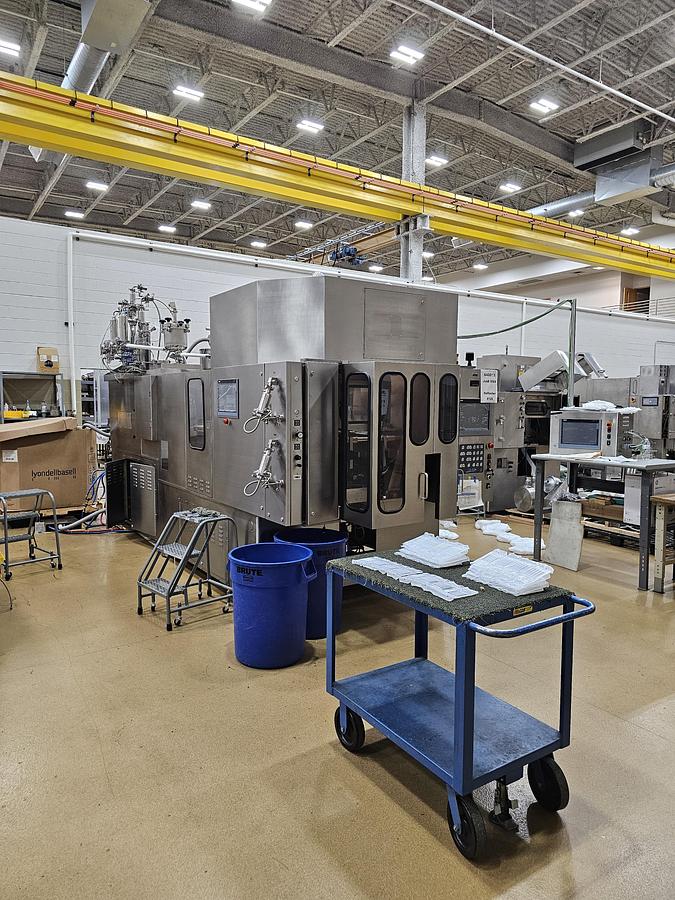

Weiler 640 Blow/Fill/Seal Machine

Weiler 640 Blow/Fill/Seal Machine - BFS - *This machine has had a full electrical upgrade carried out by Weiler*

ASEP-TECH® Blow/Fill/Seal systems integrate container forming, filling, and sealing into a single sterile operation, reducing contamination risk and production steps. Designed for Small Volume Parenterals (2-100 mL) and Large Volume Parenterals for intravenous and irrigation applications, these systems produce lightweight, breakage-resistant, particle-free, and recyclable containers from autoclave-safe resins. Customizable features include luer locks, twist-off tops, multi-entry configurations, and integral hangers - ideal for injectables, vaccines, anesthetics, and lyophilized medication reconstitution.

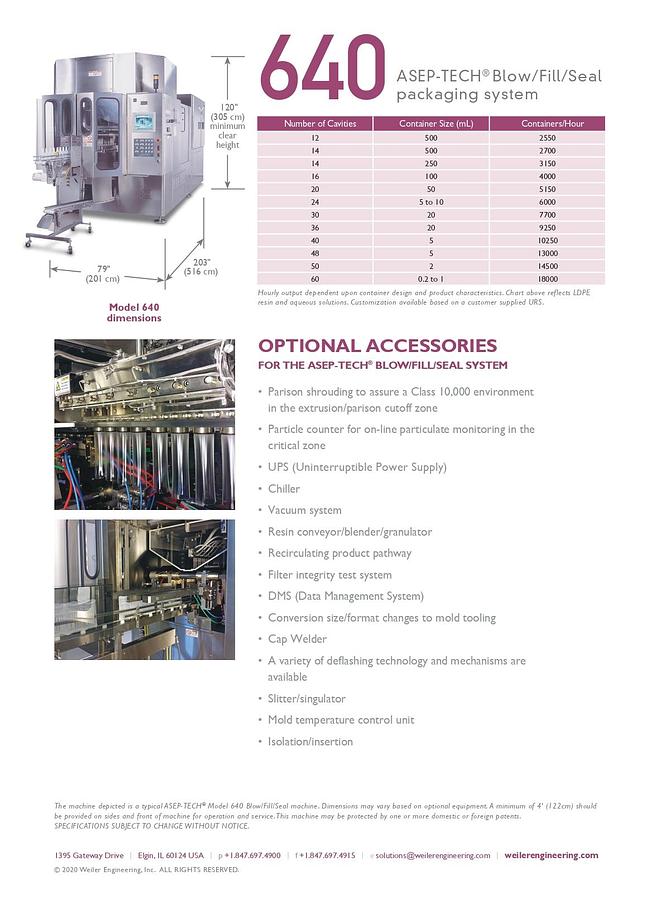

The Weiler Blow/Fill/Seal machines produce plastic aseptically packaged sterile-filled containers. Fill volumes range from 0.2mL vials to 1000mL LVP bottles. Typical resins used are L.D.P.E., H.D.P.E. and P.P. The B/F/S process creates sterile finished product in a matter of seconds.

B/F/S (Blow/Fill/Seal) technology is a groundbreaking method that ensures the highest levels of sterility in aseptic processing. Its versatility allows for applications across various industries, enhancing both efficiency and compliance.

Every step, from handling to closure, is optimized for maximum sterility assurance, with zero human intervention

Overview of Operation:

Thermoplastic resin granules are extruded and formed into a parison (tubular shape)

Molds and sterile air are used to form containers from the parison

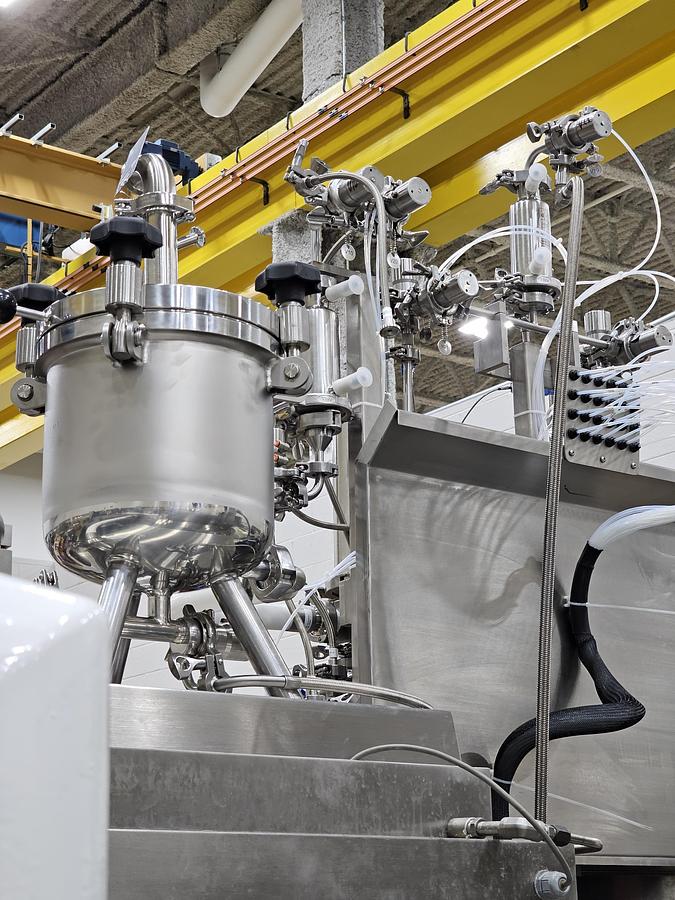

The sterile product is then metered into the containers which are then hermetically sealed

This cycle occurs continuously as formed, filled and sealed containers are conveyed out of the machine

Refurbishment Options:

1. PLC upgrade only
2. PLC upgrade and additional items:

Overhead HEPA

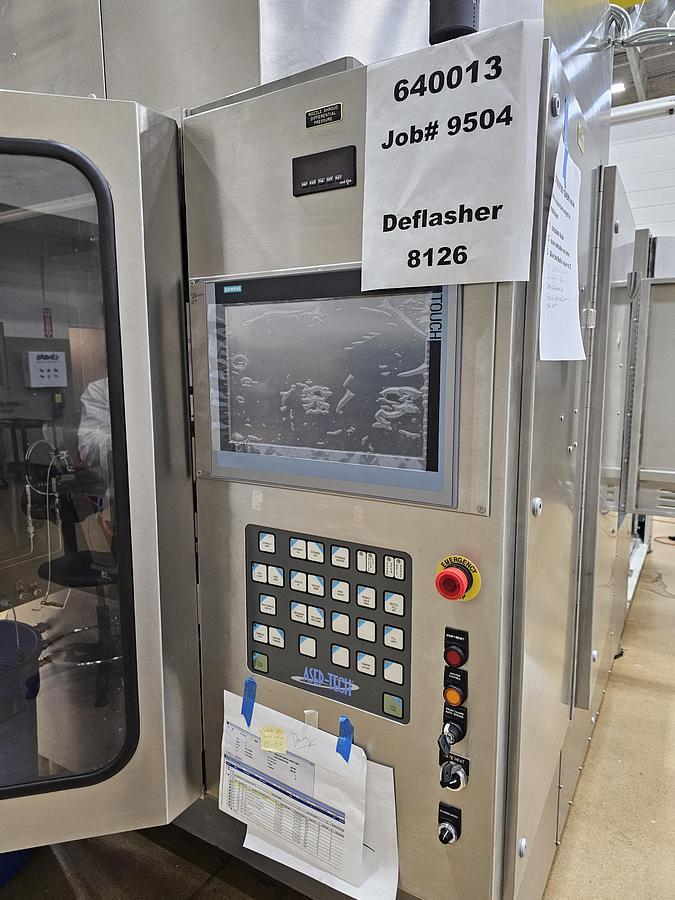

New remote deflasher

Example Scope of Work for Refurbished Machines:

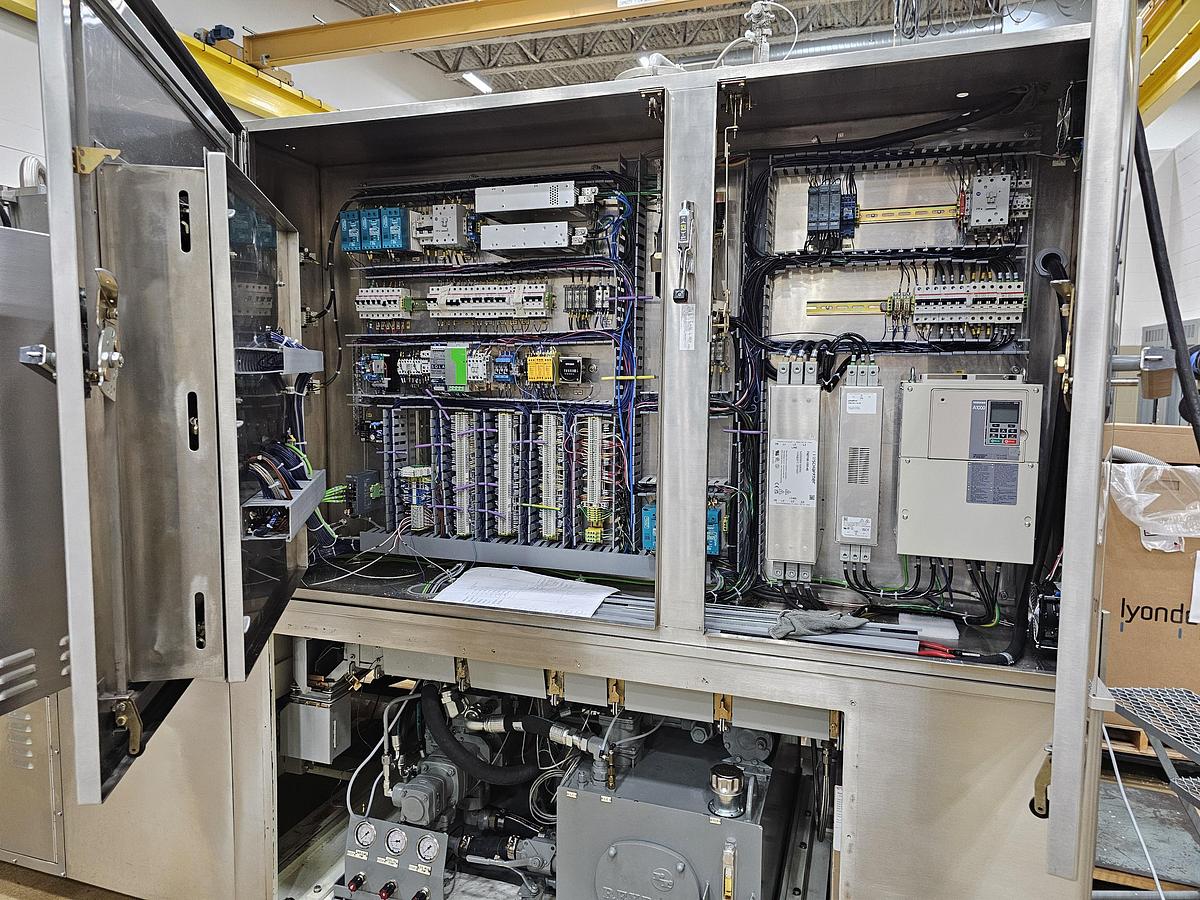

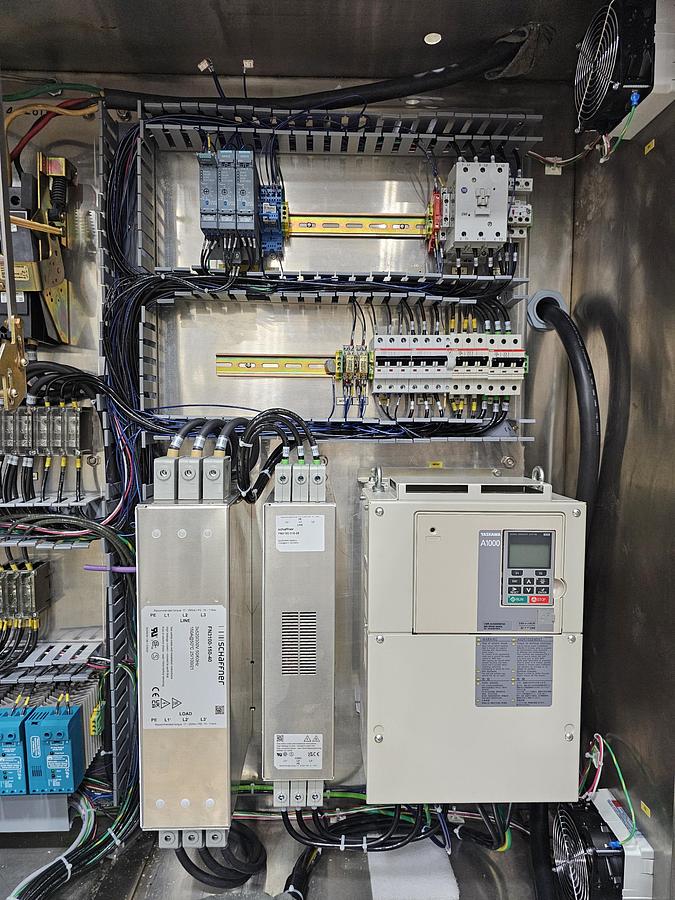

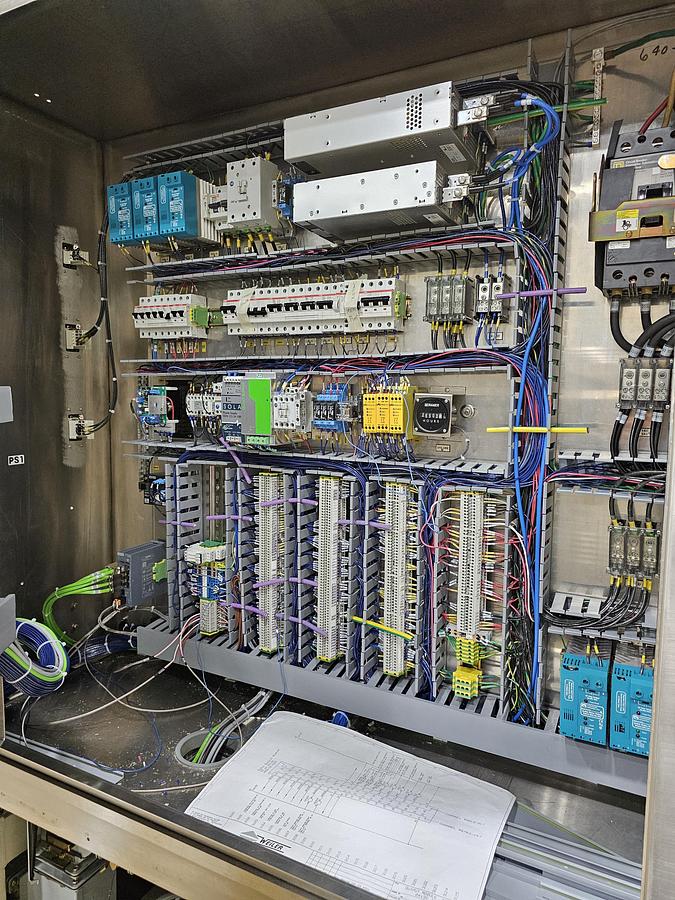

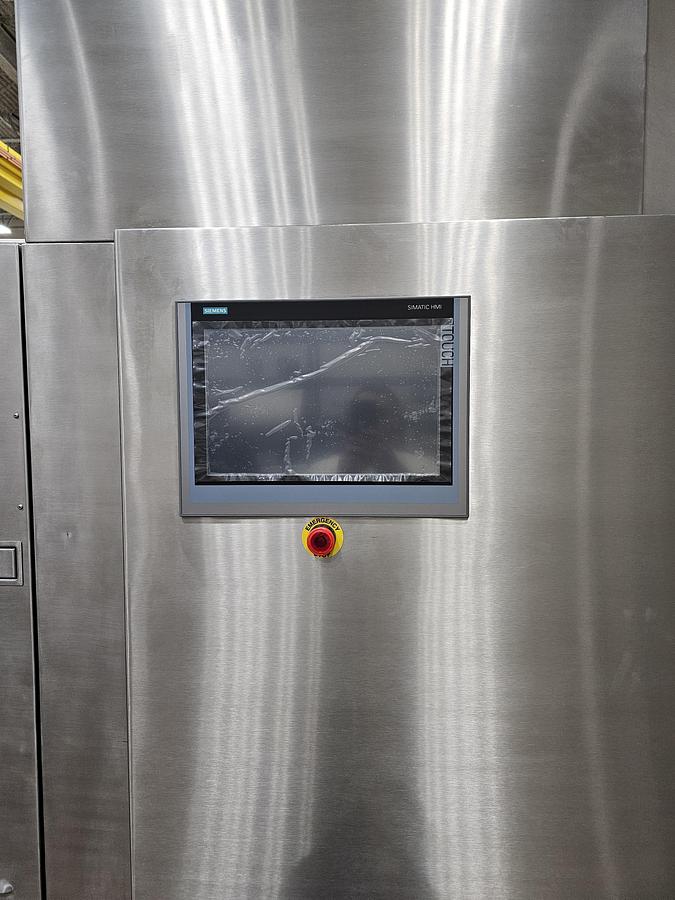

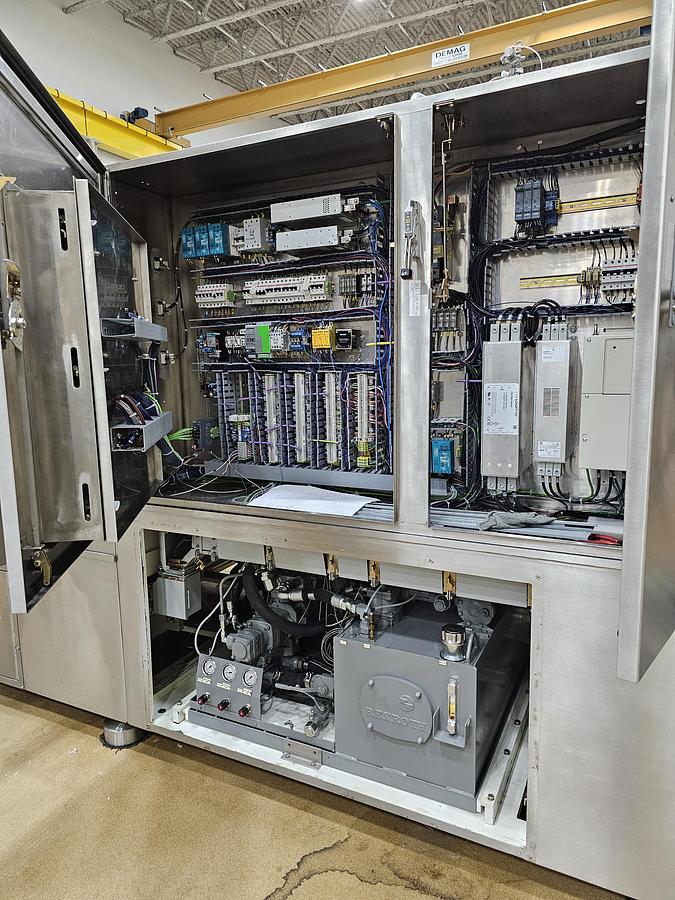

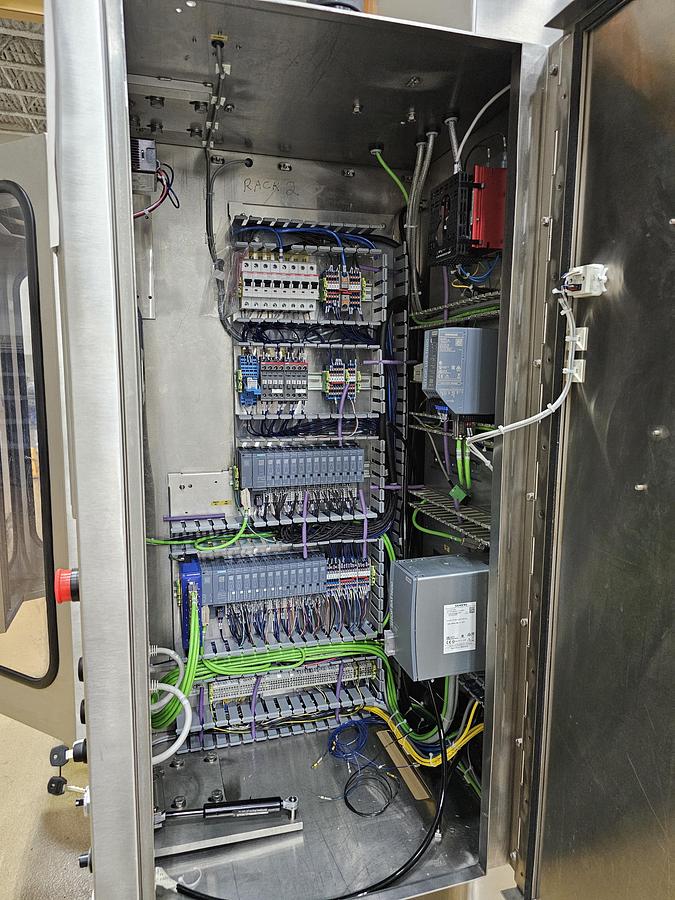

• Control System Upgrade with Data Management
• New Safety Labels
• New Safety Door Switch Upgrade

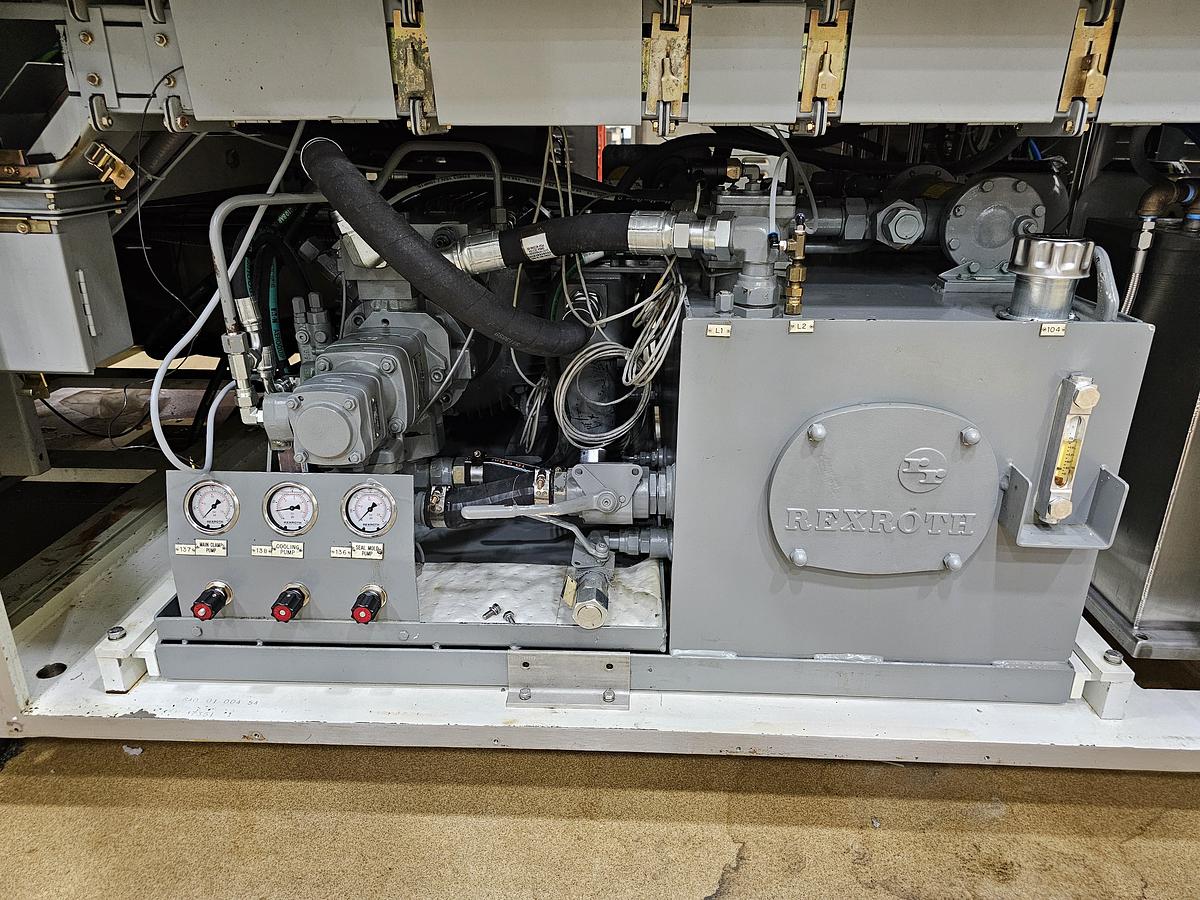

• New Hydraulic Safety High/Low Circuit Upgrade
• Add Particulate Counter (Optional)
• Add Viable Sampling Tube (Optional)
• Mold Carriage Renewed

Various format parts and tooling in stock and available immediately
