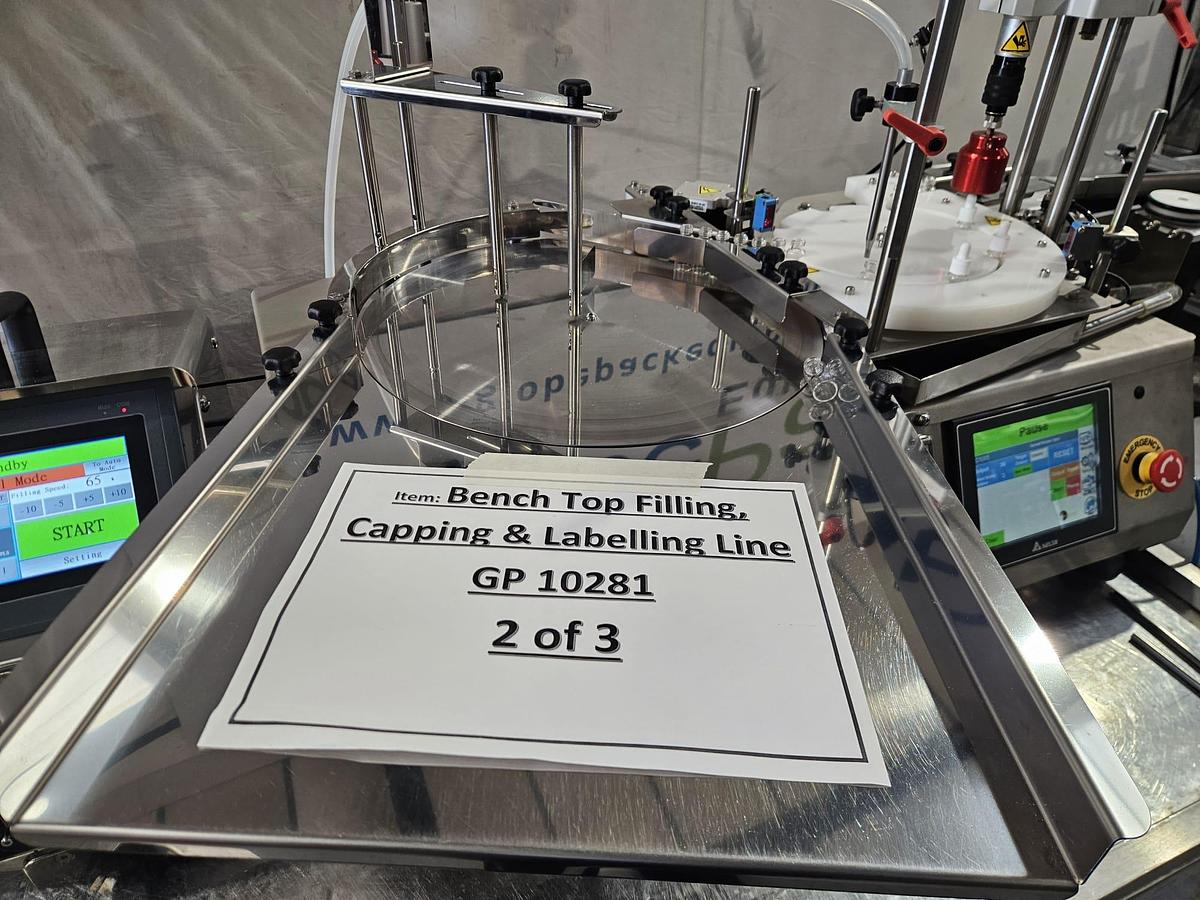

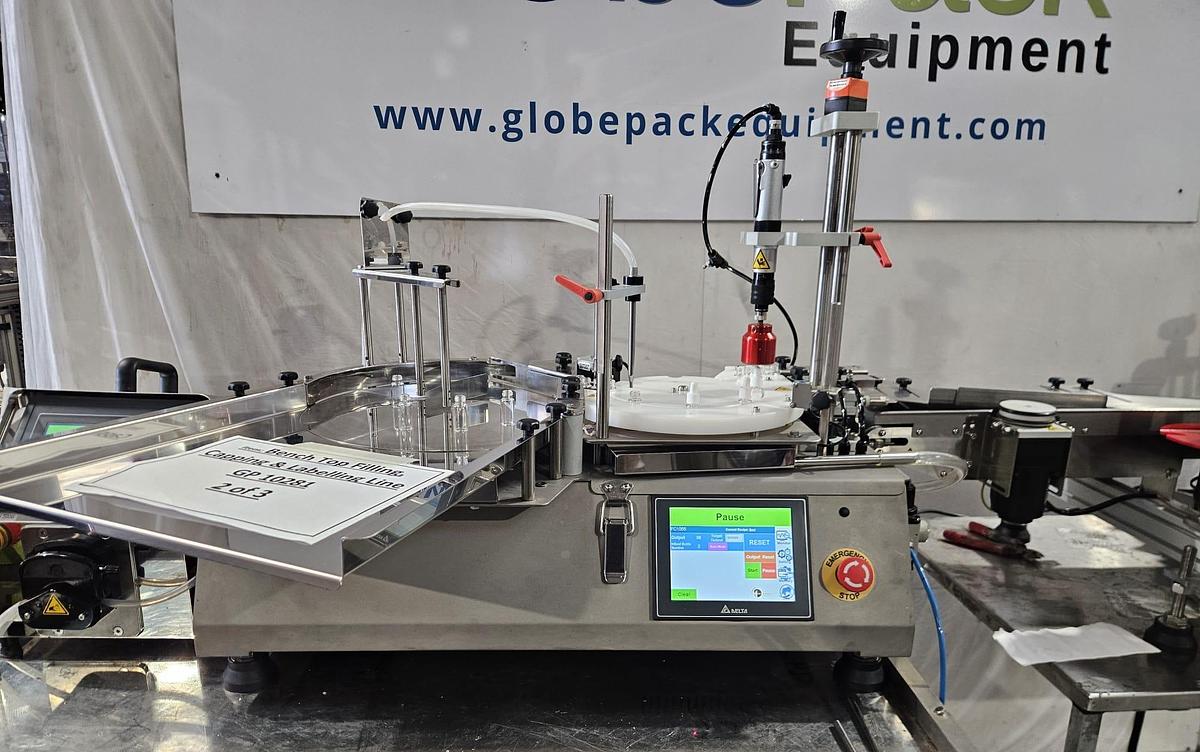

Bench Top Filling, Capping & Labelling Line

Bench Top Filling, Capping and Labelling Line

Current Set Up

18mm diameter and 43mm high bottle

17mm diameter cap

5ml fill volume at 120 per minute

Bottle size range: 18mm minimum to 50mm maximum diameter and up to 140mm high

Cap size range: 15mm minimum to 25mm maximum diameter

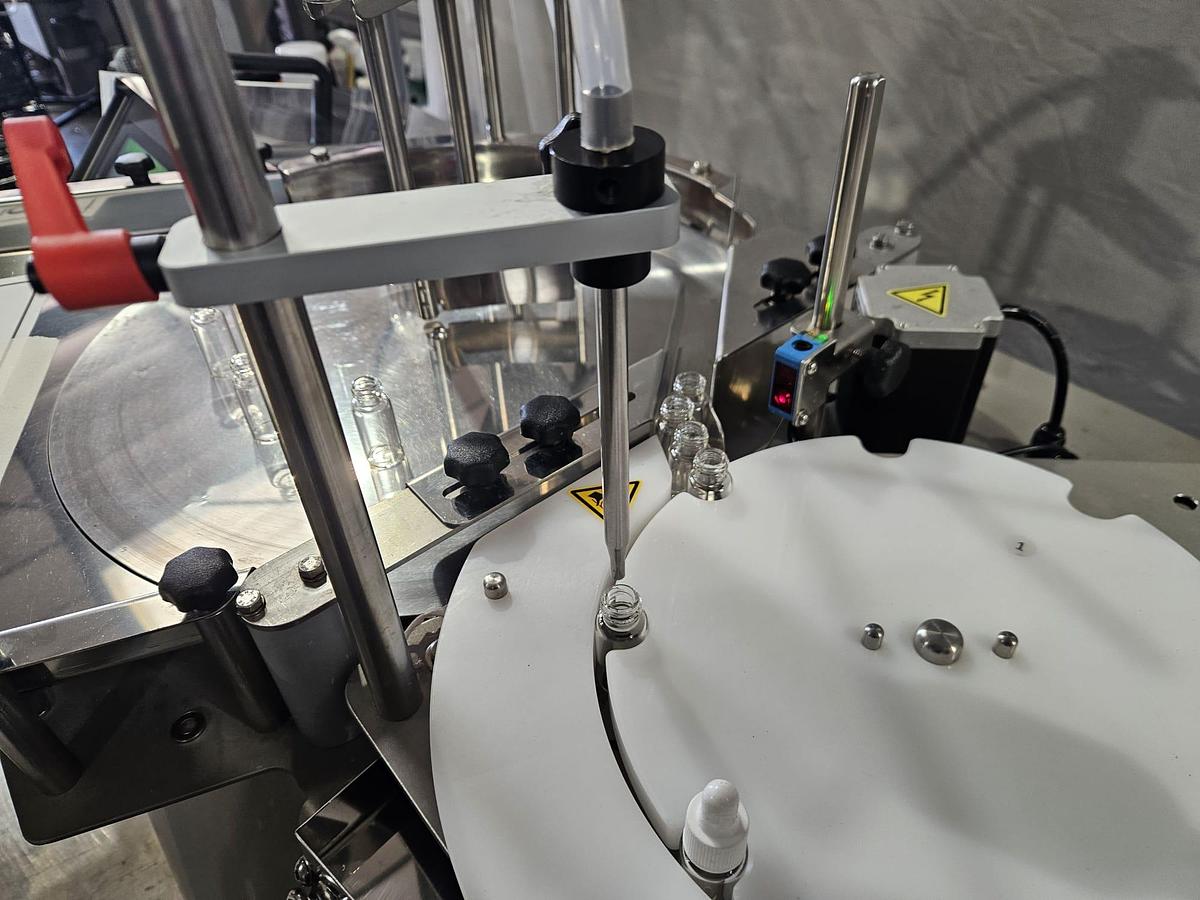

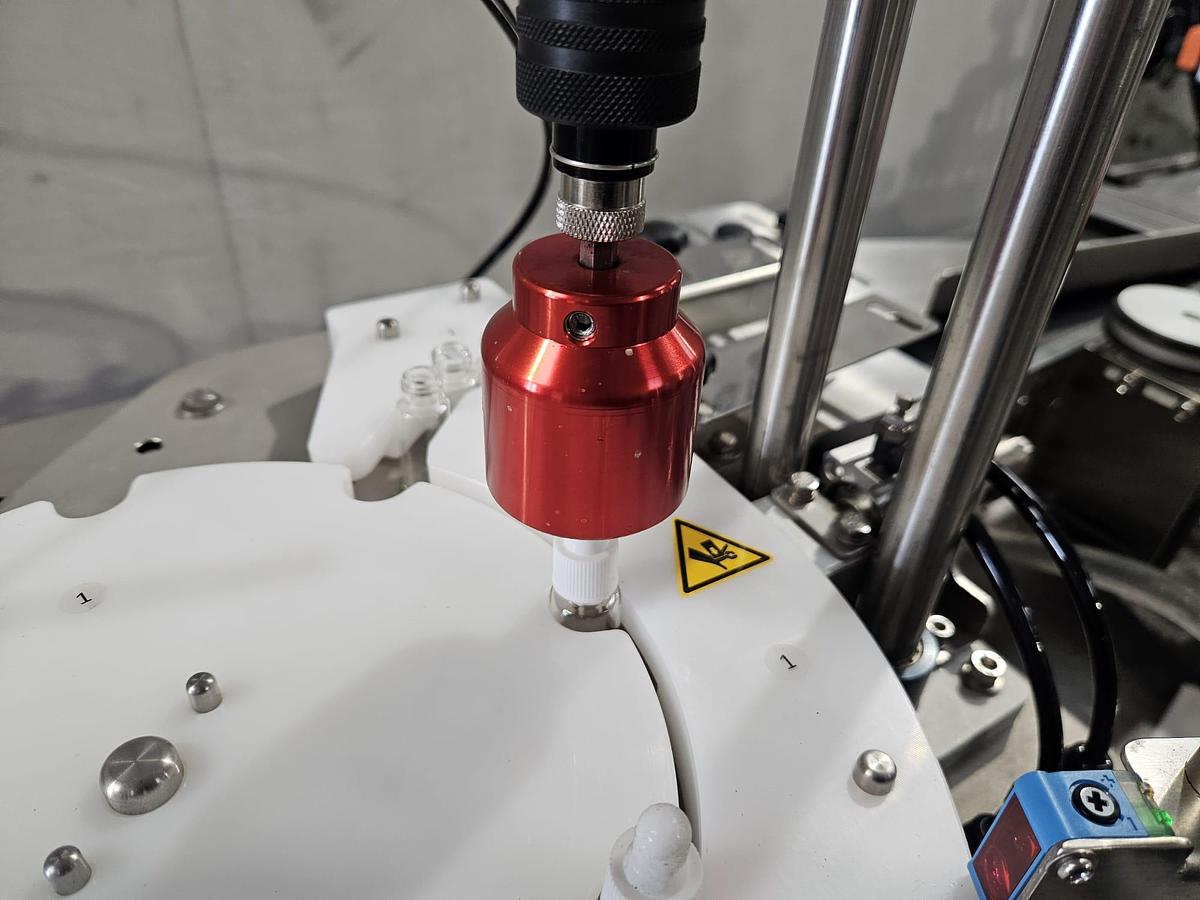

Monoblock Liquid Filling and Capping Machine

Make: Mecatech Services

Model: FC1055

Serial number: 289898F01

Delta PLC

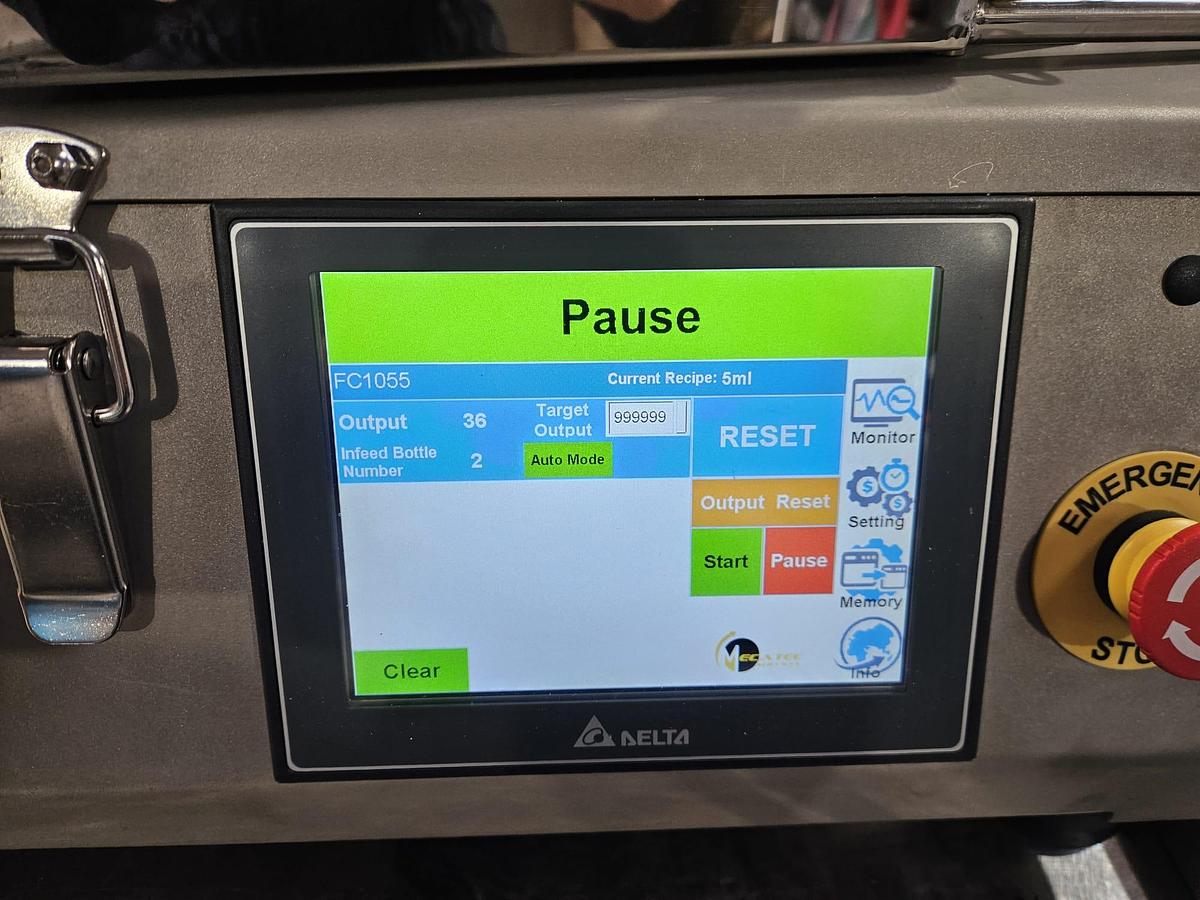

Delta DOP-107EG HMI

Supply: 240V 1ph 13A, 4bar pneumatic

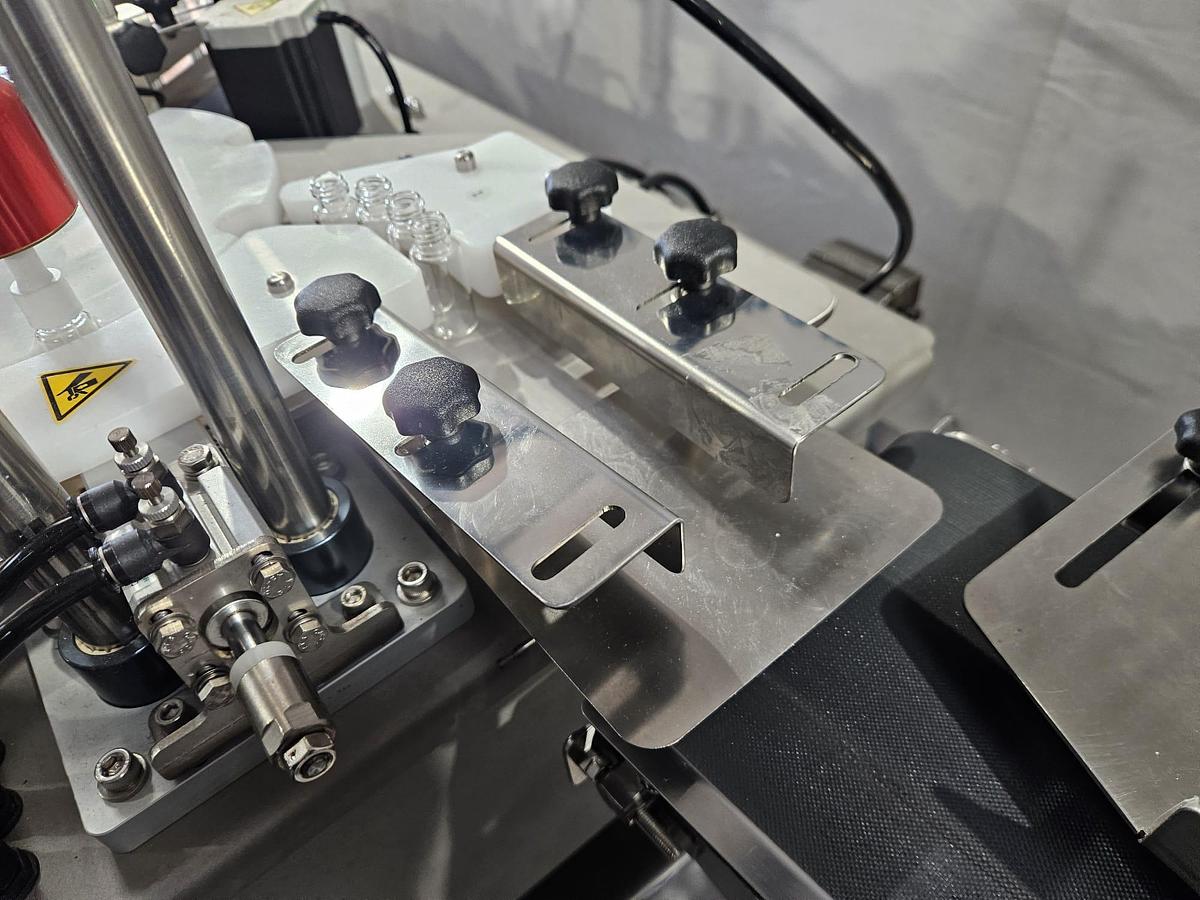

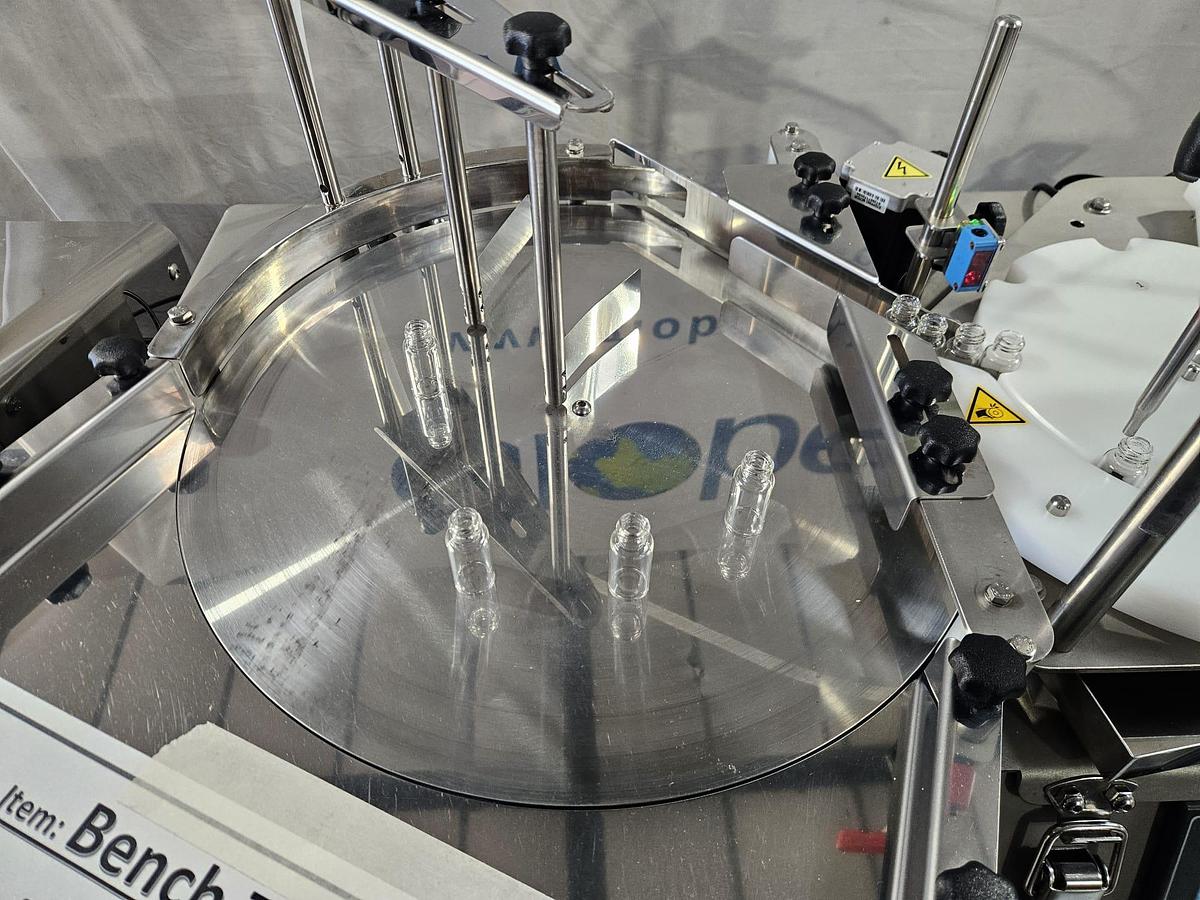

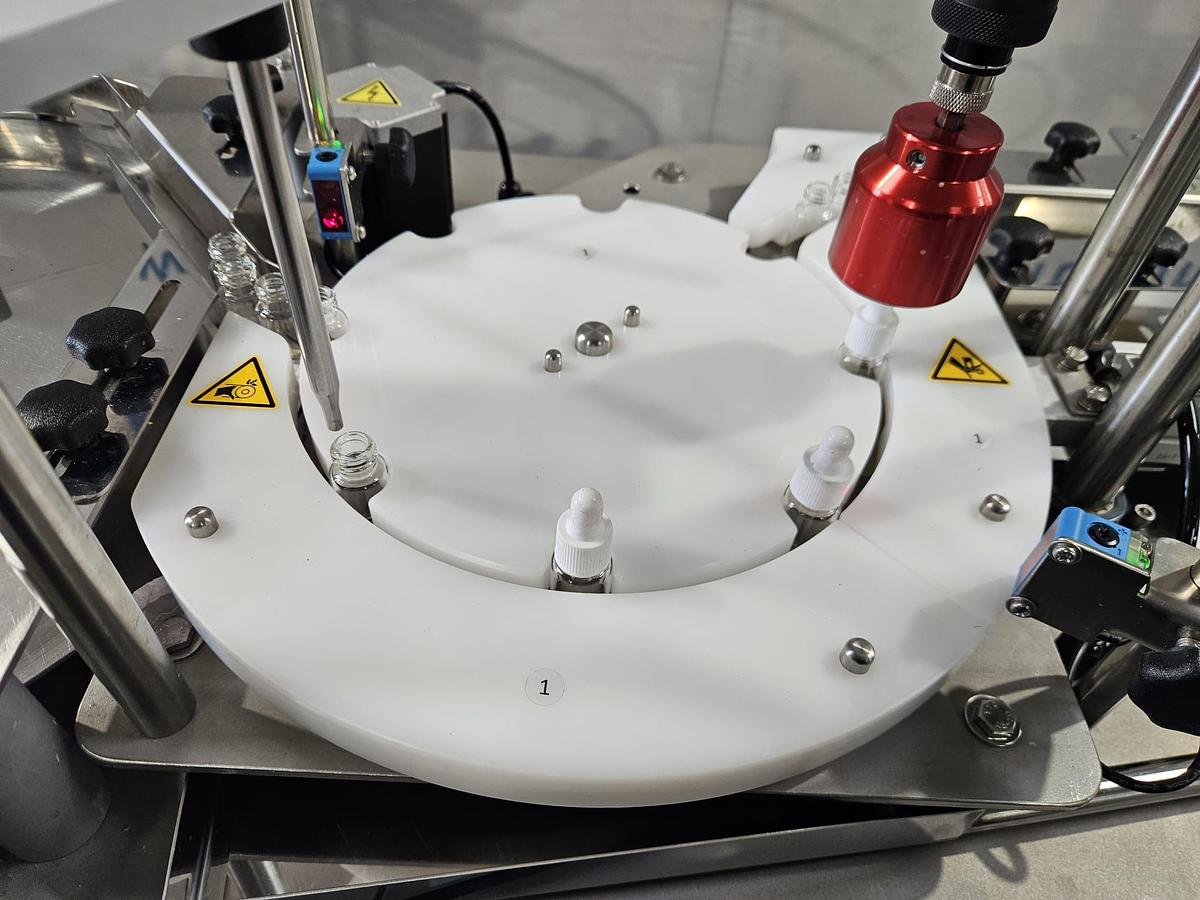

Built in infeed rotary table

Caps are placed by hand after the fill

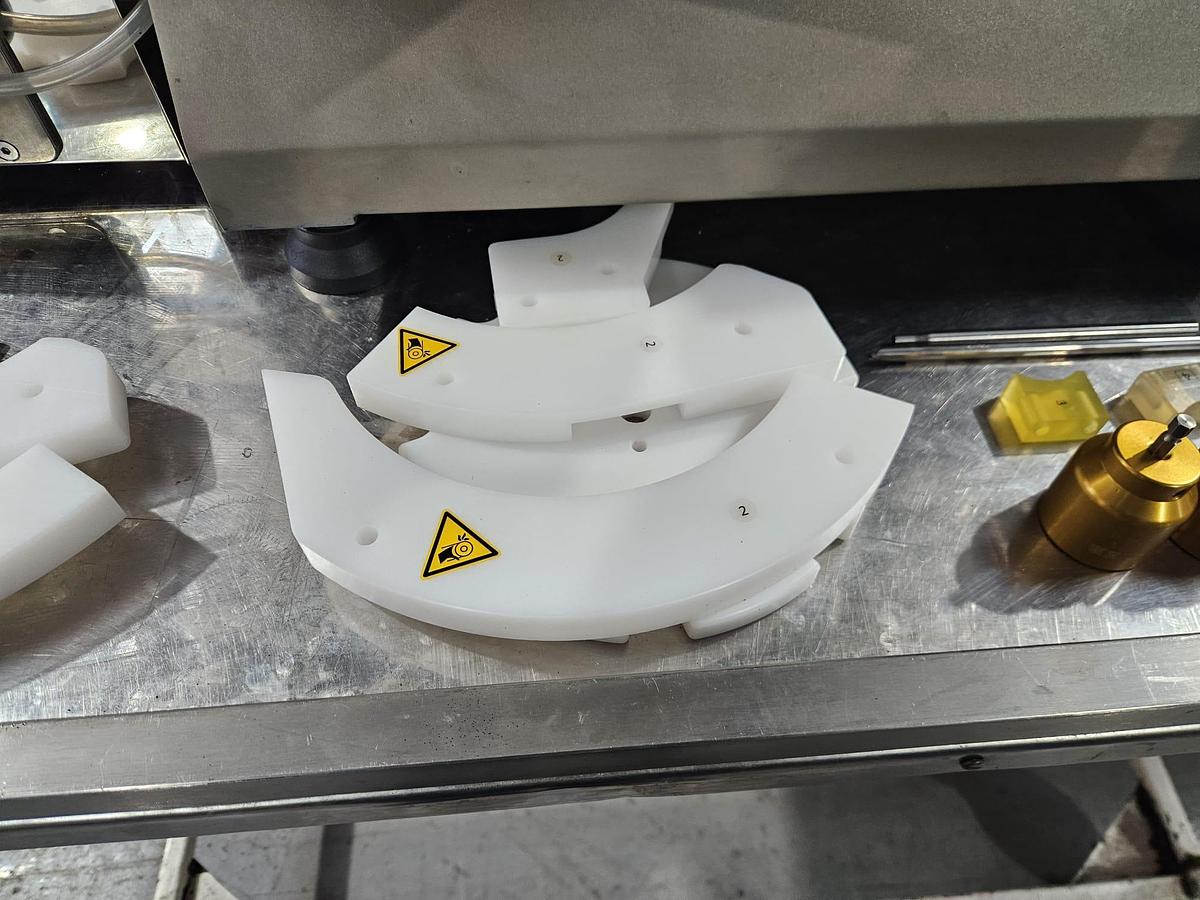

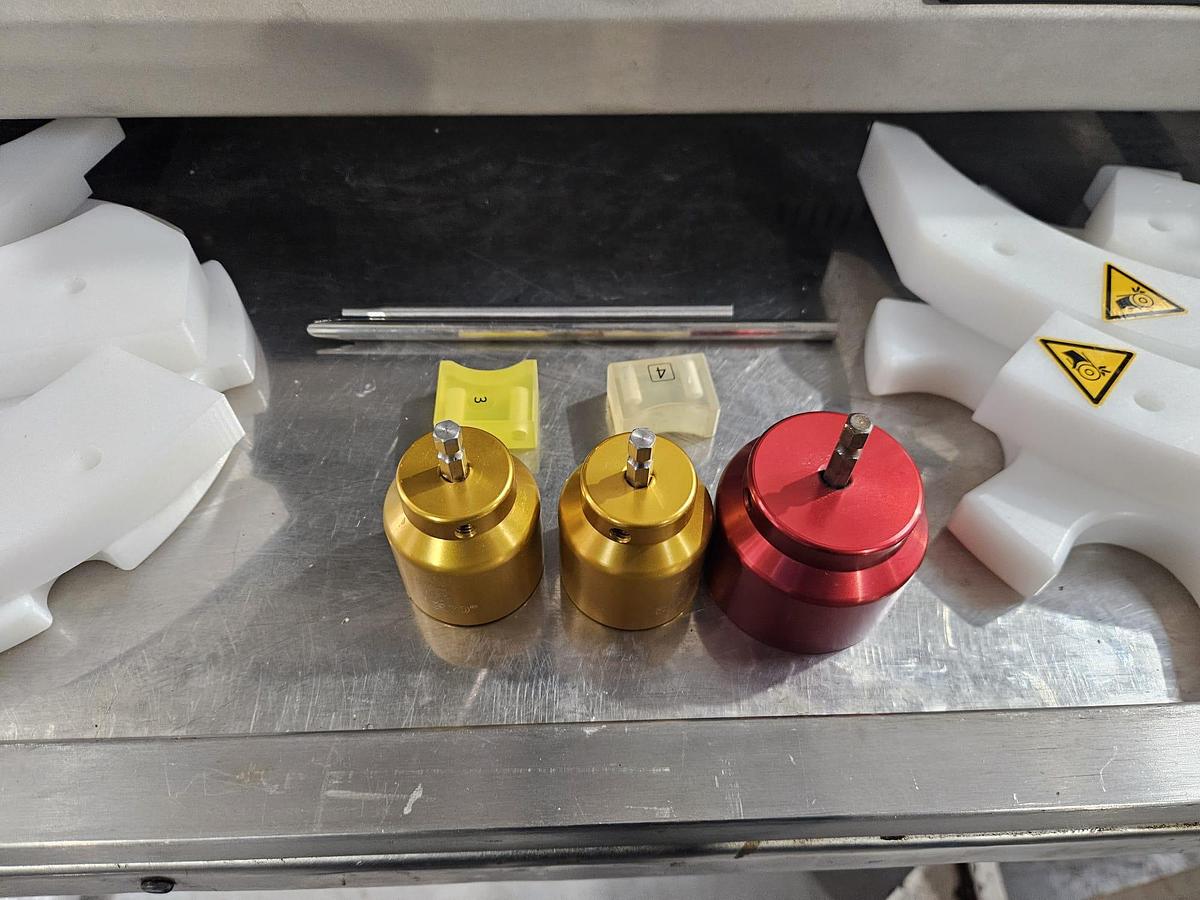

Change parts included as follows:

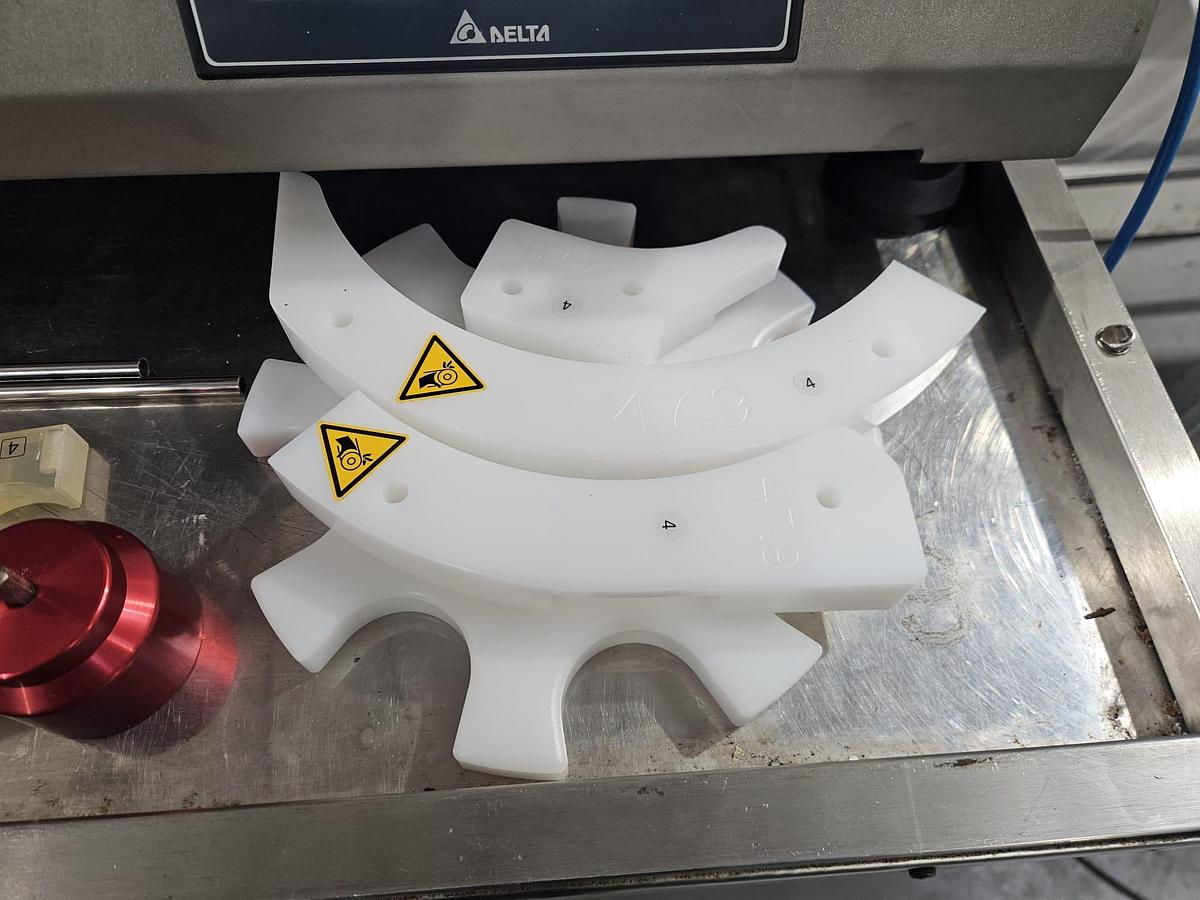

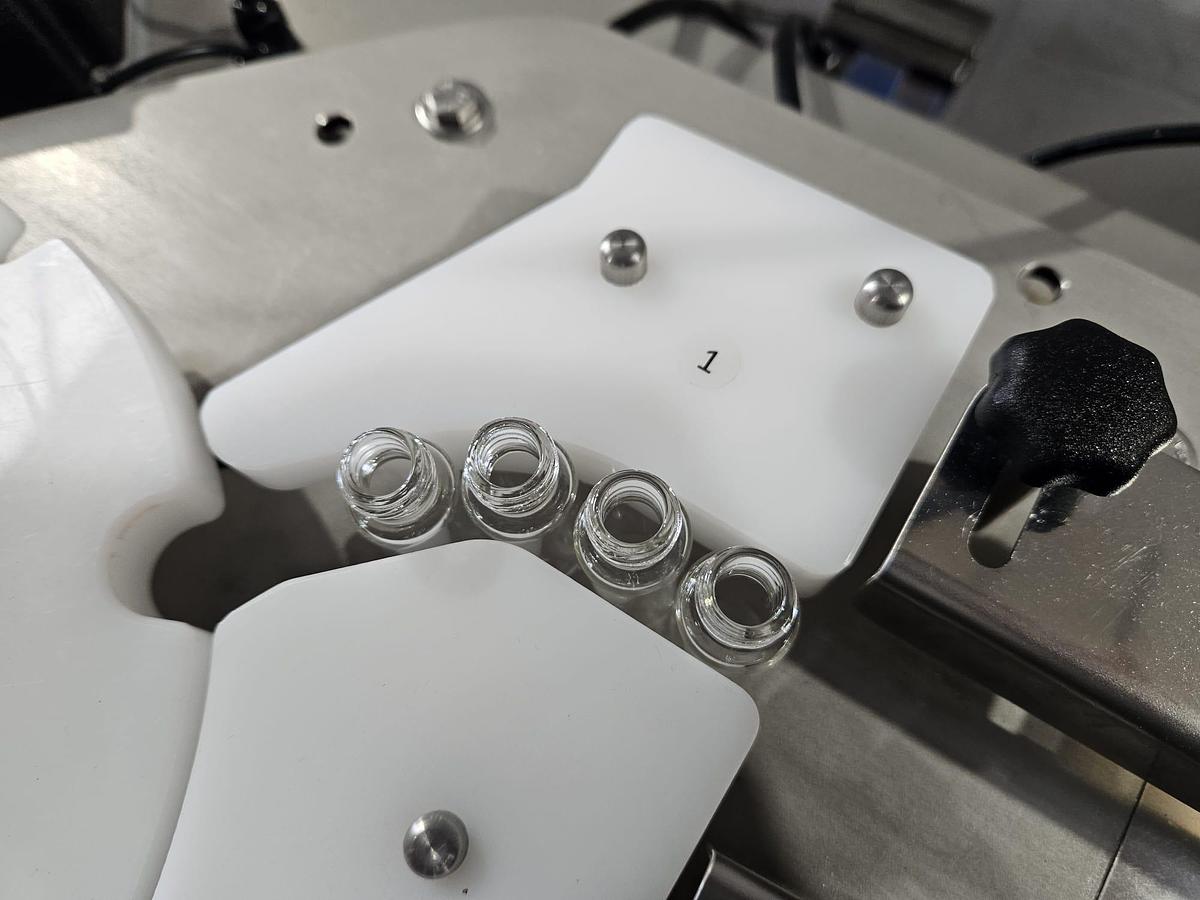

- star wheels 18mm, 20mm, 40mm & 50mm

- cap chucks 15mm, 17mm, 24mm & 25mm

- nozzles 6mm and 8mm

Machine size: 1100mm x 650mm x 750mm high

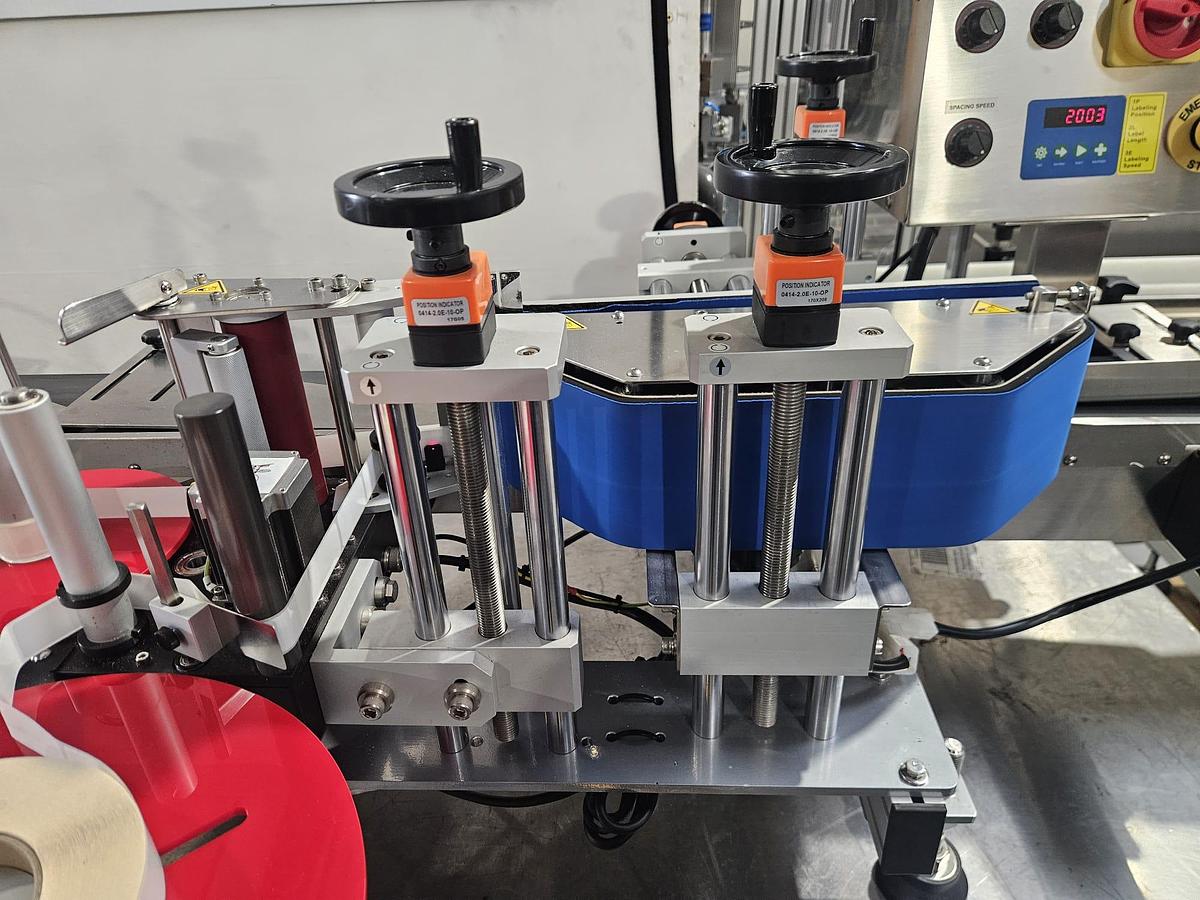

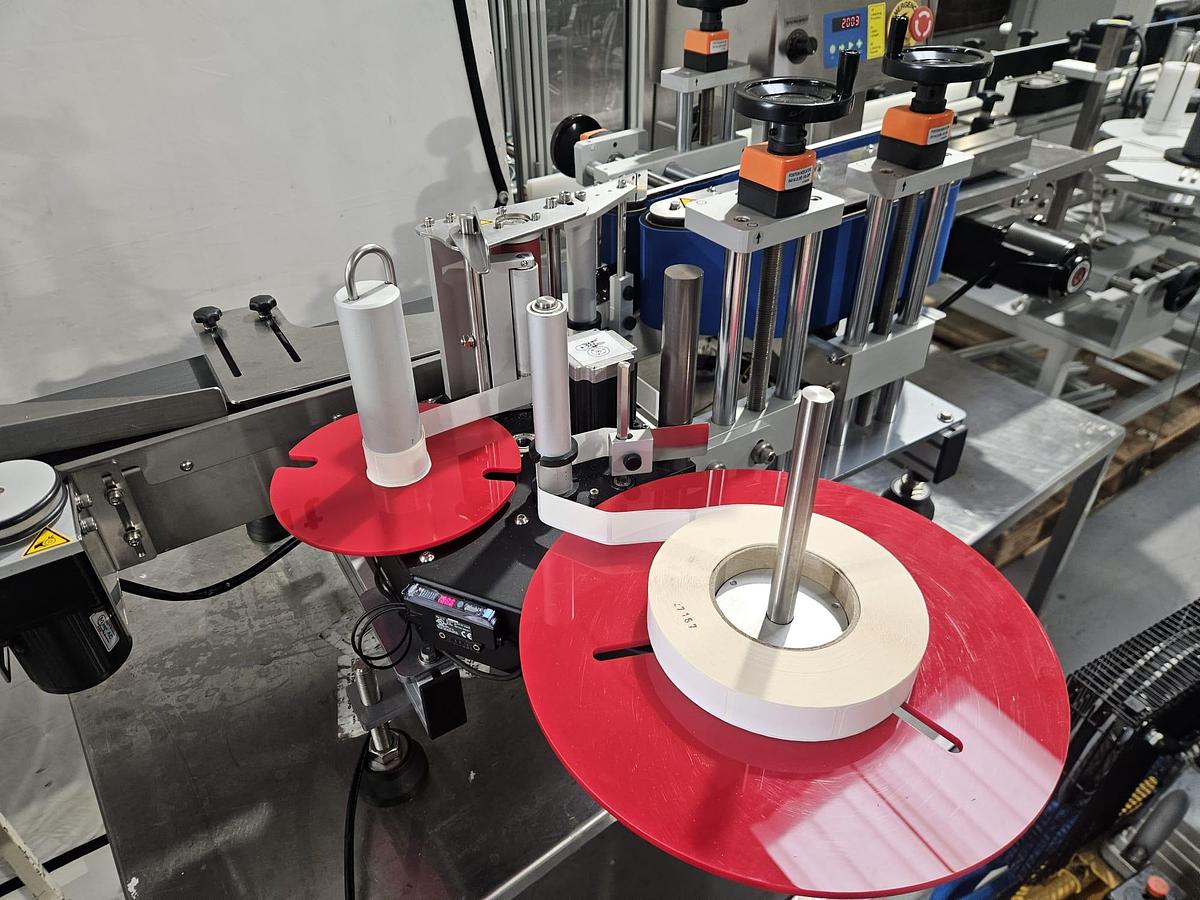

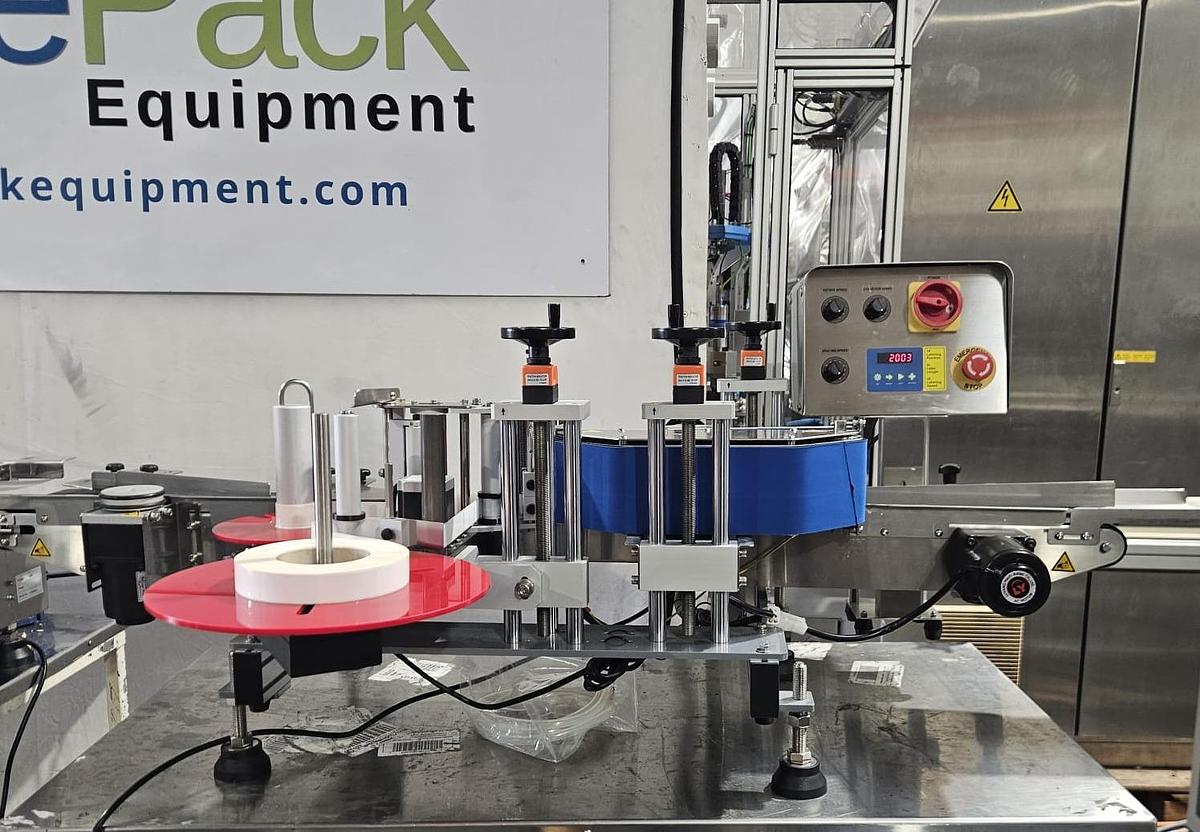

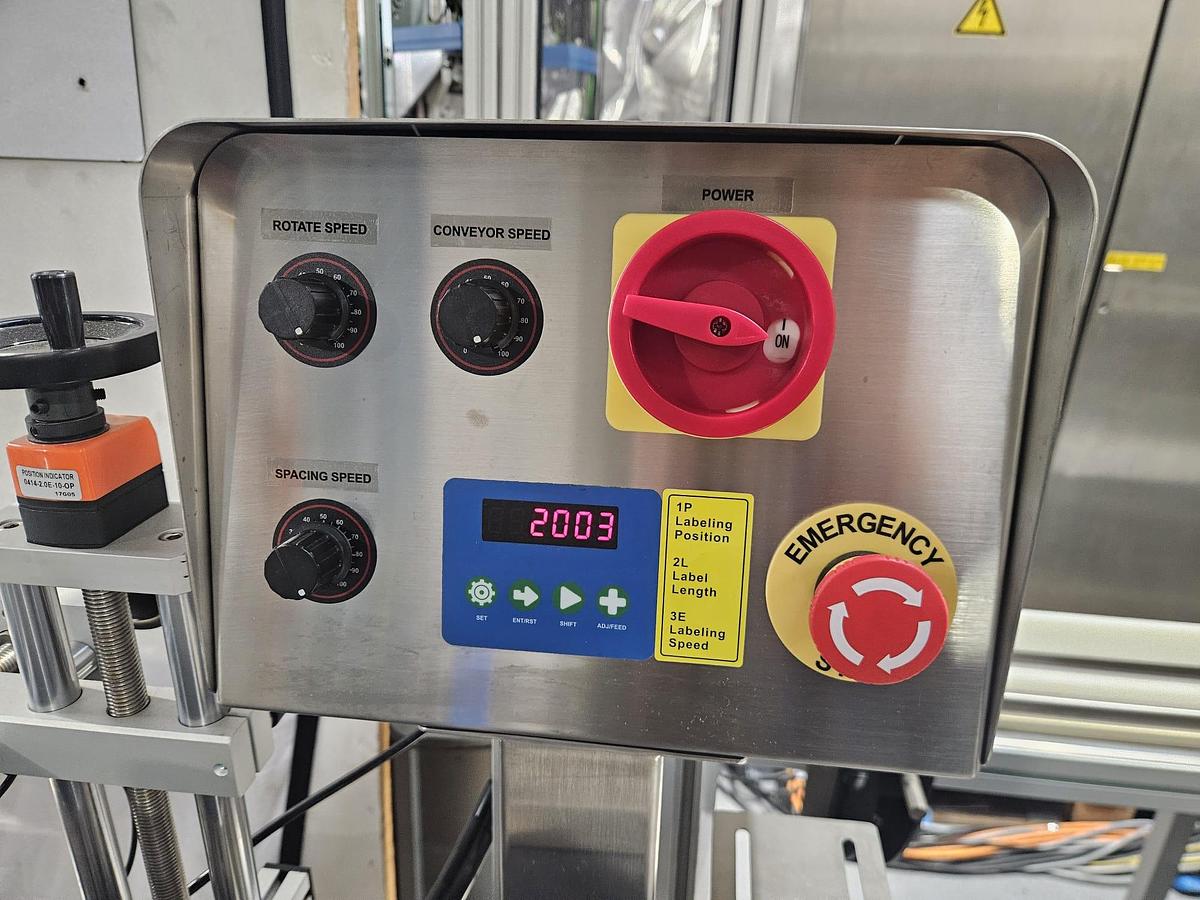

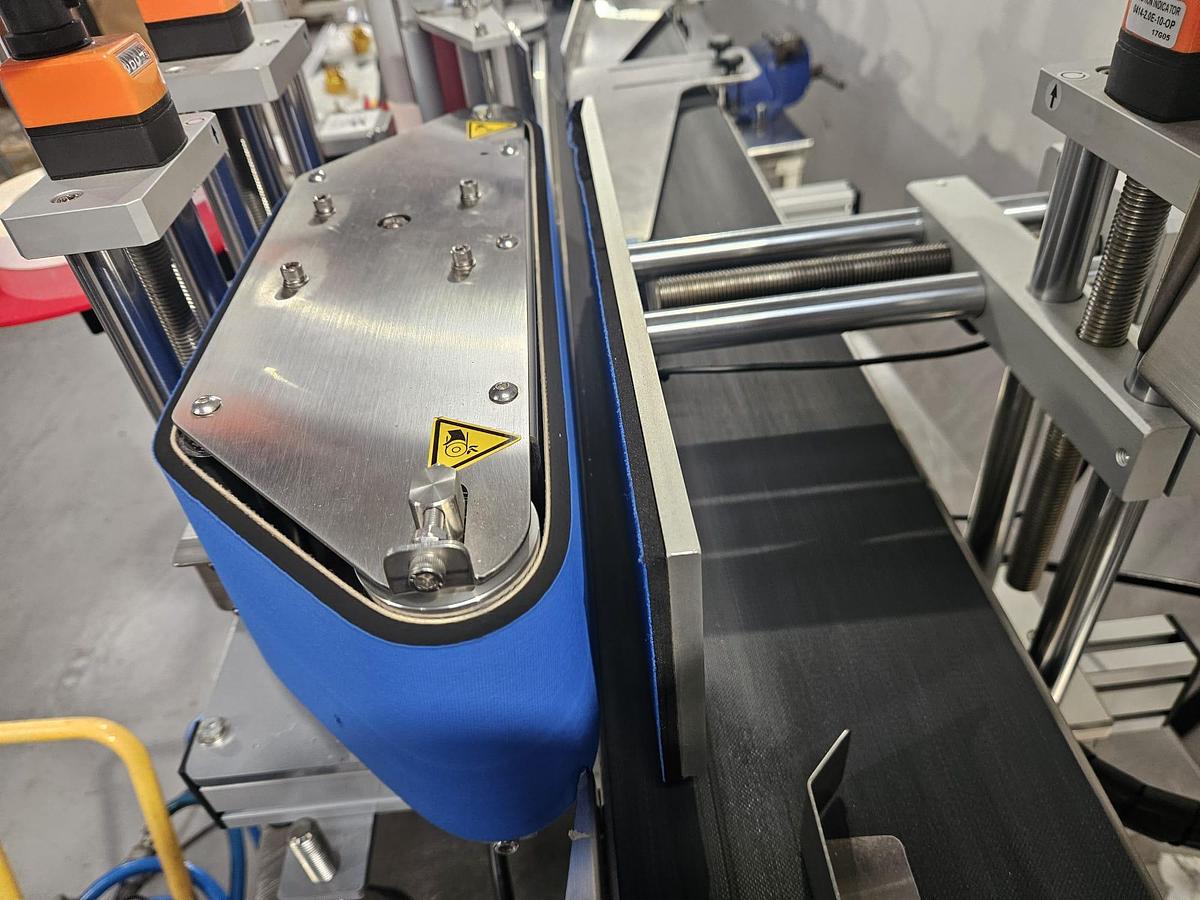

Single Sided Wrap Labeller

Serial number: 128789F04-1

Supply: 240V 1ph 6A

Machine size: 1900mm x 1100mm x 560mm high

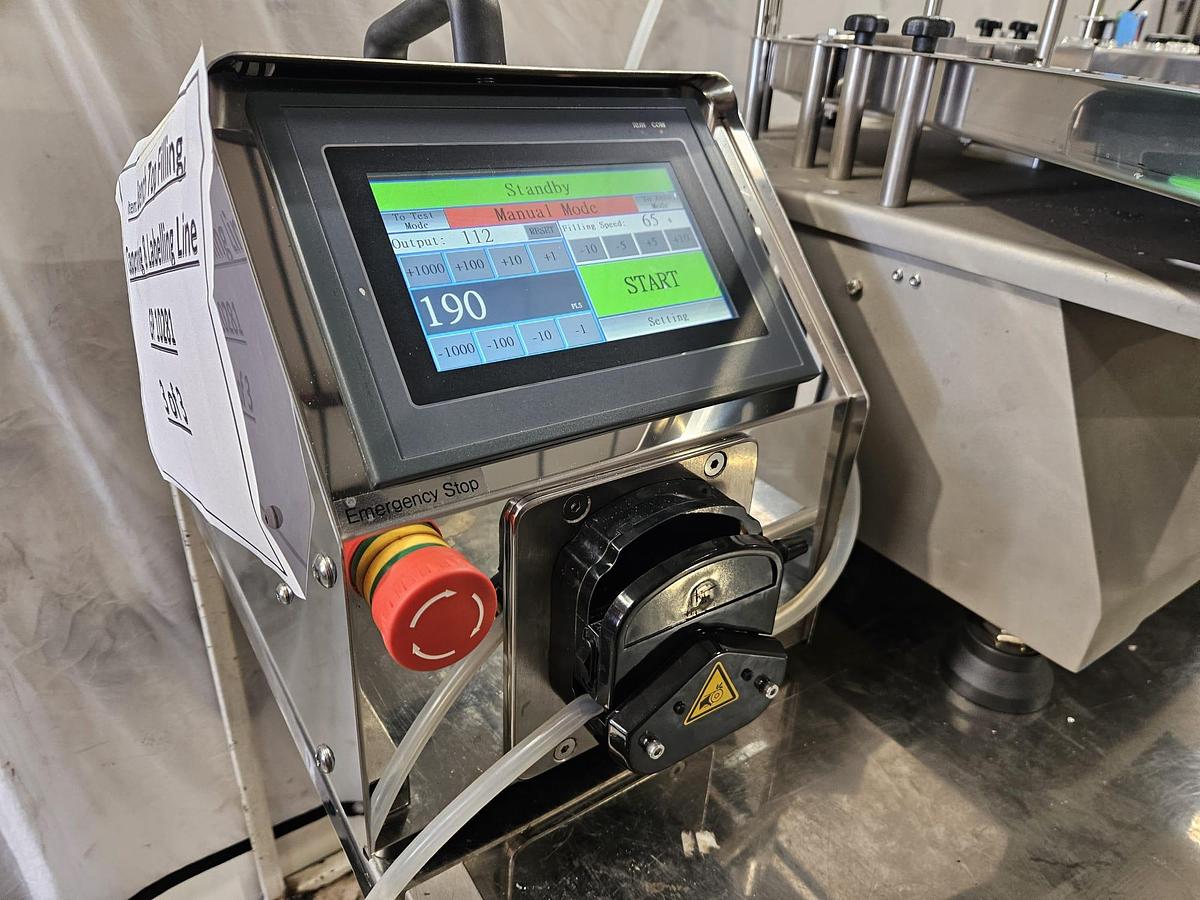

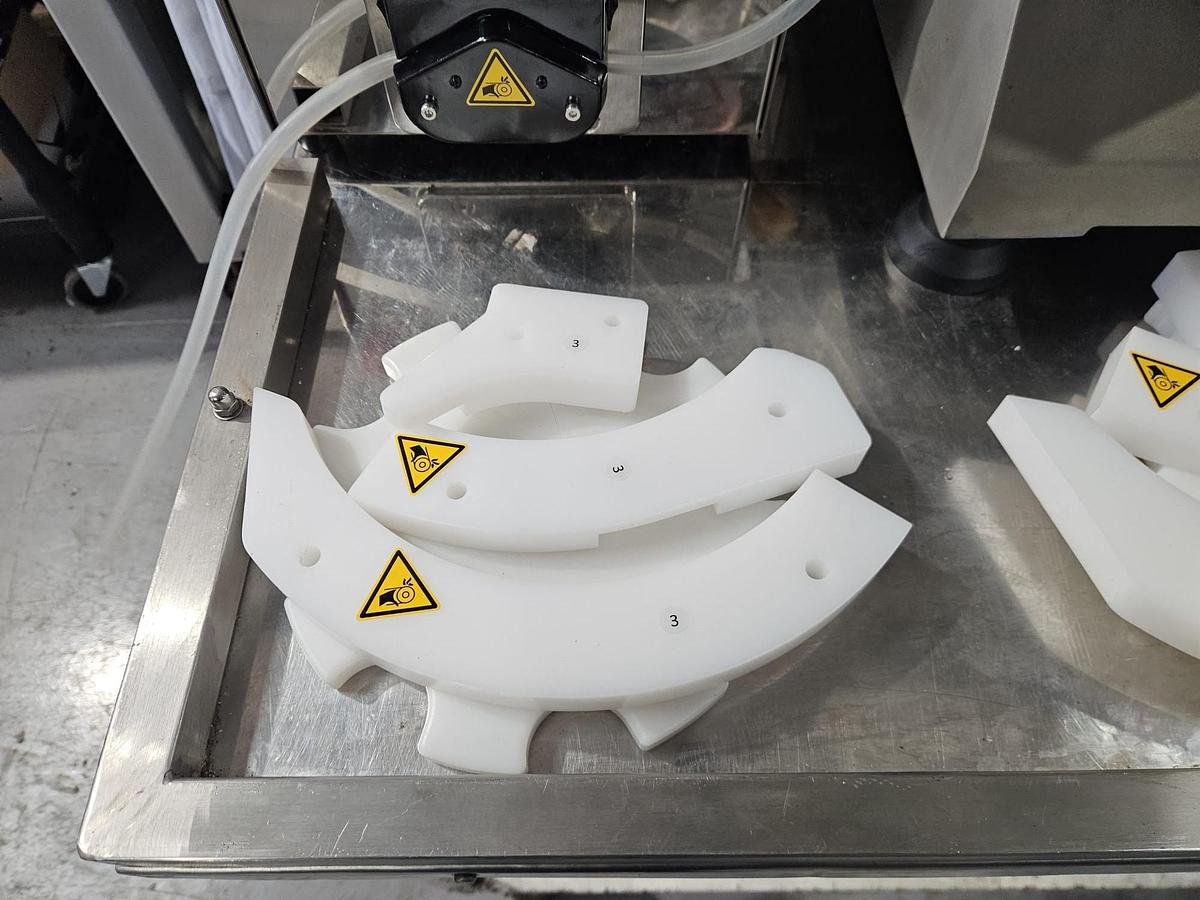

Peristaltic pump

Model: FT1052

Serial number: 299794F03

Supply: 240V 1ph 6A

Peristaltic filling pump using 10mm OD silicon tubing 8mm ID

Supplied: cleaned, checked and tested
