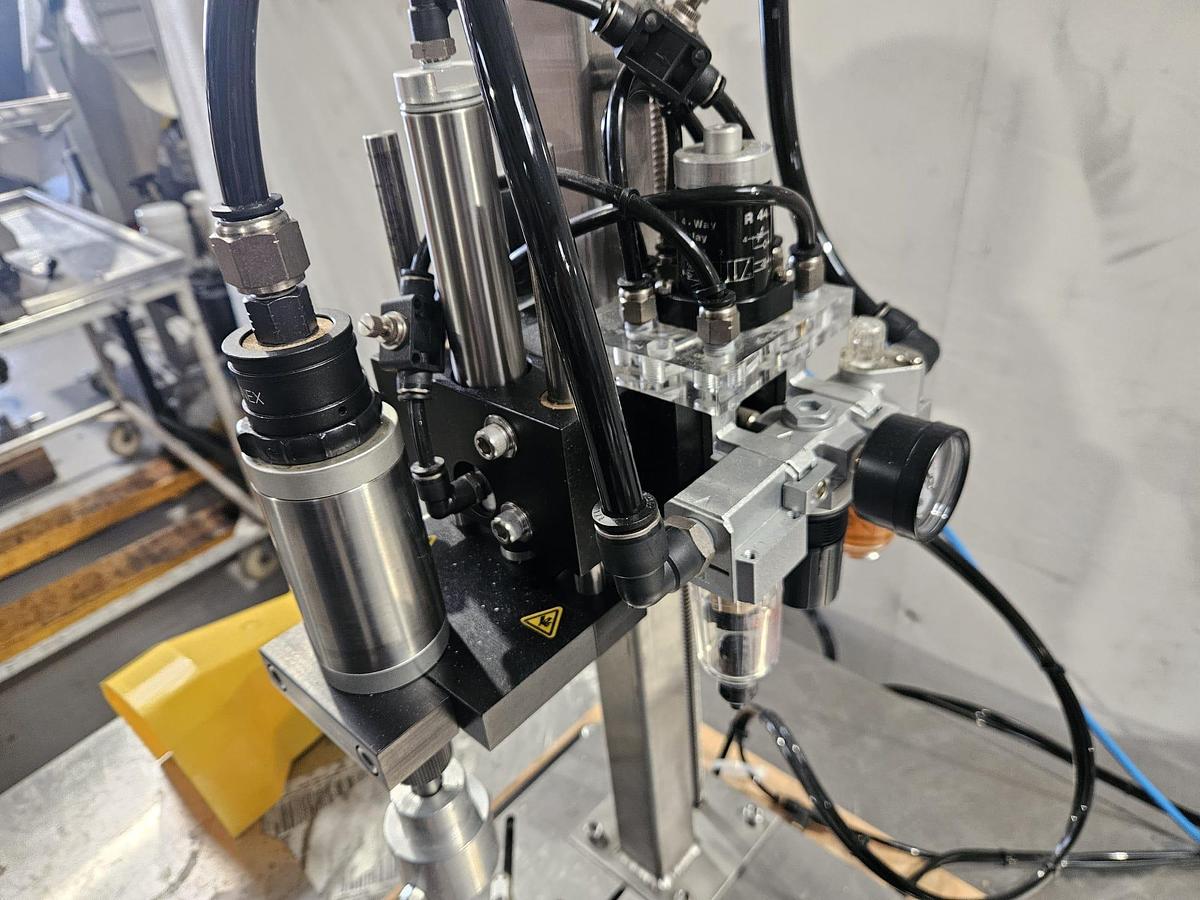

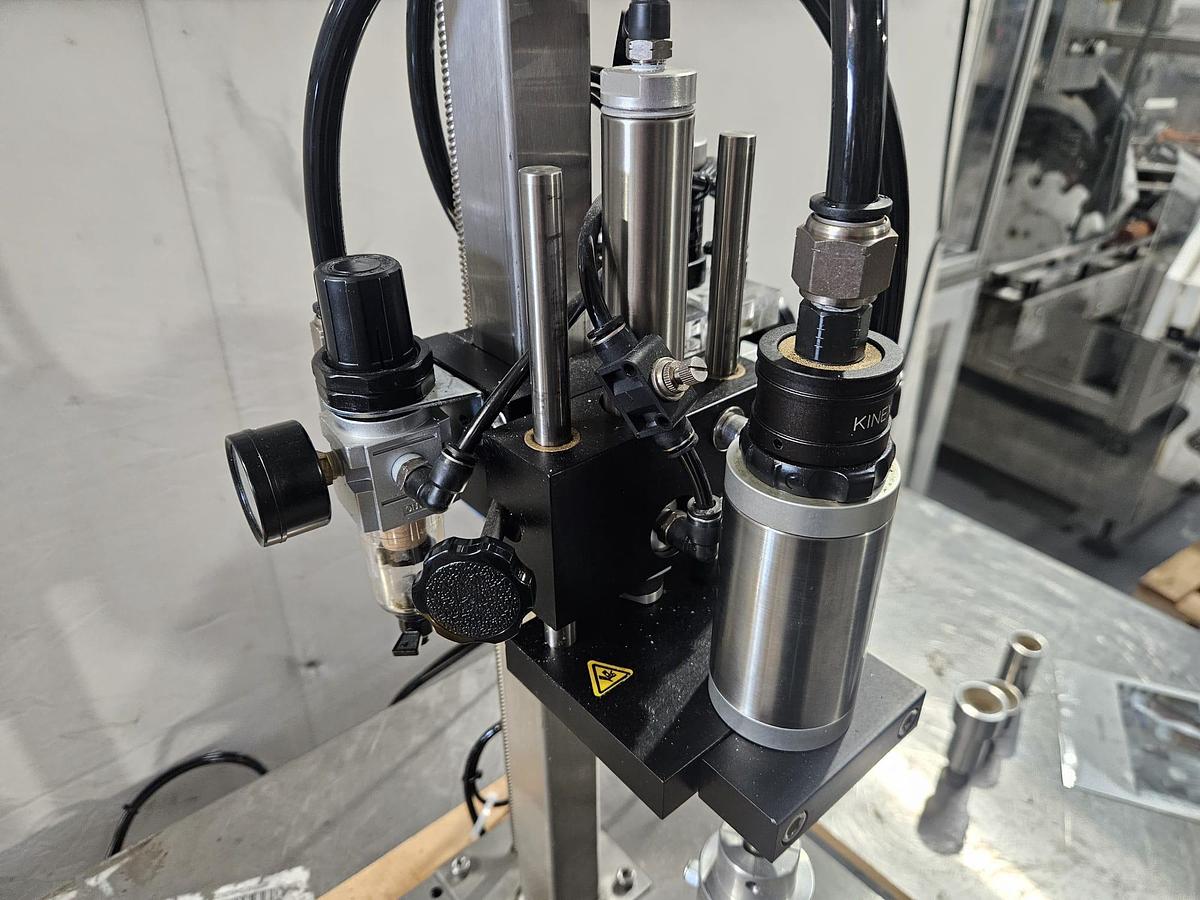

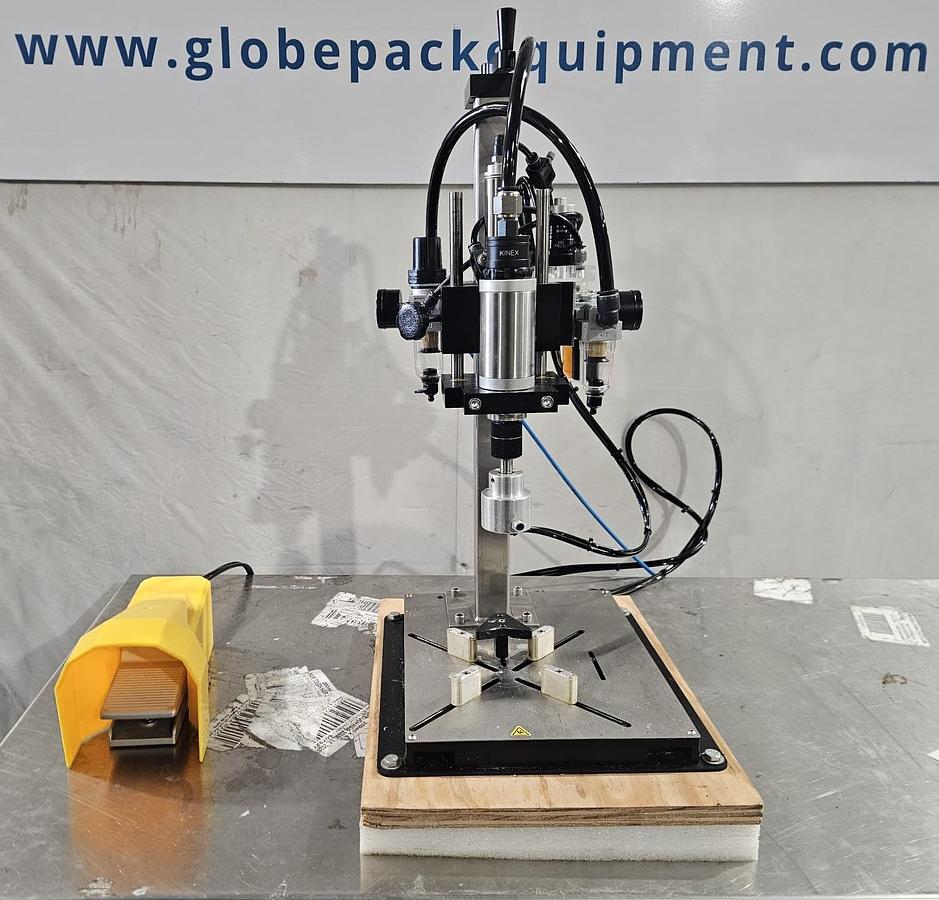

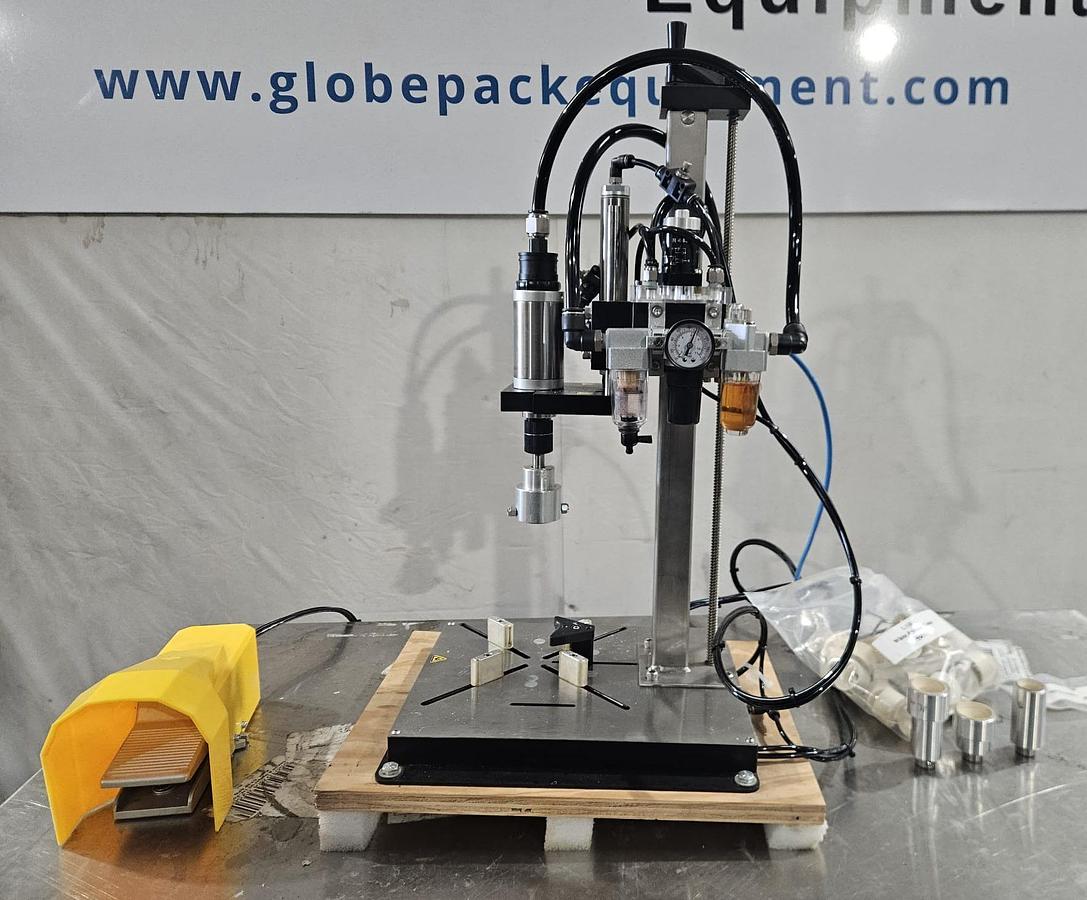

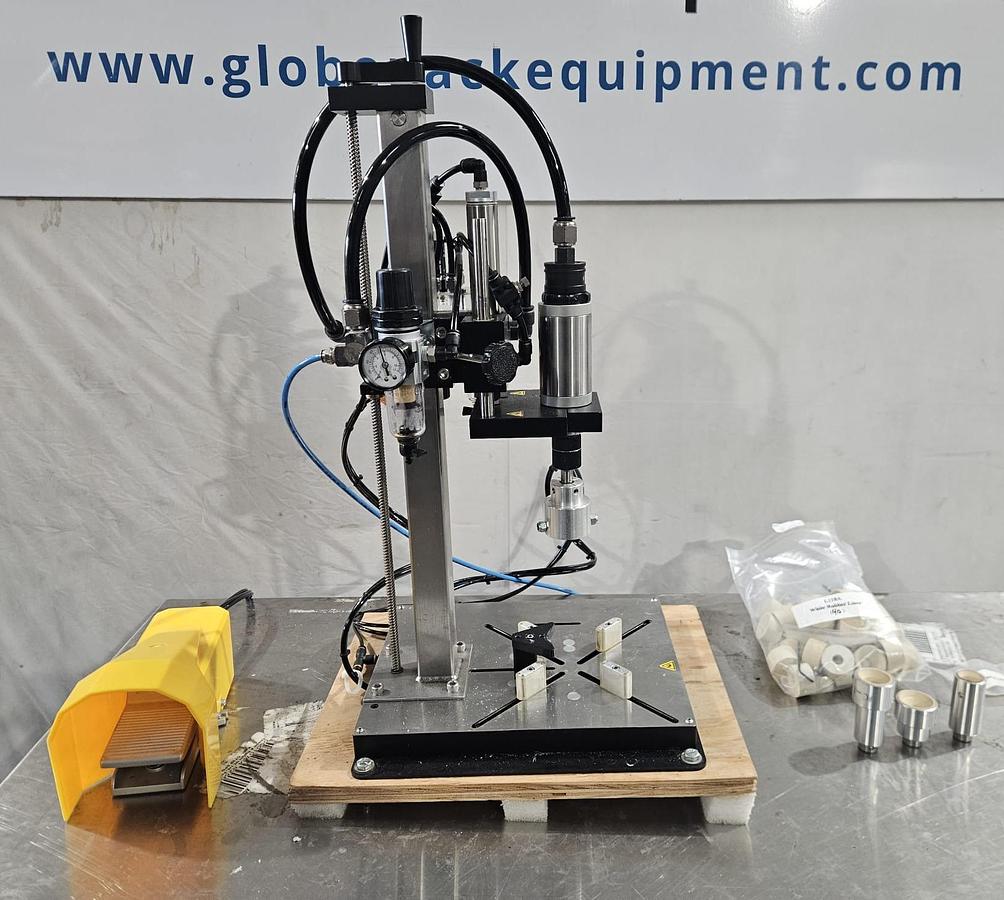

Kinex Bench Top Capper

Kinex model SA2000 semi-automatic cap tightening machine for bottles

OEM states this machine applies plastic and metal threaded caps such as tamper evident caps, dropper caps, push-pull caps, yorker caps, chubby gorilla caps, unicorn caps, twist top caps, sports caps and more, onto plastic and glass bottles and metal containers

Currently set up for 50mm diameter x 150mm tall bottle

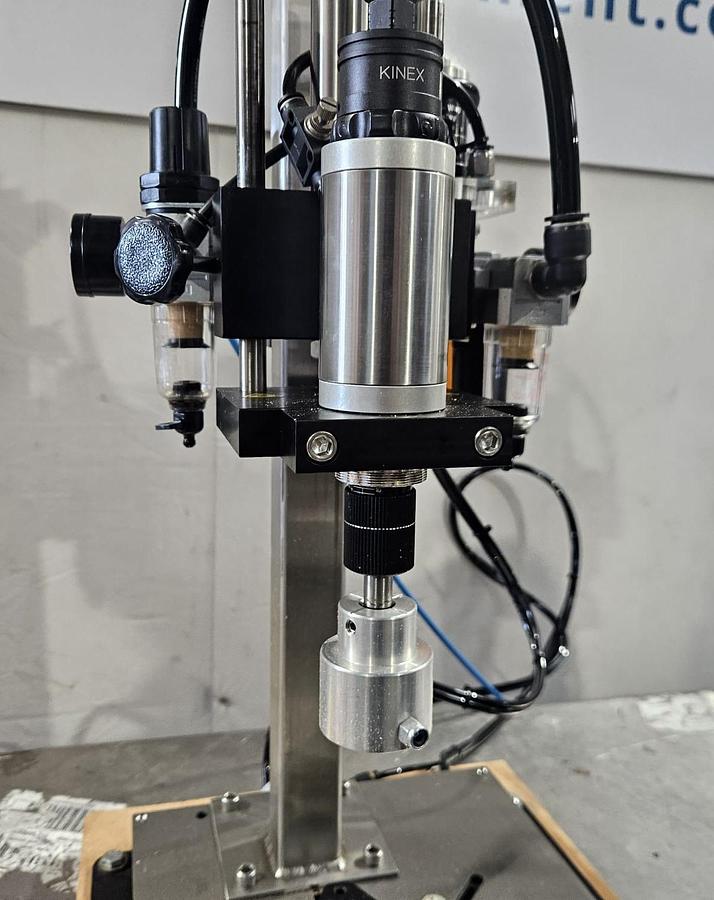

Fitted with a serrated capping chuck for 22mm diameter caps

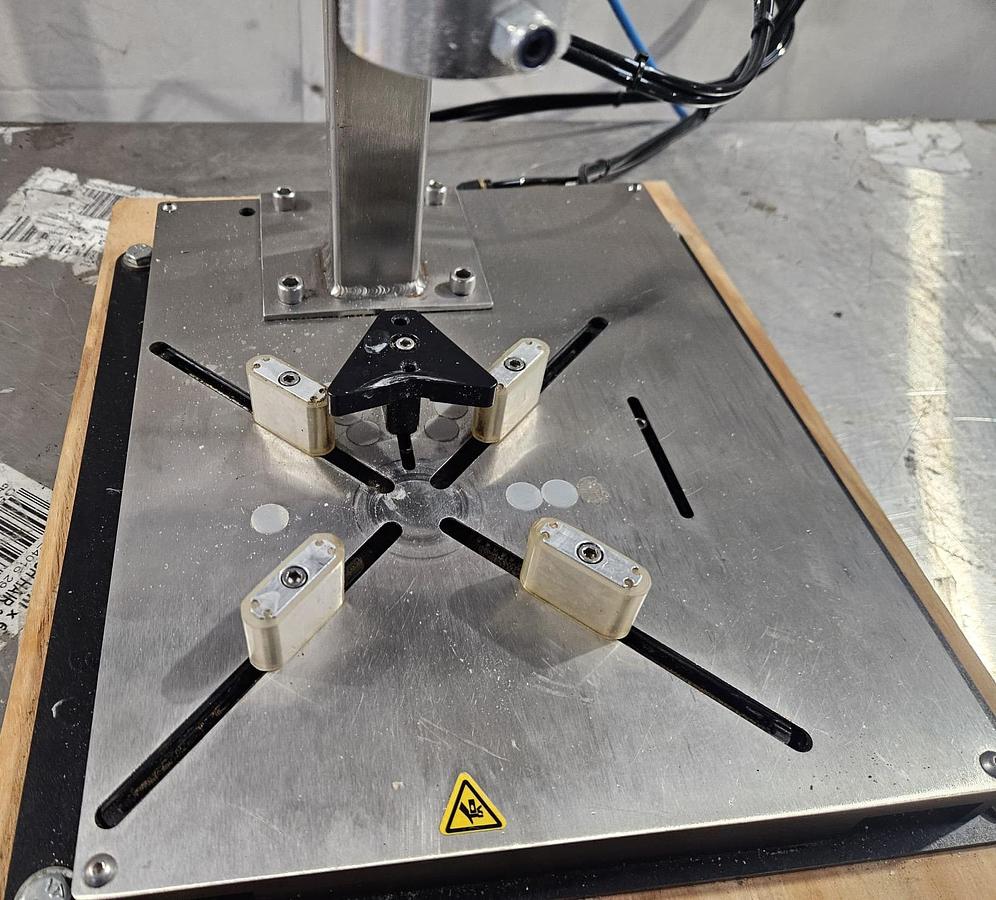

Base clamp range: 10mm to 85mm diameter

Container height range: 30mm to 250mm high

Key Features:

• Tightens caps from 10mm - 130mm
• Torque range 2 - 125 inch lbs
• Pneumatic operation

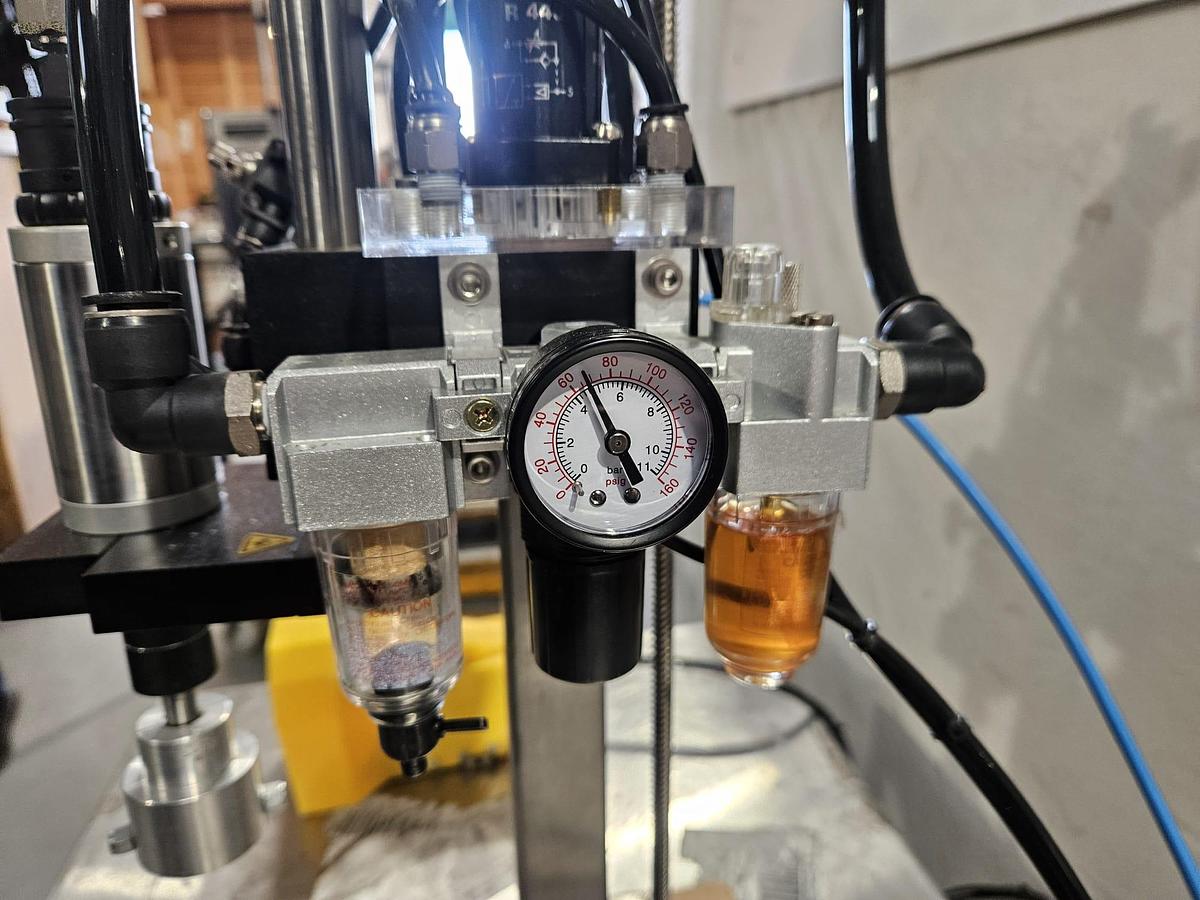

• Air requirements 90 - 125 PSI @4.5CFM
• Stainless Steel and Anodized Aluminum construction
• External torque adjustment dial
• Reversible - can be used as a de-capper
• Quick change chuck
• Anti-rotation base

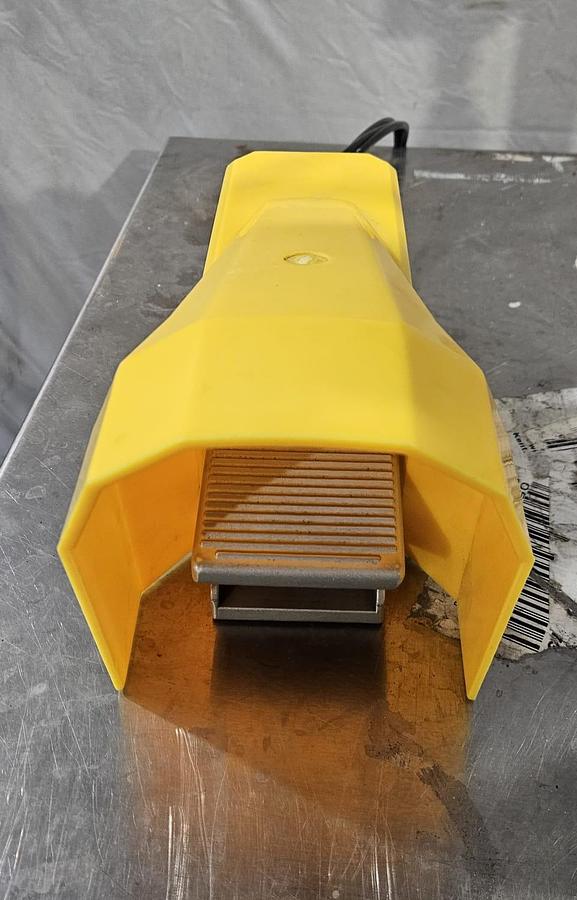

• Foot pedal
• CE marked

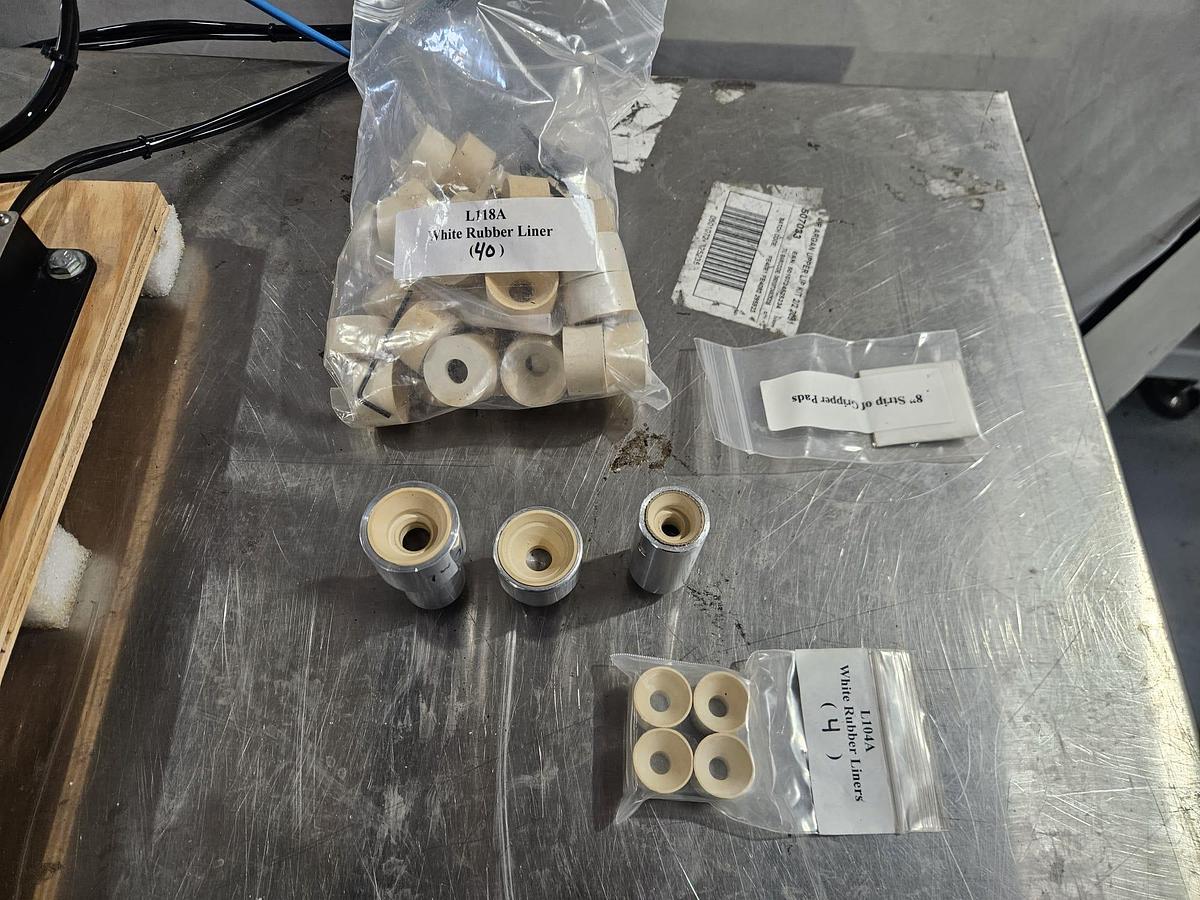

Comes with the following change parts:

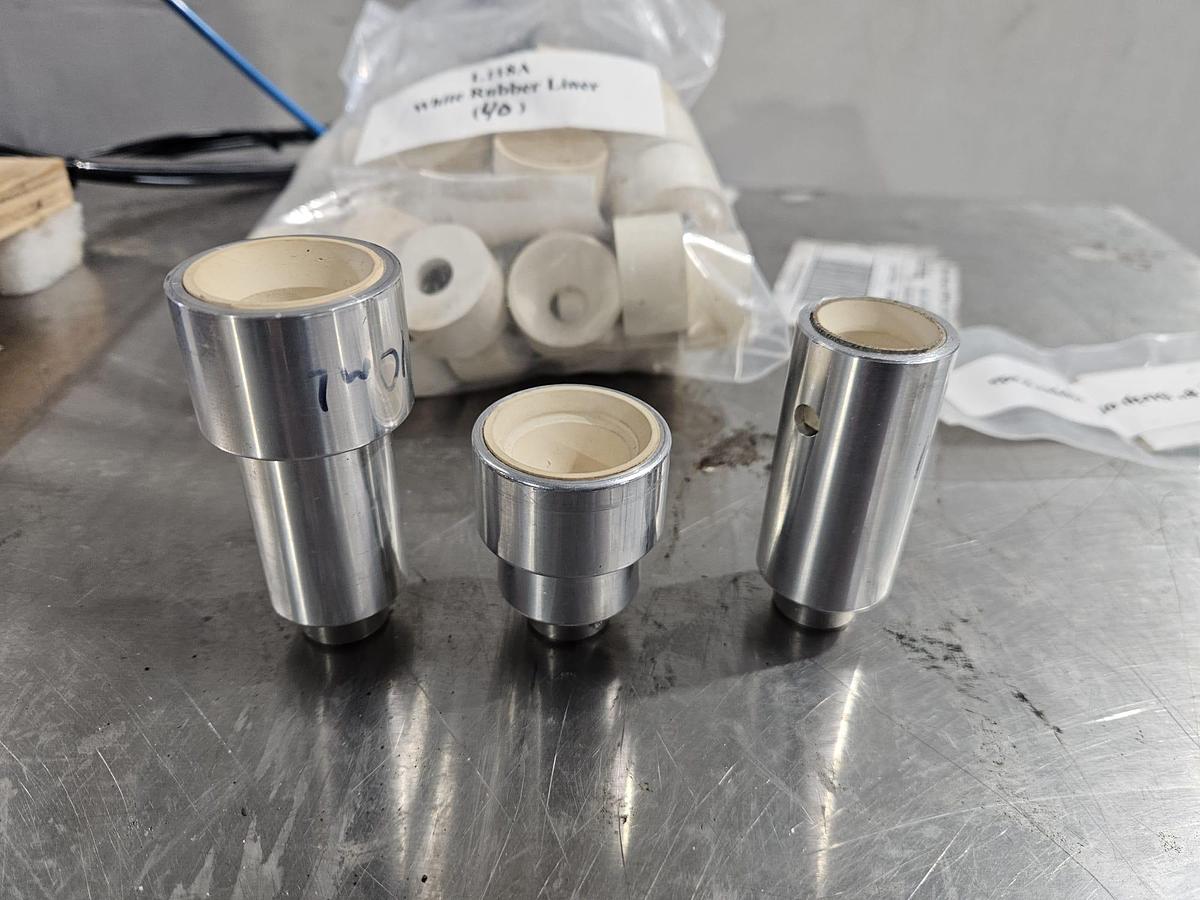

3 capping chucks (20mm-30mm diameter silicone insert; 16mm diameter pipette; and 20mm diameter pipette)

38 replacement silicone cones for 20mm-30mm cap chuck

3 replacement silicone inserts for 16mm pipette chuck

Machine size: 430mm x 330mm 700mm high, weight 17kg plus foot pedal

Supplied: cleaned, checked and tested
