King 4 Head Liquid Filling & Capping Line

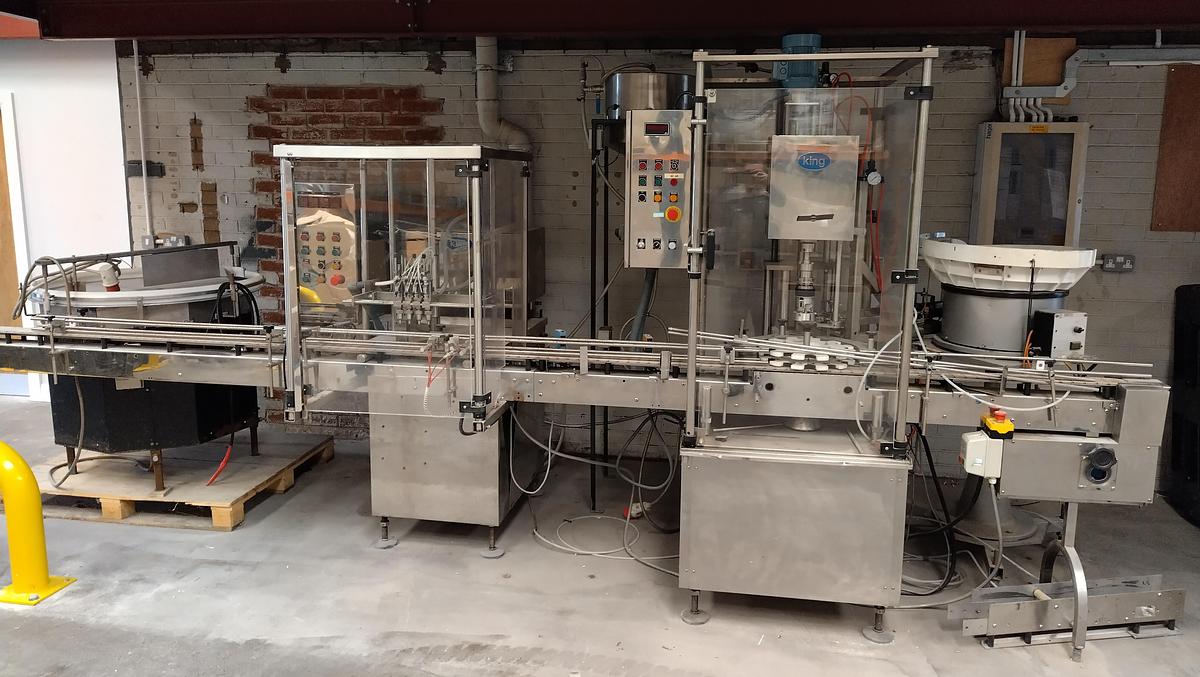

King 4 Head Liquid Filling and Capping Line

Machines in the line:

Rotary Infeed Table

King 4 Head In-Line Liquid Filler (mounted on a rise and fall base)

King Single Head Screw Capper with Vibratory Cap Sorter Bowl

Currently set up for 53mm x 42mm x 120mm high oval bottle with 26mm cap

Fill range: 10ml to 1000ml

Maximum container diameter: 100mm

Maximum container height: 380mm

Maximum cap diameter: 85mm

Comes with full sets of change parts for the capper as follows:

26mm, 40mm, 47mm and 56mm diameter caps

49mm, 51mm, 60mm and 65mm diameter containers

Other sizes can be made at an additional cost

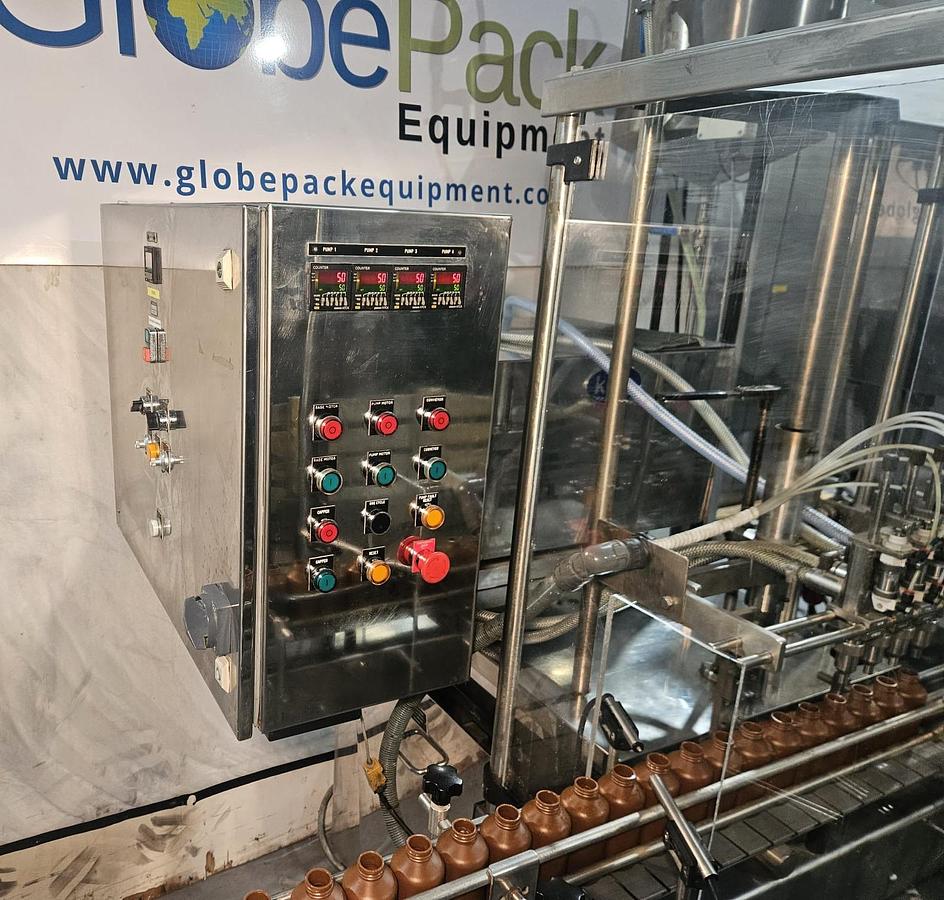

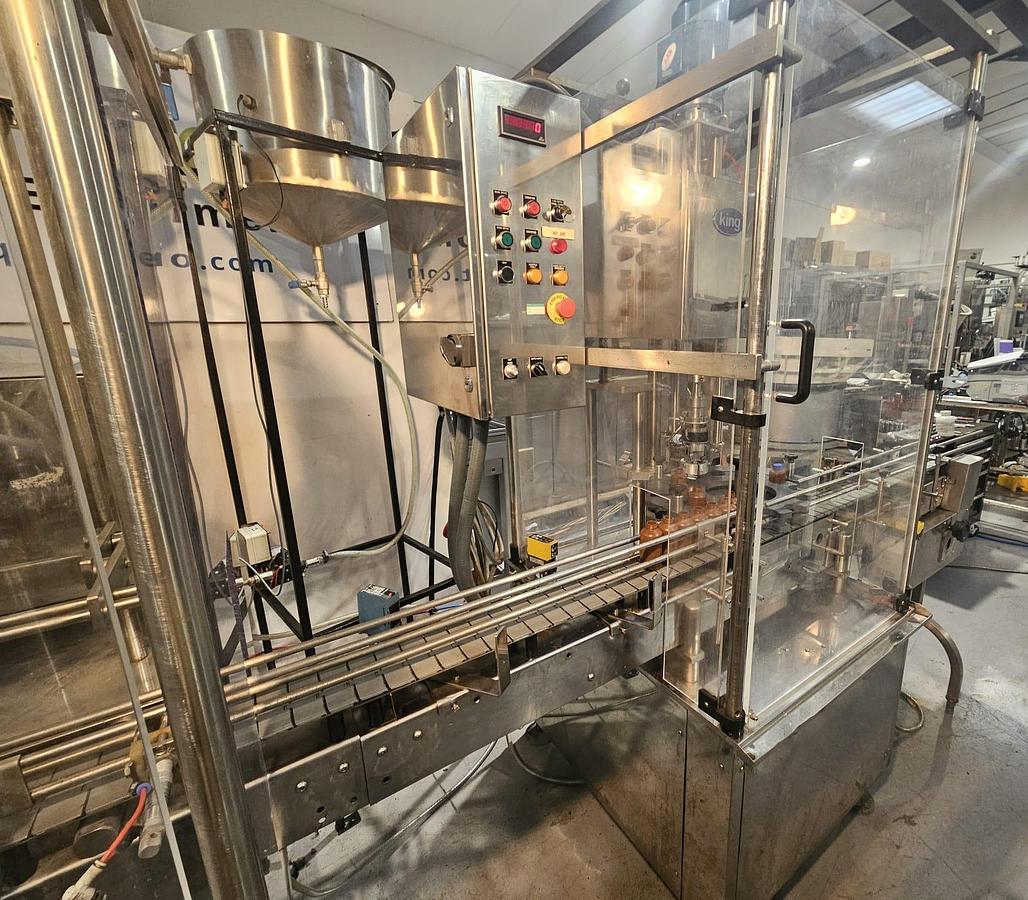

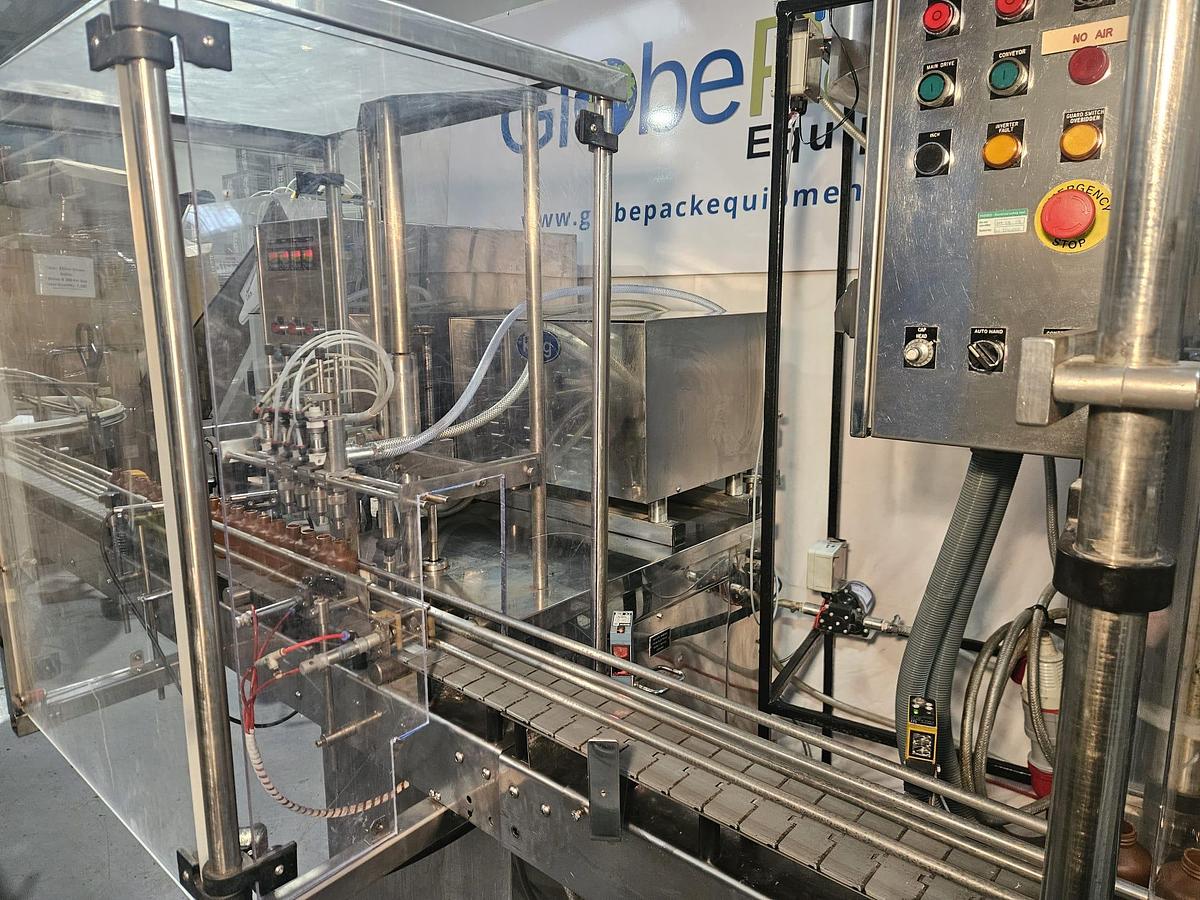

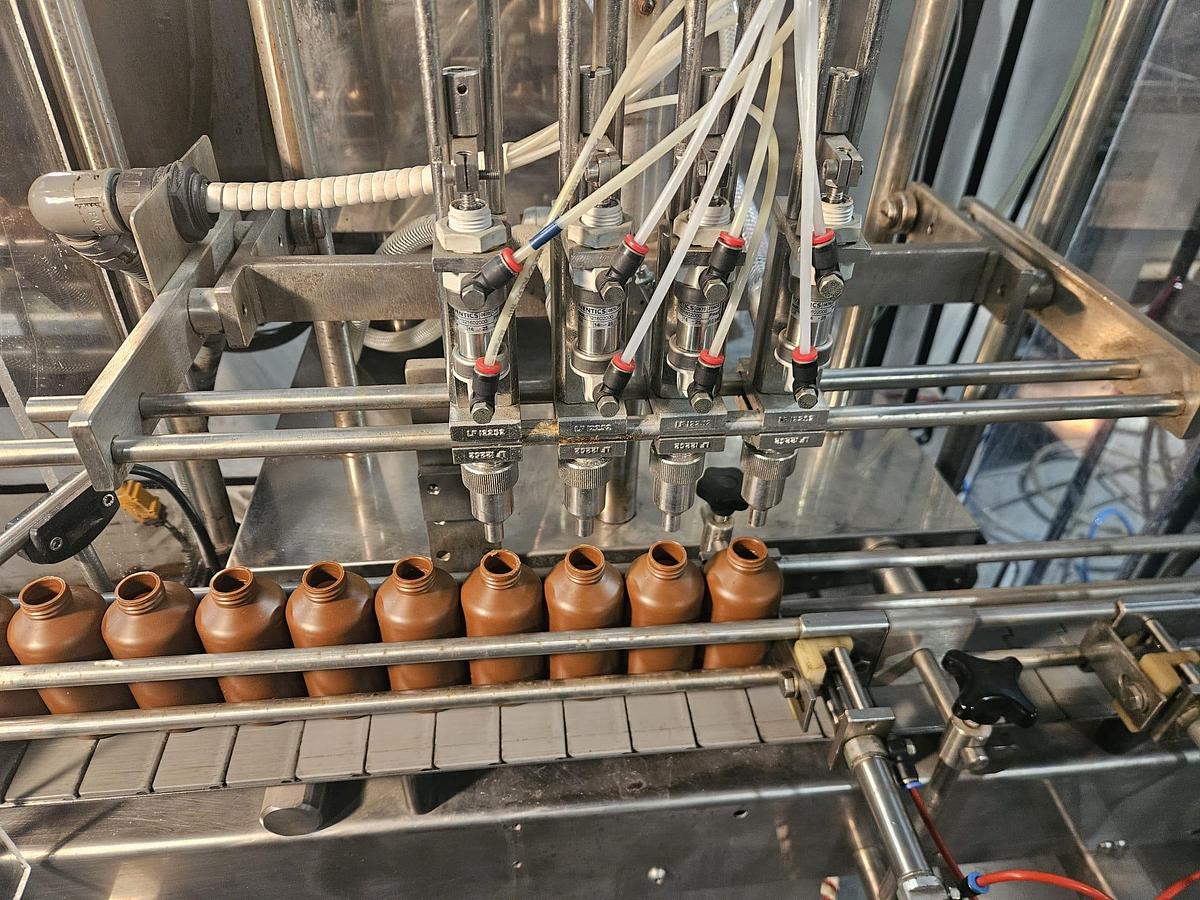

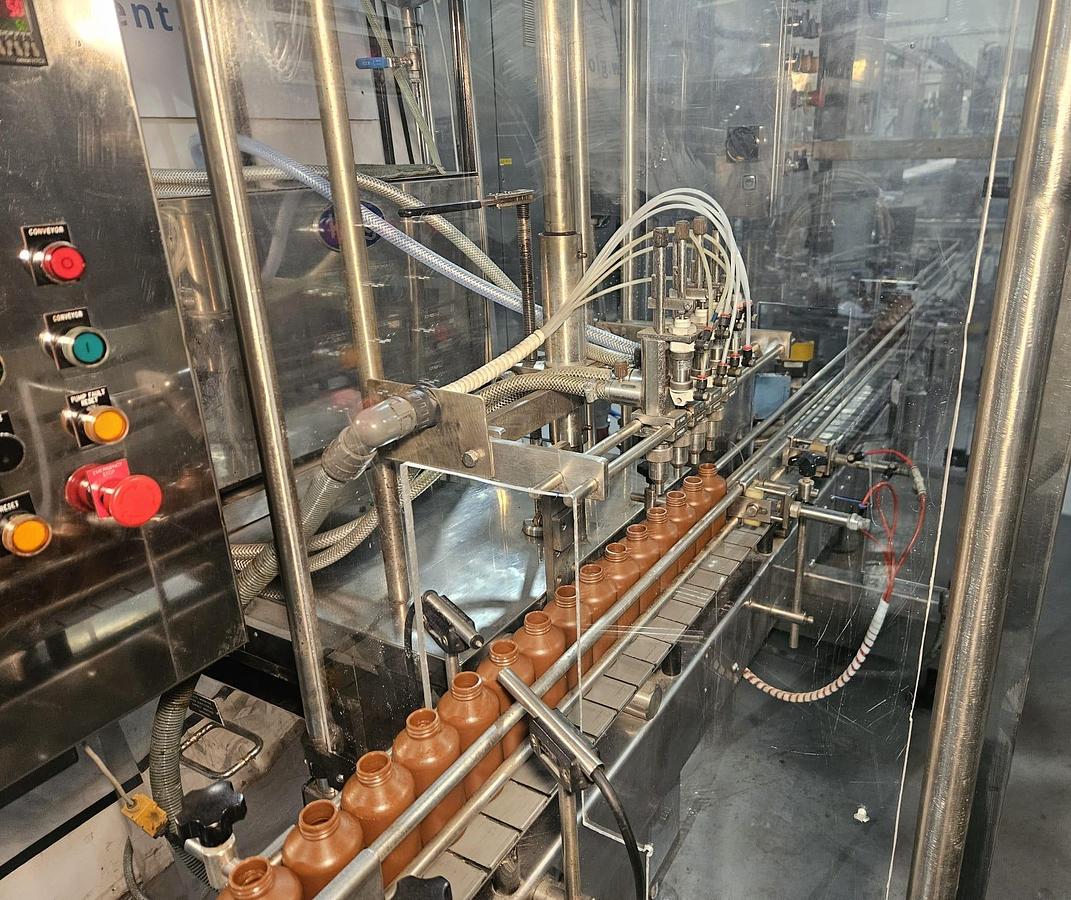

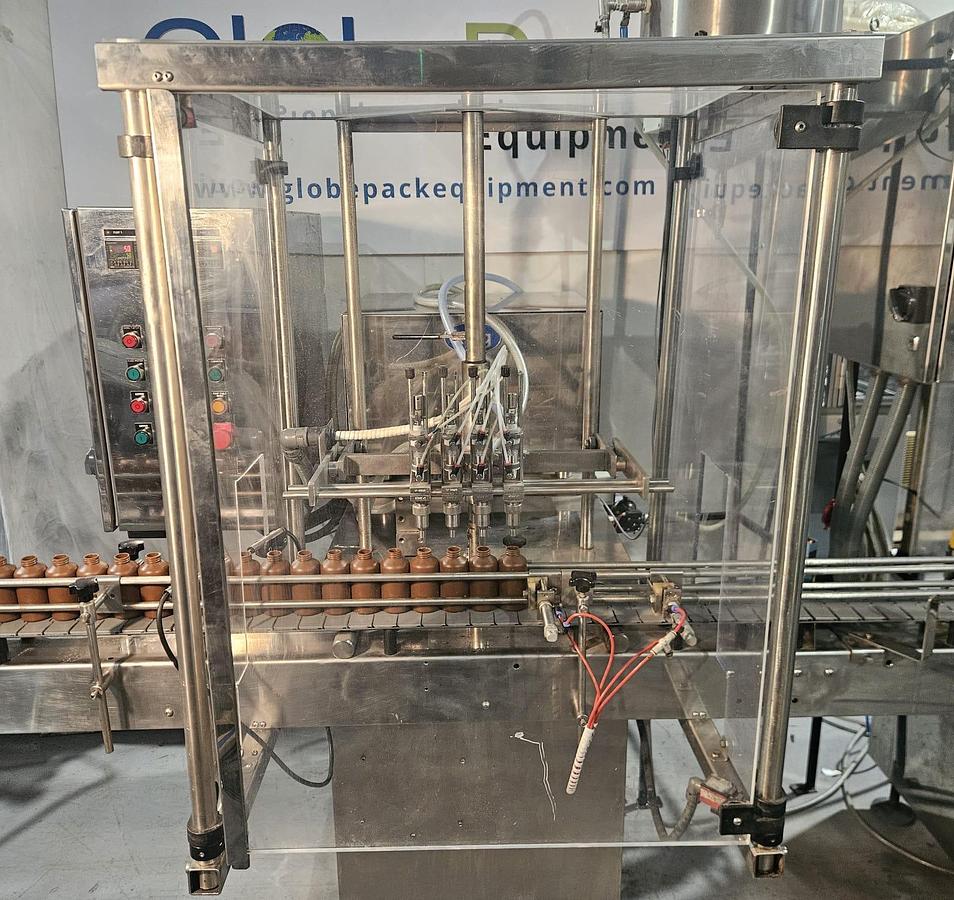

King 4 Head In-Line Liquid Filler

Models: Pump KT340/K4 and Base IL/KT

Serial numbers: Pump 1885/02 and Base 1865/02

Year of manufacture: 2002

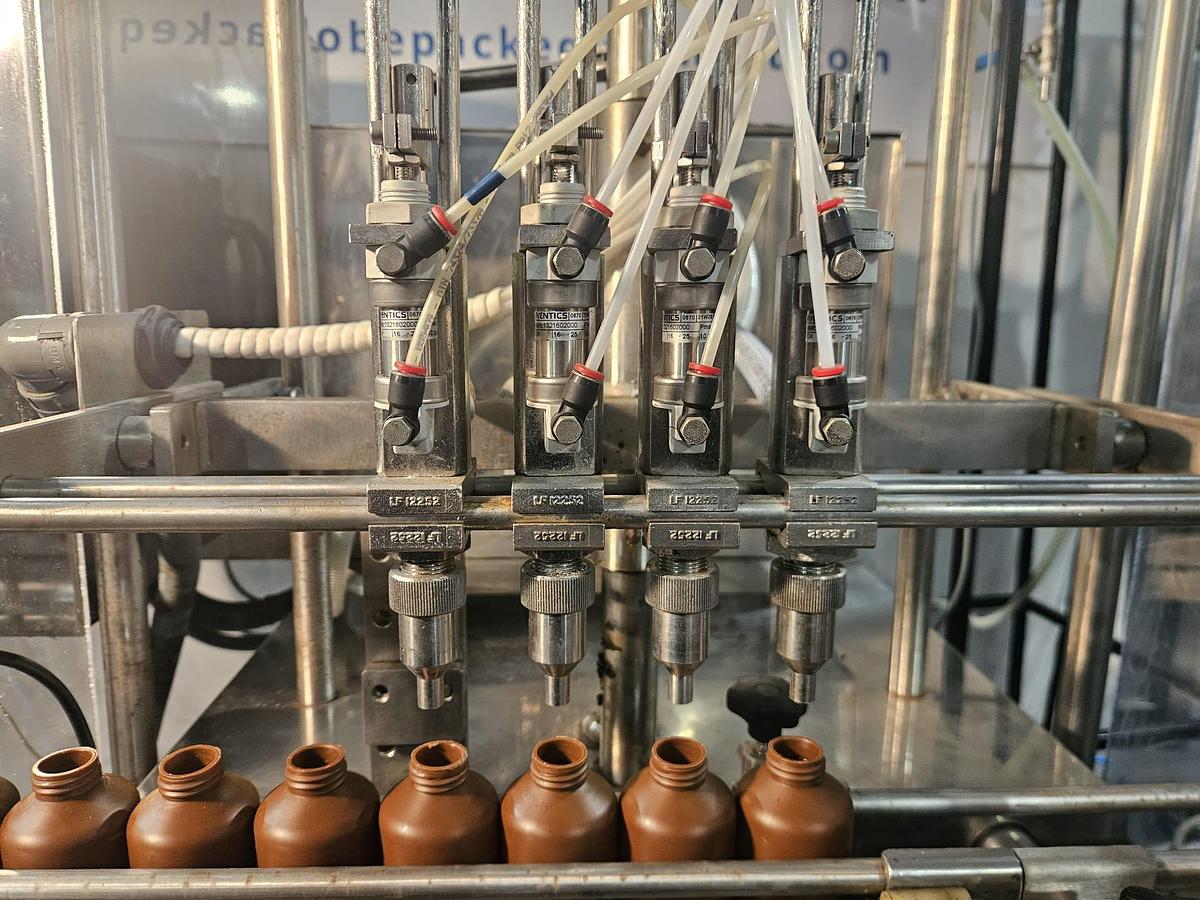

10mm diameter, short nozzles

5 ltr pumps

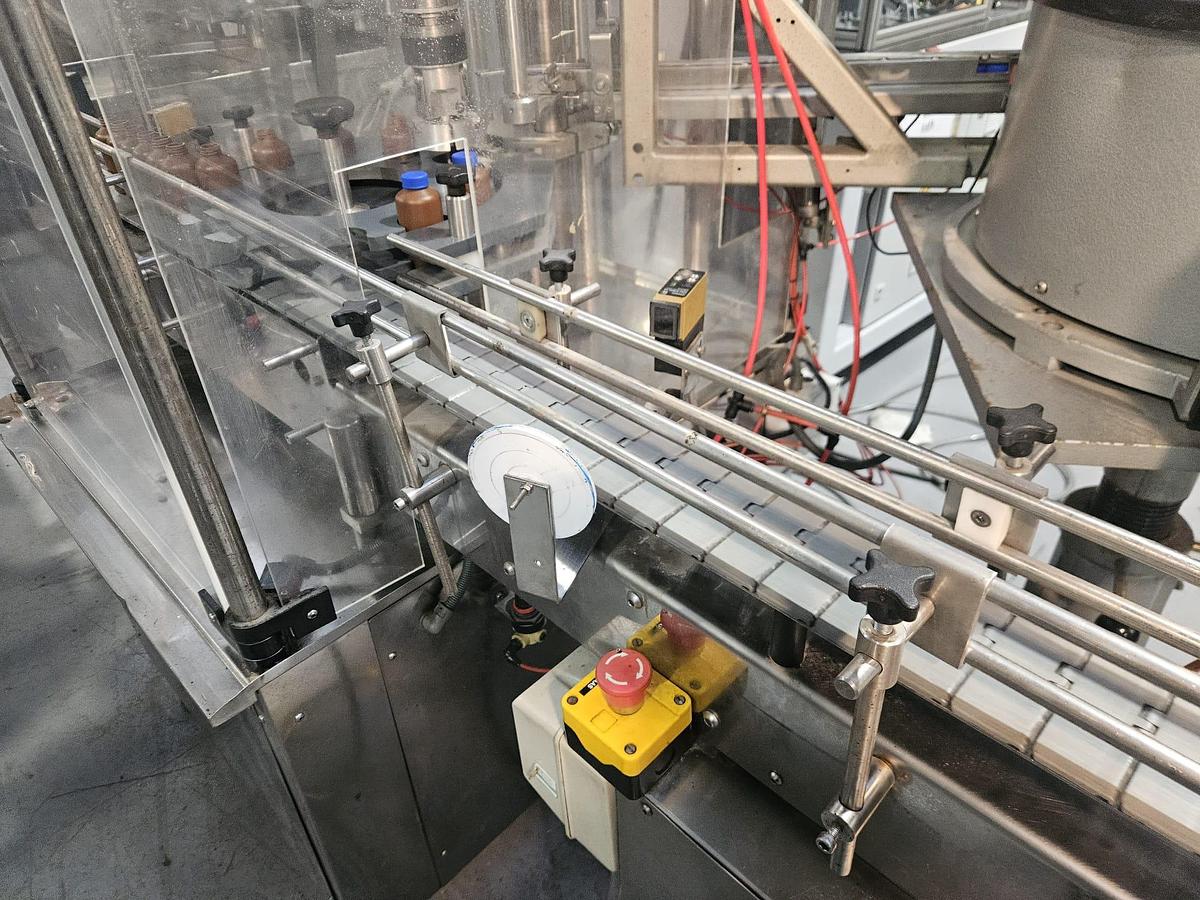

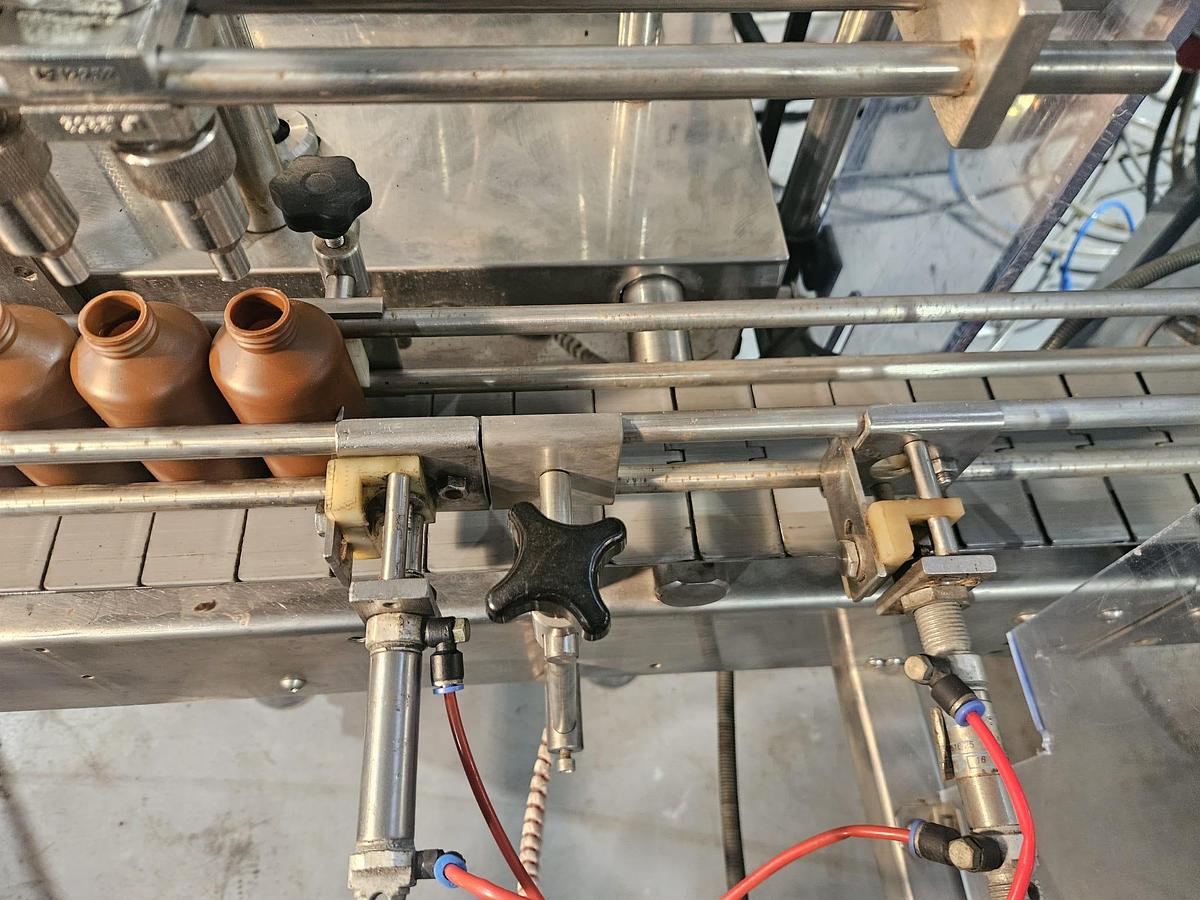

100mm wide through conveyor with gating system

Electrical supply: 415V 3ph 16A

Air supply: 4 bar

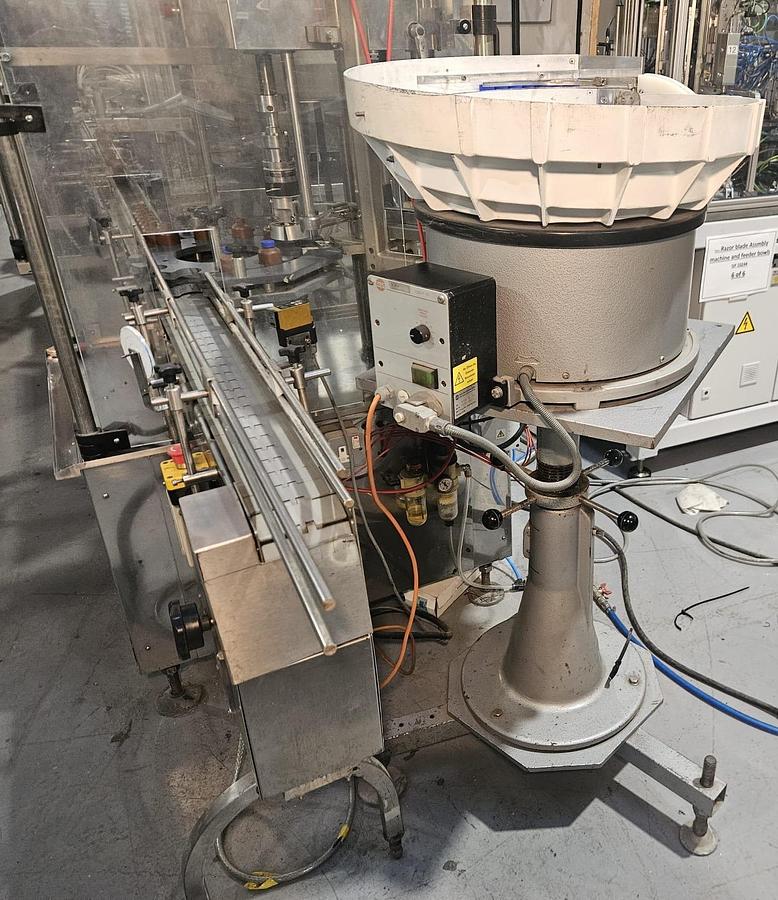

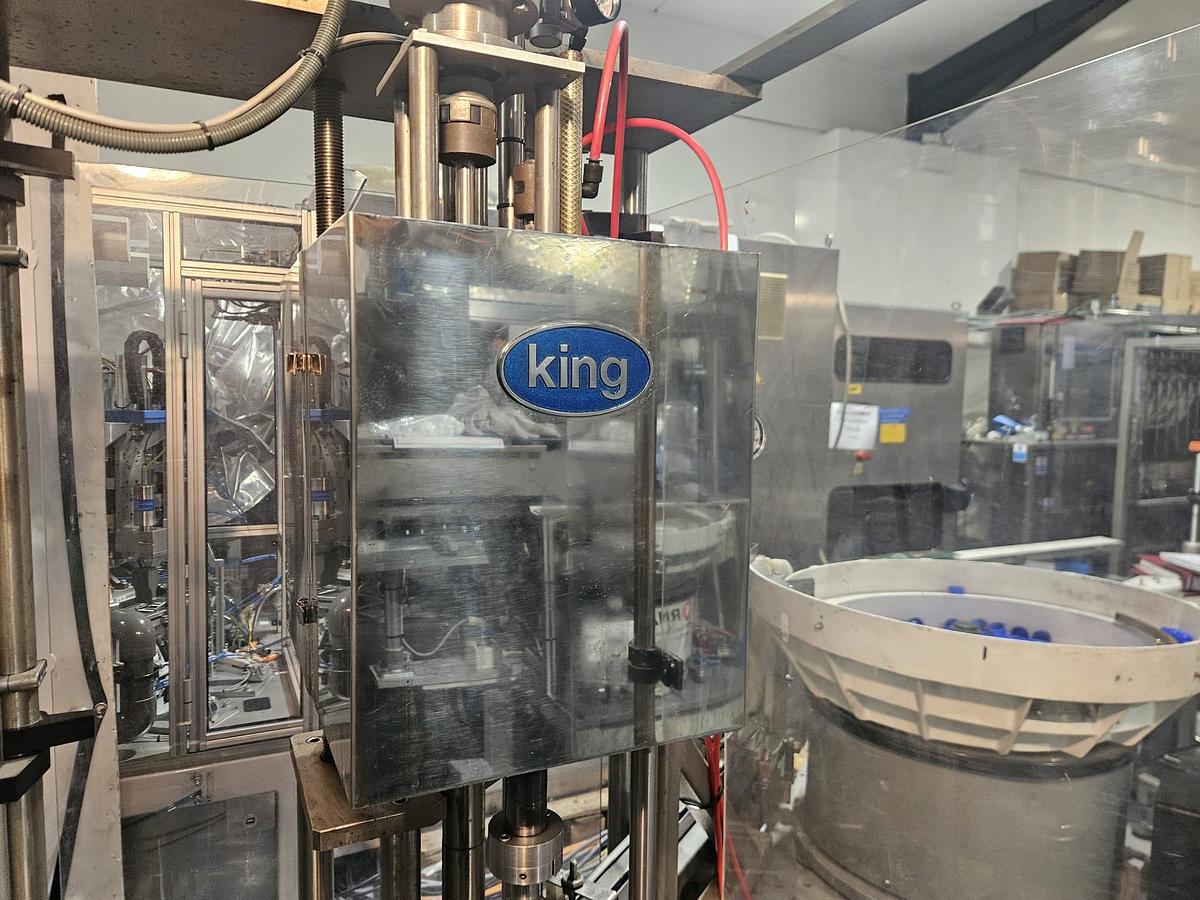

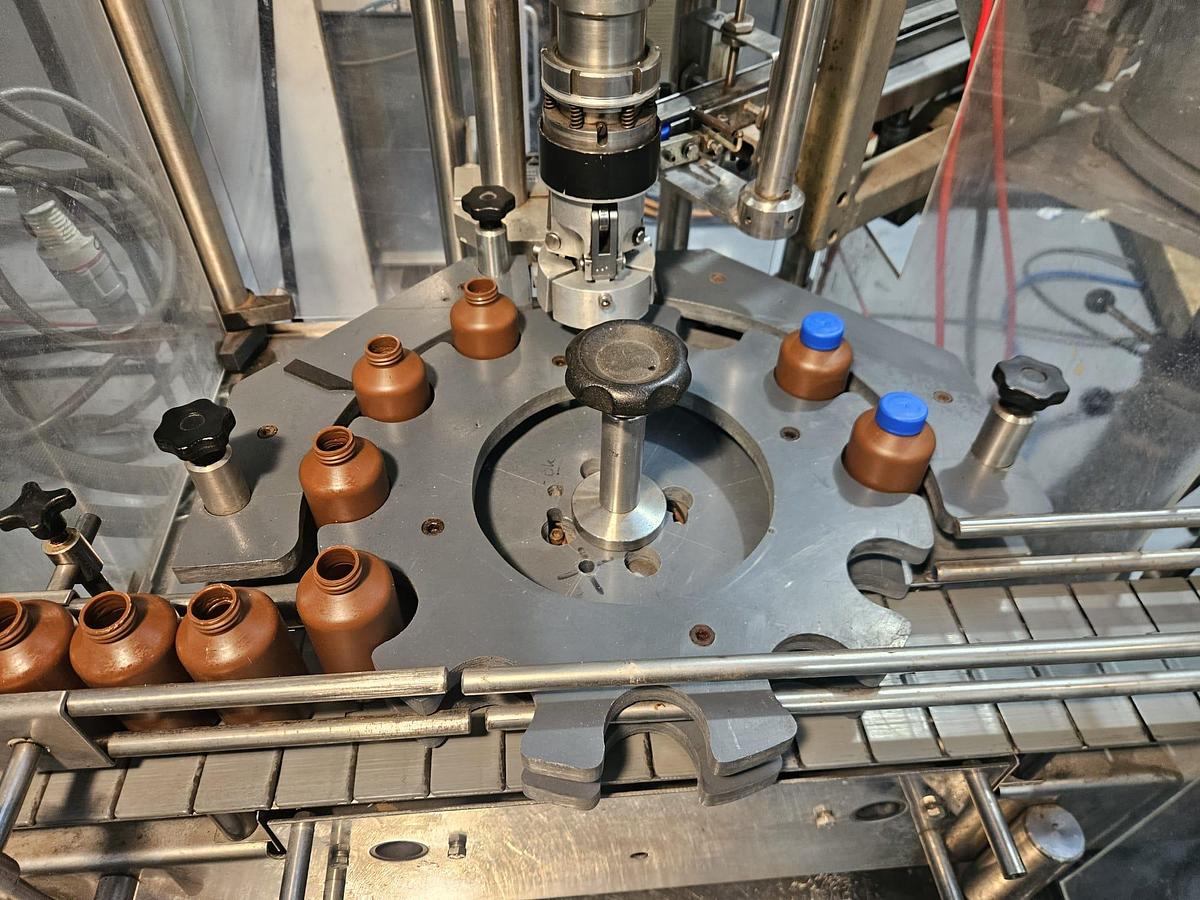

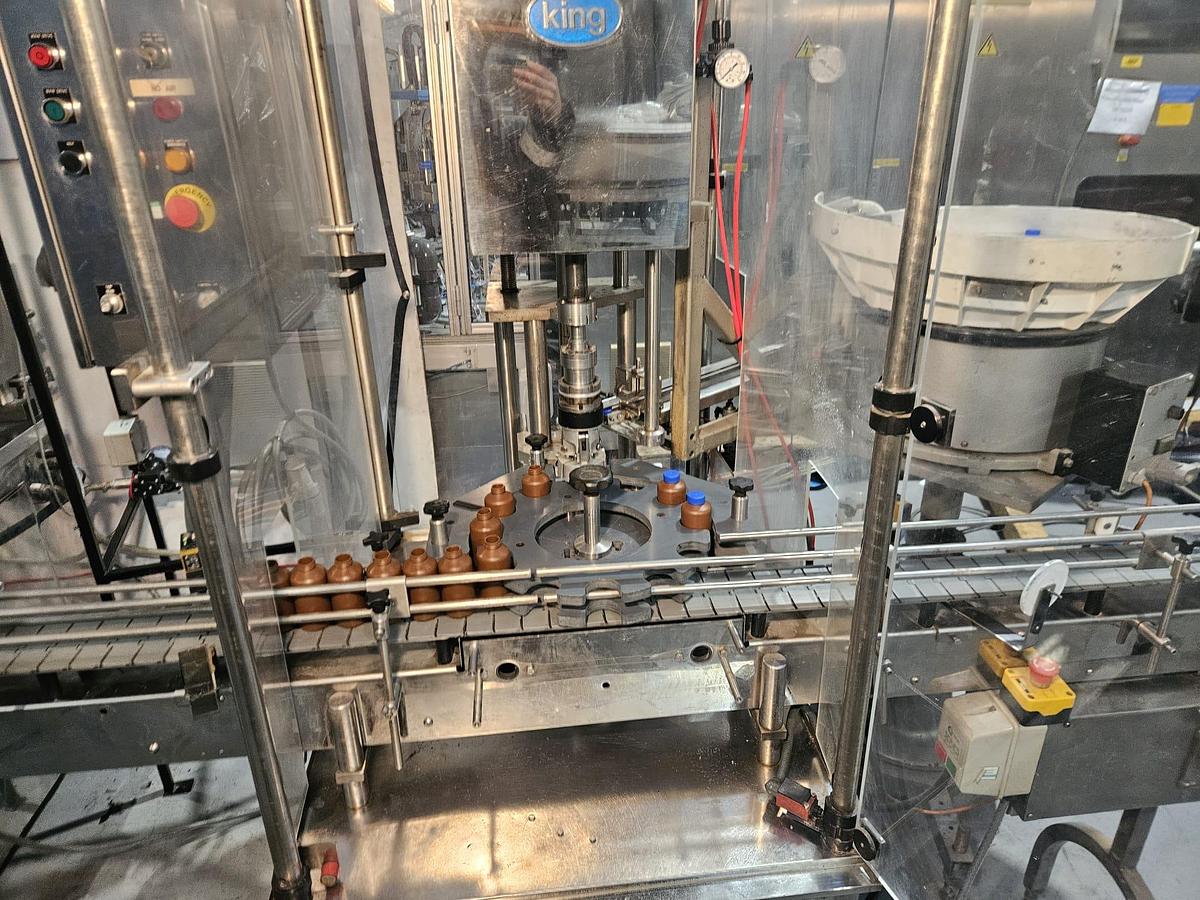

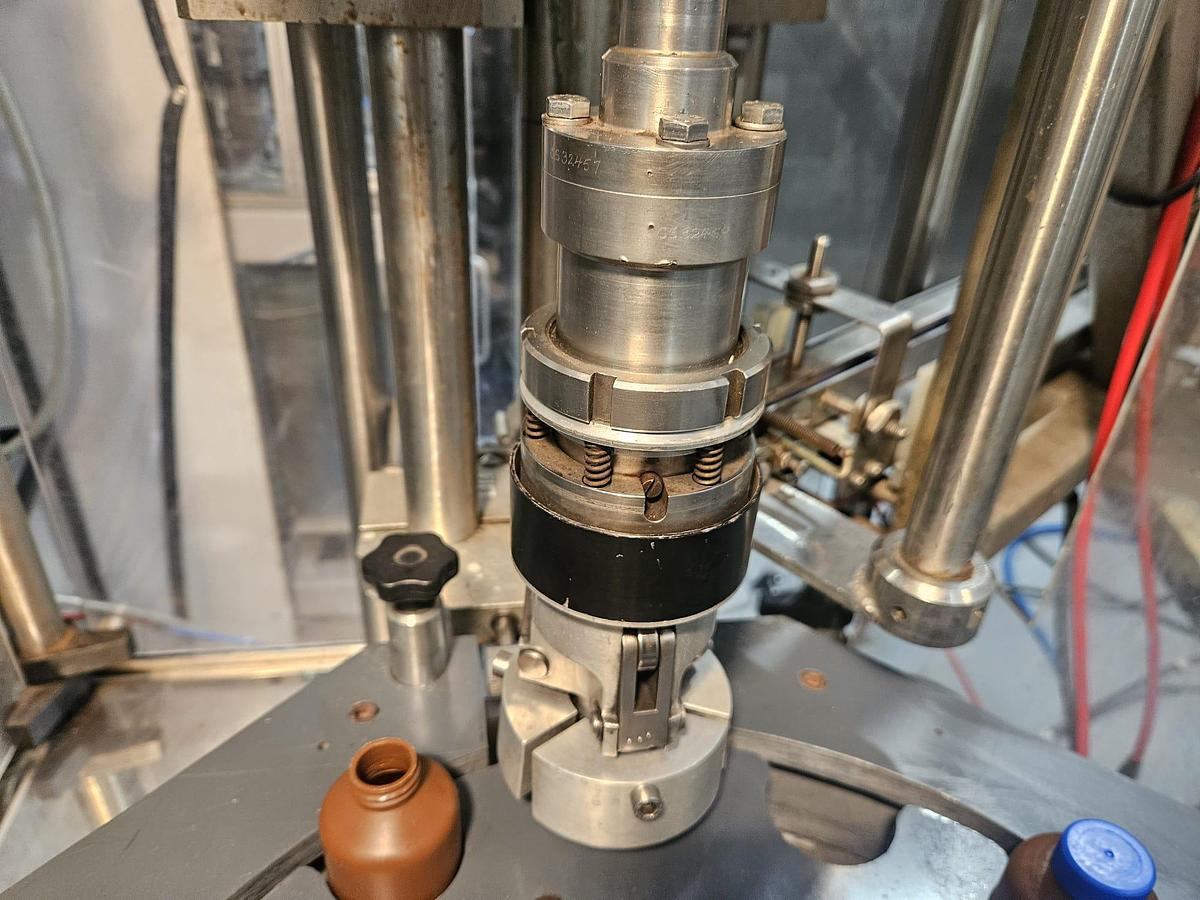

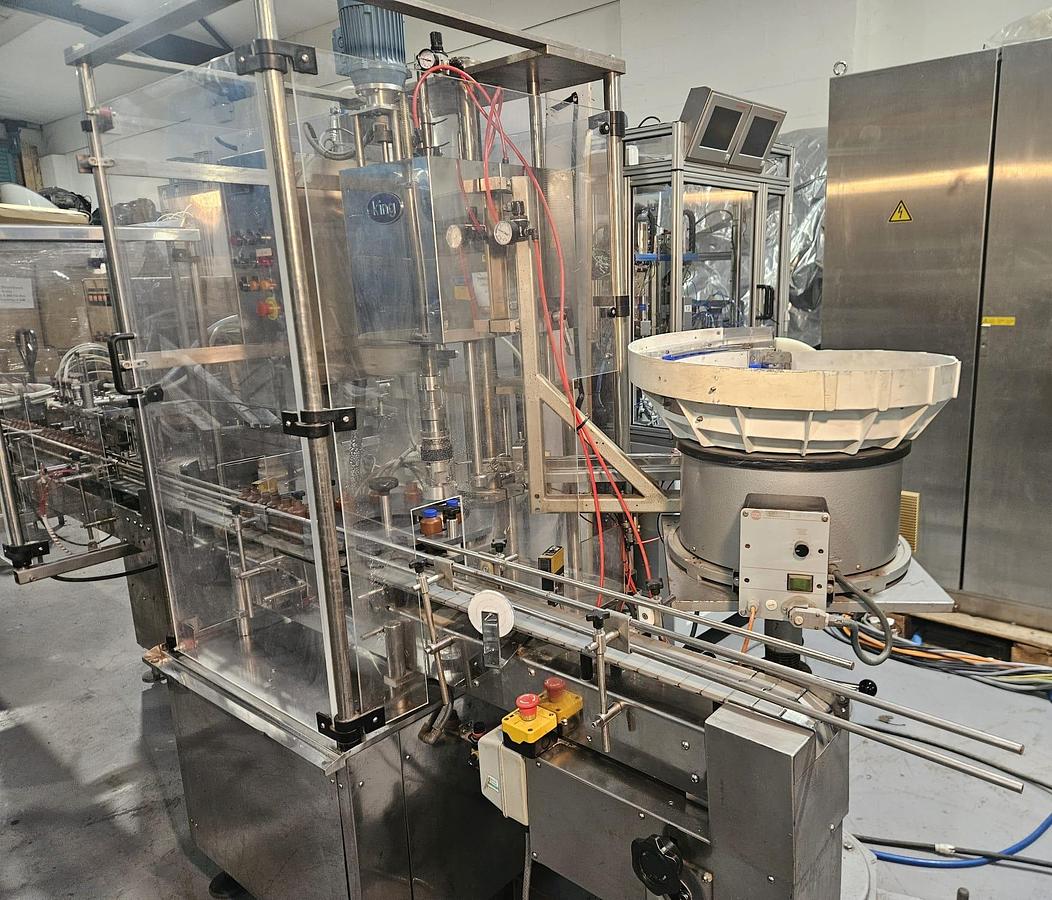

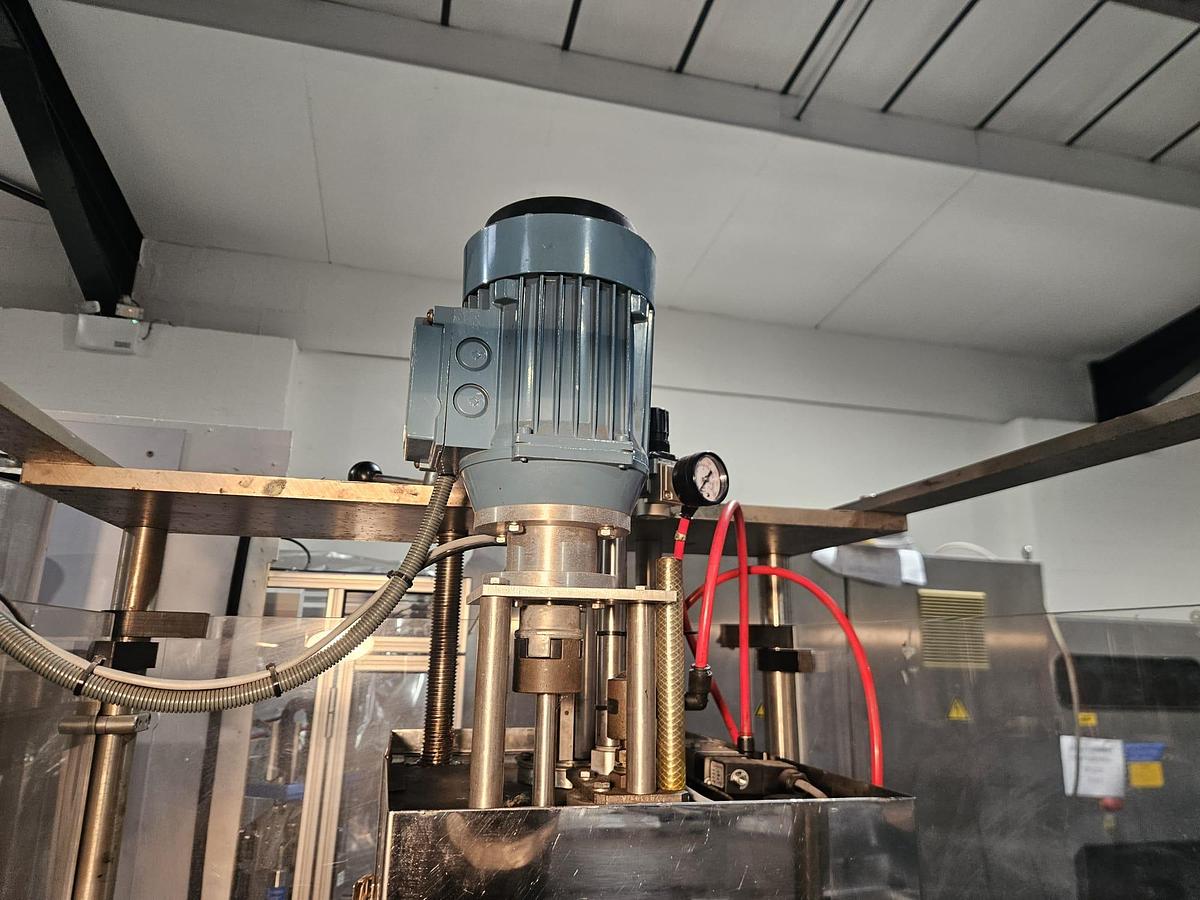

King Single Head Screw Capper with Vibratory Cap Sorter Bowl

Model: CS60

Serial number: 1990.02

Year of manufacture: 2002

Electrical supply: 415V 3ph 16A

Air supply: 5 bar

Cycle time: up to 60 per minute

Uses same conveyor as the filler

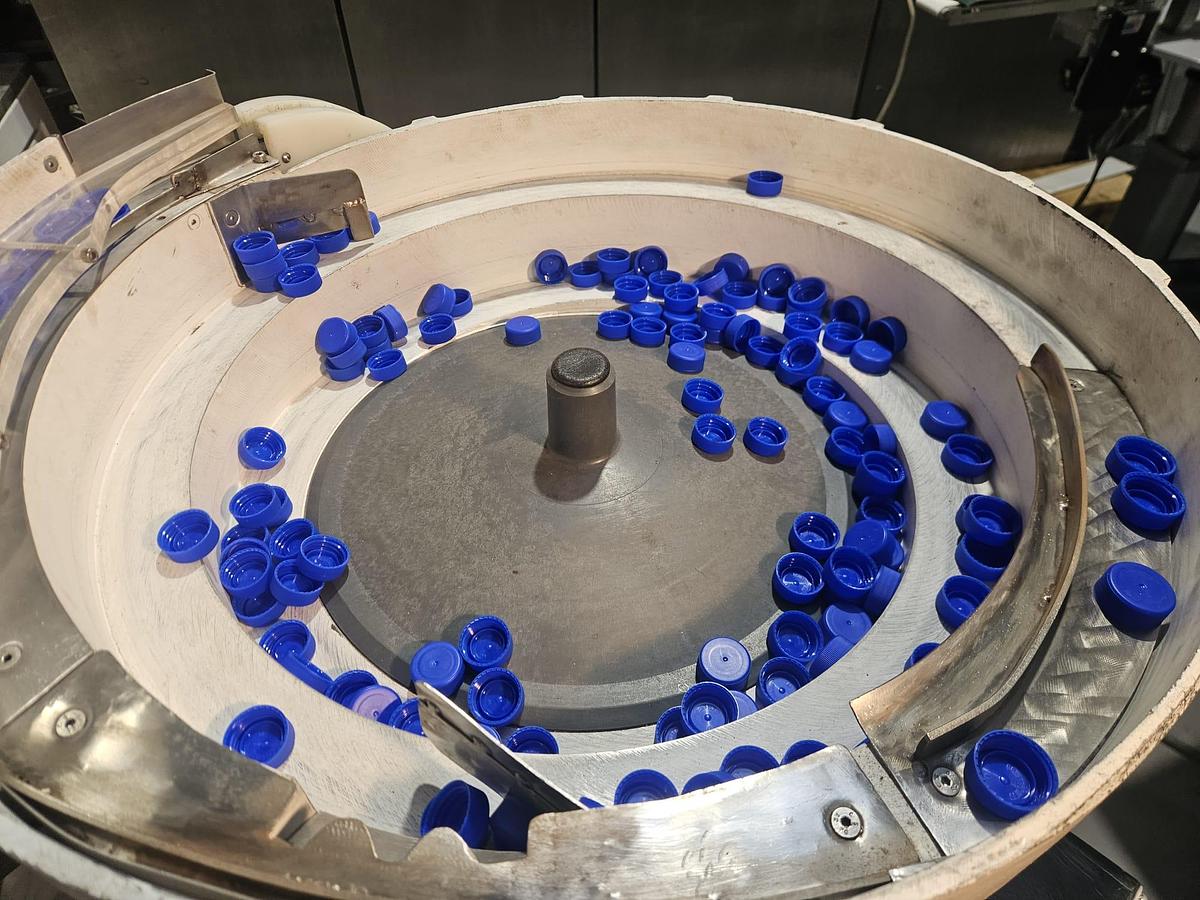

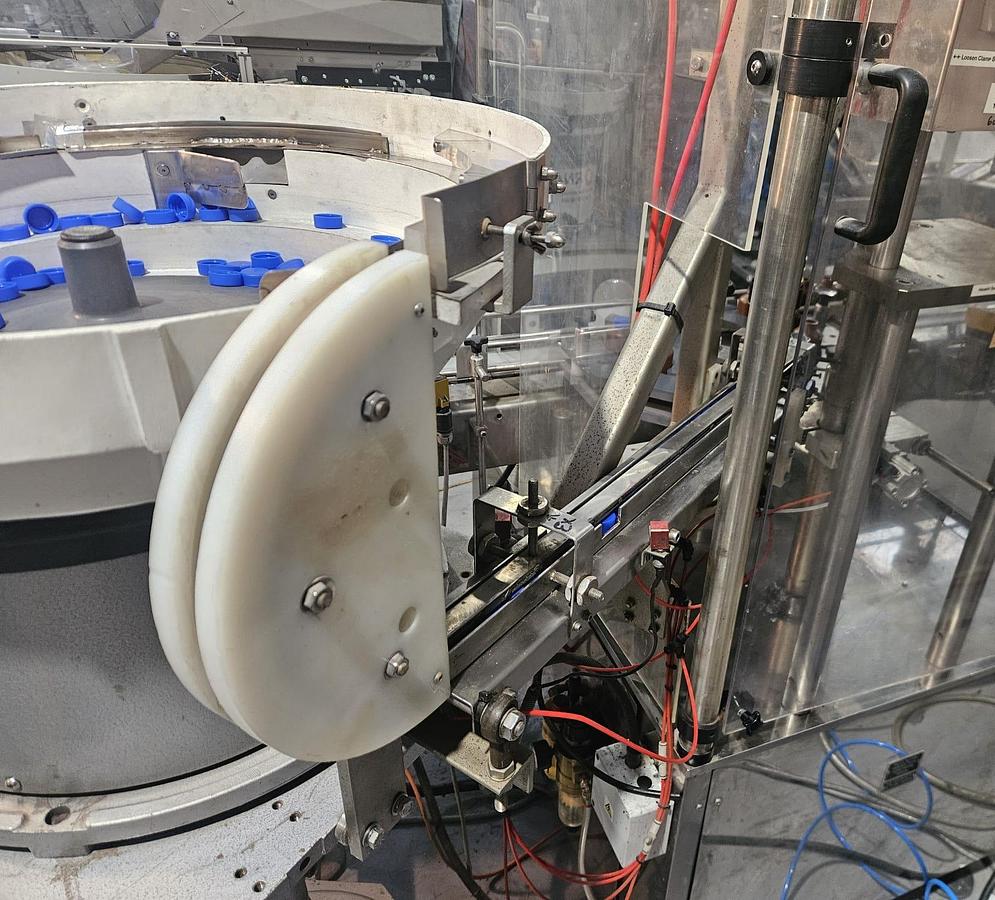

RNA model ESG-N80 vibratory cap sorter bowl, serial number 060789-30382GB, 240v 1ph 6A

Rotary Infeed Table

1100mm diameter

Electrical supply: 3ph 16A

Supplied: Cleaned, checked and tested dry cycling
