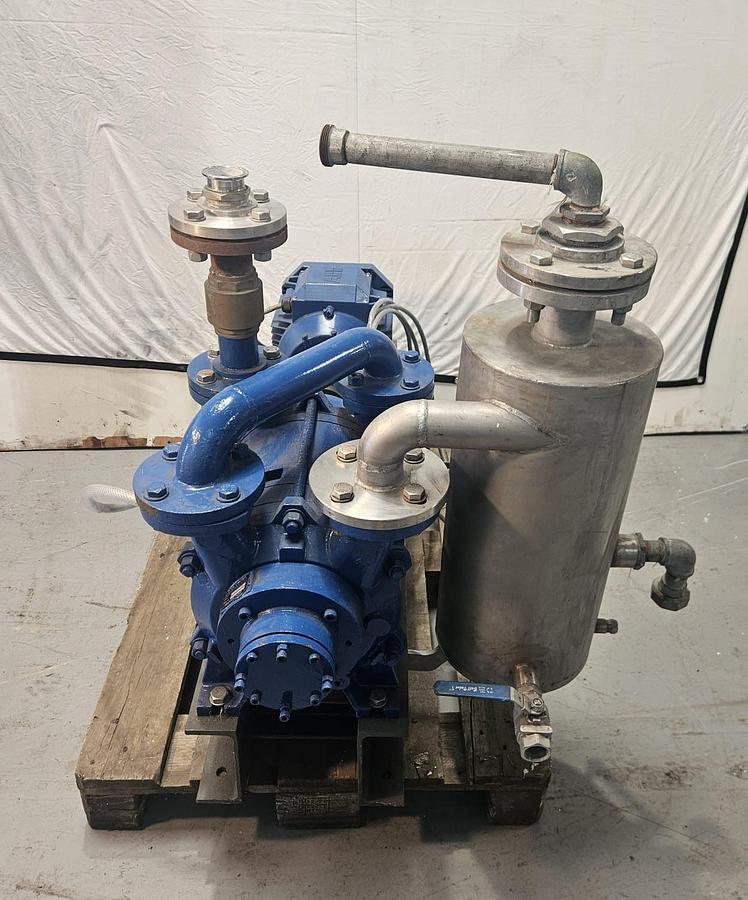

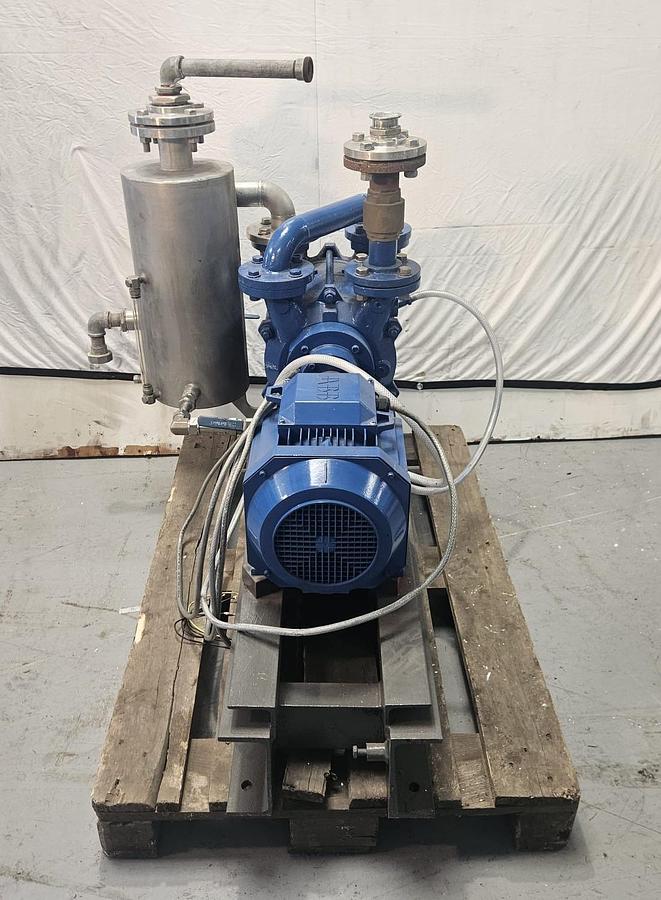

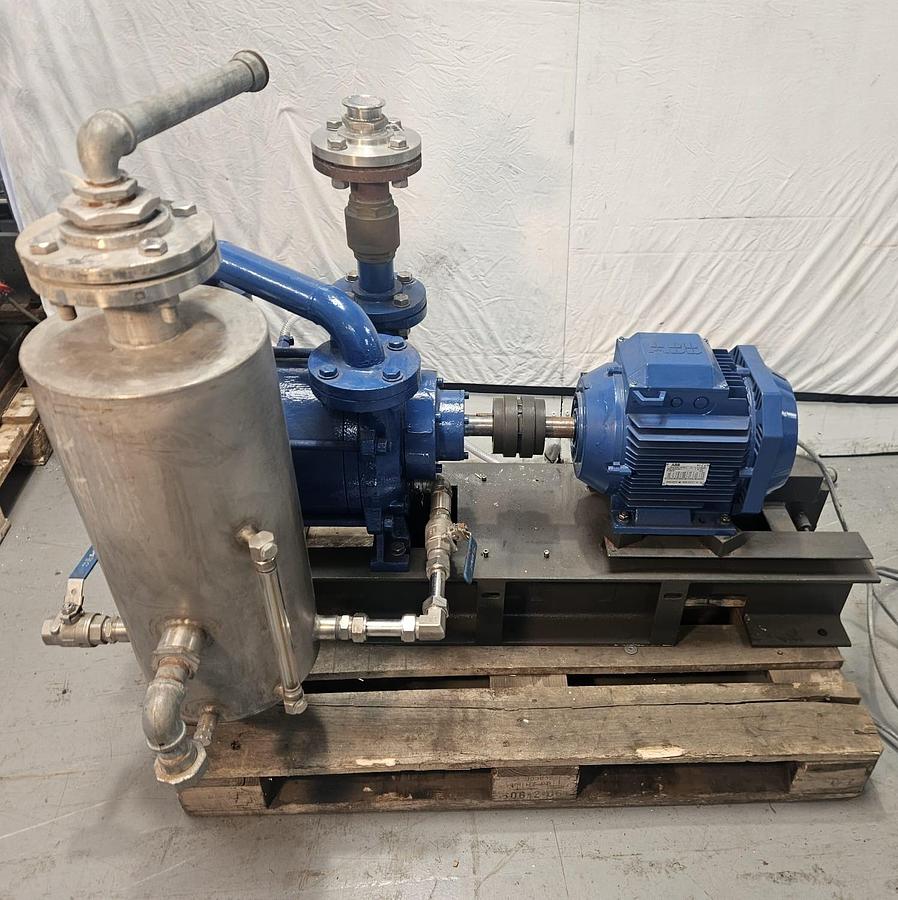

GVE Two Stage Liquid Ring Vacuum Pump

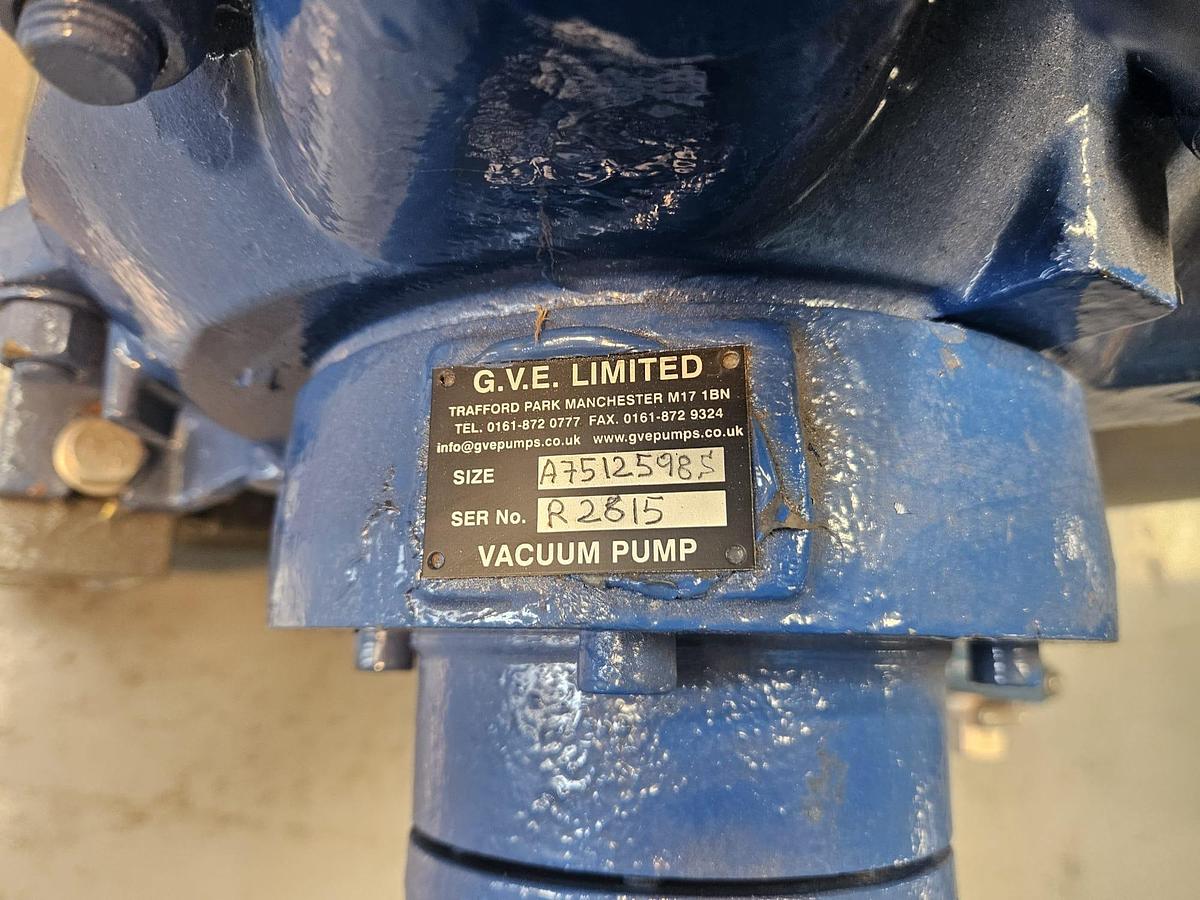

G.V.E. Two Stage Liquid Ring Vacuum Pump

This pump was overhauled by MKE Engineering Group in 2016

Two Stage Liquid Ring Vacuum Pump Working Principle

The working principle of suction and exhaust of a two stage liquid ring vacuum pump is the same as that of single stage. When the impeller rotates, an eccentric water ring is formed on the inner wall of the chamber and filled with water between the blades. With the impeller rotating, periodic reciprocating motion is continuously made between the blades. The volume of the middle of the blade is changed, and the process of suction, compression and exhaust is completed with the corresponding co-operation of the fixed suction and exhaust ports. The second stage is to reduce the exhaust pressure of the first stage and improve the vacuum of the first stage.

Electrical supply: 415v, 16a, 3ph

Machine size: 1410mm x 1000mm x 1200mm high, weight 331kg

Supplied: Cleaned, checked and tested dry cycling
