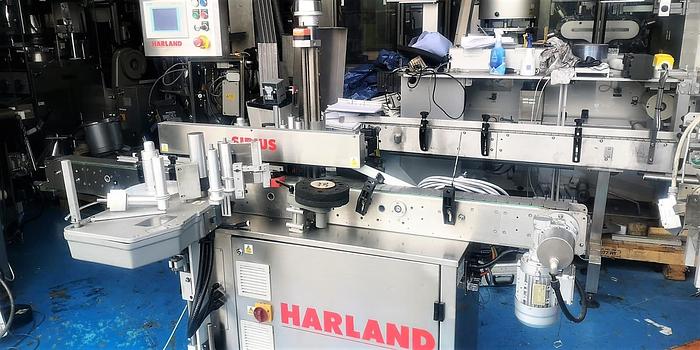

Harland Sirius Front and Back Labeller

Harland Sirius Front and Back Labeller

Contact us for price

Worminghall, United Kingdom

Contact Us

orCall +44 (0)1344 891379

Description

Packed with the latest technology for even greater production line benefits. ‘Sirius’ has been designed to meet the most stringent GMP requirements as well as addressing MTBF (Mean Time Between Failure) and MTTR (Mean Time To Repair) needs.


Machine Details


  • Base Unit: Stainless steel unit, available with 1 or 2 label stations.
  • Infeed Unit: Single scroll, twin scroll, infeed wheel, orientation units for aligning ovals.

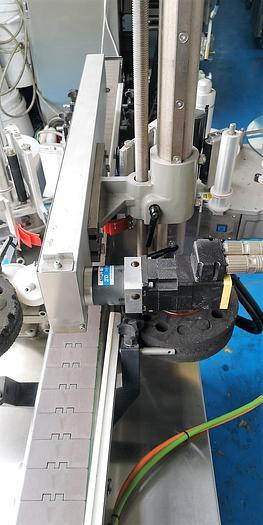

  • Label Head: Label head speed up to 28.5 m/min. Stepper motor driven motion
  • controlled.
  • Stabilizer: Horizontally mounted 935 mm long servo driven unit.

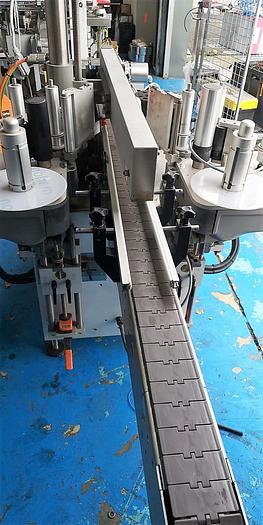

  • Conveyor: 2438 mm long, 82.5 mm Delryn slatband.
  • Finishing Units: Non-driven and driven wipedown rollers, wraparound unit, walking
  • beam.
  • Overprint Unit: Hot foil, deboss, thermal transfer, inkjet and laser coders.
  • Ancillary Equipment: A wide range is available including - product and label counters,
  • infeed/outfeed monitoring controls and pharmaceutical security systems.
  • Capacities: As standard.


Specifications


  • Production Rates: Up to 300 products per minute depending on product and label sizes.
  • Electrical Requirements: 220V/240 V single phase AC, 50/60 Hz. Special electrical options available on request.
  • Air Requirements: Air required for some overprinters and security systems.
  • Weight: As standard 320 kg
  • Product Capacity: Maximum Diameter 100 mm - Maximum Height: 350 mm - Minimum Height: 20 mm - Maximum Width: 200 mm - Minimum Width: 15 mm
  • Label Capacity: Maximum Web Width: 155 mm - Minimum Web Width; 13 mm - Maximum Label Length: 330 mm - Minimum Label Length: 10 mm


Condition - Serviced, checked, tested and running


Specifications

ManufacturerHarland
ModelSirius
Year2002
ConditionUsed
* CapacitiesUp to 300 products per min (depending on container and label sizes)
Electrical Requirements220V/240 V single phase AC, 50/60 Hz. Special electrical options available on request.
Product CapacityMaximum Diameter 100 mm - Maximum Height: 350 mm - Minimum Height: 20 mm - Maximum Width: 200 mm - Minimum Width: 15 mm
Label CapacityMaximum Web Width: 155 mm - Minimum Web Width; 13 mm - Maximum Label Length: 330 mm - Minimum Label Length: 10 mm
