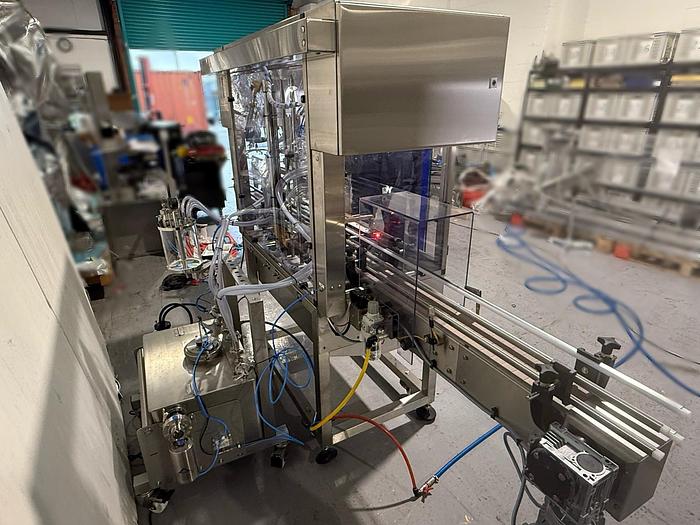

Universal Posivac 4 Head Liquid Filler

Universal model Posivac 4 head liquid filling machine

This machine has never been used!

Currently set up for container size 50mm diameter x 200mm high with a fill volume of 300ml

Container height size range: minimum 50mm to maximum 500mm

Fill volume is determined by the container size

Key Features

Fully automatic vacuum level filling

Short stroke diving nozzles for top filling (adjustable for height)

Adjustable inline gating system

316 S/S 25L break tank with hinged lid and stub feed pipes with non-return valves

Pneumatically operated float style level control system with shut off valve

Automatic overflow return unit

Adjustable neck locators

Pneumatically operated drip tray

Omron C28 PLC

Variable speed 3m long x 110mm wide heavy duty slat chain S/S conveyor

Adjustable guide rails on the conveyor for containers from 20mm diameter up to 120mm diameter

Safety guard with interlocked hinged doors which remove and isolate power on opening

304 S/S portable chassis mounted on braked casters and has self levelling jacking feet

Electrical supply 240V, 50Hz, single phase

Manual available

Supplied: New and unused condition
