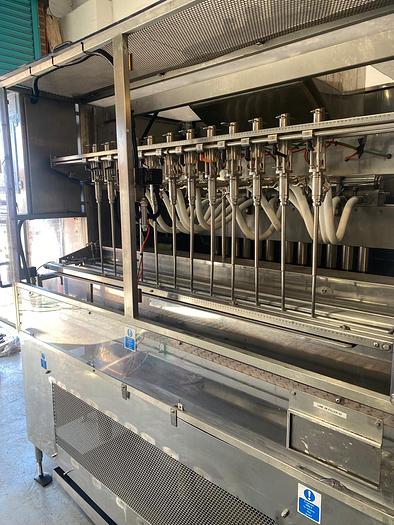

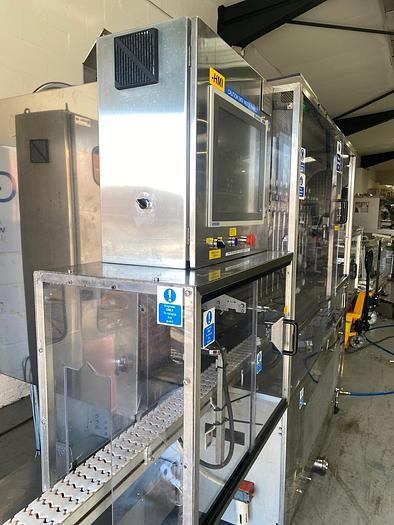

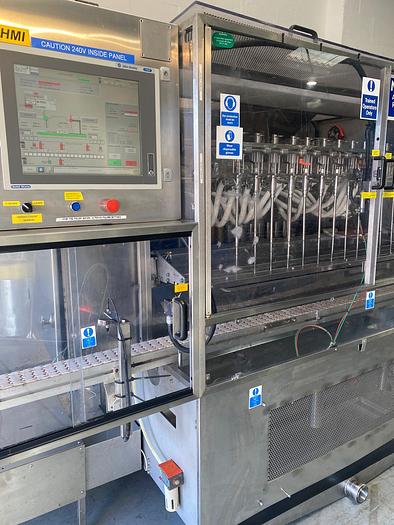

Masterfil S500-AS 12 Head Liquid Filler

Adelphi Masterfil model S500-AS 12 head liquid filling machine

Electrically upgraded in December 2011, including controls/HMI and PLC

Fill range 30ml to 500ml and can be doubled by use of double shot on this machine

Current Set Up

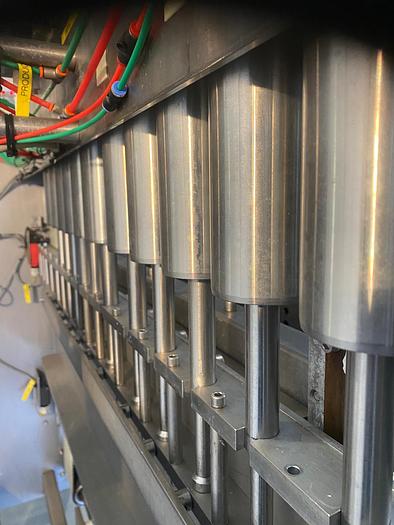

Pistons which will fill 5ml to 500ml

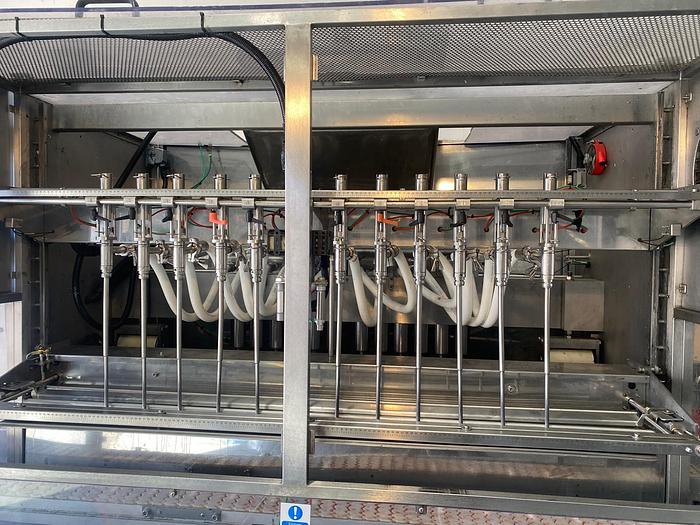

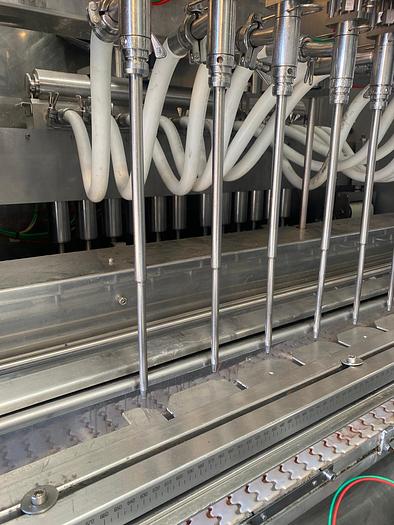

Nozzles 12mm diameter or larger

400ml fill volume

Machine runs left to right

Key Features

Masterfil 'Servo Master' automatic precise volume filler

Electric servo drive pump

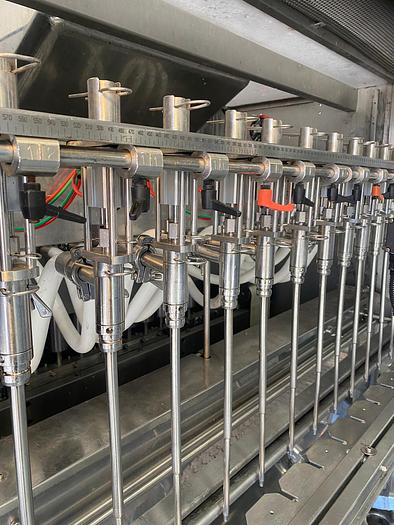

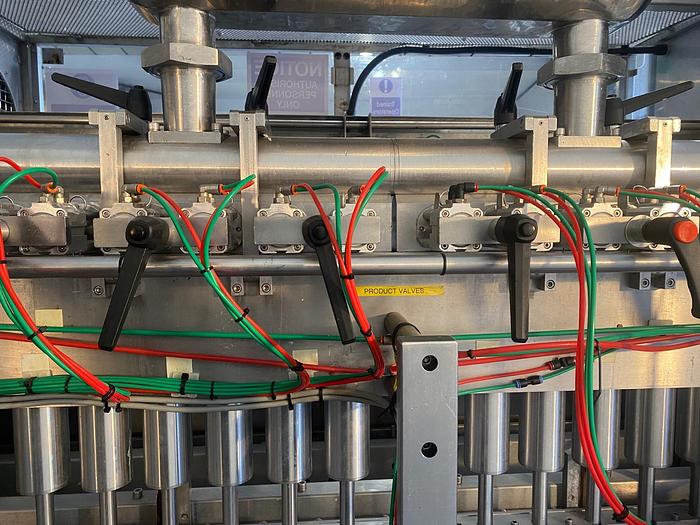

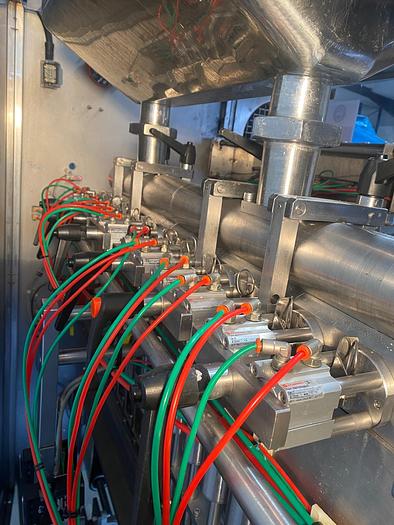

Single acting filling heads with poppet valves

Up to 8 different filling speeds per cycle

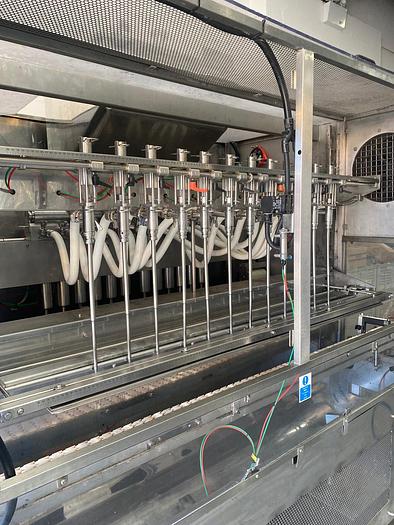

Adjustable into-neck or diving rise while fill nozzles

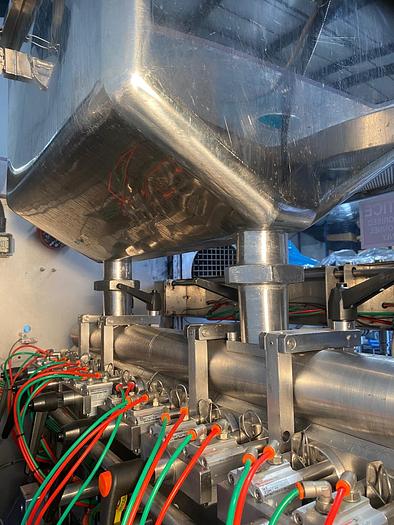

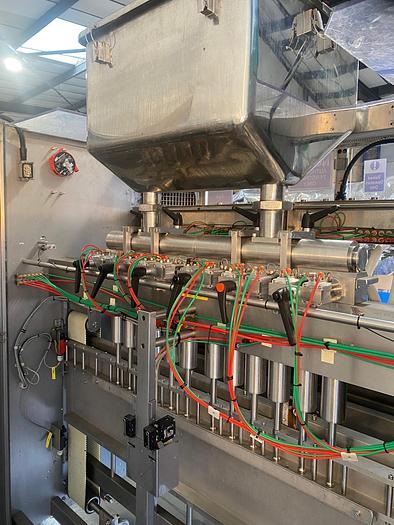

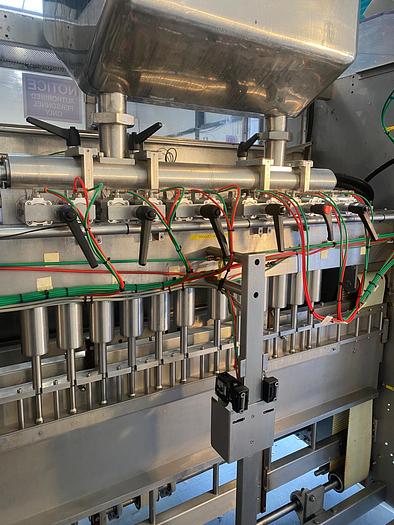

Integral product tank with float valve and level sensor

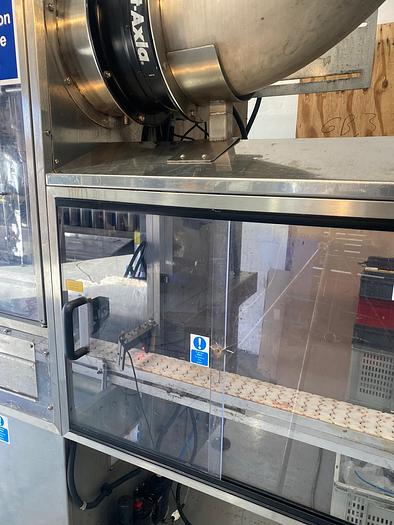

Variable speed 9m long x 100mm wide through conveyor included (not shown in current photos)

Gating system

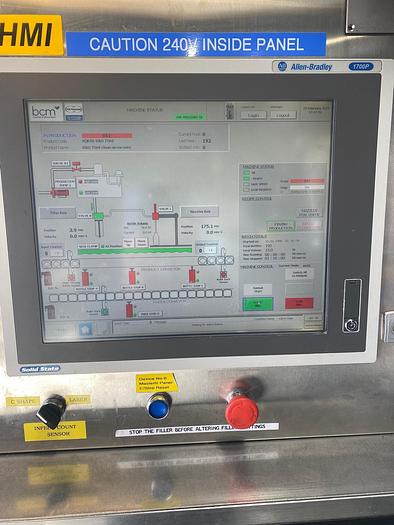

Allen Bradley HMI and PLC

Manuals available

Electrical Upgrade Info

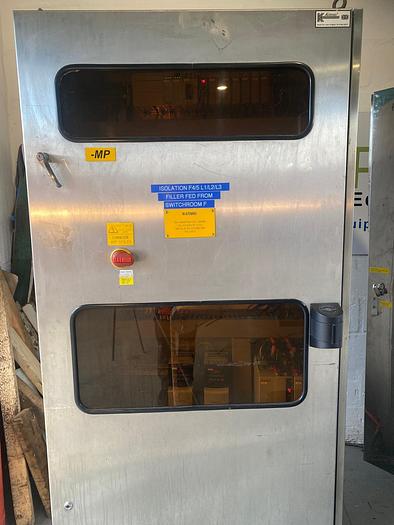

• Replacement of the backplate and the panel door on the operator control panel housing the machine controls and the HMI device - a new panel door (fitted with modern HMI and line control/E-stop buttons) and a new backplate (fitted with modern control devices)

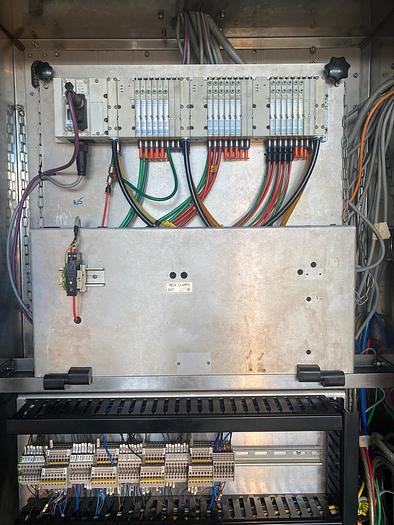

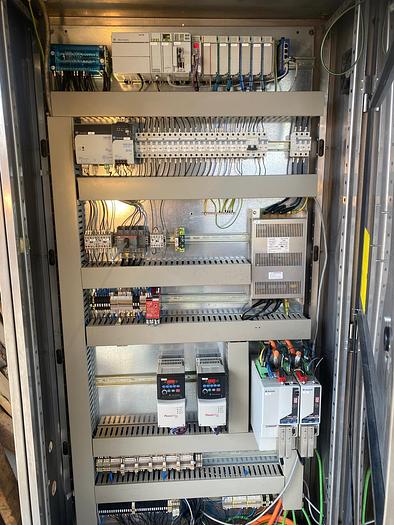

• Replacement of the ICA panel backplate on the PLC control panel - new backplate (fitted with modern PLC system, VDS's and control devices) is required
• Replacement of power/control/instrument cabling for field devices where required
• Replacement of obsolete electrical and pneumatic devices in both panels

Supplied: cleaned, checked and tested dry cycling
