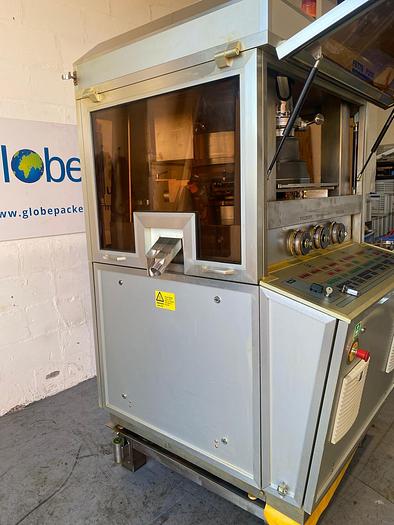

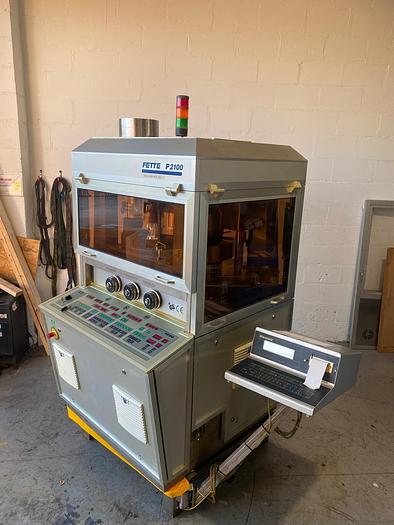

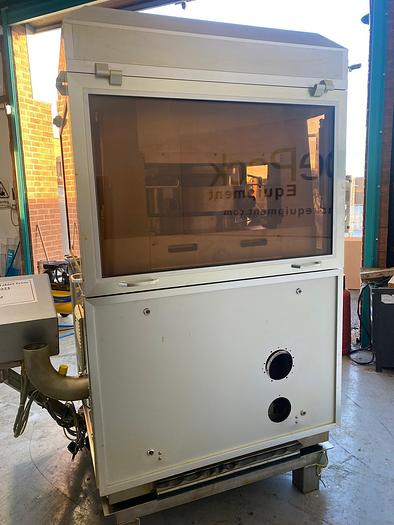

Fette P2100 Tablet Press

Fette model Perfecta 2100, 36 station rotary tablet press, B type

The Fette P2100 is a highly efficient, heavy duty industrial rotary double sided tablet press manufactured by Fette, a major German engineering brand known for pharmaceutical production machinery. It is designed specifically for the high volume production of a wide range of tablets

Depending on the configuration (such as number of tooling stations), it can reach massive production outputs and is frequently utilised in large scale pharmaceutical, nutraceutical, and chemical manufacturing plants

Key Information

Maximum output: Based on 36 stations and speed, around 200,000 to 220,000+ tablets per hour

Turret speed: Varies from 15 to 100 rpm depending on the material and fill depth

Tooling: EU Norm B / EU-19

Die outside diameter (OD): 30.16mm

Punch barrel diameter: 19.0mm

Maximum tablet size: 16mm (round or shaped)

Maximum tablet thickness/bar height: 8.5mm

Initial/pre-compression force: 15kN to 20kN

Maximum compression force: 80kN

Features

DC motor and control card using tacho feedback to maintain a constant and consistent speed and torque

Upper punch body lubrication and keyed upper punch bores

Stainless Steel hopper

Emergency stop button

Full safety interlocked guarding with hinged pneumatic panel guards

Full airproof sealing around doors

Printer for tablet count

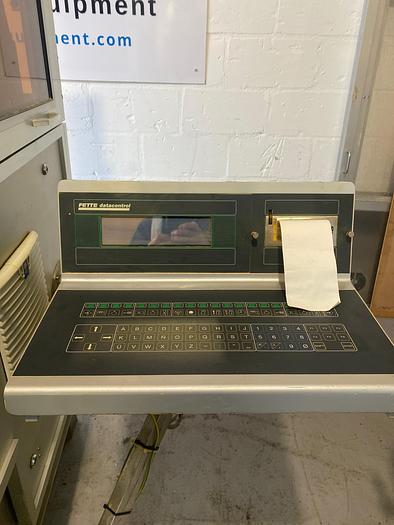

The machine is on a stand fitted with a Fette datacontrol unit

Pallet of parts

Electrical requirements 415V 32A

Manual in Swedish (operators, electrical, pneumatic & hydraulic)

CE marked

Machine size: 1800mm x 1350mm x 2100mm high, weight 3000kg

Supplied: cleaned, checked and tested dry cycling
