Adelphi Masterfil Mastercap Single Head Screw Capper

Location

England, United Kingdom

Description

Adelphi Masterfil Mastercap Single Head Screw Capper


Suitable for medium to large batch production environments

OEM's suggested output of up to 3,600 caps per hour depending on container and cap size

Currently set up for 100ml bottles (42mm diameter x 110mm high) and 27mm diameter caps


Features:

Easily adjustable variable torque by magnetic clutch

Push button height adjustment of capping head

Cap track low level detection

No container, no cap and queue sensors

Variable speed control

Capping zone protected by interlocked guards

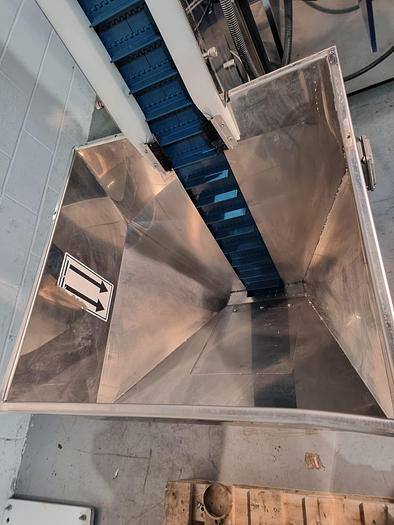

Cap feed elevator with pneumatic orientator

304 Stainless Steel construction


Comes With:

6 sets of star wheels for bottle sizes 32mm, 34mm, 38mm, 40mm, 45mm and is fitted with 42mm

2 capping jaws 24mm and fitted with 27mm

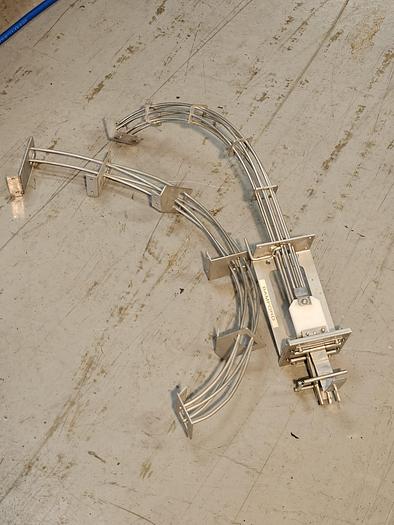

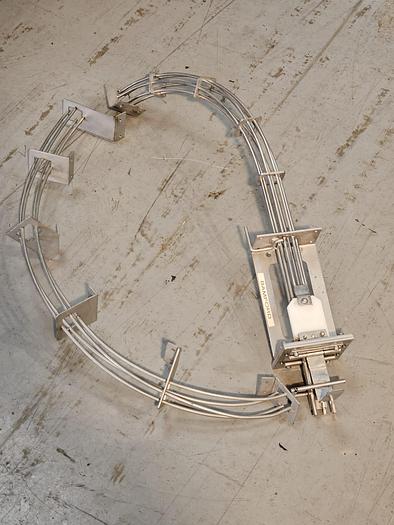

2 sets of cap chutes for cap sizes 24mm diameter x 21mm high and fitted with 27mm diameter x 27mm high

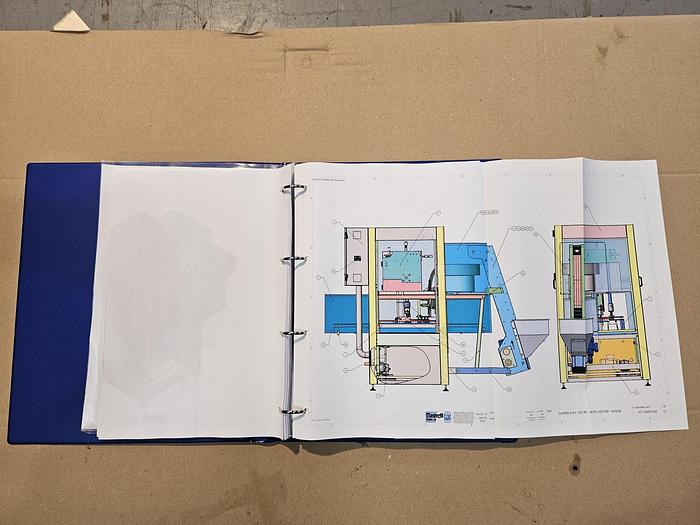

Operators manual, parts list, electrical and pneumatic schematics


Machine size: 2740mm x 1300mm x 2220mm high, weight 890kg

Supplied: cleaned, checked and tested dry cycling

Specifications

ManufacturerAdelphi Masterfil
ModelMastercap
Year2014
ConditionUsed

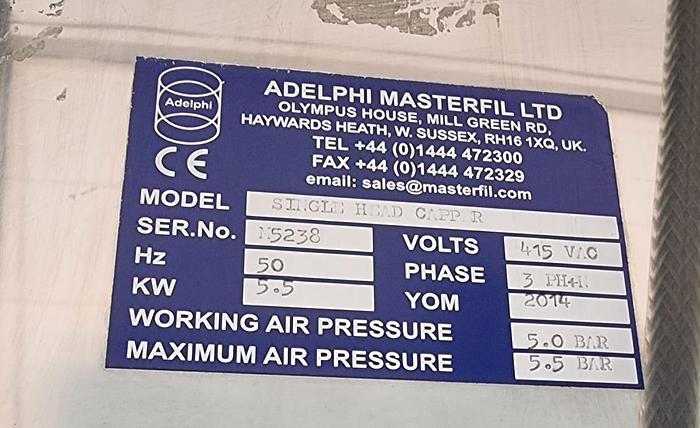

Serial NumberM5238
Stock NumberGP10201
