Norden NM400-HA Plastic Tube Filler


Contact us for price


Normanton, United Kingdom

orCall +44 (0)1344 891379

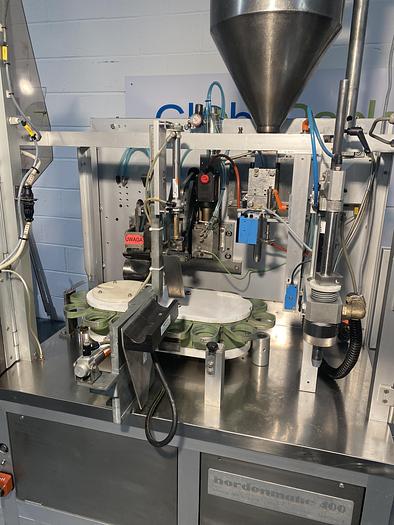

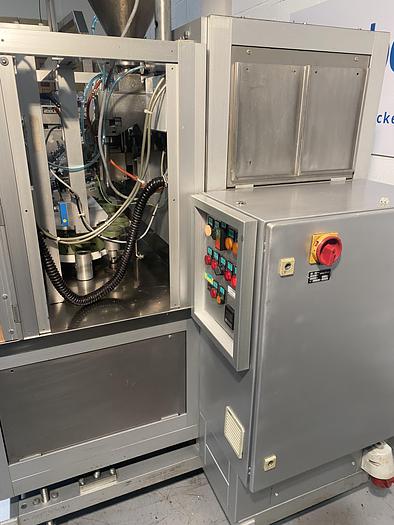

Norden 400 hot air automatic tube filling and sealing machine for plastic and laminate tubes

Tube filling speeds of up to 40 per minute, depending on tube size and product viscosity

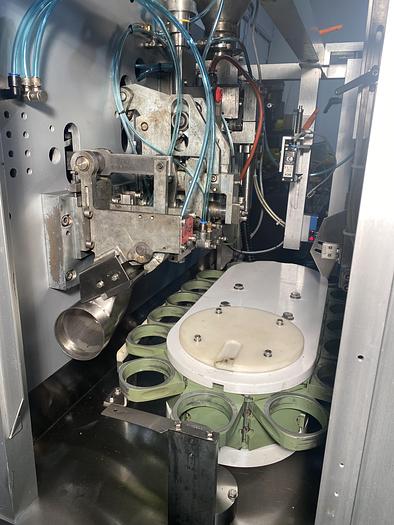

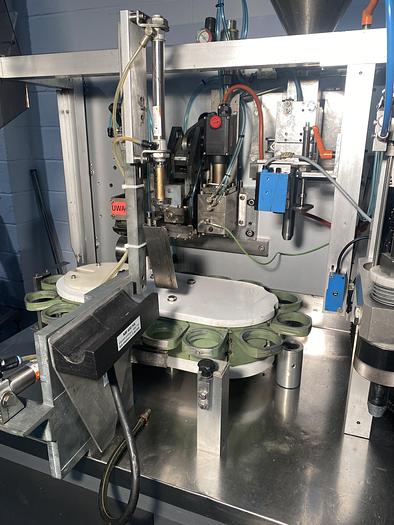

  • 16 stations
  • Tube length range: 50mm to 245mm
  • Tube diameter range: 10mm to 50mm
  • Fill range: 1ml to 300ml (with appropriate sized piston)
  • Manual load cassette feeder
  • Tube cleaning station
  • Photoelectric tube registration system

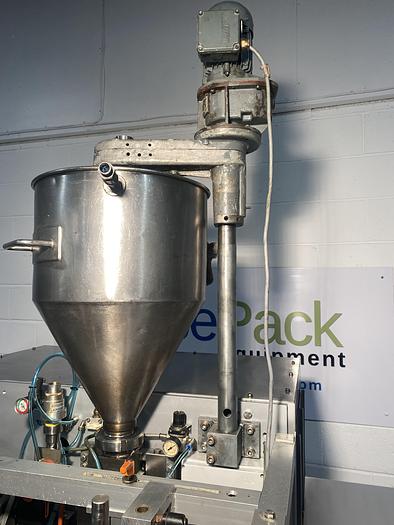

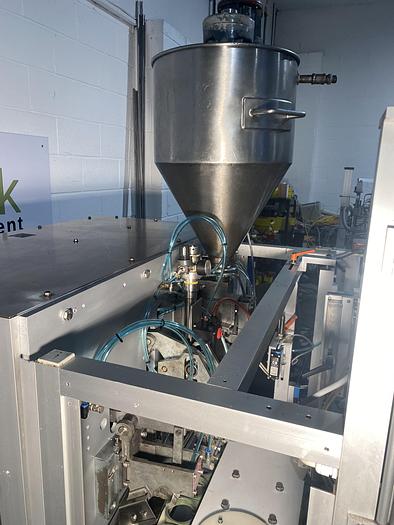

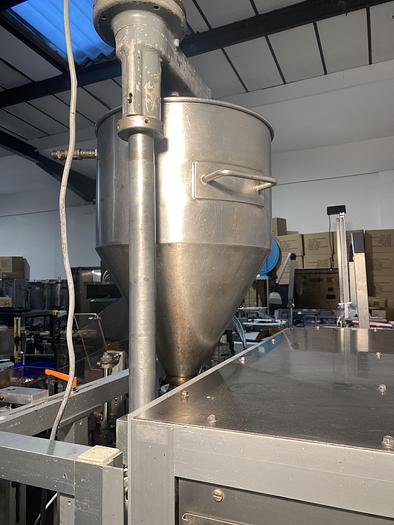

  • Stainless Steel approx. 40 litre hopper with inbuilt stirrer
  • Product level control (not currently in circuit but could be utilised)
  • Volumetric pump filling unit
  • Bottom up fill
  • No tube no fill sensor

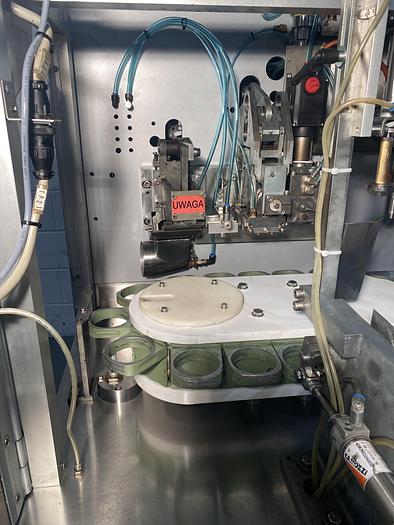

  • Hot air sealing unit for plastic and laminate tubes
  • Date batch coder
  • Trim station
  • Exhaust collector for trim waste
  • 380/415 v

Currently set up for 45mm diameter tubes

Machine size: 2000mm x 1500mm x 2300mm high (including hopper and stirrer), approx. weight 1600kg

The machine will be supplied with one set of change parts from our available stock

If we don't have your required size we can provide it at an additional cost

Condition supplied: cleaned, checked and tested dry cycling

Please enquire if you wish to have the machine set up to your tubes and product


Serial Number52407
Stock NumberGP10183
