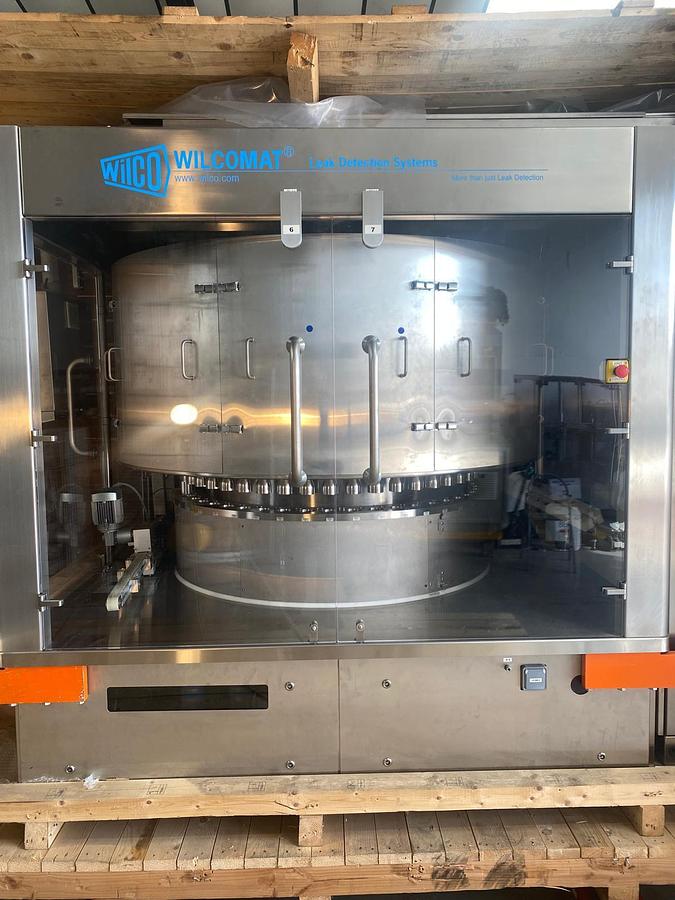

Wilco R48 MC PV Leak Detection System for Vials

The WILCOMAT® R 48 MC P/V is a tester designed for the detection of leaks

THIS MACHINE IS BRAND NEW AND UNUSED

Speeds of up to 600 vials per minute

Technical Details:

Number of test stations: 48

Closure: mechanical cam

Test method: vacuum and pressure

Product to test: 3ml glass vials

Detectable leakage: >10 microns

Noise: <75 dB(A)

Environmental conditions required: clean, dry, stable

Permitted humidity: 5 - 65% relative humidity

Temperature: 19 - 30 degrees C

Link to the description of the pressure and vacuum testing methods - https://www.wilco.com/technologien/leak-detection/differential-pressure/

Operation:

A transport belt carries the vials to the entrance of the machine

There is a rejection device for spilled vials on the transport belt

There is a stopper which holds (should a station be taken out of service) or lets the vials pass

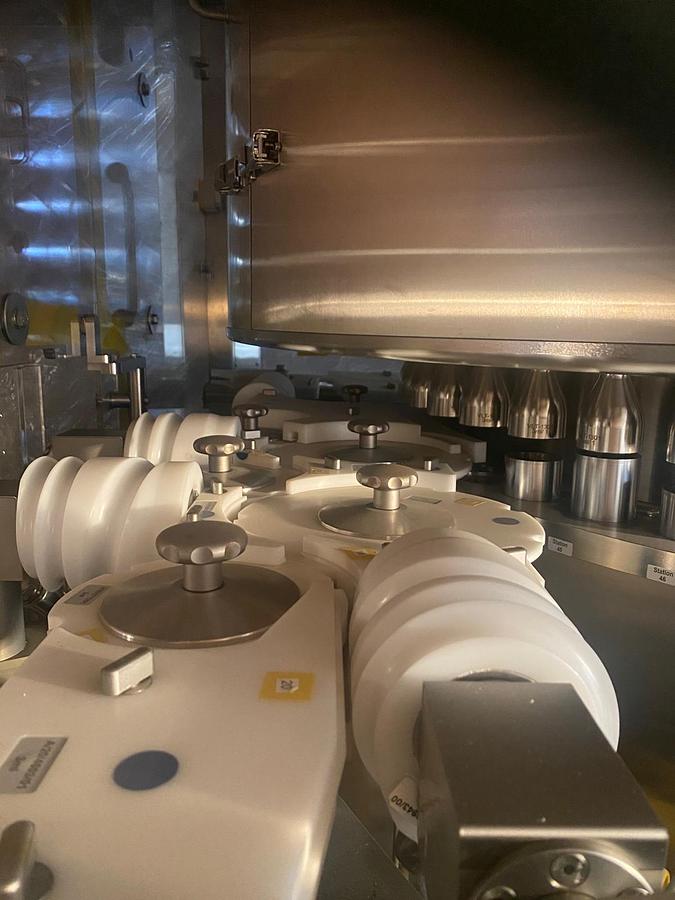

A screw infeed scroll transports the vial to the entrance star wheel

The entrance star wheel then transports the vial to the rotary table

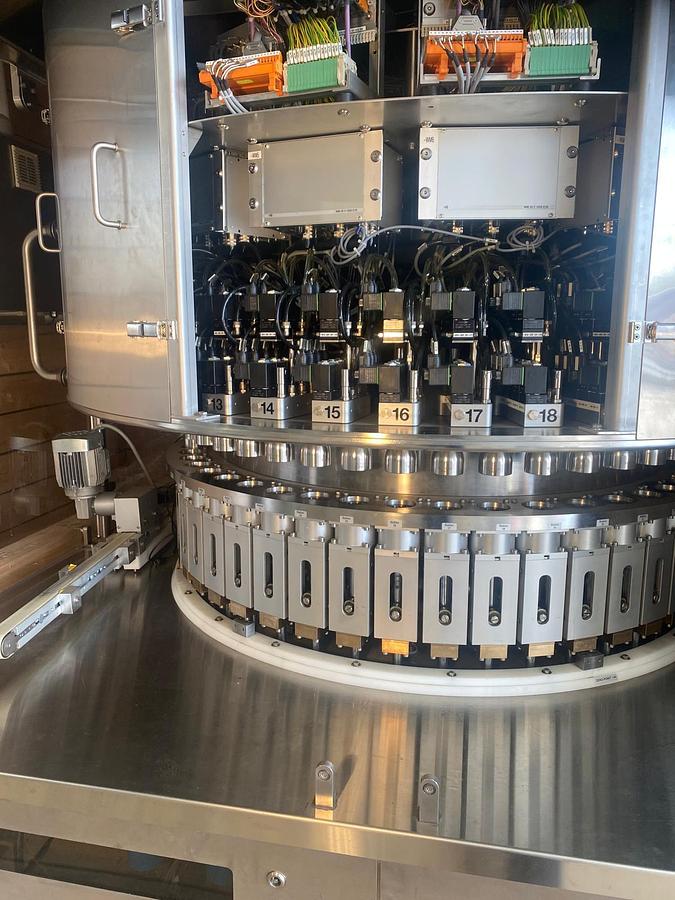

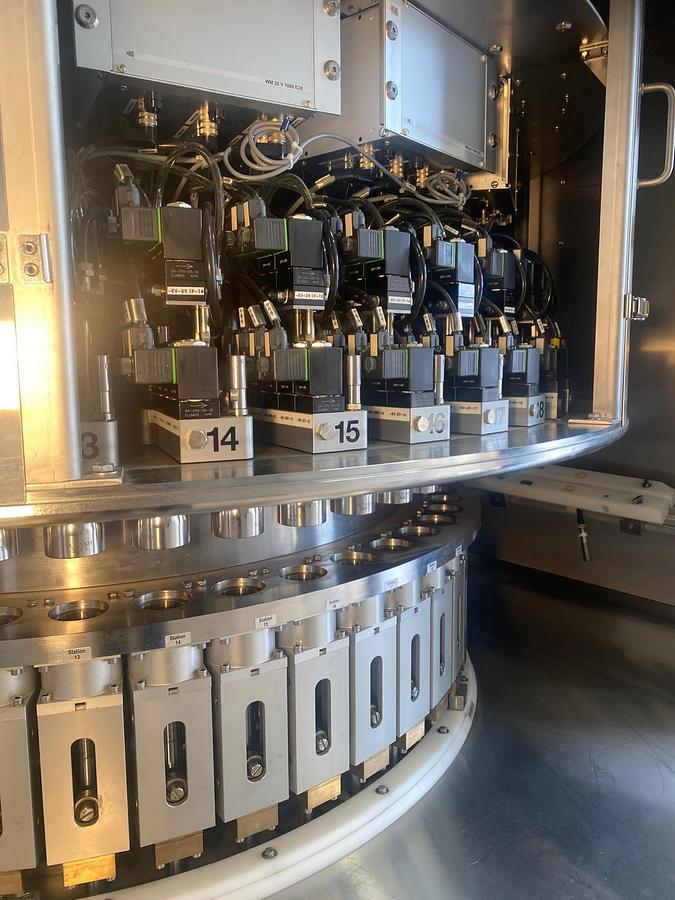

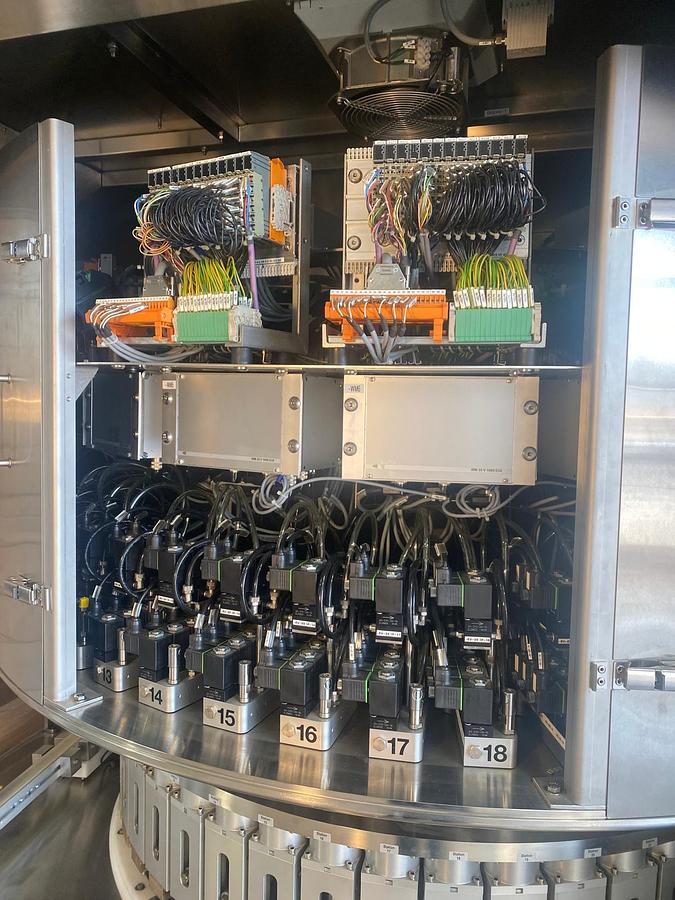

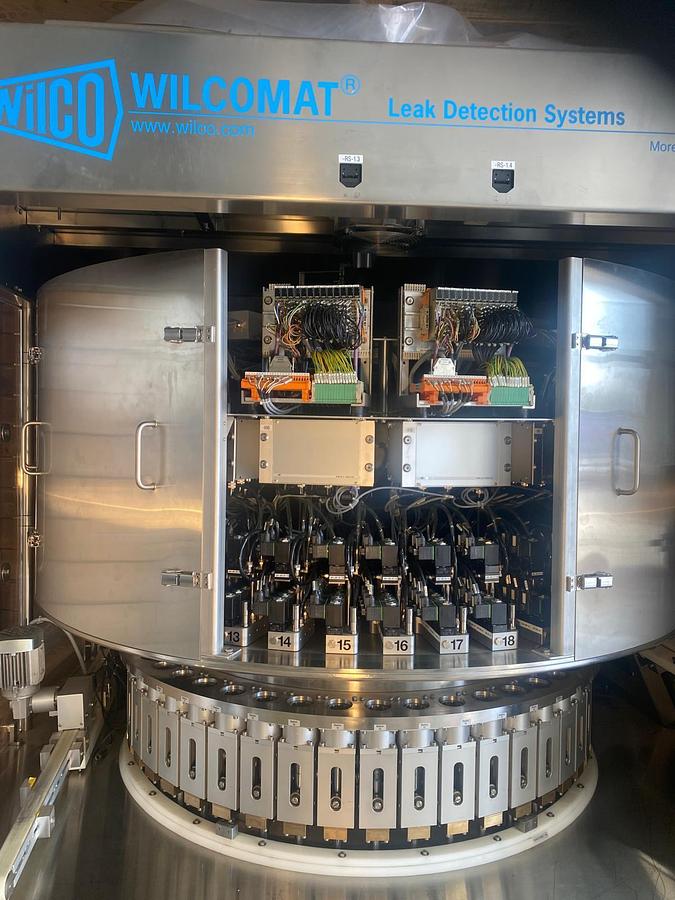

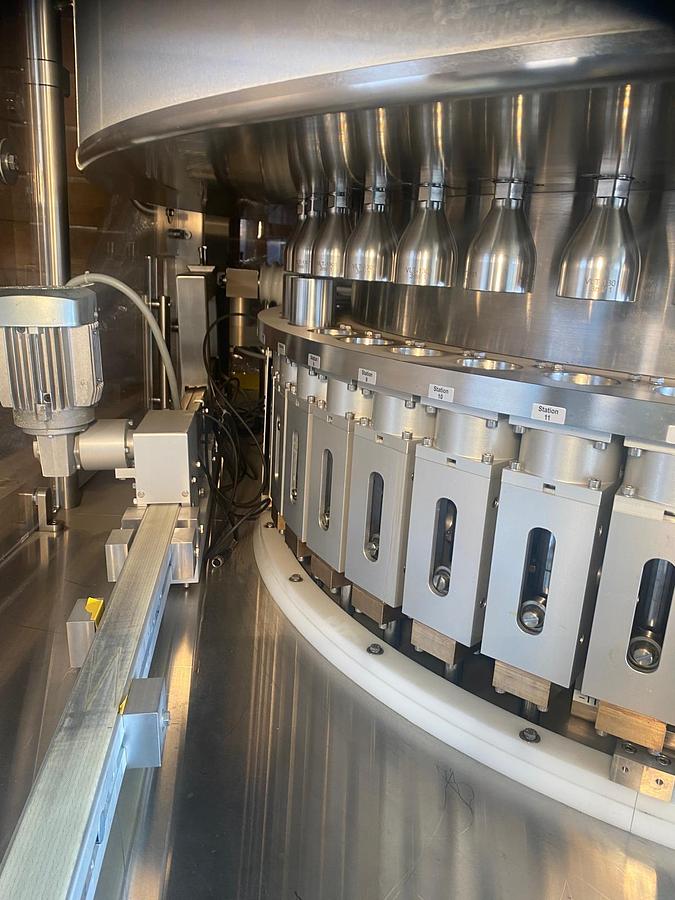

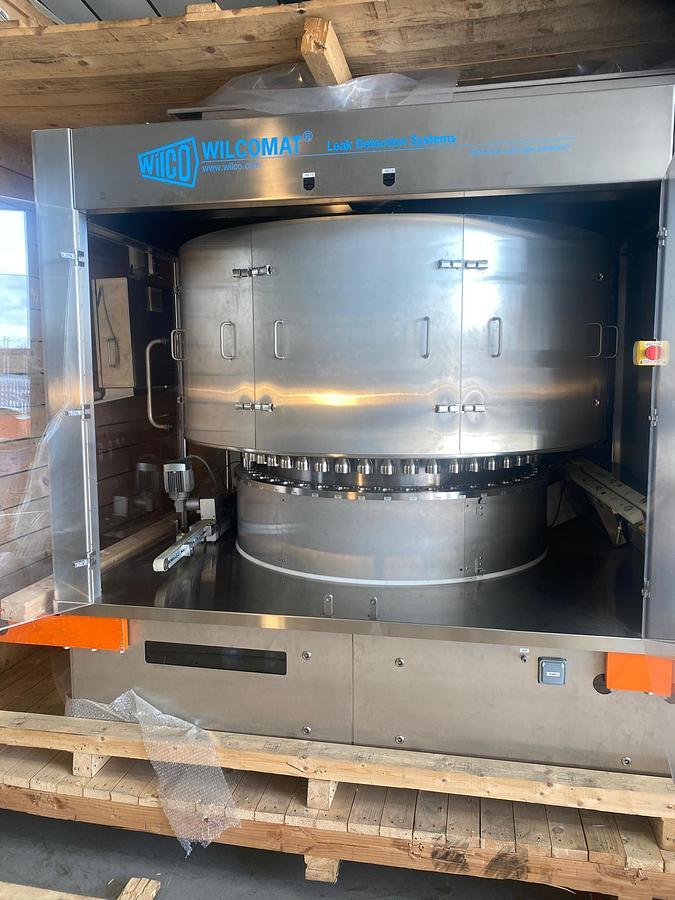

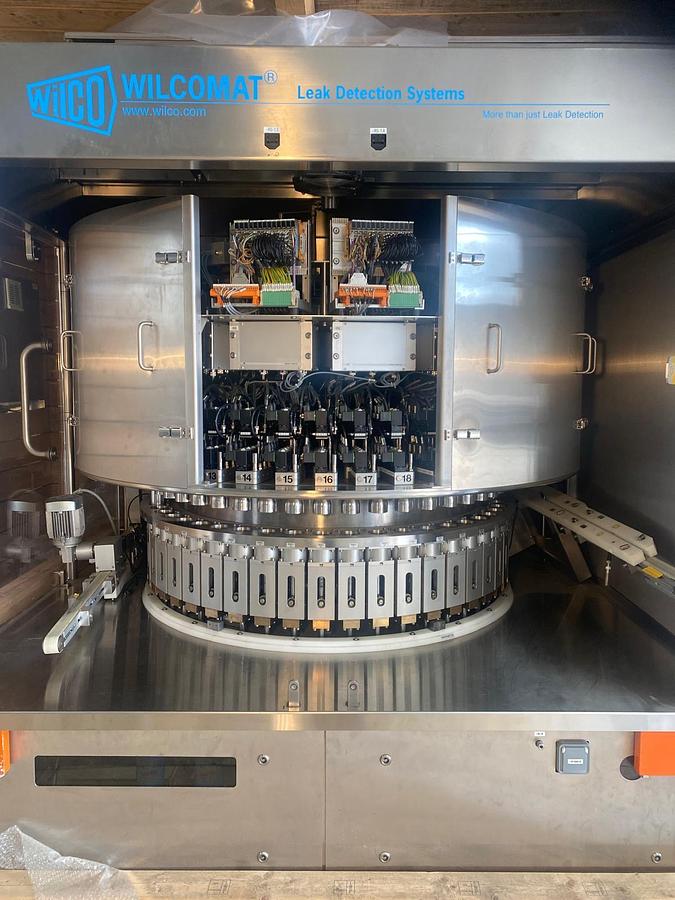

The rotary table has 48 identical test stations

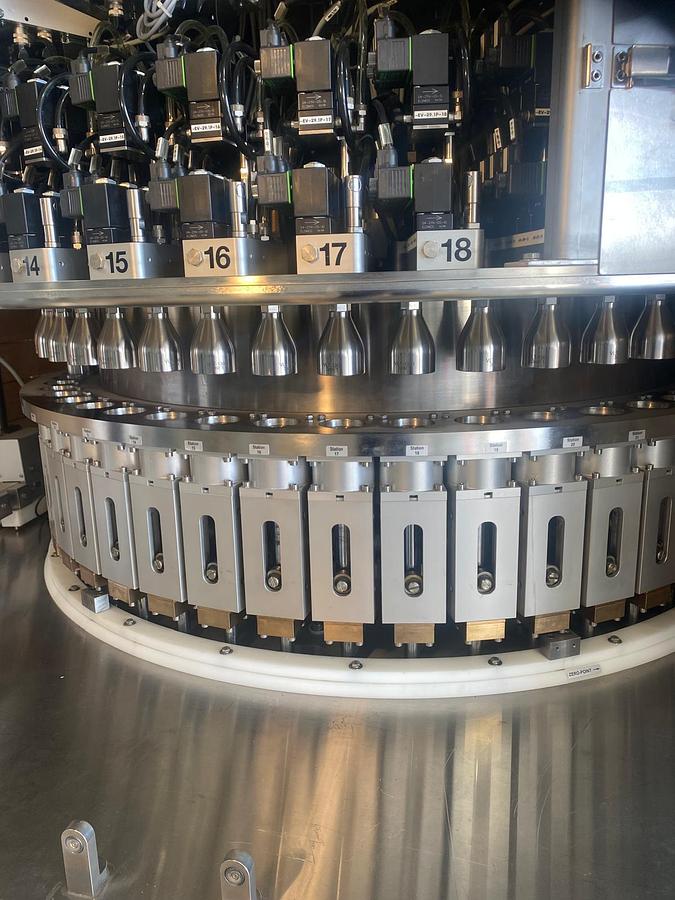

Each test station has a test bell

During the test the vial is sealed in the bell and a vacuum is created inside it

The output star wheel takes the vial from the rotary table

Sensors send the vial to the correct exit

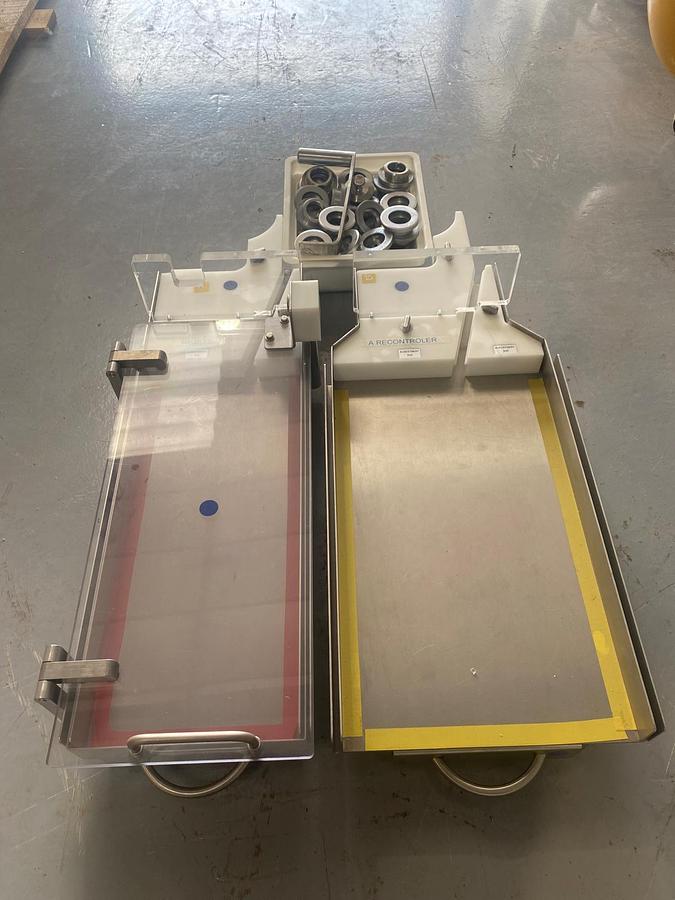

There are three exits: a “bad” drawer which has a lockable lid, a “retested” drawer, and a “good” exit

General Information

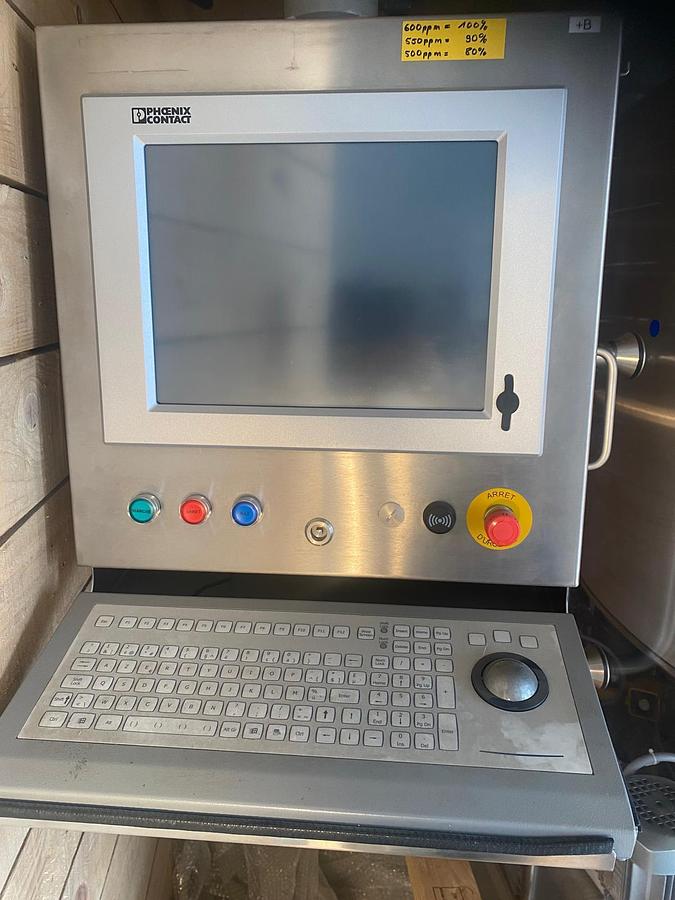

The machine has a touch screen which consists of several components: an industrial computer with a Windows Embedded operating system, the touch screen itself, and the WilOp software

Printing of test data is possible using a printer connected via the USB port. As the Windows XP embedded operating system is used, most printers with a printer driver for Windows XP embedded can be used

The machine has jog mode, a light beacon, two languages programmed which are English and French, and electronic user manuals in both languages

Other Machines in the Line

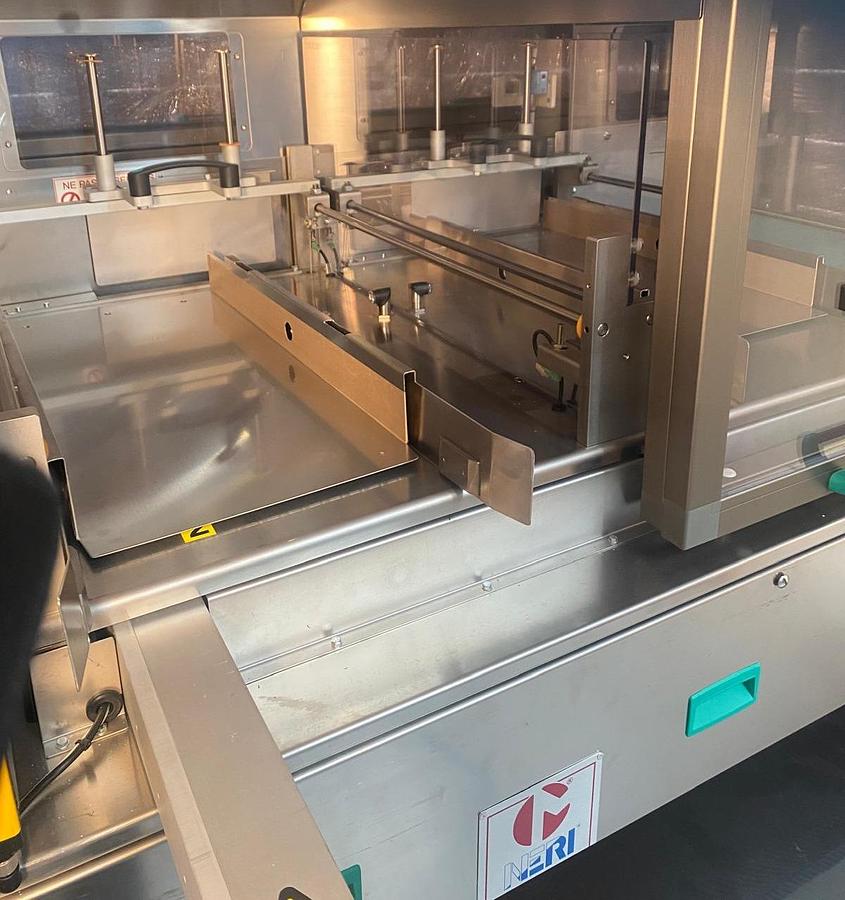

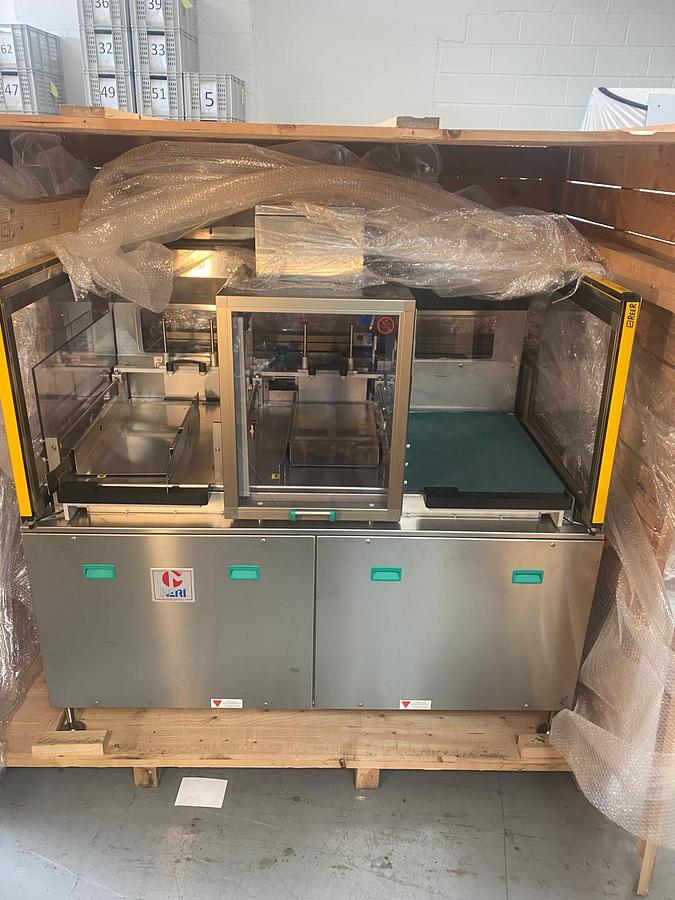

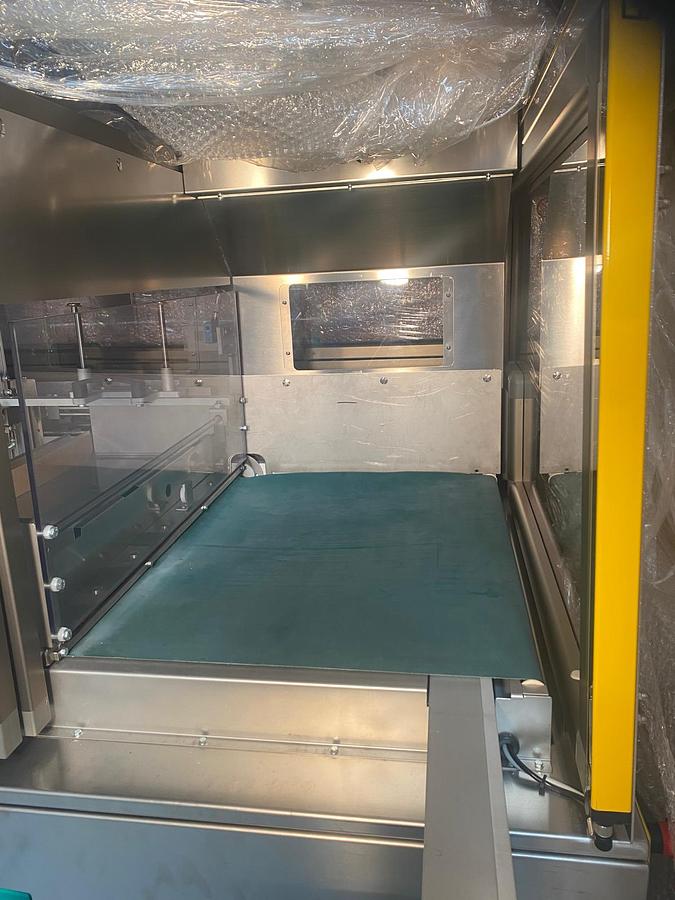

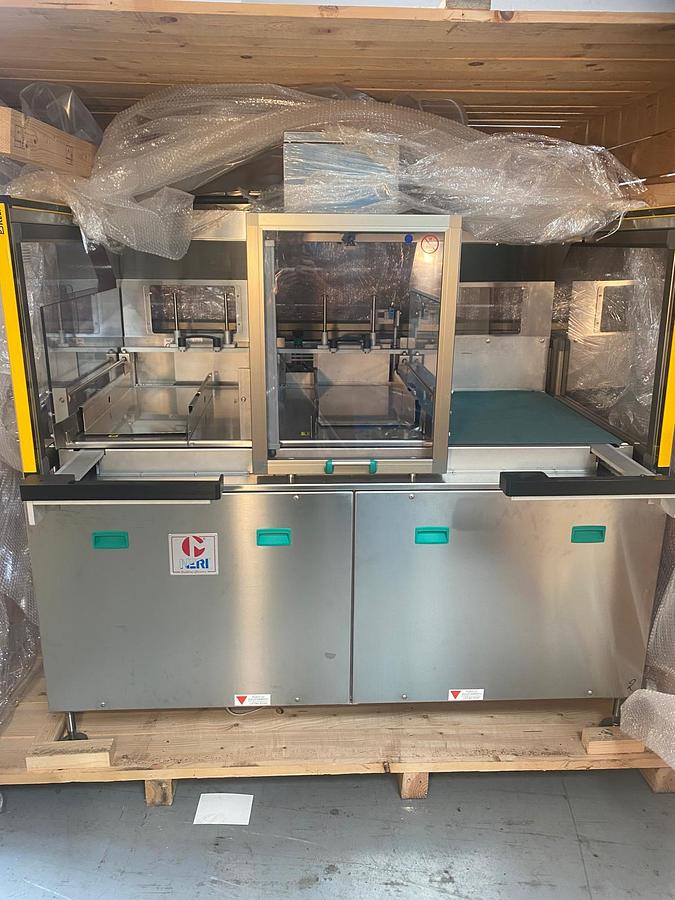

Marchesini Neri model TM3 automatic double tray loading machine (library photo attached) TM3 - Quick Delivery | | Marchesini Group

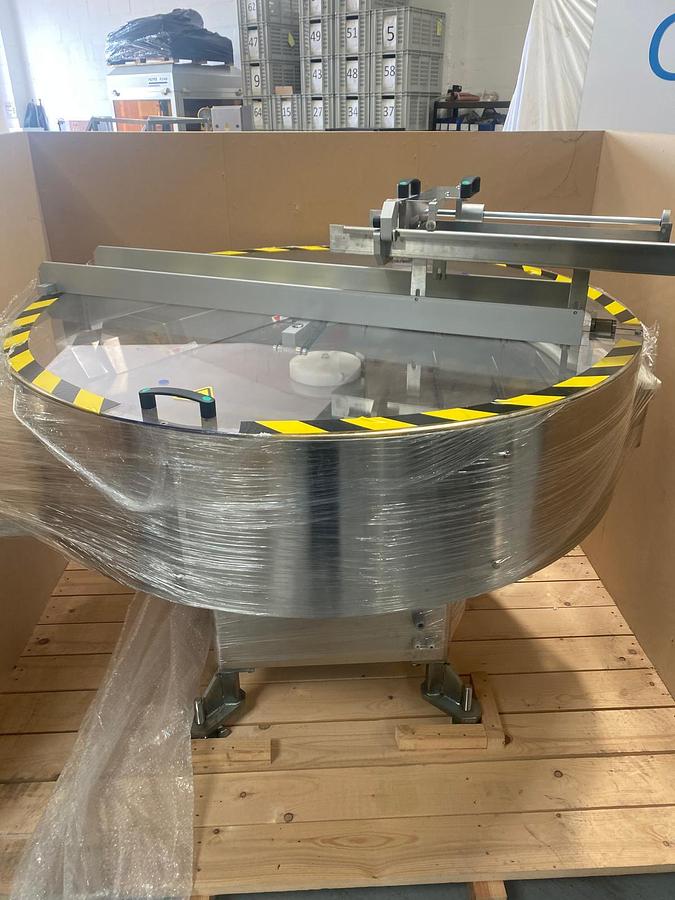

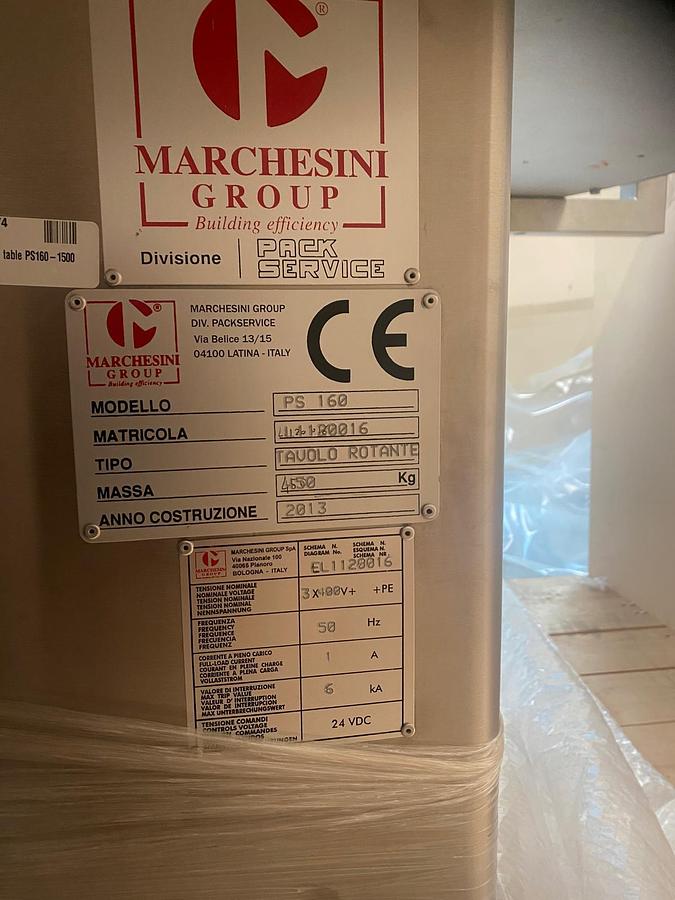

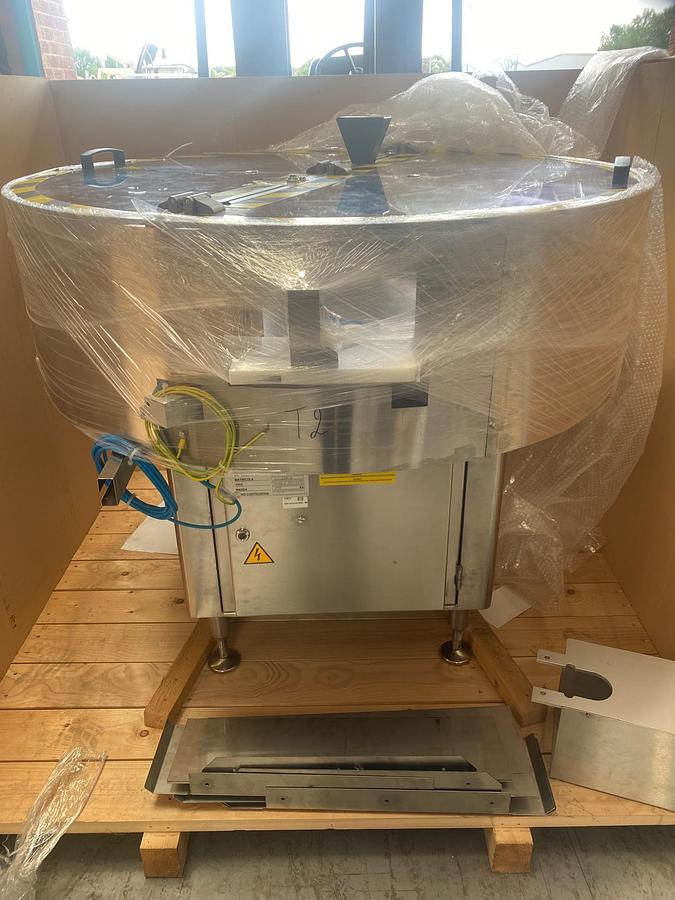

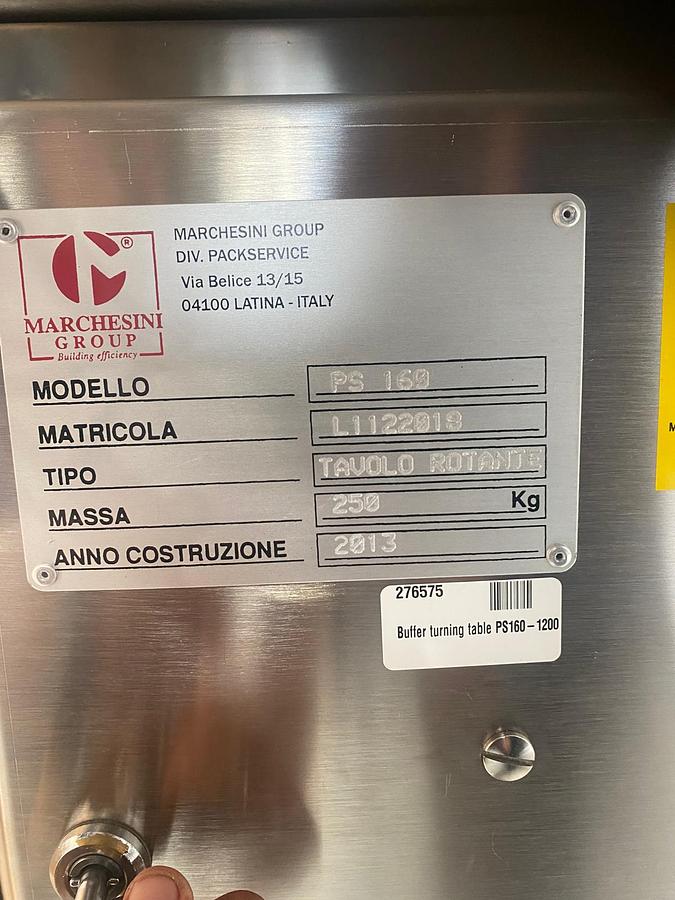

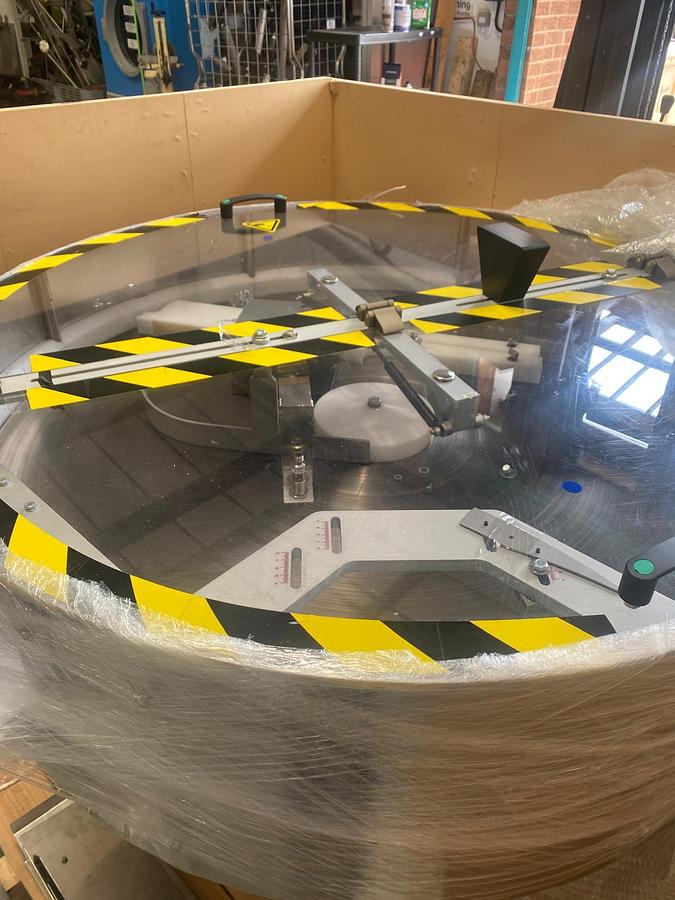

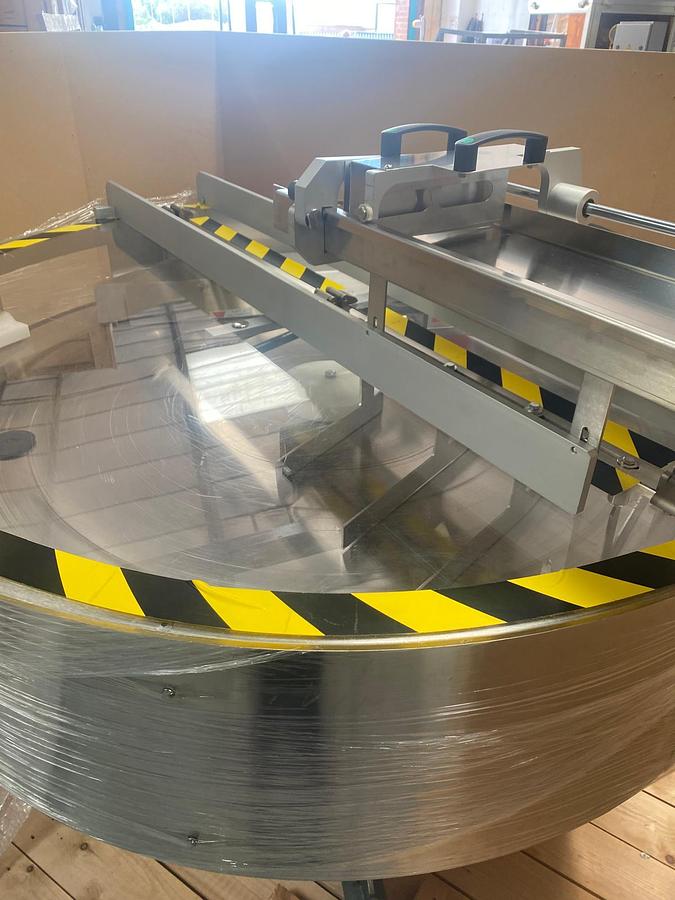

Marchesini Packservice model PS 160 rotary table

Marchesini Packservice model PS 160 rotary table

These machines were all manufactured in 2013 and are CE marked

The leak detector machine is also CE marked

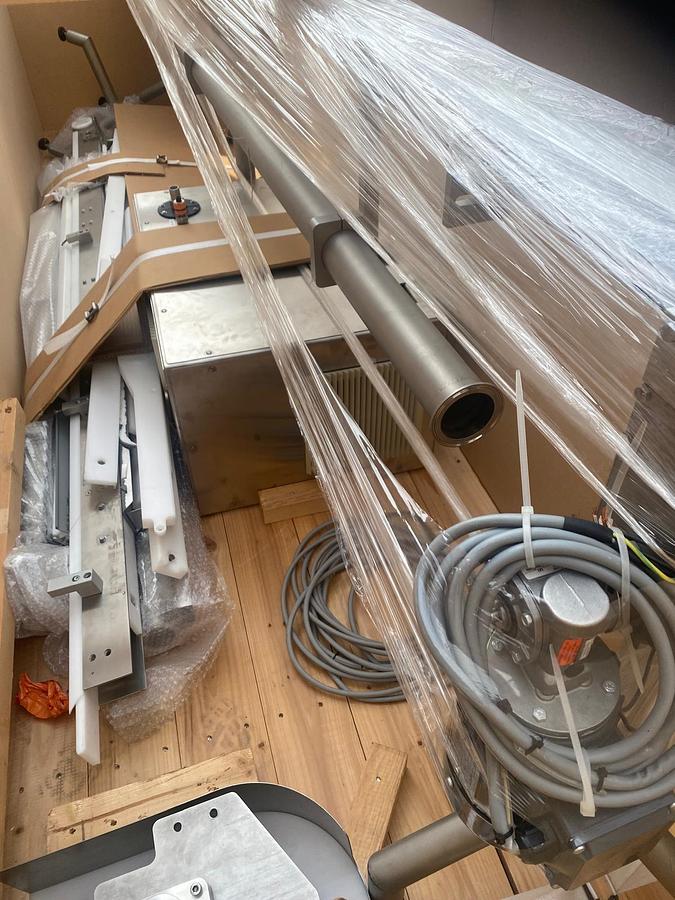

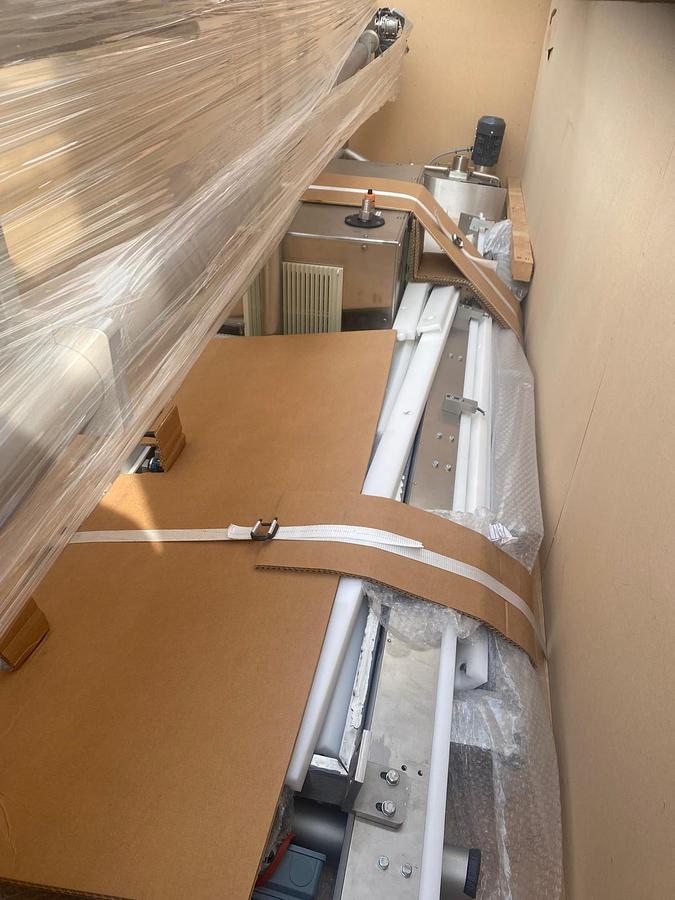

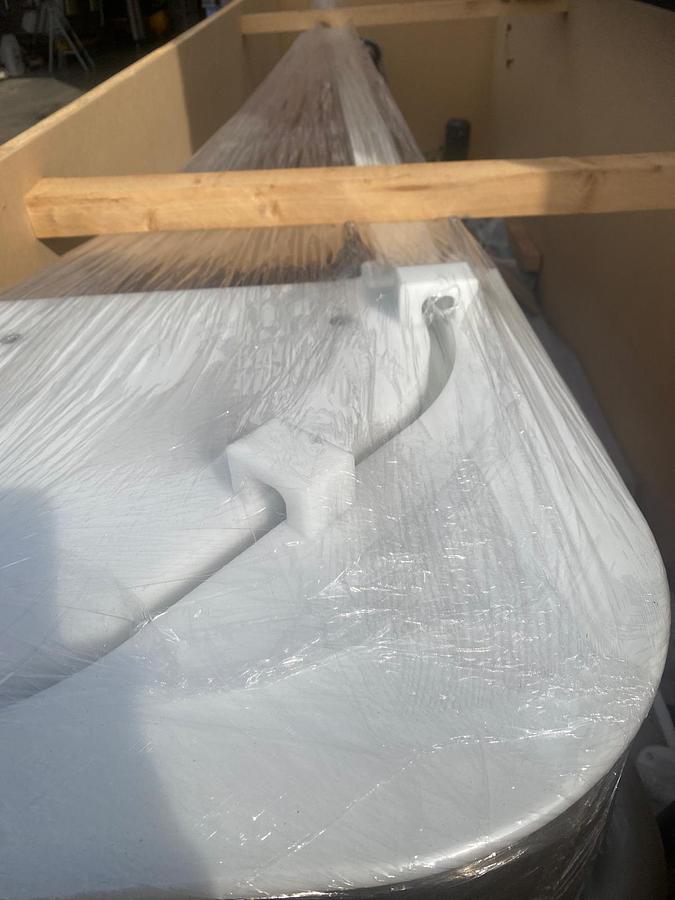

Condition: These machines are brand new, unused and still in the original packing cases
