IMA Zanasi 40F Capsule Filler


Contact us for price


Worminghall, United Kingdom

orCall +44 (0)1344 891379

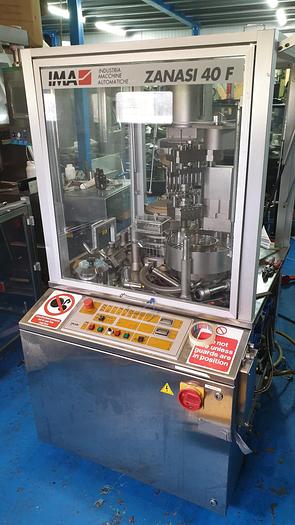

Reconditioned IMA Zanasi model ZAN 40F automatic capsule filler

OEM's suggested maximum output: 40,000 capsules per hour

Capsule change parts: Size 2 presently fitted, other sizes available at additional cost

Powder filling station: Dosator and piston (included)

Reconditioning Details:

Turret greased

Pneumatic rectifier and closing station pins replaced with new

Disassembled and cleaned from top to bottom

Manufacturer Details:

Zanasi are capsule filling machines able to dose powders, pellets, liquids and tablets into hard gelatin capsules. The powder and pellet dosing units feature dosators and pistons that move down in the powder bowl, picking up the product by means of vacuum. The liquid dosing group makes use of an extremely precise volumetric dosing system, finally the tablet dosing unit is fitted with feeding tubes and blades that transfer the tablets into the capsule body.

Main Characteristics:

Maximum versatility in terms of combined dosing of various products into the same capsules

Easy access to the working area

Low size changeover and cleaning times

Simple construction and ergonomic design

Electrical requirements: V 415, ATM 6, KW 8.5, A 16, HZ 50 (can be adjusted to fit required 3 phase needs)

Weight: 2,000lbs


ManufacturerIMA Zanasi
Serial Number44259
Stock NumberVE10036
