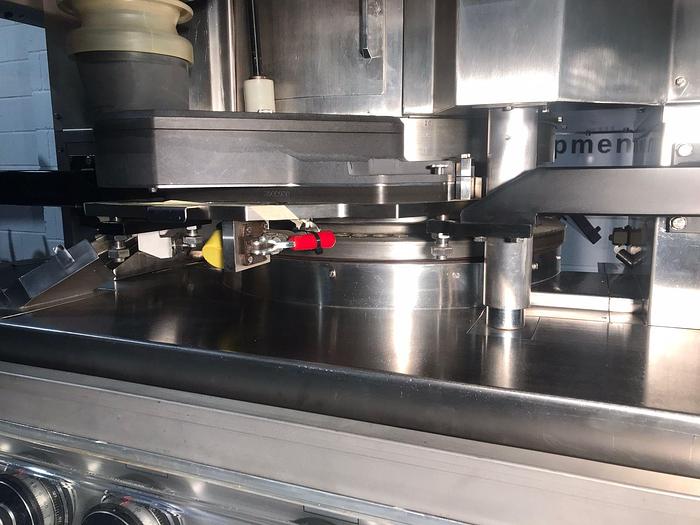

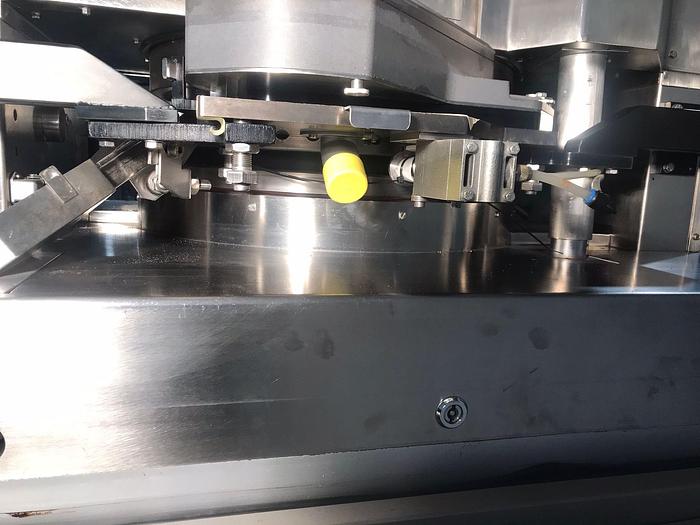

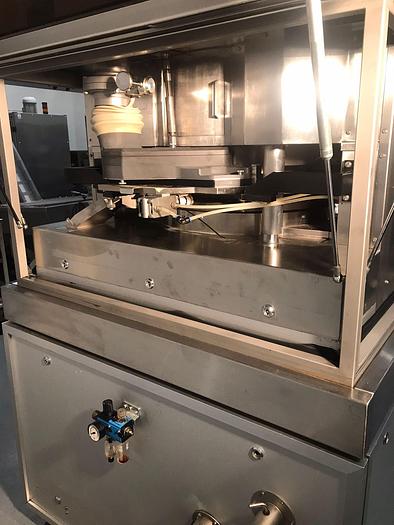

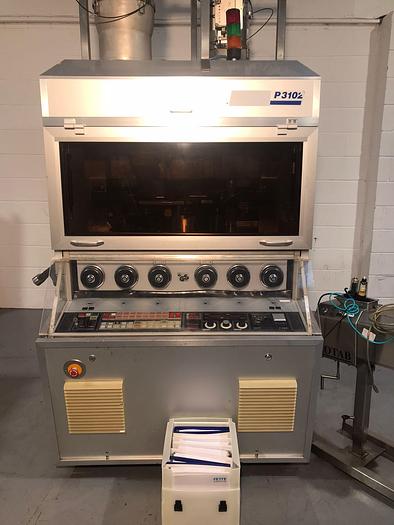

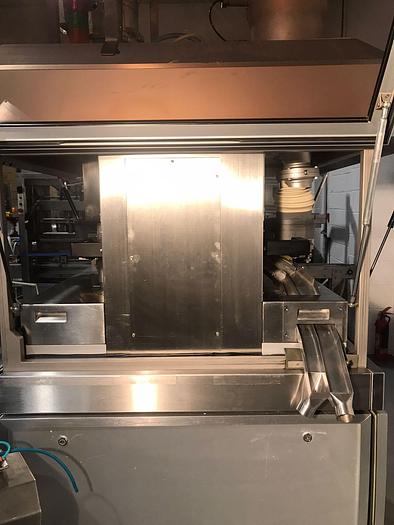

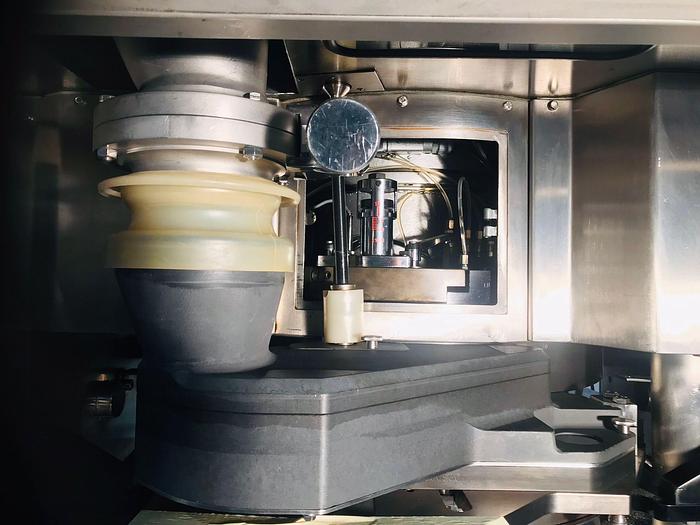

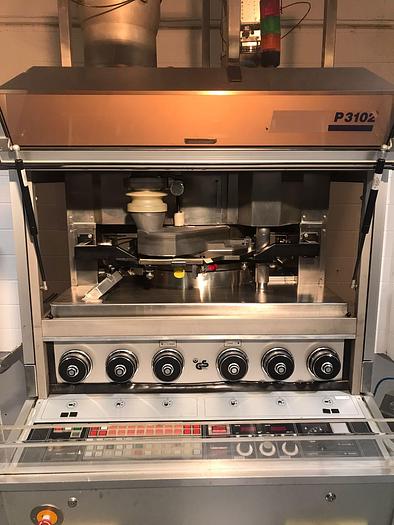

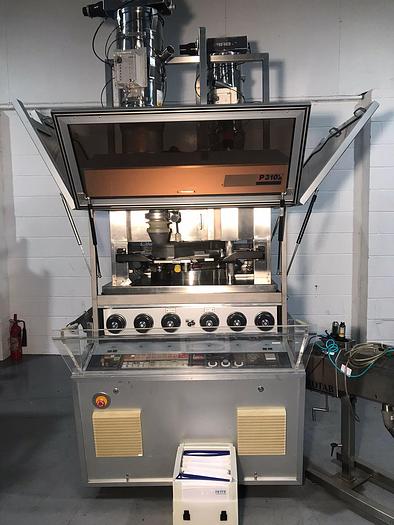

Fette P3100 Tablet Press

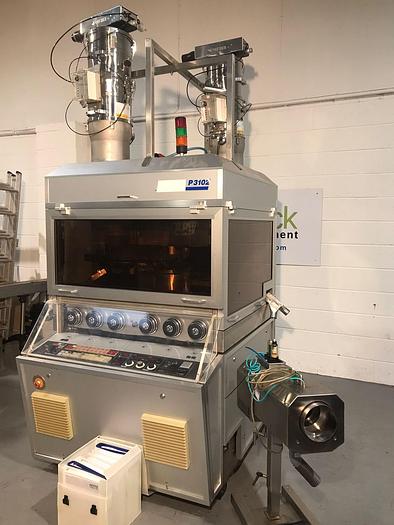

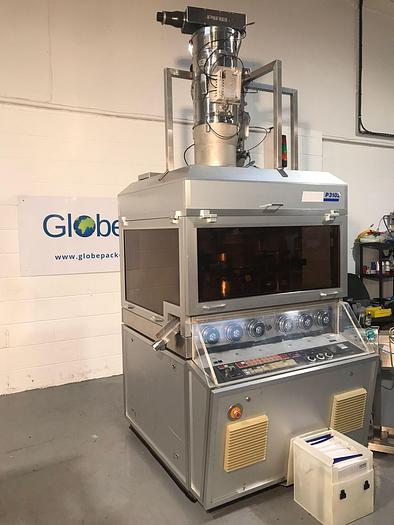

Fette model P3100 45 station rotary double sided tablet press

The Fette P3100 is a highly efficient, heavy duty industrial rotary double sided tablet press manufactured by Fette, a major German engineering brand known for pharmaceutical production machinery. It is designed specifically for the high volume production of a wide range of tablets

Depending on the configuration (such number of tooling stations), it can reach massive production outputs and is frequently utilised in large scale pharmaceutical, nutraceutical, and chemical manufacturing plants

Key information:

Production output: Up to 486,000 tablets per hour

Punch/Die type: EU-BB

Maximum tablet diameter: 13mm to 16mm

Maximum tablet thickness: 8.5mm

Maximum fill depth: 18mm

Upper punch entry: 2mm – 6 mm

Maximum compression force: 100 kN

Pre-compression force: 20kN

Die plate speed: 15-90 rpm

Upper punch body lubrication and keyed upper punch bores

Variable frequency drive

Emergency stop button

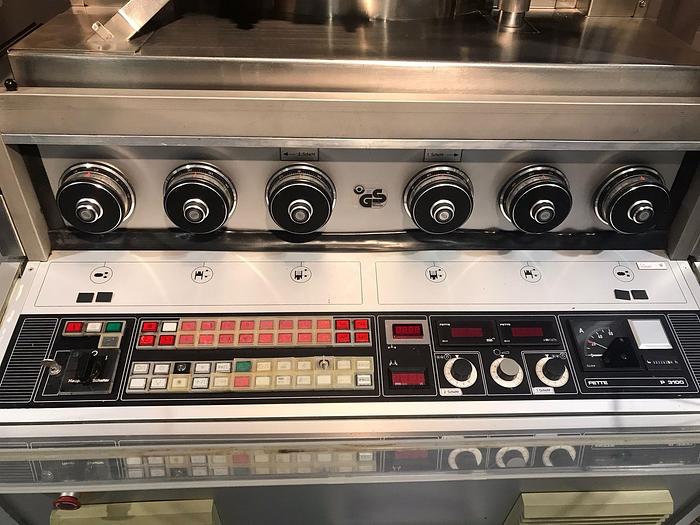

PLC info: EBERLE PLS 511S

21 CFR compliant

Checkmaster reporting system

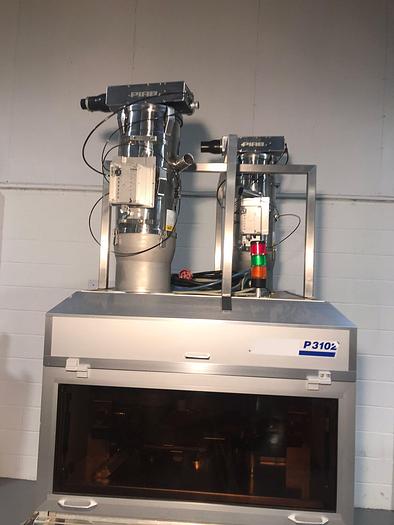

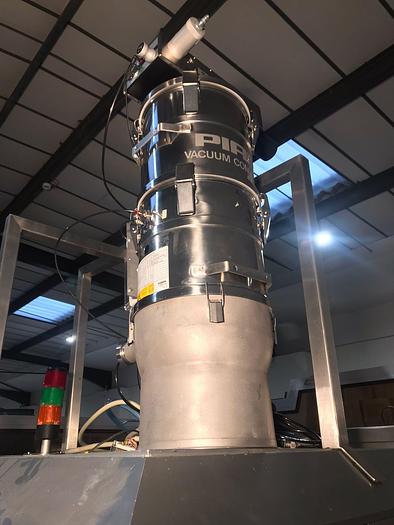

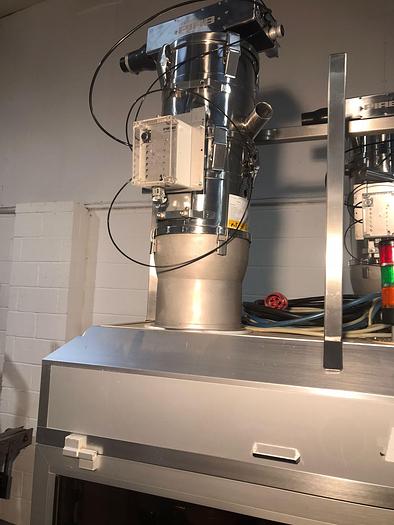

Two Stainless Steel Piab vacuum conveyors mounted on the top of the machine for delivering bulk product

Full safety interlocked guarding with hinged pneumatic panel guards

Integrated electrical cabinet with fixed transformer

Supply requirements: 415V 3Ph 32A, 6 bar air

Manuals in English/German (operators, electrical, datacontrol, Piab system)

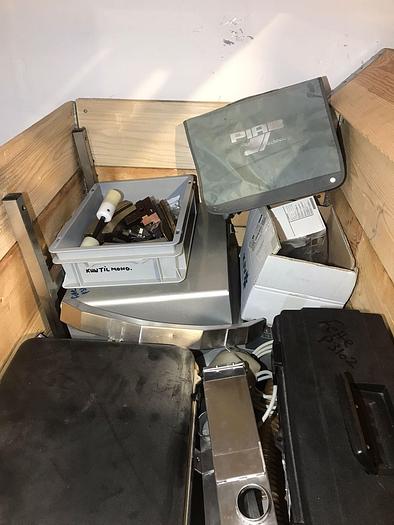

Comes with Rotab deduster, a data control unit plus some spare parts

Machine size: 1650mm x 1600mm x 2900mm high (with vacuum units fitted or 2000mm high without them), approx. weight 3,750kg

Condition supplied: cleaned, checked and tested dry cycling
