Mediseal (Klockner) CP200 Blister Packer


Contact us for price


Normanton, United Kingdom

orCall +44 (0)1344 891379

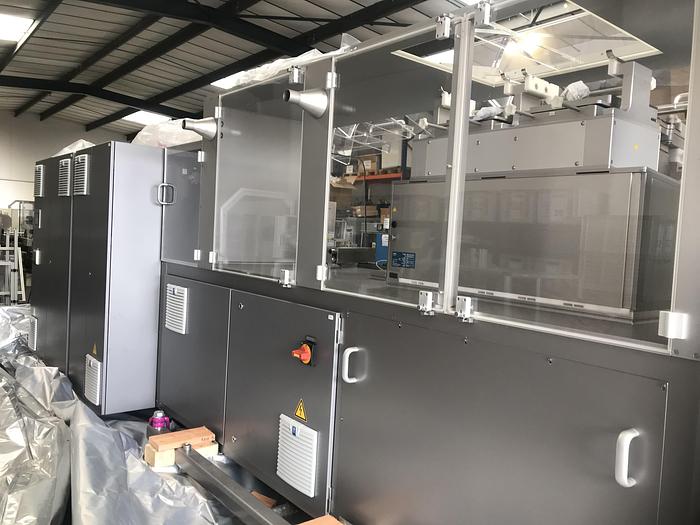

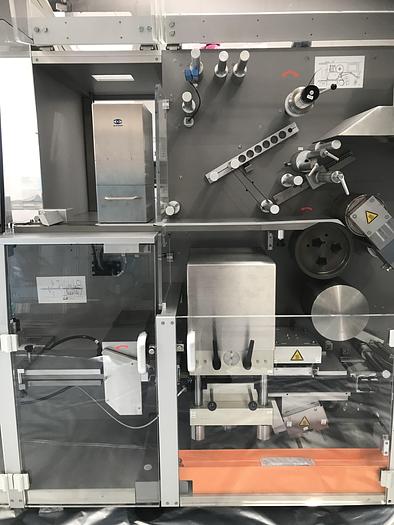

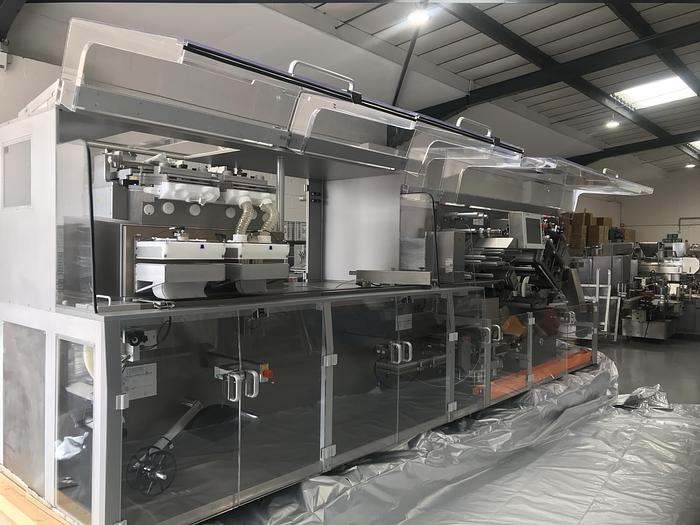

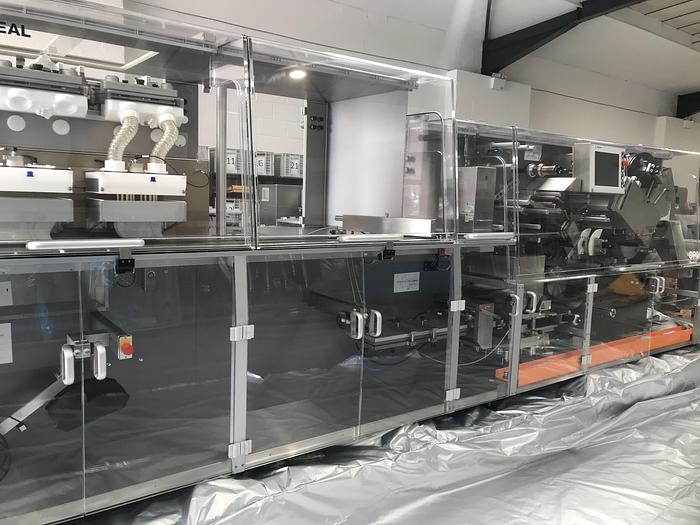

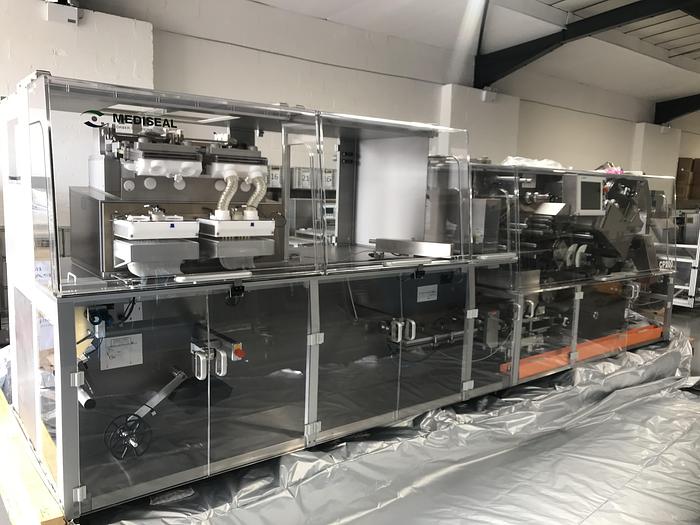

Mediseal model CP200 blister packing machine

Very compact machine of balcony construction with minimum space requirements and an output of up to 300 blisters per minute.

With a format change over time of less than 30 minutes, this machine has been specially developed for efficient packaging of smaller lot sizes and clinical trials


Key Information:

Balcony construction

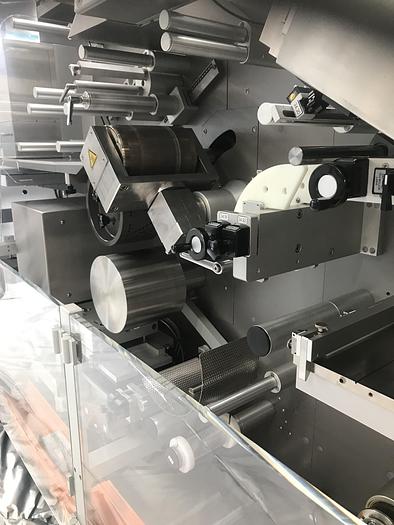

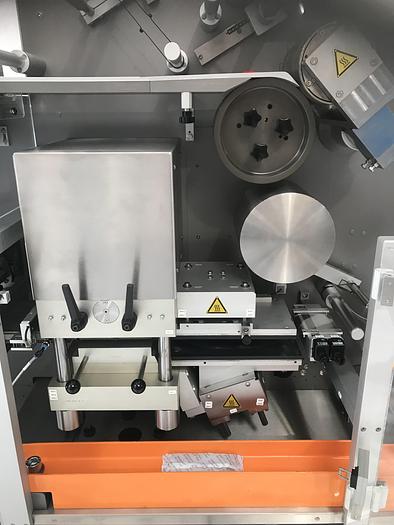

Roller sealing

Output of up to 300 blisters per minute (dependent on product, material, and blister size)

Full set of manuals

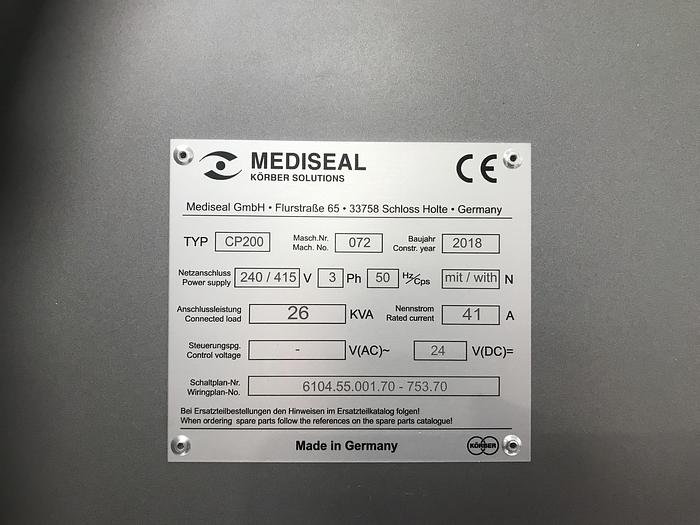

Power supply: 230/400V, 3 phase, 50 Hertz, neutral conductor


Format Range (1 Lane):

Web width maximum:  160mm

Draw-off length forming:  170mm

Draw-off length punch:  110mm

Blister size minimum:  30mm x 60mm

Blister size maximum:  107mm x 150mm

Forming depth maximum:  12mm



Basic machine CP200 with roller sealing

Single wire marking

Pneumatic hose labelling

Extension of the dosing area

UPS for controls

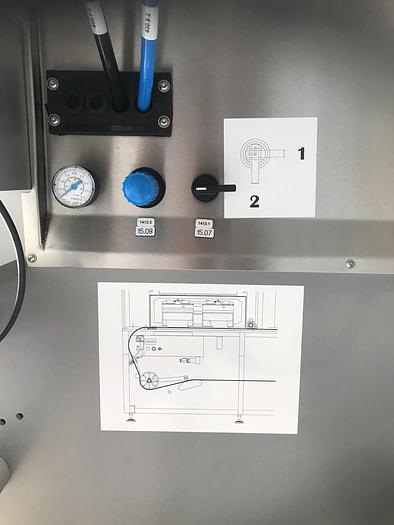

Pneumatically driven plug assist unit for thermoforming station

Motor-driven perforation adjustment

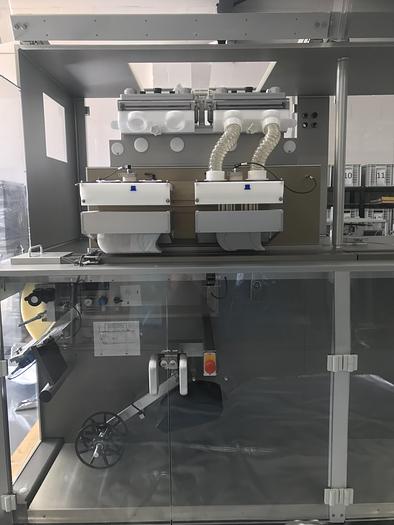

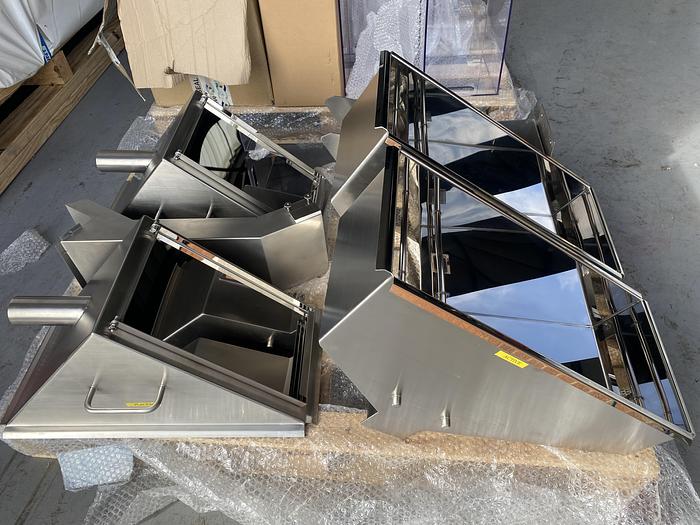

Feeder Sypro Dual 200-2F

2 off Sypro vibratory linear bulk product

Integration HMH

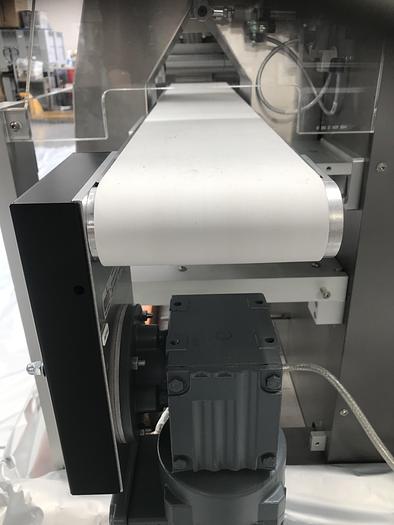

Exit conveyor for solo machine

Filling control colour, Eco

Print registration for roller sealing

Sealing force monitoring (roller sealing)

3-colour warning beacon

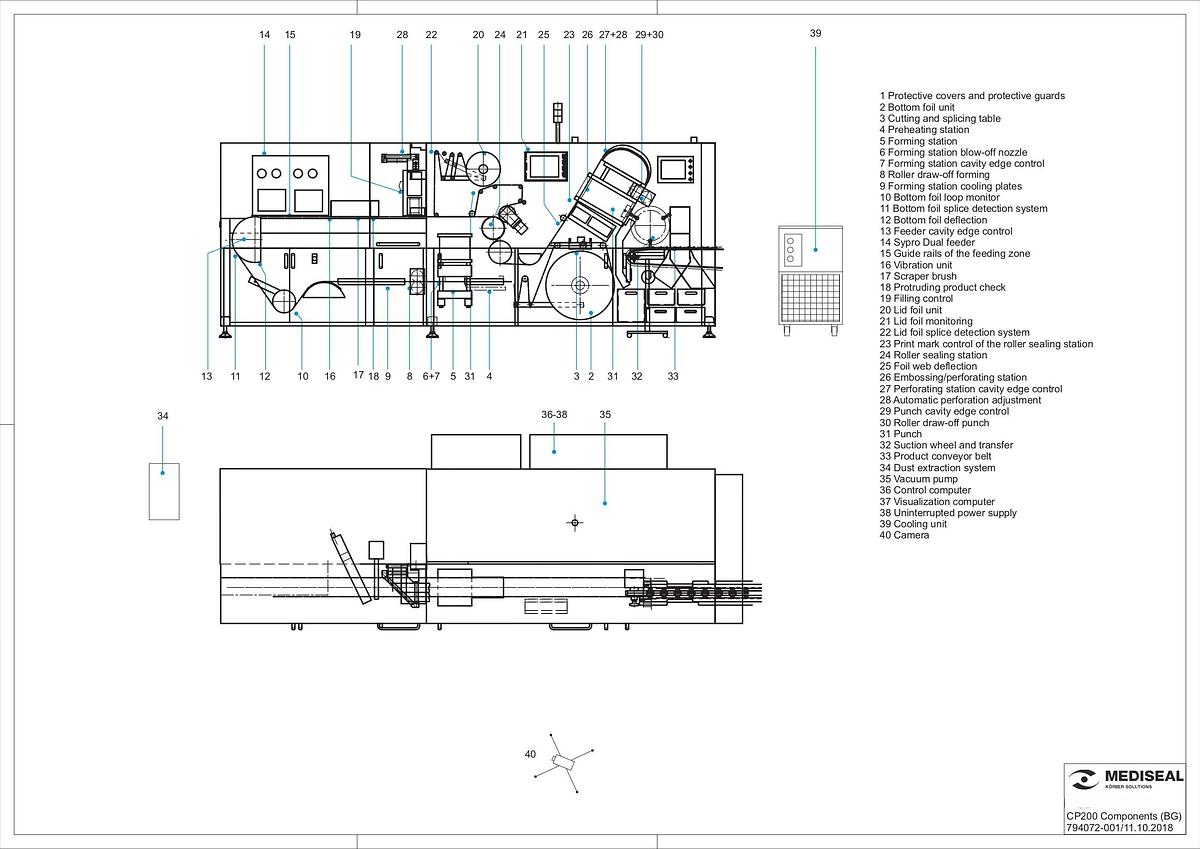

Machine size: 5.5m x 1.7m x 2.5m high, weight 4400kg


This machine was previously used in the Pharma industry and is in like new condition, it has been deep cleaned with cleanliness certificates available on request

Water chiller KB56 and extraction unit available on request at additional cost

NOTE: No tooling is included with this machine, if there is any showing in the photos it has since been removed


Condition: Excellent, like new


ManufacturerMediseal (Klockner)
Serial Number072
Stock NumberGP10137
