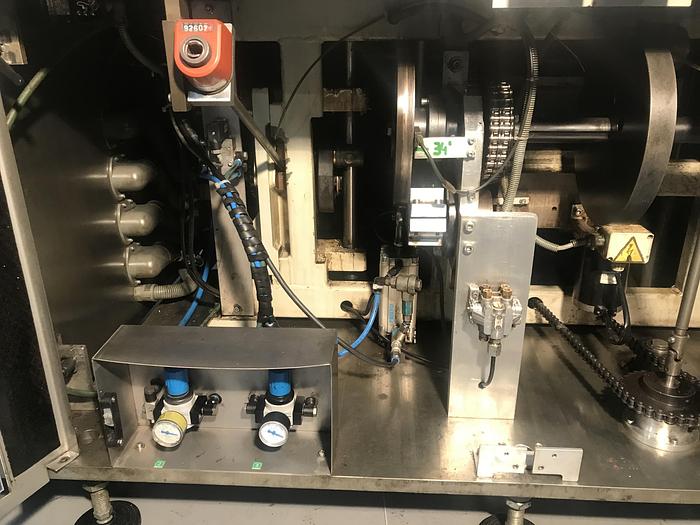

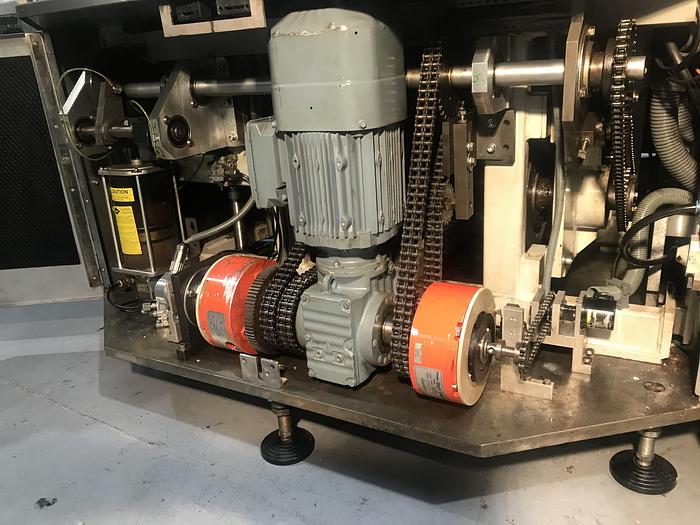

Kalix KX1101 Metal Tube Filler

Price

Contact us for price

Location

Normanton, United Kingdom

Description

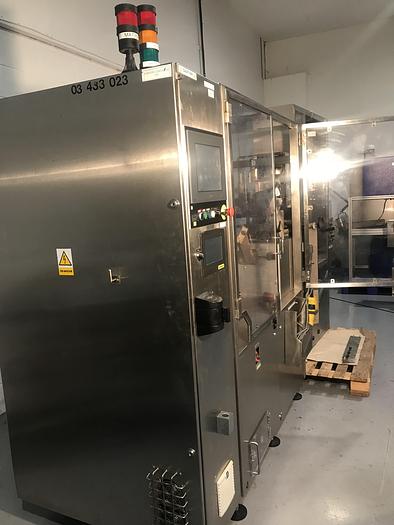

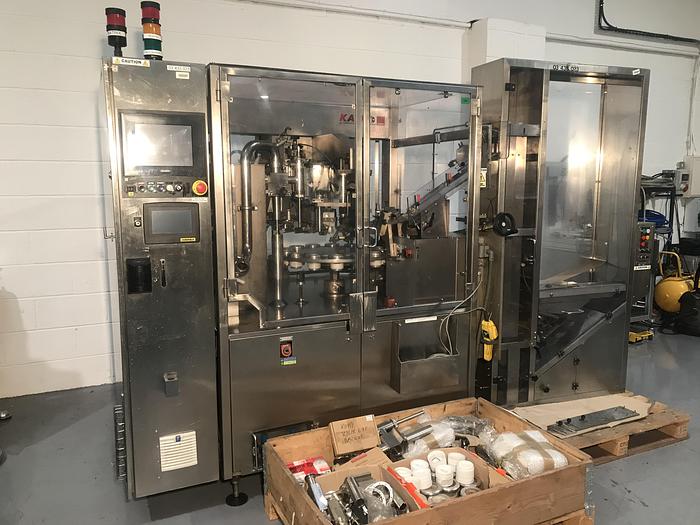

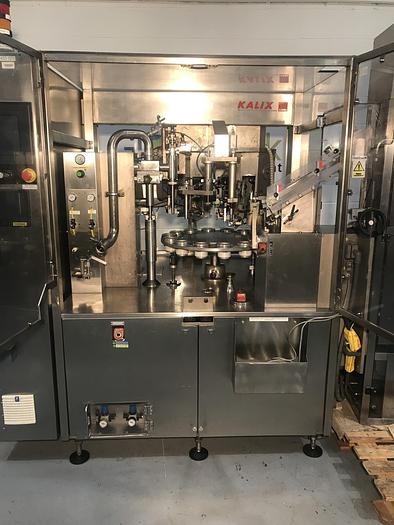

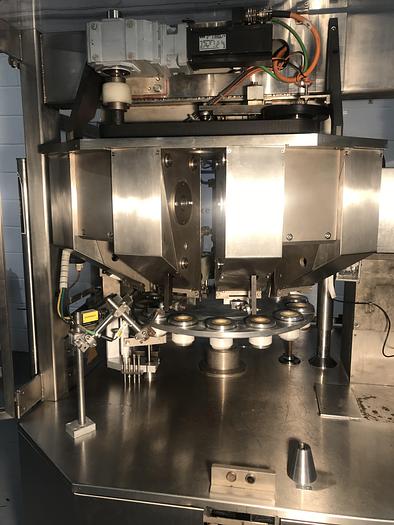

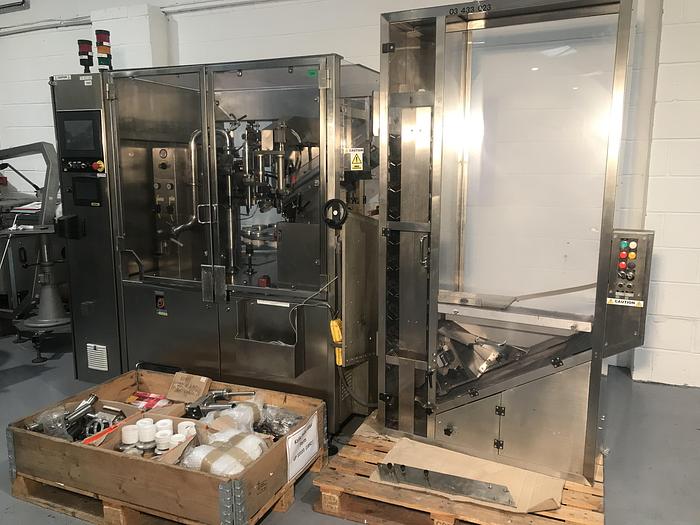

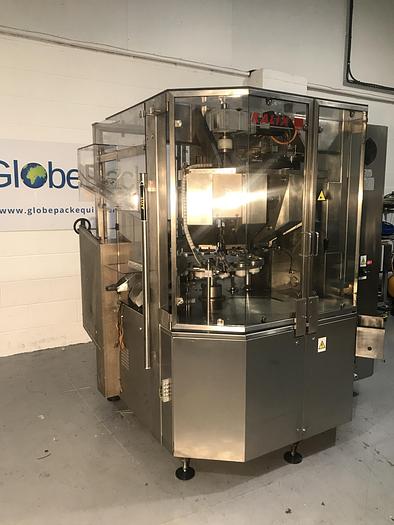

Kalix model KX1101 fully automatic 14 pocket metal tube filler.

All stainless steel construction.

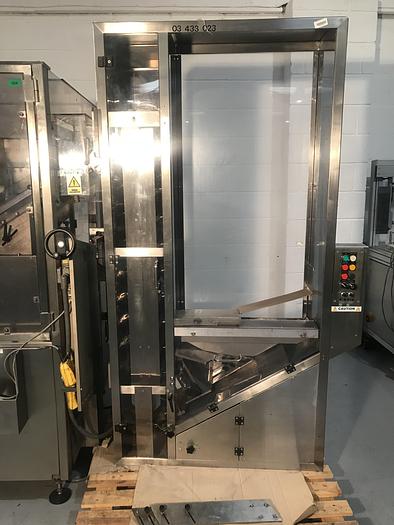

Comes with Kalix auto-cassette bulk empty tube feeding system.

Factory rated with an output of up to 100 tubes per minute depending on tube size and product viscosity (last run at 85 tubes per minute).

Tube diameter range: minimum 5mm to maximum 50mm.

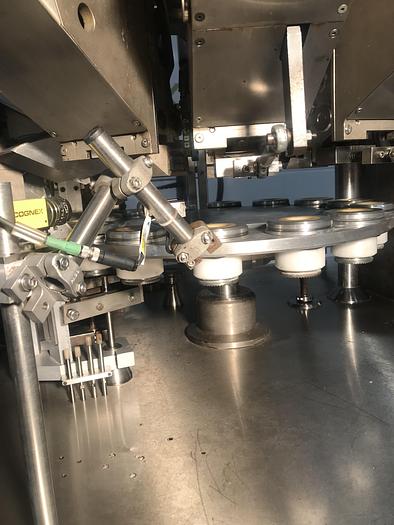

Tube orientation system controlled by a visual sensor.

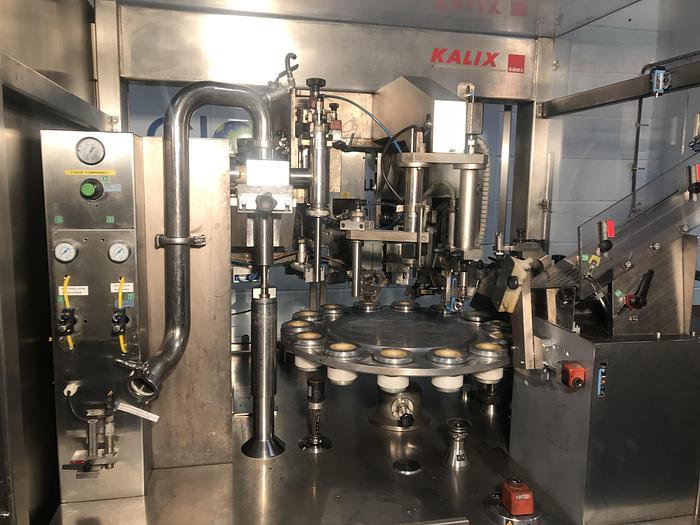

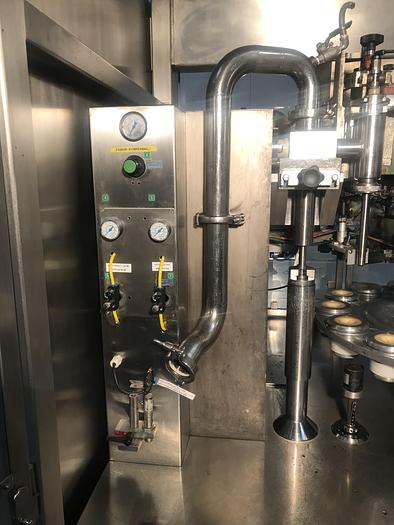

Volumetric piston with Stainless Steel rotary valve filling system.

Positive shut off nozzle for anti product drip.

Tube discharge chute.

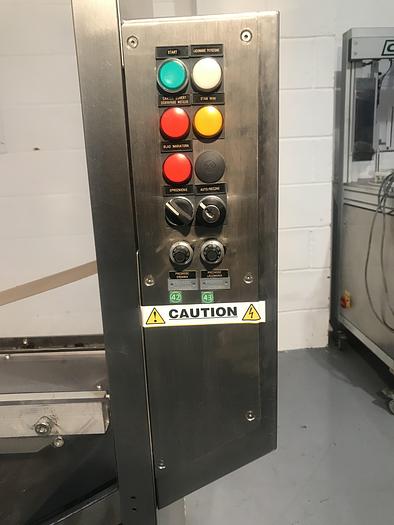

Emergency stop button.

All product contact parts are in 316L Stainless Steel.

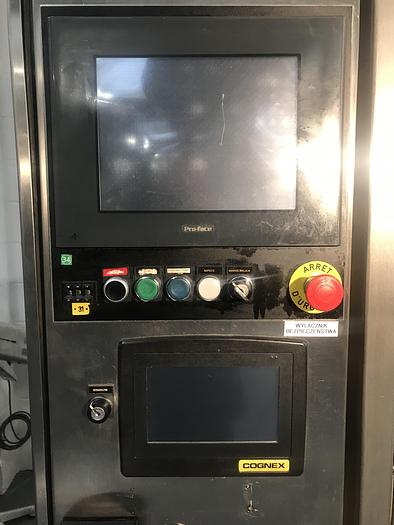

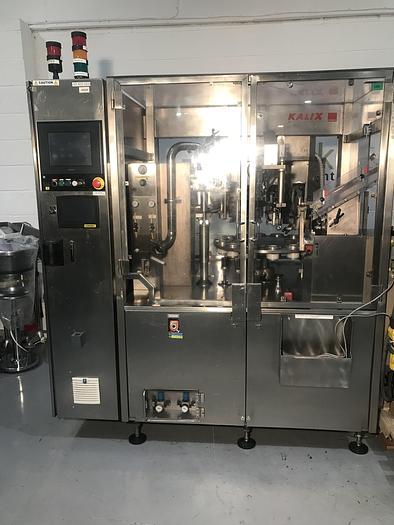

Kalix touch screen control panel.

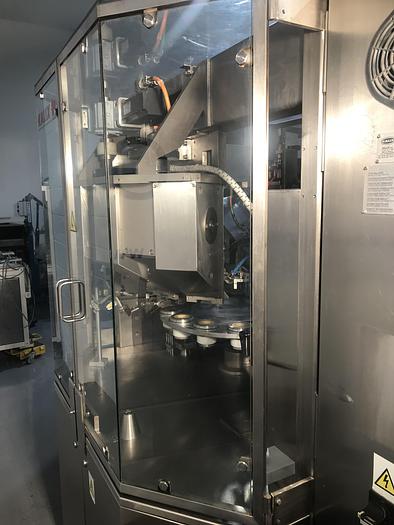

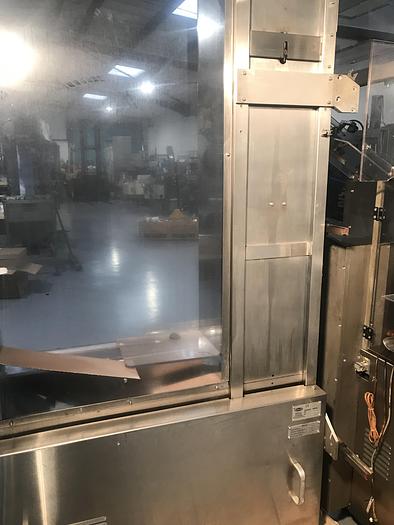

Fully guarded with hinged doors and safety interlocks.

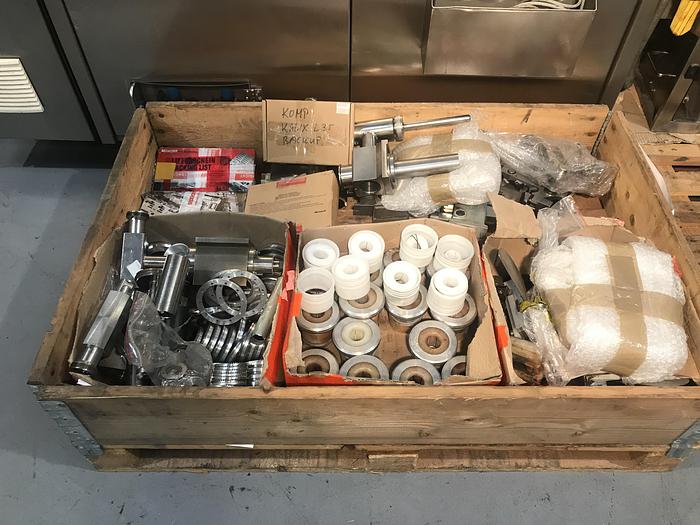

Comes complete with one set of change parts/cup holders for 30mm diameter tubes (located on the machine).

No hopper available as the machine was previously fed from a pump.

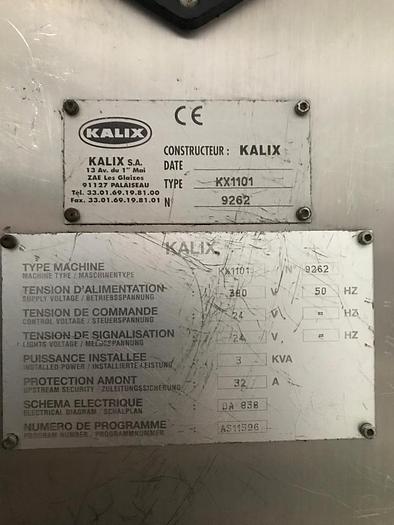

Services: 380 volts, 50 Hz, 3 phase supply.

Sizes:

  • filling machine 2200mm x 1600mm x 2300mm high, approx. weight 1350kg
  • cassette feeder 1200mm x 700mm x 2000mm high, approx. weight 350kg

Condition: cleaned, checked and tested dry cycling

Specifications

ManufacturerKalix
ModelKX1101
Year2002
ConditionUsed
Serial Number9262
Stock NumberGP10103
