Noack DPN 760 Blister Packer


Normanton, United Kingdom

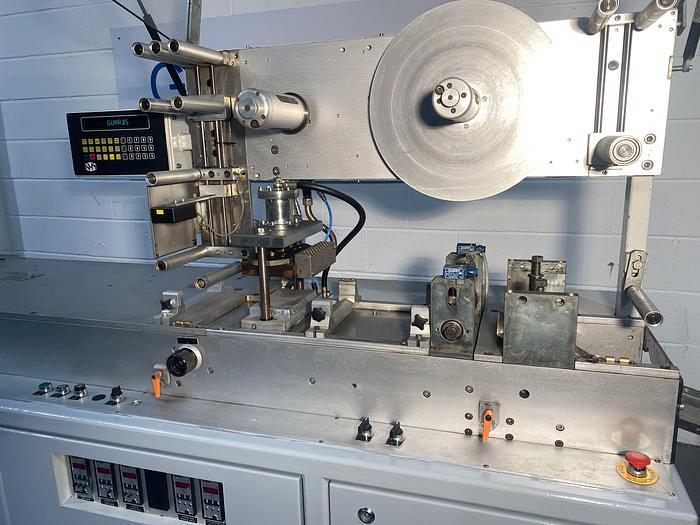

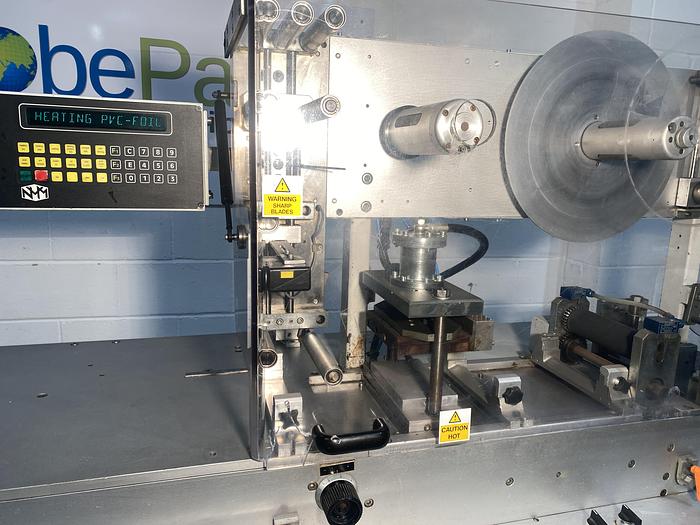

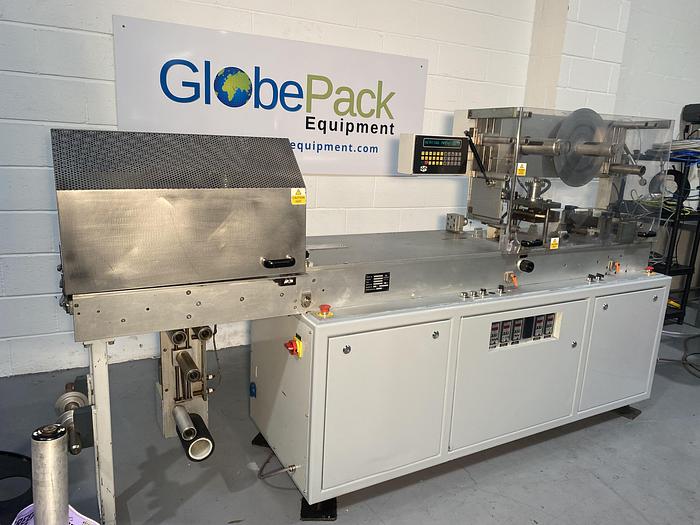

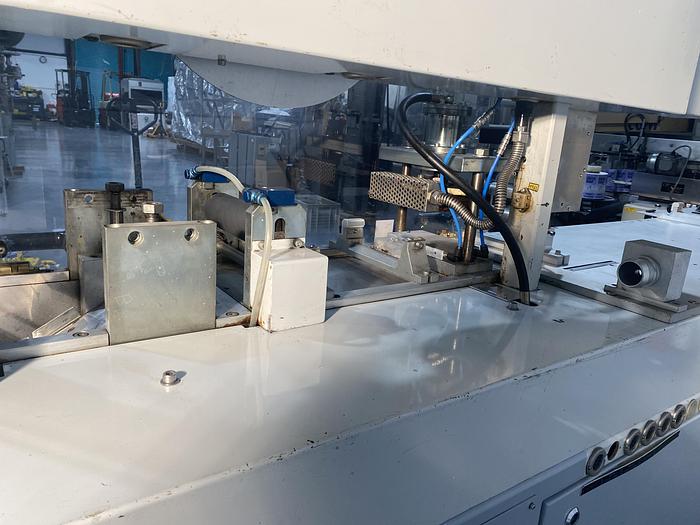

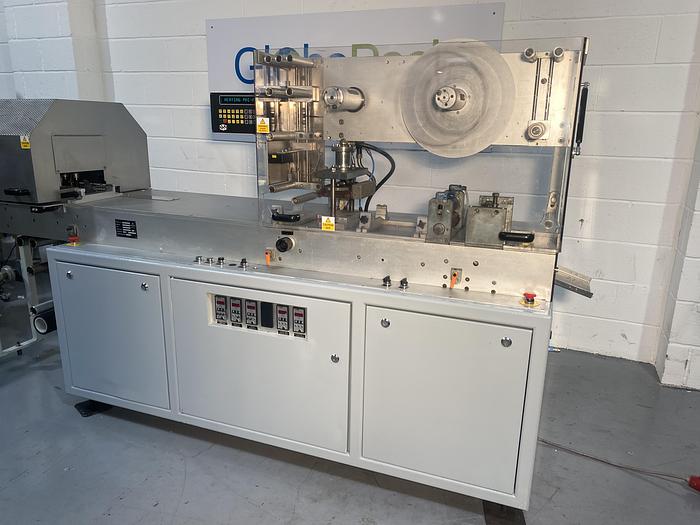

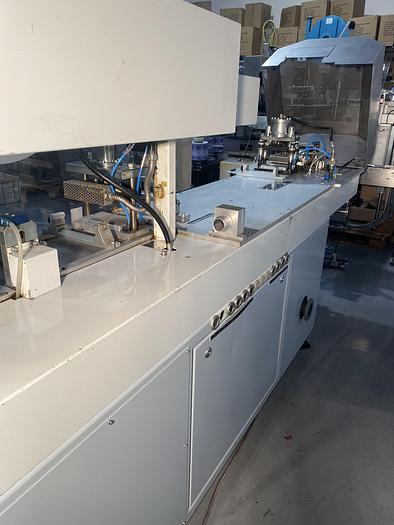

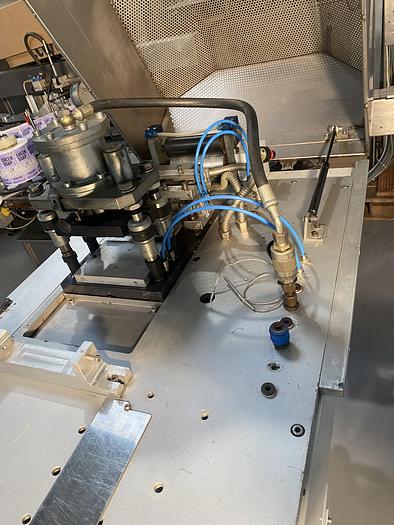

Noack model DPN 760 blister pack/thermo former machine for hot and cold forming of mouldable films/foils

Up to 40 cycles per minute depending on product and packaging size

Suitable for packing tablets, capsules, caplets or ampoules

Maximum foil width 165mm

Maximum feed length 140mm

Maximum forming area 150mm x 120mm

Maximum forming capacity 5 metres per minute

Recommended maximum forming depth 14mm

Maximum reel diameter for forming film 600mm and maximum reel diameter for lidding foil is 250mm

This machine can form to a maximum depth of 24mm with additional/optional tooling (not included)

Product feed can be manual or automatic

Power: 8.5-15Kw/415V/3phase/50Hz.

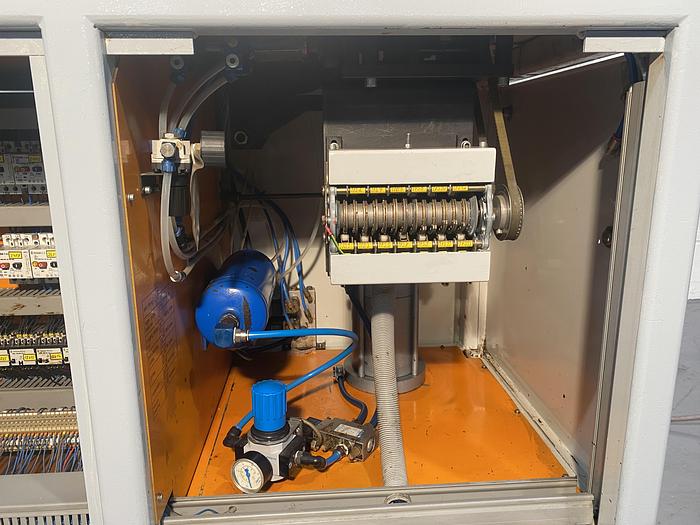

Air pressure: minimum 6 Bar to maximum 8 Bar

Machine size: 2800mm x 750mm x 1650mm high, approx. weight 1000kg

Condition: cleaned, checked, and tested by a specialist engineer


ModelDPN 760
Serial Number89996
Stock NumberGP10096
