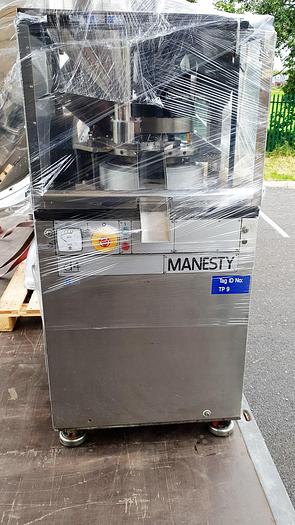

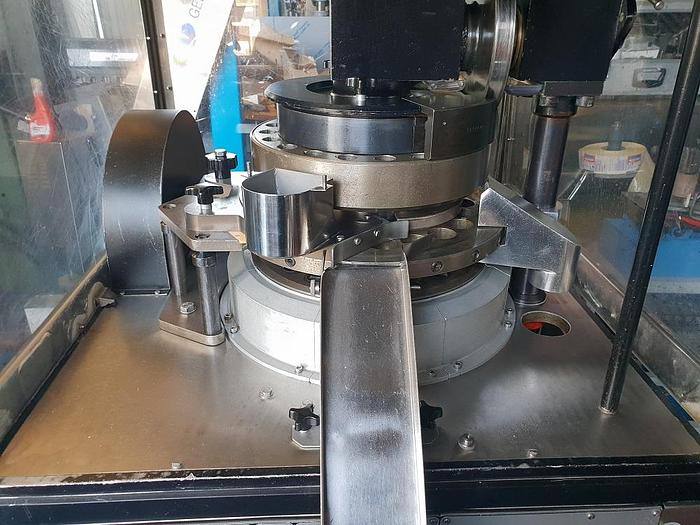

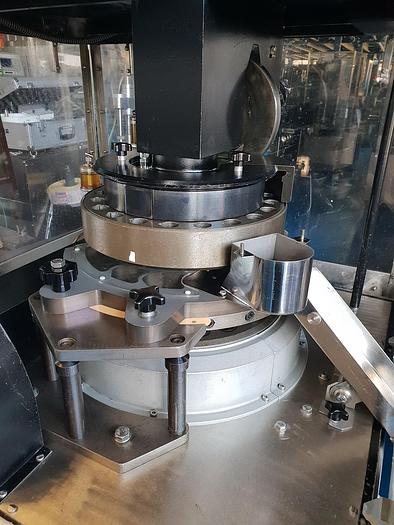

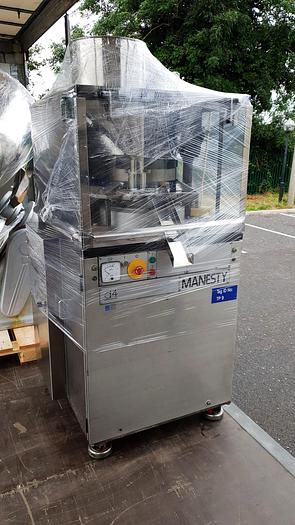

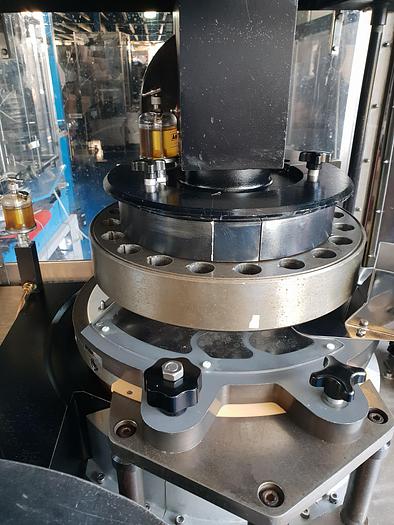

Manesty D4 Tablet Press


Worminghall, United Kingdom


Manesty D4 Tablet Press The Manesty D4 is the most versatile member of the Manesty “value range” of Tablet presses. A single sided rotary tablet press capable of producing tablets up to 25mm in diameter. The D4  offers reliability, ease of operation, and robustness in manufacturing a wide range of tablets at an affordable price. SECTORS OF USE: The D4 has been used for a wide range of both pharmaceutical and non pharmaceutical products. For effervescent tablets it’s 25.4mm maximum tablet diameter and relatively low speed has proved ideal to match up to lower output tube filling machines. Salt manufacturer’s have also found the features of the D4 ideally suited for the manufacture of their products. With the right combination of feeding capability, compaction force and robustness, the D4 is an excellent choice for this difficult to produce material. Other tablets produced on the D4 include nutraceuticals and catalysts. MAIN FEATURES: The D4 is the most versatile tableting machine of the Value Range, it is a single sided rotary tablet press. Minimal operator training, simple mechanical functions Minimal footprint requirements allows installation in all production areas. Fully guarded with electrical safety interlock devices. Standard ‘D’ tooling. TECHNICAL DATA Max operating pressure 100 Kn (10 tons) Stations 20 Max output 60,000 tablets/hour D-type machine – EUR1 D Max tablet diameter 25 mm Max fill depth 20.60 mm Condition: Good, checked, tested and running


Stock NumberVE10029
Max Operating Pressure100kn (10 tons)
ToolingEUR1 D
CapacityUp to 60,000 per hour
Max Tablet Dia25mm
Max Fill Depth20.60mm
