IMA Zanasi 40E Capsule Filler
Specifications

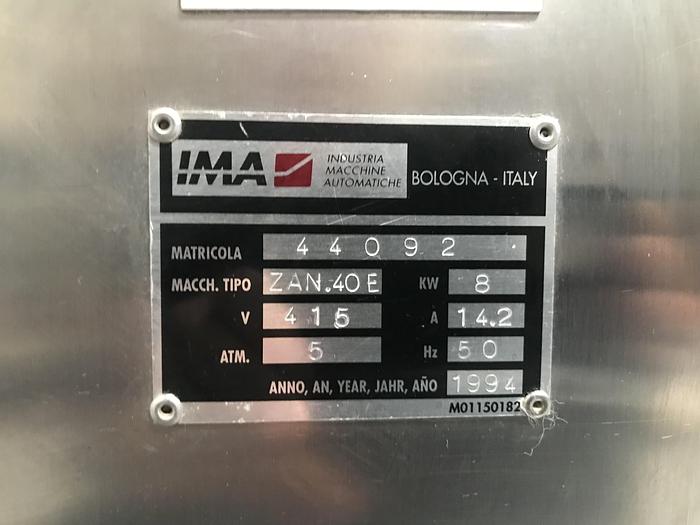

| Manufacturer | IMA |
| Model | Zanasi 40E |
| Year | 1994 |
| Condition | Used |
| Serial Number | 44092 |
| Stock Number | GP10129 |
| Maximum Output | Up to 40,000 capsules per hour |
| Capsules Per Cycle | 6 |
| Capsule Sizes | 00 to 5 |
| Available Format Parts | 0, 1 and 3 full sets & size 4 part set |
| Current Set Up | Powders into hard gelatin capsules |
| Power Supply | 415V 50Hz 3Phase |
| Maximum Installed Power (kW) | 10 |
| Manuals | Yes |
Description

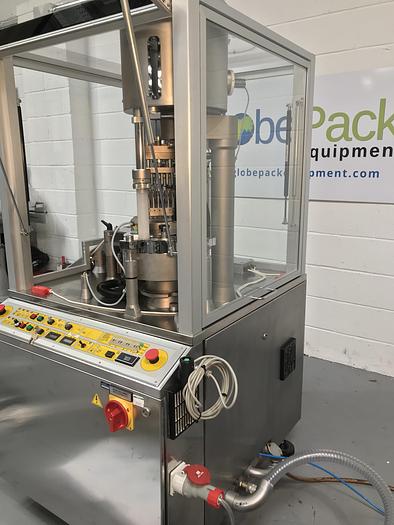

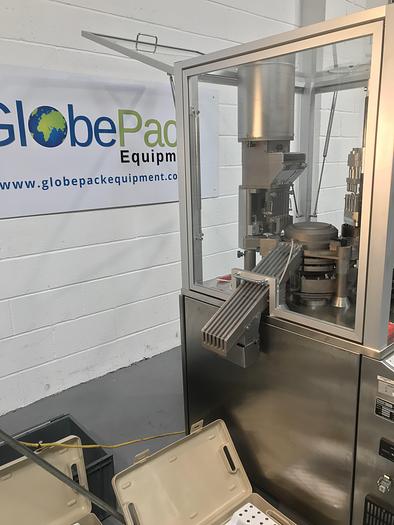

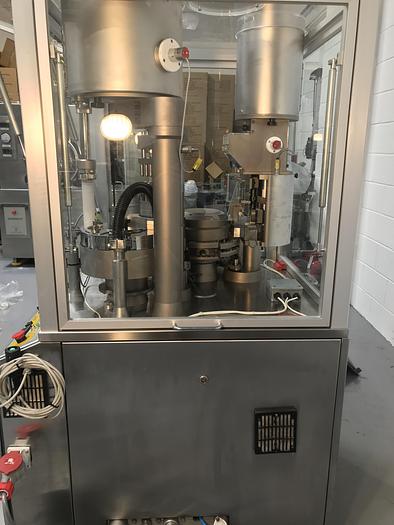

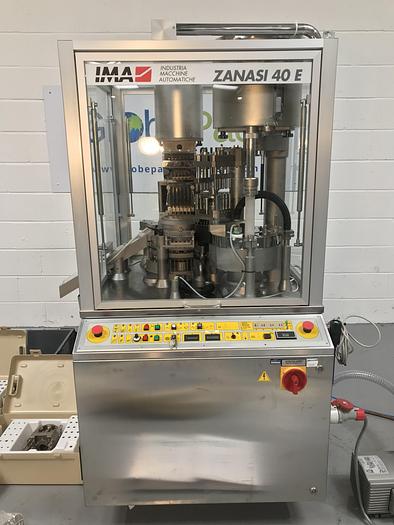

IMA Model Zanasi 40E Capsule Filler with Powder Feeding System
The Zanasi is an automatic capsule filler designed for processing hard gelatin capsules and able to dose power, pellets, tablets, minitablets and liquids, depending on machine configuration and installed dosing units

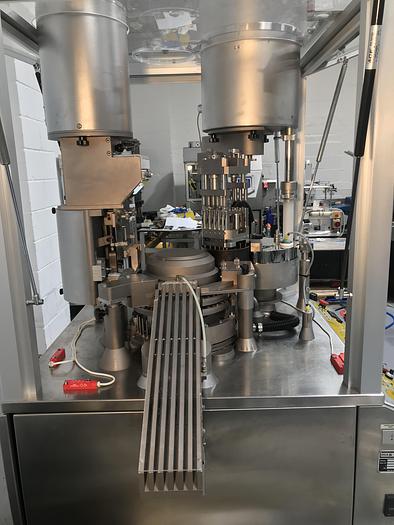

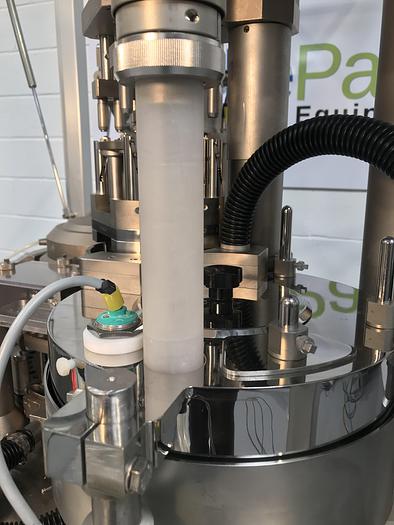

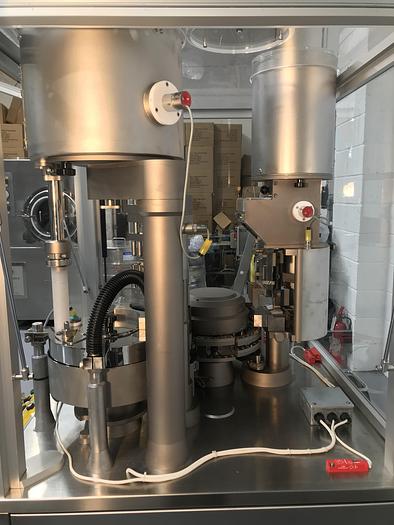

It is an intermittent motion capsule filler having a disc that rotates in clicks around its axle clockwise, transporting the capsules through 8 operating stations. Built for the packaging of hard gelatine capsules divided into two halves
OEM suggested dosing speed of up to 40,000 capsules per hour
This machine was last run on powders
Key Information

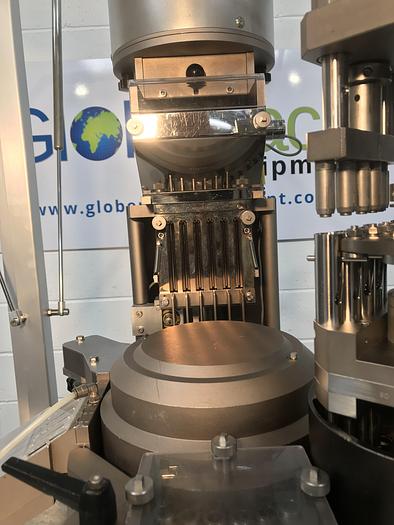

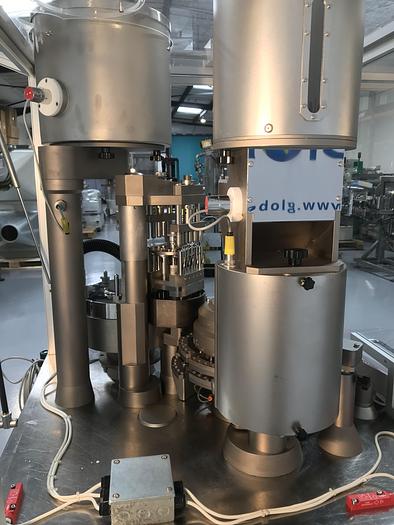

Powder feeding system
Suitable for capsule sizes from 00 to 5 (with the correct format parts)
6 capsules per cycle
Easy access to the working area

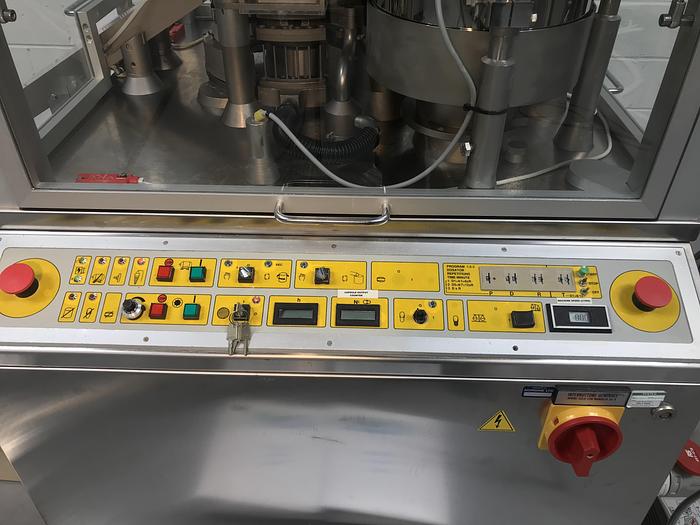

Ergonomic interface
Low size changeover and cleaning times

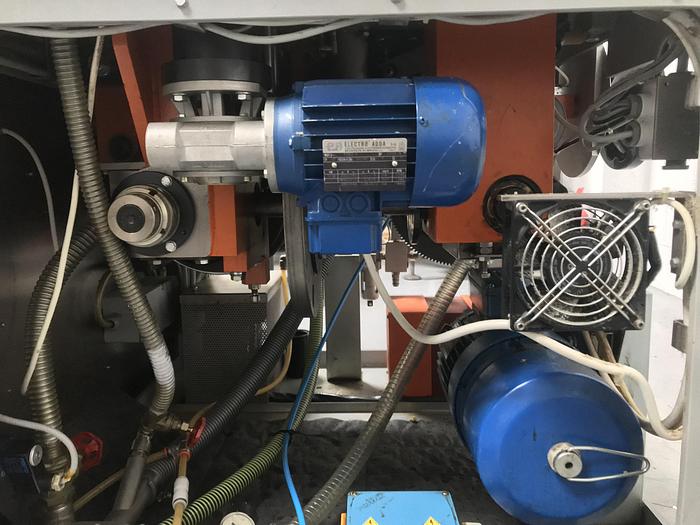

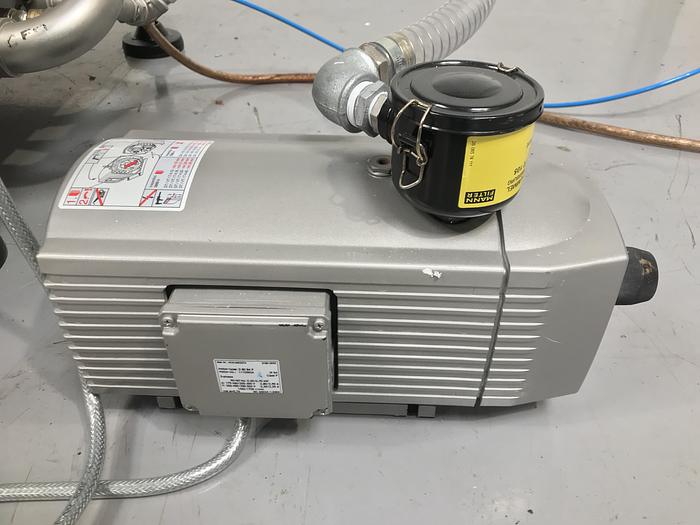

Vacuum pump included
Manuals included
Machine size: 1150mm x 920mm x 1180mm high, weight 1000kg

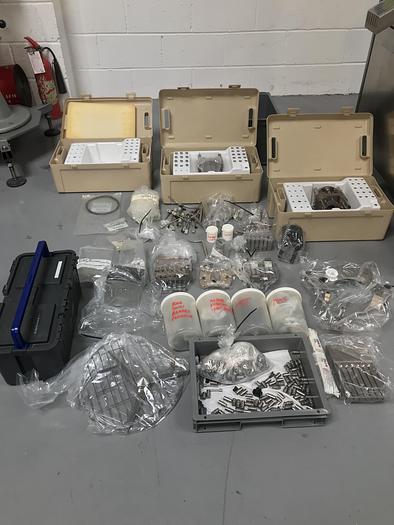

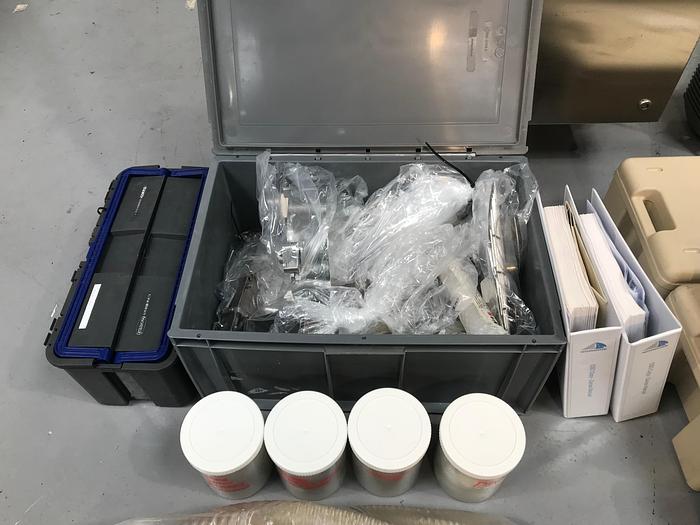

Available format parts - sizes 0, 1 and 3 full sets and size 4 part set
Supplied: cleaned, checked and tested dry cycling
