Baker Perkins Granulator Mixer
Specifications
| Manufacturer | Baker Perkins |
| Condition | Used |
| Stock Number | GP10109 |
| Variable Speed | 1500 and 3000 rpm |
| Agitator System | Bottom mixing blade & side chopper/granulator blade |
| Material | All Stainless Steel |
Description

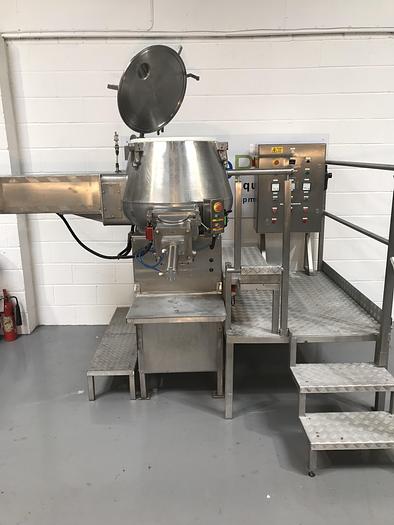

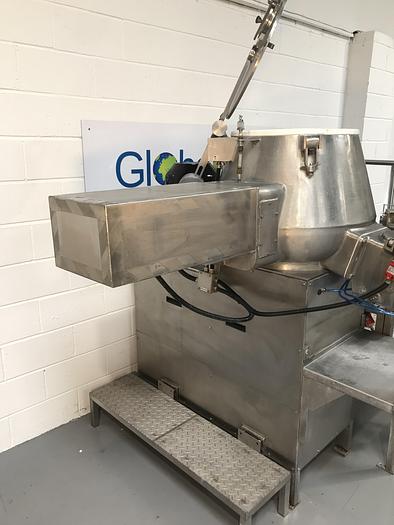

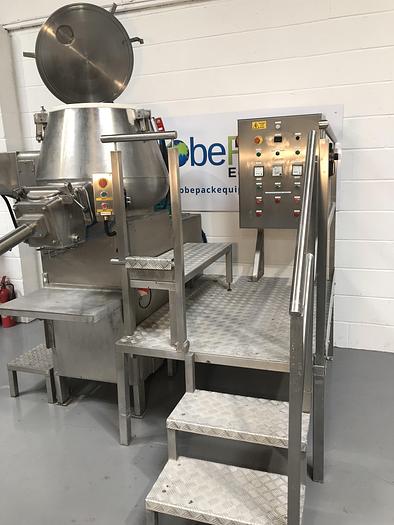

Baker Perkins granulator mixer
The Baker Perkins granulator mixer is a high intensity, high shear industrial processing machine designed to blend powders and convert them into uniform, free flowing granules

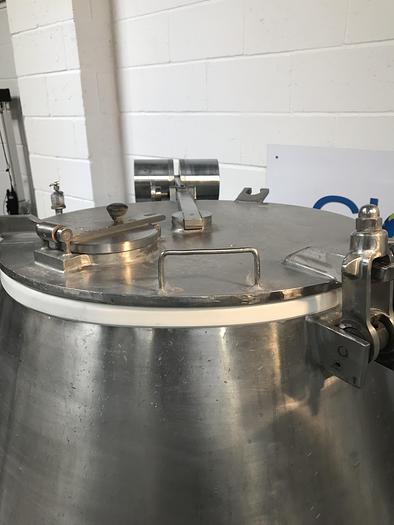

High intensity mixing: Built with a jacketed, tulip shaped stainless steel mixing chamber

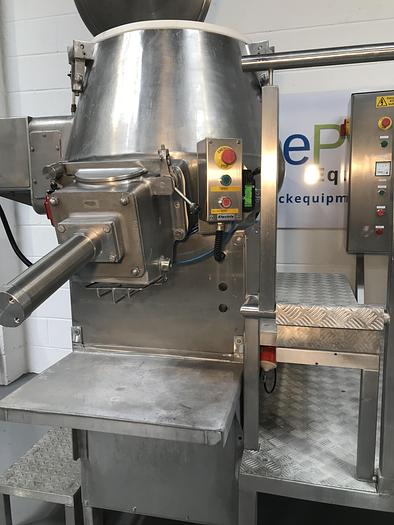

Agitator system: Features a bottom driven high intensity mixing blade, three arm design, paired with a side entering high speed chopper/granulator blade
Dual/variable speeds: Granulator and main mixer motors support multiple or variable speeds (such as 1500/3000 rpm on the granulator unit) for precise control over shear intensity and particle formation.

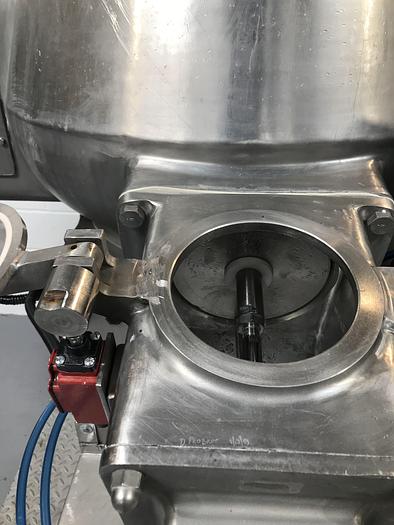

Discharge and control: Equipped with pneumatic exit valves and integrated control panels
Other Information:

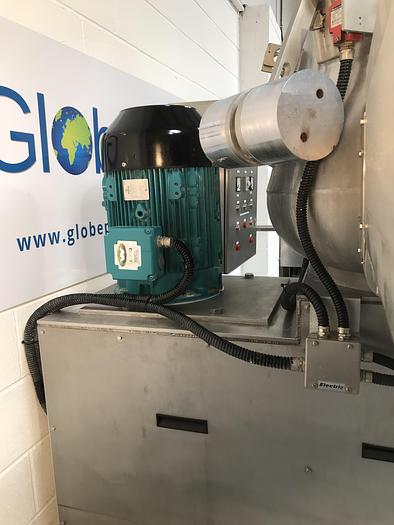

Main mixer is two speed 1500 rpm and 3000 rpm

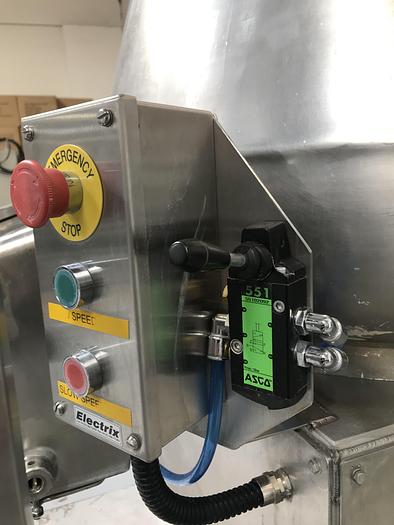

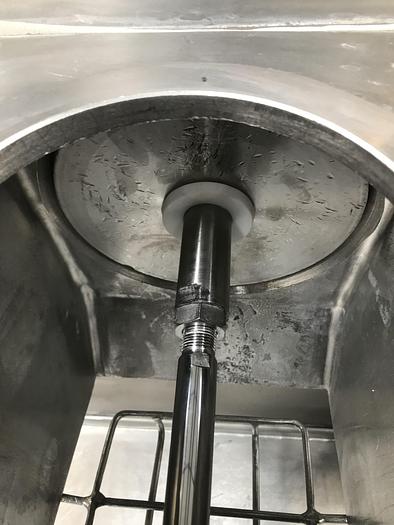

Pneumatic exit valve control

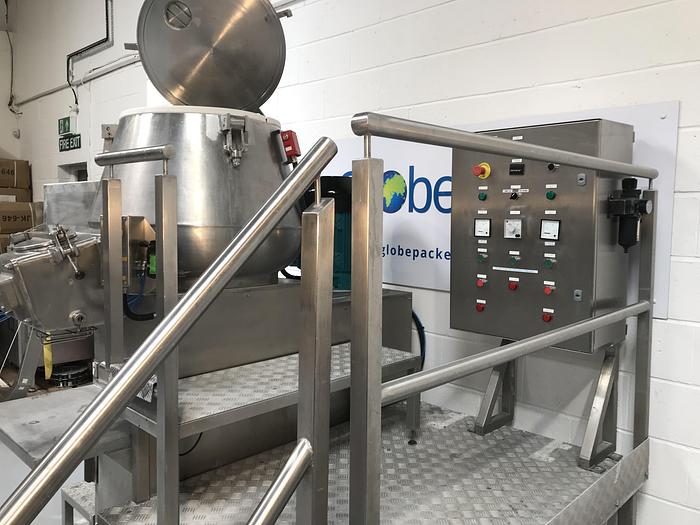

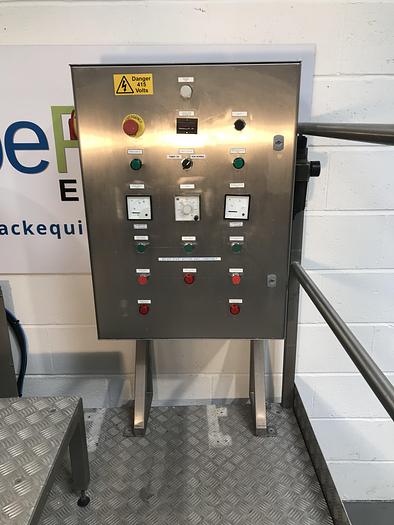

Separate control panel
Access staging
All Stainless Steel construction
Electrical supply 415v 32a 3ph
Mixer dimensions (excluding staging): 2100mm x 1650mm x 2000mm high, weight 2000kg
Supplied: cleaned, checked and tested dry cycling
