Markem 9232 Coder Printer


Normanton, United Kingdom

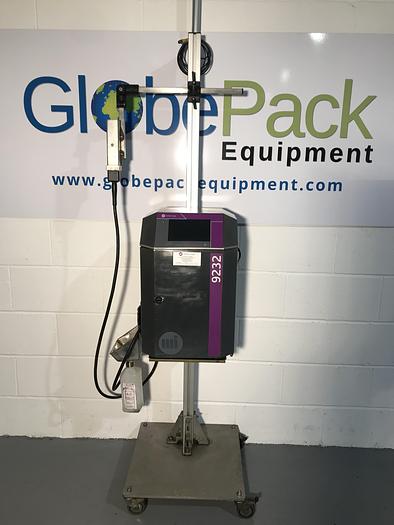

Markem 9232 coder printer

Weight: 25 kg

• Table-top or vertical mounting

• Ultra-flexible 3-meter umbilical cable

• Stainless steel cabinet and printhead case

• Dust/humidity protection rating: IP56 not requiring plant air

• Operating temperature range: 0 to 40°C depending on ink used

• Humidity: 10 to 90% non-condensing

• Electrical power supply: 100-120 V or 200-240 V with automatic switching; frequency 50/60 Hz; power 60 VA

Mono-jet printhead • G head (printing resolution: 71 dpi) • M head (printing resolution: 115 dpi) • Up to 5 lines of print • Print speed: up to 6.6 m/s • Font height from 5 to 32 dots • Character height: from 1.1 to 11.4 mm • Wide choice of 1D and 2D barcodes (EAN8/EAN13/EAN128/UPCA/UPCE barcodes, code 39, code 128, interleaved 2 of 5, Datamatrix) • Wide choice of characters (Latin, Japanese, Chinese, Korean, etc.

 Message library (up to 1000 messages) • International operator/machine interface with a wide choice of languages • WYSIWYG 7-inch wide touch screen: realtime display of remaining print capacity expressed in hours and number of messages; integrated assistance and alert system; simplified message printing and management; creation of user profiles; and tracking of consumption and printer availability • USB and SD ports • Jet Speed Control guarantees marking quality • Automatic selection of fonts, depending on print speed and printhead/object distance • Broad range of inks: multi-use, high performance; alcohol-based, ketone-free and MEK-free inks available • Sealed 0.8-liter cartridges with foolproofing system • Quick connect/disconnect of accessories (photocell, alarm and encoder) • Parent/child connectivity • Ethernet connectivity


Model9232 Coder Printer
Serial NumberFR11410115
Stock NumberGP10069
