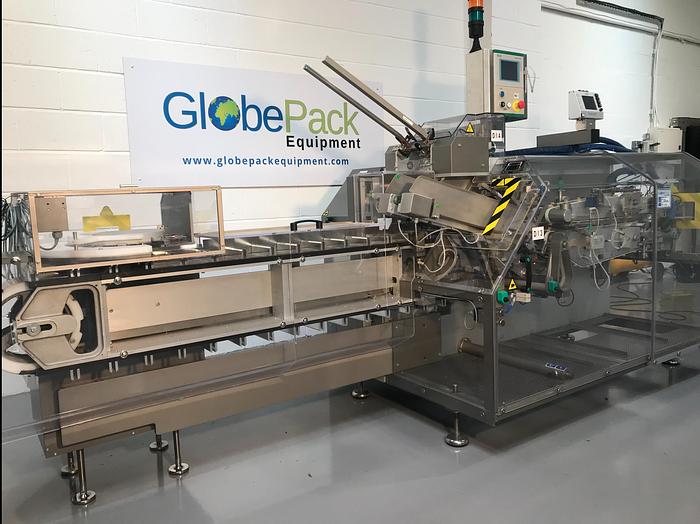

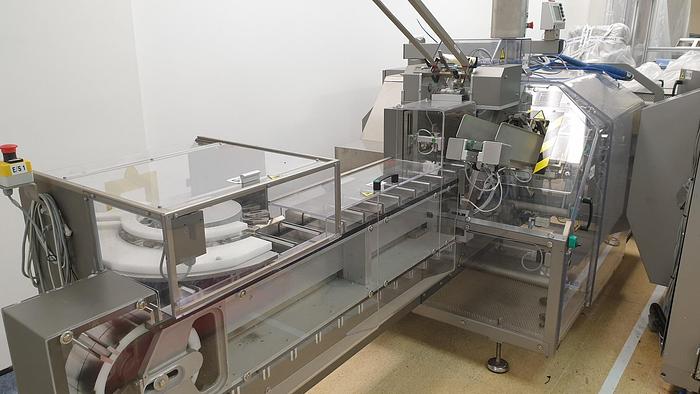

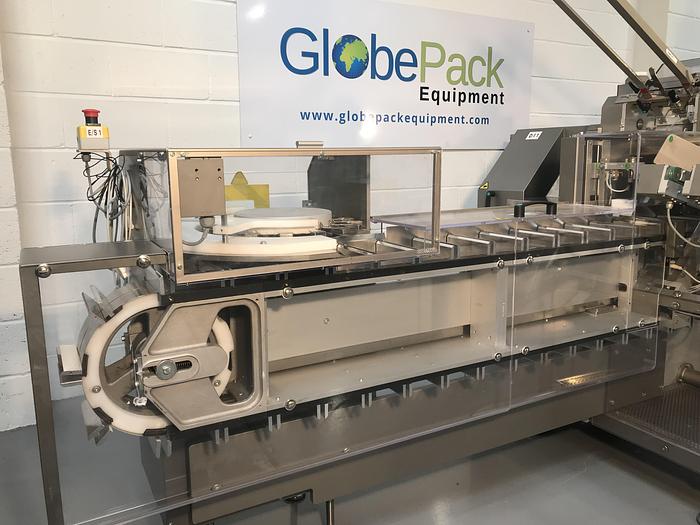

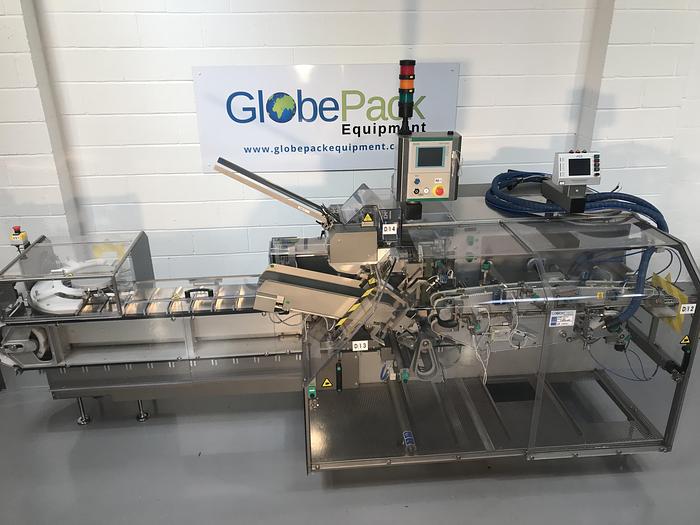

Marchesini MA 100 Cartoner

Price

Contact us for price

Location

United Kingdom

orCall +44 (0)1344 891379

Description

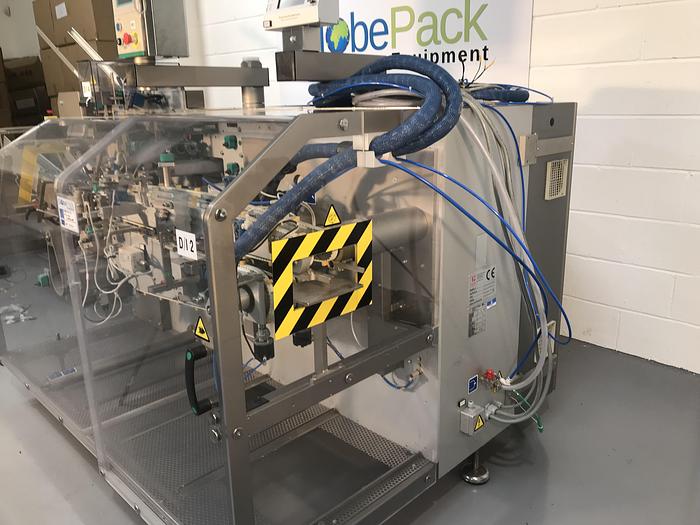

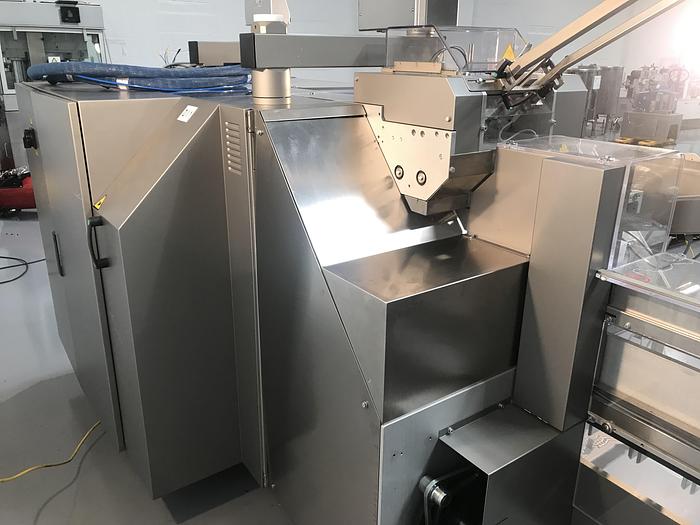

The Marchesini MA 100 is a horizontal cartoner, entirely made with balcony construction, designed around three concepts: versatility, ergonomics and maximum efficiency in a small footprint. The machine is CE certified and complies with the existing safety standards.


Last run on effervescent rigid tubes.


Main features:

  • 130mm wide adjustable through conveyor (currently set for product size 130mm x 145mm)

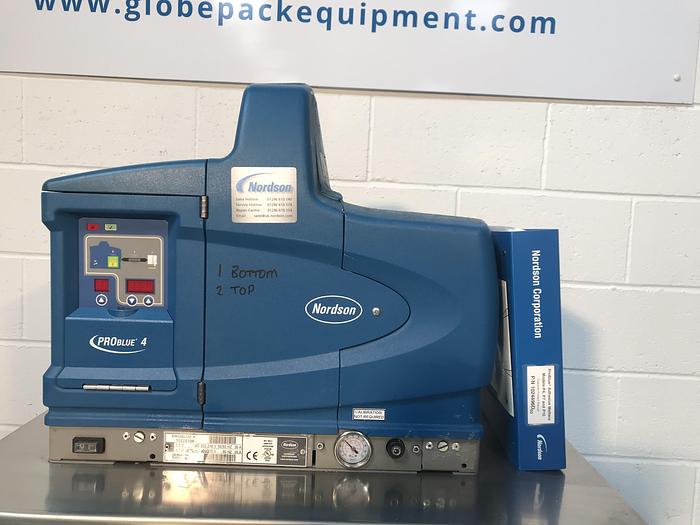

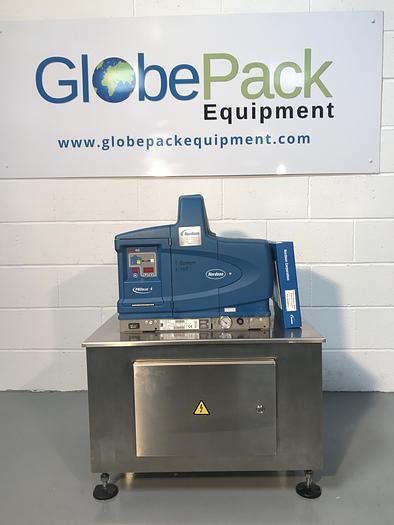

  • Hot glue closure type with free standing Nordson ProBlue 4 unit

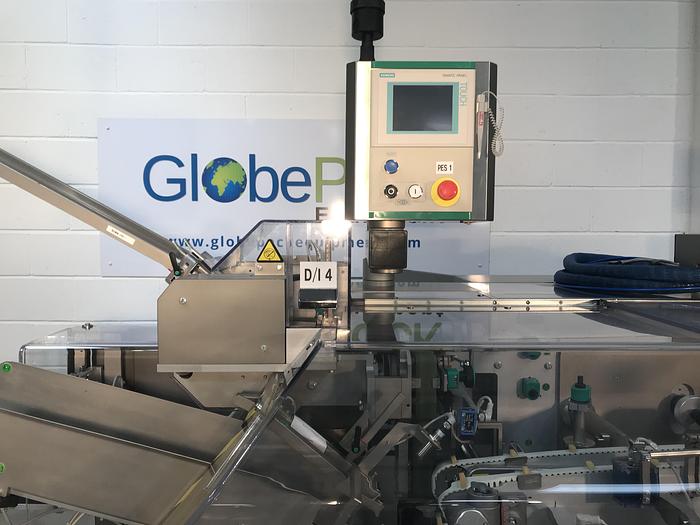

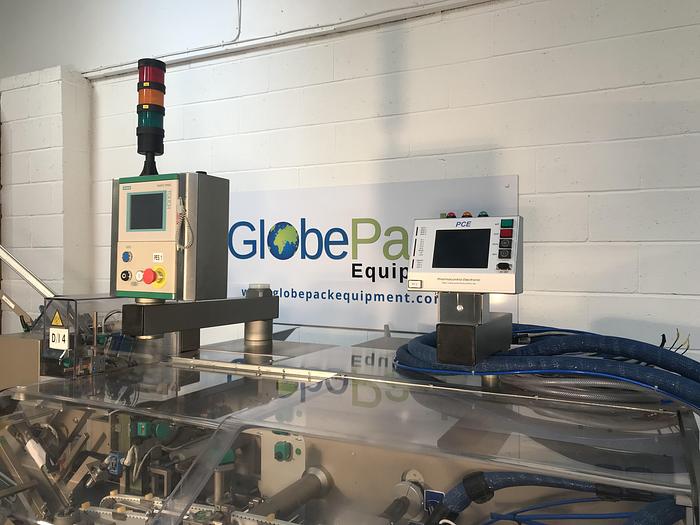

  • Siemens Simatic touch screen
  • pre-folded leaflet inserter (strips)
  • integrated PCE verification track and trace system (for leaflets and boxes)
  • cross control of the presence of product/carton/leaflet
  • minimum load sensors for product/carton/leaflet
  • mechanical overload control unit
  • automatic operating cycle with carton and leaflet pick-up only with the presence of the product
  • leaflet presence checking device during insertion into the carton

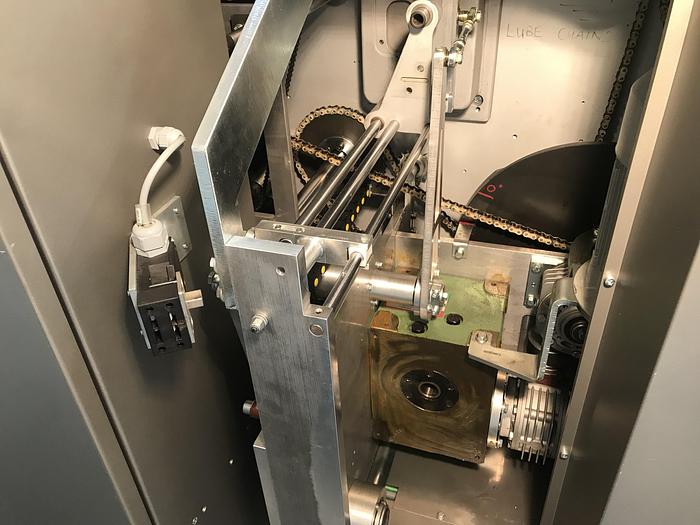

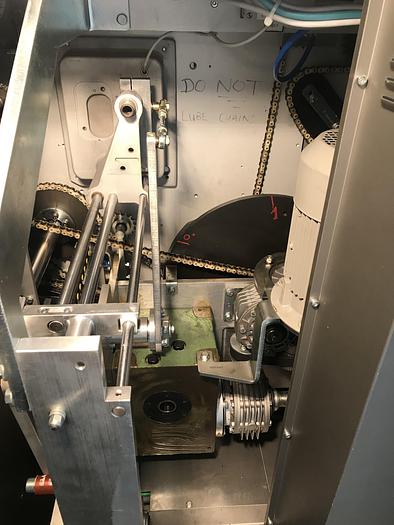

  • oil-bath main drive units
  • emergency stop button
  • fully guarded with sliding doors
  • CE marked.
  • Electrical requirements 415V, 50Hz, 3 Phase, 6kW.
  • Compressed air consumption 80 Nl/1’.

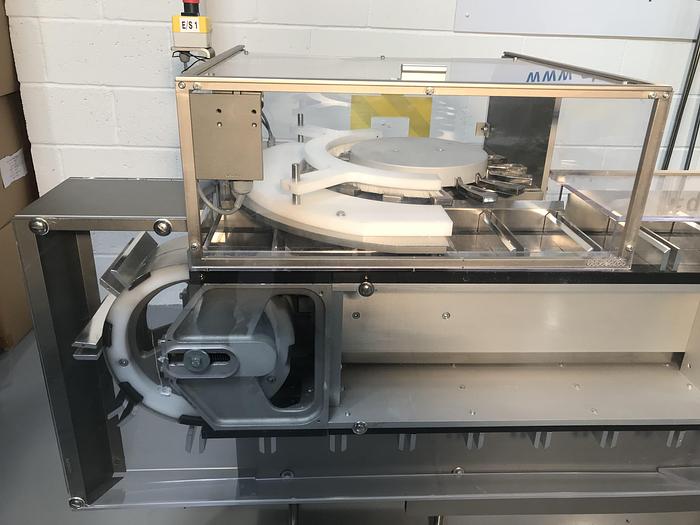

  • Simultaneous adjustment of all infeed buckets;

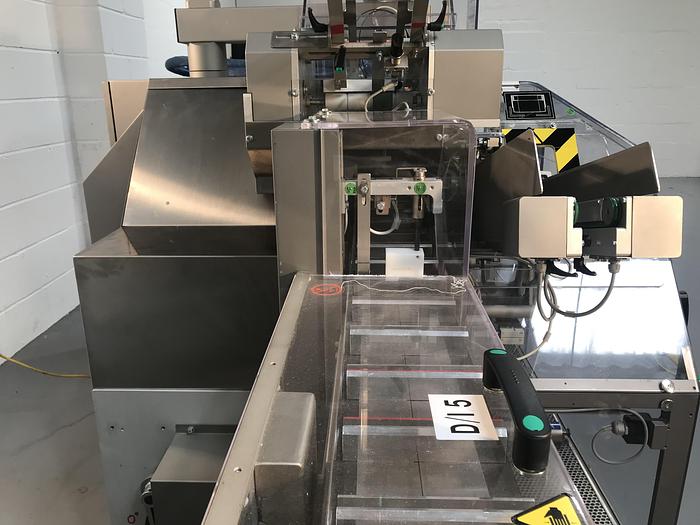

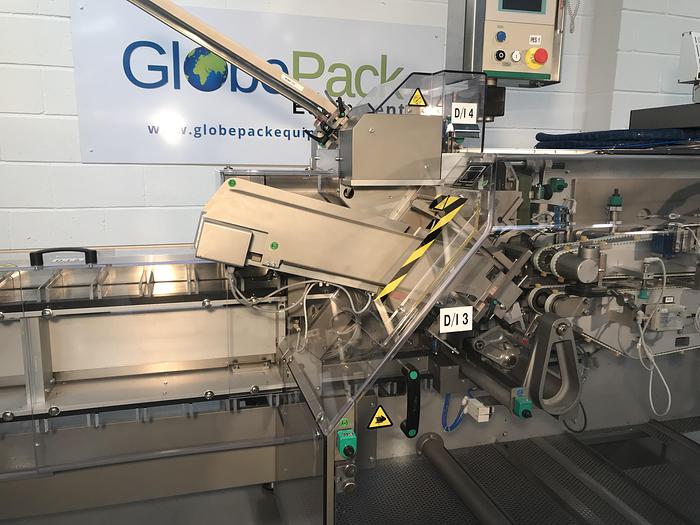

  • Carton magazine with pusher belt;
  • Leaflet feeding unit;
  • Direct transfer into the belt transport system;

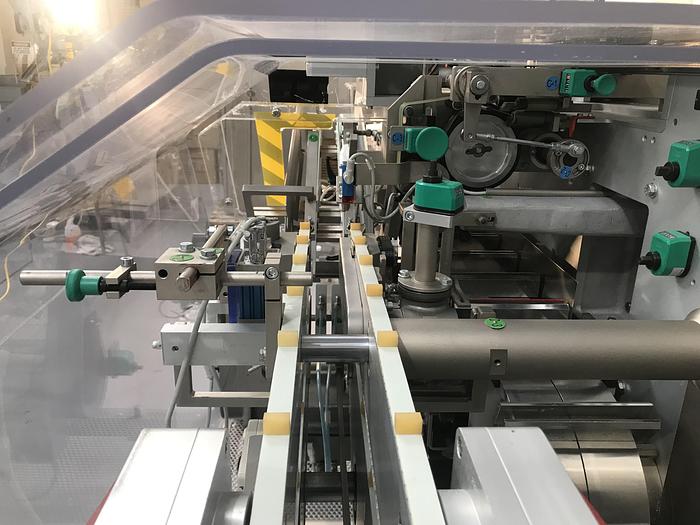

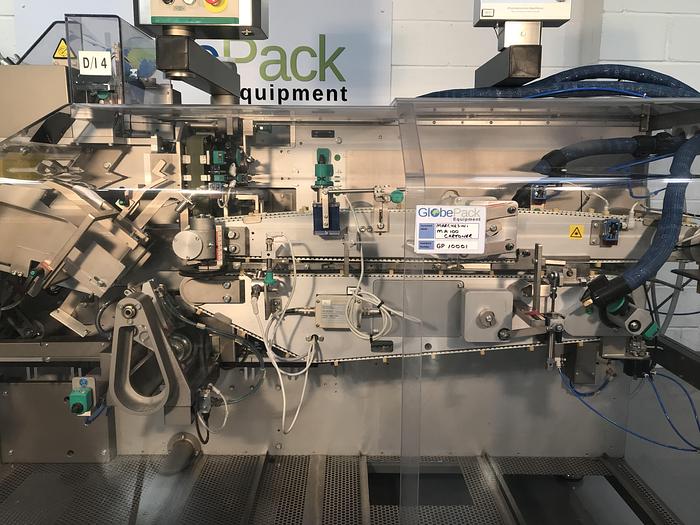

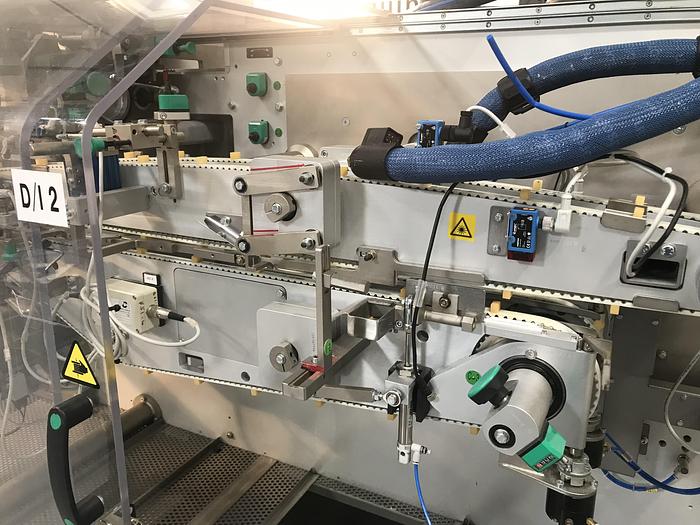

  • After pre-breaking the carton is transported by a parallel mounted belt transport group composed of two upper and two lower belts, which maintain the carton in perfect square;
  • Product arriving from the infeed chain is inserted with a pusher placed opposite operator side;
  • After the closing operation the carton is discharge direct onto the conveyor belt of the following machine or onto guides;

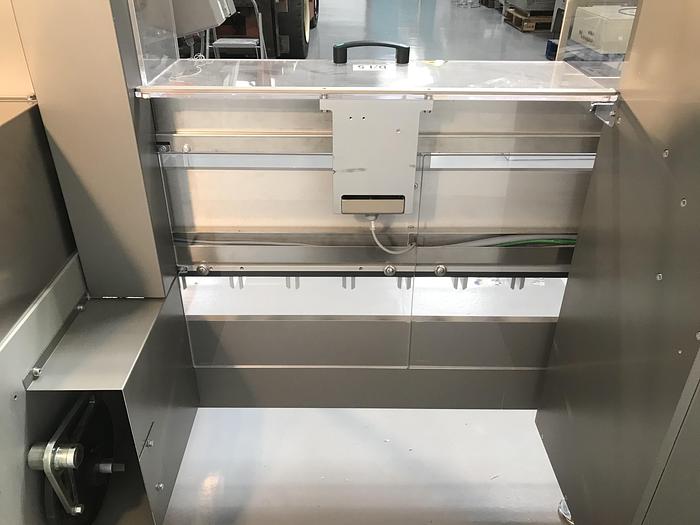

  • Safety Guard in Methacrylate material with electric interlocks, safety micro switches on opening positions;
  • Easy size change through handwheel and digital indicators and/or sized gauges.


Technical Specifications


PRODUCT RANGE

Carton width:

MA100: 20-85 (mm)

Carton height:

MA100: 16-65 (mm)

Carton Length:

MA100: 60-170 (mm)

OUTPUT

Production speed:

MA100: 100 (cartons/min)


Manuals, technical documentation and drawings in English and Italian.

Machine size: 3800mm x 1600mm x 2300mm high, weight 1200kg.


Condition: Cleaned, checked, tested and running



Specifications

ManufacturerMarchesini
ModelMA 100
Year2011
ConditionUsed
Stock NumberGP10006
Carton width20-85 (mm)
Carton height16-65 (mm)
Carton length60-170 (mm)
Production speed100 (cartons/min)
