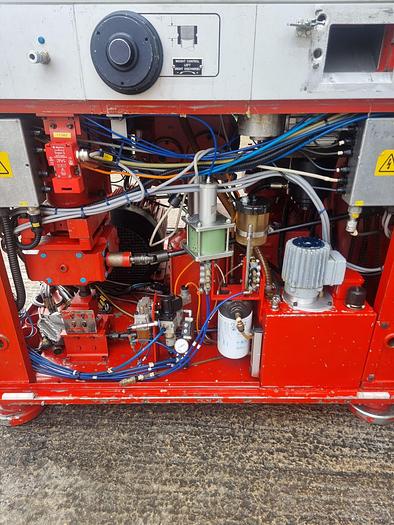

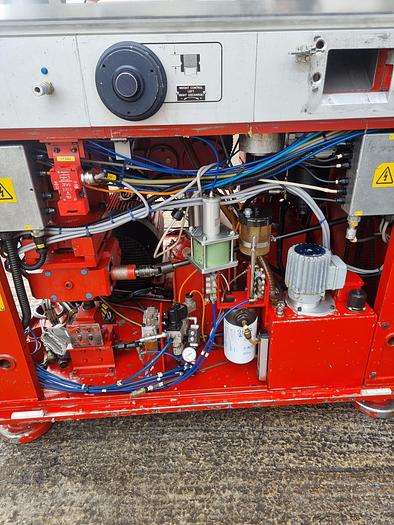

Manesty Rotapress Diamond B Type Tablet Press (bi-layer)


Contact us for price


Worminghall, United Kingdom

orCall +44 (0)1344 891379

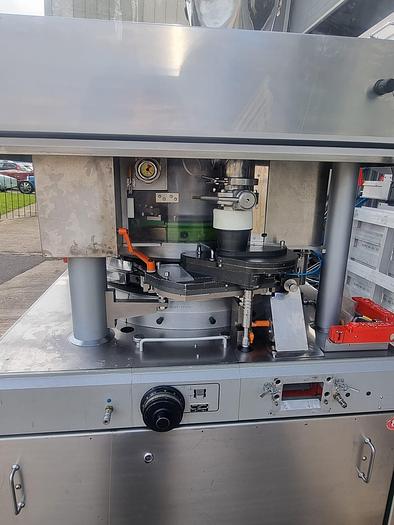

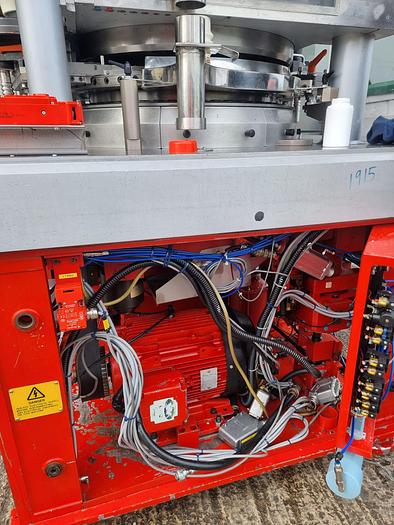

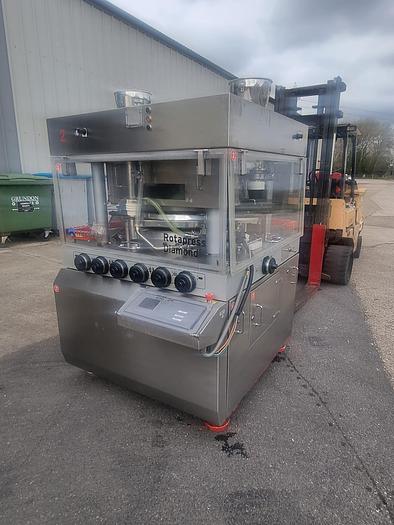

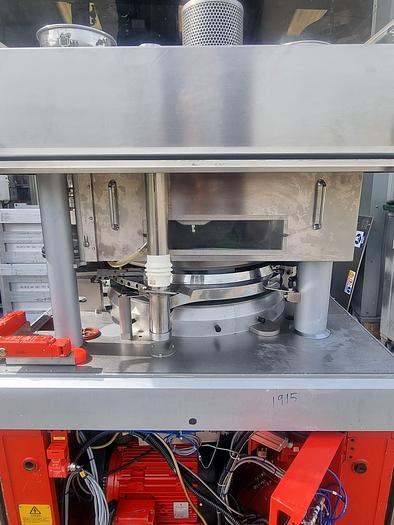

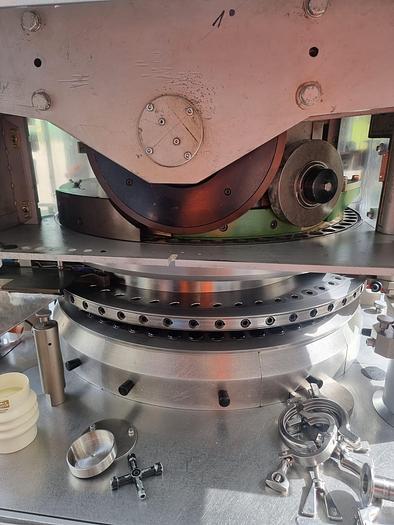

Manesty Diamond 55 station B type rotary tablet press designed for high speed production of a wide range of products

Key Information

  • Maximum output up to 588,000 tablets per hour
  • Minimum output 84,000 tablets per hour
  • Euro B type tooling
  • Maximum depth of fill 17.4mm
  • Maximum tablet diameter 16mm
  • Upper punch entry 1.5mm – 8mm
  • Maximum compression force 100 kN (10 Tonnes)
  • Pre-compression station is fitted as standard on all Rotapress machines
  • Minimum/maximum upper pre-compression entry 0mm to 8mm
  • Centralised lubrication system

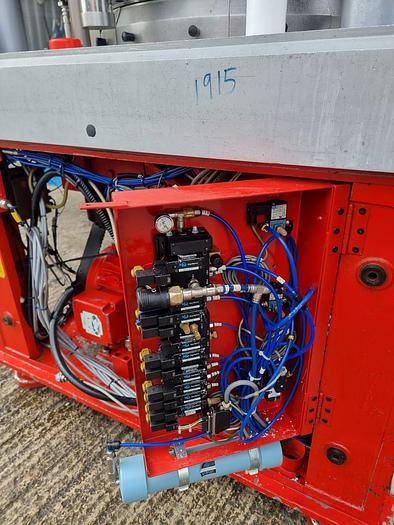

  • Full electrical safety interlocked guarding with hinged electric and pneumatic panel guards (also connected to turret brake)
  • Variable frequency drive
  • Hopper capacity 11.5 litres

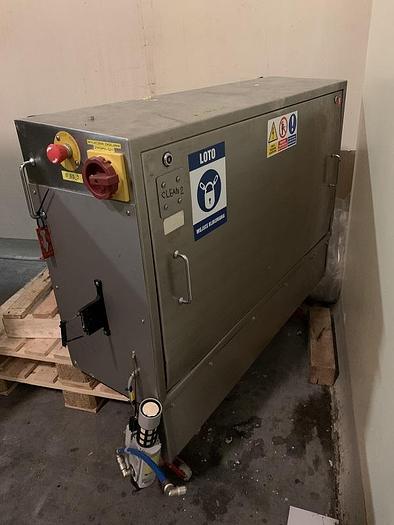

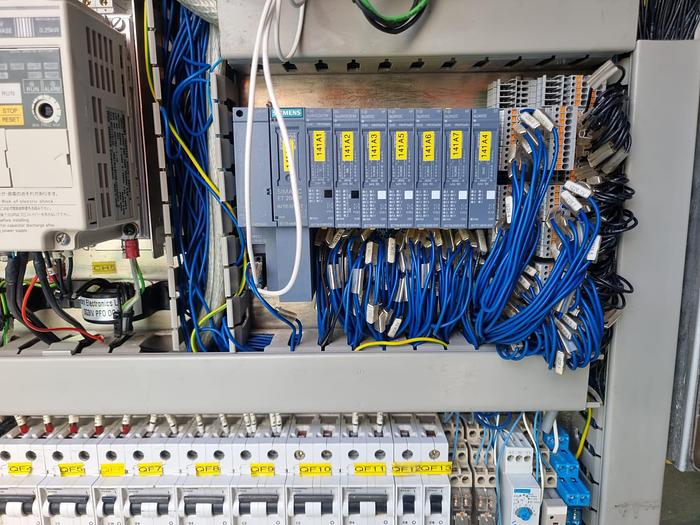

  • Separate control cabinet with LCD panel, mounted on wheels
  • Complete with manuals in English in electronic PDF and hard copy versions

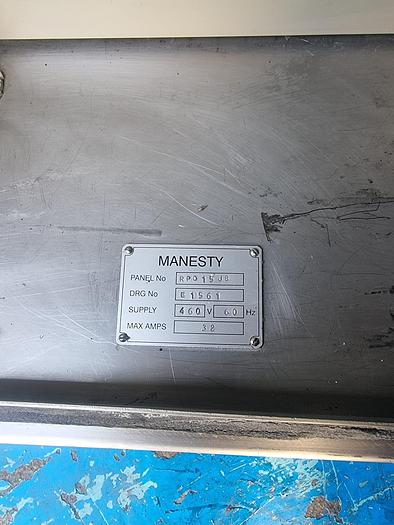

  • Electrical supply 380/480V, 60Hz, motor 50 cycles/11kw


Main machine 1670mm x 1780mm x 1910mm high, weight 3750kg

Control panel 1500mm x 550mm x 1350mm high, weight 350kg


ModelRotapress Diamond
Stock NumberVE10034
Tooling typeEuro B Type tooling
Max output588,000 tablets per hour
Min output84,000 tablets per hour
Max compression100 kN (10 Tonnes)
