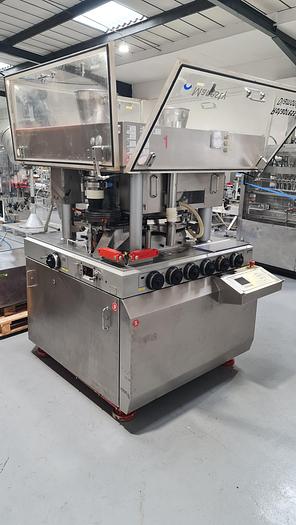

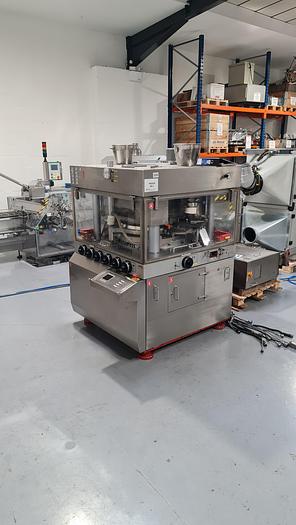

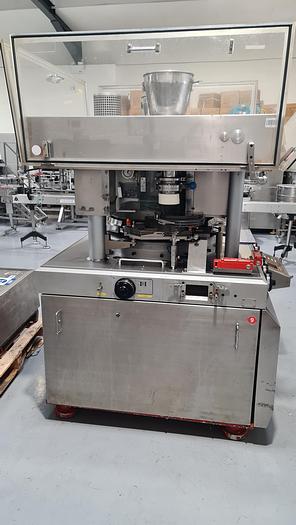

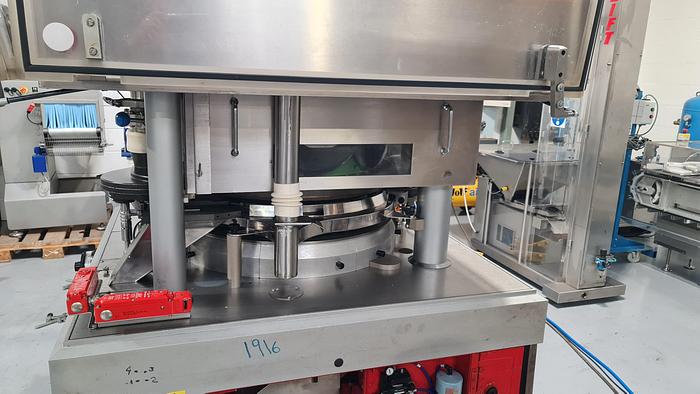

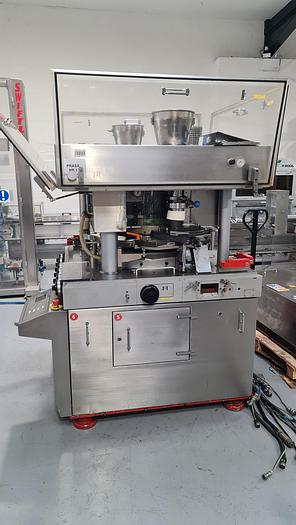

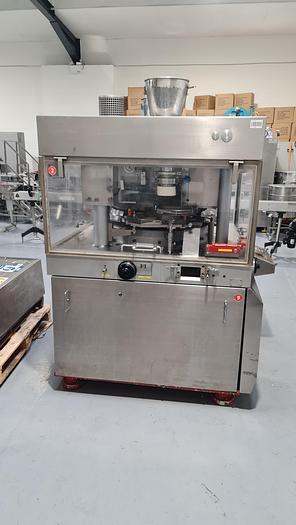

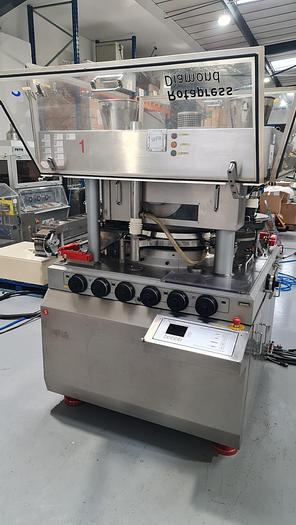

Manesty Rotapress Diamond D-type Tablet Press
Manesty Rotapress Diamond - 45 Station D-type rotary tablet press designed for high speed production of a wide range of products.
- Max output up to 588,000 tablets per hour – Min output 84,000 tablets per hour.
- Euro D Type tooling
- Max depth of fill 20.63mm – Max tablet Dia 30.16mm – Upper punch entry 1.5mm – 8mm.
- Max compression force 100 kN (10 Tonnes).
- Pre-compression station is fitted as standard on all Rotapress machines (Min / Max Upper Pre-compression Entry – 0mm to 8mm).

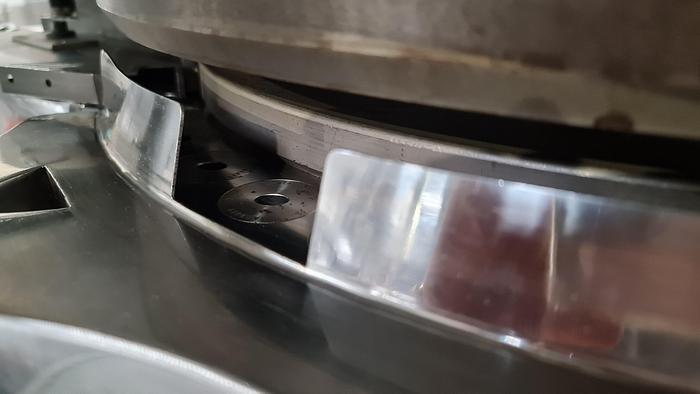

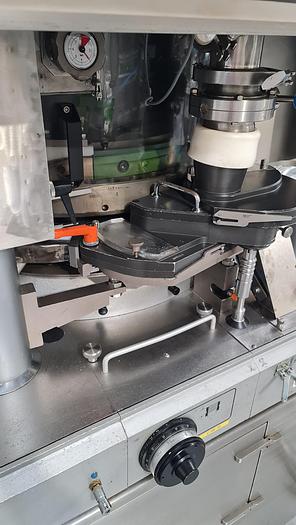

- Quick release rotary feeders allow for a fast access to upper punches and reduction in general cleaning and change over time.
- Rotary feeders are double paddle equipped for optimum performance over a wide range of materials and tabletting speeds.
- Centralised lubrication system.

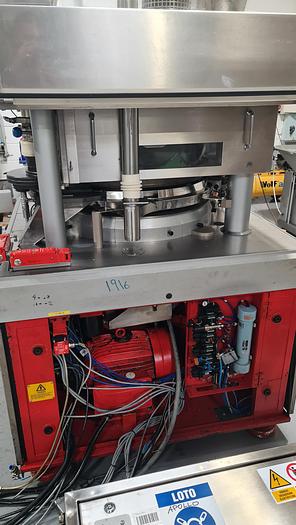

- Full electrical safety interlocked guarding with hinged electric and pneumatic panel guards (also connected to turret brake) for operator’s safety and for providing all round access to the lower cabinet.
- Variable frequency drive.
- Hopper capacity 11.5 Litres.

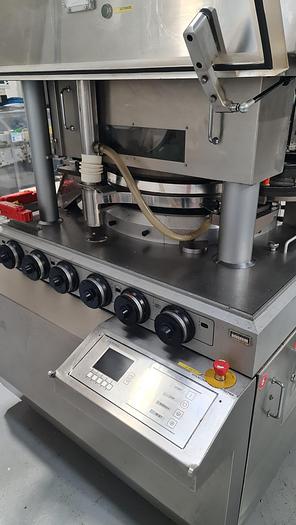

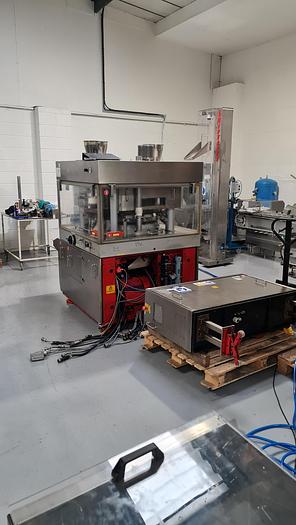

- Separate control cabinet with L.C.D. Panel – Mounted on wheels.
- Electrical Supply 380/480V – 60Hz – Motor 50 cycles/11kw.
Complete with manuals in English in electronic PDF and hard copy versions.
SIZE MAIN MACHINE 1670mm x 1780mm x 1910mm High – W/T 3750kg – CONTROL PANEL 1500 x 550mm x 1350mm High – W/T 350kg.
RECENTLY TAKEN OUT OF PRODUCTION – GOOD FULLY WORKING CONDITION
|Tooling type||Euro D-type Tooling|
|Max output||588,000 tablets per hour|
|Min output||84,000 tablets per hour|
|Max compression||100 kN (10 Tonnes)|
